Calculating the load capacity of a transformer is an essential part of designing and installing an electrical system. The load capacity refers to the maximum amount of electrical power the transformer can handle safely without overloading or causing damage. Properly calculating the load capacity ensures that the transformer operates efficiently, reliably, and within its limits, providing continuous power to the connected load.
The load capacity calculation depends on various factors, such as the transformer's voltage rating, current rating, and efficiency, as well as the type of load it is designed to support. In this article, we will explain how to calculate the load capacity of a transformer based on its nameplate rating and other important electrical parameters.

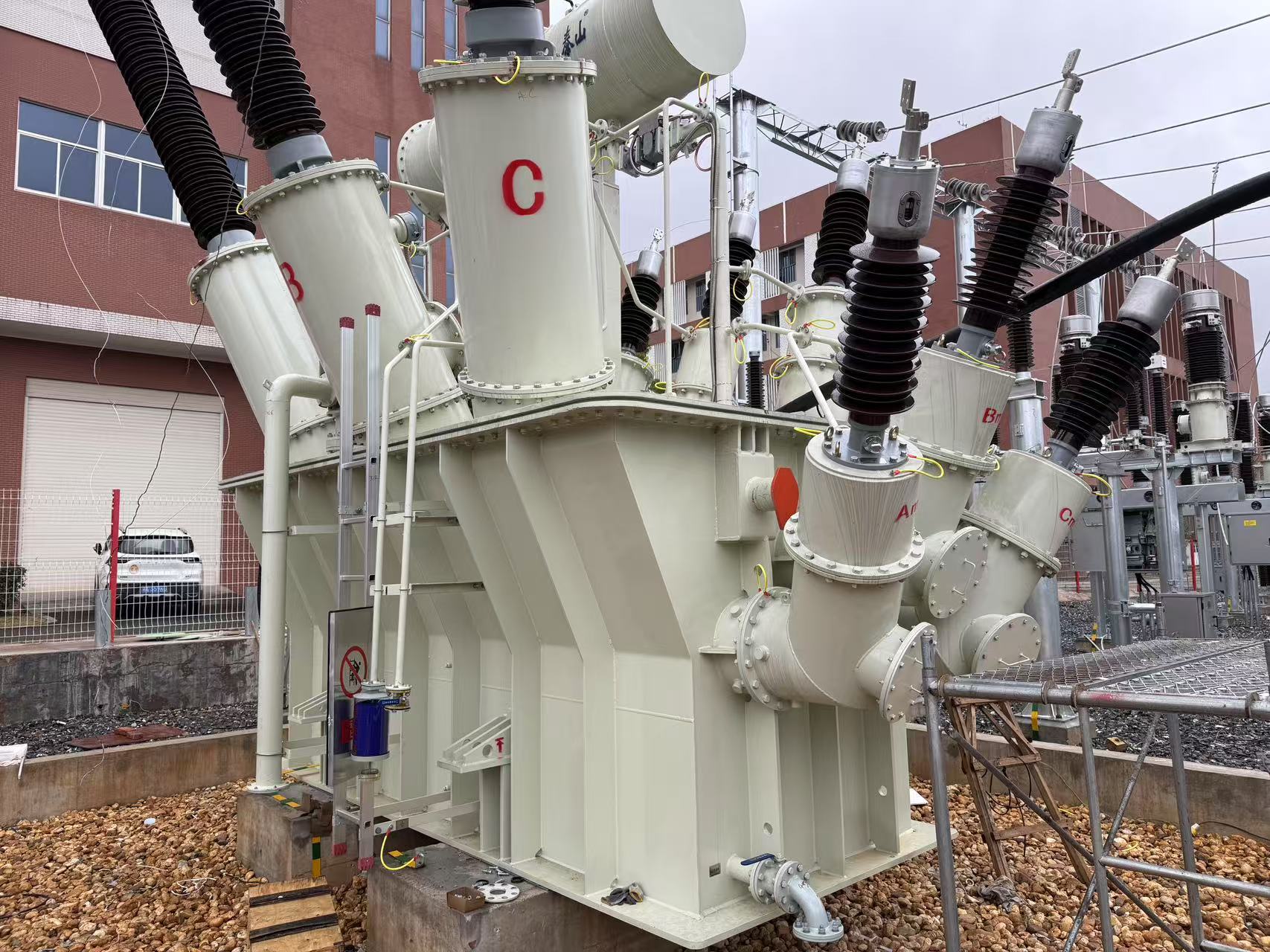

What is Load Capacity in the Context of Transformers?
In the world of electrical power systems, transformers are essential components that allow electricity to flow efficiently across long distances and through different voltage levels. However, for transformers to perform optimally and safely, it is critical to understand their load capacity.
Load capacity refers to the maximum amount of electrical load or power a transformer can handle safely without compromising its performance or causing damage. This is a crucial specification that impacts both the operational efficiency and safety of electrical distribution systems. Let’s dive deeper into what load capacity means, why it matters, and how it affects transformer selection and operation.
Understanding Transformer Load Capacity
Transformers are designed to step up or step down voltage levels to meet the needs of electrical systems. Load capacity is directly related to the transformer’s power-handling ability, which is typically measured in volt-amperes (VA), kilovolt-amperes (kVA), or megavolt-amperes (MVA).
- Volt-Amperes (VA): This unit of measurement combines voltage and current in an alternating current (AC) system. It represents the apparent power, which is the total power supplied to the circuit.
- Kilovolt-Amperes (kVA): This is the most commonly used unit to describe the load capacity of transformers in industrial and commercial applications. 1 kVA equals 1,000 VA.
- Megavolt-Amperes (MVA): For larger transformers, especially in power plants or grid systems, load capacity may be measured in MVA, where 1 MVA equals 1,000 kVA.
How Load Capacity is Determined
The load capacity of a transformer is determined by its design, core materials, and cooling methods. It is the amount of electrical power the transformer can handle before reaching its maximum rated temperature or overload condition.
Key Factors Influencing Load Capacity:
- Core Design and Material: The transformer core, usually made of laminated steel, dictates the transformer’s ability to handle current without excessive heating. The core material's properties impact the maximum load the transformer can carry.
- Winding Configuration: The windings (primary and secondary) are made of copper or aluminum and are designed to handle specific amounts of electrical current. The winding resistance and the amount of current they can carry without overheating are critical to load capacity.
- Cooling Systems: Transformers have built-in cooling systems (oil, air, or natural convection cooling) to dissipate the heat generated by the electrical current passing through the windings. The cooling system's capacity plays a direct role in determining the transformer’s load capacity. Oil-cooled transformers typically handle higher loads than air-cooled transformers.
- Temperature Limits: Each transformer has a maximum allowable temperature limit. The load capacity is often expressed in terms of continuous ratings (the load it can handle indefinitely without overheating) and short-term overload capacity (the amount of overload it can handle for a short time without damage).
Load Capacity vs. Load Factor
While the load capacity represents the maximum amount of electrical power a transformer can handle, the load factor is a more operational concept. The load factor refers to the ratio of the actual load being applied to the maximum rated load capacity of the transformer.
- High Load Factor: When a transformer operates close to its maximum load capacity over time, it is said to have a high load factor. This situation often indicates optimal performance and efficient energy use.
- Low Load Factor: If the transformer operates at a much lower load than its rated capacity, it may be underutilized, leading to inefficiency in the system.
Importance of Load Capacity
The load capacity of a transformer is crucial for several reasons:
- Preventing Overloads and Failures: Operating a transformer beyond its load capacity can lead to overheating, resulting in damage to the windings, insulation breakdown, and potential failure. In extreme cases, this can even cause fires or explosions.
- Optimizing Performance: Choosing a transformer with an appropriate load capacity ensures that the system operates efficiently and reliably without wasting energy or incurring unnecessary maintenance costs.
- Ensuring Safety: Transformers are often equipped with safety mechanisms such as overload protection and temperature sensors. These systems are designed to prevent a transformer from being overloaded, ensuring the safety of the entire electrical system.
- Meeting Future Demands: When planning transformer installations, it is important to consider future load growth. Choosing a transformer with a sufficiently high load capacity ensures that it will be able to meet the needs of a growing system without requiring a costly replacement.
Calculating Transformer Load Capacity
When determining the required transformer size for a specific application, the load capacity must be carefully considered based on projected power demand and future growth. The load capacity is typically calculated using the following formula:
[\text{Load Capacity (kVA)} = \frac{\text{Power (kW)}}{\text{Power Factor (PF)}}]
Where:
- Power (kW) is the total electrical power required.
- Power Factor (PF) is a dimensionless number between 0 and 1, representing the efficiency of the system. For typical AC systems, the power factor is usually between 0.8 and 1.
It’s important to remember that transformers are often rated to handle both continuous and intermittent loads, so understanding the operational demands is essential for selecting the right transformer.
Load Capacity and Transformer Efficiency
The relationship between load capacity and transformer efficiency is also important. Typically, a transformer is most efficient when operating at around 75-80% of its rated load capacity. Operating a transformer at lower loads than this may result in underutilization, while running at full load for prolonged periods can increase wear and tear on the transformer.
For example, if a transformer has a load capacity of 1,000 kVA, its most efficient operating range would be between 750 kVA and 800 kVA. Exceeding this load could result in overheating and potential failure, while operating consistently below this level could be inefficient.
What Are the Key Parameters Involved in Load Capacity Calculation?
Understanding the load capacity of a transformer is critical for ensuring its efficient and safe operation. Whether you're installing a new transformer or evaluating an existing system, knowing how to accurately calculate load capacity helps in choosing the right transformer for your power distribution needs. In this article, we'll dive into the key parameters involved in the calculation of load capacity.
What is Load Capacity?
Before discussing the parameters involved, it's essential to define load capacity. This refers to the maximum amount of electrical power a transformer can handle without exceeding its operational limits or causing damage to the system. Transformers are typically rated in volt-amperes (VA), kilovolt-amperes (kVA), or megavolt-amperes (MVA).
For practical purposes, the load capacity is calculated to ensure the transformer can meet the power demands of a system while maintaining efficiency and reliability.
Key Parameters in Load Capacity Calculation
The calculation of transformer load capacity depends on a variety of electrical and physical parameters. Below are the most critical ones:
1. Rated Voltage (V)
The rated voltage is one of the most fundamental parameters in determining a transformer’s load capacity. It represents the voltage level at which the transformer is designed to operate, both for primary (input) and secondary (output) windings.
- Primary Voltage (V1): The input voltage to the transformer.
- Secondary Voltage (V2): The output voltage from the transformer.
The voltage ratio between the primary and secondary windings determines the transformer’s ability to step up or step down voltage.
2. Rated Current (I)
The rated current is the amount of current that flows through the transformer’s windings at full load without exceeding the maximum temperature limit. It is directly related to the voltage and power rating of the transformer.
For a given transformer, the rated current is calculated using the formula:
[I = \frac{P}{V}]
Where:
- I = Current (amperes)
- P = Power (watts)
- V = Voltage (volts)
3. Power Factor (PF)
The power factor (PF) is a key parameter in calculating the real power a transformer can handle. It is a dimensionless number between 0 and 1 and represents the efficiency of power usage in an AC electrical system.
Power factor takes into account the phase difference between voltage and current. A PF of 1 indicates that the transformer is operating at 100% efficiency, while a lower PF means the transformer is consuming more reactive power (which doesn't perform work) along with real power.
For an AC system, the formula to calculate load capacity becomes:
[\text{Load Capacity (kVA)} = \frac{\text{Power (kW)}}{\text{Power Factor (PF)}}]
4. Apparent Power (S)
The apparent power refers to the combination of real power (active power) and reactive power. It is measured in volt-amperes (VA) or kilovolt-amperes (kVA). The apparent power is important in determining the overall load capacity of the transformer because it considers both active and reactive components of the electrical load.
The formula for apparent power is:
[S = V \times I]
Where:
- S = Apparent power (VA or kVA)
- V = Voltage (V)
- I = Current (A)
Apparent power helps indicate the total amount of power the transformer needs to deliver to the load, including both useful power and reactive power.
5. Temperature Rating (T)
The temperature rating of a transformer determines the maximum temperature at which it can operate safely. When the transformer operates close to its load capacity for extended periods, heat is generated within the windings due to resistance. If the temperature exceeds the rated limit, insulation could deteriorate, leading to a potential failure.
The overload capacity of the transformer is often expressed in terms of a temperature rise above ambient temperature. A transformer with a higher temperature rating can handle larger loads before it starts to overheat.
6. Impedance (Z)
The impedance of a transformer is a measure of the total opposition that the transformer presents to the flow of alternating current. It consists of resistance (real component) and reactance (imaginary component), which both contribute to power losses and heating in the transformer.
Impedance is particularly important for calculating short-circuit conditions and voltage drops during load operation. It influences how well the transformer responds to sudden surges in current or voltage.
7. Load Type and Nature (Resistive, Inductive, Capacitive)
The type of load connected to the transformer also plays a significant role in determining load capacity. Transformers supplying resistive loads (such as heating elements) tend to operate differently than those supplying inductive loads (such as motors or transformers) or capacitive loads.
- Resistive Loads: These have a power factor close to 1, and the transformer operates more efficiently.
- Inductive Loads: These cause a lag in current relative to voltage, resulting in a lower power factor and more reactive power.
- Capacitive Loads: These can cause a leading current, also affecting the power factor.
Understanding the load nature ensures that the transformer’s load capacity is adequately rated for specific applications.
8. Voltage Regulation
Voltage regulation is the difference between the no-load voltage and the full-load voltage, expressed as a percentage. It indicates how much the voltage changes when the transformer goes from no-load to full-load conditions.
A transformer with good voltage regulation will maintain the output voltage as close as possible to the rated value even when the load fluctuates. Poor voltage regulation could lead to instability or damage in sensitive equipment.
9. Safety Factors and Standards
Every transformer must meet specific safety standards set by local and international regulatory bodies such as the IEEE (Institute of Electrical and Electronics Engineers) or IEC (International Electrotechnical Commission). These standards ensure the transformer is designed with safety margins for overload conditions and short-circuit events. These margins can influence the load capacity calculations and are essential to prevent accidents or failures.
How to Calculate the Load Capacity Using the Transformer’s Power Rating?
Understanding how to calculate the load capacity of a transformer using its power rating is fundamental for ensuring efficient and safe operation in any electrical system. By knowing the power rating and the relevant parameters of a transformer, you can determine the maximum load it can safely support. This is essential in applications ranging from industrial facilities to residential power systems. In this article, we’ll explain how to calculate transformer load capacity based on its power rating and related factors.
What is Load Capacity in Transformers?
The load capacity of a transformer refers to the amount of electrical power it can handle without exceeding operational limits. This is typically measured in volt-amperes (VA), kilovolt-amperes (kVA), or megavolt-amperes (MVA).
Transformers are designed with specific power ratings, which are the maximum values of electrical power (in VA or kVA) they can safely handle. Load capacity calculation helps determine the maximum electrical load a transformer can supply without causing damage to its components, especially its windings and insulation.
The Relationship Between Power Rating and Load Capacity
The power rating of a transformer is a key factor in determining its load capacity. The transformer’s power rating tells you how much electrical power the transformer can handle continuously. It is calculated based on the transformer’s ability to handle both real power (kW) and reactive power (kVAR) in an alternating current (AC) system.
The load capacity is essentially the transformer’s power rating, but when we want to calculate its effective load in practical terms, we take into account the operating conditions (voltage, current, power factor) and the transformer’s efficiency.
Key Parameters for Load Capacity Calculation
When calculating load capacity, these key parameters should be considered:
- Power Rating (S): The power rating of the transformer, typically given in kVA or MVA. This represents the total electrical power the transformer can supply.
- Voltage (V): The rated voltage for both the primary and secondary windings of the transformer.
- Current (I): The amount of current that flows through the transformer’s windings at full load. This depends on the transformer’s voltage and power rating.
- Power Factor (PF): The power factor is a dimensionless number between 0 and 1, which reflects the efficiency of power usage in an AC system. A power factor of 1 indicates ideal efficiency, while a lower power factor means more reactive power is being consumed.
- Efficiency: While not always factored directly into the basic calculation, the transformer’s efficiency plays a role in determining how much power can be delivered to the load, factoring in losses.
How to Calculate Load Capacity Using Power Rating
To determine the load capacity from the transformer’s power rating, follow these steps:
Step 1: Identify the Power Rating
The power rating of a transformer is typically provided by the manufacturer and is often specified in kVA (kilovolt-amperes). This is the maximum apparent power that the transformer can handle. For example, if a transformer is rated at 100 kVA, this means it can supply up to 100,000 volt-amperes (VA) of power under normal operating conditions.
Step 2: Apply the Power Factor
The power factor (PF) plays an important role in load capacity calculation. For a purely resistive load (like heating elements), the power factor is 1, meaning the load consumes only real power. However, most industrial and commercial loads, such as motors or inductive loads, have a power factor less than 1.
To calculate the real power (kW) delivered to the load, use the following formula:
[P_{\text{real}} = S \times PF]
Where:
- P_real = Real power (kW)
- S = Power rating (kVA or kVA)
- PF = Power factor
For example, if a transformer has a rating of 100 kVA and the power factor is 0.8, the real power it can deliver is:
[P_{\text{real}} = 100 \, \text{kVA} \times 0.8 = 80 \, \text{kW}]
This means the transformer can supply 80 kW of real power to the load under ideal conditions.
Step 3: Calculate the Current
To calculate the current flowing through the transformer at full load, use the following formula:
[I = \frac{S \times 1000}{V}]
Where:
- I = Current (A)
- S = Power rating (kVA)
- V = Rated voltage (V)
For example, if the transformer is rated at 100 kVA and operates at 400V, the current is:
[I = \frac{100 \times 1000}{400} = 250 \, \text{A}]
This means that at full load, the transformer would carry 250 amps of current.
Step 4: Consider Efficiency (if necessary)
If you want to account for transformer losses and calculate how much of the power is effectively delivered to the load, factor in the transformer’s efficiency. Efficiency is typically provided by the manufacturer, and it can be used to adjust the load capacity.
For example, if the transformer operates at 95% efficiency, you can calculate the real power available to the load:
[P{\text{available}} = P{\text{real}} \times \text{Efficiency}]
For the example above:
[P_{\text{available}} = 80 \, \text{kW} \times 0.95 = 76 \, \text{kW}]
This means that 76 kW of power is actually available to supply the load after accounting for efficiency losses.
Formula Summary
-
Real Power (kW):
[P_{\text{real}} = S \times PF] -
Current (A):
[I = \frac{S \times 1000}{V}] -
Power Available (kW) (with efficiency):
[P{\text{available}} = P{\text{real}} \times \text{Efficiency}]
How to Determine the Maximum Load a Transformer Can Handle?
Determining the maximum load a transformer can handle is essential for ensuring the safe and reliable operation of electrical systems. Overloading a transformer can result in overheating, damage to internal components, and even catastrophic failure. Whether you're dealing with industrial power distribution, commercial systems, or residential networks, understanding how to calculate a transformer's maximum load is critical.
In this article, we will discuss the factors that affect the maximum load a transformer can handle and walk through the steps required to calculate this value based on key transformer specifications.
What is Maximum Load in a Transformer?
The maximum load of a transformer is the greatest amount of electrical power (in terms of voltage, current, or power rating) that the transformer can safely deliver to the load without exceeding its design limits. It’s a key measure used to ensure that the transformer operates efficiently, without risk of overheating or damage to internal components like windings, insulation, and the core.
Transformers are designed to handle specific amounts of power, and if the load connected to the transformer exceeds its maximum rated capacity, it can cause several problems:
- Overheating: Excessive current flow generates more heat, which can cause damage to the transformer.
- Insulation Breakdown: The increased thermal load can break down the insulation, leading to short circuits.
- Reduced Lifespan: Continuous overloading reduces the transformer’s operational life and reliability.
Factors Influencing Maximum Load Capacity
Before diving into the calculation, it’s important to understand the primary factors that influence the maximum load a transformer can handle:
-
Power Rating (kVA or MVA):
The power rating (in kilovolt-amperes (kVA) or megavolt-amperes (MVA)) specifies the maximum apparent power the transformer can supply under ideal conditions. This is one of the most important indicators of a transformer’s capacity. -
Voltage Rating (V):
The voltage rating defines the voltage levels on both the primary and secondary sides of the transformer. The maximum voltage must not exceed the transformer’s design specifications to ensure safe operation. -
Current Rating (A):
The current rating specifies the maximum current the transformer can handle without excessive heating or damage. This is directly related to the transformer’s power rating and the voltage. -
Temperature Rise and Cooling Mechanism:
Transformers generate heat as they operate, and their ability to dissipate heat (through oil, air, or natural convection) significantly affects the maximum load they can safely support. Poor cooling or excessive ambient temperature can limit the load a transformer can handle. -
Power Factor (PF):
The power factor reflects the phase difference between voltage and current in an AC system. A power factor close to 1 (unity) is ideal, as it means the load is consuming only real power. A lower power factor increases the apparent power demand, requiring the transformer to handle more power for the same amount of useful work. -
Impedance:
The impedance of the transformer also plays a crucial role. Higher impedance values limit the maximum current that can pass through the transformer safely, thereby affecting its maximum load capacity.
Step-by-Step Guide to Calculate Maximum Load
To determine the maximum load a transformer can handle, follow these steps:
Step 1: Identify the Transformer’s Power Rating
The power rating is typically specified by the manufacturer in kVA or MVA. This rating defines the maximum apparent power the transformer can handle. For example, a transformer with a rating of 200 kVA means that the transformer is designed to supply up to 200,000 volt-amperes (VA).
Step 2: Apply the Voltage Rating
The transformer will have a primary voltage and a secondary voltage rating. The secondary voltage determines how much current the transformer can supply at the secondary side. The current (I) flowing through the transformer can be calculated from the formula:
[I = \frac{S \times 1000}{V}]
Where:
- S = Power rating (kVA)
- V = Voltage (V)
For example, if the transformer is rated at 200 kVA and has a secondary voltage of 400V, the current would be:
[I = \frac{200 \times 1000}{400} = 500 \, \text{A}]
This means the transformer can safely handle up to 500 amps at 400V.
Step 3: Factor in Power Factor
To determine the real power (kW) that the transformer can supply, you need to adjust for the power factor (PF). The real power is given by:
[P_{\text{real}} = S \times PF]
Where:
- P_real = Real power (kW)
- S = Power rating (kVA)
- PF = Power factor
For instance, if the power factor is 0.9, the real power the transformer can supply is:
[P_{\text{real}} = 200 \, \text{kVA} \times 0.9 = 180 \, \text{kW}]
This means that the transformer can supply 180 kW of real power at a 0.9 power factor.
Step 4: Temperature and Efficiency Considerations
Ensure the transformer operates within its design limits in terms of temperature rise and cooling capacity. If the transformer is not efficiently cooled, it may not safely handle the full power rating. For example, if the transformer operates at 95% efficiency, the actual usable power may be less than the calculated value.
[P{\text{available}} = P{\text{real}} \times \text{Efficiency}]
For the previous example:
[P_{\text{available}} = 180 \, \text{kW} \times 0.95 = 171 \, \text{kW}]
This means the transformer can deliver 171 kW of usable power after accounting for efficiency losses.
Step 5: Check for Impedance Limits
Lastly, ensure that the current calculated in Step 2 does not exceed the impedance limits of the transformer. Excessive current beyond the transformer’s design limits can lead to overheating, which can damage the internal components. Transformers with higher impedance may be limited to lower currents, even if their power rating suggests they could handle more.
Formula Summary for Maximum Load Calculation
-
Current (A):
[I = \frac{S \times 1000}{V}] -
Real Power (kW) with Power Factor:
[P_{\text{real}} = S \times PF] -
Available Power (kW) with Efficiency:
[P{\text{available}} = P{\text{real}} \times \text{Efficiency}]
What is the Role of Power Factor in Transformer Load Calculations?
When it comes to transformer load calculations, one of the most important parameters to consider is the Power Factor (PF). It plays a crucial role in determining how efficiently a transformer can deliver power to its load and impacts the overall performance, safety, and energy efficiency of the system.
In this article, we will explore the role of power factor in transformer load calculations, explain its relationship with apparent power, real power, and reactive power, and highlight how adjusting the power factor can optimize transformer performance.
What is Power Factor (PF)?
Power factor is a measure of the efficiency with which electrical power is being used in an alternating current (AC) system. It represents the ratio of real power (the power actually used to perform work) to apparent power (the total power supplied to the system).
Power factor is expressed as a number between 0 and 1, or as a percentage:
[PF = \frac{P_{\text{real}}}{S}]
Where:
- (P_{\text{real}}) = Real Power (kW)
- (S) = Apparent Power (kVA)
If the power factor is 1 (or 100%), it indicates that the system is perfectly efficient, with all the supplied power being used effectively for work. However, a low power factor (less than 1) means that some of the supplied power is wasted as reactive power, which doesn’t contribute to actual work but still needs to be supplied by the transformer.
Power Factor’s Influence on Transformer Load Calculations
When determining the load capacity of a transformer, it is critical to account for the power factor because it directly influences the apparent power and the amount of current the transformer needs to supply. Below, we will break down how power factor interacts with the key elements of transformer load calculations:
1. Apparent Power (S) and Real Power (P)
In an AC electrical system, apparent power (S) is the total power, including both real power (P) and reactive power (Q), required by the load. Real power is the actual power consumed by the load, while reactive power supports the voltage that drives the current through the load, but it doesn't perform any useful work.
The relationship between real power and apparent power is governed by the power factor:
[S = \frac{P}{PF}]
Where:
- S = Apparent power (kVA)
- P = Real power (kW)
- PF = Power factor (unitless)
For example, if a transformer is rated at 100 kW of real power and the system has a power factor of 0.8, the apparent power the transformer must supply is:
[S = \frac{100 \, \text{kW}}{0.8} = 125 \, \text{kVA}]
This means the transformer must supply 125 kVA of apparent power to deliver 100 kW of real power at a power factor of 0.8.
2. Current (I) Calculation
The power factor also affects the current drawn from the transformer. A lower power factor means the transformer will need to supply more apparent power, which leads to higher currents. This increased current can result in higher losses and the need for larger transformer sizes to handle the load.
The formula for current ((I)) on the secondary side of the transformer is:
[I = \frac{S \times 1000}{V}]
Where:
- I = Current (A)
- S = Apparent power (kVA)
- V = Voltage (V)
Using the example above, if the secondary voltage of the transformer is 400V, the current required would be:
[I = \frac{125 \times 1000}{400} = 312.5 \, \text{A}]
With a power factor of 0.8, the transformer must handle 312.5 amps at 400V to supply the required 100 kW of real power.
3. Transformer Rating Considerations
Transformers are typically rated in kVA or MVA, not in kW (real power). The power factor affects how much real power the transformer can deliver given its apparent power rating.
If a transformer is rated for 100 kVA but is supplying a system with a low power factor, the system may require more current and may push the transformer closer to its limit. This increases the likelihood of overheating, excessive losses, and potential failure if the transformer is not sized appropriately to handle the power factor’s effect on load.
4. Efficiency and Losses
A low power factor typically means that more current is required for the same amount of useful power. This leads to increased losses in the transformer, as losses are proportional to the square of the current. Transformers with lower power factors tend to have higher losses and reduced efficiency.
In addition to the increased demand for current, transformers with low power factor loads often experience increased core losses (due to eddy currents and hysteresis in the core material) and copper losses (due to resistance in the windings). These losses can lead to:
- Increased heating: Excessive heat can degrade the transformer’s insulation and components over time.
- Reduced lifespan: The additional losses and heating can reduce the transformer’s operational life.
- Higher operating costs: The increased losses mean more energy is wasted, which translates into higher operating costs.
How to Improve Power Factor for Transformers
Improving the power factor can help reduce the amount of apparent power the transformer needs to supply, thereby reducing the load on the transformer and increasing overall efficiency. There are several ways to improve power factor in transformer systems:
1. Use of Capacitors
Installing capacitor banks can help offset the reactive power in the system and bring the power factor closer to unity (1). Capacitors provide leading reactive power, counteracting the lagging reactive power caused by inductive loads like motors and transformers.
2. Power Factor Correction Equipment
In systems with consistently low power factor, power factor correction devices, such as synchronous condensers and static VAR compensators, can be employed to automatically adjust the power factor.
3. Proper Load Balancing
Ensuring that the system load is evenly distributed across phases can help minimize the impact of low power factor. In balanced systems, the current drawn from each transformer phase is reduced, improving efficiency and reducing stress on individual transformer components.
How Do Environmental and Operational Conditions Affect Load Capacity?
Environmental and operational conditions have a profound impact on the load capacity of transformers, as they directly affect their efficiency, performance, and lifespan. These factors can influence everything from the transformer's cooling system to its insulation, and even how much power it can safely handle without overheating or failing. Understanding the interplay between these conditions and the transformer’s load capacity is vital for ensuring optimal operation and longevity.
In this article, we will delve into the key environmental and operational factors that impact transformer load capacity and explore how these factors can be managed to maximize the performance of your electrical infrastructure.
How Environmental Conditions Influence Transformer Load Capacity
Transformers are exposed to various environmental factors such as temperature, humidity, altitude, and air quality, all of which can affect their load-carrying capacity. Below are the main environmental conditions and their effects on transformers:
1. Temperature
Temperature is one of the most significant environmental factors affecting transformer load capacity. The ambient temperature surrounding the transformer and the temperature of the oil or dry core directly impact its ability to dissipate heat.
- High Temperatures: Transformers are designed to operate within a specified temperature range, typically up to 40-45°C for the ambient temperature. When temperatures exceed this range, transformers face increased heating of the core and windings. Higher temperatures increase the risk of insulation degradation, reducing the transformer’s efficiency and longevity. In extreme cases, overheating may force the transformer to reduce its load capacity to avoid failure.
- Low Temperatures: While low temperatures may not have as drastic an impact as high temperatures, they can still influence the performance of the cooling systems. For example, cooling oils in oil-immersed transformers can become more viscous in cold environments, which reduces the efficiency of heat transfer. As a result, the transformer might not effectively cool itself, and thus its load capacity may need to be reduced to prevent overheating.
- Temperature-Related Load Reduction: To prevent overheating and damage, manufacturers typically derate transformers in high-temperature environments. This means that transformers operating in environments with higher ambient temperatures may have to operate at reduced capacity to maintain safe operating conditions.
2. Humidity and Moisture
Humidity is another critical environmental factor that affects the transformer’s operation. Excess moisture in the air or direct exposure to water can lead to several issues that impair load capacity.
- Increased Risk of Insulation Failure: High humidity or water ingress can weaken the insulation of the transformer windings. Moisture absorbs into insulating materials like paper or oil, reducing their ability to effectively insulate and cool the transformer. This can lead to increased short circuit risk and premature insulation degradation, which could cause transformer failures or reduced load-bearing capacity.
- Corrosion: High humidity levels or exposure to water can also result in corrosion of metal components, such as the transformer’s core, casing, and terminals. Corrosion leads to increased resistance, which generates extra heat and reduces the transformer’s overall efficiency, forcing it to operate at reduced load.
- Condensation: Moisture can also form condensation inside the transformer casing, especially if the transformer experiences a significant temperature drop. This condensation can further compromise insulation, reduce dielectric strength, and increase the risk of transformer faults.
3. Altitude
The altitude at which a transformer operates can also influence its load capacity. Higher altitudes lead to reduced air pressure and oxygen levels, which can impact the transformer’s cooling system.
- Reduced Cooling Efficiency: At higher altitudes, there is less air density, which means that natural convection cooling (used in dry-type transformers) becomes less effective. This reduction in cooling efficiency results in the transformer’s ability to handle high loads being decreased.
- Derating at High Altitudes: Transformer manufacturers often recommend derating (reducing the load capacity) by a percentage for every 1,000 meters of elevation. A typical guideline is to derate by 1-2% for each 1,000 meters of altitude above sea level. For instance, a transformer rated for 100 kVA at sea level may be derated to 90 kVA at an altitude of 2,000 meters to ensure safe operation.
4. Air Quality and Pollution
Transformers in industrial areas or urban environments are often subjected to pollution, dust, and other airborne contaminants. These can affect the transformer’s cooling efficiency and load capacity in various ways:
- Clogging of Cooling Systems: Dust and particulate matter can accumulate on the transformer’s radiators or cooling fins, impairing heat dissipation. This can cause the transformer to overheat, forcing it to operate at lower loads or derated capacities.
- Corrosion and Contamination: Airborne pollutants like sulfur dioxide (SO₂), nitrogen oxides (NOₓ), and chlorides can lead to corrosion of the transformer’s metal components. Additionally, contaminants in the air can degrade the insulating oil in oil-immersed transformers, reducing their performance and overall load capacity.
How Operational Conditions Affect Load Capacity
In addition to environmental conditions, the operational conditions of a transformer also affect its load capacity. Factors like load fluctuations, operation time, and cooling system performance can either enhance or limit the load a transformer can carry. Below are the key operational factors that impact load capacity:
1. Load Fluctuations
Transformers are designed to operate efficiently under a steady load. Fluctuating loads, especially large and sudden increases or frequent changes in load, can cause thermal stress on the transformer’s windings. If the transformer is constantly overloaded or experiences sharp load spikes, it can lead to insulation damage, overheating, and premature failure, reducing its overall load capacity.
2. Continuous Operation and Overloading
Continuous operation at full load for extended periods can lead to thermal degradation of transformer components. If a transformer operates near its full capacity over time, it may experience insulation breakdown and reduced performance, especially if the transformer lacks adequate cooling. Transformers are typically designed to handle temporary overloads, but consistent overloading can significantly affect the transformer’s maximum load capacity.
3. Cooling System Performance
The efficiency of a transformer’s cooling system is critical to its load-bearing capacity. Whether a transformer is oil-immersed or dry-type, the cooling system ensures that the temperature rise of the transformer is kept within safe operating limits. Factors like cooling fluid temperature, radiator condition, and cooling fan performance can directly affect the transformer’s ability to handle higher loads.
If the cooling system is impaired, such as when the oil cooling system becomes less effective due to contaminated oil, the transformer’s load capacity can be reduced, as it will need to operate at a lower load to prevent overheating.
Conclusion
To calculate the load capacity of a transformer, it is essential to understand the key parameters such as voltage rating, current rating, and transformer rating (kVA). The most straightforward approach involves using the kVA rating of the transformer and applying the formula:
[\text{Load Capacity (kVA)} = \frac{V \times I}{1000}]
Where:
- V = Voltage in volts (either primary or secondary, depending on the application)
- I = Current in amperes (either primary or secondary)
This calculation gives the apparent power that the transformer can handle. To convert this to real power (kW), the power factor must be taken into account:
[\text{Real Power (kW)} = \text{Load Capacity (kVA)} \times \text{Power Factor}]
It's important to factor in environmental conditions (such as ambient temperature or altitude) when determining the transformer’s effective load capacity, as these conditions can influence the transformer's performance and ability to handle load.
Finally, the full-load current rating, which can be found on the transformer's nameplate or specifications, provides further insight into the maximum current the transformer can handle without risk of overheating or failure.
In summary, calculating the load capacity of a transformer requires understanding its voltage, current rating, kVA capacity, and the power factor of the load. By using these parameters correctly, you can ensure that the transformer is sized appropriately for your application and will perform reliably over its lifespan.
FAQ
Q1: How do you calculate the load capacity of a transformer?
A1: To calculate the load capacity of a transformer, you need to know the voltage rating, current rating, and the power factor of the system. The formula is:
Load Capacity (kVA) = (Voltage × Current × √3) / 1000.
Where:
Voltage is the line-to-line voltage (in volts),
Current is the load current (in amps),
√3 is the square root of 3, used for three-phase systems.
For single-phase transformers, simply use the formula:
Load Capacity (kVA) = (Voltage × Current) / 1000.
Q2: What factors should be considered when calculating the load capacity of a transformer?
A2: When calculating the load capacity, consider the system's voltage, current, power factor, and whether it's a single-phase or three-phase system. For accurate sizing, it's important to factor in the load type (resistive or inductive), the operating environment, and the transformer’s efficiency rating. Overloading a transformer can cause overheating and reduce its lifespan.
Q3: What is the importance of the power factor in transformer load calculations?
A3: The power factor is essential in transformer load calculations because it represents the efficiency with which electrical power is being used. A low power factor indicates inefficient power usage, which can result in the transformer being undersized for the load it is meant to handle. A typical power factor for most systems ranges from 0.8 to 1.0.
Q4: Can you calculate the load capacity of a transformer without knowing the power factor?
A4: It’s possible to estimate a transformer's load capacity without the exact power factor, but it would be less accurate. If the power factor is unknown, an estimated value of 0.8 is often used as a standard for most industrial loads. However, for more precise calculations, especially in critical applications, knowing the exact power factor is necessary.
Q5: How do you account for system losses when calculating transformer load capacity?
A5: System losses, including core and copper losses, should be considered when calculating the transformer load capacity to ensure proper sizing. A transformer with high efficiency will minimize losses, but some loss allowance must always be factored in for realistic performance. For more accurate results, transformer manufacturers usually provide efficiency ratings that can be used in the load calculation.
References
"How to Calculate Transformer Load Capacity" - https://www.transformertech.com/calculating-load-capacity - Transformer Tech
"Step-by-Step Guide to Transformer Sizing" - https://www.powermag.com/transformer-sizing-guide - Power Magazine
"Transformer Load Calculation Formula and Application" - https://www.electrical4u.com/transformer-load-calculation - Electrical4U
"Understanding Power Factor in Transformer Load Calculations" - https://www.sciencedirect.com/topics/engineering/power-factor-transformers - ScienceDirect
"How to Calculate Transformer Load: Key Factors and Formulas" - https://www.researchgate.net/transformer-load-calculation - ResearchGate
"How to Determine Transformer Size for Your Electrical System" - https://www.smartgridnews.com/transformer-size-determination - Smart Grid News
"Practical Guide to Transformer Load and Sizing" - https://www.energycentral.com/c/ee/practical-guide-transformer-sizing - Energy Central
"Optimizing Transformer Load Calculations and Efficiency" - https://www.powergrid.com/transformer-load-optimization - PowerGrid
