What Are the Common Faults and Issues in Power Transformers ?

Power transformers are essential components in electrical power systems, ensuring that electricity is transmitted and distributed efficiently across long distances. However, like any piece of electrical equipment, transformers are susceptible to faults and issues that can affect their performance, reliability, and longevity. Identifying and understanding common transformer faults is crucial for preventing downtime, reducing repair costs, and maintaining the stability of the power grid. This article will examine the most common faults and issues encountered in power transformers, their causes, and how they can be detected and prevented.

---

What Are the Most Common Faults in Power Transformers?

Power transformers are crucial components in electrical power systems, responsible for stepping voltage up or down and ensuring the stable transmission and distribution of electricity. However, like any complex machinery, transformers are susceptible to faults that can lead to operational inefficiencies, downtime, or even catastrophic failure. Identifying these faults early and understanding their causes is essential for effective maintenance and long-term performance.

Power transformers are subjected to a range of stresses over their operating life, including electrical, mechanical, and thermal stresses. The occurrence of faults can compromise their functionality, cause significant damage to internal components, and result in costly repairs or replacements. In this article, we’ll explore the most common faults found in power transformers, their causes, and the steps that can be taken to mitigate these issues.

Most Common Faults in Power Transformers

Power transformer faults can generally be categorized into electrical, mechanical, and environmental issues. Understanding these categories can help operators better anticipate and diagnose transformer problems, leading to faster and more effective resolutions.

1. Insulation Failure

Insulation failure is one of the most common and serious faults in power transformers. The insulation materials inside the transformer—such as the oil, bushings, and solid insulation in the windings—are designed to isolate different electrical components from each other and protect the transformer from short circuits and electrical breakdowns. Over time, however, insulation materials can degrade due to various factors, leading to:

• Overheating: Prolonged exposure to high temperatures can cause the insulation materials to break down, leading to electrical leakage, arcing, or short circuits between windings.
• Moisture Infiltration: Water or moisture can contaminate the insulating oil, reducing its dielectric strength and compromising its insulating properties. This can increase the risk of electrical faults.
• Aging: As transformers age, the insulating materials naturally deteriorate, which can result in a decrease in performance and eventually lead to failure.

Prevention:
Regular monitoring of insulation resistance and dielectric strength of the insulating oil can help prevent insulation failure. Also, maintaining proper moisture levels in the insulating oil and ensuring the transformer operates within its temperature limits are critical for minimizing the risk of insulation failure.

2. Oil Leakage and Oil Degradation

The insulating oil in a transformer not only provides insulation but also plays a critical role in cooling the transformer’s internal components. Oil leakage or degradation can severely impact transformer performance and, in extreme cases, cause catastrophic failure.

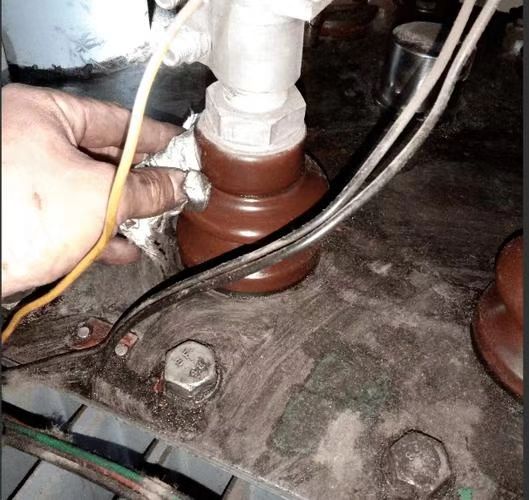

• Oil Leakage: This occurs when the transformer’s seal fails, usually due to wear or mechanical damage, allowing oil to escape. Loss of oil leads to inadequate cooling and could result in the transformer overheating. This also makes the transformer more prone to fire hazards.
• Oil Degradation: Over time, the oil inside the transformer can degrade, especially under high operating temperatures. This results in the formation of acids and other corrosive compounds, which damage the internal components and insulation, accelerating the aging process.

Prevention:
Regular oil sampling and testing can detect changes in the oil's chemical properties, helping to identify early signs of degradation. Implementing oil filtration and ensuring the transformer’s seals are intact can help prevent oil leakage.

3. Short Circuits and Overloading

One of the most common electrical faults in transformers is the occurrence of short circuits. A short circuit happens when an unintended connection is made between the windings, allowing a large amount of current to flow through the transformer, often causing irreparable damage. Overloading, or operating a transformer beyond its rated capacity, is another significant cause of transformer failure. It increases the risk of overheating, insulation breakdown, and mechanical damage.

• Short Circuits: These can be caused by external faults, such as lightning strikes, or internal faults like insulation failure, leading to a direct connection between the transformer’s windings or between the windings and the ground.
• Overloading: When transformers are subjected to loads exceeding their capacity for extended periods, they tend to overheat. Excessive heat accelerates the deterioration of internal components and insulation, ultimately leading to transformer failure.

Prevention:
Regularly monitoring the transformer’s load and ensuring it operates within the rated limits can help prevent both overloading and short circuits. Additionally, installing overcurrent protection devices such as fuses and circuit breakers can prevent damage from short circuits by disconnecting the transformer when current levels exceed safe limits.

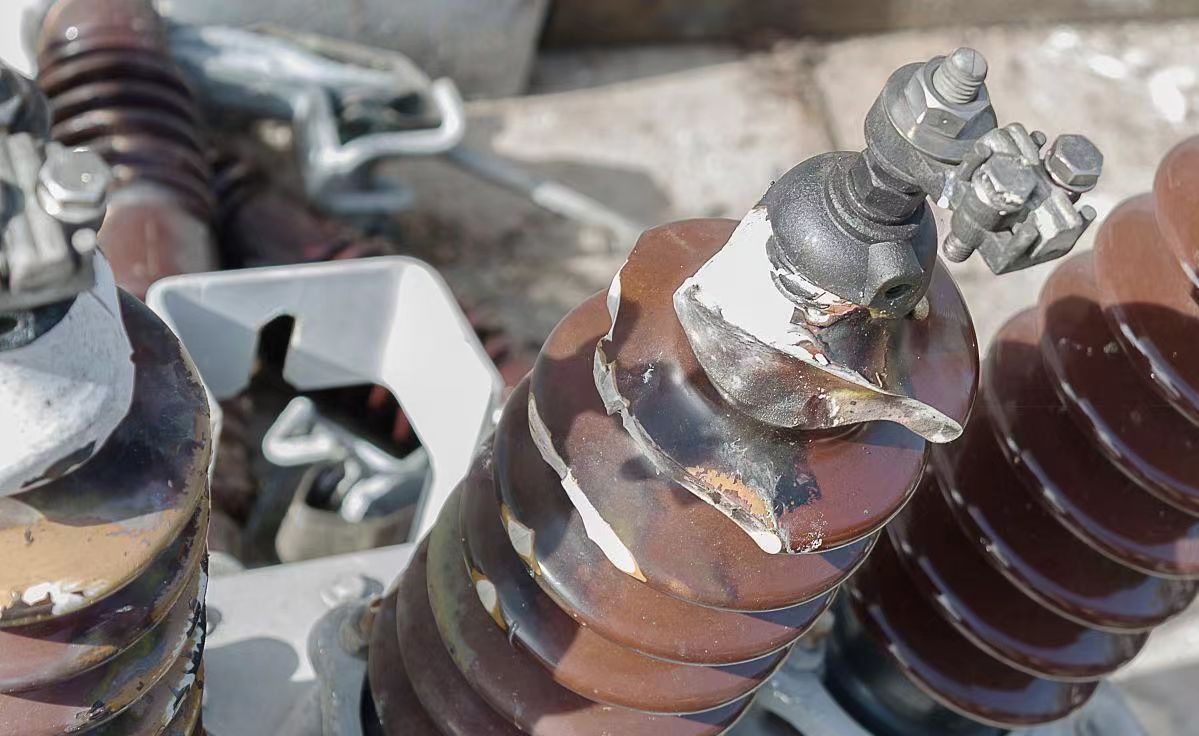

4. Bushing Failures

Bushings are critical components of a transformer that provide the electrical connection between the transformer and the external power network. They serve to insulate and support the transformer’s high-voltage conductors while preventing electrical arcing. Bushing failure can occur due to several reasons:

• Porosity: Moisture can enter the bushing, compromising its insulation properties and increasing the likelihood of electrical faults.
• Mechanical Damage: External forces such as physical impacts or vibration can damage bushings, causing them to lose their insulating properties.
• Aging: Over time, bushings can become brittle, crack, or lose their effectiveness due to exposure to electrical stress and environmental factors.

Prevention:
Regular bushing inspection and maintenance are crucial for detecting early signs of wear or degradation. Maintaining proper seals and addressing any physical damage promptly can prevent bushing failure.

5. Tap Changer Malfunctions

Tap changers are devices used in power transformers to adjust the output voltage to the desired level by selecting different winding taps. Tap changers experience wear and tear due to their frequent operation, and their failure can lead to:

• Arc Formation: During tap changing, electrical arcing can occur if the tap changer is not properly maintained, leading to overheating and possible failure.
• Mechanical Failure: Mechanical wear or failure of the tap changer’s moving parts can prevent it from functioning properly, resulting in voltage instability.

Prevention:
Regular maintenance and monitoring of the tap changer’s condition are essential for detecting issues before they lead to failure. Preventative maintenance should include checking the contacts for wear, cleaning, and ensuring smooth mechanical operation.

6. Thermal Faults and Overheating

Overheating is a significant concern for transformers, as it leads to the degradation of insulation and internal components. Thermal faults can occur due to several factors, including:

• Inadequate Cooling: If the transformer’s cooling system fails or becomes inefficient, the internal temperature can rise, causing damage to insulation and windings.
• Overloading: As mentioned earlier, running the transformer beyond its rated load can generate excessive heat, which accelerates degradation.

Prevention:
Routine inspection of the cooling system and oil levels, as well as monitoring operating temperature, can help prevent overheating. Proper ventilation and cooling, as well as avoiding overloading, are essential in keeping the transformer running at optimal temperatures.

7. Mechanical Failures

Transformers are subject to mechanical stresses due to vibrations, transportation, and the forces generated during normal operation. Over time, these stresses can cause physical damage to internal components like the windings, bushings, or core.

• Vibrations: Mechanical vibrations can weaken internal parts, leading to displacement or mechanical failure.
• Physical Impact: External impacts, such as during transportation or installation, can cause misalignment or damage to transformer components.

Prevention:
Proper handling, secure mounting, and ensuring that the transformer operates within mechanical limits can prevent damage due to mechanical stresses.

Table: Common Transformer Faults and Causes

Fault	Common Causes	Prevention Measures
Insulation Failure	Overheating, moisture infiltration, aging of materials	Regular oil testing, moisture control, temperature monitoring
Oil Leakage	Seal failure, mechanical damage	Regular oil inspections, ensuring seal integrity
Short Circuits	External faults, insulation breakdown	Overcurrent protection devices, load monitoring
Bushing Failure	Porosity, mechanical damage, aging	Regular inspection, cleaning, and sealing maintenance
Tap Changer Failure	Arcing, mechanical wear	Regular maintenance and monitoring of tap changer operation
Thermal Faults	Inadequate cooling, overloading	Proper cooling system maintenance, temperature monitoring
Mechanical Failure	Vibrations, physical impacts	Secure mounting, proper handling, and transportation

How Does Insulation Failure Affect Power Transformers?

Insulation is the backbone of any power transformer, playing a critical role in ensuring the safety, stability, and longevity of the equipment. When insulation fails, the consequences can be severe, leading to costly downtime, system failures, and even catastrophic damage to the transformer. The failure of insulation materials is one of the most common reasons for transformer malfunction, and it can occur due to a variety of factors such as aging, thermal stress, moisture ingress, and mechanical damage. In this article, we’ll explore how insulation failure affects power transformers, its causes, and the measures that can be taken to prevent and mitigate these failures.

Insulation failure is one of the most dangerous and costly faults in power transformers. It disrupts the electrical and thermal performance of the transformer and can lead to the complete failure of the unit. Early detection and proper maintenance of transformer insulation are key to avoiding prolonged outages and ensuring the safe operation of electrical power systems.

How Insulation Failure Affects Power Transformers

Insulation in power transformers serves as a barrier that prevents electrical short circuits between the windings, as well as between the windings and the transformer’s core or ground. When insulation fails, the transformer becomes vulnerable to various electrical and mechanical problems, leading to degradation in performance and reliability.

1. Short Circuits and Electrical Arcing

The most immediate and severe consequence of insulation failure is the risk of short circuits and electrical arcing. Insulation prevents the windings from coming into direct contact with each other or with the transformer’s core. When the insulation breaks down or degrades, it allows unintended electrical paths to form, creating the potential for short circuits.

• Short Circuits: When two or more parts of the transformer windings come into contact due to insulation failure, a short circuit can occur. This creates a low-resistance path for the electrical current, often resulting in excessive current flow and heat generation.
• Arcing: If the breakdown of insulation occurs at high voltage sections of the transformer, electrical arcing may take place. Arcing is a highly destructive phenomenon that can lead to the burning of conductors, insulation, and even transformer components, increasing the risk of fire or explosion.

Consequences:
Short circuits and arcing are dangerous and often lead to catastrophic failures, requiring significant repairs or even full transformer replacement. In addition, these faults cause damage to other components in the transformer, such as the core, windings, and bushings.

2. Increased Heat Generation

The insulation in a transformer also plays an important role in heat dissipation. When insulation fails, it compromises the efficiency of the transformer’s cooling system, leading to overheating. Insulating materials, such as oil and solid insulation, help transfer heat from the windings to the transformer’s cooling system, where it is dissipated into the surrounding environment.

• Overheating: If insulation is degraded, it becomes less effective at transferring heat. This leads to a rise in internal temperature, which accelerates the degradation of remaining insulation and other components.
• Accelerated Aging: Prolonged exposure to high temperatures speeds up the aging of both the insulation and the transformer’s windings. Overheated transformers can suffer from rapid deterioration, eventually leading to complete failure.

Consequences:
Overheating caused by insulation failure reduces the lifespan of the transformer and makes it more prone to additional faults, such as winding damage, oil degradation, and mechanical breakdowns.

3. Moisture Ingress and Contamination

One of the leading causes of insulation failure is the ingress of moisture into the transformer. Insulation, especially solid insulation, is highly sensitive to moisture, and even small amounts of water can significantly reduce its insulating properties.

• Moisture Contamination: When moisture enters the transformer’s insulating oil or solid insulation, it lowers the dielectric strength of the oil and the insulation material. This increases the likelihood of electrical breakdowns.
• Electrochemical Damage: Water reacts with the insulation materials and oil, forming acidic compounds that corrode internal components and further degrade the insulation.

Consequences:
Moisture contamination leads to a higher risk of electrical arcing and short circuits, and accelerates the deterioration of the transformer’s insulation system. It can also compromise the transformer’s cooling properties, causing overheating and further damage.

4. Reduced Dielectric Strength

The dielectric strength of the insulation is critical for the transformer to withstand the electrical stress during operation. Over time, insulation materials naturally degrade, and their dielectric strength decreases. This makes the transformer more susceptible to electrical breakdowns.

• Increased Risk of Flashover: Flashover is the phenomenon where the transformer experiences a complete electrical breakdown, allowing current to flow through the air (or across the insulation) between two conductors. This often happens when the dielectric strength of the insulation is no longer sufficient to withstand the applied voltage.
• Breakdown of Insulating Oil: In addition to solid insulation, the transformer’s oil acts as an insulating material. Over time, oil can lose its dielectric strength due to contamination or thermal degradation, further exacerbating the risk of flashover.

Consequences:
As the dielectric strength decreases, the transformer becomes more vulnerable to electrical failures, which may require a complete shutdown for repairs and reconditioning.

5. Loss of Transformer Efficiency

A transformer’s efficiency is heavily reliant on the condition of its insulation. When insulation fails, the transformer cannot operate optimally, leading to increased losses and reduced efficiency. The degradation of insulating materials, especially the insulating oil, increases the resistance within the transformer, leading to higher energy losses in the form of heat.

• Energy Losses: Inefficient operation due to insulation failure leads to more energy being consumed, which translates to higher operational costs and potentially a reduced service life for the transformer.
• Voltage Instability: Insulation failure can also cause voltage fluctuations and instability, leading to unreliable power transmission and distribution.

Consequences:
Reduced efficiency affects both the operational cost and reliability of the power system. It may lead to frequent breakdowns, a decline in power quality, and increased maintenance costs.

Table: Effects of Insulation Failure and Causes

Effect of Insulation Failure	Cause	Consequences
Short Circuits and Arcing	Breakdown of solid or oil insulation	Fire hazards, damage to transformer components, costly repairs
Increased Heat Generation	Inadequate heat dissipation, loss of insulation effectiveness	Overheating, accelerated aging, system failure
Moisture Contamination	Moisture ingress into the insulation or oil	Reduced dielectric strength, corrosion, short circuits
Reduced Dielectric Strength	Aging or chemical contamination of insulation	Flashover, electrical breakdown, loss of performance
Loss of Efficiency	Increased resistance due to insulation breakdown	Higher energy costs, voltage instability, increased wear

Prevention and Mitigation of Insulation Failure

To prevent insulation failure and its potentially devastating effects, regular monitoring and maintenance are essential. Some best practices include:

1. Regular Insulation Testing

Routine tests such as dielectric testing, insulation resistance measurement, and tan delta testing can help detect early signs of insulation degradation. These tests measure the integrity of both the solid and liquid insulation and can identify weak points before failure occurs.

2. Proper Moisture Control

Maintaining the proper moisture level in the transformer’s insulating oil is crucial for preventing moisture-induced degradation. Using moisture-absorbing filters, ensuring proper sealing of the transformer, and performing regular oil sampling are important steps in moisture control.

3. Cooling System Maintenance

Since overheating is often a result of poor cooling, maintaining the cooling system is vital. Regular checks of cooling pumps, radiators, and oil circulation are necessary to ensure the transformer operates within safe temperature ranges.

4. Timely Oil Replacement

As oil degrades over time, it loses its insulating and cooling properties. Timely oil replacement, along with oil filtration, can help extend the life of the transformer and maintain optimal insulation performance.

5. Transformer Monitoring

Implementing a comprehensive monitoring system that tracks key parameters such as temperature, load, moisture content, and insulation resistance can provide real-time data on the transformer’s health. This allows for early detection of potential issues and quick intervention to prevent failures.

What Are the Causes and Effects of Overheating in Power Transformers?

Power transformers are crucial components in the electrical grid, responsible for stepping up or stepping down voltage to ensure efficient electricity transmission. However, transformers can encounter various operational challenges, with one of the most critical being overheating. Overheating in power transformers can have significant consequences, including reduced efficiency, increased risk of failure, and a shortened operational lifespan. In this article, we will explore the causes and effects of overheating in power transformers, along with preventative measures to mitigate this issue.

Overheating in power transformers is a leading cause of transformer failure. Understanding its causes, effects, and the importance of maintaining optimal temperature levels is essential to ensure the longevity and reliability of transformers.

What Causes Overheating in Power Transformers?

Several factors can contribute to overheating in power transformers. These factors may be related to internal transformer design, external environmental conditions, or operational practices. Below are the most common causes of transformer overheating:

1. Overloading

Overloading occurs when the transformer is required to handle more electrical load than its rated capacity. Power transformers are designed to operate efficiently within a specified load range, and exceeding this load can lead to excessive heat generation.

• Cause: When a transformer is subjected to a load that exceeds its design capacity, the windings and core experience more electrical current, leading to an increase in internal heat.
• Effect: Extended periods of overloading can raise the temperature of the transformer components, causing the insulating materials (e.g., oil and solid insulation) to degrade faster, which accelerates the aging of the transformer.

2. Insufficient Cooling

Cooling systems are essential to maintain safe operating temperatures in power transformers. These systems rely on natural or forced cooling methods such as oil circulation, air cooling, or gas cooling. If the cooling system fails or operates inefficiently, the transformer can overheat.

• Cause: A malfunctioning cooling system, such as clogged cooling fins, damaged pumps, or inadequate oil circulation, leads to poor heat dissipation, causing the transformer’s internal temperature to rise.
• Effect: Without proper cooling, the transformer will not be able to expel the heat generated during operation, leading to higher temperatures and eventually overheating.

3. Poor Transformer Maintenance

Regular maintenance is crucial to keeping a transformer in optimal operating condition. Lack of routine inspections and maintenance can lead to problems like insufficient oil levels, dirt buildup, or issues with the cooling system—all of which can contribute to overheating.

• Cause: If the transformer is not regularly serviced, oil degradation can occur, and oil levels can drop, leading to insufficient insulation and cooling. Accumulated dirt and moisture can also reduce the efficiency of the transformer’s heat dissipation.
• Effect: Over time, the combination of poor maintenance and degraded components can lead to overheating, which increases the risk of insulation breakdown and transformer failure.

4. Environmental Conditions

External environmental factors, such as ambient temperature, humidity, and airflow, can also impact transformer temperature. Transformers operating in extreme weather conditions or poorly ventilated areas are more likely to overheat.

• Cause: High ambient temperatures, poor ventilation, and excessive humidity can limit the transformer’s ability to cool effectively. Additionally, transformers located in areas with high pollution levels or corrosive environments may experience rapid deterioration.
• Effect: Transformers in such environments struggle to maintain optimal temperatures, which leads to overheating, reduced efficiency, and potential failure.

5. Design and Material Deficiencies

Design flaws or the use of low-quality materials in the construction of a transformer can lead to inefficiencies in heat management. Insufficient insulation, inadequate cooling pathways, or subpar conductors can all contribute to an increase in internal temperature.

• Cause: Transformers with poor insulation design or inadequate cooling pathways may not be able to handle the heat generated during normal operations. Similarly, substandard materials in windings or insulation can reduce heat resistance, leading to overheating.
• Effect: Transformers with design deficiencies often operate at higher temperatures, leading to quicker degradation of materials and an increased likelihood of failure.

6. Excessive Harmonics or Voltage Imbalances

Transformers are designed to operate under a specific set of electrical conditions. Harmonics or voltage imbalances in the power supply can introduce additional stress on the transformer, causing it to generate more heat.

• Cause: Harmonics are unwanted frequencies that distort the normal waveform of the electrical current. Voltage imbalances occur when the three-phase voltages in a transformer are unequal. Both conditions can lead to additional current and power losses in the transformer.
• Effect: The additional load caused by harmonics or voltage imbalances generates more heat in the transformer’s windings and core, which can lead to overheating if not properly managed.

Effects of Overheating in Power Transformers

Overheating can lead to a variety of negative consequences, ranging from decreased performance to complete transformer failure. The severity of these effects depends on the duration and extent of the overheating.

1. Insulation Degradation

The insulation in power transformers—comprising both solid and liquid insulation—is highly susceptible to temperature fluctuations. When temperatures exceed safe operating limits, the insulation materials begin to degrade.

• Cause: Excessive heat accelerates the breakdown of insulating oil and solid materials, leading to a loss of dielectric strength.
• Effect: Overheated insulation leads to higher chances of electrical breakdowns, such as short circuits and arcing, which can cause catastrophic transformer failure.

2. Increased Risk of Transformer Failure

Continuous overheating can significantly reduce the lifespan of the transformer. It can cause irreversible damage to the windings, insulation, and core. Once these components are damaged beyond repair, the transformer may fail completely.

• Cause: Prolonged exposure to excessive temperatures causes the transformer’s internal components to deteriorate, affecting the transformer’s ability to function properly.
• Effect: Transformer failure due to overheating is a costly and disruptive event, requiring expensive repairs or replacement.

3. Loss of Efficiency

Overheating causes an increase in internal resistance and energy losses in the transformer. The excessive heat results in poor efficiency, as the transformer struggles to convert electrical energy without generating significant waste heat.

• Cause: High temperatures cause increased resistive losses in the transformer’s windings, leading to less efficient operation.
• Effect: The increased energy losses result in higher operational costs and reduced overall performance.

4. Increased Maintenance and Repair Costs

As overheating accelerates the degradation of transformer components, more frequent maintenance is required. The repair costs increase as the transformer ages and experiences more wear and tear.

• Cause: Overheating causes premature aging and wear of critical transformer components, which increases the frequency and cost of maintenance.
• Effect: Higher maintenance and repair costs can significantly impact the financial efficiency of a power utility or organization.

5. Environmental and Safety Risks

In extreme cases, overheating can lead to dangerous situations, including fires or explosions. The combination of heat, flammable oils, and electrical arcs can create hazardous conditions for transformer operators and the surrounding environment.

• Cause: Overheating can cause insulating oil to reach flash point levels, creating the risk of fire or explosion.
• Effect: Transformer fires can spread quickly and cause significant damage to both the transformer and surrounding infrastructure, posing safety risks to personnel and the environment.

Table: Common Causes and Effects of Overheating in Power Transformers

Cause	Effect	Consequence
Overloading	Excessive current leading to heat generation	Reduced transformer lifespan, insulation damage
Insufficient Cooling	Poor heat dissipation	Overheating, insulation degradation, failure
Poor Maintenance	Degraded oil levels, accumulated dirt, and moisture	Increased temperature, risk of breakdown
Environmental Conditions	Poor ventilation, high ambient temperature	Inefficient cooling, overheating risk
Design and Material Deficiencies	Inadequate insulation or cooling pathways	Increased heat, reduced lifespan
Harmonics or Voltage Imbalances	Additional heat generation from imbalanced currents	Overheating, insulation breakdown

Preventing Overheating in Power Transformers

To prevent overheating and its damaging effects, regular maintenance, proper operational practices, and environmental considerations are key.

1. Regular Monitoring and Inspections

Routine thermal inspections and real-time temperature monitoring using temperature sensors can help detect signs of overheating early. Monitoring key transformer components such as the oil temperature, winding temperature, and core temperature is essential to prevent overheating.

2. Efficient Cooling Systems

Ensure that cooling systems, whether they are air-based, oil-based, or gas-based, are functioning correctly. Regular checks and maintenance of cooling pumps, oil levels, and ventilation pathways can significantly reduce the risk of overheating.

3. Avoid Overloading

Ensure that transformers are not subjected to loads beyond their rated capacity. Load management and automatic load shedding systems can prevent overloading during peak demand periods.

4. Control Environmental Conditions

Transformers should be located in well-ventilated areas with proper airflow. Minimizing exposure to extreme temperatures and humidity can enhance the transformer’s cooling capabilities.

5. Maintenance of Oil Levels and Quality

Regular oil sampling, filtering, and oil replacement are essential for maintaining proper insulation and cooling. Oil degradation should be monitored closely, and filters should be replaced as needed to ensure effective cooling and insulation.

How Does Oil Contamination Lead to Transformer Issues?

Oil contamination in power transformers is a critical issue that can significantly affect the transformer's efficiency, longevity, and overall functionality. The insulating oil used in transformers plays a vital role in maintaining the safe operation of the transformer by providing both electrical insulation and heat dissipation. When this oil becomes contaminated, it can lead to various operational problems, increasing the risk of transformer failure. Understanding how oil contamination occurs, its effects, and how to prevent it is essential for the reliable operation of transformers in any power system.

Oil contamination in transformers can lead to various issues, such as reduced insulation resistance, overheating, and faster deterioration of key components. Addressing and preventing oil contamination is crucial for extending transformer lifespan and ensuring safe operation.

What Causes Oil Contamination in Power Transformers?

Oil contamination can occur from both external and internal sources. External contamination typically involves particles, water, or gases entering the transformer from the environment, while internal contamination results from the natural degradation of the transformer’s oil or components. Here are some common causes of oil contamination:

1. Moisture Contamination

Moisture or water ingress into transformer oil is one of the most common causes of oil contamination. Moisture can enter through various pathways, such as faulty seals, leaks, or absorption from the air.

• Cause: When transformers operate, the insulating oil absorbs moisture from the air. In addition, condensation can form inside the transformer due to temperature fluctuations, leading to water contamination in the oil.
• Effect: Water in the oil reduces the dielectric strength of the insulation, making the transformer more susceptible to electrical breakdown. Over time, the moisture accelerates the degradation of both the oil and the solid insulation, such as paper and cardboard.

2. Particle Contamination

The presence of solid particles in transformer oil is another major cause of contamination. These particles can originate from the transformer components themselves or from the environment.

• Cause: Particles such as dirt, metal shavings, or carbon residues can enter the oil during the manufacturing process or as the transformer ages. These particles can accumulate due to wear and tear, such as from the movement of internal components like tap changers and bushings.
• Effect: Solid contaminants can cause abrasive wear to the transformer components and degrade the oil's ability to dissipate heat effectively. They may also increase the risk of electrical faults or arcing within the transformer, leading to short circuits or insulation failure.

3. Gas Contamination

Gases like hydrogen, oxygen, and carbon dioxide can dissolve in transformer oil during normal operation, but excessive gas contamination can indicate a problem.

• Cause: The generation of gases occurs as a result of internal electrical faults, such as partial discharges, arcing, or overheating. These gases dissolve in the oil, leading to increased gas pressure and changes in the oil’s composition.
• Effect: Excessive gas accumulation in the oil can lead to the formation of bubbles that reduce the oil’s dielectric strength and heat dissipation capabilities. It can also lead to pressure build-up in the transformer, affecting its operation and stability.

4. Thermal Degradation of Oil

Over time, transformer oil can degrade due to the heat generated during normal operation. This degradation leads to the breakdown of the oil's chemical structure, producing acids, sludge, and other by-products.

• Cause: Transformer oil degrades when exposed to high temperatures, causing the oil molecules to break down and form harmful compounds. This is particularly problematic when the transformer operates under conditions of overloading or poor cooling.
• Effect: The degradation products reduce the insulating properties of the oil, making it less effective at insulating and cooling the transformer. This can lead to overheating, poor performance, and an increased risk of failure.

5. Contamination from Maintenance Practices

Improper maintenance practices, such as inadequate handling of oil during sampling or filling, can introduce contaminants into the transformer oil.

• Cause: Using unclean equipment for oil sampling, failing to properly seal oil entry points, or introducing oil of poor quality can lead to contamination.
• Effect: Contaminants introduced through improper maintenance practices can reduce the effectiveness of the oil’s insulation and cooling properties, leading to potential transformer malfunctions.

How Oil Contamination Affects Transformer Operation

Oil contamination can have significant negative effects on the performance and longevity of a power transformer. The primary roles of transformer oil—insulation and heat dissipation—are compromised when the oil becomes contaminated. Below are some of the key ways oil contamination affects transformer operation:

1. Decreased Dielectric Strength

The dielectric strength of transformer oil is critical for preventing electrical breakdowns. Contaminants such as water, solid particles, and gases reduce the oil’s ability to resist electrical discharge.

• Cause: Water, dirt, and gases reduce the oil's insulating properties by forming conductive paths for electricity, which can lead to partial discharges or arcing.
• Effect: When the dielectric strength is compromised, the likelihood of internal electrical faults increases. These faults can lead to short circuits, arcing, and transformer damage, potentially leading to a complete failure of the transformer.

2. Increased Risk of Overheating

Transformer oil also plays a key role in heat dissipation. When oil becomes contaminated, its ability to absorb and carry away heat from the transformer core and windings is reduced.

• Cause: Contaminated oil tends to have higher viscosity, reducing its flow rate and thermal conductivity. This makes it less effective at transferring heat.
• Effect: Poor heat dissipation can cause the transformer to overheat, which accelerates the degradation of insulation, increases energy losses, and shortens the transformer’s lifespan.

3. Formation of Sludge and Acids

As transformer oil degrades, it forms sludge and acids. The presence of these by-products can lead to further damage to the transformer’s internal components.

• Cause: The breakdown of the oil results in the formation of carbon, sludge, and acidic compounds, which settle at the bottom of the transformer tank and around the insulation.
• Effect: The sludge can block oil circulation, reducing the cooling efficiency. The acids can corrode metal components and degrade insulation, leading to internal failures and increased maintenance costs.

4. Increased Wear on Internal Components

Solid particles in contaminated oil can cause physical damage to transformer components, such as the windings, bushings, and tap changer contacts.

• Cause: Particles can cause abrasion as they move through the oil, gradually wearing down sensitive parts of the transformer.
• Effect: This wear leads to accelerated deterioration of the transformer’s components, affecting its overall reliability and leading to costly repairs or replacements.

Table: Common Contaminants and Their Effects on Transformer Oil

Contaminant	Cause	Effect
Water	Moisture ingress from air, leaks, or condensation	Decreased dielectric strength, insulation breakdown
Solid Particles	Dirt, metal shavings, carbon residues, or internal wear	Abrasive damage to components, poor heat dissipation
Gases	Arcing, overheating, or electrical faults inside the transformer	Increased pressure, reduced insulation resistance
Sludge and Acids	Oil degradation due to heat and oxidation	Blocked circulation, corrosion of components
Harmful Additives	Poor maintenance practices or improper handling of oil	Contaminated oil leading to breakdown of insulation properties

Preventing Oil Contamination in Transformers

Preventing oil contamination is crucial to maintaining the efficiency and longevity of a transformer. Here are some measures that can be taken to minimize contamination:

1. Regular Oil Testing

Routine oil sampling and testing are essential to detect contamination early. Testing can identify moisture content, dissolved gases, acidity, and the presence of solid particles.

• Prevention: Perform regular oil testing according to industry standards, including checking for water content, acidity, and dielectric strength.

2. Proper Sealing and Maintenance

Ensure that transformer seals are intact to prevent water ingress and external contaminants. Regular maintenance practices, including cleaning oil entry points and replacing seals, are essential.

• Prevention: Conduct periodic inspections and replace worn-out seals or gaskets to prevent external contamination.

3. Filtration Systems

Using filtration systems in transformers can help remove solid particles and moisture from the oil, reducing the likelihood of contamination.

• Prevention: Install filtration units to continuously or periodically filter the oil, especially when contaminants are detected.

4. Use High-Quality Oil

Always ensure that high-quality, clean oil is used when refilling or replacing transformer oil. The use of oil with high insulation and cooling properties helps maintain the transformer's reliability.

• Prevention: Source oil from reputable suppliers and use only oils with specifications that meet the transformer’s operational needs.

5. Control Environmental Conditions

Place transformers in clean, dry, and well-ventilated areas to minimize the risk of external contamination.

• Prevention: Ensure the transformer environment is free from excessive dust, humidity, and other contaminants that could affect the oil quality.

What Role Do Mechanical Failures Play in Transformer Faults?

Mechanical failures are among the most significant causes of transformer faults. Power transformers are complex, high-pressure systems that must operate efficiently under extreme electrical and thermal stresses. While electrical faults (such as short circuits or insulation breakdowns) are often considered the primary cause of transformer failures, mechanical issues—especially those arising from aging, design flaws, or improper operation—can also lead to catastrophic problems. Understanding the role of mechanical failures in transformer faults is essential for identifying, preventing, and addressing potential risks that could affect transformer reliability and operational safety.

Mechanical failures in transformers, including issues with bushings, tap changers, and structural components, are responsible for a significant portion of transformer faults. These failures can lead to oil leaks, overheating, and even complete transformer breakdowns, making maintenance and monitoring critical.

Types of Mechanical Failures in Transformers

Mechanical failures can occur in various transformer components. While electrical issues often receive the most attention, the mechanical integrity of the transformer plays an equally important role in ensuring its safe operation and longevity. The primary mechanical components that can fail are the bushings, tap changers, core structure, and the oil circulation system. Below are some common causes of mechanical failure in transformers:

1. Bushing Failures

Bushings are critical components used to insulate and connect high-voltage parts of the transformer to external circuits. They are often subjected to mechanical stresses, electrical loads, and environmental factors.

• Cause: Over time, bushings can degrade due to mechanical wear, environmental factors like moisture or pollution, or electrical stress. Manufacturing defects, improper installation, and poor maintenance can also accelerate bushing failure.
• Effect: Bushing failures can lead to oil leakage, electrical arcing, or even an explosion if the bushing fails under load. These failures also increase the likelihood of external faults, which can damage the transformer and surrounding equipment.

2. Tap Changer Failures

Tap changers are devices used to adjust the transformer’s voltage output by changing the number of windings in use. They typically involve moving parts that are subject to wear over time.

• Cause: Tap changers experience mechanical wear due to constant operation and the movement of electrical contacts. Improper maintenance, faulty design, or excessive load conditions can lead to failure.
• Effect: When tap changers fail, they can cause voltage instability or unregulated voltage output, resulting in system disturbances. Tap changer failure may also lead to overheating due to the lack of proper load regulation.

3. Core and Structural Failures

The core of the transformer is responsible for the magnetic flux that induces voltage. It is made of laminated sheets of steel to reduce eddy current losses. Over time, mechanical stresses or poor design can lead to structural failure.

• Cause: Mechanical stresses can arise from operational factors such as vibration, thermal expansion, or from shipping/transportation impacts. Additionally, poor manufacturing or quality control issues during construction can compromise the integrity of the transformer core and frame.
• Effect: Core damage can result in poor performance, increased vibration, and even overheating. Structural failures can cause transformer misalignment, oil leaks, or complete mechanical collapse of the transformer.

4. Oil Circulation System Failures

The oil circulation system is responsible for dissipating heat and maintaining the temperature of the transformer. It includes pumps, radiators, filters, and cooling fans. Failure in any of these components can disrupt the transformer’s cooling capacity.

• Cause: Mechanical failure in the oil circulation system can result from pump failure, blocked radiators, or broken fan systems. Over time, debris, corrosion, or wear and tear can obstruct the system.
• Effect: Without proper cooling, transformers can overheat, causing damage to the insulation, winding, and oil. This can lead to an increased risk of electrical faults or even a complete transformer failure.

5. Oil Leaks and Seal Failures

The seals and gaskets used to contain the insulating oil and prevent leakage are essential for maintaining the transformer’s operational integrity.

• Cause: Gaskets and seals may degrade due to thermal cycling, poor installation, or material defects. Over time, they can become brittle or lose their ability to form tight seals.
• Effect: Oil leakage not only causes the transformer to lose its insulating properties but also increases the risk of fire, contamination, and environmental damage. A lack of oil also means that cooling is compromised, which can lead to overheating and damage to the transformer.

How Mechanical Failures Affect Transformer Performance

Mechanical failures in transformers can have serious consequences for the performance and lifespan of the transformer. The effects of these failures can range from temporary operational disturbances to catastrophic transformer failures. Here are the main ways that mechanical issues influence transformer performance:

1. Increased Risk of Overheating

Mechanical failures such as oil circulation issues or tap changer malfunctions can lead to overheating in transformers. Without proper cooling, the transformer’s components—such as the core, windings, and insulating oil—become exposed to excessive temperatures.

• Effect: Overheating accelerates the aging of the insulation, increases electrical losses, and can even cause the transformer to catch fire if the temperatures exceed safe limits. It may also result in permanent damage to the windings or insulation, leading to complete transformer failure.

2. Loss of Voltage Regulation

Tap changers, which regulate the output voltage by adjusting the number of active windings, are critical for maintaining voltage stability. Mechanical failure in the tap changer can lead to poor regulation, causing fluctuations in output voltage.

• Effect: Unregulated voltage can affect sensitive equipment connected to the transformer, such as generators, motors, or control systems. Voltage irregularities can lead to electrical disruptions, equipment damage, or even operational downtime.

3. Increased Vibration and Noise

Mechanical failures in the core, structural components, or bushings can lead to increased vibration and operational noise. These vibrations may result from improper alignment or internal mechanical stresses.

• Effect: Excessive vibration can further damage the transformer’s internal components, such as the windings or oil circulation system. In the worst-case scenario, these vibrations can cause total failure of the transformer or trigger resonance that leads to catastrophic mechanical damage.

4. Transformer Alignment and Structural Integrity Issues

Core and structural mechanical failures can affect the alignment and integrity of the transformer. These issues can cause misalignment of the core or windings, which can further lead to mechanical stress and electrical faults.

• Effect: Misalignment causes increased mechanical strain on components, leading to higher operational stress, higher risk of failure, and an increased likelihood of oil leaks. Additionally, any misalignment in the transformer could result in a reduced overall efficiency, causing the transformer to operate outside of its optimal parameters.

Table: Common Mechanical Failures and Their Effects on Transformers

Mechanical Failure	Cause	Effect
Bushing Failure	Wear, environmental stress, electrical stress, or manufacturing defects	Oil leaks, electrical arcing, potential explosions
Tap Changer Failure	Mechanical wear, improper operation, or design flaws	Voltage instability, overheating, system disruptions
Core/Structural Failure	Vibration, thermal expansion, or poor manufacturing	Poor performance, misalignment, overheating
Oil Circulation Failure	Pump failure, blocked radiators, broken cooling fans	Overheating, insulation degradation, transformer breakdown
Seal/Oil Leak Failure	Degraded gaskets or seals, poor installation	Oil loss, increased fire risk, cooling failure

Preventing Mechanical Failures in Transformers

Preventing mechanical failures is crucial for ensuring the long-term reliability and performance of transformers. Regular maintenance, proper operation, and proactive monitoring are essential to minimize mechanical risks. Below are some measures that can help reduce the likelihood of mechanical failures:

1. Regular Inspections and Maintenance

Conduct routine inspections to check for mechanical wear, loose components, and oil leakage. Replace worn-out parts like bushings, tap changers, and seals promptly to prevent catastrophic failures.

• Prevention: Schedule preventive maintenance programs to ensure all mechanical components are in good working condition.

2. Monitoring Vibration and Noise Levels

Install vibration and noise monitoring systems to detect any unusual oscillations that could indicate mechanical issues. These monitoring systems can alert operators to early signs of problems before they escalate.

• Prevention: Regularly monitor vibration levels and perform corrective actions if abnormal vibrations are detected.

3. Improve Cooling Systems

Ensure the oil circulation system is working optimally. Perform regular checks on pumps, radiators, and cooling fans to prevent overheating caused by mechanical failures.

• Prevention: Clean and maintain the cooling system, and replace any faulty components to ensure efficient heat dissipation.

4. Proper Load Management

Avoid overloading transformers or pushing them to their operational limits. Overloading can stress mechanical components, particularly the tap changers, leading to premature failure.

• Prevention: Operate transformers within their design limits and avoid sudden or excessive load changes.

5. Use Quality Components

When replacing mechanical parts such as bushings or tap changers, use high-quality components that are designed for the specific transformer model. High-quality parts are more resistant to wear and failure.

• Prevention: Source spare parts from reputable manufacturers to ensure long-term reliability.

How Can Electrical Faults, Such as Short Circuits, Affect Power Transformers?

Electrical faults, particularly short circuits, can have severe consequences for power transformers, potentially causing significant damage and even complete failure. A short circuit is an electrical fault where there is a direct connection between two or more conductors, leading to an abnormally high current that bypasses the normal load path. This sudden surge in current can severely affect the transformer’s components, including the insulation, windings, core, and bushings, posing serious risks to transformer performance, reliability, and safety.

Electrical faults like short circuits can lead to severe transformer damage by inducing excessive heat, mechanical stress, and electrical arcing. These faults can result in the breakdown of insulating materials, damage to windings, and even catastrophic transformer failure.

Understanding Short Circuits and Their Causes

Before delving into the effects of short circuits on power transformers, it’s essential to understand the causes of such faults and how they occur. Short circuits can happen in different locations within the electrical network, and each can have varying degrees of impact on transformers.

1. Internal Short Circuits

Internal short circuits occur within the transformer itself, usually in the windings or between the primary and secondary windings.

• Cause: A failure in the insulation between windings, mechanical damage to the transformer, or aging of the transformer components can result in an internal short circuit. Overvoltage conditions or external electrical disturbances can also trigger internal faults.
• Effect: When short circuits happen within the transformer, they can create a direct path for the electrical current to flow uncontrollably, bypassing the windings and causing severe damage to the insulation, winding coils, and core.

2. External Short Circuits

External short circuits occur outside the transformer, typically in the connected power lines, switchgear, or load equipment. When a fault occurs in the distribution or transmission network, the transformer can experience an overload condition due to the high fault current.

• Cause: External short circuits can be caused by damaged transmission lines, faulty switches, ground faults, or damaged circuit breakers. Environmental factors such as lightning strikes, equipment failure, or even animals coming into contact with power lines can cause such faults.
• Effect: When the transformer is connected to a faulty network, it can experience an overload that leads to overheating, mechanical stresses, and even insulation failure due to the high fault current.

How Short Circuits Affect Power Transformers

Short circuits generate high fault currents that can create several hazardous conditions for transformers. The impact of these faults on the transformer can be both immediate and long-lasting, depending on the severity of the fault and the transformer’s design. Below are the primary ways that short circuits can affect power transformers:

1. Insulation Breakdown

One of the most significant effects of a short circuit is the damage to the transformer's insulation system. The insulation is designed to keep electrical currents from flowing through unintended paths, and it also serves as a barrier to prevent the transformer from shorting out.

• Cause: A short circuit causes a massive current to flow through the transformer windings, generating excessive heat. This heat can break down the insulation materials, such as oil, paper, or resin, which can no longer effectively insulate the windings and core from electrical leakage.
• Effect: The degradation of the insulation material results in partial or complete insulation failure, which can lead to internal arcing, further damage to the windings, and even transformer failure.

2. Overheating of Windings

Power transformers are designed to operate at specific load levels. During a short circuit, the current flow increases dramatically, which causes excessive heat to build up in the transformer’s windings.

• Cause: A short circuit creates a situation where a significant amount of current is flowing through the transformer windings. Since the current bypasses the normal load, it doesn’t undergo the typical resistance and regulation, resulting in a higher-than-normal temperature.
• Effect: This overheating causes thermal stress on the windings and insulation, accelerating aging, melting the insulation, and possibly leading to winding damage. If the short circuit persists for too long, it can permanently damage the transformer.

3. Mechanical Stresses and Vibration

When short circuits occur, the resulting high fault currents create a force that can put tremendous mechanical stress on the transformer’s internal components. These forces are particularly damaging to the windings and other structural components of the transformer.

• Cause: The fault current creates high electromagnetic forces that result in mechanical vibrations, shifting or warping the transformer’s internal components. The windings can be subjected to lateral forces that lead to bending or breaking.
• Effect: These mechanical stresses can cause physical damage to the transformer’s internal components, such as the windings, core, and tap changer, leading to misalignment or mechanical failure. In extreme cases, the transformer can suffer from mechanical deformation or rupture.

4. Arcing and Fire Hazards

Short circuits create extreme electrical arcing, especially when they occur within the transformer’s windings or bushings. These arcs can generate temperatures exceeding thousands of degrees Celsius.

• Cause: During a short circuit, the electric arc may form as the current attempts to jump across damaged areas of the transformer. The arc produces localized high temperatures that can ignite combustible materials, such as oil.
• Effect: Arcing can cause further damage to the transformer’s internal components, leading to fire risks. A fire within a transformer can result in catastrophic damage to the equipment and pose serious safety risks to personnel. It may also spread to surrounding equipment and infrastructure.

5. Loss of Transformer Cooling

Transformers rely on cooling systems (such as oil circulation and radiators) to regulate temperature. A short circuit can cause a surge of heat that overwhelms the cooling system, reducing its effectiveness.

• Cause: The sudden surge in current during a short circuit leads to excessive heating within the transformer. If the cooling system is not able to dissipate this heat fast enough, the transformer’s internal temperature rises significantly.
• Effect: As the transformer overheats, the risk of insulation breakdown, winding damage, and fire increases. An overheated transformer may also suffer from oil degradation, which further impacts its cooling capacity and can lead to a complete failure.

6. Complete Transformer Failure

In the worst-case scenario, a severe short circuit can lead to the complete failure of the transformer. Once insulation is compromised, arcing begins, and the mechanical structure is damaged, the transformer may not be able to function anymore.

• Cause: If the fault persists for an extended period, the transformer’s internal components will be severely damaged, and it may be beyond repair.
• Effect: Transformer failure leads to costly downtime, system outages, and the need for expensive repairs or replacements. It can also impact the entire power grid, causing blackouts or reduced capacity in the affected area.

ClaimReview Fact Check

Preventing and Mitigating the Effects of Short Circuits

While electrical faults like short circuits cannot be completely avoided, there are several strategies that can help mitigate their impact on transformers:

1. Protection Systems

The installation of proper protection devices, such as circuit breakers, fuses, and relays, is essential for minimizing the damage caused by short circuits. These devices can detect faults and isolate the transformer from the system before the fault current can reach destructive levels.

• Prevention: Use advanced protective relays with fast trip settings to immediately disconnect the transformer from the electrical grid in the event of a fault.

2. Regular Maintenance and Inspections

Regularly inspecting the transformer for signs of wear, aging insulation, or mechanical damage is key to identifying potential vulnerabilities before they lead to a short circuit.

• Prevention: Perform routine maintenance on insulation, cooling systems, and electrical connections to ensure that all components are in good working order.

3. Transformer Design Considerations

Modern transformer designs often include features that help protect against short circuit damage, such as enhanced insulation materials, reinforced structural components, and improved cooling systems.

• Prevention: Design transformers with higher tolerance to fault currents and integrate robust insulation systems to withstand short circuits.

4. Quick Fault Detection and Isolation

To prevent extensive damage, it is important to implement quick fault detection mechanisms that can rapidly identify short circuits and disconnect the faulty portion of the system.

• Prevention: Use digital fault detection systems to quickly isolate faults and minimize the duration of short circuit events.

---

Conclusion

Power transformers are complex devices with multiple potential failure points, and understanding the common faults and issues they can experience is essential for ensuring their reliability and longevity. Insulation failure, overheating, oil contamination, mechanical issues, and electrical faults are among the most frequent problems encountered by transformers. Each of these issues can lead to serious performance degradation, potential damage to the transformer, and costly downtime.

By identifying the causes and consequences of these faults, power system operators can implement proactive maintenance and monitoring strategies to detect problems early. Regular oil testing, thermal monitoring, and mechanical inspections can help identify developing faults before they lead to catastrophic failures. Additionally, proper transformer design, use of high-quality materials, and effective protection systems (such as fuses, relays, and pressure relief devices) can reduce the risk of these faults occurring in the first place.

Ultimately, minimizing transformer faults and addressing issues quickly can significantly improve the reliability of the power grid and ensure the smooth operation of electrical systems.

FAQ

Q1: What are the most common faults in power transformers?

A1: Common faults in power transformers include insulation failure, overloading, oil leaks, winding shorts, and core issues. These faults can lead to transformer malfunction or failure if not addressed promptly.

Q2: How do insulation failures occur in power transformers?

A2: Insulation failures in transformers can happen due to excessive heat, moisture, or contamination. When the insulating materials degrade, they can cause electrical short circuits or faults in the transformer.

Q3: What causes overloading in power transformers and how can it be prevented?

A3: Overloading occurs when a transformer is asked to carry a load beyond its capacity. This can cause overheating and damage. Preventing overloading involves proper load management and regular monitoring of transformer health.

Q4: How can oil leaks impact power transformers?

A4: Oil leaks can lead to a loss of coolant and increased temperature, causing insulation breakdown or even fire hazards. Regularly checking oil levels and inspecting seals can help prevent oil leakage.

Q5: What are the signs of winding shorts in transformers?

A5: Winding shorts in transformers typically manifest as unusual noises, overheating, or tripped circuit breakers. These issues can be caused by improper handling or excessive load, and can lead to severe transformer failure if not addressed.

References

1. Common Faults in Power Transformers and Their Causes - https://www.electrical4u.com/common-faults-in-power-transformers - Source: Electrical4U
2. Power Transformer Issues and Maintenance Tips - https://www.transformer-technologies.com/power-transformer-issues - Source: Transformer Technologies
3. Causes and Prevention of Transformer Failures - https://www.electrical-engineering-portal.com/transformer-failure-prevention - Source: Electrical Engineering Portal
4. Power Transformer Fault Detection Techniques - https://www.powertransformers.com/fault-detection-techniques - Source: Power Transformers
5. The Impact of Oil Leaks in Power Transformers - https://www.energycentral.com/c/impact-oil-leaks-transformers - Source: Energy Central
6. Winding Failures in Power Transformers: Causes and Solutions - https://www.powersystems.com/winding-failures-transformers - Source: Power Systems
7. How Overloading Affects Transformer Performance - https://www.electricalengineering.com/overloading-transformer-performance - Source: Electrical Engineering
8. Insulation Failure in Power Transformers - https://www.transformer-tech.com/insulation-failure-causes - Source: Transformer Tech
9. Common Power Transformer Problems and How to Fix Them - https://www.industrial-electronics.com/common-transformer-problems - Source: Industrial Electronics
