Why Is Regular Maintenance Important for Dry-Type Transformers?
Dry-type transformers are widely appreciated for their low risk of fire, minimal environmental impact, and indoor suitability, but that doesn’t mean they’re maintenance-free. Unlike oil-immersed models, dry-type transformers rely on natural or forced air cooling and solid-state insulation, which are highly sensitive to dust buildup, thermal stress, and moisture ingress. Regular inspection and upkeep are therefore essential to ensure long-term reliability, electrical safety, and consistent efficiency.
Regular maintenance of dry-type transformers is essential to prevent insulation degradation, avoid overheating due to dust accumulation, detect early signs of winding damage, and ensure continued safe and efficient operation. While they have no oil to monitor, dry transformers still require inspection of cooling systems, electrical clearances, thermal performance, and insulation integrity to avoid failures or downtime.
Neglecting maintenance can lead to overheating, insulation failure, arc faults, or unexpected outages—especially in industrial or high-humidity environments.
Dry-type transformers require no maintenance at all.False
While they do not require oil checks, dry-type transformers still need regular cleaning, thermal inspections, insulation resistance tests, and airflow verification to operate reliably.
Key Maintenance Objectives for Dry-Type Transformers
| Objective | Reason |
|---|---|
| Prevent Overheating | Dust buildup restricts airflow and raises coil temperature |
| Protect Insulation Integrity | Humidity or pollution degrades solid insulation over time |
| Ensure Thermal Efficiency | Ventilation must remain unobstructed for heat dissipation |
| Detect Mechanical Issues Early | Vibration or loose connections can lead to arcing or partial discharge |
| Avoid Unexpected Failures | Scheduled checks catch early signs of electrical degradation |
Recommended Dry-Type Transformer Maintenance Activities
| Maintenance Task | Frequency | Method/Tool |
|---|---|---|
| Visual Inspection | Monthly or quarterly | Check for dust, corrosion, cracks, damage |
| Cleaning and Dust Removal | Every 6–12 months | Industrial vacuum, dry air blower |
| Insulation Resistance Test | Annually | Megger (1 kV or 2.5 kV as per spec) |
| Thermal Imaging (IR Scan) | Every 6–12 months | IR camera for hot spots and imbalances |
| Tightness Check (Terminal) | Every 6 months | Torque wrench per OEM settings |
| Airflow Verification | With filter changes or quarterly | Confirm unobstructed air paths |
| Hygrometer Check (Humidity) | If installed | Validate <60% RH inside enclosure |
| Sound and Vibration Check | During operation | Identify abnormal humming or resonance |
Real-World Case – Factory Dry-Type Transformer Incident
- Type: 1600 kVA dry-type transformer, installed in cement plant
- Issue: Undetected dust accumulation and vent blockage
- Result: Local winding overheating, insulation breakdown, production halted for 3 days
- Root Cause: No inspection or airflow maintenance in 2+ years
- Solution: Preventive maintenance program with IR scans, quarterly cleaning
Lesson: Simple visual and airflow maintenance could have prevented expensive downtime.
Environmental Conditions Requiring Frequent Maintenance
| Environmental Factor | Impact | Maintenance Adjustment |
|---|---|---|
| High Dust | Blocks vents, reduces cooling | Increase cleaning frequency |
| Humidity (>60%) | Absorbed by insulation, reduces dielectric strength | Add hygrometers or heaters |
| Corrosive Atmosphere | Degrades terminals and coils | Use anti-corrosion coatings, inspect monthly |
| High Ambient Temp (>40 °C) | Overheats windings faster | Increase thermal monitoring |
Signs Your Transformer Needs Maintenance
| Symptom | Possible Cause |
|---|---|
| Hot smell or discoloration | Overheating from blocked airflow |
| Unusual humming | Loose core clamps or vibration |
| Repeated breaker tripping | Winding short or insulation breakdown |
| IR hot spot detection | Loose terminal, winding hotspot |
| Lower insulation resistance | Moisture ingress or aging insulation |
Maintenance Best Practices
| Best Practice | Benefit |
|---|---|
| Keep a Maintenance Logbook | Tracks trends and identifies recurring issues |
| Use Nonconductive Cleaning Tools | Prevents damage to windings |
| Check Air Filters (if fitted) | Ensures airflow is consistent and clean |
| Schedule Maintenance During Downtime | Avoids disruption to operations |
| Train Staff on IR Interpretation | Enables predictive maintenance insights |
Standards for Dry-Type Transformer Maintenance
| Standard | Scope |
|---|---|
| IEEE C57.12.01 | General requirements and maintenance guidance |
| IEC 60076-11 | Maintenance procedures for dry-type transformers |
| IS 11171 | Indian standard for dry-type transformer inspection |
| NFPA 70B | Maintenance recommendations for electrical equipment |
What Are the Visual Inspection Steps for Dry-Type Transformers?
Visual inspections are the first and most essential line of defense in maintaining dry-type transformers. These inspections are non-invasive, cost-effective, and quick to perform, yet they often reveal the earliest warning signs of potential failure. By following a structured visual checklist, maintenance personnel can identify dust accumulation, overheating signs, corrosion, insulation damage, and mechanical loosening before these issues escalate into costly breakdowns.
The visual inspection of a dry-type transformer involves checking for dust and debris buildup, inspecting windings and insulation for discoloration or damage, verifying the integrity of terminals and connections, ensuring unobstructed airflow in cooling ducts, confirming structural and mounting stability, and checking protective screens and labels. It should be conducted periodically and after any overload or environmental stress event.
A disciplined visual inspection can help extend transformer life, prevent downtime, and ensure compliance with safety protocols.
Visual inspections of dry-type transformers are unnecessary if no alarms are triggered.False
Alarms detect faults after they've begun. Visual inspections help prevent faults by identifying early warning signs such as dirt buildup, discoloration, or loose parts.
Step-by-Step Visual Inspection Procedure
| Step | Action |
|---|---|
| 1. Power Down if Needed | Ensure safety—de-energize unit if inspecting internal parts closely |
| 2. Inspect Ventilation Areas | Look for blockages in air intakes, outlets, fans, and filters |
| 3. Check for Dust and Debris | Note any dust accumulation on windings or insulating surfaces |
| 4. Examine Windings | Look for discoloration, charring, deformation, or uneven coatings |
| 5. Inspect Terminal Connections | Verify cable tightness, no corrosion or oxidation |
| 6. Verify Grounding Integrity | Confirm grounding straps or connections are tight and intact |
| 7. Look for Cracks or Mechanical Stress | Check enclosures, supports, and mounting bolts |
| 8. Examine Insulation Supports | Ensure spacers, supports, and barriers are not cracked or degraded |
| 9. Review Nameplate & Safety Labels | Confirm visibility and legibility for operational compliance |
| 10. Listen and Smell During Operation | Any humming, ozone smell, or burning odor indicates internal issues |
Visual Inspection Checklist Summary
| Component | Visual Indicators of Concern |
|---|---|
| Windings (LV/HV) | Brown spots, charring, bulges, wire exposure |
| Insulation Surfaces | Cracks, moisture marks, UV aging, delamination |
| Terminals | Loose connections, blackening, rust, frayed wires |
| Ventilation Paths | Dust blocking ducts or fan blades |
| Fan Units (if present) | Damaged blades, blocked grills, disconnected wiring |
| Grounding Straps | Broken or missing connections |
| Mounting Bolts/Brackets | Loosened or missing hardware |
| Core and Frame | Rust patches, deformation, alignment shifts |
| Surrounding Area | Rodents, nests, debris near base or openings |
Inspection Frequency Guidelines
| Environment Type | Recommended Visual Inspection Interval |
|---|---|
| Clean Indoor Facility | Every 6–12 months |
| Dusty or Industrial Site | Every 3–6 months |
| Humid/Coastal Environment | Every 3 months or after seasonal change |
| After Overload or Trip Event | Immediate post-event check |
Real-World Case – Prevented Failure via Visual Inspection
- Transformer: 1000 kVA dry-type in data center
- Finding: Technician noted slight blackening near upper winding edge
- Root cause: Blocked rear air duct causing localized overheating
- Correction: Cleaned vents, improved spacing, scheduled thermal scan
Outcome: Prevented thermal breakdown, saved costly unplanned downtime and repairs.
Visual Inspection Tips
| Best Practice | Reason |
|---|---|
| Use Bright Flashlight | Enhances visibility in tight spaces and behind coils |
| Document With Photos | Tracks degradation or heat marks over time |
| Wear Safety Gear (PPE) | Eye protection, gloves, arc-flash suit if near live terminals |
| Use a Checklist Form | Ensures no inspection step is skipped |
| Coordinate With IR Scanning | Combine visual and thermal insights for predictive maintenance |
Standards and Guides Referenced
| Standard | Guidance Area |
|---|---|
| IEEE C57.12.01 | Visual inspection recommendations for dry transformers |
| IEC 60076-11 | Periodic inspection and condition monitoring guidance |
| IS 11171 (India) | Routine visual and physical inspection guidance |
| NFPA 70B | Electrical equipment inspection safety |
How to Clean a Dry-Type Transformer Safely?
Even without oil, dry-type transformers are not maintenance-free. Over time, dust, moisture, and airborne particles accumulate on coils, insulation surfaces, and ventilation ducts—especially in industrial, coastal, or dusty environments. This buildup increases the risk of overheating, tracking, partial discharge, and reduced insulation resistance. Cleaning must be done carefully, with proper tools and safety precautions, to restore performance and avoid damaging sensitive components.
To clean a dry-type transformer safely, power down the unit, isolate all sources, wear proper PPE, and use non-conductive tools like industrial vacuum cleaners, dry air blowers, and anti-static brushes. Never use liquids or compressed moisture. Focus on removing dust and debris from coils, windings, ventilation ducts, terminal areas, and insulating surfaces without disturbing insulation or mechanical parts.
Routine dry cleaning prolongs transformer life and maintains efficiency without introducing safety risks.
Dry-type transformers can be cleaned using water and detergents.False
Water can severely damage the insulation system of a dry-type transformer and must never be used for cleaning. Only dry, non-conductive methods are safe.
Step-by-Step Guide to Safe Cleaning
| Step | Action |
|---|---|
| 1. De-Energize Completely | Disconnect all supply lines and ensure lock-out/tag-out is applied |
| 2. Wait for Cool Down | Allow coils and windings to return to ambient temperature |
| 3. Inspect for Damage First | Look for cracks, charring, or broken insulation before cleaning |
| 4. Use Industrial Vacuum | Gently vacuum surface dust without touching insulation directly |
| 5. Apply Dry Air Blower | Use oil-free, moisture-free blower (<30 psi) to dislodge internal dust |
| 6. Clean Vents and Screens | Ensure all cooling ducts and filters are unobstructed |
| 7. Use Antistatic Brushes | For hard-to-reach areas or static-sensitive surfaces |
| 8. Wipe Control Panels | Use lint-free cloth to clean surfaces near CTs, PTs, and relays |
| 9. Re-inspect Post-Cleaning | Check for loosened parts or exposed conductors |
| 10. Document and Close Unit | Log cleaning date, findings, and actions in maintenance record |
Tools and Materials for Safe Cleaning
| Tool/Material | Use |
|---|---|
| Insulated Vacuum Cleaner | Dust removal from coils, ducts, and surfaces |
| Oil-Free Air Blower | Dislodging fine debris and cleaning tight gaps |
| Antistatic Brush | Gentle brushing of coil ribs and supports |
| Lint-Free Wipes | Cleaning panel areas and inspection windows |
| UV Flashlight (Optional) | Spotting contamination or partial discharge marks |
| Insulated Hand Tools | Adjusting terminal clamps or grounding points if needed |
Areas to Focus On During Cleaning
| Transformer Component | Reason for Cleaning |
|---|---|
| High and Low Voltage Coils | Prevents tracking and insulation breakdown from dust |
| Ventilation Ducts | Maintains airflow, critical to natural/forced cooling |
| Terminal Compartments | Removes dust that could lead to corona or flashover |
| Bushing Insulators | Prevents leakage currents and external contamination |
| Top and Base Frame | Often neglected; collects most dust in industrial settings |
| Protective Screens/Grilles | Blocked airflow reduces thermal efficiency |
Frequency Recommendations
| Environment | Cleaning Interval (Guideline) |
|---|---|
| Clean Indoor Plant | Every 12–24 months |
| Moderate Industrial Zone | Every 6–12 months |
| Dusty or Coastal Area | Every 3–6 months or after seasonal dust events |
| Post-Event Cleaning | After overload, shutdown, or nearby fire |
Cautions and Safety Precautions
| Do Not... | Risk Involved |
|---|---|
| ❌ Use compressed air >50 psi | May damage insulation or embed particles |
| ❌ Apply liquids or sprays | Risk of tracking, flashover, insulation degradation |
| ❌ Lean on coils or windings | Can shift core or damage supports |
| ❌ Touch conductors with bare hands | Residual charge or contamination hazard |
| ❌ Clean under live conditions | High arc and electrocution risk |
Real-World Maintenance Case
- Transformer: 1600 kVA, dry-type, in food processing plant
- Issue: Elevated coil temperature and IR hotspots after 12 months of operation
- Action: Inspected and found heavy flour dust blocking rear duct and winding ribs
- Cleaning Method: Vacuumed coils, dry blowout, duct scrub with anti-static brush
- Result: Temperature normalized, efficiency improved by 1.3%, no thermal alarms afterward
Lesson: Even non-oily dust can compromise thermal performance—dry cleaning is essential.
Standards and Best Practices
| Standard/Guide | Description |
|---|---|
| IEEE C57.12.91 | Transformer testing and handling safety |
| IEC 60076-11 | Maintenance and cleaning practices for dry-type units |
| NFPA 70B | Maintenance of electrical systems—cleaning guidelines |
| OSHA 1910.269 | Worker safety for electrical cleaning and inspection tasks |

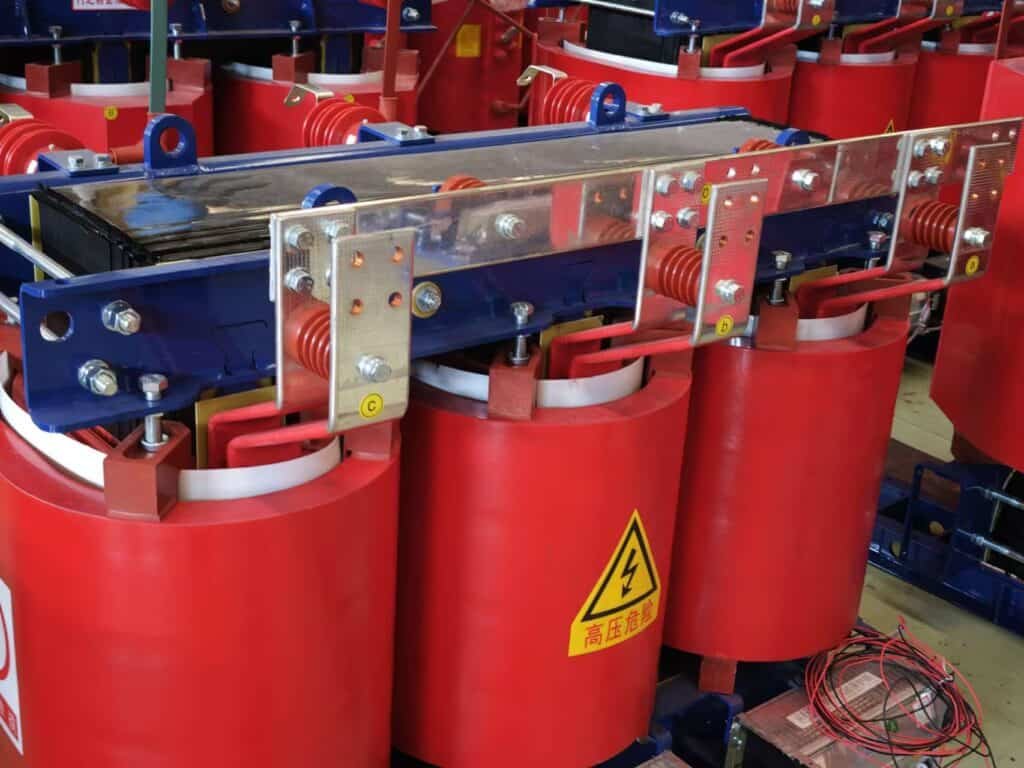

How to Check Electrical Connections and Insulation Resistance in Dry-Type Transformers?
Regular inspection of electrical connections and insulation resistance is essential to maintaining a dry-type transformer’s reliability and safety. Over time, vibration, thermal cycling, and environmental exposure can loosen terminals and degrade insulation. Failure to test and tighten connections or check insulation strength may lead to overheating, arcing, insulation breakdown, or electrical failure.
To check electrical connections, visually inspect and mechanically torque all terminal lugs, busbars, and bonding points to manufacturer specifications. For insulation resistance, use a calibrated megohmmeter to measure resistance between windings, between each winding and ground, and across phases. Values should be compared to baseline standards (typically ≥1000 MΩ per kV rating).
Testing ensures that mechanical integrity and dielectric strength remain within safe operating limits.
Transformer insulation resistance testing is unnecessary unless a fault is detected.False
Routine insulation resistance testing detects early degradation before faults occur, enabling predictive maintenance and preventing catastrophic failure.
Step-by-Step: Checking Electrical Connections
| Step | Action |
|---|---|
| 1. Power Down the Transformer | Ensure de-energized, grounded, and tagged out |
| 2. Visually Inspect Terminals | Look for corrosion, discoloration, arcing, or insulation damage |
| 3. Use Torque Wrench | Tighten per manufacturer's torque specs (e.g., 20–50 Nm typical) |
| 4. Check Cable Clamps and Supports | Ensure no strain or sag on connected conductors |
| 5. Inspect Grounding Straps | Confirm solid mechanical and electrical contact to chassis |
| 6. Verify Terminal Labels | Match phase identification with wiring schematic |
Step-by-Step: Insulation Resistance (IR) Testing
| Step | Action |
|---|---|
| 1. Confirm Unit is Isolated | Disconnect from power and any external wiring |
| 2. Use Calibrated Megohmmeter | Set to 500 V or 1000 V for LV, 2500 V+ for HV (as per spec) |
| 3. Test Between Each Phase and Ground | A-B, B-C, C-A and A-E, B-E, C-E (E = Earth) |
| 4. Record and Compare Results | Values ≥1000 MΩ per kV rated voltage are ideal |
| 5. Repeat After Cleaning (if low) | Clean surface dust/moisture and re-test |
| 6. Log Results for Trend Analysis | Keep records to detect gradual degradation |
Acceptable Insulation Resistance Values
| Transformer Voltage Class | Minimum IR Value (Dry Condition) |
|---|---|
| ≤1 kV (LV) | ≥1 MΩ |
| 11 kV | ≥11 MΩ |
| 33 kV | ≥33 MΩ |
| Best Practice | ≥1000 MΩ per kV of rated voltage |
Polarization Index (PI) may also be tested:
$$\text{PI} = \frac{\text{IR at 10 minutes}}{\text{IR at 1 minute}} \quad \text{(should be ≥2)}$$
Common Causes of Low Insulation Resistance
| Cause | Indication | Solution |
|---|---|---|
| Dust on Windings | Surface leakage current | Dry air blowout and vacuum |
| Moisture Absorption | Consistent low readings across phases | Dehumidify or space heater dry |
| Insulation Aging | Gradual decline over time | Plan replacement or retesting |
| Carbon Tracking or Cracks | Sharp drop in one phase | Replace or isolate affected coil |
Tools and Instruments Required
| Tool/Device | Purpose |
|---|---|
| Digital Megohmmeter | Measure insulation resistance (500 V to 5000 V range) |
| Torque Wrench | Accurate torque application to terminals |
| Infrared Thermometer/Camera | Optional – check for hot spots post-operation |
| Multimeter (Pre-check) | Confirm de-energized state |
| Logbook or CMMS Software | Record and trend test values |
Frequency of Checks
| Transformer Type | IR and Terminal Check Interval |
|---|---|
| LV Dry-Type (≤1 kV) | Annually or during major service |
| MV Dry-Type (6–33 kV) | Every 6–12 months; more often in harsh environments |
| Post-Maintenance/Shutdown | Always before re-energizing |
Real-World Maintenance Example
- Transformer: 1600 kVA, 11/0.4 kV dry-type
- Findings: Terminal lugs at 0.4 kV side were ~60% torque-rated; IR reading A-E = 8 MΩ (low)
- Actions: Tightened all terminals to 35 Nm, cleaned winding ribs, dried with blower
- Results: IR increased to 60 MΩ; temperature lowered 8 °C in service
Takeaway: Loose connections and surface dust caused thermal buildup and leakage—resolved with a simple torque + IR check.
Industry Standards Referenced
| Standard/Guide | Relevance |
|---|---|
| IEEE C57.12.01 | Electrical connection and insulation guidance for dry-types |
| IEC 60076-1 | Insulation resistance testing and values |
| NFPA 70B | Maintenance of electrical systems |
| IS 11171 | Indian standard for dry-type transformer construction and test |
What Thermal Checks Should Be Performed for Dry-Type Transformers?
Thermal performance is one of the most critical indicators of transformer health. Dry-type transformers rely entirely on air-cooled convection or forced ventilation, making them particularly sensitive to dust buildup, airflow restriction, load imbalance, and ambient heat. Performing regular thermal checks allows early detection of overheating, insulation stress, loose connections, or ventilation failure, reducing the risk of insulation breakdown, arcing, and energy loss.
Thermal checks for dry-type transformers include infrared (IR) thermal scanning of coils, terminals, and cooling ducts to detect hot spots; verifying fan operation (if applicable); checking temperature sensors; monitoring winding temperature rise under load; and comparing readings to design class ratings. These checks ensure safe operation, prevent over-temperature failures, and support predictive maintenance.
Effective thermal checks help maintain efficiency, prolong insulation life, and prevent unplanned shutdowns.
Thermal checks are only needed if visible smoke or overheating occurs.False
Thermal issues often develop gradually without visible signs. Regular thermal checks detect early temperature anomalies and prevent failures before damage occurs.
Key Thermal Check Procedures
| Check Type | Action |
|---|---|
| 1. Infrared (IR) Scan | Use thermal camera to inspect windings, terminals, core frame |
| 2. Coil Temperature Measurement | Compare surface temps to rated class (e.g., 155 °C for F-class) |
| 3. Terminal Hot Spot Detection | Identify overheating at lug or clamp points |
| 4. Fan Operation Check | Confirm cooling fans (ONAF) engage at preset temperature |
| 5. Sensor Verification | Check PTCs, RTDs, thermistors for signal accuracy |
| 6. Ambient and Load Comparison | Assess if temp rise aligns with load and environmental factors |
| 7. Alarm Threshold Test | Validate that thermal relay triggers at correct setpoint |
Typical Temperature Limits
| Component | Max Allowable Temp (IEC / IEEE Guidelines) |
|---|---|
| Coil Surface (Class F) | ≤155 °C |
| Terminal Lug | ≤105–120 °C |
| Core Frame | ≤90–100 °C (varies with design) |
| Ambient Operating Temp | ≤40 °C standard (unless derated) |
| Fan ON Temp (ONAF) | 80–90 °C setpoint, OFF at ≤60 °C |
Use ΔT method if comparing against ambient:
$$Delta T = T{coil} - T{ambient} \quad (\text{Check against rated rise, e.g., 100 K})$$
Tools and Equipment for Thermal Inspection
| Tool | Purpose |
|---|---|
| Infrared Camera (IR) | Non-contact temp check of all surfaces, connections, and ducts |
| Contact Thermometer | Spot-checks for terminal or core temperatures |
| Multichannel Data Logger | Monitors RTD/PTC thermistor sensors over time |
| Fan Controller Test Kit | Simulates high temp to verify automatic fan switching |
| Digital Hygrometer (optional) | Confirms ambient temp and humidity during inspection |
Visual Indicators of Thermal Issues
| Indicator | Possible Cause |
|---|---|
| Discoloration of Coils | Localized overheating, dust block, or winding imbalance |
| Terminal Hot Spot | Loose bolt, high contact resistance |
| Fan Not Operating | Faulty controller or sensor, dirty blades |
| Burn Smell or Hum | Core vibration, thermal stress near end frames |
| Tripped Thermal Alarm | Overload or ventilation failure |
IR Scan Example – Dry-Type Transformer at 80% Load
| Location | Temp Reading | Status |
|---|---|---|
| Coil Surface (HV) | 122 °C | Acceptable (Class F) |
| LV Terminal | 145 °C | High – needs torque check |
| Core Clamp | 86 °C | Normal |
| Ambient | 35 °C | Normal |
| Fan Status | ON | Triggered correctly |
Frequency of Thermal Checks
| Environment Type | Recommended Check Interval |
|---|---|
| Clean Indoor Facility | Annually or bi-annually |
| Dusty/Industrial Plant | Every 6 months |
| ONAF Cooled Units | Quarterly fan check + annual IR scan |
| After Load Changes or Events | Immediate post-check recommended |
Thermal Monitoring and Automation
| System Type | Benefit |
|---|---|
| RTD or PTC Sensors | Real-time monitoring of winding temperature |
| SCADA/PLC Integration | Alerts for overheating or fan failure |
| Digital Thermal Relay | Trips contactor or alarms if preset temp exceeded |
| Auto-Fan Controller | Turns fans ON/OFF based on sensed temperature |
Standards and Reference Guidelines
| Standard | Coverage |
|---|---|
| IEC 60076-11 | Temperature rise limits for dry-type transformers |
| IEEE C57.12.01 | Thermal performance and test methods |
| NFPA 70B | Thermal inspection practices in electrical maintenance |
| IS 11171 (India) | Temperature rise and cooling specification |
How Often Should Maintenance Be Conducted for Dry-Type Transformers?
A dry-type transformer may be more environmentally friendly and mechanically robust than oil-filled models, but it still requires disciplined, scheduled maintenance. The service frequency depends heavily on installation environment, duty cycle, ventilation conditions, and load characteristics. A transformer that runs in a clean, cool, and stable environment needs less frequent maintenance than one operating in dusty, humid, corrosive, or industrial conditions.
Dry-type transformer maintenance should be performed at regular intervals ranging from 3 months to 24 months depending on the environmental conditions and loading. Key tasks such as visual inspection, cleaning, insulation resistance testing, and thermal scanning should be scheduled accordingly. A typical minimum baseline is an annual inspection, while dusty or high-load applications may require quarterly checks.
A customized schedule ensures reliability, safety, and extended transformer lifespan.
Dry-type transformers can operate safely for many years without any maintenance.False
Even dry-type transformers require regular maintenance, including inspections, dust cleaning, and thermal checks to avoid overheating, insulation degradation, and electrical faults.
General Maintenance Frequency Guidelines
| Environment/Load Condition | Visual Inspection | Cleaning | IR Scan | Insulation Test | Terminal Torque Check |
|---|---|---|---|---|---|
| Clean, Indoor, Light Load | Every 12 months | 12–24 mo | Annually | 2 years | 12–24 months |
| Normal Industrial Use | Every 6 months | 6–12 mo | 6–12 mo | Annually | Annually |
| Dusty, Coastal, or Polluted | Quarterly | 3–6 mo | Every 6 mo | 6–12 mo | Every 6 months |
| Critical Load (Data Center) | Monthly | 6 months | Quarterly | 6 months | Quarterly |
| After Overload or Fault Event | Immediate | As needed | Immediate | Immediate | Immediate |
Task-Based Maintenance Frequency
| Maintenance Task | Recommended Frequency (Typical) |
|---|---|
| Visual Inspection | Every 3–6 months |
| Dust Cleaning (Air/Vacuum) | Every 6–12 months (more if dust-prone) |
| Insulation Resistance Test | Annually, or every 6 months in humid environments |
| Infrared Thermal Scan | Annually; more frequent if fans or high load present |
| Terminal Torque Check | Annually or after thermal alarm |
| Fan System Test (if ONAF) | Every 6 months |
| Sensor Calibration Check | Annually |
| Grounding Integrity Check | Annually |
Maintenance Planning Best Practices
| Practice | Benefit |
|---|---|
| Establish CMMS or Digital Log | Tracks task completion and issues over transformer lifecycle |
| Sync Maintenance With Outages | Avoids production disruption during planned maintenance |
| Use Predictive Tools (IR/SCADA) | Optimize frequency based on actual wear indicators |
| Standardize Across Fleet | Simplifies scheduling and resource allocation |
Real-World Example – Industrial Site With 1250 kVA Dry-Type Unit
- Location: Ceramic plant with moderate dust exposure
- Loading: 70–90% typical; ambient temperature reaches 45 °C
Schedule:
- Visual + IR: Every 3 months
- Cleaning: Every 6 months
- Insulation Resistance: Annually
- Fan + Sensor Check: Every 6 months
Outcome: Over 8 years of fault-free service; no thermal alarms or insulation failures recorded, due to strict maintenance adherence.
Warning Signs That Maintenance Is Overdue
| Symptom | Likely Issue |
|---|---|
| Elevated winding temperatures | Blocked airflow or overloaded windings |
| Dust visible inside vents | Missed cleaning schedule |
| Hot spots on terminals (IR) | Loose or oxidized connections |
| Lower insulation resistance | Moisture ingress or pollution buildup |
| Unexpected breaker trips | Electrical stress or connection failure |
Standards Recommending Maintenance Intervals
| Standard | Coverage |
|---|---|
| IEC 60076-11 | Maintenance frequency for dry-type transformer classes |
| IEEE C57.12.01 | Inspection and test intervals for dry-type transformers |
| NFPA 70B | Maintenance for electrical systems (includes frequency) |
| IS 11171 (India) | Maintenance guidelines for cast resin transformers |
Conclusion
Maintaining a dry-type transformer is simpler than with oil-immersed models, but it is no less important. Regular cleaning, inspections, thermal scanning, and testing ensure the transformer remains safe, efficient, and long-lasting. Establishing a preventive maintenance schedule tailored to the operational environment is key to avoiding unexpected downtime and ensuring maximum performance throughout the transformer's life.
FAQ
Q1: What are the key components to inspect in a dry-type transformer?
A1: Routine inspection should include:
Coil windings and insulation surfaces for dust, cracks, or discoloration
Terminal connections for signs of overheating or corrosion
Cooling system (air ducts and fans) for obstruction or failure
Grounding and bonding for integrity and safety compliance
Protective relays and surge arresters for functionality
Q2: How often should a dry-type transformer be serviced?
A2: Visual inspection: Every 3–6 months
Comprehensive maintenance: Annually
Thermal scanning: Yearly or during load changes
Electrical testing (e.g., insulation resistance, winding resistance): Every 1–3 years
Frequency may increase in dusty, humid, or high-load environments.
Q3: How do you clean a dry-type transformer safely?
A3: Use a vacuum or low-pressure dry air blower to remove dust
Avoid wet or high-pressure cleaning
Clean ventilation paths and fan assemblies
Use anti-static brushes or lint-free cloths for tight spaces
Cleaning prevents dust buildup, which can block airflow and reduce insulation performance.
Q4: What electrical tests are recommended during maintenance?
A4: Key electrical diagnostics include:
Insulation Resistance (IR) Test using a megger
Winding Resistance Measurement to detect coil deformation
Turns Ratio Test (TTR) to verify winding ratio
Thermal Imaging to spot hot spots or cooling failures
These tests detect insulation aging, electrical imbalances, and emerging faults early.
Q5: What are the benefits of maintaining a dry-type transformer?
A5: Improved reliability and extended lifespan
Reduced risk of unplanned outages or fire hazards
Enhanced thermal performance and energy efficiency
Compliance with safety and operational standards
Regular maintenance ensures the transformer operates safely, quietly, and efficiently under all conditions.
References
"Dry-Type Transformer Maintenance Tips" – https://www.electrical4u.com/dry-type-transformer-maintenance
"IEEE C57.94: Guide for Dry-Type Transformer Maintenance" – https://ieeexplore.ieee.org/document/7328621
"NREL: Asset Maintenance Best Practices" – https://www.nrel.gov/docs/fy22ost/dry-transformer-maintenance.pdf
"Doble Engineering: Dry Transformer Diagnostic Testing" – https://www.doble.com/dry-type-transformer-testing
"ScienceDirect: Insulation Aging and Dry-Type Transformer Performance" – https://www.sciencedirect.com/dry-transformer-aging-analysis
