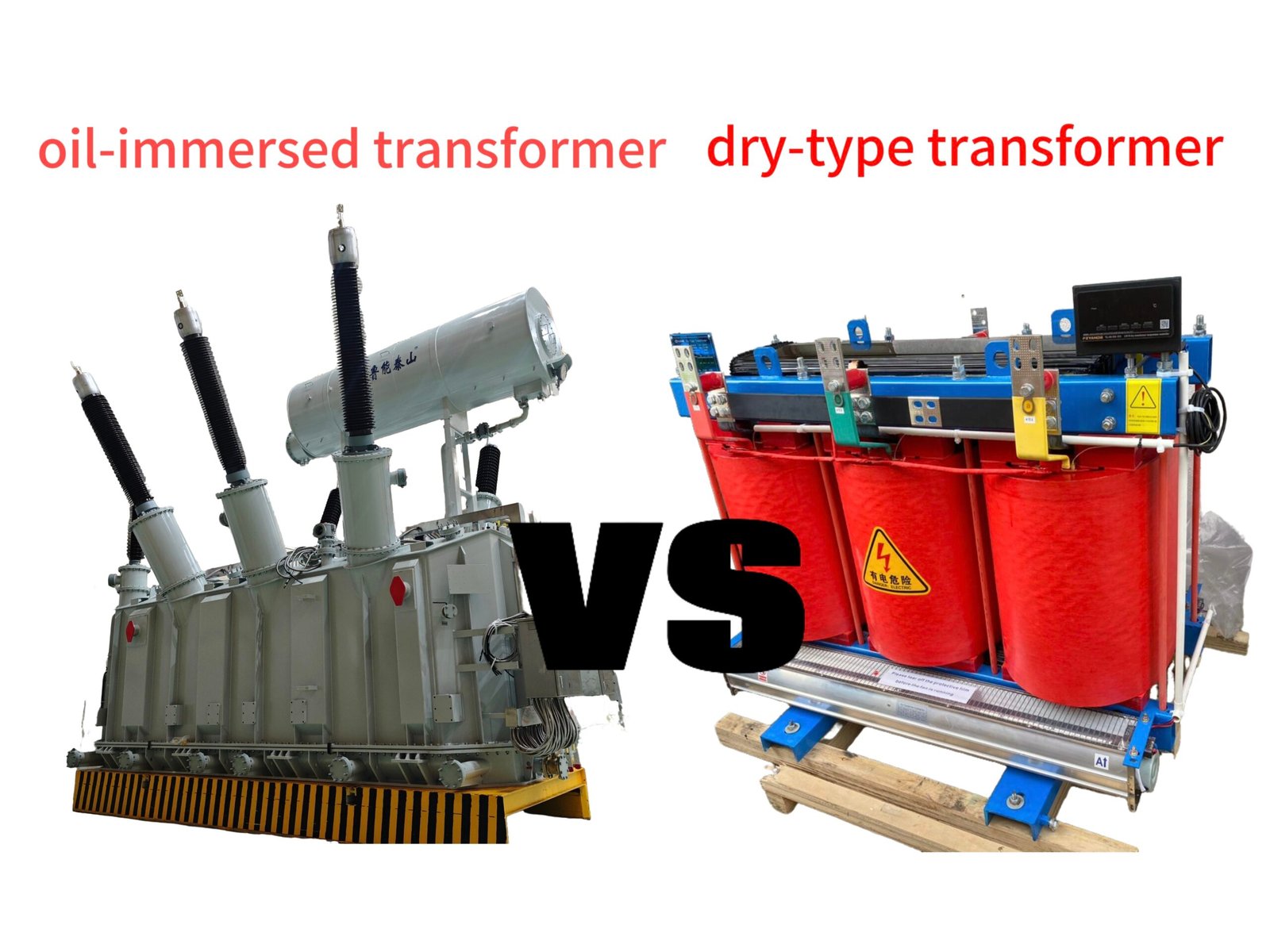

How Do Dry-Type Transformers Compare to Oil-Immersed Ones?

Dry-type transformers and oil-immersed transformers are the two main types used in power systems, each designed with different insulation and cooling methods. While both perform voltage transformation, their differences in structure, performance, safety, and application make them suitable for different environments. Understanding their comparison helps users choose the most appropriate transformer for specific project needs.

What Are the Key Differences Between Dry-Type and Oil-Immersed Transformers?

Choosing between dry-type and oil-immersed transformers is a critical decision in power system design, and making the wrong choice can lead to safety risks, higher costs, and reduced system efficiency. Many users struggle to understand the real differences beyond basic concepts, especially when considering installation environment, maintenance requirements, cooling performance, and long-term reliability. Without a clear comparison, it is easy to select a transformer type that does not match the operational demands.

The key differences between dry-type and oil-immersed transformers lie in their cooling method, insulation system, safety characteristics, maintenance needs, installation environment, and performance in high-capacity or high-voltage applications, with oil-immersed transformers offering superior cooling and capacity, while dry-type transformers provide enhanced safety and lower fire risk.

To make an informed decision, it is essential to compare these transformer types across multiple technical dimensions.

Cooling Method Differences

The most fundamental difference is how heat is removed during operation.

Oil-immersed transformers use insulating oil as a cooling medium, while dry-type transformers rely on air or forced ventilation.

Oil provides better heat transfer, allowing higher load capacity.

Insulation System

The insulation systems differ significantly between the two types.

Oil-immersed transformers generally provide stronger dielectric performance.

Safety and Fire Risk

Safety is a major consideration, especially in indoor environments.

Dry-type transformers are preferred in buildings, hospitals, and underground installations.

Maintenance Requirements

Maintenance needs vary depending on design and operating conditions.

Oil quality monitoring is essential for oil-immersed transformers.

Installation Environment

Each transformer type is suited for different installation conditions.

Capacity and Voltage Capability

Oil-immersed transformers are better suited for high-capacity and high-voltage applications.

Efficiency and Losses

Efficiency is influenced by cooling effectiveness and insulation quality.

Noise Levels

Noise generation can vary based on design.

Real-World Application Example

In a large industrial power system, oil-immersed transformers are used for high-voltage transmission due to their superior cooling and capacity. In contrast, dry-type transformers are installed inside office buildings and hospitals where fire safety and environmental considerations are critical.

Key Differences Summary

How Do Their Cooling and Insulation Methods Compare?

When selecting between dry-type and oil-immersed transformers, the most critical technical distinction lies in how they manage heat and electrical insulation. Poor understanding of these differences can result in overheating, insulation failure, or inefficient system performance. Cooling and insulation are not separate concerns—they directly influence transformer lifespan, load capacity, and operational safety. Choosing the wrong system for the environment can significantly increase maintenance costs and risk.

Dry-type transformers use air (natural or forced) for cooling and solid insulation such as epoxy resin, while oil-immersed transformers use insulating oil for both cooling and dielectric insulation, offering superior heat dissipation and higher dielectric strength for demanding applications.

Understanding this comparison requires a deeper look into both cooling mechanisms and insulation structures.

Cooling Methods Comparison

Cooling performance determines how effectively a transformer can handle load and avoid overheating.

Dry-Type Transformer Cooling

Dry-type transformers rely on air as the cooling medium. Heat generated by the windings and core is dissipated into the surrounding air through natural convection or forced ventilation.

However, air has low thermal conductivity, limiting heat transfer efficiency.

Oil-Immersed Transformer Cooling

Oil-immersed transformers use insulating oil as a cooling medium, which circulates inside the tank and transfers heat to external cooling surfaces.

Q = mc\Delta T

Oil’s higher heat capacity allows it to absorb and transfer more heat than air.

Heat Transfer Efficiency Comparison

Oil-immersed transformers clearly outperform in thermal management.

Insulation Methods Comparison

Insulation systems are essential for preventing electrical breakdown and ensuring safe operation.

Dry-Type Transformer Insulation

Dry-type transformers use solid insulation materials such as epoxy resin, varnish, and air gaps.

Dry-type insulation is effective but more exposed to environmental conditions.

Oil-Immersed Transformer Insulation

Oil-immersed transformers combine liquid and solid insulation systems for enhanced performance.

Oil fills all voids, eliminating air gaps and reducing discharge risk.

Dielectric Strength Comparison

Oil-based systems provide stronger and more stable insulation performance.

Environmental and Safety Considerations

Dry-type transformers are safer in indoor or fire-sensitive environments.

Real-World Engineering Example

In a manufacturing facility with high dust levels, a dry-type transformer experienced insulation degradation due to contamination and overheating. Replacing it with an oil-immersed transformer improved cooling efficiency and insulation reliability, resulting in stable operation under higher load conditions.

Integrated Performance Comparison

Which Type Is Safer and More Environmentally Friendly?

When selecting a transformer for modern power systems, safety and environmental impact are no longer secondary considerations—they are critical decision factors. Improper selection can lead to fire hazards, oil leakage, environmental contamination, or costly regulatory issues. Engineers and facility managers often face the challenge of balancing operational performance with safety standards and environmental responsibility, especially in urban, industrial, or sensitive ecological areas.

Dry-type transformers are generally safer and more environmentally friendly because they use non-flammable solid insulation and do not contain oil, while oil-immersed transformers offer higher performance but carry greater fire risk and potential environmental hazards due to insulating oil.

Understanding the trade-offs between these two types requires a detailed comparison of safety risks and environmental factors.

Fire Safety Comparison

Fire risk is one of the most critical safety concerns in transformer selection.

Dry-type transformers use solid insulation materials such as epoxy resin, which are either non-flammable or self-extinguishing. In contrast, oil-immersed transformers use mineral oil, which is flammable under fault conditions.

This makes dry-type transformers ideal for indoor environments such as hospitals, offices, and underground facilities.

Environmental Impact

Environmental considerations focus on potential contamination and sustainability.

Oil-immersed transformers contain insulating oil that can leak and contaminate soil or water if not properly managed. Dry-type transformers eliminate this risk entirely.

However, modern oil-immersed transformers often include containment systems to mitigate these risks.

Maintenance and Handling Safety

Maintenance practices also influence safety and environmental performance.

Dry-type transformers reduce operational risks associated with fluid handling.

Noise and Air Quality

Environmental friendliness also includes noise levels and air quality.

While dry-type transformers are cleaner, oil-immersed transformers may offer quieter operation.

Performance vs Safety Trade-Off

Although dry-type transformers are safer, oil-immersed transformers provide superior performance in certain applications.

This creates a trade-off between safety/environmental impact and performance.

Real-World Application Example

In a commercial high-rise building, dry-type transformers are used to minimize fire risk and eliminate the need for oil containment systems. In contrast, a large outdoor substation uses oil-immersed transformers due to their ability to handle high voltage and heavy loads efficiently, with additional environmental protection measures in place.

Safety and Environmental Summary

How Do Maintenance Requirements Differ Between Dry-Type and Oil-Immersed Transformers?

Maintenance strategy is a major factor in transformer selection because it directly affects lifecycle cost, reliability, and system downtime. While both dry-type and oil-immersed transformers are designed for long service life, their maintenance requirements differ significantly due to their cooling systems, insulation media, and exposure to environmental factors. Misunderstanding these differences can lead to unexpected failures, higher operational costs, or reduced efficiency over time.

Dry-type transformers require minimal maintenance focused on cleaning, ventilation checks, and insulation condition monitoring, while oil-immersed transformers require more intensive maintenance including oil testing, leak inspection, bushing maintenance, and cooling system management.

Understanding these differences helps operators choose the right maintenance strategy for long-term reliability and cost control.

Maintenance Complexity Overview

The fundamental difference in maintenance stems from the cooling and insulation medium.

Dry-type systems are simpler because they contain no liquid insulation.

Insulation Maintenance

Insulation health is critical for both types but monitored differently.

Dry-Type Transformer

Dry-type insulation relies on epoxy resin and air, which requires inspection for dust accumulation, moisture, and surface tracking.

Oil-Immersed Transformer

Oil-immersed systems require continuous monitoring of oil quality.

Oil condition directly affects insulation performance.

Cooling System Maintenance

Cooling systems differ significantly in structure and maintenance needs.

Dry-Type Cooling System

Dry-type transformers rely on air circulation.

Oil-Immersed Cooling System

Oil-immersed transformers use oil circulation and radiators.

Q = mc\Delta T

Oil systems require more complex thermal management.

Electrical Connection Maintenance

Both transformer types require periodic inspection of electrical connections, but environmental exposure differs.

Environmental Impact on Maintenance

Environmental conditions strongly influence maintenance frequency.

Dry-type transformers are more sensitive to environmental contamination.

Fault Detection and Monitoring

Monitoring systems also differ in complexity.

Oil-immersed systems require more diagnostic tools.

Maintenance Cost Comparison

Real-World Engineering Example

In a commercial building, dry-type transformers required only periodic cleaning and thermal inspections, resulting in low maintenance costs. In contrast, a utility substation using oil-immersed transformers required regular oil sampling, filtration, and radiator maintenance to ensure stable operation under heavy load conditions.

Maintenance Summary Comparison

What Are the Differences in Efficiency and Load Capacity Between Dry-Type and Oil-Immersed Transformers?

Efficiency and load capacity are two of the most important performance metrics when selecting a transformer for any electrical system. If these parameters are misunderstood, the result can be overheating, unnecessary energy losses, premature insulation aging, or inability to handle peak demand. Dry-type and oil-immersed transformers are built on different thermal and insulation principles, which directly influence how efficiently they operate and how much load they can safely support.

Oil-immersed transformers generally provide higher efficiency and greater load capacity due to superior cooling and lower operating temperatures, while dry-type transformers offer slightly lower efficiency and reduced load capability but are safer and more suitable for indoor and environmentally sensitive applications.

The difference is mainly driven by cooling performance and thermal stress management.

Efficiency Differences

Transformer efficiency is determined by how effectively it minimizes losses during energy conversion.

Dry-Type Transformer Efficiency

Dry-type transformers rely on air cooling, which has lower thermal conductivity. As load increases, heat dissipation becomes less effective, causing winding resistance to rise and increasing copper losses.

Oil-Immersed Transformer Efficiency

Oil-immersed transformers use insulating oil with high heat capacity and excellent thermal conductivity. This allows faster heat removal and more stable operating temperatures.

Where Are Dry-Type and Oil-Immersed Transformers Typically Used?

In modern power distribution systems, selecting the correct transformer type is not just about voltage and capacity ratings. It is also about matching the equipment to its installation environment, safety constraints, and long-term operational requirements. Misapplication can result in overheating, fire hazards, excessive maintenance, or reduced service life. Dry-type and oil-immersed transformers are designed for very different operating conditions, and their application areas are defined by cooling capability, insulation structure, and safety considerations.

Dry-type transformers are typically used in indoor, fire-sensitive, and environmentally controlled environments such as commercial buildings, hospitals, and underground facilities, while oil-immersed transformers are mainly used in outdoor substations, industrial plants, and high-voltage transmission systems where higher capacity, superior cooling performance, and strong overload capability are required.

Their usage is determined by technical performance differences rather than interchangeable design preference.

Transition to Application Logic

To understand their real-world applications, it is necessary to evaluate how environmental conditions, safety regulations, and load requirements influence transformer selection in practical engineering systems.

Applications of Dry-Type Transformers

Dry-type transformers are engineered for environments where safety, cleanliness, and fire prevention are more important than maximum power capacity. Their solid insulation and air-cooling system eliminate the need for oil, reducing fire and leakage risks.

Indoor Commercial and Residential Buildings

Dry-type transformers are widely used inside buildings where strict fire codes apply and human safety is the top priority.

These environments prioritize safety and compact installation over heavy load capacity.

Hospitals and Critical Facilities

Healthcare environments require extremely reliable and safe power distribution systems.

Dry-type transformers reduce fire risk in areas where evacuation safety is critical.

Underground and Confined Spaces

Dry-type transformers are ideal for enclosed spaces where ventilation is limited and fire hazards must be minimized.

Applications of Oil-Immersed Transformers

Oil-immersed transformers are designed for high-power, high-voltage, and outdoor environments where thermal performance and load capacity are critical.

Power Transmission and Substations

Oil-immersed transformers are the backbone of electrical grid infrastructure.

Conclusion

Dry-type and oil-immersed transformers each offer unique advantages depending on application requirements. Dry-type transformers provide higher safety, environmental protection, and lower maintenance, making them ideal for indoor and sensitive environments. Oil-immersed transformers, on the other hand, deliver better cooling performance, higher capacity, and greater efficiency, making them suitable for heavy-duty and high-voltage applications. Selecting the right type depends on factors such as installation location, load demand, safety requirements, and long-term operational goals.

FAQ

Q1: What is the main difference between dry-type and oil-immersed transformers?

The main difference lies in the insulation and cooling medium:

Dry-type transformers: Use air or solid insulation (resin/varnish)
Oil-immersed transformers: Use insulating oil for both cooling and insulation

This fundamental difference affects safety, size, maintenance, and application suitability.

Q2: Which transformer type is safer?

Dry-type transformers are generally considered safer because they:

Do not use flammable oil
Have lower fire risk
Are suitable for indoor installations

Oil-immersed transformers, while highly efficient, require additional fire protection systems due to the presence of insulating oil.

Q3: Which transformer has better cooling performance?

Oil-immersed transformers have superior cooling performance because:

Oil has higher heat transfer capability than air
Radiators and oil circulation efficiently dissipate heat
Suitable for high-load and high-power applications

Dry-type transformers rely on air cooling, which is less efficient under heavy loads.

Q4: How do they compare in maintenance requirements?
Dry-type transformers: Low maintenance (no oil testing required)
Oil-immersed transformers: Require regular oil testing, filtration, and leak checks

Dry-type transformers are easier to maintain, especially in indoor environments.

Q5: Which transformer is more cost-effective?

Cost comparison depends on lifecycle stage:

Dry-type transformers: Higher initial cost but lower maintenance cost
Oil-immersed transformers: Lower initial cost but higher maintenance and monitoring cost

Over time, total cost depends on application, load, and maintenance strategy.

Q6: Where are each type commonly used?

Dry-type transformers:

Hospitals
Commercial buildings
Data centers
Indoor installations

Oil-immersed transformers:

Power substations
Industrial plants
Transmission and distribution networks
Outdoor installations
Q7: Which transformer is more efficient?

Oil-immersed transformers are generally more efficient for high-capacity and long-distance power applications due to better cooling and lower losses under heavy loads.

Dry-type transformers are efficient for medium-voltage, indoor, and safety-critical environments, but may have limitations under extreme loads.

Q8: How do you choose between dry-type and oil-immersed transformers?

Selection depends on:

Installation environment (indoor vs outdoor)
Safety requirements (fire risk sensitivity)
Load capacity and voltage level
Maintenance capability
Environmental regulations

There is no universal “better” option—each type is optimized for specific use cases.
