What Fire Protection Design and Safety Measures are in Place for Oil-Immersed Transformers?

Oil-immersed transformers, while efficient and reliable in power systems, do present a fire risk due to the presence of transformer oil, which is flammable. This risk is especially critical in high-voltage applications, where a fault or mechanical failure could lead to catastrophic fires if proper precautions are not in place. To mitigate this risk, fire protection design and safety measures must be integrated into the transformer design, installation, and maintenance procedures.

In this article, we will explore the various fire protection systems and safety features incorporated into oil-immersed transformers, which aim to minimize the risk of fire, control its spread if it occurs, and ensure the safety of personnel and equipment.

---

Why is Fire Protection Important in Oil-Immersed Transformers?

Introduction: The Critical Role of Oil-Immersed Transformers in Power Distribution

Oil-immersed transformers are widely used in electrical power distribution systems due to their ability to efficiently handle high voltage and current levels. These transformers rely on mineral oil as a coolant and insulating medium, which allows them to operate effectively under significant electrical load. However, while oil-immersed transformers are efficient, the very nature of using flammable oil as a key component raises concerns about the risk of fire.

The presence of flammable oil makes fire protection in these transformers an essential safety measure. If proper safety protocols are not implemented, an electrical fault, overheating, or mechanical failure could result in a catastrophic fire that could not only damage the transformer but also pose serious risks to nearby equipment, personnel, and the environment.

In this article, we will explore why fire protection is crucial for oil-immersed transformers, the risks associated with inadequate fire protection, and the key methods and technologies that ensure the safety and reliability of these vital power components.

1. The Fire Risk in Oil-Immersed Transformers

Oil-immersed transformers use mineral oil or synthetic oils to cool and insulate the internal components of the transformer. While oil serves as an effective insulating medium, it is flammable and poses a significant fire risk if it is exposed to extreme temperatures or electrical faults.

Why Is Oil Flammable?

• Combustion Point: The oil used in transformers has a relatively low flash point, typically between 140-160°C (284-320°F), meaning that it can ignite under certain conditions. If a fault occurs, causing an overload, overheating, or electrical arcing, the oil could catch fire, leading to disastrous consequences.

• Chain Reaction: Once the oil ignites, it can cause a chain reaction, igniting other components inside the transformer, such as the cellulose paper insulation. This not only intensifies the fire but also accelerates the spread of flames, which could extend to nearby transformers or other equipment.

• Electrical Faults: Short circuits, overloads, or lightning strikes can cause electrical faults that generate enough heat to ignite the oil. As oil-immersed transformers typically operate at high voltages, the risk of electrical failures that could lead to fire is a genuine concern.

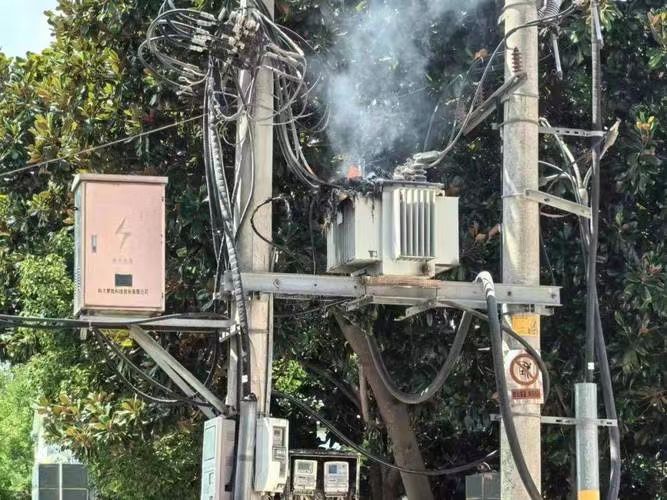

2. Consequences of Fire in Oil-Immersed Transformers

The risks associated with fires in oil-immersed transformers are significant, with potential consequences affecting equipment, personnel, and the environment.

Damaged Equipment:

• Transformer Failure: A fire caused by oil ignition can destroy the transformer itself, resulting in an expensive repair or replacement. In addition to the transformer, the fire may also damage nearby electrical infrastructure, such as circuit breakers, switchgear, and electrical panels.

• Downtime and Loss of Power: A transformer fire can lead to prolonged downtime, during which electrical power is unavailable. This could cause a wide-scale power outage, affecting everything from residential buildings to critical facilities like hospitals, data centers, and manufacturing plants.

Safety Hazards:

• Personnel Safety: Fires pose a severe safety risk to personnel working near transformers. Not only can the fire result in burns and injuries, but the smoke and toxic fumes released during a fire could also harm workers or first responders. The high temperatures can also cause explosions or pressure vessel rupture, further jeopardizing lives.

• Environmental Impact: In addition to the direct threat to human life, transformer fires can have lasting environmental consequences. The oil used in transformers is a petroleum-based substance, which could leak into the surrounding environment, contaminating soil and water sources.

Fire Spread:

• Explosion and Fire Spread: If the oil catches fire, the heat and pressure build-up can lead to an explosion, spreading the fire to surrounding equipment or structures. This could result in significant damage, extended repair times, and potential harm to the surrounding community or industrial area.

3. Fire Protection Strategies for Oil-Immersed Transformers

Given the fire risks associated with oil-immersed transformers, several fire protection strategies must be implemented to minimize the chances of a catastrophic event. These strategies involve both passive and active fire protection methods that reduce the likelihood of fire initiation and contain any fires that do occur.

a. Fire-Resistant Transformer Design

• Fire-Resistant Insulation Materials: Modern transformers often incorporate fire-resistant materials in their construction to reduce the risk of ignition. These materials, such as fire-resistant cellulose and advanced insulating resins, are less likely to catch fire, even in the presence of high temperatures.

• Explosion-Proof Enclosures: Many oil-immersed transformers are designed with explosion-proof enclosures that contain any fire or explosion within the transformer itself, preventing it from spreading to the surrounding area. These enclosures are often constructed from steel or other durable materials to contain high-pressure gas and flames.

• Oil-Containment Systems: Some transformers incorporate oil containment systems, such as secondary oil reservoirs or bundling, to prevent oil leaks from spreading or causing environmental contamination during a fire. These systems ensure that if oil is released, it is contained within a specific area, reducing the risk of large-scale environmental damage.

b. Fire Detection and Suppression Systems

• Early Fire Detection Systems: Sophisticated fire detection systems, such as smoke detectors, infrared sensors, and temperature sensors, can identify signs of overheating or fire at the earliest possible stage. These systems can trigger alarms and automatically initiate fire suppression measures before the fire has a chance to spread.

• Automatic Fire Suppression Systems: Many oil-immersed transformers are equipped with automatic fire suppression systems that can release a fire-suppressing agent, such as carbon dioxide (CO2), dry chemicals, or water mist, in the event of a fire. These systems are designed to extinguish the fire quickly and prevent it from spreading to other components of the transformer or nearby equipment.

c. Cooling and Ventilation Systems

• Temperature Monitoring: Monitoring the temperature of the transformer’s oil is essential to prevent overheating, which is a common cause of transformer fires. Advanced temperature monitoring systems can provide real-time data, allowing for proactive measures such as activating cooling systems or shutting down the transformer before temperatures reach dangerous levels.

• Improved Cooling Systems: Oil cooling systems, such as forced-air or forced-oil cooling, can be integrated into transformer designs to maintain safe operating temperatures and prevent overheating. These systems circulate oil or air through the transformer, removing excess heat and maintaining temperature stability.

d. Maintenance and Operational Practices

• Regular Maintenance: Regular maintenance, including cleaning and inspecting the transformer’s internal components and oil quality, is critical for identifying potential fire hazards before they become a problem. Inspections should focus on looking for signs of oil leaks, corroded components, and any issues with insulation or cooling systems.

• Load Management: Ensuring that the transformer is not overloaded and operates within its specified capacity reduces the risk of overheating. Proper load management techniques should be employed to ensure that the transformer does not exceed its design limits.

What are the Fire Protection Systems Used in Oil-Immersed Transformers?

Introduction: The Critical Need for Fire Protection in Oil-Immersed Transformers

Oil-immersed transformers are integral components in power transmission and distribution systems due to their ability to handle high loads and provide efficient voltage conversion. However, these transformers rely on mineral or synthetic oil as a coolant and insulating medium, which, while highly effective, introduces significant fire risks. The oil is flammable, and any electrical fault, mechanical failure, or overheating can lead to catastrophic fires.

The importance of fire protection in oil-immersed transformers cannot be overstated. A transformer fire not only threatens the integrity of the transformer itself but can also result in widespread damage to other equipment, costly downtime, environmental pollution, and, in extreme cases, personal injuries or fatalities. To mitigate these risks, a variety of fire protection systems are employed to prevent, detect, and suppress potential fires, ensuring the safety and reliability of transformer operations.

This article explores the key fire protection systems used in oil-immersed transformers, highlighting their role in enhancing safety and preventing fire hazards.

1. Fire-Resistant Transformer Design

The first line of defense in transformer fire protection is the design of the transformer itself. Various design features and materials are incorporated to minimize the risk of fire and contain it if it occurs.

a. Fire-Resistant Materials and Insulation

• Fire-Resistant Oil: Some oil-immersed transformers use fire-resistant oils, such as synthetic esters or natural esters, which have higher flash points compared to conventional mineral oils. These oils are less likely to catch fire under normal operating conditions, making them an essential part of fire protection.

• Fire-Resistant Insulation: Transformers are designed with fire-resistant materials for internal insulation. Materials such as fire-resistant cellulose, advanced insulating resins, and fire-retardant coatings help reduce the risk of fire starting within the transformer, especially under fault conditions.

b. Explosion-Proof Enclosures

• Pressurized Tanks: Oil-immersed transformers are often housed in explosion-proof enclosures designed to withstand the pressure buildup caused by overheating or an electrical fault. These enclosures prevent oil from escaping and contain the pressure from any internal explosions, preventing the spread of fire to external areas.

• Burst Panels: In the event of excessive internal pressure, burst panels are installed on transformer tanks. These panels rupture at a predetermined pressure, allowing gases to escape in a controlled manner, thus preventing the transformer from exploding or catching fire. This feature helps mitigate the risk of a dangerous fireball or explosion.

2. Fire Detection Systems

Early detection of a potential fire in an oil-immersed transformer is critical for preventing the fire from spreading and causing extensive damage. Various sensors and monitoring systems are used to detect overheating, smoke, or fire at the earliest possible stage.

a. Temperature Sensors and Thermal Monitoring

• Temperature Sensors: Continuous temperature monitoring is essential for detecting any rise in temperature that could indicate an impending fire hazard. Temperature sensors placed at various points within the transformer continuously send data to the control system, triggering an alarm if the temperature exceeds safe limits.

• Thermal Imaging: Thermal imaging cameras are employed to detect abnormal heat patterns within the transformer. These cameras provide a visual representation of temperature distribution, allowing operators to identify potential hot spots where overheating may occur, enabling corrective actions before a fire can start.

b. Smoke Detectors

• Smoke Detection Systems: Advanced smoke detectors are installed in oil-immersed transformers to identify the early signs of combustion. Smoke detectors can pick up the faintest traces of smoke, triggering an alarm and activating the fire suppression system before the fire becomes uncontrollable.

c. Gas and Pressure Monitoring

• Gas Release Sensors: When oil decomposes under heat, it releases gases such as hydrogen, methane, and ethane. These gases are flammable and can indicate overheating or the onset of a fire. Gas sensors installed inside the transformer can detect the presence of these gases, providing early warning of potential fire risks.

• Pressure Relief Monitoring: Pressure sensors monitor internal pressure within the transformer. If there is an unusual buildup of gas or heat, these sensors alert operators and activate relief systems to prevent catastrophic failure.

3. Fire Suppression Systems

Once a fire is detected, swift action is required to prevent it from escalating. Various fire suppression systems are employed to extinguish or contain fires within the transformer and the surrounding environment.

a. CO2 and Inert Gas Systems

• CO2 Fire Suppression: Carbon dioxide (CO2) is a commonly used fire suppression agent. In the event of a fire, CO2 is automatically released into the transformer’s enclosure to displace oxygen and extinguish the flames. CO2 systems are particularly effective in transformer fires, as they can suppress the fire without damaging the transformer components.

• Inert Gas Systems: Other inert gases, such as nitrogen or argon, can be used in place of CO2 to suppress transformer fires. These gases also work by displacing oxygen and preventing combustion. Inert gas fire suppression systems are less likely to damage transformer components and can be safely used in confined spaces.

b. Water Mist Fire Suppression

• Water Mist Systems: Water mist fire suppression systems use fine water droplets to cool down the transformer and extinguish the fire. The small droplet size increases the surface area of the water, improving its cooling effect while minimizing the amount of water needed, which helps protect the transformer from water damage.

• Foam Suppression: Some oil-immersed transformers use foam-based suppression systems. Foam works by forming a barrier over the oil, preventing it from coming into contact with oxygen and thus stopping the fire from spreading. Foam systems are particularly effective for large-scale oil fires and are widely used in areas where large transformers are in operation.

c. Automatic Fire Suppression Activation

• Automatic Activation: The key advantage of many fire suppression systems is their automatic activation. When the detection system identifies a fire, it triggers the suppression system without the need for human intervention. This rapid response significantly reduces the damage caused by a fire and prevents it from spreading to other parts of the system.

4. Ventilation and Cooling Systems

In addition to fire suppression systems, cooling and ventilation play an essential role in preventing transformer overheating, which can lead to fires.

a. Forced-Air Cooling

• Air Cooling Systems: Forced-air cooling systems are used in conjunction with oil-immersed transformers to regulate their temperature. By circulating air around the transformer, these systems prevent heat buildup and ensure that the transformer operates within safe temperature ranges. Overheating is one of the leading causes of transformer fires, so proper cooling is a key preventive measure.

b. Oil Circulation and Cooling

• Oil Pumps and Coolers: In some transformers, oil circulation systems are used to regulate oil temperature. Pumps circulate the oil through a cooler to dissipate excess heat, ensuring that the transformer remains at a stable temperature. If the cooling system fails or is inadequate, the temperature of the oil can rise to dangerous levels, increasing the risk of fire.

5. Regular Maintenance and Inspection

Even with advanced fire protection systems, regular maintenance and inspection are essential to ensure that fire protection measures are functioning properly and that no potential fire risks are overlooked.

a. Routine Inspections

• Visual and Physical Inspections: Transformers should undergo routine inspections to check for signs of oil leakage, wear on insulation materials, or damage to fire protection equipment. Any abnormalities should be addressed immediately to prevent fire hazards.

b. Oil Quality and Contamination Checks

• Oil Testing: The oil inside an oil-immersed transformer can degrade over time due to high temperatures, oxidation, and contamination. Regular testing of the oil’s dielectric strength and contamination levels ensures that the oil remains effective as an insulator and cooling medium, reducing the risk of overheating and fire.

How Does the Design of Transformer Tanks Help Prevent Fire?

Introduction: Transformer Tank Design and Fire Prevention

Oil-immersed transformers, though highly effective at voltage conversion and power distribution, come with inherent risks due to their use of flammable mineral or synthetic oil for cooling and insulation. In the event of electrical faults, overheating, or mechanical failure, these transformers are vulnerable to fire outbreaks, which could lead to significant damage, environmental hazards, and operational disruptions.

A well-designed transformer tank is crucial for preventing such fires and protecting the transformer from catastrophic failure. Transformer tank designs incorporate a range of features specifically engineered to contain internal pressure, resist fire, and prevent the spread of flames. These design elements play a critical role in mitigating the risk of transformer fires, ensuring that transformers can operate safely, efficiently, and reliably.

This article explores the key design features of transformer tanks that help prevent fire, providing a deeper understanding of how these tanks are built to protect both the transformer and its surrounding environment.

1. Explosion-Proof Enclosures

One of the most important features in transformer tank design is the explosion-proof enclosure. These enclosures are engineered to withstand the internal pressure generated during a fault or short-circuit event, which could otherwise cause the transformer to rupture or explode.

a. Pressure-Resistant Tanks

Transformer tanks are typically built with a robust, pressure-resistant structure that can handle the expansion of gases created by overheating or electrical faults. These tanks are constructed using strong, high-tensile materials that prevent rupture and contain internal explosions. In the event of extreme pressure buildup, the tank’s strength helps contain it, avoiding external fire hazards or oil leaks.

b. Pressure Relief Systems

To further safeguard against the risk of explosion, transformer tanks are equipped with pressure relief systems, often in the form of burst panels or vent valves. These systems are designed to activate when the internal pressure exceeds a critical threshold. By allowing gases to escape in a controlled manner, these systems prevent the tank from bursting, which can reduce the likelihood of fire and explosions.

These panels or valves are calibrated to open only when necessary, ensuring that any excess pressure is vented safely, minimizing the risk of fire spread.

2. Fire-Resistant Materials

The materials used in transformer tank construction and insulation play a significant role in preventing fire. Several design considerations ensure that the transformer tank resists both internal and external fire hazards.

a. Fire-Resistant Steel

Transformer tanks are often made of fire-resistant steel, which not only strengthens the tank but also increases its fire resistance. Steel can withstand high temperatures and is less likely to catch fire compared to other materials. This helps contain fires within the transformer in case of overheating or electrical faults.

b. Fire-Resistant Insulation

In addition to the tank itself, the insulation used in oil-immersed transformers is designed to resist fire. Transformer windings and other components are insulated using materials that are fire-resistant or fire-retardant. This reduces the likelihood that any internal components, such as winding insulation, will catch fire and spread the blaze throughout the transformer.

Advanced insulation materials, including fire-resistant cellulose and synthetic ester oils, also help prevent the formation of fires by slowing the process of combustion, providing additional protection in the event of a fault.

3. Oil Containment and Spill Prevention Features

The oil in an oil-immersed transformer is a crucial component for cooling and insulation, but it is also a significant fire hazard. Therefore, the design of transformer tanks includes several features that aim to contain the oil and prevent spills during malfunction events.

a. Oil Containment Systems

Oil-immersed transformers are designed with containment systems that prevent oil from spilling out in the event of a rupture. These systems are typically made up of secondary containment barriers, which catch any leaked oil and prevent it from coming into contact with heat sources, which could ignite a fire. These barriers help localize potential oil leaks, preventing fire hazards from spreading to the surrounding area.

b. Sealed Tanks

Many modern transformers feature sealed tanks that prevent the oil from leaking out or evaporating. Sealed tanks help keep the oil contained even under extreme pressure or when the transformer experiences faults. This containment feature is especially important for minimizing the risk of fire starting from oil exposure.

4. Flame Arrestors and Flame Barriers

In cases where fire or hot gases escape the transformer tank, flame arrestors and flame barriers are incorporated to stop flames from spreading beyond the transformer’s enclosure. These features are particularly important in preventing external fire hazards.

a. Flame Arrestors

Flame arrestors are devices designed to block the spread of flames while allowing gases to vent safely. These devices allow hot gases generated during an internal fault to escape, but they prevent any flames or sparks from exiting the tank. By containing the flame within the transformer, these arrestors significantly reduce the likelihood of external fires or explosions.

b. Flame Barriers

In some transformer designs, flame barriers are used to protect sensitive components from flames that might escape the transformer tank. These barriers can be made from high-temperature-resistant materials, such as ceramic or fire-resistant metal, and are installed around critical components to prevent heat damage and protect against the spread of fire.

5. Oil Temperature Control and Cooling Systems

Maintaining the proper temperature inside the transformer is vital for both its operation and fire safety. Transformer tanks are equipped with oil temperature control systems to ensure the oil stays within safe operating temperatures.

a. Forced Oil Circulation

Some transformers use forced oil circulation systems, where pumps circulate oil throughout the transformer to maintain an even temperature. The movement of oil helps dissipate heat and ensures that the transformer remains cool. This reduces the chance of overheating, which could otherwise lead to oil breakdown and fire hazards.

b. Oil Coolers

Transformer tanks are also designed with oil coolers to regulate the oil temperature. These coolers are often located in the tank or external to it and work by transferring excess heat from the oil to the surrounding environment. By keeping the oil within a safe temperature range, the risk of fire due to overheating is minimized.

6. Safety Monitoring Systems

Transformer tanks are also equipped with safety monitoring systems that keep track of critical parameters like temperature, pressure, and oil levels. These systems help detect any abnormal conditions that may indicate a potential fire risk.

a. Temperature and Pressure Sensors

Temperature and pressure sensors are placed at strategic points in the transformer tank. These sensors continuously monitor the internal conditions of the tank and send alerts if any readings exceed normal thresholds. Early detection of overheating or excessive pressure allows operators to take preventive measures before a fire can break out.

b. Leak Detection Systems

Some transformer designs include leak detection systems that monitor for oil leakage or changes in pressure. If oil is leaking from the transformer or there is a sudden pressure drop, the system triggers an alarm, alerting operators to potential problems that could lead to a fire.

What Role Does Monitoring Play in Fire Prevention?

Introduction: The Importance of Monitoring in Fire Prevention

Fire prevention is a critical aspect of transformer operation, especially in oil-immersed transformers, which are prone to fire hazards due to the use of flammable oils for cooling. While design features like explosion-proof enclosures, pressure relief valves, and fire-resistant materials significantly contribute to fire safety, regular and real-time monitoring of the transformer is equally vital.

Effective monitoring systems not only ensure the optimal functioning of transformers but also help identify early signs of faults that could lead to dangerous conditions, such as overheating or electrical faults. By monitoring key operational parameters like temperature, pressure, oil quality, and load conditions, operators can mitigate fire risks before they escalate into more severe situations.

This article discusses the role of monitoring in transformer fire prevention and how advanced monitoring technologies can significantly improve safety and prevent costly damage due to fire hazards.

Real-Time Monitoring of Critical Transformer Parameters

Transformers are subjected to varying load conditions and environmental factors that can influence their internal conditions. With proper monitoring, operators can detect early signs of malfunction and prevent potential fire outbreaks. The main parameters that need to be monitored include:

1. Temperature Monitoring

Temperature is one of the most critical indicators of transformer health. Overheating due to overloading, poor ventilation, or fault conditions can cause the transformer’s insulation and oil to degrade, leading to fire risks.

a. Oil Temperature Sensors

Most modern transformers are equipped with oil temperature sensors that monitor the temperature of the insulating oil. If the oil exceeds the safe operational temperature, which can typically range from 60°C to 90°C, the sensor will trigger an alert. Continuous monitoring helps operators take corrective action before oil degradation occurs, significantly reducing the risk of fire.

b. Winding Temperature Sensors

In addition to monitoring the oil temperature, winding temperature sensors track the temperature of the transformer windings. If the windings overheat, they can fail, causing an electrical fault that may lead to a fire. Monitoring these temperatures can help operators adjust load conditions or cooling systems before the windings reach critical temperatures.

2. Pressure Monitoring

Excessive pressure within the transformer tank can result from internal faults, gas generation due to overheating, or insulation breakdown. If left unchecked, this pressure can cause a rupture or fire hazard.

a. Pressure Relief Systems

Modern transformers come equipped with pressure relief valves that automatically open when internal pressure reaches a dangerous level. Monitoring these systems ensures that pressure relief valves are functioning correctly. If a pressure increase is detected, early warnings can be sent to operators to take necessary actions.

b. Gas Detection Systems

Some transformers feature dissolved gas analysis (DGA) systems, which detect gases that are produced when the transformer oil breaks down under stress. These gases include hydrogen, methane, and acetylene, which indicate overheating, electrical arcing, or other potentially hazardous conditions. By monitoring the concentration of these gases, operators can predict failures before they occur, preventing catastrophic fires.

3. Oil Quality Monitoring

Oil quality is a crucial factor in the safe operation of oil-immersed transformers. Poor oil quality can lead to reduced cooling efficiency, insulation failure, and ultimately, fire. Monitoring the oil’s dielectric strength, moisture content, and dissolved gases is essential for fire prevention.

a. Dielectric Strength Testing

The dielectric strength of transformer oil indicates its ability to insulate and prevent electrical arcing. Over time, the oil's dielectric strength can deteriorate due to contaminants, moisture, or degradation from heat. Continuous monitoring of dielectric strength allows operators to replace or treat the oil before it poses a fire risk.

b. Moisture Content

Excessive moisture in transformer oil can reduce its insulating properties and lead to overheating. Moisture sensors monitor the oil’s moisture content, triggering alerts when levels exceed safe thresholds. This helps prevent dielectric breakdown and reduces the risk of fire.

Automated Alarm and Shutdown Systems

One of the primary advantages of continuous monitoring is the ability to integrate automated alarm and shutdown systems. These systems work in real time, providing immediate alerts when parameters exceed preset thresholds. In critical conditions, the system can even initiate automatic shutdown procedures, preventing further escalation of potential fire risks.

a. Real-Time Alerts

Monitoring systems can trigger real-time alerts through digital dashboards or notifications sent directly to the operations team. These alerts are often prioritized based on the severity of the issue, with the highest priority given to conditions that directly impact safety, such as excessive temperature, pressure buildup, or gas accumulation. Immediate action can be taken before the situation leads to a fire.

b. Automatic Shutdown and Isolation

In extreme cases, the monitoring system may trigger an automatic shutdown of the transformer to prevent fire. This is particularly important in situations where human intervention might be delayed. For example, if temperature and pressure readings indicate an imminent risk of rupture or fire, the system can isolate the transformer from the grid, allowing it to cool down and prevent a fire from spreading.

Thermal Imaging for Early Detection

Another key tool in transformer fire prevention is thermal imaging. By using infrared cameras, operators can inspect the transformer’s surface for hotspots that might not be visible with the naked eye. Hotspots can form around loose connections, worn-out components, or faulty insulation, indicating areas of high electrical resistance or potential failure.

a. Detecting Hotspots

Thermal imaging cameras capture the infrared radiation emitted by hot surfaces, creating a visual map of temperature distribution across the transformer. Regular use of thermal imaging helps identify unusual heating patterns, allowing operators to address issues before they lead to more significant problems like fire.

b. Predictive Maintenance

Thermal imaging is part of predictive maintenance practices, which use advanced monitoring tools to predict failures before they happen. By identifying temperature anomalies early on, operators can replace or repair faulty components, preventing conditions that might otherwise lead to fire.

5. Monitoring Software and Data Analytics

Advances in digital monitoring software and data analytics have transformed the way transformers are monitored. These systems continuously collect data from sensors and transmit it to a centralized monitoring platform. The data can then be analyzed to detect patterns and predict potential failures.

a. Predictive Analytics

By analyzing historical data, predictive analytics software can forecast when a transformer is likely to fail. This allows operators to schedule maintenance activities proactively and replace components before a failure occurs, significantly reducing the risk of fire.

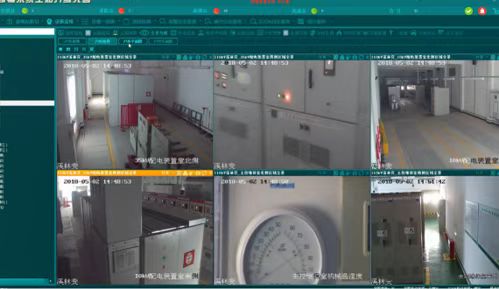

b. Remote Monitoring

Remote monitoring allows operators to keep track of transformer conditions in real time, even if they are not physically present at the site. This feature is particularly useful in areas where transformers are located in remote or difficult-to-access locations. Operators can receive alerts, check system status, and even control the transformer remotely in emergency situations.

What Are the Fire Safety Measures for Transformer Installation?

Introduction: The Need for Fire Safety in Transformer Installation

Transformers, particularly oil-immersed transformers, are critical components in power distribution systems. However, their operational nature makes them vulnerable to fire hazards, especially when handling high voltages and flammable oils. Transformer fires can be catastrophic, leading to equipment loss, service interruptions, environmental damage, and even injury or death.

Given the significant risks, implementing fire safety measures during transformer installation is crucial to mitigate these dangers. By understanding potential fire hazards and incorporating the right fire protection systems and procedures, the risk of transformer-related fires can be minimized.

This article explores the key fire safety measures that should be followed during transformer installation to ensure safe operation and prevent potential fire hazards.

1. Choosing the Right Location for Transformer Installation

The first step in ensuring fire safety is selecting an appropriate installation site. A poor location can increase the risk of fire by exacerbating heat buildup, limiting access for fire suppression systems, or increasing exposure to external threats.

a. Adequate Ventilation

A transformer generates heat during operation, which needs to be dissipated effectively. Ensure that the installation area has adequate ventilation to allow for proper airflow around the transformer. Poor ventilation can lead to overheating and increase the risk of fire. For oil-immersed transformers, ensuring that the surrounding environment allows air to circulate around the tank is particularly important to maintain temperature control.

b. Distance from Combustible Materials

Transformers should be installed away from any combustible materials or structures, including flammable vegetation, buildings, or other equipment that could catch fire in the event of a transformer malfunction. A safe distance should be maintained based on transformer rating, oil volume, and local safety regulations.

c. Fire-Resistant Barriers

To prevent the spread of fire to nearby equipment or buildings, fire-resistant barriers should be installed around the transformer. These barriers can be walls, fencing, or other fireproof structures designed to contain and delay the spread of fire. For oil-immersed transformers, ensuring that fire-resistant barriers are in place is even more critical, as oil fires can spread quickly.

2. Installation of Fire Suppression Systems

Having an effective fire suppression system in place can make a significant difference in preventing the escalation of a transformer fire. Fire suppression systems are designed to detect and suppress fires quickly, preventing further damage to the transformer and surrounding equipment.

a. Automatic Fire Extinguishing Systems

For oil-immersed transformers, it is essential to install automatic fire extinguishing systems. These systems are activated when sensors detect rising temperatures or smoke, and they release a fire-suppressant agent such as CO2, dry chemical powder, or foam. This prevents the fire from growing and can even extinguish it before manual intervention is necessary.

b. Fire Sprinklers

While sprinklers are more commonly used in building structures, they can also be beneficial for transformer installations, especially in indoor settings. Sprinklers can be connected to a water supply and are triggered automatically when a certain temperature threshold is reached. Installing sprinkler systems over transformers and their surrounding area can reduce the risk of fire spreading to nearby equipment or structures.

c. Fire Foam Systems

In areas with a higher risk of oil-related fires, foam-based fire suppression systems are ideal. These systems work by smothering the fire and reducing oxygen supply, thus controlling the fire. Foam can be particularly effective in oil-immersed transformers as it prevents the fire from reigniting after initial suppression.

3. Transformer Tank Design and Fire Prevention Features

The design of the transformer itself plays a vital role in fire safety. Several key features can be incorporated into the tank design to minimize fire risks during operation.

a. Explosion-Proof and Fire-Resistant Tank Construction

Oil-immersed transformers should have explosion-proof and fire-resistant tank construction to reduce the risk of a transformer explosion or fire. The tank should be made of durable, fire-resistant materials to withstand high temperatures and limit the spread of flames.

b. Ventilation and Pressure Relief

To manage internal pressure caused by overheating or electrical faults, transformers should be equipped with pressure relief valves that safely release pressure when needed. Additionally, the transformer’s tank should have proper ventilation to allow gases to escape in the event of an internal fault, reducing the chance of an explosive situation.

c. Transformer Cooling Systems

Transformers require effective cooling systems to prevent overheating. These cooling systems should be properly maintained and include oil pumps, cooling fans, and radiators to regulate the temperature. If cooling fails, the transformer may overheat, increasing the fire risk.

4. Grounding and Electrical Connections

Electrical faults are one of the most common causes of transformer fires. To prevent these faults, it is essential to ensure proper grounding and electrical connections.

a. Proper Grounding of Transformer

Grounding the transformer properly ensures that any fault current is safely directed to the ground, reducing the risk of electrical sparks, arcing, or other issues that could ignite a fire. Grounding systems should be tested regularly to ensure they are functioning correctly.

b. Regular Inspection of Electrical Connections

Loose or faulty electrical connections can lead to overheating and sparking, which are common fire triggers. Electrical connections should be checked and maintained regularly to ensure they are tight, corrosion-free, and well-insulated. Connection inspections are particularly important in the transformer’s high-voltage components.

5. Use of Fire-Resistant Transformer Oil

In oil-immersed transformers, the oil used as a coolant plays a significant role in fire safety. Fire-resistant transformer oils are designed to minimize the risk of ignition in case of a fault.

a. Synthetic Ester or Silicone Oils

Synthetic ester oils and silicone-based oils are more fire-resistant than traditional mineral oils. These oils have a higher flash point, meaning they are less likely to catch fire at lower temperatures. They can also help reduce the overall risk of fire in case of a fault, providing an added layer of protection.

b. Regular Oil Quality Monitoring

Transformer oil should be monitored regularly for quality and contamination. If the oil becomes degraded or contaminated, its insulating and cooling properties can be compromised, leading to overheating and increasing the risk of a fire. Oil monitoring systems can help detect these issues early on, allowing for timely oil replacement.

6. Regular Maintenance and Inspections

To ensure fire safety, transformers should be subject to regular maintenance and inspections throughout their operational life.

a. Scheduled Oil Testing

Regular oil testing helps monitor the quality and dielectric strength of transformer oil. Contaminants like moisture, particles, and gases can degrade the oil’s effectiveness and increase fire risk. Routine oil sampling and gas analysis can prevent unexpected failures.

b. Inspections of Cooling and Fire Systems

Cooling systems and fire suppression systems should be checked regularly to ensure they are functioning properly. If there are any issues with oil pumps, fans, or fire extinguishing mechanisms, corrective actions should be taken immediately to prevent potential fire hazards.

7. Emergency Response Plan

Having an emergency response plan in place is crucial to handling potential transformer fires. This plan should include:

• Evacuation procedures for personnel
• Firefighting protocols for transformer fires
• Immediate notification procedures to fire departments and safety personnel

Additionally, transformer sites should be equipped with fire extinguishers and other firefighting tools to control smaller fires before they spread.

What Should Be Done in Case of a Fire in an Oil-Immersed Transformer?

Introduction: The Risk of Fire in Oil-Immersed Transformers

Oil-immersed transformers are commonly used in power distribution networks due to their efficient cooling and high performance. However, these transformers come with inherent fire risks because of the flammable mineral oil used as coolant and insulator. If a fire breaks out, it can lead to catastrophic damage, including loss of equipment, service outages, environmental harm, and even human casualties.

Given the potential severity of transformer fires, it is crucial to have a well-established emergency response plan. This plan should outline immediate actions, safety measures, and procedures to control and extinguish the fire before it escalates. In this article, we will cover the essential steps to take in the event of a fire in an oil-immersed transformer to minimize damage and protect both personnel and equipment.

1. Immediate Actions Upon Discovery of a Fire

When a fire is detected in an oil-immersed transformer, immediate actions must be taken to prevent the situation from worsening. These actions should be executed swiftly, with safety being the top priority.

a. Evacuate the Area

The first priority is the safety of personnel. Evacuate all workers and personnel from the immediate area, especially if the fire involves electrical equipment. Transformer fires can be dangerous due to the possibility of electrical explosions, toxic smoke, and exposure to high heat. Everyone should move to designated safe zones, well away from the fire.

b. Disconnect Power Supply

If it is safe to do so, disconnect the transformer from the power supply to stop the electrical current. This will help reduce the risk of an electrical shock or further escalation of the fire. However, this action should only be performed if it can be done without putting personnel at risk.

c. Activate Fire Alarm and Notify Emergency Responders

Once the fire is detected, immediately activate the fire alarm system if available. Notify emergency responders, including local fire departments and the plant’s internal emergency team, to ensure a coordinated response. Provide them with all relevant details, such as the location of the fire, the transformer model, and any relevant safety information about the transformer and surrounding area.

2. Use of Fire Suppression Systems

Oil-immersed transformers often have built-in fire suppression systems, designed to control and extinguish fires before they escalate. In the event of a fire, these systems should be activated immediately.

a. Automatic Fire Extinguishing Systems

Most modern oil-immersed transformers are equipped with automatic fire extinguishing systems, which can quickly deploy a fire-suppressing agent (such as CO2, foam, or dry chemicals) once a fire is detected. If your transformer is equipped with such a system, ensure that it activates as soon as the fire is noticed. These systems can rapidly suppress the fire and reduce the risk of an explosion.

b. Manual Fire Suppression

If the automatic system fails or is not present, fire suppression efforts should focus on manually applying the appropriate extinguishing agents. For oil fires, foam-based fire extinguishers are the most effective, as they help smother the flames and reduce oxygen supply. Dry chemical powder can also be used for initial suppression.

Note: Water should never be used to extinguish an oil fire, as it can cause the fire to spread or intensify due to the explosive interaction between water and burning oil.

3. Monitor the Fire and Assess Escalation

After fire suppression systems are activated or manual firefighting efforts are initiated, it is essential to continuously monitor the situation to determine whether the fire is under control or escalating.

a. Watch for Re-Ignition

Oil fires can reignite even after they are seemingly extinguished due to residual heat in the oil or transformer components. Therefore, it is essential to keep a close eye on the transformer to ensure the fire does not flare up again. If the fire continues to grow or reignite, additional firefighting efforts may be needed.

b. Avoid Opening the Transformer Tank

Do not attempt to open the transformer tank or remove oil during a fire unless you are a trained professional. Opening the transformer could allow the fire to spread or cause an explosive release of gas, increasing the risk of injury or further damage.

c. Monitor Transformer Components for Explosions

Oil-immersed transformers, especially when exposed to high heat, may undergo internal explosions due to the build-up of pressure inside the tank. These explosions can propel hot oil and debris, making the situation even more dangerous. Always maintain a safe distance from the transformer and be prepared for further explosions.

4. Conduct Cooling and Stabilization Measures

Once the fire is controlled or extinguished, the next step is to stabilize the situation and reduce the potential for further damage.

a. Cool the Transformer

Even if the fire is under control, the transformer may remain hot. Apply water sprays or use cooling systems to reduce the temperature and prevent re-ignition. Cooling the transformer after a fire is crucial to stabilize the situation and prevent thermal damage to surrounding equipment or structures.

b. Ventilate the Area

Transformer fires often release toxic gases and smoke, including carbon monoxide and hydrocarbons, which pose health risks. Once the fire is controlled, ensure that the area is well-ventilated to disperse hazardous fumes and restore air quality to safe levels.

5. Inspect and Assess the Transformer After a Fire

Once the fire has been successfully suppressed and the area is deemed safe, it is essential to conduct a thorough inspection of the transformer and surrounding equipment.

a. Inspect Transformer Oil

The transformer oil may be severely contaminated during a fire. Oil testing should be performed to check for any degradation in oil quality, such as increased acidity or moisture levels, as these can affect the transformer’s future performance. Depending on the results, it may be necessary to replace the oil entirely.

b. Check Transformer Insulation and Components

After the fire is extinguished, it is essential to inspect the transformer’s internal components, including insulation, windings, bushings, and tap changer, for any damage caused by the heat or fire. Damage to these components could compromise the transformer’s ability to function and may require repair or replacement.

c. Perform a Full Electrical Test

Once physical damage has been assessed, electrical testing should be performed to ensure that the transformer is still capable of operating safely and efficiently. This test can include checking for winding resistance, dielectric strength, and insulation integrity.

6. Implement Long-Term Corrective Measures

After the fire is extinguished and damage is assessed, steps should be taken to prevent future fires.

a. Review and Improve Fire Protection Systems

Evaluate the performance of the existing fire protection systems. If the system was inadequate or failed to suppress the fire, upgrade the fire suppression system to improve its effectiveness. Consider implementing additional safety features, such as gas detection systems and enhanced fire-resistant barriers.

b. Analyze the Root Cause of the Fire

Conduct a root cause analysis to determine what caused the fire in the first place. Common causes include electrical faults, poor maintenance, overheating, or faulty insulation. Addressing the root cause will prevent similar incidents from happening in the future.

c. Regular Maintenance and Inspections

Ensure that the transformer undergoes regular maintenance and inspection to detect early signs of potential problems. Regular oil tests, visual inspections, and electrical assessments can help prevent future failures and reduce the likelihood of another fire.

---

Conclusion

Oil-immersed transformers are crucial components in electrical power systems but pose inherent fire risks due to the flammable nature of the transformer oil. Therefore, it's essential to incorporate fire protection designs and safety measures at various levels, including transformer construction, installation, and ongoing monitoring.

1. Fire Protection Systems: Several systems are designed to protect transformers from fire hazards, such as the use of fire-resistant transformer oil (e.g., synthetic esters or vegetable oils), fire barriers, and automatic fire suppression systems. These features help to either reduce the likelihood of a fire starting or to quickly suppress it if a fire does occur.

2. Tank Design: The transformer’s tank is designed to withstand the pressure from explosions and prevent oil spillage. Explosion vents are installed to allow for controlled venting in case of internal faults. The ventilation systems help keep the oil cool, reducing the risk of overheating that can lead to fires.

3. Monitoring Systems: Continuous monitoring of critical parameters like oil temperature, gas buildup, and moisture content can detect the early signs of overheating or faults, allowing for preventive measures to be taken before a fire starts. Temperature sensors and gas detectors play a key role in the fire prevention system by alerting operators to abnormal conditions.

4. Installation Measures: Proper installation practices, such as choosing the right location, maintaining adequate safety clearances, and using fire-resistant barriers between transformers and nearby structures, help reduce the risk of a fire spreading in the event of a transformer fault. Proper grounding and earthing also prevent electrical faults that could lead to fire.

5. Emergency Response: If a fire occurs, having a clear emergency response plan is essential. This includes having the appropriate firefighting equipment (such as foam-based fire extinguishers or dry chemical systems) and trained personnel ready to act quickly. Additionally, isolating the transformer and cutting off its power supply are critical steps to prevent further damage and spread of fire.

In summary, ensuring the fire safety of oil-immersed transformers involves a combination of design features, advanced fire protection systems, installation best practices, and continuous monitoring. By proactively addressing fire risks, these safety measures help protect both the transformer and the surrounding environment, reducing the likelihood of catastrophic failures and ensuring the safe operation of transformers in electrical systems. Proper safety measures not only safeguard valuable equipment but also protect lives and reduce downtime associated with transformer failures.

FAQ

Q1: What fire protection measures are used in oil-immersed transformers?
A1: Fire protection measures for oil-immersed transformers include oil containment systems, fire-resistant transformer oil, fire detection and suppression systems, and the use of fireproof materials for external casings. Additionally, transformers are equipped with temperature monitoring and alarm systems to detect overheating, which is often the cause of fires. Proper installation of transformers in fire-resistant enclosures also adds an extra layer of protection.

Q2: How does an oil containment system work in transformer fire safety?
A2: Oil containment systems are designed to prevent oil leaks in the event of a fire or transformer failure. These systems include bunded tanks or basins around the transformer to capture any spilled oil, reducing the risk of spreading flames. The containment system also helps in managing any fire-fighting water runoff, ensuring that hazardous materials are not released into the environment.

Q3: What role does fire-resistant transformer oil play in safety?
A3: Fire-resistant transformer oil is designed to reduce the flammability of the oil inside the transformer. It can withstand higher temperatures and is less likely to ignite compared to conventional mineral oils. Using fire-resistant oils like synthetic esters or silicone-based fluids enhances the safety of the transformer by reducing the risk of fire outbreaks, particularly in high-temperature conditions.

Q4: How do fire detection and suppression systems work in oil-immersed transformers?
A4: Fire detection and suppression systems in oil-immersed transformers include temperature sensors, smoke detectors, and infrared cameras that monitor the transformer’s internal and external conditions. These systems can trigger alarms and automatically activate fire suppression mechanisms, such as gas-based fire extinguishing systems (e.g., CO2 or FM-200) or deluge systems that release water or foam to suppress flames effectively.

Q5: What maintenance practices help ensure the fire safety of oil-immersed transformers?
A5: Regular maintenance practices include inspecting and cleaning oil containment systems, monitoring the condition of the transformer oil (e.g., checking for signs of contamination), testing fire detection and suppression systems, and ensuring that all seals and gaskets are intact. Routine checks of the cooling system and temperature sensors are also vital to ensure the transformer operates within safe limits, reducing the risk of overheating and fire.

References

"Fire Protection and Safety Measures for Oil-Immersed Transformers" - https://www.transformertech.com/oil-immersed-transformer-safety - Transformer Tech

"Comprehensive Guide to Transformer Fire Protection Design" - https://www.powermag.com/fire-safety-in-transformers - Power Magazine

"Fire-Resistant Oils in Power Transformers: An Overview" - https://www.electrical4u.com/fire-resistant-transformer-oil - Electrical4U

"How Fire Suppression Systems Work in Oil-Immersed Transformers" - https://www.sciencedirect.com/topics/engineering/transformer-fire-safety - ScienceDirect

"Transformer Oil Containment and Safety Protocols" - https://www.researchgate.net/transformer-oil-containment - ResearchGate

"Fire Detection and Suppression in Power Transformers" - https://www.smartgridnews.com/fire-protection-transformers - Smart Grid News

"Fire Protection Solutions for Transformers in Critical Applications" - https://www.energycentral.com/c/ee/fire-protection-transformers - Energy Central

"Regulatory Standards for Fire Safety in Oil-Immersed Transformers" - https://www.powergrid.com/fire-safety-transformers - PowerGrid
