What is Gas Analysis in Oil-Immersed Transformers？

Gas analysis in oil-immersed transformers is an essential diagnostic tool for monitoring the health and safety of transformers. Oil-immersed transformers operate at high voltages and experience various stresses, which can lead to faults, degradation of the transformer oil, and the formation of gases within the oil. The dissolved gases present in the transformer oil can provide valuable insights into the internal condition of the transformer, helping operators detect potential faults, prevent failures, and extend the lifespan of the equipment.

This article explores the concept of gas analysis in oil-immersed transformers, how it works, and its importance in predictive maintenance and fault detection.

---

What is Gas Analysis in Oil-Immersed Transformers?

Introduction: The Importance of Gas Analysis in Transformer Health Monitoring

Transformers are the backbone of any electrical grid, ensuring efficient voltage conversion and power distribution. Oil-immersed transformers, commonly used in electrical substations and power plants, rely on oil to cool and insulate their internal components. However, over time, internal faults, electrical discharges, or thermal stresses can degrade the oil and lead to the generation of gases. These gases can provide valuable insights into the condition of the transformer and help detect potential failures before they happen.

Gas analysis is a critical diagnostic tool used to monitor the health of oil-immersed transformers. It involves analyzing the dissolved gases in transformer oil to identify early signs of problems such as overheating, arcing, or insulation failure. By carefully tracking the concentration of various gases, operators can take preventative actions to avoid catastrophic failures, ensuring the transformer operates safely and efficiently.

What is Gas Analysis in Oil-Immersed Transformers?

Gas analysis in oil-immersed transformers involves the dissolved gas analysis (DGA) technique, which detects and measures the types and concentrations of gases that are released into the oil as a result of internal transformer faults. The gases produced during a fault provide specific information about the nature and severity of the problem inside the transformer.

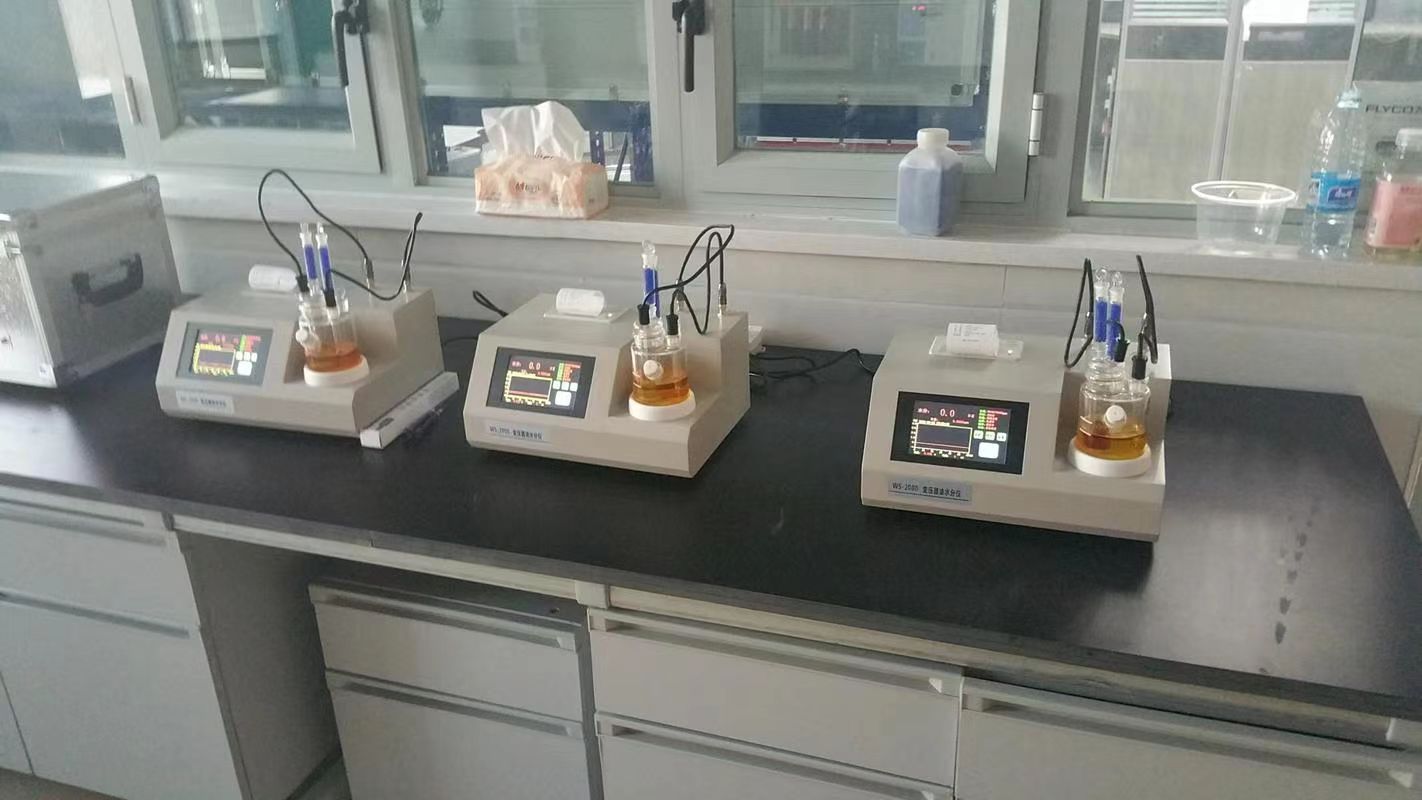

This process is usually performed periodically through sample collection from the transformer’s oil, and the collected gas is analyzed using advanced laboratory techniques. In some cases, on-line gas monitoring systems are employed, continuously measuring gas concentrations in real-time. The main goal of this analysis is to identify specific gases that are indicative of faults, allowing for early intervention and preventing costly downtime or catastrophic damage to the transformer.

How Does Gas Analysis Work in Transformers?

Gas analysis works by detecting the types of gases dissolved in the insulating oil of a transformer. The presence of specific gases and their concentrations can reveal a great deal about the electrical and thermal stresses the transformer has experienced. Here’s how the process works:

1. Gas Dissolution in Oil: When internal faults occur within the transformer, such as overheating, arcing, or insulation degradation, gases are produced. These gases dissolve into the transformer oil, which acts as both an insulator and a coolant. As the fault progresses, the amount of dissolved gas increases.

2. Sampling: A sample of the oil is extracted and analyzed for dissolved gases. This process can be done manually in laboratories or continuously with online sensors.

3. Gas Detection: The extracted oil is tested for the presence of gases like hydrogen (H₂), methane (CH₄), ethane (C₂H₆), ethylene (C₂H₄), acetylene (C₂H₂), and carbon monoxide (CO), among others. Each gas provides specific insights into the type of fault occurring.

4. Gas Concentration: The concentration of each gas is measured and compared to predefined thresholds or patterns, which can indicate the severity of the fault.

5. Interpretation and Action: The gas concentration levels are interpreted using established diagnostic methods, such as the Roger’s Ratio or the Duval’s Triangle, to identify the fault type and take the necessary corrective actions.

Key Gases Analyzed in Oil-Immersed Transformers

Several gases are commonly detected in the oil of transformers during gas analysis, each of which indicates specific issues with the transformer’s operation. These include:

• Hydrogen (H₂): Generally indicates high temperatures within the transformer, often due to overheating. Elevated levels of hydrogen are typically a precursor to more serious faults.

• Methane (CH₄): Often associated with low-temperature faults or the presence of moisture within the transformer. Methane levels can also point to issues with the insulation.

• Ethane (C₂H₆) and Ethylene (C₂H₄): Both gases are produced due to thermal decomposition of the oil and insulation. Ethylene, in particular, is a sign of serious overheating or electrical arcing.

• Acetylene (C₂H₂): Acetylene is produced during arcing or sparking inside the transformer. It’s a critical gas that often indicates a severe electrical fault or short circuit. Elevated acetylene levels are a clear signal that immediate action is required.

• Carbon Monoxide (CO): This gas is a byproduct of the degradation of cellulose insulation. Its presence suggests insulation deterioration and can be a sign of severe problems within the transformer.

The Role of Gas Analysis in Preventive Maintenance

Gas analysis serves as an essential tool in predictive and preventive maintenance. By regularly monitoring the gas levels in transformer oil, operators can identify potential issues before they lead to equipment failure. Here's how gas analysis aids in the maintenance strategy:

• Early Fault Detection: The presence of gases like acetylene or ethylene, even at low levels, can indicate that a fault is beginning to develop. This allows the operator to address the issue early, preventing it from escalating into a major failure.

• Condition Monitoring: Gas analysis can be used to track the transformer’s condition over time. By comparing current gas concentrations to historical data, operators can assess whether the transformer is operating within normal parameters or if it is showing signs of deterioration.

• Reducing Downtime: By identifying potential faults early, gas analysis helps schedule repairs or replacements during planned downtime, rather than waiting for an unexpected failure, which could lead to more costly repairs and prolonged downtime.

• Improved Safety: Early detection of issues through gas analysis ensures that transformers can be maintained or shut down before dangerous conditions, such as arcing, explosions, or fires, occur. This enhances the safety of the facility and its personnel.

Common Gas Analysis Techniques

There are several methods used for gas analysis in oil-immersed transformers:

1. Gas Chromatography (GC): This is the most accurate and widely used method for analyzing dissolved gases. Gas chromatography can separate and quantify multiple gases in a sample, providing a detailed and reliable analysis of transformer health.

2. Infrared (IR) Spectroscopy: IR spectroscopy is used to identify the presence and concentration of gases by measuring their absorption of infrared radiation. This technique is often used for online monitoring systems.

3. Partial Discharge (PD) Detection: This technique involves measuring the electrical signals caused by partial discharges within the transformer. These discharges often lead to gas production, so monitoring PD activity helps in the early detection of faults that will show up in gas analysis.

Benefits of Gas Analysis in Oil-Immersed Transformers

• Proactive Fault Detection: Gas analysis helps detect faults before they cause significant damage to the transformer, allowing for timely intervention.

• Cost Savings: Early detection and preventive maintenance reduce the need for expensive repairs and extend the transformer’s lifespan.

• Improved System Reliability: By identifying and mitigating transformer issues early, gas analysis helps ensure consistent and reliable power delivery, avoiding unexpected failures.

• Optimized Maintenance Schedule: Gas analysis allows maintenance to be carried out based on the condition of the transformer rather than on a fixed schedule, leading to more efficient use of resources.

Why is Gas Analysis Important for Oil-Immersed Transformers?

Introduction: The Critical Need for Gas Analysis in Oil-Immersed Transformers

Oil-immersed transformers are vital components in electrical power systems, used to step up or step down voltage for the efficient transmission and distribution of electricity. These transformers rely on mineral oil not only for insulation but also as a coolant to dissipate heat from their internal components. However, over time, various operational stresses, including thermal and electrical faults, can cause chemical breakdowns within the transformer oil, leading to the production of gases.

Gas analysis plays a pivotal role in monitoring these gases, as the type and concentration of gases dissolved in the transformer oil can offer valuable insights into the health and functionality of the transformer. By identifying these gases, operators can diagnose potential problems early, thereby preventing costly and dangerous failures.

Gas analysis helps detect hidden faults such as overheating, electrical arcing, or insulation degradation—conditions that may not be immediately visible but could lead to catastrophic transformer failure if left unaddressed. Therefore, understanding the importance of gas analysis is critical to ensuring the safe and efficient operation of oil-immersed transformers.

Why Gas Analysis is Crucial for Oil-Immersed Transformers

Gas analysis in oil-immersed transformers is essential for several reasons. The presence of certain gases dissolved in the transformer oil can act as an early warning system for faults that may otherwise go unnoticed until it is too late. Here are the main reasons why gas analysis is so important:

1. Early Fault Detection: Gas analysis allows for the early detection of faults, often before they become catastrophic. The gases dissolved in the oil can indicate the type and severity of the fault occurring inside the transformer, allowing for timely intervention.

2. Prevention of Major Failures: By monitoring the concentration of gases, operators can identify potential issues like arcing, overheating, or insulation breakdown before they escalate into more severe problems, such as equipment failure or fire. Timely intervention based on gas analysis can help prevent these disasters.

3. Cost Savings: Identifying and addressing faults early through gas analysis can significantly reduce the cost of transformer repair or replacement. In the absence of gas analysis, these issues might go unnoticed until they cause major damage, leading to expensive repairs, downtime, and even transformer replacement.

4. Extended Transformer Life: Regular gas analysis is a key component of a predictive maintenance program, which helps optimize transformer performance and extend its lifespan. By detecting faults at an early stage, transformers can be maintained before more severe damage occurs, leading to fewer breakdowns and a longer service life.

5. Improved Safety: Transformers are critical to power grid operation, and failures can have serious safety consequences. Gas analysis helps maintain the integrity of transformers, ensuring the safety of both the equipment and personnel working with or around them. Early detection of faults can prevent the occurrence of fires, explosions, or electric shocks due to equipment malfunctions.

6. Regulatory Compliance: For utility companies and industries that rely on oil-immersed transformers, ensuring regulatory compliance is essential. Regular gas analysis helps to meet safety standards and regulatory requirements for transformer maintenance and performance, ensuring the transformers operate within acceptable parameters and do not pose a risk to the power grid or the surrounding environment.

Key Benefits of Gas Analysis for Oil-Immersed Transformers

Gas analysis provides a wealth of information regarding the operational condition of oil-immersed transformers. Here are the primary benefits:

1. Proactive Condition Monitoring: Gas analysis helps operators track the transformer’s condition, even before any visible signs of damage are present. This proactive monitoring allows for the identification of electrical faults, thermal stress, or moisture infiltration early, preventing breakdowns.

2. Cost-Efficiency: By detecting problems early, gas analysis allows for repairs to be made during scheduled maintenance windows, avoiding costly emergency repairs or the premature replacement of the transformer.

3. Minimized Downtime: When faults are detected early through gas analysis, maintenance work can be scheduled during off-peak hours or planned shutdowns. This minimizes the disruption to the power supply, avoiding unscheduled downtime and ensuring that critical operations continue uninterrupted.

4. Increased Transformer Efficiency: By addressing faults promptly, operators can keep transformers running efficiently, reducing energy losses and ensuring the stability of the electrical grid. An efficient transformer is also less likely to overheat, reducing the risk of further damage and the need for costly repairs.

5. Informed Decision-Making: Gas analysis helps operators make informed decisions about transformer repair, replacement, or continued use. This data-driven approach to maintenance ensures that resources are used effectively, preventing unnecessary expenditure.

How Gas Analysis Detects Transformer Faults

Gas analysis helps identify a wide range of transformer faults, from minor issues to major system failures. Here’s how the analysis of dissolved gases works to detect common transformer problems:

1. Overheating: Gases like hydrogen (H₂) and methane (CH₄) are produced when the transformer experiences overheating due to excessive electrical stress or load. Hydrogen, in particular, is a key indicator of high temperatures within the transformer. The presence of these gases, especially in high concentrations, signals that the transformer may be approaching a failure point.

2. Arcing and Sparking: Acetylene (C₂H₂) is a key gas produced by electrical arcing or sparking. Acetylene is typically associated with a short circuit or electrical fault, and its presence in the oil can indicate serious issues. If left unaddressed, arcing can cause significant damage to transformer components.

3. Insulation Breakdown: Carbon monoxide (CO) and carbon dioxide (CO₂) are produced when the cellulose insulation inside the transformer begins to degrade due to overheating or electrical faults. The presence of these gases is a clear sign that the insulation is failing and that the transformer could be at risk of a catastrophic failure.

4. Partial Discharge: Ethylene (C₂H₄) and ethane (C₂H₆) are produced by partial discharges, a phenomenon that occurs when there is an electrical breakdown in the insulation system. The presence of these gases often signals that the transformer insulation is being stressed and may need to be repaired or replaced.

5. Moisture: Moisture can enter the transformer’s oil, degrading its insulating properties and leading to the formation of additional gases. If gas analysis shows elevated levels of certain gases, it can point to moisture ingress or other problems with the transformer’s seals or gaskets.

Key Gases Analyzed During Gas Analysis

The following gases are typically monitored during gas analysis to diagnose specific faults:

• Hydrogen (H₂): Indicates overheating and high temperatures.
• Methane (CH₄): Sign of low-temperature faults or moisture.
• Acetylene (C₂H₂): Produced by arcing and sparking inside the transformer.
• Ethylene (C₂H₄): Associated with severe overheating or electrical faults.
• Ethane (C₂H₆): Produced by thermal degradation of oil and insulation.
• Carbon Monoxide (CO): Indicates insulation breakdown, especially cellulose degradation.
• Carbon Dioxide (CO₂): Indicates the breakdown of cellulose insulation.

What Types of Gases Are Analyzed in Transformer Oil?

Introduction: The Importance of Gas Analysis in Transformer Oil

Transformer oil plays a vital role in the safe and efficient operation of oil-immersed transformers. It serves as both an insulating medium and a coolant, dissipating the heat generated by the electrical components inside the transformer. However, over time, the oil can undergo chemical changes due to electrical stress, overheating, and other operational factors, producing gases that can indicate the health of the transformer.

Gas analysis is a key diagnostic tool used to monitor the condition of transformer oil. By analyzing the gases dissolved in the oil, operators can gain valuable insights into the transformer’s condition, detect faults early, and implement preventive maintenance before a failure occurs. The specific gases produced can provide information on the type of fault, its severity, and the necessary corrective actions.

Types of Gases Analyzed in Transformer Oil

Gas analysis in transformer oil typically focuses on detecting specific gases that are produced during faults like overheating, electrical arcing, and insulation degradation. The primary gases analyzed are the following:

1. Hydrogen (H₂)
   Hydrogen is one of the most important gases analyzed in transformer oil. It is primarily produced when the transformer undergoes overheating due to excessive load or electrical stress. High concentrations of hydrogen can indicate elevated temperatures within the transformer, which could be a sign of a developing fault, such as a hot spot or internal short circuit.

   • Significance: Hydrogen is a critical indicator of overheating. A sudden increase in hydrogen concentration can signal that the transformer is at risk of further damage or failure.
   • Faults Indicated: Overheating, high load conditions, potential breakdowns in the oil or insulation.

2. Methane (CH₄)
   Methane is produced under relatively low temperature conditions and is often associated with early-stage faults. It can result from thermal degradation of the transformer’s insulation system, often caused by moisture or low-grade overheating. Though methane levels can be relatively low, their presence is an important diagnostic indicator of early transformer distress.

   • Significance: Methane’s presence suggests that thermal or moisture-related degradation is occurring within the transformer. While not as severe as other gases, it is an early warning sign that should be addressed.
   • Faults Indicated: Low-temperature overheating, moisture ingress, degradation of insulation.

3. Acetylene (C₂H₂)
   Acetylene is a gas that is generated by electrical arcing or sparking within the transformer. This gas is often an indicator of severe electrical faults, such as short circuits or contact arcing between components. The presence of acetylene in the oil is a serious warning sign, as it indicates that the transformer may be undergoing intense electrical stress that could eventually lead to catastrophic failure.

   • Significance: Acetylene is a critical gas for identifying electrical arcing, which is a severe and dangerous fault. High concentrations of acetylene require immediate investigation and potentially corrective measures.
   • Faults Indicated: Electrical arcing, sparking, short circuits, insulation breakdown.

4. Ethylene (C₂H₄)
   Ethylene is produced at higher temperatures, typically when there is severe overheating within the transformer. Its presence in the oil often indicates that the transformer is under significant stress and that the temperature has reached levels that are harmful to the insulation and other components. Ethylene is particularly associated with thermal degradation of the oil and insulation materials.

   • Significance: Ethylene is often linked to severe overheating and should be considered a critical indicator of potential transformer failure.
   • Faults Indicated: Severe overheating, thermal degradation of oil and insulation.

5. Ethane (C₂H₆)
   Ethane is produced at moderate temperatures, often as part of the ongoing degradation of transformer oil or insulation. It is typically detected when there are issues related to thermal stress or aging of the oil. While its presence is less critical than acetylene or ethylene, it still provides important information about the thermal conditions within the transformer.

   • Significance: The presence of ethane suggests that the transformer may be operating under higher-than-normal thermal conditions or that there is some oil degradation occurring. It can also indicate that the transformer is approaching a stage where more severe degradation might occur.
   • Faults Indicated: Thermal stress, aging of oil and insulation.

6. Carbon Monoxide (CO)
   Carbon monoxide is produced during the breakdown of cellulose insulation, which is commonly found in transformers. When the temperature inside the transformer becomes high enough to degrade the insulation material, carbon monoxide is released as a byproduct. It is a critical gas in diagnosing insulation problems, which can lead to significant failures if not addressed.

   • Significance: The presence of carbon monoxide is a clear sign of cellulose insulation degradation, which can compromise the transformer’s integrity. High concentrations of CO indicate a serious fault.
   • Faults Indicated: Insulation degradation, particularly of cellulose-based materials.

7. Carbon Dioxide (CO₂)
   Carbon dioxide is another gas produced when cellulose insulation breaks down. While carbon monoxide is associated with more severe degradation, carbon dioxide can be an earlier sign of insulation issues. It is also formed when the oil undergoes thermal stress, and its presence helps confirm that the transformer’s insulation is beginning to deteriorate.

   • Significance: Carbon dioxide levels, when detected alongside other gases, can help pinpoint issues with insulation integrity and overall transformer health. Elevated CO₂ levels may indicate an issue that could worsen over time.
   • Faults Indicated: Insulation breakdown, aging of oil and insulation materials.

8. Oxygen (O₂)
   While oxygen is not typically found in transformer oil unless there is a fault or external contamination, its presence can signal problems with the oil seal or moisture ingress. Oxygen can react with oil and insulation materials, exacerbating degradation and leading to faster aging.

   • Significance: Oxygen in the transformer oil typically indicates a seal failure or moisture ingress. The gas can further accelerate degradation and should be investigated as soon as possible.
   • Faults Indicated: Moisture ingress, seal failure, potential oil contamination.

9. Nitrogen (N₂)
   Nitrogen is an inert gas that is typically used to pressurize transformer tanks to prevent air (and oxygen) from entering. It is not a fault gas but can be used to monitor pressure levels and prevent oxygen contamination. High levels of nitrogen in the oil are often associated with normal operations when the transformer is pressurized, but changes in nitrogen levels could indicate changes in tank pressure or potential faults with the sealing system.

   • Significance: Nitrogen levels are used as an indirect indicator of tank pressure and the integrity of the transformer’s seals. Significant changes may signal issues with the transformer’s sealing system.
   • Faults Indicated: Changes in tank pressure, potential seal failure.

How is Gas Analysis Performed in Oil-Immersed Transformers?

Introduction: The Importance of Gas Analysis in Transformer Maintenance

Gas analysis is a critical diagnostic tool used to assess the health of oil-immersed transformers. It involves measuring the types and concentrations of gases dissolved in the transformer oil. These gases, such as hydrogen, acetylene, methane, and carbon monoxide, are byproducts of electrical faults, insulation degradation, and overheating within the transformer. By analyzing these gases, technicians can detect potential faults early, predict transformer failures, and prevent unplanned shutdowns.

Performing gas analysis involves a series of precise steps to ensure accurate results. The process typically includes sampling the transformer oil, using specialized equipment to extract the gases, and then interpreting the results to identify specific faults and determine the transformer’s condition.

Steps in Gas Analysis of Transformer Oil

The process of gas analysis in transformer oil generally follows a well-defined procedure, from sample collection to gas analysis interpretation. Here’s a detailed look at each step involved:

1. Oil Sampling Process

Before any analysis can occur, the first step is to properly sample the transformer oil. This step is crucial to ensure that the gases measured are representative of the transformer’s condition. Sampling is typically performed by licensed professionals using standardized techniques to avoid contamination and ensure reliability.

Key Points in Oil Sampling:

• Timing: Sampling should be done under normal operating conditions or after an incident such as an overload or fault. In the case of regular monitoring, samples should be collected periodically (e.g., every 6 months or annually).
• Equipment: A gas-tight sampling container is used to collect the oil. Containers must be free of contamination, and the oil should be drawn from the transformer’s sampling valve to avoid air mixing.
• Location: The oil should be sampled from a point that represents the overall condition of the transformer, typically near the top of the tank, but away from any areas with heavy oil circulation.
• Volume: A small quantity (typically around 1–2 liters) is sufficient for analysis, though it may vary based on the laboratory’s requirements.

2. Extraction of Dissolved Gases

Once the oil sample is collected, the dissolved gases need to be extracted for analysis. This is typically done using a headspace extraction technique, where the oil sample is sealed in a container, and the gases are extracted from the headspace (the air above the oil).

Methods of Gas Extraction:

• Headspace Extraction: This method relies on the dissolved gases in the oil being transferred into the gas phase. The oil sample is heated or agitated to release the gases into the air above the oil, from which they are then collected for analysis.
• Vacuum Extraction: In some cases, a vacuum is applied to draw the gases from the oil sample, allowing for a more controlled release of gases for analysis.

After the gases are extracted, they are ready for analysis using specialized analytical instruments.

3. Gas Analysis Techniques

Once the gases are collected from the oil sample, they are analyzed using advanced instruments. The most common method for gas analysis in transformer oil is Gas Chromatography (GC). However, infrared spectroscopy and thermal conductivity detectors are also sometimes used. Here’s how each method works:

Gas Chromatography (GC):

• Principle: Gas chromatography is the most widely used method for analyzing gases in transformer oil. The technique works by separating the gases based on their molecular size and chemical properties. The gases are passed through a column packed with a special substance that causes the different gases to travel at different speeds, allowing them to be separated.
• Detection: As the separated gases exit the column, they pass through a detector, often a flame ionization detector (FID) or a thermal conductivity detector (TCD), which measures the quantity of each gas. The results are displayed as a chromatogram, which helps identify the types and concentrations of gases present.
• Advantages: GC is highly accurate, capable of detecting very low levels of gases, and can separate multiple gases effectively.

Infrared Spectroscopy (IR):

• Principle: Infrared spectroscopy detects the presence of specific gases based on their absorption of infrared light. Different gases absorb light at specific wavelengths, and by analyzing the amount of absorption, technicians can determine the concentration of each gas in the sample.
• Detection: The sample is passed through an infrared beam, and the absorption is measured. This method is highly effective for gases like carbon dioxide (CO₂) and carbon monoxide (CO), which absorb infrared light at distinct wavelengths.
• Advantages: IR spectroscopy is a non-destructive technique and can offer rapid results for certain gases, particularly carbon-based compounds.

Thermal Conductivity Detectors (TCD):

• Principle: Thermal conductivity detectors measure the thermal conductivity of a gas as it passes over a heated sensor. Each gas has a unique thermal conductivity, which is measured to identify and quantify the gases.
• Detection: This technique is typically used for gases like hydrogen and oxygen, which have different thermal conductivities compared to other gases.
• Advantages: TCD is sensitive to a broad range of gases and is often used for continuous monitoring of gases.

4. Data Interpretation and Fault Diagnosis

Once the gas concentrations have been measured, the data is analyzed to assess the health of the transformer. The key to interpreting the data lies in comparing the concentration of specific gases to pre-established fault models, such as IEEE (Institute of Electrical and Electronics Engineers) standards for fault diagnosis.

Interpretation of Gas Levels:

• Hydrogen (H₂): Elevated hydrogen levels typically indicate overheating or high-load conditions.
• Acetylene (C₂H₂): High levels of acetylene suggest electrical arcing or short circuits.
• Methane (CH₄): Methane indicates low-temperature degradation of the transformer insulation.
• Ethylene (C₂H₄): Elevated ethylene levels point to severe overheating and possible damage to the oil or insulation.
• Carbon Monoxide (CO): A rise in carbon monoxide levels indicates cellulose insulation degradation.
• Carbon Dioxide (CO₂): High concentrations of CO₂ suggest aging and degradation of the transformer’s oil and insulation.

By comparing the levels of these gases to normal operating thresholds, maintenance teams can predict the transformer’s remaining lifespan, identify potential faults, and schedule appropriate maintenance actions.

5. Reporting and Preventive Action

After gas analysis is complete and the results have been interpreted, the findings are compiled into a comprehensive gas analysis report. This report will include:

• The gas concentrations detected in the oil.
• A diagnosis of potential faults based on the gas levels.
• Recommendations for corrective actions, such as oil replacement, cleaning, or even transformer repairs if necessary.

The results are often shared with the maintenance team, who will use the data to schedule repairs or adjustments to ensure the transformer’s continued reliability and operation.

What Faults Can Gas Analysis Help Detect in Oil-Immersed Transformers?

Introduction: The Importance of Gas Analysis for Transformer Fault Detection

Oil-immersed transformers are integral components in electrical power systems, and their reliable operation is essential for ensuring continuous power distribution. However, due to the complexity of transformer operations, faults can develop over time. Detecting these faults early is critical for preventing catastrophic failures, reducing maintenance costs, and extending the transformer’s lifespan.

One of the most effective diagnostic tools available for detecting faults in oil-immersed transformers is gas analysis. By examining the gases dissolved in transformer oil, technicians can identify a wide range of electrical and thermal issues that may not be immediately visible but could lead to serious problems if left unchecked. In this article, we explore the common faults that gas analysis can help detect, as well as how gas concentration levels can be used to predict the type and severity of the fault.

Faults Detected by Gas Analysis in Oil-Immersed Transformers

Gas analysis is particularly useful in identifying dissolved gases produced during various fault conditions. These gases accumulate in the oil and can be extracted for analysis. Each gas generated correlates with a specific type of fault, and the concentration of these gases can help determine the severity and cause of the issue.

1. Overheating of Transformer Components

Overheating is one of the most common causes of transformer failures. When a transformer’s internal components, such as the winding, core, or insulation, experience excessive heat, chemical reactions occur that lead to the formation of gases. Gas analysis can help identify overheating before it leads to a catastrophic failure.

Gases Associated with Overheating:

• Hydrogen (H₂): Increased hydrogen levels are commonly associated with overheating of transformer components, especially at high-load conditions. Elevated hydrogen concentrations are often an early sign of thermal degradation.
• Methane (CH₄): Methane is produced during low-temperature degradation of transformer oil and insulation. While it may not indicate severe overheating, its presence suggests thermal stress that needs attention.
• Ethylene (C₂H₄): High levels of ethylene often indicate severe overheating of the transformer oil, potentially caused by long-term load stress or poor cooling efficiency.

Overheating-related faults can range from relatively minor issues that require routine maintenance to critical problems that, if left unchecked, may result in permanent damage to the transformer’s insulation system.

2. Electrical Arcing or Short Circuits

Electrical faults such as short circuits or arcing can occur when there is a breakdown in insulation, causing an electrical current to flow through unintended paths. These faults generate intense heat, which can degrade the transformer oil and insulation. The gases released during these events are typically different from those produced by overheating.

Gases Associated with Arcing and Short Circuits:

• Acetylene (C₂H₂): Acetylene is one of the most significant gases produced by arcing or electrical breakdown of the transformer’s insulation. Elevated acetylene levels indicate a severe electrical fault that requires immediate attention.
• Ethane (C₂H₆): While not as commonly associated with arcing as acetylene, ethane can also appear during arc faults. It can signal the degradation of cellulose insulation materials.
• Methane (CH₄): In some cases, methane levels can rise in the event of a short circuit or electrical arcing, especially if the fault involves the breakdown of the oil.

Acetylene is a key indicator of a severe electrical fault. A significant presence of acetylene in the gas profile often suggests that a short circuit or internal arcing is actively occurring within the transformer, making it a critical issue to address immediately.

3. Degradation of Insulation Materials

Insulation degradation is one of the most critical concerns in transformer maintenance. As transformers age, the insulation materials (such as paper and oil) break down chemically due to heat, moisture, and electrical stress. Gas analysis can provide early warnings of such degradation, allowing operators to take preventive action before insulation failure occurs.

Gases Associated with Insulation Degradation:

• Carbon Monoxide (CO): Elevated levels of carbon monoxide are often associated with the degradation of cellulose insulation (paper), which is commonly used in transformers. Cellulose aging typically leads to the formation of CO and CO₂.
• Carbon Dioxide (CO₂): Increased carbon dioxide levels are also a strong indicator of cellulose degradation. Higher CO₂ concentrations may suggest that insulation materials are undergoing oxidation or aging.
• Acetylene (C₂H₂): While acetylene is typically associated with electrical arcing, it can also be a byproduct of insulation degradation under certain conditions, particularly when high temperatures cause the breakdown of materials.

When gas analysis shows high levels of CO and CO₂, it is a clear sign that the transformer’s insulation is aging and needs to be monitored closely. If not addressed, this can lead to complete insulation failure and eventual transformer collapse.

4. Transformer Oil Contamination

Transformer oil is crucial for cooling and insulating transformer components. If the oil becomes contaminated, either by external factors or internal transformer issues, it can cause a host of problems, including poor heat dissipation and increased electrical stress. Gas analysis can help detect oil contamination before it leads to system-wide problems.

Gases Associated with Oil Contamination:

• Methane (CH₄): Methane can be produced when the oil breaks down due to excessive heat or contaminants within the oil. Methane concentrations can indicate that oil is undergoing degradation.
• Acetylene (C₂H₂): Acetylene levels may rise if the transformer oil is contaminated and undergoing electrical arcing or high temperatures.

Contamination can exacerbate the aging of the transformer and cause various operational issues, such as poor insulation properties and reduced cooling efficiency.

5. Faulty Cooling System

A transformer’s cooling system is critical for maintaining safe operating temperatures. If the cooling system is malfunctioning, it can lead to overheating and internal damage to the transformer. Gas analysis can detect overheating due to poor cooling, often before external symptoms are visible.

Gases Associated with Cooling System Failure:

• Hydrogen (H₂): Increased hydrogen levels are indicative of overheating due to cooling system failure.
• Ethylene (C₂H₄): Severe overheating, often resulting from inadequate cooling, will lead to elevated ethylene levels in the oil, suggesting that the transformer is exposed to high thermal stress.

Failure in the cooling system can exacerbate existing issues like insulation breakdown, leading to more severe problems and an increased risk of transformer failure.

6. Overload Conditions

Operating transformers beyond their rated capacity or overloading them during peak demand periods can also cause faults. Overloading leads to elevated temperatures inside the transformer and stresses the insulation, increasing the risk of failure. Gas analysis can help detect when a transformer has been subjected to overload conditions.

Gases Associated with Overload:

• Hydrogen (H₂): Excessive load often leads to hydrogen formation, particularly in the case of high-load overheating.
• Methane (CH₄): Increased methane levels can also point to long-term overload conditions that cause slow degradation of insulation.

Overload detection via gas analysis is important to avoid prolonged stress on the transformer, which could result in premature failure.

How Does Gas Analysis Contribute to Transformer Maintenance and Longevity?

Introduction: The Role of Gas Analysis in Transformer Health

Transformers are essential components in electrical power systems, converting voltage levels for effective power distribution. However, like all machinery, transformers are prone to wear and failure over time. Given the high costs associated with transformer replacement and the critical role these devices play in maintaining a reliable power supply, it's crucial to adopt a preventive maintenance approach that maximizes transformer longevity.

One of the most effective methods for ensuring long-term transformer health is gas analysis. By evaluating the gases dissolved in transformer oil, engineers can identify early signs of problems like overheating, insulation degradation, and electrical faults. This proactive approach to monitoring can help prevent unplanned outages, reduce repair costs, and extend the service life of transformers.

Gas Analysis: The Mechanism Behind Predictive Maintenance

Gas analysis in transformers involves extracting and analyzing the gases dissolved in transformer oil. These gases are produced due to the chemical reactions that occur within the transformer during normal operation, as well as during fault conditions. When a transformer is operating optimally, only trace amounts of gases are present. However, when faults develop—such as insulation breakdown, overheating, or arcing—additional gases are produced and their concentration levels can indicate the nature of the fault.

This process allows engineers to perform predictive maintenance, meaning that potential issues can be identified before they lead to transformer failure. By analyzing the types and quantities of gases present, engineers can pinpoint specific issues such as overheating, electrical arcing, or oil contamination, allowing for corrective actions to be taken.

Key Faults Detected by Gas Analysis

Gas analysis helps identify several types of faults in transformers, including:

1. Overheating: Excessive temperatures inside the transformer can degrade both the oil and the insulation, leading to the formation of gases like hydrogen (H₂), methane (CH₄), and ethylene (C₂H₄). Early detection of these gases indicates that the transformer may be under stress, potentially leading to more severe issues if left unaddressed.

2. Electrical Arcing and Short Circuits: Gases like acetylene (C₂H₂) and ethane (C₂H₆) are often associated with arcing and short circuits within the transformer. These faults typically result in high temperatures and can lead to significant damage if not identified and repaired in time.

3. Insulation Breakdown: When the transformer’s insulation begins to degrade, gases such as carbon monoxide (CO) and carbon dioxide (CO₂) are produced as byproducts. Elevated levels of these gases suggest that the insulation materials are aging or deteriorating, a critical sign that maintenance or replacement may be required.

4. Oil Degradation: Methane and acetylene are also produced when transformer oil is degraded due to long-term high temperatures or contamination. Oil degradation can lead to poor cooling and reduced insulating properties, affecting the transformer’s overall performance.

How Gas Analysis Contributes to Transformer Maintenance

Gas analysis plays an essential role in both routine maintenance and emergency response. The key ways in which gas analysis contributes to transformer maintenance are as follows:

1. Early Detection of Faults

By regularly testing the transformer’s oil for dissolved gases, engineers can detect problems early, long before they develop into serious faults. For example, the presence of acetylene in the oil is a clear indication of arcing, which requires immediate attention to avoid catastrophic failure. By identifying these issues early, engineers can address them through maintenance or repairs, preventing more expensive repairs or replacements later.

2. Monitoring and Trending of Gas Levels

Continuous or periodic gas analysis allows engineers to monitor gas trends over time. A gradual increase in the concentration of certain gases can indicate incipient problems within the transformer, allowing engineers to schedule maintenance before the fault becomes severe. This predictive capability helps reduce unplanned downtime and optimizes maintenance schedules, ultimately reducing the risk of transformer failure.

For example, an increase in ethylene could indicate overheating, but when tracked over time, a gradual increase may allow engineers to address the issue before it becomes a critical fault.

3. Tailored Maintenance Plans

Gas analysis enables tailored maintenance strategies for each transformer based on the specific gases detected. For example, if gas analysis reveals a high level of hydrogen, it may suggest that the transformer is overheating. The technician could focus on cooling system maintenance or load adjustment. If carbon monoxide and carbon dioxide are found in significant amounts, the issue may lie with the degradation of insulation, prompting an evaluation of the transformer’s insulation system.

By understanding the type of fault through gas analysis, maintenance personnel can develop a targeted approach for repairing or replacing parts, leading to cost savings and minimizing transformer downtime.

4. Planning for Transformer Lifetime Extension

Regular gas analysis plays a critical role in extending transformer life. By identifying problems before they reach a critical point, engineers can prevent irreversible damage to the transformer components, including the oil, insulation, and windings. By acting on early warning signs, such as increased methane or acetylene levels, engineers can take preventive measures such as reducing the load or improving cooling, which helps to extend the transformer’s useful life.

Without proper gas analysis, transformers may continue to operate under stress until catastrophic failure occurs, leading to costly repairs, downtime, or replacement. With regular monitoring and intervention, transformers can remain in operation for many more years.

5. Preventing Catastrophic Failures

Perhaps the most important contribution of gas analysis to transformer maintenance is the prevention of catastrophic failure. Many transformer failures—especially those caused by insulation breakdown or electrical arcing—can result in fires, explosions, and extensive damage to the surrounding infrastructure. Gas analysis can identify dangerous conditions early, allowing operators to take appropriate action to prevent such events.

For example, high levels of acetylene can indicate electrical arcing that, if not addressed, could lead to a transformer explosion. Gas analysis enables operators to replace components, adjust the load, or shut down the transformer before failure occurs.

---

Conclusion

Gas analysis in oil-immersed transformers is a critical tool for understanding the internal health of the transformer and identifying issues that could lead to costly failures or safety hazards. By analyzing the gases dissolved in the transformer oil, operators can detect early signs of faults and take corrective actions before the situation becomes critical.

1. Gas Analysis Overview: In an oil-immersed transformer, transformer oil serves not only as an insulator but also as a medium for heat dissipation. However, over time, electrical stresses (such as overloading, short circuits, or partial discharge) can cause the oil to break down and produce gases. These gases are typically dissolved in the oil and can provide key insights into the condition of the transformer. Gas analysis helps to detect faults at an early stage by identifying the specific gases present.

2. Importance of Gas Analysis: By regularly performing gas analysis, operators can detect potential issues such as overheating or partial discharge before they lead to a complete failure. This allows for predictive maintenance and reduces unplanned outages, which can be costly. Gas analysis also plays a vital role in ensuring the safety and reliability of transformers in critical infrastructure.

3. Types of Gases Analyzed: The gases that are typically analyzed include:

   • Hydrogen (H₂): Indicates high temperature or partial discharge in the transformer.
   • Methane (CH₄): Associated with arcing and combustion processes.
   • Carbon monoxide (CO): Suggests the decomposition of oil and cellulose insulation.
   • Ethane (C₂H₆) and Ethylene (C₂H₄): Often found in cases of overheating or cellulose degradation.
   • Acetylene (C₂H₂): A key indicator of arc flash or severe electrical discharges.

   The presence and concentration of these gases can point to specific fault mechanisms in the transformer.

4. How Gas Analysis is Performed: Gas analysis is typically done using Dissolved Gas Analysis (DGA). This process involves extracting a sample of the transformer oil and analyzing the types and quantities of dissolved gases. The methods used for gas sampling and analysis include:

   • Headspace sampling: Sampling the vapor above the oil.
   • Vacuum extraction: Extracting dissolved gases from the oil under controlled conditions.
   • Gas chromatography: Analyzing the gases using chromatography techniques to determine their composition.

5. Fault Detection with Gas Analysis: Gas analysis can help detect a variety of faults, including:

   • Overheating: Gases like ethane and ethylene are produced when the transformer oil or insulation material is subjected to high temperatures.
   • Arcing: The presence of gases like methane and acetylene often indicates electrical arcing or sparking within the transformer.
   • Partial discharge: This phenomenon produces hydrogen and other gases, indicating the breakdown of insulation at localized points.
   • Oil degradation: Gas buildup from the breakdown of oil (like carbon monoxide) suggests the oil’s insulating properties are degrading.

6. Predictive Maintenance and Longevity: Gas analysis allows for early detection of faults, enabling predictive maintenance. By identifying abnormal gas levels, operators can take corrective action before the fault escalates, reducing the risk of catastrophic failure. This leads to better asset management and extended transformer life. Additionally, continuous monitoring and periodic gas analysis help reduce downtime and maintenance costs by providing insight into transformer health.

In summary, gas analysis is a powerful tool in the monitoring and maintenance of oil-immersed transformers. By analyzing the dissolved gases in transformer oil, operators can detect early signs of faults, including overheating, arcing, and partial discharge. Regular gas analysis allows for predictive maintenance, helping extend the transformer's lifespan, prevent unexpected failures, and maintain the safety and reliability of the power system.

FAQ

Q1: What is gas analysis in oil-immersed transformers?
A1: Gas analysis in oil-immersed transformers is a diagnostic process used to detect and analyze gases dissolved in transformer oil. These gases, such as hydrogen, methane, and acetylene, can indicate the presence of faults like overheating, arcing, or insulation degradation. By regularly monitoring these gases, operators can detect potential problems early, preventing catastrophic failures and improving transformer performance.

Q2: Why is gas analysis important for oil-immersed transformers?
A2: Gas analysis is crucial for the early detection of faults in oil-immersed transformers. The gases dissolved in the transformer oil provide valuable insights into the health of the transformer. Monitoring these gases allows for predictive maintenance, helping identify issues before they cause major damage or breakdowns. This proactive approach improves the reliability and lifespan of transformers and ensures the safety of electrical systems.

Q3: What are the types of gases monitored in oil-immersed transformers?
A3: The primary gases monitored in oil-immersed transformers include hydrogen (H2), methane (CH4), ethane (C2H6), acetylene (C2H2), ethylene (C2H4), and carbon monoxide (CO). Each gas provides information about specific types of faults. For example, acetylene is typically associated with high-energy faults like arcing, while hydrogen and methane can indicate overheating or electrical discharges.

Q4: How is gas analysis performed in oil-immersed transformers?
A4: Gas analysis is typically performed through a process called Dissolved Gas Analysis (DGA). Transformer oil samples are collected and tested in a laboratory or using on-site portable gas analyzers. The gases dissolved in the oil are separated and analyzed using techniques like gas chromatography. The results are then compared to established standards to determine the health of the transformer and identify any potential issues.

Q5: How can gas analysis help improve transformer maintenance?
A5: Gas analysis provides early warning signs of transformer issues, allowing for targeted maintenance and repair. By identifying the type and concentration of gases, operators can determine the severity of faults, prioritize maintenance tasks, and avoid unplanned downtime. Regular gas analysis also helps optimize oil replacement schedules, extend the lifespan of transformers, and reduce operational costs.

References

"The Role of Gas Analysis in Transformer Maintenance" - https://www.transformertech.com/gas-analysis-oil-immersed - Transformer Tech

"Understanding Dissolved Gas Analysis (DGA) for Transformers" - https://www.powermag.com/dissolved-gas-analysis-transformers - Power Magazine

"Gas Monitoring in Oil-Immersed Transformers" - https://www.electrical4u.com/gas-monitoring-oil-transformers - Electrical4U

"How Gas Analysis Detects Transformer Failures" - https://www.sciencedirect.com/topics/engineering/gas-analysis-transformers - ScienceDirect

"Importance of Gas Analysis for Transformer Reliability" - https://www.researchgate.net/gas-analysis-transformers - ResearchGate

"Dissolved Gas Analysis for Transformer Fault Detection" - https://www.smartgridnews.com/dga-transformer-faults - Smart Grid News

"Monitoring Transformer Oil with Gas Analysis Techniques" - https://www.energycentral.com/c/ee/gas-analysis-transformers - Energy Central

"How Gas Analysis Enhances Oil-Immersed Transformer Performance" - https://www.powergrid.com/gas-analysis-transformer - PowerGrid
