Temperature is one of the most critical indicators of a transformer's health. Excessive heat can degrade insulation, accelerate aging, and ultimately lead to failure. To ensure long-term performance and operational safety, temperature monitoring is essential. By tracking thermal conditions in real-time, operators can make informed decisions, trigger alarms, or initiate cooling measures. This article explains the methods, tools, and importance of temperature monitoring in transformers, highlighting its role in preventive maintenance and fault prevention.
Why is Temperature Monitoring Important in Transformers?
Temperature monitoring in transformers is crucial for maintaining the reliability, efficiency, and longevity of electrical power systems. As the core component responsible for voltage transformation, a transformer operates under high electrical and thermal stress. Without effective temperature monitoring, the transformer could suffer from overheating, which could lead to insulation degradation, increased risk of faults, and ultimately, failure of the equipment. In this article, we’ll explore why temperature monitoring is vital in transformers, the methods used to measure temperature, and how it can improve transformer performance and prevent catastrophic damage.
Understanding the Impact of Temperature on Transformers
Transformers are designed to work efficiently within specific temperature limits, typically ranging from 40°C to 80°C for the transformer oil and 150°C to 200°C for the winding temperatures. When these limits are exceeded, several critical problems can arise, including:
-
Insulation Breakdown: Elevated temperatures accelerate the breakdown of the transformer's insulation materials. Over time, this can lead to short circuits, leakage currents, or complete failure of the transformer.
-
Reduced Efficiency: Transformers operating at higher temperatures suffer from energy losses due to increased resistance in the winding and core, leading to reduced operational efficiency and increased operational costs.
-
Decreased Lifespan: The lifespan of a transformer is highly sensitive to temperature. Excessive heat accelerates the aging process of transformer components like windings, insulation, and oil, thereby reducing the operational lifespan.
-
Increased Maintenance Costs: High temperatures can trigger the need for more frequent maintenance, repair, or even replacement of transformer parts. This not only increases operational costs but also leads to longer downtimes.
By regularly monitoring the temperature of key transformer components—such as the core, windings, and coolant—operators can identify early signs of thermal stress and take preventative measures to avoid damage.
Why Temperature Monitoring Is Essential for Transformer Health
Temperature monitoring plays a significant role in ensuring that transformers perform optimally. Below are several reasons why temperature monitoring is important:
1. Prevent Overheating and Failures
Transformers often operate in environments with varying loads, and overheating is a common risk. Overheating can lead to insulation failure and internal faults, both of which can result in costly repairs and prolonged downtime. By continuously monitoring temperatures, operators can take corrective actions, such as:
- Activating cooling systems: If the temperature approaches critical levels, operators can activate additional cooling mechanisms like oil pumps or fans.
- Shutdown or load reduction: If temperature rises beyond safe thresholds, transformers can be shut down or disconnected from the grid to prevent irreparable damage.
2. Optimize Cooling Systems
Temperature sensors provide real-time data that can be used to optimize cooling systems. Transformers rely on cooling to dissipate heat generated during operation. By monitoring temperature trends, operators can adjust the cooling systems' performance to ensure the transformer operates within safe thermal limits. For instance:
- Oil cooling systems can be optimized to increase the flow rate when temperatures rise.
- Air-cooled systems can be activated or deactivated based on real-time temperature feedback.
By fine-tuning these systems, transformers can maintain peak performance without unnecessarily high energy consumption.
3. Extend Transformer Lifespan
The aging process of transformers is heavily influenced by temperature. The insulation materials, such as paper, oil, or epoxy, degrade faster under high temperatures. Continuous temperature monitoring ensures that the transformer remains within its design specifications, ultimately extending the lifespan of critical components.
- Lower operating temperatures lead to slower aging of insulation, preserving its integrity for a longer period.
- Reduced thermal stress helps maintain the transformer’s electrical properties, minimizing the risk of insulation breakdown and electrical failure.
4. Early Detection of Potential Issues
Temperature monitoring systems can serve as an early warning mechanism, alerting operators to abnormal temperature fluctuations that might signal a problem, such as:
- Core issues: Anomalous temperatures could point to excessive core losses, possibly caused by a fault in the core lamination or a winding fault.
- Oil degradation: Temperature increases can lead to oil breakdown, reducing the insulating properties of the oil and impairing the cooling process.
- Overload conditions: Persistent high temperatures can indicate that the transformer is running at an overload condition, potentially due to load spikes, short circuits, or faults in the load.
Early detection of these issues allows operators to take immediate action to prevent major failures.
5. Improve Operational Efficiency
Real-time temperature data can be used to improve the efficiency of a transformer by ensuring that it is not running in excessive heat, which can lead to increased electrical resistance and energy losses. A cooler transformer consumes less power and performs more efficiently, reducing operating costs.
By implementing a temperature monitoring system, operators can better balance load demands and cooling capacity, ensuring that the transformer remains in a safe operational zone without unnecessary wear.
Methods for Monitoring Transformer Temperature
Several methods and devices can be used to monitor transformer temperatures, each offering distinct advantages in terms of accuracy, ease of use, and real-time feedback. Here are the most common methods:
1. Resistance Temperature Detectors (RTDs)
RTDs are highly accurate temperature sensors that measure the resistance of materials like copper or platinum as a function of temperature. The resistance change is then used to calculate the temperature. RTDs are ideal for measuring the temperature of transformer windings and oil, offering high precision and reliability.
- Advantages: High accuracy, stability, and long-term reliability.
- Disadvantages: Requires calibration over time, more expensive than thermocouples.
2. Thermocouples
Thermocouples are widely used for measuring temperature in transformers because they are inexpensive and easy to install. They work by measuring the voltage difference generated at the junction of two different metals, which correlates to temperature.
- Advantages: Cost-effective, versatile, and widely used.
- Disadvantages: Less accurate than RTDs, susceptible to electrical noise.
3. Bimetallic Temperature Sensors
Bimetallic temperature sensors use the principle of different metals expanding at different rates to activate an electrical switch when a certain temperature threshold is reached. These sensors are typically used for simple alarm or shutdown systems.
- Advantages: Low cost, easy installation.
- Disadvantages: Lower accuracy, limited to specific temperature ranges.

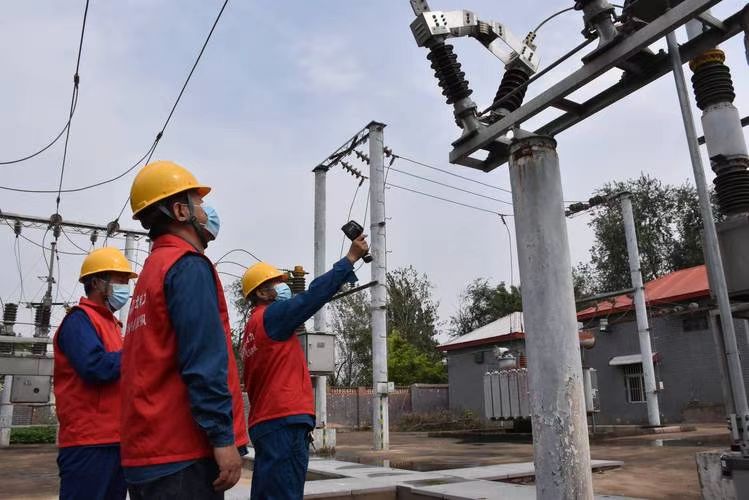

4. Infrared Temperature Sensors
Infrared (IR) temperature sensors measure the infrared radiation emitted by transformer components to calculate their temperature. These sensors are non-contact and can monitor the temperature of transformer surfaces in real time without direct physical interaction.
- Advantages: Non-invasive, can monitor multiple parts simultaneously.
- Disadvantages: Limited to surface temperature measurement, less accurate than contact-based methods.
Best Practices for Temperature Monitoring
To ensure optimal performance, the following best practices should be observed when implementing temperature monitoring systems in transformers:
1. Place Sensors at Critical Points
Temperature sensors should be strategically placed at critical points, such as:
- Windings: To detect temperature rises in the transformer's core and windings.
- Oil: To monitor the temperature of the insulating oil and ensure that it remains within safe limits.
- Tank and Bushings: To measure surface temperatures of the transformer tank and bushing connections, which can indicate heat buildup.
2. Use Redundant Systems
To enhance reliability, use redundant temperature monitoring systems. For example, a primary system could use RTDs, while a backup system uses infrared sensors. This ensures that if one system fails, the other continues to provide valuable data.
3. Integrate with Remote Monitoring Systems
Temperature data should be integrated with remote monitoring systems like SCADA (Supervisory Control and Data Acquisition) for real-time data visualization. This enables operators to respond quickly to any abnormal temperature rise and take preventive measures immediately.
4. Set Alarm Thresholds
It is essential to set alarm thresholds based on the transformer's temperature limits. When temperatures exceed these predefined levels, the system should trigger alarms to alert operators to take corrective actions such as initiating additional cooling or shutting down the transformer.
What Are the Critical Temperature Points in a Transformer?
Temperature plays a pivotal role in transformer performance and longevity. Understanding critical temperature points in a transformer is essential for thermal management, overload protection, and preventive maintenance. Each part of a transformer has its own thermal limit, and exceeding these can cause insulation degradation, mechanical stress, and eventual failure. By identifying and monitoring these temperature hotspots, operators can prevent damage, reduce downtime, and extend equipment lifespan.
This article delves into the key temperature zones within a transformer that require constant observation, how temperature affects each area, and the tools used to monitor them.
Why Is Monitoring Critical Temperature Points Essential?
Transformers are thermal-sensitive devices. Excessive heat impacts electrical, chemical, and mechanical integrity, particularly in insulation systems and windings. Long-term exposure to high temperatures accelerates insulation aging, increases oxidation in oil, and raises the risk of catastrophic failure. The IEEE and IEC standards specify temperature limits for various transformer parts to ensure safe operation.
Key benefits of monitoring critical temperature points include:
- Preventing insulation breakdown
- Improving transformer efficiency
- Maintaining safe operational margins
- Activating protective measures early
- Maximizing transformer service life
Let’s explore each critical point in detail.
1. Hot Spot Temperature (Winding Hotspot)
Location: Deep inside the transformer windings (usually in the upper layers)
Why It’s Critical:
The hot spot is the hottest point in the winding insulation, and it's the most important thermal parameter to monitor. It directly influences the aging rate of insulation materials (paper, varnish, oil), which is the leading cause of transformer end-of-life.
Industry Standards:
- Normal limit: 110°C to 120°C
- Absolute maximum: 140°C (brief emergency overload conditions)
Impacts of Exceeding Limits:
- Accelerated degradation of cellulose insulation
- Risk of winding deformation or breakdown
- Permanent loss of dielectric strength
Monitoring Tools:
- Fiber optic sensors embedded in windings
- Thermal modeling algorithms integrated into protection relays
- Indirect estimation based on top oil and ambient temperature
The hot spot temperature is the most critical thermal parameter in transformer aging analysis.True
The rate of insulation degradation is exponentially related to the hot spot temperature, making it the leading indicator of transformer health.
2. Top Oil Temperature
Location: The uppermost part of the transformer's oil column (in oil-immersed transformers)
Why It’s Critical:
Top oil temperature reflects the overall thermal state of the transformer. It is often used for cooling control, thermal protection, and alarm triggering. While not as extreme as the winding hotspot, it represents the temperature of the insulating and cooling medium.
Industry Standards:
- Normal limit: 85°C to 95°C
- Maximum allowable: 105°C to 110°C under load
Impacts of Exceeding Limits:
- Oil degradation (oxidation, sludge formation)
- Reduction in insulation performance
- Lower cooling efficiency
Monitoring Tools:
- RTDs (Resistance Temperature Detectors) inserted into the top oil
- Analog dial thermometers (older transformers)
- Buchholz relay integration (for gas and temperature-related faults)
Top oil temperature is a key indicator of a transformer's overall thermal performance.True
Since oil acts as both insulator and coolant, its temperature directly reflects the internal heat generation and cooling effectiveness.
3. Core Temperature
Location: In or near the magnetic core (typically iron-laminated)
Why It’s Critical:
The transformer core generates heat through eddy current and hysteresis losses. While core temperature usually remains lower than windings, core faults, such as core bolt insulation breakdown or circulating currents, can cause excessive heating.
Industry Standards:
- Safe operating range: 60°C to 90°C
- Caution level: Above 100°C
Impacts of Exceeding Limits:
- Risk of core lamination shorting
- Distortion in magnetic flux paths
- Increased no-load losses and vibration
Monitoring Tools:
- Thermal sensors near the core
- Infrared thermography during off-load inspection
- Harmonic analysis for indirect core loss assessment
4. Tank Surface Temperature
Location: External metal surface of the transformer tank
Why It’s Critical:
Tank surface temperature helps assess cooling system effectiveness and detect internal hot spots. Uneven temperature distribution on the tank may indicate internal faults, cooling failure, or blockages in radiator fins.
Industry Standards:
- Typical surface temperature: Ambient + 20°C to 35°C
- Exceeding 60°C warrants detailed internal inspection
Impacts of Exceeding Limits:
- Reduced convective heat transfer
- Physical deformation or paint damage
- Heat-related safety hazards for maintenance staff

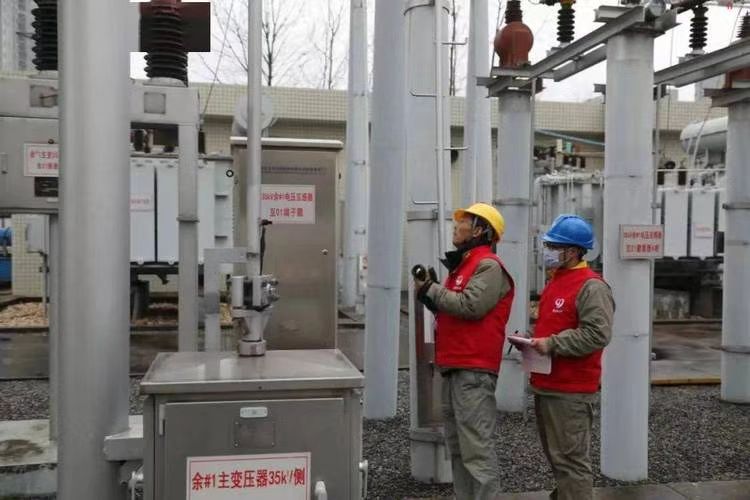

Monitoring Tools:
- Infrared cameras for hot spot detection
- Surface thermocouples or contact probes
- Thermal scanners integrated in modern digital monitoring systems
5. Ambient Temperature
Location: Measured externally near the transformer enclosure
Why It’s Critical:
Ambient temperature is a reference point for evaluating transformer performance. Transformer ratings are generally based on 40°C ambient, and any deviation impacts load-carrying capacity.
Impacts of High Ambient Temperature:
- Reduced overload margin
- Shortened thermal headroom
- Increased stress on cooling systems
Best Practices:
- Install shading or cooling aids in outdoor setups
- Factor in ambient readings for dynamic load rating
- Use weather-compensated relays to adjust protection thresholds
Summary Table: Critical Temperature Points in Transformers
| Temperature Point | Typical Range | Critical Level | Primary Concern | Monitoring Method |
|---|---|---|---|---|
| Winding Hot Spot | 90°C – 110°C | 140°C | Insulation aging, winding failure | Fiber optic sensors, relay models |
| Top Oil Temperature | 85°C – 95°C | 110°C | Oil degradation, general thermal load | RTDs, analog thermometers |
| Core Temperature | 60°C – 90°C | >100°C | Core loss, lamination stress | Thermocouples, IR scans |
| Tank Surface Temp | Ambient + 25–35°C | >60°C | Cooling issues, internal hot spots | IR camera, surface sensors |
| Ambient Temperature | 25°C – 40°C | >50°C | Load de-rating, cooling challenges | Weather sensor, environmental meter |
What Devices Are Used for Temperature Monitoring?
Temperature monitoring is essential for the safe and efficient operation of transformers. Excessive heat can degrade insulation, compromise performance, and lead to catastrophic failures. To prevent these outcomes, transformers are equipped with specialized temperature monitoring devices that provide real-time data, activate alarms, and initiate protective actions. These devices are critical components of transformer health management systems and are used extensively in both low-voltage and high-voltage transformers.
In this article, we will explore the most widely used temperature monitoring devices in transformer applications, their functions, benefits, and how they contribute to predictive maintenance and overload protection.
Why Is Device-Based Temperature Monitoring Important?
Manual temperature checks are no longer sufficient in modern electrical networks. As transformers operate under dynamic loads and environmental conditions, continuous and precise thermal monitoring is vital. The right devices:
- Enable real-time condition monitoring.
- Allow remote access to thermal data.
- Trigger automatic cooling or shutdown protocols.
- Help with thermal profiling for preventive maintenance.
Let’s explore the key devices used in transformer temperature monitoring.
1. Resistance Temperature Detectors (RTDs)
Function: Measure temperature by correlating the resistance of a metal (usually platinum) to its temperature.
How It Works: As temperature increases, the resistance of the metal changes in a predictable way. This resistance is measured and converted into a temperature reading.
Typical Applications:
- Top oil temperature monitoring
- Winding temperature measurement (via indirect modeling)
- Integration with transformer monitoring relays
Advantages:
- High accuracy (±0.1°C to ±0.5°C)
- Excellent long-term stability
- Suitable for digital systems and SCADA integration
Disadvantages:
- Slower response than thermocouples
- Requires wiring and signal conditioning
Used In: Medium and high-voltage oil-immersed transformers
2. Thermocouples
Function: Generate a voltage corresponding to temperature when two different metals are joined and exposed to heat.
How It Works: Based on the Seebeck effect, the voltage output is converted to temperature. Common types include Type K, J, and T thermocouples.
Typical Applications:
- Measuring temperature in the transformer core
- Tank surface temperature detection
- Portable inspection tools for maintenance teams
Advantages:
- Fast response time
- Simple and low-cost installation
- Can be used in high-temperature environments
Disadvantages:
- Lower accuracy than RTDs
- Susceptible to noise and drift over time
Used In: General-purpose field diagnostics and core temperature logging
3. Fiber Optic Temperature Sensors
Function: Provide direct, real-time temperature readings from deep inside transformer windings.
How It Works: Fiber optic probes detect temperature using changes in light reflection or transmission through special sensing points embedded in the winding insulation.
Typical Applications:
- Real-time hot spot temperature monitoring
- Large power transformers and critical grid applications
- Transformers with dynamic loading (wind, solar, or rail networks)
Advantages:
- Immune to electromagnetic interference
- Accurate measurement of winding hot spots
- Long lifespan and minimal maintenance
Disadvantages:
- Expensive compared to other sensors
- Complex installation during transformer manufacturing or rewinding
Used In: Premium transformers with critical load applications or smart grid integration

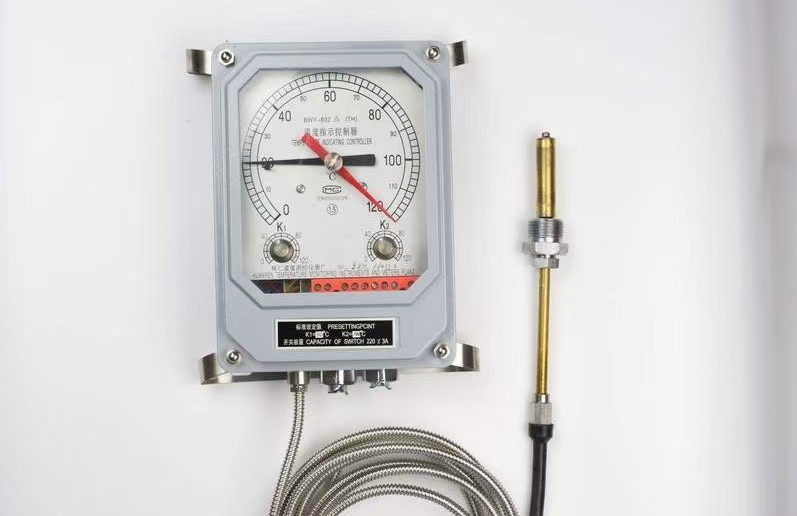

4. Dial Thermometers (Analog Temperature Gauges)
Function: Mechanical instruments that provide a visual indication of temperature, often using a bimetallic strip or gas/mercury expansion.
How It Works: Heat causes expansion or mechanical movement that drives a needle across a dial scale.
Typical Applications:
- Top oil temperature measurement
- Visual inspection during site rounds
- Legacy transformer designs
Advantages:
- Simple, durable, and does not require power
- Low cost and reliable for visual checks
Disadvantages:
- No digital output or remote communication
- Limited accuracy and no alarms or control outputs
Used In: Older or rural transformers without SCADA integration
5. Temperature Relays (Digital Thermal Protection Units)
Function: Monitor one or multiple temperature inputs and provide alarm, trip, or cooling control outputs.
How It Works: These relays process analog or digital signals from sensors (RTDs, thermocouples, fiber optics) and perform control logic to operate fans, pumps, or send alerts.
Typical Applications:
- Cooling fan/pump activation based on oil or winding temperatures
- High-temperature alarm and trip logic
- Remote temperature data logging and transmission
Advantages:
- Integrates easily with SCADA and automation systems
- Can manage multiple temperature zones
- Offers programmable logic and thresholds
Disadvantages:
- Requires calibration and power supply
- May need interface with analog sensors
Used In: Medium to large transformers, particularly in substations and industrial grids
6. Infrared (IR) Sensors and Thermal Cameras
Function: Measure surface temperatures by detecting infrared radiation.
How It Works: Non-contact devices detect thermal radiation and translate it into a temperature reading or thermal image.
Typical Applications:
- Surface temperature of transformer tank and bushings
- Routine infrared inspections for preventive maintenance
- Detecting cooling inefficiencies or blocked radiators
Advantages:
- Fast, non-contact, and safe
- Ideal for detecting abnormal heat patterns
- Excellent for identifying early failure points
Disadvantages:
- Only measures surface temperature
- Requires regular use by trained personnel
Used In: Predictive maintenance programs and site inspections
7. Integrated Temperature Monitoring Systems
Function: Combine sensors, relays, alarms, and communication protocols into a unified monitoring platform.
How It Works: These systems collect temperature data from multiple points and provide centralized control and reporting through interfaces like SCADA or HMI (Human-Machine Interface).
Typical Applications:
- Centralized transformer condition monitoring
- Alarm and trip coordination
- Real-time data visualization and historical trend analysis
Advantages:
- Full automation and remote monitoring
- Seamless integration with grid management systems
- Can also monitor pressure, moisture, and load
Disadvantages:
- High initial cost
- Complex setup and commissioning
Used In: High-voltage substations, utility-grade smart transformers, renewable energy installations
Summary Table: Temperature Monitoring Devices for Transformers
| Device Type | Measurement Location | Use Case | Accuracy | Digital Integration | Cost |
|---|---|---|---|---|---|
| RTDs | Oil, windings | Precise temp monitoring, SCADA relay input | High | Yes | Medium |
| Thermocouples | Core, tank surface | Fast-response, field use | Medium | Yes | Low |
| Fiber Optic Sensors | Winding hotspots | Real-time core temp, critical units | Very High | Yes | High |
| Dial Thermometers | Top oil | Visual checks, legacy systems | Low | No | Low |
| Temperature Relays | Control room, panel | Alarm/trip logic, remote monitoring | High | Yes | Medium |
| Infrared Cameras & Sensors | External surfaces | Preventive maintenance scans | Medium | Yes (some models) | Medium to High |
| Integrated Monitoring Systems | Multi-point | Comprehensive thermal management | Very High | Yes | High |
How Do Thermal Relays and Alarms Work?
As transformers operate, they generate heat—especially under heavy load or fault conditions. Excessive temperature can degrade insulation, reduce efficiency, and eventually lead to failure. To protect transformers from such thermal stress, thermal relays and alarms are employed as part of a comprehensive temperature protection system. These devices detect when temperatures exceed safe limits and initiate automated alerts or shutdown actions to prevent damage.
In this article, we’ll explore how thermal relays and temperature alarms function, where they’re used, their components, and how they enhance transformer protection.
What Is a Thermal Relay?
A thermal relay is an automatic protection device that senses temperature and trips a control circuit when the transformer temperature exceeds a preset threshold. It helps prevent overheating damage by controlling cooling systems or disconnecting the transformer from the load when necessary.
Thermal relays are typically used alongside RTDs (Resistance Temperature Detectors) or thermistors, which provide real-time temperature input to the relay.
Working Principle of a Thermal Relay
The operation of a thermal relay follows these basic steps:
- Temperature Input: A sensor (RTD or thermistor) measures the temperature of the transformer’s winding or oil and sends the data to the thermal relay.
- Threshold Comparison: The relay continuously compares the input temperature to the preset trip thresholds (for example, 85°C for a warning, 95°C for tripping).
- Relay Activation:
- If the temperature is within range, the relay remains idle.
- If it crosses the first threshold (e.g., 85°C), it activates an alarm.
- If it crosses a higher threshold (e.g., 95°C), it trips the protection circuit, disconnecting the transformer or starting cooling systems.
- Reset Mechanism: Once the temperature drops to safe levels, the relay can be manually or automatically reset depending on the configuration.
What Is a Thermal Alarm System?
A thermal alarm system is integrated with the relay and monitoring setup. It alerts operators when the transformer temperature approaches or exceeds critical limits. It is the first line of defense—providing visual (lights) or audible (buzzers, sirens) indicators to prompt preventive action.
Alarms can be:
- Local: Installed on the transformer or control panel
- Remote: Sent to SCADA systems or control rooms for centralized monitoring
Key Components of a Thermal Relay and Alarm System
| Component | Function |
|---|---|
| Temperature Sensor | Measures transformer temperature (RTD, thermistor, or fiber optic) |
| Thermal Relay Unit | Processes input and triggers alarms or protection outputs |
| Alarm Output | Lights, buzzers, or sirens that activate during overheating |
| Trip Output Contact | Sends signal to open circuit breakers or start cooling systems |
| Reset Button | Manually resets the relay after normal temperatures are restored |
| Indicator Display | Shows real-time temperature and relay status |
Thermal Relay Action Example
Imagine a transformer with a trip setting at 95°C and an alarm at 85°C:
- Normal Operation: Temperature is 70°C. The relay is inactive.
- Warning Stage: Temperature rises to 86°C. The alarm activates to notify operators.
- Critical Stage: Temperature reaches 96°C. The relay trips, disconnecting the load and activating fans.
- Recovery: Temperature drops to 75°C. The operator resets the relay to resume operation.
Advantages of Thermal Relays and Alarms
- Early Fault Detection: Alerts staff before overheating causes damage.
- Automatic Protection: Instantly disconnects transformer under dangerous conditions.
- System Integration: Works with SCADA, PLCs, or digital protection relays for centralized monitoring.
- Extended Equipment Life: Prevents thermal stress and insulation breakdown.
- Low Maintenance: Once installed and calibrated, thermal relays operate autonomously.
Common Types of Thermal Relays
| Type | Description |
|---|---|
| Bimetallic Thermal Relays | Uses mechanical expansion of metals—less precise, mostly obsolete in modern transformers. |
| Electronic Thermal Relays | Uses analog or digital input from RTDs or thermistors—high accuracy and reliability. |
| Microprocessor-Based | Advanced relays with programmable settings, memory, and SCADA connectivity. |
Testing and Calibration
To ensure accuracy and functionality:
- Calibrate annually using a thermal calibrator
- Simulate high temperatures during testing to verify trip points
- Check sensor connections for resistance drift or signal loss
- Verify alarm indicators and trip output function correctly under test loads
Summary Table: Thermal Relay and Alarm Characteristics
| Feature | Description |
|---|---|
| Sensor Input | RTD, thermistor, fiber optic |
| Alarm Threshold | Typically set at 80°C–90°C |
| Trip Threshold | Set higher at 95°C–110°C |
| Alarm Output | Visual and/or audible |
| Trip Output | Breaker open, cooling activation, or system shutdown |
| Reset Mode | Manual or auto |
| Integration | SCADA, PLC, digital relays |
What is the Role of Digital Temperature Monitoring Systems?
In modern transformer management, digital temperature monitoring systems play a transformative role in ensuring safe, reliable, and efficient operation. Traditional analog gauges and manual inspections no longer suffice in dynamic, high-demand electrical environments. Digital systems provide continuous, precise, and intelligent thermal management, helping operators proactively manage transformer health, prevent failures, and optimize performance.
This article explores how digital temperature monitoring systems work, their components, advantages, and how they enhance transformer protection, particularly under variable load and environmental conditions.
What Is a Digital Temperature Monitoring System (DTMS)?
A Digital Temperature Monitoring System (DTMS) is an integrated platform used in transformers to measure, display, log, and analyze temperature data from critical components like windings, oil, core, and ambient environments. Unlike analog thermometers or mechanical relays, DTMS combines microcontrollers, digital sensors, programmable logic, and communication interfaces to enable real-time temperature monitoring and control.
DTMS is often embedded in or connected to:
- Protection relays
- SCADA systems
- Smart transformer diagnostics platforms
Core Functions of Digital Temperature Monitoring Systems
✅ 1. Real-Time Monitoring
DTMS continuously collects temperature data from multiple points within the transformer. The system:
- Monitors winding hot spots
- Measures top oil and ambient temperature
- Tracks temperature trends over time
This real-time visibility helps operators react before temperatures reach damaging levels.
✅ 2. Intelligent Alarming
Digital systems are configured to issue tiered alerts when temperature thresholds are exceeded:
- Warning: At moderate over-temperature levels (e.g., 85°C)
- Alarm: At critical levels (e.g., 95°C), prompting action
- Trip: At emergency thresholds (e.g., 110°C), triggering protective disconnection
Alerts can be local (sound/light) or remote, sent to control centers or mobile devices.
✅ 3. Automated Control
DTMS can directly control cooling systems (fans, pumps) based on temperature feedback. For example:
- Activates forced air cooling when oil temperature hits 90°C
- Increases fan speed based on winding temperature curve
This automation prevents manual intervention delays and enhances cooling efficiency.
✅ 4. Data Logging and Trend Analysis
A major advantage of digital systems is their ability to log historical data:
- Hourly, daily, or monthly temperature logs
- Graphs showing peak temperatures, rate of rise, and fluctuations
- Exportable data for diagnostic review or audits
This data supports predictive maintenance and helps assess insulation aging and transformer health.
✅ 5. Remote Access and SCADA Integration
Modern DTMS supports protocols like:
- Modbus RTU/TCP
- IEC 61850
- DNP3
This enables seamless SCADA integration, allowing operators to monitor transformer temperatures from centralized or cloud-based control rooms.
Components of a Digital Temperature Monitoring System
| Component | Function |
|---|---|
| Digital Sensors (RTD/Fiber) | Measure temperature of windings, oil, and ambient |
| Digital Controller/Relay | Receives data, compares it to setpoints, triggers alarms or actions |
| Display Interface | Shows real-time readings and status locally |
| Communication Module | Enables SCADA/network integration via Modbus, IEC 61850, etc. |
| Logging/Storage | Records historical data for analytics and compliance |
| Cooling Control Outputs | Interfaces with fans/pumps to trigger or adjust based on temperature logic |
Comparison: Analog vs. Digital Temperature Monitoring
| Feature | Analog Systems | Digital Systems |
|---|---|---|
| Measurement Accuracy | ±2–5°C | ±0.1–0.5°C |
| Alarm Functions | Basic visual/audio | Programmable, multi-stage, remote alerts |
| Data Logging | None or manual | Continuous, retrievable |
| Integration with SCADA | Not supported | Fully integrated |
| Customization/Settings | Limited | Fully programmable |
| Cooling Automation | Manual | Automated, logic-driven |
Benefits of Digital Temperature Monitoring in Transformers
1. Enhanced Safety
Digital systems detect temperature anomalies early and trigger immediate protective measures, preventing:
- Insulation burnout
- Transformer explosions
- Personnel hazards
2. Improved Reliability
Continuous monitoring ensures the transformer operates within its safe thermal limits. This reduces unplanned outages and enhances uptime in mission-critical applications like:
- Power substations
- Renewable energy plants
- Industrial facilities
3. Extended Transformer Life
By maintaining optimal temperature conditions, DTMS slows thermal aging, especially in paper and oil insulation systems. This can extend transformer life by years.
4. Predictive Maintenance
Historical data and trend analysis reveal patterns, such as:
- Recurring overloads
- Cooling system inefficiencies
- Seasonal temperature behavior
These insights allow maintenance teams to act before a failure occurs, reducing reactive maintenance and improving planning.
5. Smart Grid Compatibility
As part of digital substations or smart grids, DTMS enhances overall grid visibility and intelligent asset management, forming a cornerstone of Industry 4.0 in energy infrastructure.
Applications of Digital Temperature Monitoring
| Application Area | Function of DTMS |
|---|---|
| HV Substations | Monitor high-load power transformers, coordinate SCADA protection |
| Wind/Solar Plants | Manage thermal stress in variable load environments |
| Urban Grids | Handle transformer banks with real-time demand fluctuations |
| Industries (Steel, Rail) | Prevent overheating in continuously operating heavy-duty transformers |
| Remote Locations | Enable unattended transformer operation with remote diagnostics |
Best Practices for Using Digital Temperature Monitoring Systems
- Calibrate sensors annually to ensure measurement accuracy
- Set alarm thresholds based on manufacturer specs and application profile
- Integrate with SCADA to receive remote alerts and system diagnostics
- Audit logs regularly to identify thermal patterns and stress events
- Include cooling logic to automate fan/pump responses to heat rise
- Use redundancy (e.g., dual RTDs or backup relays) in critical installations
How Can Temperature Monitoring Improve Transformer Maintenance?
Effective temperature monitoring is one of the most powerful tools available for enhancing transformer maintenance practices. Transformers, the backbone of electrical power distribution systems, are sensitive to heat. Over time, excessive temperature rise can degrade the transformer's components, leading to failures that may not only disrupt service but also result in costly repairs and downtime. Temperature monitoring offers an intelligent way to identify problems before they escalate, optimize cooling systems, and ensure long-term reliability.
In this article, we'll explore how temperature monitoring plays a crucial role in improving transformer maintenance by preventing overheating, providing real-time insights, and enabling predictive maintenance strategies.
How Does Temperature Monitoring Contribute to Transformer Maintenance?
Temperature is a critical parameter in transformer health because it directly impacts the integrity of insulation, core, and windings. Temperature monitoring systems provide vital data that allows operators to:
- Monitor real-time operational conditions,
- Detect potential issues early,
- Enhance cooling efficiency, and
- Schedule maintenance based on actual conditions rather than arbitrary intervals.
Let’s delve into how temperature monitoring improves transformer maintenance across different levels.
1. Prevents Overheating and Insulation Breakdown
Overheating is one of the primary causes of transformer failures. As transformers operate, heat builds up in the core and windings, especially under heavy load conditions. If the heat is not dissipated properly, it accelerates the breakdown of the insulation materials, such as oil and paper.
Temperature monitoring helps identify hot spots in real-time. It gives maintenance teams the chance to intervene early, reducing the risk of insulation damage, which is often the precursor to catastrophic failures. For example:
- Early detection of temperature rise allows operators to trigger cooling systems before the transformer reaches dangerous levels.
- Preemptive maintenance can be performed on insulation systems, including oil replacement or cooling system adjustment, preventing failures that could lead to a complete transformer breakdown.
2. Enhances Predictive Maintenance Capabilities
Traditional transformer maintenance typically follows fixed intervals, where operators inspect and service components based on the age of the unit rather than actual condition. Predictive maintenance powered by temperature monitoring allows for a more data-driven approach. By continuously monitoring temperature patterns, transformers can be serviced only when anomalies or wear are detected, rather than relying on arbitrary schedules.
Key Predictive Maintenance Benefits:
- Data Logging and Trend Analysis: Continuous temperature data logging allows the creation of trend charts that help identify patterns. Sudden spikes in temperature could indicate mechanical or electrical issues, such as overloading, cooling failures, or short-circuiting.
- Condition-Based Interventions: When temperature thresholds are exceeded, it signals that certain parts of the transformer may need attention, such as cooling system inspection or load management strategies.
With predictive analytics, operators can schedule maintenance when the transformer is still operational, extending its life and minimizing costly, unexpected outages.
3. Optimizes Cooling System Efficiency
A transformer's cooling system is designed to regulate internal temperature, ensuring that the core and windings stay within safe limits. Temperature sensors provide real-time feedback to the cooling system, enabling it to adjust dynamically based on operational conditions. This automated temperature regulation reduces the risk of overcooling or undercooling.
For example:
- When temperatures rise, cooling fans, pumps, or other heat exchange mechanisms can be activated to enhance the cooling process.
- When temperatures drop, the system can adjust to reduce unnecessary energy consumption, improving the overall energy efficiency of the transformer.
The result is optimized cooling performance, which reduces wear and tear on the cooling system and improves the overall operational efficiency of the transformer.
4. Provides Early Detection of Faults
Temperature anomalies can often be a leading indicator of developing faults. When temperature data reveals an unusual increase or irregular fluctuations in certain parts of the transformer, it can highlight a range of potential issues, including:
- Loose connections or worn-out bushings,
- Inadequate oil circulation or oil contamination,
- Imbalances in load distribution or core problems.
By closely monitoring temperature variations at specific locations (windings, oil tank, core), operators can quickly identify which part of the transformer is under strain. Early detection of such problems leads to faster diagnosis and more efficient repairs, thereby preventing larger, more costly failures.
5. Reduces Downtime and Increases Transformer Life
With proactive temperature monitoring, transformer failures are more predictable, and downtime can be significantly reduced. Maintenance actions are taken only when necessary, ensuring that the transformer operates efficiently for longer periods. By addressing temperature-related issues early, such as oil aging or cooling system inefficiency, maintenance teams can extend the transformer’s operational life.
The combination of real-time temperature feedback and predictive insights means that components like windings, oil, bushings, and tap changers remain in optimal condition longer, and the transformer operates at its peak performance.
6. Improves Transformer Protection
Digital temperature monitoring systems are often integrated with transformer protection systems, including relays and alarms, to ensure immediate corrective action when temperature limits are breached. This integration allows for:
- Automated shutdown of the transformer when dangerous temperatures are reached, protecting the unit from permanent damage.
- Triggering of cooling interventions when over-temperature conditions are detected, preventing potential overloading.
- Remote monitoring, enabling operators to control or adjust the transformer’s settings without physical inspection, improving response time.
This layer of protection helps operators mitigate the risk of overheating, ensuring both the transformer’s safety and the overall reliability of the grid.
Advantages of Temperature Monitoring in Transformer Maintenance
| Advantage | Benefit |
|---|---|
| Preventing Overheating | Reduces the risk of insulation failure and transformer damage. |
| Predictive Maintenance | Enables condition-based service, reducing the need for frequent inspections. |
| Improved Cooling Efficiency | Optimizes cooling systems, ensuring energy-efficient transformer operation. |
| Early Fault Detection | Identifies issues like loose connections or contamination early. |
| Extended Transformer Life | Minimizes wear and extends the operational life of the transformer. |
| Enhanced Protection | Offers real-time alerts and automated protection for overheating risks. |
Best Practices for Implementing Temperature Monitoring in Transformers
- Install Multiple Sensors: Place sensors at strategic points (oil, windings, core) to capture a holistic view of the transformer’s temperature.
- Integrate with SCADA Systems: Ensure that temperature data is integrated with centralized control platforms, enabling remote monitoring and timely alerts.
- Establish Thresholds: Set temperature thresholds based on manufacturer recommendations and operating conditions to avoid false alarms.
- Regular Calibration: Periodically calibrate temperature sensors to ensure accurate readings and prevent drift over time.
- Trend Analysis: Review historical temperature data to identify recurring patterns and optimize maintenance schedules.
Conclusion
Effective temperature monitoring is essential for the safe and efficient operation of transformers. It enables early detection of thermal abnormalities, helping operators take timely action before issues escalate. From traditional thermal relays to advanced fiber-optic and digital monitoring systems, technology provides the tools needed to maintain thermal stability. When integrated into a broader asset management strategy, temperature monitoring plays a pivotal role in extending transformer life, reducing unplanned outages, and improving grid reliability.
FAQ
Q1: Why is temperature monitoring important in transformers?
A1: Temperature monitoring is essential in transformers because excessive heat can cause insulation degradation, component damage, and reduce transformer lifespan. By continuously monitoring temperature, operators can detect potential issues early and prevent overheating, ensuring safe and efficient operation.
Q2: How is temperature monitored in transformers?
A2: Temperature in transformers is monitored using temperature sensors such as resistance temperature detectors (RTDs), thermocouples, and infrared thermography. These sensors track the temperature of critical components like the windings and oil to provide real-time data, helping detect overheating before it causes damage.
Q3: What are the common temperature monitoring devices used in transformers?
A3: Common temperature monitoring devices in transformers include:
RTDs (Resistance Temperature Detectors): These measure temperature by detecting changes in electrical resistance.
Thermocouples: These measure temperature based on the voltage difference generated when two different metals are joined.
Infrared Thermography: This non-contact method uses infrared cameras to detect heat patterns on transformer surfaces.
Q4: How do temperature sensors help in preventing transformer damage?
A4: Temperature sensors provide real-time data on the temperature of transformer components. If the temperature exceeds safe thresholds, the monitoring system can trigger alarms or automatic shutdown mechanisms. This proactive approach helps prevent overheating, insulation failure, and other heat-related damages, enhancing transformer reliability.
Q5: How can temperature monitoring be maintained in transformers?
A5: Regular maintenance of temperature monitoring systems involves checking sensor calibration, ensuring proper sensor placement, and testing alarm thresholds. Additionally, periodic inspections of transformer oil levels and ventilation systems can help prevent temperature spikes and improve the efficiency of the cooling system.
References
"Temperature Monitoring and Control in Transformers" - https://www.transformertech.com/temperature-monitoring - Transformer Tech
"How Temperature Sensors Protect Transformers from Overheating" - https://www.powermag.com/transformer-temperature-sensors - Power Magazine
"The Importance of Temperature Monitoring in Transformer Maintenance" - https://www.electrical4u.com/temperature-monitoring-transformers - Electrical4U
"A Guide to Transformer Temperature Management" - https://www.researchgate.net/transformer-temperature-management - ResearchGate
"Monitoring Transformer Temperature for Safety and Efficiency" - https://www.sciencedirect.com/temperature-monitoring-transformers - ScienceDirect
"Using Infrared Thermography for Transformer Temperature Monitoring" - https://www.smartgridnews.com/transformer-thermography - Smart Grid News
"The Role of Temperature Sensors in Transformer Protection" - https://www.energycentral.com/c/ee/transformer-sensors - Energy Central
"Preventing Transformer Overheating with Temperature Monitoring" - https://www.powergrid.com/transformer-temperature-safety - PowerGrid
