How to Assess the Health of a Transformer?

Assessing the health of a transformer is crucial to ensuring the reliability, efficiency, and safety of electrical power systems. A transformer is a significant investment, and its failure can lead to costly repairs, downtime, and power outages. Regular condition monitoring and health assessments help to identify potential issues early, allowing for timely maintenance or replacement before a failure occurs.

In this article, we will discuss the different methods and techniques used to assess the health of a transformer, including visual inspections, electrical tests, and advanced diagnostic tools.

---

What Are the Key Indicators of Transformer Health?

Introduction: The Importance of Monitoring Transformer Health

Transformers are crucial components in power distribution systems, playing a vital role in regulating voltage levels and ensuring the smooth transmission of electricity. Whether it's stepping up the voltage for long-distance transmission or stepping it down for local distribution, transformers are constantly exposed to environmental stress, electrical loads, and operational wear. Over time, these factors can impact transformer performance, leading to potential failures or inefficiencies if not properly monitored.

Understanding the key indicators of transformer health is essential for ensuring the reliability, longevity, and safety of these critical assets. By monitoring these indicators, utilities and industrial operations can implement timely interventions, reduce unplanned outages, and avoid costly repairs or replacements.

Key Indicators of Transformer Health

There are several key indicators that can help determine the health and condition of a transformer. These indicators help assess both the electrical performance and the physical condition of the transformer. Below are the most common and essential indicators to monitor:

1. Oil Temperature:
   Oil temperature is one of the most important indicators of transformer health, particularly for oil-immersed transformers. The oil inside the transformer serves as both a cooling medium and an insulating material. If the oil temperature rises too high, it could indicate overheating, which can lead to insulation breakdown and reduced transformer lifespan.

   • Normal Operation Temperature: Oil temperature should be kept within a specified range, typically between 65°C to 85°C, depending on the transformer’s design and load conditions.
   • Overheating Risks: Sustained high oil temperature (>95°C) may signal that the transformer is overloaded, has inadequate cooling, or is suffering from internal faults.

   ClaimReview


   Oil temperature is a key indicator of transformer health and overheating risks.True

   High oil temperatures can signal internal faults, overload conditions, or insufficient cooling, leading to damage if not addressed.

2. Oil Level:
   The oil level in the transformer tank provides insights into the internal condition of the transformer. Low oil levels can indicate a leak, which may result in inadequate insulation and cooling. Monitoring the oil level ensures that the transformer continues to operate efficiently.

   • Leakage Detection: A decrease in oil level can suggest that the transformer has developed a leak in its sealing system or tank. This could lead to moisture ingress, compromising insulation and potentially causing short circuits.
   • Maintenance: Regular checks on oil levels help identify potential maintenance needs before more significant issues arise.

   ClaimReview


   Oil levels in transformers help monitor for leaks and ensure proper insulation.True

   Low oil levels can indicate leaks, which affect transformer insulation and cooling, necessitating timely maintenance.

3. Dissolved Gas Analysis (DGA):
   Dissolved gas analysis (DGA) is a diagnostic tool that tests for gases dissolved in the transformer oil. Certain gases, like hydrogen (H2), methane (CH4), and acetylene (C2H2), can indicate abnormal electrical activity such as partial discharge, overheating, or arcing inside the transformer.

   • Gas Types: Different gases are produced depending on the type of fault:
     • Hydrogen and methane are typically associated with low-energy discharges.
     • Acetylene is produced by high-energy faults, such as arcing.
   • Monitoring Trends: Continuous monitoring of these gases can help identify developing faults before they lead to failure.

   ClaimReview


   Dissolved gas analysis helps detect early signs of faults by identifying gases in transformer oil.True

   Gases like hydrogen, methane, and acetylene indicate internal faults, and monitoring these gases helps in early fault detection.

4. Load Current:
   Monitoring the load current is essential for assessing transformer health, as it indicates whether the transformer is operating within its rated capacity. If a transformer is consistently overloaded, it can suffer from excessive wear and tear, leading to failure.

   • Rated Capacity: The load current should never exceed the transformer’s rated current for prolonged periods. Operating under excessive load conditions can lead to overheating, insulation degradation, and a reduction in transformer life expectancy.
   • Load Imbalance: In three-phase systems, an imbalance in load current across phases can also signal potential issues such as uneven voltage distribution, which may lead to transformer inefficiency or damage.

   ClaimReview


   Load current monitoring ensures the transformer operates within its rated capacity.True

   Consistently high load currents can result in overheating and insulation degradation, affecting transformer performance and lifespan.

5. Oil Quality and Breakdown Voltage:
   Oil quality is a crucial health indicator for transformers. Over time, transformer oil can degrade due to heat, moisture, and contaminants. Regular oil testing measures the breakdown voltage, which indicates the oil’s ability to resist electrical discharge and function as an insulating material.

   • Acidity: An increase in acidity levels of transformer oil can signal the breakdown of insulation material or oxidation, both of which are harmful to transformer health.
   • Moisture Content: Moisture in oil is a significant concern as it reduces the oil's insulation properties, leading to increased risk of faults or short circuits.

   ClaimReview


   Monitoring oil quality, including acidity and moisture content, is vital for transformer health.True

   Poor oil quality, indicated by high acidity or moisture levels, can significantly reduce insulation strength and lead to faults or reduced lifespan.

6. Sound and Vibration Analysis:
   Unusual noise or vibration levels from transformers are key indicators of mechanical issues. These issues can include loose parts, oil flow problems, or issues within the transformer’s core.

   • Sound Monitoring: Abnormal hum or buzzing sounds can indicate core vibrations or internal faults.
   • Vibration Monitoring: Vibration analysis detects mechanical wear, loose connections, or issues with the transformer’s physical components. Vibrations outside the normal range can indicate potential failure points.

   ClaimReview


   Sound and vibration analysis help detect mechanical issues in transformers.True

   Unusual sounds or vibrations can indicate internal faults, mechanical wear, or loose components, which need to be addressed to prevent failure.

7. Insulation Resistance:
   The insulation resistance of a transformer is an essential health indicator, as the insulation plays a critical role in preventing electrical faults. Over time, insulation material degrades due to temperature fluctuations, moisture, and electrical stress.

   • Megger Testing: The resistance of the insulation can be measured using megger testing to ensure it remains within acceptable limits. A drop in insulation resistance may indicate moisture or contamination, leading to a potential failure if not addressed.
   • Temperature Impact: High temperatures or extreme weather conditions can accelerate the degradation of insulation, so regular monitoring is essential.

   ClaimReview


   Insulation resistance monitoring helps detect potential faults before failure occurs.True

   Monitoring insulation resistance ensures that the transformer’s insulation is intact and preventing electrical faults.

Additional Monitoring Tools for Transformer Health

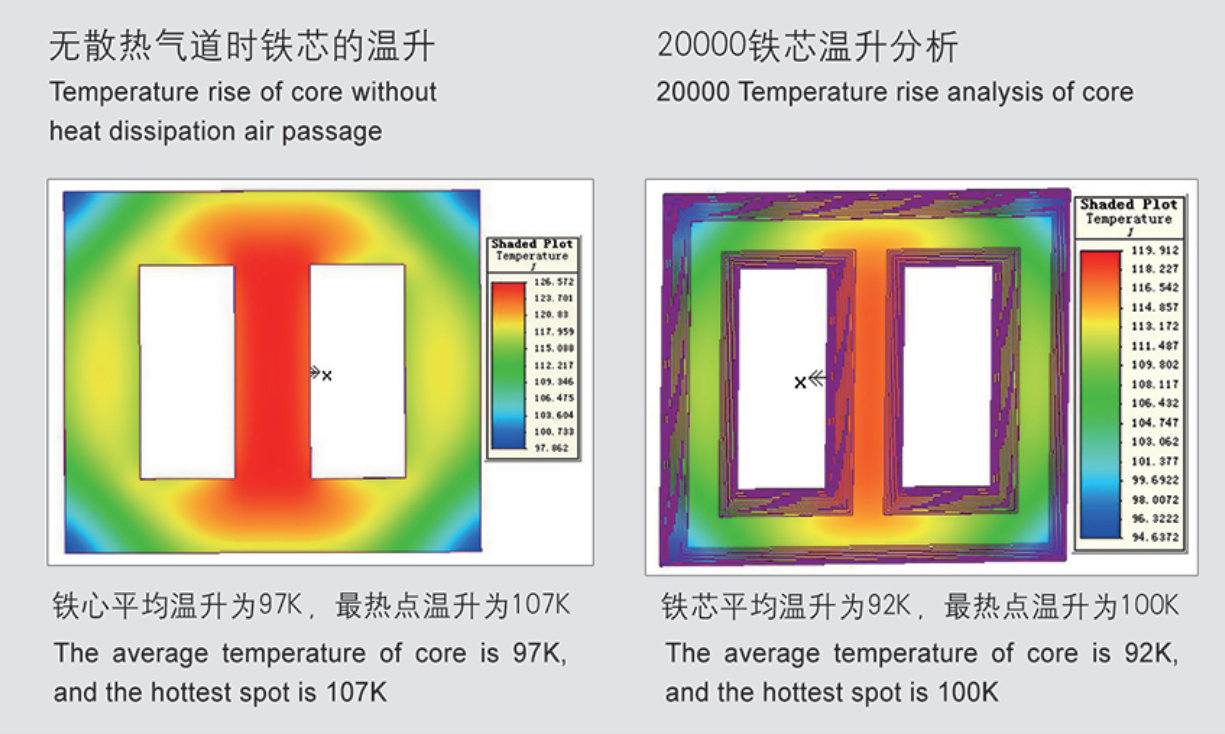

1. Thermal Imaging: Thermal cameras are increasingly used for detecting hot spots on transformer surfaces. These hot spots can indicate areas of electrical stress, insulation degradation, or other issues that could lead to failure.

2. Remote Monitoring Systems: Advanced remote monitoring systems use sensors and digital platforms to provide real-time data on transformer health, making it easier to detect abnormalities and perform predictive maintenance.

3. Partial Discharge Monitoring: Partial discharge (PD) monitoring detects the early stages of electrical breakdown within the transformer insulation. Early detection of PD can prevent larger, catastrophic failures.

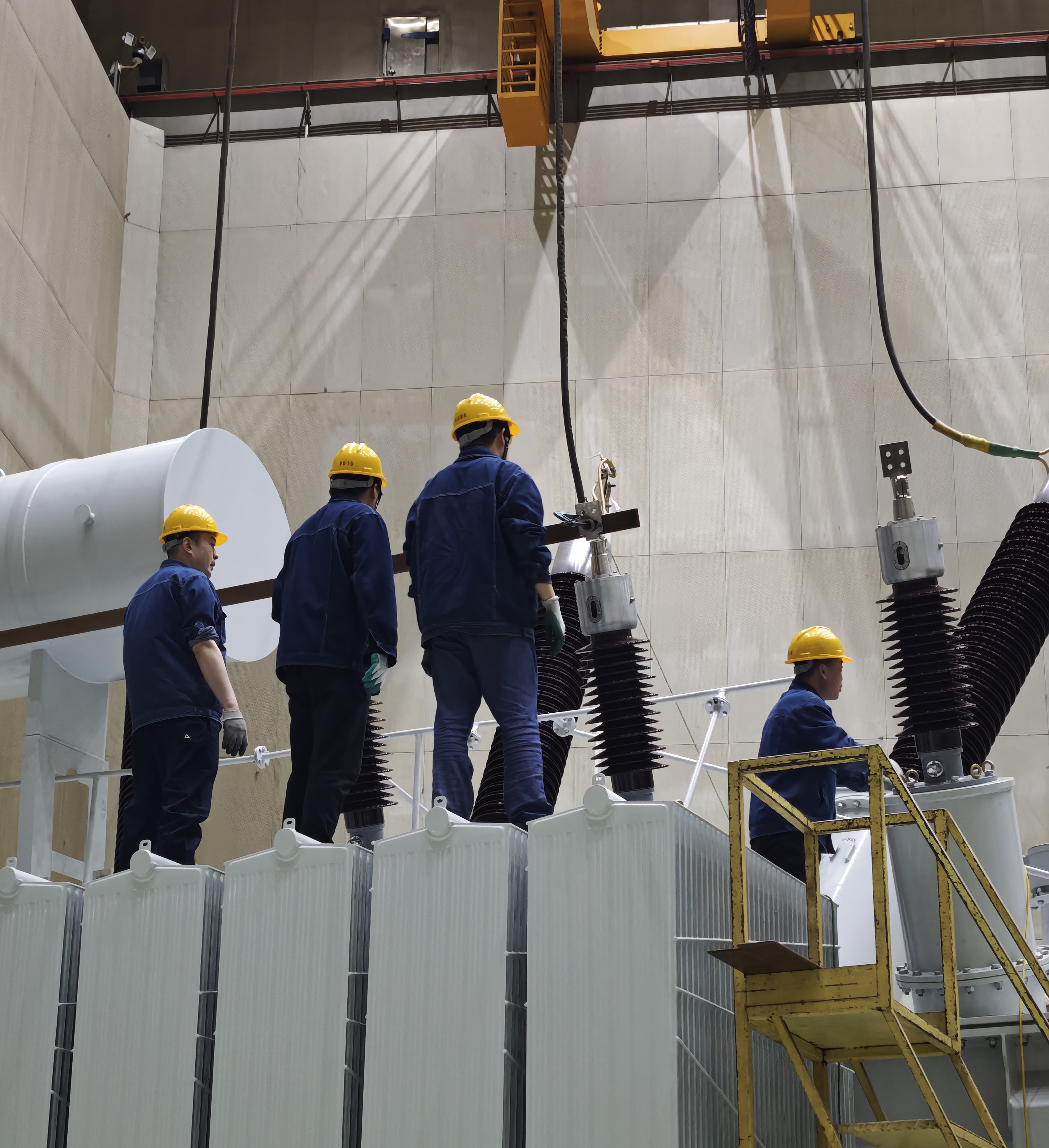

What Is the Role of Regular Visual Inspections in Transformer Health Assessment?

Introduction: Why Visual Inspections Matter for Transformers

Transformers are the backbone of electrical power systems, responsible for stepping up or stepping down voltages to ensure the safe and efficient transmission of electricity. However, like any critical piece of equipment, transformers can suffer from wear and tear over time, especially if they are exposed to harsh environmental conditions or undergo continuous heavy loads.

While advanced diagnostic tools like oil testing, thermal imaging, and dissolved gas analysis are crucial for assessing transformer health, regular visual inspections remain one of the most effective and fundamental methods for detecting early signs of failure or degradation. A thorough visual inspection allows technicians to identify obvious issues such as oil leaks, corrosion, or damaged components, which can prevent more serious problems down the line.

The Importance of Regular Visual Inspections

Visual inspections serve as a first line of defense for transformer maintenance. Here are several key reasons why they are essential:

1. Early Detection of Visible Damage:
   Transformers are subject to external environmental factors like dust, moisture, and physical damage. Regular visual checks allow for the early identification of issues that could worsen if left unattended. Common visible issues include:

   • Oil leaks: Leaking transformer oil can indicate damage to seals, gaskets, or the tank, which could result in a loss of cooling and insulation capabilities.
   • Corrosion: Rust or corrosion on transformer bodies or external components is a sign of exposure to moisture, which can compromise the transformer's integrity over time.
   • Damaged bushings or connectors: Bushing failures can cause electrical faults and fires if left undetected.
   • Loose parts or mechanical damage: Checking for loose bolts, nuts, or any physical damage to components ensures safe operation.

   ClaimReview


   Visual inspections help detect early signs of oil leaks, corrosion, and damaged components.True

   Regular visual checks can catch early damage that, if left untreated, could lead to costly repairs or transformer failure.

2. Preventing Oil Leaks and Insulation Failures:
   Oil leaks are one of the most critical issues in oil-immersed transformers. If the transformer oil level is compromised, the transformer will not be able to function efficiently, and the insulation will lose its ability to protect the electrical components. A visual inspection is the easiest way to identify leaks in seals, bushings, or the tank.

   • Oil stains or puddles around the base or lower parts of the transformer could signal leaks.
   • Discoloration of oil sight glasses might suggest oil degradation or contamination, requiring further testing.

   ClaimReview


   Visual inspection is the best method for detecting oil leaks and preventing insulation failure.True

   Identifying and repairing oil leaks early ensures the insulation system remains effective, reducing the risk of transformer failure.

3. Checking for Overheating Indicators:
   Overheating is one of the most common causes of transformer failure, and while temperature monitoring systems can detect thermal issues, visual inspection can offer additional clues. For example:

   • Discoloration or burning marks around the transformer can indicate overheating.
   • Excessive wear or damage to insulation materials could be due to prolonged high temperatures.

   Early detection of overheating signs allows for corrective measures, such as load reduction or system upgrades, to prevent more severe damage.

   ClaimReview


   Visual inspections help identify overheating signs like discoloration or burns on transformer surfaces.True

   Early detection of overheating through visual inspection helps prevent further damage and ensures transformer longevity.

4. Ensuring Structural Integrity:
   Visual inspections are essential for maintaining the structural integrity of the transformer. This involves checking for:

   • Dents or cracks in the transformer’s housing or cover, which can lead to moisture ingress and the eventual degradation of internal components.
   • Corrosion or rust on external parts that may indicate water exposure, which can accelerate the breakdown of materials.

   Ensuring that the transformer is free from such structural damage reduces the risk of failure and extends its useful life.

   ClaimReview


   Visual inspections ensure the structural integrity of transformers by identifying cracks, dents, and corrosion.True

   Maintaining the structural integrity of transformers prevents moisture ingress and material degradation, ensuring the safe operation of the transformer.

5. Identifying Potential Fire Hazards:
   The presence of burn marks, charring, or unusual smoke emissions around transformers is a clear indication of an electrical fault or fire risk. Visual inspections are crucial for spotting such hazards before they escalate.

   • Exposed wires or faulty connectors can easily spark and cause fires if they are not addressed.
   • Checking for any overheated components or abnormal heat patterns on external surfaces helps in identifying possible fire hazards.

   ClaimReview


   Visual inspections help detect potential fire hazards such as burnt components or exposed wiring.True

   Regular checks for overheating and faulty connections reduce the risk of fire and electrical hazards in transformers.

6. Checking Grounding and Bonding:
   Grounding and bonding are essential for ensuring the safety of the transformer. Visual inspections can identify poor grounding connections or deteriorating bonds that could lead to electrical shock risks, improper operation, or damage to equipment.

   • Loose or corroded grounding connections need to be tightened or replaced to ensure safety.
   • Bonding issues should be addressed to avoid grounding discrepancies that could affect the transformer’s performance.

   ClaimReview


   Visual inspections can detect grounding and bonding issues to prevent safety hazards and operational failures.True

   Checking and maintaining grounding and bonding ensures safe and proper operation of the transformer, preventing electrical hazards.

How to Conduct a Comprehensive Visual Inspection

A thorough visual inspection should follow a structured approach. Here are key steps involved:

1. Inspect Transformer Body:

   • Look for physical damage, corrosion, or oil stains on the transformer casing.
   • Check for dents, cracks, or deformations in the metal housing.

2. Examine Oil Level and Sight Glass:

   • Ensure the oil level is within the recommended range.
   • Check the sight glass for any discoloration or signs of contamination in the oil.

3. Check for Leaks:

   • Inspect all seals, joints, and bushings for potential leaks. Oil stains around the base can be indicative of leaking oil.

4. Look for Electrical Hazards:

   • Inspect the bushings and connectors for any damage, wear, or loose connections.
   • Check for exposed or damaged wiring and signs of arcing or burning.

5. Inspect Cooling Systems:

   • Ensure that cooling fans or pumps are functioning correctly and that there are no obstructions to airflow.

6. Check for Environmental Damage:

   • Inspect the transformer for external damage caused by harsh weather, such as flooding, high winds, or dust accumulation.

7. Look for Signs of Overheating:

   • Search for discoloration, melting, or charring marks on the transformer's surface or nearby components.

How Do Electrical Tests Help Assess Transformer Health?

Introduction: The Role of Electrical Testing in Transformer Health Assessment

Transformers are crucial components in electrical power distribution systems, tasked with regulating voltage and ensuring the safe and efficient transmission of electricity. However, like any complex machinery, transformers can experience performance issues and failures over time due to factors such as aging, overload, environmental stress, and poor maintenance. While visual inspections can identify visible signs of damage, electrical tests are indispensable for providing a comprehensive understanding of a transformer's internal health.

Electrical tests provide quantitative data on the transformer’s operational parameters, performance characteristics, and potential failure risks. They help identify hidden faults, such as insulation degradation, winding short circuits, or core anomalies, that cannot be detected through visual inspection alone. By regularly conducting these tests, utility companies and industries can assess the condition of their transformers and take proactive measures to ensure long-term reliability and safety.

The Importance of Electrical Testing for Transformer Health

Electrical tests serve a crucial role in assessing the health and performance of transformers. These tests help in the early detection of faults, which can prevent catastrophic failures and extend the transformer’s lifespan. Here are the key reasons why electrical testing is vital:

1. Identifying Internal Faults:
   Electrical tests help detect faults that may not be visible externally. For instance, winding short circuits, winding insulation failure, and core faults can only be diagnosed by specific electrical testing methods. These issues, if undetected, can lead to catastrophic transformer failure.

   ClaimReview


   Electrical tests help identify internal faults such as winding short circuits and insulation failure.True

   Electrical tests allow for the detection of faults that are not visible during visual inspections, ensuring that transformers operate efficiently and safely.

2. Assessing Insulation Condition:
   Insulation degradation is one of the leading causes of transformer failures. Electrical tests, such as insulation resistance testing, provide insights into the health of the insulation system. By measuring the resistance of the insulating materials, you can gauge whether the insulation is still effective or if it’s beginning to break down.

   ClaimReview


   Electrical tests, such as insulation resistance testing, assess the health of the transformer’s insulation system.True

   Testing the insulation system helps identify early signs of degradation, preventing breakdowns caused by poor insulation.

3. Ensuring Efficient Transformer Operation:
   Routine electrical testing helps assess how efficiently a transformer operates. Tests such as load and no-load loss measurements can determine if the transformer is consuming more energy than it should, which can indicate inefficiency. This is particularly useful for identifying energy losses, which can help improve the transformer’s performance and reduce operating costs.

4. Preventing Overload Situations:
   Electrical tests allow for the measurement of load current and voltage levels to ensure that the transformer is not operating beyond its rated capacity. Transformers running under overload conditions are at higher risk of failure due to excessive heat and mechanical stresses. By regularly testing these parameters, you can avoid transformer overload and extend its lifespan.

5. Detecting Faults in Electrical Connections:
   Loose or corroded electrical connections can lead to erratic transformer performance or even failure. Electrical testing techniques such as contact resistance testing measure the integrity of electrical connections, ensuring that all terminals, bushings, and other connection points are in good working order.

6. Evaluating Protection Systems:
   Protection systems such as circuit breakers, fuses, and relays are essential for safeguarding transformers from electrical faults. Electrical testing can verify whether these protection systems are functioning correctly, ensuring they will trip or isolate the transformer in case of an abnormal event such as a short circuit or overcurrent.

Common Electrical Tests for Transformer Health

There are several key electrical tests that can be performed to assess the health of a transformer. These tests provide valuable information on different aspects of transformer performance:

1. Insulation Resistance Test

This test measures the resistance of the insulation system to ensure it can effectively prevent electrical leakage. High resistance values indicate good insulation health, while low values suggest potential deterioration, which can lead to short circuits or arcing.

• Purpose: To assess the quality and integrity of insulation.
• How It’s Done: A high-voltage DC test is applied between the windings and ground, measuring the resistance over time.
• Interpretation: A high resistance reading indicates good insulation, while a lower resistance suggests potential faults, such as moisture ingress or insulation breakdown.

2. Power Factor (Dissipation Factor) Test

The power factor test assesses the dielectric losses in the transformer’s insulation. High dielectric losses can indicate that the transformer’s insulation is deteriorating, which could eventually cause a failure.

• Purpose: To measure the insulation’s condition and detect degradation.
• How It’s Done: A test voltage is applied to the transformer, and the current is measured to calculate the power factor.
• Interpretation: A higher power factor or dissipation factor indicates poor insulation condition, requiring attention.

3. Turns Ratio Test

This test checks the transformer’s turns ratio to ensure that the correct voltage is being produced. If the turns ratio is off, it indicates that there is a problem with the windings, such as short circuits or incorrect winding configurations.

• Purpose: To verify the transformer’s voltage output and winding health.
• How It’s Done: A low-voltage AC supply is applied to the primary winding, and the voltage ratio between the primary and secondary windings is measured.
• Interpretation: A significant deviation from the rated turns ratio indicates potential winding damage or manufacturing defects.

4. Winding Resistance Test

This test measures the resistance of each winding in the transformer to detect internal faults such as winding shorts or poor connections. This test is useful for detecting issues related to temperature rise or mechanical stress.

• Purpose: To check the resistance of windings and detect short circuits or open circuits.
• How It’s Done: A low-voltage DC current is passed through the windings, and the resistance is measured.
• Interpretation: Anomalous resistance readings may indicate short circuits, open circuits, or faulty connections.

5. Short-Circuit Impedance Test

The short-circuit impedance test helps assess the transformer’s ability to withstand short-circuit conditions and provides information about the voltage drop and current carrying capacity during a fault. This test is critical for ensuring that the transformer can operate safely during fault conditions.

• Purpose: To determine the impedance and the transformer’s ability to handle fault currents.
• How It’s Done: A low-voltage test is applied to the primary winding while the secondary winding is short-circuited. The voltage and current are measured.
• Interpretation: High impedance readings may indicate poor winding connections, which can affect the transformer’s efficiency and protection system.

6. Load and No-Load Loss Test

These tests measure the transformer’s core and copper losses under load and no-load conditions, respectively. By assessing these losses, you can determine how efficiently the transformer is operating and whether it is consuming more energy than necessary.

• Purpose: To measure energy losses and evaluate transformer efficiency.
• How It’s Done: The transformer is energized, and the voltage, current, and losses are measured under load and no-load conditions.
• Interpretation: Excessive energy losses may indicate poor transformer health or inefficiency.

How Can Oil Testing Be Used to Assess Transformer Health?

Introduction: The Vital Role of Oil Testing in Transformer Health Assessment

Transformers play a critical role in electrical power systems by stepping up or stepping down voltage levels to ensure safe and efficient power distribution. However, like any mechanical system, transformers are susceptible to wear and tear, which can lead to failures and costly repairs. One of the most effective ways to assess the health of a transformer is through oil testing. The oil used in transformers serves several functions, including insulation, cooling, and protection of internal components. Over time, the oil can degrade due to factors such as heat, moisture, and electrical stress, which can lead to performance issues or catastrophic failures.

By analyzing the properties and condition of the transformer oil, it is possible to detect early signs of problems such as insulation breakdown, contamination, and the presence of harmful gases. Oil testing provides valuable insights into the transformer’s internal condition, helping maintenance teams identify issues before they escalate and plan for corrective actions. Regular oil testing is, therefore, a key component of any comprehensive transformer health assessment program.

Why is Oil Testing Crucial for Transformer Health?

Transformer oil, typically mineral oil or synthetic ester, plays a dual role in both cooling and insulating the transformer. Given that oil degradation can directly impact the transformer’s performance and lifespan, monitoring the condition of the oil is essential. Here are the key reasons why oil testing is so important:

1. Detection of Insulation Breakdown:
   Transformer oil provides electrical insulation, and if the oil quality deteriorates, it may no longer provide the required dielectric strength. Oil testing helps determine the health of the insulation system by measuring factors like dielectric strength and acidity. Insulation failure is one of the leading causes of transformer faults and oil testing can provide an early warning.

2. Identification of Contaminants and Moisture:
   Contaminants such as dirt, water, and metals can compromise the effectiveness of the transformer oil. Oil testing can identify moisture content, which is especially problematic in mineral oil transformers, as moisture can lead to corrosion, insulation breakdown, and arcing. Regular testing can prevent moisture-related damage, which is a common cause of transformer failures.

3. Detection of Overheating and Oxidation:
   Overheating can cause transformer oil to degrade, resulting in the formation of acidic compounds and other byproducts. By monitoring parameters such as oil temperature and acidity, oil testing helps detect early signs of overheating and oxidation, allowing for timely interventions.

4. Early Detection of Internal Faults:
   Transformer oil testing can detect the presence of dissolved gases, which can be a sign of internal electrical faults or overheating. These gases form as a result of the breakdown of transformer materials, such as insulation and paper. Oil analysis can identify specific gases that correlate with different types of faults, providing critical information about the transformer’s health.

5. Ensuring Compliance with Standards:
   In many regions, transformers must meet certain regulatory standards regarding oil quality. Routine oil testing ensures that the transformer is compliant with these standards, helping prevent issues related to non-compliance and ensuring that the transformer operates safely.

Key Oil Tests for Transformer Health

Several key oil tests are used to assess the health of a transformer. These tests measure various physical, chemical, and electrical properties of the oil to provide insight into the transformer’s condition. Below are some of the most common oil tests:

1. Dielectric Strength Test

The dielectric strength test measures the oil’s ability to insulate the transformer’s internal components by applying a high voltage to the oil. If the oil’s dielectric strength is low, it indicates that the oil is no longer able to provide adequate insulation, which can lead to electrical faults and failures.

• Purpose: To assess the oil’s ability to act as an electrical insulator.
• How It’s Done: A high voltage is applied to the oil, and the breakdown voltage is measured. The higher the voltage the oil can withstand, the better its insulation properties.
• Interpretation: A lower dielectric strength suggests that the oil is contaminated or deteriorating, requiring replacement or treatment.

2. Moisture Content Test

Water contamination in transformer oil can significantly degrade the oil’s performance, leading to insulation breakdown, corrosion, and increased risk of failure. The moisture content test measures the amount of water present in the oil.

• Purpose: To measure the level of water or moisture content in the oil.
• How It’s Done: Moisture is extracted from the oil sample, and the amount of water is quantified. This can be done using methods such as Karl Fischer titration or moisture meters.
• Interpretation: High moisture content is a sign of potential problems, such as leaks, condensation, or inadequate sealing.

3. Acidity Test

Over time, transformer oil can become acidic due to oxidation, which can lead to the formation of sludge and the degradation of the insulation. The acidity test measures the oil’s total acidity, which can indicate the degree of oil degradation.

• Purpose: To detect the level of acidic byproducts in the oil.
• How It’s Done: The oil is tested using a titration method to determine its acidity. The result is usually expressed as an acid number, which indicates the amount of acid present in the oil.
• Interpretation: An increase in acidity is a sign that the oil has begun to oxidize and is no longer providing optimal protection.

4. Dissolved Gas Analysis (DGA)

Dissolved gas analysis is a critical oil test for detecting internal transformer faults. When transformer materials, such as insulation and paper, degrade due to electrical stress or overheating, they release gases into the oil. These gases can be analyzed to determine the type of fault occurring within the transformer.

• Purpose: To detect dissolved gases and identify internal faults.
• How It’s Done: A sample of oil is extracted and the gases dissolved in the oil are identified and quantified. The gases commonly analyzed include hydrogen, methane, ethane, ethylene, acetylene, and carbon monoxide.
• Interpretation: The presence and ratio of specific gases can indicate particular types of faults, such as overheating, arcing, or corona discharge.

5. Furanic Compounds Test

Furanic compounds are byproducts of paper insulation degradation, and their presence in the oil can indicate the deterioration of the transformer’s insulation system. Testing for these compounds helps assess the health of the transformer’s paper insulation.

• Purpose: To measure the levels of furanic compounds in the oil.
• How It’s Done: The oil sample is analyzed using chromatographic techniques to identify and quantify furans.
• Interpretation: High levels of furans suggest that the paper insulation is degrading and that the transformer may be at risk of failure.

6. Viscosity and Flash Point Tests

Viscosity and flash point tests are used to assess the physical properties of the oil, which can be impacted by contamination or degradation. These tests provide insights into the oil’s ability to flow and operate effectively under varying temperature conditions.

• Purpose: To measure the oil’s viscosity and flash point.
• How It’s Done: The viscosity is measured using a viscometer, and the flash point is determined by heating the oil in a controlled environment until it ignites.
• Interpretation: A high viscosity or low flash point can indicate contamination, oxidation, or the need for oil replacement.

What Role Does Thermal Imaging Play in Transformer Health Monitoring?

Introduction: The Growing Importance of Thermal Imaging in Transformer Maintenance

Transformers are one of the most critical components in electrical power systems, and their failure can have widespread consequences, including power outages, financial losses, and equipment damage. Like all electrical equipment, transformers are prone to faults and degradation over time. However, the challenge lies in detecting these issues early before they lead to costly failures. This is where thermal imaging plays a pivotal role in transformer health monitoring.

Thermal imaging, or infrared thermography, is a non-invasive technique that allows maintenance personnel to visualize temperature variations across a transformer’s surface. It is an essential tool for detecting potential issues such as overheating, loose connections, and hotspots, which could indicate internal faults or the degradation of transformer components. By identifying these anomalies early, thermal imaging can help extend the lifespan of the transformer, improve safety, and optimize overall performance.

How Does Thermal Imaging Work in Transformer Health Monitoring?

Thermal imaging cameras detect infrared radiation emitted by objects, converting this data into a visible image that shows temperature variations across the surface of the transformer. These temperature differences often reveal underlying issues that are not visible to the naked eye.

For transformers, thermal imaging is primarily used to detect the following issues:

1. Overheating and Hotspots:
   Overheating is one of the leading causes of transformer failure. Excessive heat can be generated by a variety of factors, such as electrical overload, poor ventilation, or internal faults. Thermal imaging allows technicians to pinpoint overheating areas or "hotspots" on the transformer’s surface, which could indicate problems such as loose electrical connections, short circuits, or excessive resistance. Detecting these issues early helps prevent further damage and allows for timely repairs.

2. Loose Connections:
   Loose or corroded electrical connections can create excessive resistance, which leads to heat buildup. These hot spots are easily identifiable with thermal imaging. By monitoring the temperature of connections, bushings, and tap changers, maintenance teams can detect potential failure points before they escalate.

3. Faults in Bushings and Tap Changers:
   Bushings and tap changers are critical components of a transformer, and any malfunction can have a significant impact on its overall performance. Thermal imaging can reveal abnormal heating in these areas, allowing for early identification of faulty components that need attention or replacement.

4. Oil Leaks or Insufficient Oil Levels:
   Transformers rely on oil for cooling and insulation. If there is a leak in the oil system or if the oil level drops below optimal levels, it can lead to overheating. Thermal imaging helps detect temperature discrepancies caused by inadequate oil flow or cooling, enabling technicians to fix the issue before the transformer becomes damaged.

5. Detecting Partial Discharge:
   Partial discharge (PD) is an electrical fault that occurs within the transformer’s insulation system. PD can result in local heating within the insulation, leading to damage over time. Thermal imaging can detect small variations in temperature associated with partial discharge, allowing maintenance teams to take corrective action before more severe damage occurs.

Advantages of Using Thermal Imaging for Transformer Health Monitoring

Thermal imaging provides a wide range of benefits for transformer health monitoring, making it an invaluable tool in the preventive maintenance toolkit. Here are the key advantages:

1. Non-Contact and Non-Invasive:
   One of the major benefits of thermal imaging is that it is a non-contact and non-invasive method. Unlike other testing methods that may require shutting down the transformer or physically interacting with its components, thermal imaging can be performed while the transformer is live and operational. This allows for continuous monitoring without disrupting the transformer’s function or exposing workers to hazardous conditions.

2. Quick and Efficient:
   Thermal imaging surveys can be conducted quickly, allowing for the monitoring of multiple transformers in a short amount of time. The technician simply scans the transformer’s surface with the thermal camera and instantly gets real-time results. This rapid assessment capability is crucial for large facilities with numerous transformers that require routine inspections.

3. Detection of Hidden Issues:
   Many issues affecting transformers, such as overheating or loose connections, are not visible to the naked eye. Thermal imaging enables the detection of these hidden issues, which could otherwise go unnoticed until they cause serious damage. By identifying these problems early, thermal imaging helps prevent costly repairs and downtime.

4. Improved Safety:
   Transformer failure can lead to catastrophic safety hazards, including fires, electrical shocks, and explosions. Thermal imaging plays a critical role in improving safety by identifying potential overheating problems and other issues that could pose a risk to personnel. It also allows maintenance teams to detect faults without needing to open the transformer or perform intrusive tests, reducing the risk of accidents.

5. Cost Savings:
   By detecting problems early, thermal imaging helps prevent transformer breakdowns, extending the life of the equipment and reducing the need for costly repairs or replacements. Identifying issues such as overheating or insulation degradation before they become severe can save organizations significant amounts in repair costs and downtime.

6. Preventive Maintenance:
   Regular thermal imaging inspections form an essential part of a preventive maintenance strategy. By detecting early signs of wear or electrical faults, thermal imaging helps to prevent major failures that could lead to expensive repairs or replacements. This proactive approach ensures that transformers are maintained in optimal working condition.

When Should Thermal Imaging Be Used for Transformer Health Monitoring?

Thermal imaging is most effective when performed regularly and under the right conditions. The best times to use thermal imaging for transformer health monitoring include:

1. Routine Inspections:
   Thermal imaging should be performed as part of a regular maintenance schedule to monitor the health of the transformer over time. Depending on the importance of the transformer and its operational environment, these inspections may take place annually, quarterly, or even monthly.

2. After Repairs or Modifications:
   Whenever a transformer undergoes repairs, modifications, or upgrades, thermal imaging can be used to check the effectiveness of the work. It can also confirm that no new issues have been introduced during the process, such as improper connections or overheating.

3. Before High-Demand Periods:
   Before the transformer enters a period of high load or demand (such as during peak seasons), thermal imaging can be used to ensure that the equipment is in optimal condition and capable of handling the increased load without overheating or failure.

4. After Unexpected Events:
   Following any unexpected event, such as a power surge, storm, or other stress events, thermal imaging can help quickly assess whether the transformer has been affected and identify any issues that need to be addressed.

Thermal Imaging Equipment for Transformer Monitoring

To perform effective thermal imaging on transformers, maintenance teams use specialized infrared cameras that offer high-resolution imaging and temperature measurement capabilities. The most commonly used thermal cameras for transformer health monitoring include:

• Handheld Infrared Cameras: These portable devices are typically used for spot inspections and allow technicians to quickly scan specific areas of a transformer.

• Fixed Thermal Monitoring Systems: In larger facilities or for continuous monitoring, fixed thermal imaging systems can be installed to provide real-time temperature monitoring and alerts for abnormal heat levels.

• Drone-based Thermal Imaging: For large or inaccessible transformers, drones equipped with thermal cameras are becoming increasingly popular. Drones can quickly survey large areas of equipment from the air, providing thermal images of transformers that would be difficult or time-consuming to inspect manually.

What Advanced Monitoring Techniques Can Be Used to Assess Transformer Health?

Introduction: The Importance of Transformer Health Monitoring

Transformers are the backbone of power distribution systems, ensuring efficient electricity transmission from power plants to homes, businesses, and industries. The failure of a transformer can result in extensive downtime, financial losses, and operational disruptions. As transformers age or experience stress, their internal components can degrade, leading to faults and failures if not properly monitored.

The traditional methods of transformer health assessment, such as visual inspections or basic electrical testing, are no longer sufficient in today’s complex and high-demand environments. As transformers operate under increasingly diverse and harsh conditions, more advanced monitoring techniques are necessary to ensure their longevity and optimal performance. These techniques allow for real-time, proactive monitoring, which can detect issues before they escalate into significant failures.

In this article, we will explore some of the most advanced monitoring techniques that can be used to assess transformer health, highlighting their benefits and how they contribute to the reliable and efficient operation of transformers.

1. Online Dissolved Gas Analysis (DGA)

Dissolved Gas Analysis (DGA) is one of the most effective techniques for assessing the internal health of a transformer. It involves analyzing the gases dissolved in the transformer’s oil to detect early signs of insulation degradation, arcing, overheating, or other faults.

How it works:
As a transformer operates, the insulating oil can break down due to the presence of heat or electrical arcing. This breakdown produces gases such as hydrogen, methane, carbon monoxide, acetylene, and ethane. By extracting and analyzing these gases, particularly in relation to their concentration and ratios, technicians can identify potential issues inside the transformer.

Benefits:

• Early Fault Detection: DGA can detect developing faults such as partial discharge or overheating long before they cause visible damage to the transformer.
• Predictive Maintenance: Regular monitoring of DGA data enables predictive maintenance, allowing maintenance teams to plan repairs or replacements before a failure occurs.
• Increased Transformer Lifespan: Timely identification of issues enables corrective actions that extend the service life of transformers.

Real-World Application:
DGA is widely used in critical power systems, such as those serving industrial plants or hospitals, where transformer failure can result in significant losses.

2. Thermal Imaging

Thermal imaging, or infrared thermography, is another advanced technique for transformer health monitoring. It detects temperature variations across the surface of a transformer, highlighting overheating components or hotspots that could indicate potential failure points.

How it works:
Thermal imaging cameras detect infrared radiation emitted by hot surfaces and convert this data into visual images that show temperature distributions. High-temperature zones, such as those caused by loose electrical connections, high resistance points, or failing components, can be identified with this technique.

Benefits:

• Quick and Non-Invasive: Thermal imaging allows for quick, non-contact inspections without shutting down the transformer.
• Detection of Hidden Faults: It helps identify faults that are invisible to the naked eye, such as hotspots in internal wiring, bushings, or tap changers.
• Proactive Maintenance: Early identification of overheating can help prevent catastrophic failures by addressing the root cause before it leads to failure.

Real-World Application:
Thermal imaging is commonly used in industrial plants, substations, and renewable energy systems to monitor transformer health and prevent unplanned outages.

3. Partial Discharge (PD) Monitoring

Partial discharge (PD) monitoring is a critical technique for detecting electrical discharges within the insulation of a transformer. PD can cause gradual damage to transformer components and eventually lead to complete failure if not addressed.

How it works:
PD occurs when small electrical sparks occur within the transformer’s insulation system, often due to defects such as air gaps or cracks in the insulation material. These discharges can be detected using specialized PD sensors, which monitor the high-frequency electromagnetic signals produced during the discharge events.

Benefits:

• Early Detection of Insulation Damage: PD monitoring allows for the early detection of damage within the insulation system, a major cause of transformer failure.
• Reduced Downtime: Monitoring helps detect partial discharge events in real time, allowing maintenance teams to address issues before they cause operational disruptions.
• Improved Reliability: Regular PD monitoring enhances the reliability of transformers by identifying weaknesses in the insulation that could lead to more severe faults.

Real-World Application:
PD monitoring is particularly beneficial for critical power transformers in industries like petrochemicals, pharmaceuticals, and healthcare, where equipment failure can have serious consequences.

4. Vibration Monitoring

Vibration monitoring measures the mechanical vibrations of a transformer to detect irregularities in the mechanical components, such as the core, windings, and cooling systems. Excessive vibration can indicate mechanical faults or imbalances within the transformer.

How it works:
Vibration sensors are attached to various parts of the transformer to monitor movement and detect any unusual vibrations. These vibrations are analyzed to determine their frequency, amplitude, and patterns. Abnormal vibrations can indicate problems like loose components, misalignment, or internal damage.

Benefits:

• Early Detection of Mechanical Failures: Identifies potential mechanical problems before they lead to severe damage or transformer failure.
• Continuous Monitoring: Vibration sensors allow for continuous, real-time monitoring, offering the ability to act quickly when abnormal vibrations are detected.
• Optimized Maintenance: By detecting and addressing mechanical issues early, vibration monitoring can help optimize maintenance schedules and extend transformer lifespan.

Real-World Application:
Vibration monitoring is widely used in power stations and industrial settings, where transformer vibrations could indicate issues like winding displacements or abnormal cooling system behavior.

5. Online Temperature Monitoring

Temperature monitoring is a critical aspect of transformer health monitoring. Excessive heat can degrade transformer components, including insulation, and lead to premature failure.

How it works:
Online temperature sensors are installed in various locations within the transformer, including the windings, core, and oil tank. These sensors continuously measure the temperature and provide real-time data on the transformer's thermal condition.

Benefits:

• Real-Time Temperature Data: Continuous monitoring allows operators to track temperature fluctuations and spot rising temperatures that could indicate issues.
• Prevention of Overheating: Identifying temperature hotspots helps prevent overheating and ensures that the transformer operates within safe thermal limits.
• Improved Performance and Efficiency: Keeping the transformer within its optimal temperature range ensures that it operates efficiently and with minimal risk of damage.

Real-World Application:
Online temperature monitoring is critical for large-scale industrial transformers and renewable energy installations, where maintaining optimal operating temperatures is essential for continuous performance.

6. Gas-Insulated and Oil-Insulated Monitoring Systems

Gas-insulated transformers (GIT) and oil-insulated transformers (OIT) require specific monitoring systems to ensure safe and efficient operation. These systems track parameters like gas pressure, oil quality, and moisture content.

How it works:
In oil-insulated transformers, oil quality is monitored for moisture content, acidity, and gas levels. In gas-insulated transformers, sensors measure gas pressure and detect any leaks or abnormalities. Real-time data from these sensors help assess the condition of the insulation and overall health of the transformer.

Benefits:

• Early Detection of Moisture or Gas Leaks: Gas-insulated and oil-insulated transformers are susceptible to moisture and gas-related faults. Monitoring helps identify leaks or deteriorating oil quality early.
• Proactive Maintenance: Continuous data allows for preventive maintenance and ensures that the insulation remains in good condition.
• Increased Safety: Detecting leaks or contamination early reduces the risk of transformer failure, fire, or explosion.

Real-World Application:
Oil and gas monitoring is commonly used in high-voltage transformers, especially those in utilities and large-scale power plants.

---

Conclusion

Assessing the health of a transformer is essential for maintaining reliable power systems and preventing costly failures. There are several methods for monitoring the condition of a transformer, each providing valuable insights into different aspects of its operation.

1. Visual Inspections: Regular visual checks help identify physical signs of wear, oil leaks, rust, corrosion, and damaged insulation, which can all indicate potential problems.

2. Electrical Tests: Electrical tests such as insulation resistance testing, turn-to-turn resistance testing, and winding resistance testing provide important data about the internal condition of the transformer, helping to detect issues such as winding degradation or short circuits.

3. Oil Testing: Transformer oil testing, particularly dissolved gas analysis (DGA), can reveal hidden issues such as overheating, corrosion, or partial discharges that may not be visible through other inspection methods. Additionally, moisture content and dielectric strength are also important indicators of the health of the transformer.

4. Thermal Imaging: Infrared thermography is an effective method for detecting hot spots within the transformer. Overheating in certain areas can point to faulty components or poor connections, potentially preventing future failure if identified early.

5. Advanced Monitoring Systems: Online monitoring systems provide continuous real-time data on critical parameters such as temperature, oil condition, and electrical performance. Tools like partial discharge monitoring can detect early signs of insulation breakdown that could eventually lead to transformer failure.

By combining these techniques, operators can assess a transformer’s health accurately and preventively, ensuring that it continues to function at its best and avoid unexpected failures. A well-maintained transformer improves the overall reliability of the power distribution system and extends the lifespan of the equipment, ultimately lowering maintenance costs and enhancing system performance.

In summary, regular monitoring and testing of transformer health is essential for the safe, reliable, and efficient operation of electrical systems. By employing a combination of visual inspections, electrical tests, oil analysis, and advanced diagnostic tools, you can identify potential issues early and ensure your transformer operates optimally throughout its lifecycle.

FAQ

Q1: What are the key indicators of transformer health?
A1: Key indicators of transformer health include temperature levels, oil condition, insulation resistance, load performance, and core condition. Monitoring these parameters helps detect early signs of damage or degradation. Regular visual inspections and diagnostic tests like partial discharge detection and frequency response analysis also provide valuable insight into transformer condition.

Q2: How is the oil condition used to assess transformer health?
A2: Transformer oil is a critical element for cooling and insulating the transformer. The condition of the oil can indicate the health of the transformer. Tests such as oil dielectric strength, moisture content, and the presence of dissolved gases (using gas chromatography) help detect signs of aging, insulation breakdown, or electrical faults.

Q3: What diagnostic tests are used to assess transformer health?
A3: Common diagnostic tests include insulation resistance tests (measuring dielectric strength), power factor testing (indicating insulation quality), and the dissolved gas analysis (DGA) test (detecting fault gases in the oil). Frequency response analysis and partial discharge testing are also used to assess the condition of the core and insulation.

Q4: How does temperature monitoring help in transformer health assessment?
A4: Temperature is one of the most important parameters for transformer health. Elevated temperatures can indicate overloads, poor cooling, or insulation degradation. By monitoring the oil and winding temperature regularly, any abnormal rise in temperature can be identified, which may signal potential issues such as faulty cooling s
