How to Choose the Right Materials for Transformers?

Selecting the right materials for transformers is a critical decision that influences the efficiency, reliability, safety, and cost-effectiveness of the transformer. Transformers are complex devices that convert electrical energy from one voltage level to another, and the materials used in their construction play a significant role in their performance and longevity.

The choice of materials affects key transformer characteristics, such as magnetic properties, insulation capabilities, heat dissipation, and mechanical durability. This article provides an overview of the essential materials used in transformer construction, factors to consider when selecting them, and how to make an informed choice for optimal performance.

---

What Are the Key Materials Used in Transformer Construction?

Introduction: The Foundation of Transformer Performance

Transformers are essential components in electrical power systems, responsible for converting electrical voltage levels for efficient transmission and distribution. The efficiency, safety, and reliability of a transformer depend heavily on the materials used in its construction. The proper selection of materials ensures that the transformer can handle electrical loads, manage heat dissipation, and provide durability over time, making the choice of raw materials a critical aspect of transformer design.

In this article, we will explore the key materials used in transformer construction, the role each material plays in ensuring the transformer's functionality, and how these materials contribute to the overall performance of the transformer.

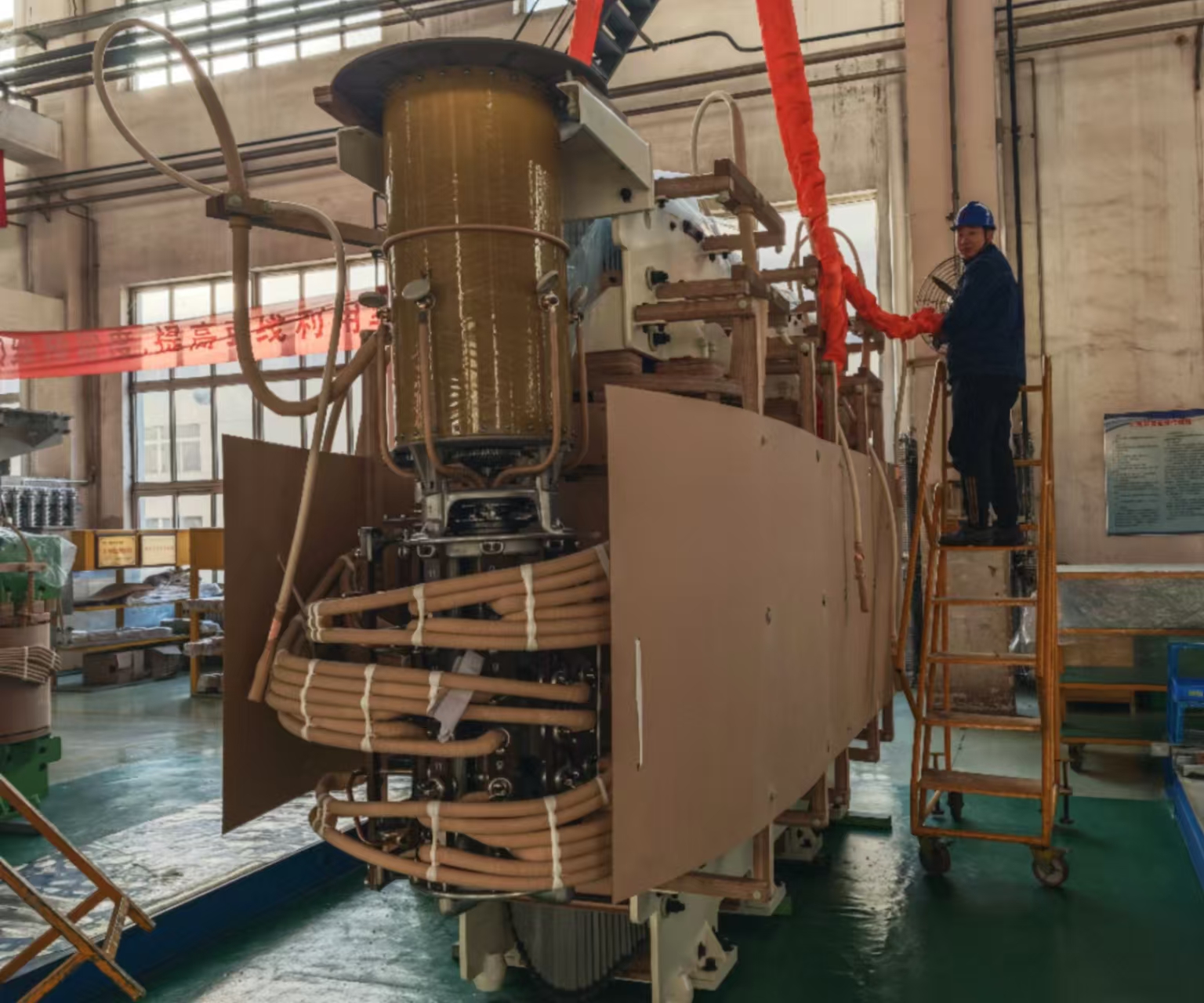

Key Materials Used in Transformer Construction

1. Core Steel (Laminated Silicon Steel)

The core of a transformer is one of its most crucial components, as it serves to direct the magnetic flux and increase the efficiency of the electrical energy transfer between the primary and secondary windings. The core material is carefully selected for its magnetic properties, such as high permeability, low core losses, and resistance to electrical eddy currents.

• Laminated Silicon Steel: The most common material used for transformer cores is laminated silicon steel. This steel is made up of thin sheets, which are electrically insulated from each other to reduce eddy current losses. The high silicon content in the steel enhances its magnetic permeability, which allows the transformer to operate more efficiently.

• Core Design: The core is typically wound into a rectangular or circular shape, and the thickness of the laminations varies depending on the transformer's design. The core's laminated structure is critical in reducing energy losses due to eddy currents, which can be a significant source of heat in transformers.

• Key Features:

  • High magnetic permeability for efficient flux transmission.
  • Thin laminated steel to minimize eddy current losses.
  • Silicon steel for improved energy efficiency.

2. Copper Windings

The windings are another essential part of a transformer, as they carry the electrical current and determine the voltage levels. The material used for the windings plays a significant role in ensuring the transformer's efficiency, power handling capabilities, and long-term reliability.

• Copper: The most widely used material for transformer windings is copper due to its excellent electrical conductivity. Copper windings ensure minimal resistance, which reduces energy losses and ensures efficient power transfer between the primary and secondary windings.

• Coating and Insulation: Copper windings are usually coated with an insulating material to prevent short circuits and protect the winding from external environmental factors. The insulation is crucial for preventing electrical discharge and ensuring the transformer operates safely.

• Key Features:

  • High electrical conductivity for low energy losses.
  • Durable copper wires that ensure efficient power transmission.
  • Insulating coatings for safety and longevity.

3. Insulating Materials

Transformers operate under high voltage, and as a result, proper insulation is essential to prevent electrical breakdown, ensure safe operation, and protect both personnel and equipment. Various insulating materials are used in different parts of the transformer to provide electrical isolation and thermal stability.

• Oil: In oil-immersed transformers, the core and windings are submerged in mineral oil or synthetic oil to provide insulation and cooling. The oil serves to both insulate and dissipate heat generated during transformer operation. Additionally, the oil acts as a medium for detecting potential faults, as certain gases may form in the oil during electrical breakdowns, which can be detected through gas analysis.

• Solid Insulation: For dry-type transformers, solid insulating materials like epoxy resins, paper, and polymer-based materials are used to insulate the windings. These materials have high dielectric strength, which allows them to effectively insulate electrical components in the transformer.

• Key Features:

  • Mineral oil or synthetic oils for cooling and insulation.
  • Paper, epoxy resins, and polymer materials for solid insulation in dry-type transformers.
  • Dielectric strength to prevent electrical breakdowns.

4. Tap Changer Materials

The tap changer is an important component in transformers that allows for adjusting the voltage levels by selecting different tapping points along the winding. Tap changers must be made from materials that can handle electrical arcing, mechanical stress, and high temperatures.

• Brass or Copper Contacts: The contacts in the tap changer are typically made from brass or copper to ensure reliable conductivity and durability. These materials are chosen for their ability to handle the high currents that pass through the tap changer without significant wear.

• Arc Suppression Materials: The materials used in the tap changer's arc suppression system, such as sulfur hexafluoride (SF6) or vacuum interrupters, are essential for controlling the electrical arcing during voltage adjustments.

• Key Features:

  • Brass or copper contacts for high electrical conductivity.
  • Arc suppression systems using SF6 or vacuum technology.
  • Materials that can withstand high temperatures and mechanical stress.

5. Cooling Systems Materials

Proper cooling is vital for ensuring that the transformer operates efficiently without overheating. The materials used in the cooling system of a transformer are designed to provide heat dissipation and maintain the transformer’s temperature within safe operating limits.

• Radiators: Transformers are typically equipped with radiators made of aluminum or steel to help dissipate heat. These radiators are connected to the transformer’s tank and allow for heat exchange with the surrounding air.

• Fans: Some transformers, especially those used in large-scale power systems, are equipped with fans made of durable materials like steel or composite materials to improve airflow and enhance the heat dissipation process.

• Key Features:

  • Aluminum or steel radiators for effective heat dissipation.
  • Cooling fans made from steel or composite materials.
  • Oil or air cooling to maintain operational temperatures.

6. Enclosure and Structural Materials

The enclosure of a transformer protects its internal components from external environmental factors, such as moisture, dust, and physical damage. The materials used in the transformer’s housing must be durable and capable of withstanding harsh conditions.

• Steel or Aluminum Enclosures: The transformer tank or enclosure is typically made from steel or aluminum, materials that provide strength, corrosion resistance, and physical protection. These materials are designed to withstand external stresses and prevent contaminants from affecting the transformer’s performance.

• Corrosion-Resistant Coatings: The steel or aluminum surfaces are often coated with corrosion-resistant materials, such as paint or galvanization, to protect them from rust and ensure the transformer’s longevity.

• Key Features:

  • Steel or aluminum enclosures for protection and durability.
  • Corrosion-resistant coatings for extended operational life.
  • Physical protection against external factors.

What Role Does the Transformer Core Material Play?

Introduction: The Heart of Transformer Efficiency

The core material of a transformer plays a critical role in the overall performance and efficiency of the device. Without the proper selection of core material, a transformer would not be able to efficiently transfer electrical energy between its primary and secondary windings. In essence, the core material is the "heart" of the transformer, enabling it to function as a power conversion device.

The core of a transformer serves to direct the magnetic flux generated by the primary winding to the secondary winding. The efficiency of this flux transmission is directly influenced by the choice of material. Selecting the right material for the core is essential to reducing energy losses, improving transformer performance, and ensuring the longevity of the equipment.

In this article, we will explore the role of transformer core materials, how they impact the transformer's performance, and the factors that influence the choice of material in transformer design.

Core Materials and Their Role in Transformer Operation

The core of a transformer is the central component responsible for carrying the magnetic flux between the primary and secondary windings. The material selected for the core must possess specific magnetic, thermal, and mechanical properties that allow the transformer to operate efficiently under varying electrical loads.

1. Magnetic Permeability: Key to Flux Transmission

The primary function of the transformer core is to channel magnetic flux produced by the primary winding and direct it to the secondary winding. This process is governed by magnetic permeability, which refers to the ability of the material to conduct magnetic fields. High magnetic permeability enables the core material to carry a large amount of magnetic flux with minimal losses.

• High Magnetic Permeability: Transformer cores need a material with high magnetic permeability, which allows the transformer to transmit the magnetic flux from the primary to the secondary windings efficiently. Materials with high permeability ensure that the transformer requires less power to generate the magnetic field, thereby improving its energy efficiency.

• Low Hysteresis Loss: High-quality core materials also exhibit low hysteresis loss, which is the energy lost due to the continuous magnetization and demagnetization cycle during transformer operation. Low hysteresis loss is essential for maintaining energy efficiency and reducing heating issues.

2. Low Eddy Current Loss: Enhancing Efficiency

Eddy currents are circulating currents that develop in the core material as a result of changing magnetic fields. These currents cause energy losses in the form of heat, which reduces the efficiency of the transformer. To minimize this loss, the transformer core must be made from materials that can minimize the formation of eddy currents.

• Laminated Steel: To reduce eddy current losses, the core is typically constructed using laminated steel sheets that are insulated from one another. The insulation between laminations prevents the formation of large eddy currents, thereby reducing heat generation and improving overall efficiency. The thickness of the laminations is carefully chosen to strike a balance between minimizing eddy currents and maintaining a compact design.

• Electrical Steel: The core material is often electrical steel or silicon steel, which has a higher resistivity and lower eddy current losses compared to regular steel. This makes it ideal for transformer cores, as it allows for better energy transfer with minimal loss.

3. Saturation Point: Optimizing Core Material for High Loads

The saturation point is the point at which the core material can no longer effectively carry additional magnetic flux. If the magnetic field exceeds this point, the transformer becomes inefficient and may suffer from excessive heat buildup and possible damage.

• Saturation Limits: The core material must be chosen such that the transformer operates well within its saturation limits under the expected load conditions. Silicon steel, a common transformer core material, has a high saturation point, which allows it to operate effectively even under high magnetic fields.

• Maintaining Efficiency: By selecting a core material with a high saturation threshold, the transformer can handle high loads without compromising its efficiency. This is particularly important for transformers in heavy-duty applications where large power fluctuations are common.

4. Thermal Management: Managing Heat Dissipation

As transformers operate, heat is generated due to core losses and the eddy currents mentioned earlier. The core material must not only support efficient magnetic flux transfer but also withstand the heat generated during operation. The core must also enable the effective dissipation of heat to prevent overheating, which can reduce the lifespan of the transformer.

• High Thermal Conductivity: Some core materials are chosen for their ability to dissipate heat efficiently. Materials with high thermal conductivity help maintain optimal operating temperatures within the transformer. This is especially important for oil-immersed transformers, where the oil acts as a heat transfer medium.

• Thermal Stability: The core material must also retain its properties over a wide range of temperatures. Materials that undergo structural changes or lose their magnetic properties at higher temperatures can lead to transformer failure.

5. Mechanical Strength: Ensuring Structural Integrity

In addition to the magnetic properties, the core material must also have sufficient mechanical strength to withstand the physical stresses experienced during transformer operation. Transformers can experience vibrations, shocks, and mechanical stresses due to electrical faults, weather conditions, and routine operation.

• Durability: Transformer cores are typically made from high-strength steel that provides the necessary mechanical stability to resist deformation or cracking under stress. The material must also be resistant to corrosion and wear to ensure the longevity of the transformer.

Common Core Materials in Transformer Construction

1. Silicon Steel (Electrical Steel)

• Properties: Silicon steel, also known as electrical steel, is the most commonly used core material for transformers due to its high magnetic permeability, low eddy current loss, and ability to withstand high temperatures.
• Advantages: Silicon steel is laminated to reduce eddy current losses and is available in both grain-oriented (GO) and non-grain-oriented (NGO) types. GO steel is preferred in transformers that operate under constant load, while NGO steel is used in transformers that experience fluctuating loads.
• Application: Most modern power and distribution transformers use silicon steel as the core material.

2. Amorphous Steel

• Properties: Amorphous steel is a non-crystalline form of steel that has excellent magnetic properties and low core loss. This material is a newer innovation aimed at improving energy efficiency.
• Advantages: Amorphous steel has significantly lower core losses than traditional silicon steel, making it an ideal choice for energy-efficient transformers.
• Application: While more expensive than conventional materials, amorphous steel is used in transformers where low losses and higher efficiency are paramount, especially in energy-saving applications.

3. Cast Iron and Ferrite Cores

• Properties: Cast iron and ferrite are less commonly used but have specific applications in small transformers, such as in electronic devices or low-power transformers.
• Advantages: These materials can be cost-effective and are suitable for low-voltage, small-scale transformers.
• Application: Cast iron cores are generally used in smaller transformers and electronic power supplies, while ferrite cores are often used in inductors and high-frequency transformers.

How Do Winding Materials Impact Transformer Performance?

Introduction: The Role of Winding Materials in Transformer Performance

The winding material in a transformer is one of its most critical components, as it directly impacts the electrical conductivity, efficiency, and thermal performance of the transformer. Winding materials not only affect the transformer's electrical performance but also its overall mechanical stability and lifespan. These materials are crucial for conducting electrical power between the transformer’s primary and secondary coils, and they must be chosen with care to optimize performance under various operational conditions.

In this article, we will explore how different winding materials, primarily copper and aluminum, impact transformer performance in terms of electrical conductivity, thermal management, mechanical strength, and cost efficiency.

The Importance of Winding Materials in Transformer Function

The windings in a transformer are responsible for carrying the electrical current that produces the magnetic field necessary for energy transfer between the primary and secondary coils. The material used for the windings has a direct effect on the transformer’s electrical and thermal efficiency and impacts the overall operational stability. Here's how the choice of winding material plays a pivotal role:

1. Electrical Conductivity and Efficiency

The electrical conductivity of the winding material is one of the most critical factors influencing the efficiency of the transformer. The material used for windings needs to conduct electrical current with minimal resistance to reduce energy losses during transformer operation.

• Copper: Copper is the most commonly used winding material in high-efficiency transformers due to its excellent electrical conductivity. Copper’s low electrical resistance ensures that the transformer operates efficiently, transmitting power with minimal losses in the form of heat. Copper windings are typically found in large transformers, such as those used in power stations and distribution systems.

• Aluminum: While aluminum has lower electrical conductivity than copper, it is still widely used in transformer windings due to its cost-effectiveness. Aluminum is approximately 60% as conductive as copper but has the advantage of being lighter and cheaper, making it an attractive alternative in less demanding applications or for transformers with lower power ratings.

• Impact on Performance: Using copper windings results in lower electrical losses compared to aluminum. However, aluminum windings are still acceptable in medium- and low-voltage transformers, where cost considerations and weight reduction are more critical.

2. Thermal Performance and Heat Dissipation

Transformers generate significant amounts of heat due to the continuous flow of electrical current through the windings. The material used for windings must have good thermal conductivity to ensure effective heat dissipation and maintain the transformer's operational temperature within safe limits.

• Copper: Copper has a higher thermal conductivity than aluminum, which allows for better heat dissipation. This is crucial for maintaining the transformer’s temperature stability, especially during high-load operation when the windings are prone to heating up.

• Aluminum: Although aluminum has a lower thermal conductivity than copper, its lower density allows for more compact windings, which can help reduce the transformer’s overall volume. However, transformers with aluminum windings may require more cooling capacity or larger winding surfaces to compensate for the lower thermal performance.

• Impact on Performance: Copper windings generally result in better thermal performance because they dissipate heat more efficiently. However, if cost or weight is a more critical concern, aluminum windings are often used, with the understanding that additional cooling methods (such as oil or air cooling) may be necessary to prevent overheating.

3. Mechanical Strength and Durability

The mechanical strength of winding materials is important for ensuring the stability and longevity of the transformer. Transformers are subject to vibration, mechanical stresses, and external shocks, especially in industrial and utility applications. The winding material must be able to withstand these forces without failing or deforming.

• Copper: Copper is stronger and more ductile than aluminum, making it more resistant to physical deformation. Copper windings are more durable and are better able to withstand mechanical stresses over time.

• Aluminum: Although aluminum is more prone to deformation and damage compared to copper, it is still used extensively in low and medium-voltage transformers. To address its mechanical weaknesses, aluminum windings are often designed with thicker gauges or reinforced with additional support structures.

• Impact on Performance: Copper offers greater durability and mechanical strength, reducing the risk of physical damage under stress. Aluminum windings may require more attention to mechanical support, but they are still suitable for many applications.

4. Cost and Weight Considerations

Cost is one of the primary factors when choosing between copper and aluminum windings, as the material cost of copper is significantly higher than that of aluminum. Aluminum's lower cost and lighter weight make it an attractive option for transformers in residential or less demanding applications.

• Copper: Although copper is more expensive, it offers better performance in terms of efficiency and durability. It is typically used in high-capacity transformers where performance is the key priority.

• Aluminum: Aluminum’s lower price and lighter weight make it an ideal choice for applications where cost savings and weight reduction are more important. Medium- and low-voltage transformers in residential and commercial areas often use aluminum windings.

• Impact on Performance: The choice of winding material directly affects the cost of manufacturing the transformer. While copper is more expensive, it can lead to lower operational costs due to its higher efficiency. Aluminum reduces the initial cost but might increase the overall operational costs due to higher losses.

5. Corrosion Resistance and Longevity

Both copper and aluminum are susceptible to corrosion, but the rate at which they corrode and the impact of corrosion on their electrical and mechanical properties differs.

• Copper: Copper is highly resistant to corrosion and forms a protective patina that prevents further degradation. This makes copper windings more durable over time, even in harsh environments. Copper also maintains its electrical properties for a longer period, which contributes to the long-term reliability of the transformer.

• Aluminum: Aluminum is more prone to oxidation than copper, forming a layer of aluminum oxide on its surface. This oxide layer is non-conductive and can interfere with the electrical performance of the windings. However, aluminum is still commonly used in transformer windings with proper treatments or coatings to reduce oxidation.

• Impact on Performance: Copper's higher corrosion resistance and longevity make it ideal for transformers that need to operate over long periods in harsh environments. Aluminum windings may need additional protective coatings or treatments to enhance their corrosion resistance, especially in industrial settings.

Advantages and Disadvantages of Copper vs. Aluminum Windings

Feature	Copper Windings	Aluminum Windings
Electrical Conductivity	Excellent (higher conductivity)	Good (lower conductivity)
Thermal Conductivity	Higher thermal conductivity	Lower thermal conductivity
Mechanical Strength	Stronger and more durable	Weaker, requires reinforcement
Cost	More expensive	Less expensive
Weight	Heavier	Lighter
Corrosion Resistance	Better resistance to corrosion	More prone to oxidation, requires treatment
Efficiency	More energy-efficient	Slightly less energy-efficient

What Is the Importance of Insulation Materials in Transformers?

Introduction: Why Insulation Materials Are Crucial for Transformer Performance

Transformers are essential components in electrical power distribution, where they are responsible for converting high-voltage electricity to lower, usable voltage levels. The materials used in transformers, particularly insulation materials, play a vital role in ensuring that the transformer operates safely, efficiently, and reliably over its service life. Insulation materials provide electrical insulation, thermal management, and mechanical support to prevent transformer failure due to short circuits, overheating, or physical damage.

In this article, we will explore the importance of insulation materials in transformers, their types, their role in performance, and how they help improve the safety, efficiency, and longevity of transformers.

What Are Insulation Materials in Transformers?

Insulation materials in transformers are typically used to separate the electrical conductors (winding wires) from each other and from other parts of the transformer, such as the core and tank. These materials must meet specific criteria, including high electrical resistance, thermal stability, and mechanical strength, in order to ensure the safe and efficient operation of the transformer.

Insulation materials help to:

• Prevent electrical short circuits between windings and other transformer components.
• Provide thermal insulation to dissipate heat generated by the electrical currents flowing through the transformer.
• Ensure mechanical stability by holding the winding materials in place and preventing physical damage to the windings.

Key Functions of Insulation Materials in Transformers

1. Electrical Insulation

One of the primary functions of transformer insulation is to provide a high level of electrical resistance between conductive parts within the transformer, preventing unwanted electrical current flow between windings, core, and other components.

• Winding Insulation: The primary electrical insulation in transformers is typically applied to the windings (both primary and secondary). The windings are made of conductive materials like copper or aluminum, and the insulation prevents electrical short circuits and flashovers between these conductors and other parts of the transformer.

• Core Insulation: The core of the transformer, which is made of laminated steel sheets, also requires insulation to avoid short-circuiting. Electrical insulation is applied between the core sheets to ensure that they do not conduct electrical current.

• Dielectric Strength: Insulation materials must have high dielectric strength to withstand the high voltage without breaking down. The dielectric strength refers to the material's ability to resist electrical breakdown when subjected to high voltage.

2. Thermal Insulation

Transformers generate heat during operation due to the electrical energy flowing through the windings and core. Insulation materials help to manage and dissipate heat within the transformer, ensuring that the windings and other components remain within acceptable temperature limits.

• Thermal Conductivity: Transformer insulation must possess low thermal conductivity to prevent heat transfer from the windings to the surrounding components. At the same time, the insulation should not degrade under high temperatures.

• Cooling Systems: Many transformers are equipped with oil as an insulating and cooling medium. The oil not only provides electrical insulation but also helps to carry away the heat generated by the electrical currents in the windings. This is especially true in oil-immersed transformers, where the oil serves as both an insulating and a cooling agent.

3. Mechanical Support

In addition to providing electrical and thermal insulation, insulation materials in transformers also provide mechanical support to the windings. The insulation holds the windings in place, prevents physical contact between the conductors, and protects them from mechanical stresses such as vibrations and shock.

• Winding Bonding: Insulation materials, such as kraft paper or nomex, are often used to bond the windings and prevent them from shifting under mechanical stress or vibration.

• Moisture Protection: Insulation also helps protect the transformer from moisture ingress, which can compromise both the mechanical and electrical properties of the transformer.

Types of Insulation Materials Used in Transformers

There are various types of insulation materials used in transformers, each serving different functions depending on the specific needs of the transformer. The main types of insulation materials include:

1. Solid Insulation

Solid insulation materials are often used in direct contact with the windings or core. They are chosen for their high dielectric strength, heat resistance, and mechanical stability.

• Paper: Kraft paper is one of the most commonly used solid insulation materials in transformers. When impregnated with oil, it offers excellent electrical properties, is cost-effective, and provides long-lasting performance in oil-immersed transformers.

• Pressboard: Pressboard, also made of paper, is another solid material used for electrical insulation in transformers. It is often used in windings or as a barrier between transformer components.

• Mica: Mica-based insulation is used in high-voltage transformers due to its high dielectric strength and thermal stability. Mica is often used in the form of mica tapes or mica plates.

2. Liquid Insulation

In oil-immersed transformers, the oil serves as both an insulating material and a cooling medium. The oil absorbs the heat generated in the windings and facilitates the dissipation of this heat.

• Mineral Oil: Mineral oil is the most widely used insulating oil in oil-filled transformers. It provides excellent electrical insulating properties, is relatively inexpensive, and has good heat dissipation capabilities.

• Silicone Oil: Silicone-based oils are used in transformers where better fire resistance and thermal stability are required.

3. Gas Insulation

In gas-insulated transformers, SF6 (Sulfur Hexafluoride) gas is used as the insulating medium. SF6 is a highly effective electrical insulator and is used in gas-insulated switchgear (GIS) transformers, where a gas-insulated system eliminates the need for air.

• SF6 Gas: SF6 gas is used because of its excellent electrical insulating properties and ability to quench electrical arcs in high-voltage transformers.

4. Hybrid Insulation

In modern transformer designs, hybrid insulation systems are sometimes used, combining solid insulation materials like paper and liquid insulation such as mineral oil or silicone oil. Hybrid designs are becoming increasingly popular in applications where both high electrical strength and effective cooling are required.

How Insulation Affects Transformer Performance

The performance of a transformer is heavily influenced by the quality and type of insulation used. The insulation must withstand the electrical, thermal, and mechanical stresses encountered during the operation of the transformer. Here’s how the quality of insulation impacts transformer performance:

• Prevention of Electrical Failures: Poor-quality insulation can result in electrical faults, such as short circuits, flashover, or insulation breakdown, leading to transformer failure.

• Improved Efficiency: Insulation that provides excellent heat dissipation ensures that the transformer can operate efficiently, even at full load, without overheating.

• Longevity: Transformers with high-quality insulation materials are less prone to premature aging and can operate for longer periods with fewer maintenance needs.

• Safety: Proper insulation is essential for preventing fire hazards. In the event of a transformer fault, the insulation helps to contain electrical arcs and prevents them from spreading to other parts of the transformer.

How Does Cooling Material Affect Transformer Efficiency?

Introduction: The Importance of Cooling in Transformers

Transformers are vital for the transmission and distribution of electrical power, but they also generate significant heat due to the electrical energy flowing through them. Excessive heat can degrade transformer performance, increase energy losses, and shorten the lifespan of the transformer. This is where cooling materials and systems come into play. The choice of cooling material in transformers directly impacts their efficiency, thermal management, and operational reliability.

In this article, we will explore how cooling materials affect transformer efficiency, the different cooling methods employed in transformers, and the role of oil, air, and gas in improving transformer performance.

What is the Role of Cooling in Transformers?

Transformers work by transferring electrical energy through electromagnetic induction. As current flows through the windings, a significant amount of heat is produced due to resistive losses in the winding conductors and the core. If this heat is not efficiently dissipated, the transformer will overheat, which can lead to:

• Reduced efficiency: The transformer must work harder to maintain performance when it operates at higher temperatures, leading to increased energy losses.
• Shortened lifespan: Continuous high temperatures can cause the insulation materials and components to degrade faster, reducing the transformer’s lifespan.
• Increased maintenance costs: Transformers that run hotter require more frequent maintenance and repairs due to wear and tear on critical parts.
• Safety risks: Excessive heat can cause transformer components to fail catastrophically, which could result in fire hazards.

To avoid these issues, an efficient cooling system is essential. Cooling helps maintain an optimal operating temperature, ensuring that the transformer can function at its highest possible efficiency while avoiding overheating and component damage.

How Cooling Materials Affect Transformer Efficiency

The efficiency of a transformer is directly impacted by its ability to manage heat. Cooling materials work by removing excess heat and dissipating it into the environment, which prevents overheating and maintains the transformer's electrical and mechanical performance. The choice of cooling material and system will determine how effectively this process occurs.

1. Oil as a Cooling Material

Oil is the most commonly used cooling medium in oil-immersed transformers. Transformer oil has dual functions: it acts as both an insulating material and a cooling agent.

• Thermal conductivity: Transformer oils, particularly mineral oils and silicone oils, have excellent thermal conductivity, which allows them to effectively transfer heat away from the windings and core.
• Heat dissipation: As the oil circulates through the transformer, it absorbs heat from the windings and core, and then the heat is transferred to the external environment through radiators or cooling fins.
• Viscosity: The viscosity of transformer oil is crucial to the cooling process. Oils with low viscosity flow more easily, ensuring that heat is quickly carried away from the transformer. Higher-viscosity oils might slow down the circulation and reduce the cooling efficiency.
• Thermal Stability: Cooling materials like silicone oils provide better thermal stability at higher temperatures, which is crucial for maintaining transformer efficiency over long periods.

The proper maintenance of oil in oil-immersed transformers, including regular oil testing and replacement, is essential for ensuring that it continues to operate as an effective cooling medium.

2. Air as a Cooling Medium

Air-cooled transformers are more commonly used for smaller, less-powerful transformers, but they also play an essential role in power distribution systems.

• Natural air cooling: In natural air-cooled transformers, heat is dissipated through natural convection, where air flows around the transformer to remove heat. This is typically used for smaller transformers where heat generation is not excessive.
• Forced air cooling: For larger transformers, fans or blowers are used to circulate air more effectively, which enhances heat dissipation and improves cooling efficiency.
• Efficiency: While air cooling is less effective at dissipating heat compared to oil, it does reduce the risk of oil contamination and does not require oil changes, making it simpler and more cost-effective for some applications.

However, air-cooled transformers are usually less efficient than oil-immersed transformers because air has a lower thermal conductivity and cannot transfer heat as efficiently as oil.

3. Gas as a Cooling and Insulating Material

Gas-insulated transformers (GITs) use SF6 gas (sulfur hexafluoride) as both an insulating and cooling medium. The cooling performance of SF6 gas is better than air, and it is often used in high-voltage transformers, especially in confined or compact spaces where air or oil cooling might not be feasible.

• High dielectric strength: SF6 gas has excellent dielectric properties, which help it to handle high voltages. This makes it a suitable medium for high-capacity transformers that are used in power generation and transmission.
• Efficient heat dissipation: SF6 has better heat dissipation capabilities than air, ensuring that transformers remain cool even under heavy load conditions.
• Environmental impact: Although SF6 offers superior performance, it is a greenhouse gas and can be harmful to the environment if not handled properly. As a result, there is ongoing research into more environmentally friendly alternatives to SF6.

4. Hybrid Cooling Systems

Some modern transformers use hybrid cooling systems that combine multiple cooling mediums, such as oil and air or oil and gas, to achieve the best performance.

• Oil and forced air: In this system, oil acts as the primary cooling medium, while forced air (fans) helps dissipate heat more efficiently. This hybrid system is often used in high-power transformers where both oil’s superior thermal conductivity and air's cooling power are needed to handle heavy loads.
• Oil and SF6: Some transformers also use a combination of oil for insulation and SF6 gas for cooling, allowing the transformer to handle both electrical and thermal stresses more effectively.

Factors That Affect Cooling Efficiency in Transformers

Several factors influence the performance of cooling materials in transformers, and ultimately, the efficiency of the transformer itself:

1. Load on the Transformer

As the transformer load increases, the amount of heat generated increases exponentially due to I²R losses in the winding conductors. Cooling materials must be able to cope with these higher heat levels. Transformers under high-load conditions require more effective cooling systems to prevent overheating.

2. Ambient Temperature

The external environment, or ambient temperature, directly impacts the efficiency of cooling materials. In hotter climates, transformers may require more frequent maintenance or additional cooling mechanisms to keep the temperature within operational limits. In cold climates, transformers may operate more efficiently, but proper thermal insulation is still necessary to prevent excessive heat loss.

3. Cooling System Design

The design of the cooling system is critical to ensuring that the cooling material can operate at its maximum potential. For example, oil-immersed transformers equipped with radiators and cooling fins offer better heat dissipation. Similarly, forced air systems with powerful fans ensure that more heat is removed from the transformer.

4. Maintenance and Quality of Cooling Materials

Over time, cooling materials such as oil can degrade or become contaminated with moisture, dirt, or other impurities. This can drastically reduce the effectiveness of the cooling system. Regular maintenance, such as oil testing and replacing degraded oil, is essential for maintaining transformer efficiency.

How Do Environmental and Economic Considerations Impact Material Selection in Transformer Design?

Introduction: The Critical Role of Material Selection

In transformer design and construction, the materials used play a pivotal role in determining the performance, efficiency, durability, and environmental footprint of the device. As the world increasingly focuses on sustainability and cost-effective solutions, environmental and economic considerations are becoming central to material selection. These two factors drive innovation in transformer technology, influencing the selection of materials that not only meet technical specifications but also align with global environmental goals and economic constraints.

In this article, we will explore how environmental impact and economic factors influence material choices in transformer construction, with a focus on key materials like core steel, winding conductors, insulation, and cooling materials.

How Do Environmental Considerations Impact Material Selection?

As industries across the globe shift towards sustainability and eco-friendly practices, environmental considerations have become more important in selecting transformer materials. These considerations are particularly crucial in the face of growing concerns over energy consumption, waste management, and carbon emissions. The materials chosen must not only ensure the efficient operation of transformers but also minimize their environmental impact throughout their lifecycle.

1. Reducing Carbon Footprint and Energy Consumption

One of the most significant environmental considerations in transformer material selection is the reduction of carbon emissions. Transformers are energy-intensive devices, and the choice of materials can have a significant impact on the energy losses that occur during operation.

• Core material: The transformer core is typically made of silicon steel or amorphous steel, which have different energy loss characteristics. Amorphous steel has a lower core loss compared to traditional silicon steel, making it an environmentally favorable option as it reduces energy losses and contributes to greater overall efficiency.
• Conductors: The use of high-conductivity materials like copper and aluminum reduces the losses due to resistance. Aluminum is especially favored in economic applications due to its lower cost and lighter weight, although copper is preferred in high-performance transformers due to its superior conductivity.
• Eco-friendly insulation: Solid insulation materials such as paper impregnated with vegetable oils or synthetic resins are becoming popular as they are biodegradable and less toxic compared to traditional mineral oils. These materials also eliminate the need for petroleum-based fluids, reducing the overall carbon footprint of the transformer.

By choosing materials that reduce energy losses and carbon emissions, transformer manufacturers can contribute to global sustainability goals while improving the operational efficiency of the device.

2. Material Recyclability and End-of-Life Considerations

The environmental impact of transformers extends beyond their operation and includes their end-of-life disposal. Transformers contain materials like oil, metals, and plastics, which must be managed responsibly to prevent pollution and waste accumulation.

• Recyclability: Materials like copper, aluminum, and steel are highly recyclable, which is a key consideration in reducing the environmental impact of transformers. Aluminum and copper can be recovered and reused in new transformers or other electronic devices, contributing to a circular economy.
• Insulation disposal: Traditional oil-based insulating fluids have raised environmental concerns due to their potential to leak into the environment during accidents or aging. Modern transformers are moving toward biodegradable oils or solid insulation to address these concerns.

In this context, choosing materials that are sustainable and easily recyclable at the end of their life cycle is a growing priority in transformer manufacturing.

3. Minimizing Hazardous Materials

Regulatory frameworks, such as the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulation in Europe and RoHS (Restriction of Hazardous Substances) in electronic devices, are increasingly pushing for the elimination of hazardous materials in the manufacturing process. Transformers are not exempt from these regulations, and manufacturers must avoid substances such as:

• PCBs (Polychlorinated Biphenyls): Once used in transformer oils for insulation, PCBs have been banned due to their toxic properties and environmental persistence.
• Lead and other heavy metals: Lead has historically been used in transformer components, but its toxicity has prompted the search for safer alternatives.

By choosing non-toxic materials that comply with international standards, manufacturers not only avoid legal and environmental risks but also contribute to a cleaner, healthier planet.

How Do Economic Considerations Impact Material Selection?

While environmental sustainability is crucial, economic factors also play a significant role in the selection of materials for transformer design. Manufacturers must balance the costs of materials with the overall performance requirements of the transformer, ensuring that the final product is affordable for consumers while meeting operational standards.

1. Material Cost and Availability

The cost and availability of materials are primary economic considerations. Some high-performance materials, like copper and high-grade silicon steel, offer superior efficiency but come at a higher cost. In contrast, materials such as aluminum are less expensive but may not provide the same performance under heavy load conditions.

• Copper vs. Aluminum: Copper offers better conductivity and higher efficiency but is more expensive and heavier. Aluminum is more cost-effective and lightweight but may require larger conductors to achieve the same performance. The decision to use either material depends on the specific performance requirements and budget of the transformer.
• Core steel: Amorphous steel, while more expensive, can reduce energy losses by up to 70% compared to traditional silicon steel, leading to long-term savings in energy consumption. The higher initial cost may be justified by lower operational costs over the transformer’s life cycle.

The choice of materials will depend on the project's budget, the anticipated energy savings, and the expected lifespan of the transformer. Manufacturers often use a cost-benefit analysis to decide on the most appropriate materials.

2. Life Cycle Cost (LCC) Analysis

When selecting materials, transformer manufacturers often perform a life cycle cost (LCC) analysis, which evaluates the total cost of ownership over the transformer's entire operational life. This analysis considers factors such as:

• Initial capital cost of materials and construction
• Operating costs, including energy losses and cooling requirements
• Maintenance costs, which can vary depending on the materials used (e.g., oil changes for oil-immersed transformers)
• Decommissioning and recycling costs at the end of the transformer’s life

By taking a long-term view of the cost factors involved, manufacturers can select materials that offer the best balance of performance, sustainability, and economic viability.

3. Availability of Alternatives

Another important economic consideration is the availability of alternative materials. As supply chains become more globalized and certain materials become scarce or expensive, manufacturers may need to explore alternative materials to meet demand.

• Alternative cooling methods: For instance, instead of relying solely on mineral oil, manufacturers might explore synthetic oils or natural ester oils, which offer competitive cooling performance but can sometimes be more expensive.
• Alternative insulation: Solid insulation materials, such as epoxy resins, are increasingly being used as alternatives to oil-based solutions. These materials might be more expensive initially, but they may require less maintenance and extend the life of the transformer, ultimately reducing long-term costs.

---

Conclusion

Choosing the right materials for a transformer is crucial to its overall performance, efficiency, and long-term durability. Each material serves a specific function and should be selected based on the operating conditions, load requirements, and expected lifespan of the transformer.

1. Core Material: The core of a transformer is responsible for transferring the magnetic flux between the primary and secondary windings. The core material must have high magnetic permeability and low core loss. Typically, silicon steel is used for transformer cores because of its excellent magnetic properties and low loss at high frequencies. Additionally, laminated cores reduce eddy current losses, which are critical for high-efficiency transformers.

2. Winding Material: The winding material has a significant impact on the conductivity and thermal management of the transformer. The two most common winding materials are copper and aluminum:

   • Copper: Offers better conductivity and thermal efficiency, though it is more expensive than aluminum. It is typically used in high-efficiency and high-load transformers.
   • Aluminum: More affordable and lighter than copper, but has lower conductivity. It is often used in lower-power transformers where cost is a significant factor, and efficiency demands are less stringent.

3. Insulation Material: Insulation materials prevent electrical shorts between windings and between windings and the core. Several materials are used for different insulation components:

   • Paper insulation: Used in combination with oil in traditional oil-filled transformers, providing high dielectric strength and thermal resistance.
   • Resins and varnishes: These are used to insulate the winding coils in dry-type transformers. They offer high resistance to electrical breakdown and mechanical stress.
   • Ceramic insulation: Used for high-temperature or high-voltage applications due to its exceptional dielectric strength.
   • Mineral oil or synthetic oil: Provides both cooling and insulation in oil-immersed transformers. It is important to select oil with a high dielectric strength and good heat dissipation properties.

4. Cooling Material: Cooling is critical in transformers to maintain safe operating temperatures and ensure optimal performance. The most common cooling methods are:

   • Oil cooling: Oil acts as both a coolant and an insulator in oil-immersed transformers. The choice of oil (e.g., mineral oil, vegetable oil, or synthetic oils) affects heat dissipation, fire resistance, and environmental impact.
   • Air cooling: Often used in dry-type transformers, air cooling is effective in environments where the transformer does not experience high loads or where oil-based cooling may pose a risk.
   • Gas cooling: Some transformers use SF6 gas or other insulating gases to provide cooling and insulation, especially in high-voltage applications.

5. Environmental and Economic Considerations: The selection of materials also depends on economic factors and the environmental impact of materials. For example, eco-friendly oils or vegetable-based oils are becoming more popular in place of mineral oil for transformers used in environmentally sensitive areas. Additionally, cost constraints can influence the choice between copper and aluminum windings, and sustainability factors can guide the selection of materials that have lower environmental impacts over their life cycles.

In conclusion, selecting the right materials for transformers involves balancing factors such as performance, cost, environmental impact, and reliability. Core materials, winding conductors, insulation, and coolants must all be chosen carefully to ensure that the transformer operates efficiently, safely, and with minimal environmental impact over its lifespan.

FAQ

Q1: What are the key materials used in transformers?
A1: The key materials used in transformers include the core material (typically silicon steel or amorphous steel), conductor materials (usually copper or aluminum), insulation materials (such as paper, oil, or synthetic resin), and cooling fluids (such as transformer oil). These materials are selected based on their electrical, thermal, and mechanical properties to ensure transformer efficiency and reliability.

Q2: Why is silicon steel commonly used for transformer cores?
A2: Silicon steel is widely used for transformer cores due to its excellent magnetic properties, which help reduce energy losses. The material’s high permeability allows it to efficiently channel magnetic flux with minimal heat generation. Additionally, silicon steel’s ability to withstand high magnetic fields makes it ideal for transformers, enhancing their overall efficiency.

Q3: How do conductor materials like copper and aluminum affect transformer performance?
A3: Copper and aluminum are the primary conductor materials in transformers. Copper has a lower resistivity than aluminum, meaning it offers better electrical conductivity and lower energy losses. However, aluminum is lighter and less expensive, making it a cost-effective alternative in certain applications. The choice between copper and aluminum depends on factors like cost, weight, and performance requirements.

Q4: What factors should be considered when choosing insulation materials for transformers?
A4: When choosing insulation materials, factors such as dielectric strength, thermal resistance, moisture resistance, and durability are essential. Common insulation materials include paper, synthetic resins, and oil. The insulation must withstand high voltages, prevent electrical discharges, and protect against overheating, ensuring safe and reliable transformer operation over time.

Q5: How do cooling fluids affect transformer material selection?
A5: Cooling fluids, such as transformer oil, play a critical role in maintaining transformer temperature and performance. The oil provides electrical insulation and dissipates heat generated during operation. The quality and properties of the cooling fluid must be considered when selecting materials, as it must be compatible with the core and conductor materials and capable of withstanding high temperatures without degrading.

References

"Materials Used in Transformer Design and Their Performance" - https://www.transformertech.com/materials-for-transformers - Transformer Tech

"Choosing the Right Transformer Core Material" - https://www.powermag.com/transformer-core-materials - Power Magazine

"Understanding the Role of Conductors in Transformer Efficiency" - https://www.electrical4u.com/transformer-conductors - Electrical4U

"Insulation Materials in Transformers: Selection Criteria" - https://www.sciencedirect.com/topics/engineering/transformer-insulation - ScienceDirect

"The Impact of Cooling Fluids on Transformer Materials" - https://www.researchgate.net/transformer-cooling-fluid - ResearchGate

"Role of Materials in Improving Transformer Efficiency" - https://www.smartgridnews.com/materials-transformers-efficiency - Smart Grid News

"Material Selection in Transformer Manufacturing" - https://www.energycentral.com/c/ee/transformer-materials - Energy Central

"Transformer Materials: Performance and Durability Considerations" - https://www.powergrid.com/materials-for-transformers - PowerGrid
