Transformers are crucial components of electrical power systems, ensuring the safe and efficient transmission of electricity. Since they often operate under high-stress conditions and are exposed to various environmental factors, their durability is of utmost importance. A transformer’s performance and longevity are impacted by factors such as load fluctuations, operating environment, and maintenance practices. Improving transformer durability not only helps in reducing the frequency of repairs and replacements but also ensures the overall stability and efficiency of the power grid. In this article, we will explore several strategies and best practices for enhancing transformer durability, from design considerations to operational and maintenance practices.
What Factors Affect the Durability of Transformers?
Transformers are the backbone of modern electrical grids, responsible for stepping up or stepping down voltage to ensure efficient power transmission and distribution. However, the durability of transformers is crucial for their longevity, reliability, and efficient operation. Various factors can impact their lifespan and performance, ranging from environmental conditions to operational stresses. Understanding these factors is essential for maintaining transformers and preventing premature failures that can lead to costly repairs and power outages.
In this article, we’ll explore the primary factors that affect transformer durability, including operational stresses, environmental influences, design considerations, and maintenance practices. By identifying these key aspects, you can take proactive measures to enhance transformer lifespan and reliability.
Key Factors that Affect the Durability of Transformers
1. Load Conditions and Overloading
One of the most significant factors affecting transformer durability is the load it operates under. Transformers are designed to operate within specific load limits, and exceeding these limits can lead to overheating, insulation degradation, and mechanical stress.
- Overloading: When transformers are subjected to loads higher than their rated capacity, the increased electrical current results in excessive heat generation. Over time, this heat can deteriorate the insulation, leading to reduced efficiency, frequent breakdowns, and a shortened lifespan.
- Frequent Load Changes: Transformers that frequently experience load fluctuations, such as in industrial settings, are exposed to more stress, which accelerates wear and tear on components like the windings and insulation.
Proper load management and avoiding consistent overloading are critical for ensuring transformer longevity.
2. Ambient Temperature and Environmental Conditions
The operating environment, particularly the ambient temperature, plays a crucial role in determining the durability of a transformer.
- Temperature Extremes: Extreme heat accelerates the aging process of transformer components, especially insulation materials. Higher temperatures cause the transformer oil to break down, leading to increased chances of overheating and insulation failure.
- Humidity and Moisture: Transformers in humid environments are prone to moisture buildup, which can seep into the oil or insulation, resulting in electrical conductivity that can cause shorts, arcing, or insulation failure. Additionally, moisture can cause the transformer oil to lose its cooling and insulating properties, increasing the likelihood of overheating.
- Pollution: Dust, chemicals, and pollutants in the surrounding air can accumulate on the transformer’s external surfaces, compromising heat dissipation and insulating properties.
Transformers installed in areas with high temperature variations, humidity, or pollution need enhanced protective measures to ensure their durability.
3. Transformer Design and Quality of Materials
The design of the transformer and the quality of materials used in its construction are foundational to its long-term durability.
- Core and Windings Construction: Transformers with high-quality cores and windings made from durable, high-grade materials, such as high-conductivity copper or premium steel, are less prone to damage over time. Proper winding techniques and design also minimize the risk of short circuits and overheating.
- Insulation Materials: The type and quality of insulation materials—whether solid, liquid, or gas—greatly influence the transformer’s ability to withstand electrical stress and heat. Poor-quality or deteriorated insulation increases the likelihood of transformer failure.
- Cooling System Design: A well-designed cooling system ensures the transformer can dissipate heat effectively, reducing the strain on the internal components. A poorly designed cooling system can cause localized overheating, leading to insulation degradation and, ultimately, transformer failure.
Designing a transformer with high-quality materials, optimized components, and an efficient cooling system can substantially enhance its durability.
4. Overheating and Thermal Stress
Heat is the primary enemy of transformer components, particularly the insulation system. The more a transformer is exposed to thermal stress, the more its internal components degrade over time.
- Insulation Degradation: Continuous exposure to high temperatures can cause the insulation to lose its dielectric strength, making it prone to electrical breakdown. This can lead to short circuits, insulation failures, and eventual transformer failure.
- Oil Breakdown: Transformer oil serves a dual purpose of both cooling and insulating the components. Excessive heat causes the oil to break down, releasing harmful gases and reducing its ability to absorb heat effectively. This further exacerbates the overheating problem.
Effective temperature management, including cooling systems and temperature monitoring, is essential to prevent overheating and thermal damage.
5. Vibration and Mechanical Stress
Mechanical stress and vibrations also contribute significantly to the wear and tear of transformer components.
- Core and Windings: Vibration from electrical load variations and external mechanical forces can affect the stability of the transformer’s core and windings. Over time, vibrations can lead to physical damage, such as loosening of the windings, insulation breakdown, or the development of internal faults.
- External Shocks: Transformers exposed to sudden mechanical shocks, such as from earthquakes or vehicle impacts, may experience damage to the internal components, which can lead to premature failure.
Implementing vibration damping systems and placing transformers in stable environments can help minimize these risks.
6. Oil Quality and Maintenance Practices
Transformer oil plays a vital role in both insulation and cooling. The condition of the oil directly impacts the overall durability of the transformer.
- Oil Contamination: Contaminants such as water, sludge, and air can compromise the oil’s insulating properties, leading to the overheating of transformer components. Regular oil testing and filtration are essential to prevent contamination.
- Aging of Oil: Over time, transformer oil undergoes oxidation, which reduces its efficiency as a coolant and insulator. Regular oil replacement and rejuvenation are essential for maintaining transformer health.
- Regular Maintenance: Routine maintenance, including oil checks, cleaning, and inspection of internal components, helps to identify potential issues early on, extending the transformer’s life.
Proper maintenance practices, including oil management and periodic inspections, are crucial for ensuring transformer durability.
7. Electrical Transients and Surges
Electrical surges and transients, often caused by lightning strikes, switching operations, or faults in the electrical network, can severely impact transformer performance.
- Voltage Spikes: A sudden spike in voltage can stress the insulation and cause breakdowns. Surge protectors and surge arresters are essential to protect transformers from the damaging effects of electrical transients.
- Switching Surges: Transformers experience stress when switching between different operating conditions or when loads are abruptly changed. This can cause transient voltages, which over time can degrade insulation and cause electrical faults.
Installing surge protection devices and employing controlled switching techniques can reduce the impact of these electrical transients.
8. Age and Wear Over Time
Like any mechanical system, transformers are subject to wear and tear as they age. The accumulation of minor issues over time can lead to major failures if not addressed.
- Aging Insulation: The aging process degrades the insulation materials, which lowers the transformer’s ability to withstand electrical stress and temperature fluctuations.
- Decreased Efficiency: Over time, the transformer’s ability to operate efficiently may degrade due to the accumulation of dust, contaminants, and internal wear, reducing its overall performance.
To combat the effects of aging, regular inspections, oil and insulation testing, and component replacements are necessary to maintain transformer efficiency.
Table: Factors Affecting Transformer Durability
| Factor | Impact on Durability | Recommended Action |
|---|---|---|
| Load Conditions | Overloading can cause overheating, reducing lifespan. | Monitor load and avoid consistent overloading. |
| Ambient Temperature | High temperatures accelerate aging of components. | Install transformers in cool, ventilated areas. |
| Vibration | Mechanical stress can cause physical damage to components. | Use vibration damping and avoid external shocks. |
| Oil Quality | Poor-quality oil reduces cooling and insulation. | Regular oil testing, filtering, and replacement. |
| Electrical Surges | Surge events cause insulation breakdown. | Install surge arresters and manage switching surges. |
| Aging of Insulation | Aging insulation reduces dielectric strength. | Schedule regular inspections and replace aging components. |
How Does Load Management Contribute to Transformer Longevity?
Transformers are key components in power systems, ensuring efficient voltage transformation for electricity transmission and distribution. However, the lifespan of a transformer is significantly influenced by how it is managed in relation to the electrical load it carries. Load management—the process of regulating and controlling the amount of electrical load a transformer handles—is a critical factor in maintaining transformer longevity. Without proper load management, transformers can experience premature aging, overheating, and failure, which can disrupt power delivery and result in costly repairs or replacements.
In this article, we will explore how load management impacts transformer longevity, identify the risks associated with poor load management, and provide best practices for optimizing transformer load conditions to enhance durability.
Why is Load Management Critical for Transformer Longevity?
1. Overloading and Thermal Stress
Transformers are designed to handle specific maximum loads, and exceeding these limits can put substantial stress on the transformer’s internal components. The most critical aspect of overloading is the heat generated by excess current. Here’s how overloading impacts the transformer:
- Excessive Heat Generation: When a transformer operates above its rated load capacity, the increased electrical current generates more heat. Heat is one of the leading causes of transformer wear and tear. The higher the operating temperature, the more rapidly insulation materials and components deteriorate, reducing the transformer's lifespan.
- Insulation Degradation: Insulation materials, especially those made from paper, oil, or resin, are highly sensitive to temperature. Extended exposure to high temperatures accelerates the breakdown of these materials, leading to reduced dielectric strength and an increased risk of electrical failure.
Effective load management ensures that transformers do not exceed their rated load, keeping operating temperatures within safe limits. This helps prevent thermal stress, preserving insulation and other key components for a longer service life.
2. Load Fluctuations and Frequent Start-Stop Cycles
Another key aspect of load management is minimizing frequent load fluctuations. Transformers subjected to frequent starts and stops or rapid changes in load experience additional mechanical and thermal stresses.
- Mechanical Stress: Each time a transformer’s load changes abruptly, it experiences a mechanical shock. This shock can lead to loosening of the windings or damage to the core, reducing the transformer’s efficiency and lifespan.
- Thermal Stress: Sudden load fluctuations also result in thermal stress, as the transformer rapidly heats up or cools down. Repeated cycles of temperature changes can fatigue the transformer’s components, particularly the insulation and oil, causing them to age prematurely.
Managing load changes carefully and ensuring that transformers operate under steady loads (or at least within acceptable ranges) can significantly reduce thermal and mechanical stresses.
3. Avoiding Prolonged Overload Conditions
Prolonged overloading is one of the most detrimental conditions for transformer health. Although transformers are designed to handle temporary overloads, sustained overloading can have long-term detrimental effects.
- Transformer Oil Degradation: Prolonged overloading leads to higher temperatures for extended periods, which accelerates the degradation of transformer oil. The oil is essential for cooling and insulation. As it breaks down, it loses its ability to perform both functions effectively, leading to even higher temperatures and potentially causing a catastrophic failure.
- Accelerated Insulation Wear: The insulation inside the transformer, especially paper-based insulation, has a limited tolerance for heat. Prolonged overheating results in the insulation becoming brittle and losing its dielectric properties, eventually causing breakdowns and short circuits.
By ensuring that the transformer’s load is regulated and monitored, the risk of prolonged overload conditions is minimized, protecting both the oil and insulation from premature degradation.
Best Practices for Effective Load Management
1. Regular Load Monitoring
Regular monitoring of the electrical load is essential to ensure that transformers are operating within their designed limits. Modern transformers often come equipped with real-time monitoring systems that allow operators to keep track of current, voltage, and load conditions. These systems can alert operators if the transformer is approaching overload conditions, providing ample time to make adjustments.
- Automated Load Shedding: In some cases, automated systems can temporarily reduce load or shed non-essential loads to prevent overloading. This ensures that the transformer remains within safe operating parameters and prevents overheating.
2. Load Forecasting and Distribution
Proper load forecasting helps utilities plan ahead for demand fluctuations and optimize transformer load distribution across a network. Utilities should strive to distribute loads evenly across transformers to prevent overburdening any single unit.
- Peak Load Management: During periods of high demand (such as summer or winter), load management systems can help balance demand and supply across the network, ensuring no transformer is subjected to extreme overloads.
- Dynamic Load Balancing: Load balancing technologies can adjust the load distribution dynamically to optimize transformer efficiency and prevent individual transformers from exceeding their rated capacities.
3. Avoiding Continuous Operation at Full Capacity
While transformers are designed to handle their rated capacity, running them at full capacity for prolonged periods can accelerate wear and increase the risk of failure. It’s advisable to operate transformers at a margin below their full rated capacity to ensure they have an operational buffer.
- Service Factor: The service factor is a measure of how much load a transformer can handle beyond its rated capacity for short periods. Operating a transformer consistently at or near its service factor increases the likelihood of overheating and insulation breakdown. By maintaining a safety margin, the transformer’s components will experience less stress, and the transformer will last longer.
4. Scheduled Maintenance and Load Management
Scheduled maintenance is vital for ensuring that transformers remain in optimal condition. Regular inspections, oil testing, and insulation checks help to identify potential problems early, before they lead to failure.
- Oil Replacement and Filtration: Transformer oil should be replaced or filtered regularly to prevent contamination. Dirty or degraded oil exacerbates overheating, increasing the risk of transformer damage under high load conditions.
- Windings Inspection: Periodic checks on the windings and insulation can help identify early signs of thermal stress or degradation, allowing operators to take corrective action before significant damage occurs.
Impact of Poor Load Management on Transformer Lifespan
When load management is inadequate, transformers are subjected to a range of stresses that accelerate their wear and tear. Here are the primary impacts of poor load management:
- Reduced Transformer Efficiency: Overloading and frequent load changes reduce the transformer’s efficiency, as it requires more energy to operate and experiences more losses in the form of heat.
- Increased Maintenance Costs: Poor load management leads to more frequent transformer failures, resulting in higher repair and replacement costs.
- Shortened Lifespan: Prolonged overloading and thermal stress can shorten the lifespan of transformers significantly, reducing their service life from decades to just a few years.
Effective load management practices, on the other hand, help extend transformer life, maintain system reliability, and reduce the risk of sudden failures.
Table: Effects of Load Management on Transformer Longevity
| Load Management Practice | Effect on Transformer Longevity | Recommended Action |
|---|---|---|
| Regular Load Monitoring | Ensures transformer operates within safe limits, preventing overloading and overheating. | Implement real-time monitoring systems for early detection. |
| Load Forecasting | Balances transformer load distribution, preventing overloads during peak demand periods. | Optimize load forecasting and distribution. |
| Avoiding Prolonged Full Load Operation | Prevents thermal stress and extends the lifespan of insulation and oil. | Maintain a margin below the rated capacity. |
| Scheduled Maintenance | Identifies wear and tear early, allowing for corrective actions before failure. | Perform regular inspections and oil testing. |
How Do Cooling Systems Impact Transformer Durability?
The durability and efficiency of transformers, which are crucial components in the power transmission and distribution system, are significantly influenced by the effectiveness of their cooling systems. Cooling systems help maintain optimal operating temperatures and prevent overheating, which can lead to the degradation of materials, shortened lifespan, and operational failures. Understanding how these systems work and their impact on transformer longevity is critical for ensuring long-term reliability and performance.
In this article, we will explore how cooling systems directly affect transformer durability, the risks associated with poor cooling, and best practices for maintaining transformer health through efficient cooling solutions.
The Role of Cooling Systems in Transformer Durability
Transformers operate by transferring electrical energy through coils and magnetic fields. As electricity flows through these components, heat is generated as a byproduct. If this heat is not effectively managed, it can lead to overheating, which in turn causes severe damage to the transformer’s internal components. Cooling systems prevent this by maintaining safe operating temperatures and ensuring that the transformer operates within its optimal thermal range.
1. Preventing Overheating and Thermal Damage
One of the most direct consequences of poor cooling is overheating. Excessive heat in a transformer can cause the following issues:
-
Insulation Degradation: The insulation materials, such as oil, paper, and synthetic compounds, are sensitive to high temperatures. When a transformer operates at higher temperatures than it is designed for, these materials break down, losing their ability to insulate effectively. This results in reduced dielectric strength, increased risk of short circuits, and potential transformer failure.
-
Accelerated Aging: High temperatures can accelerate the aging process of the transformer’s internal components. The insulation becomes brittle, and the transformer’s mechanical components can experience thermal expansion, leading to cracks or physical damage that affects performance and longevity.
2. Enhancing Heat Dissipation Efficiency
The primary role of a cooling system is to enhance the dissipation of heat generated within the transformer. Effective heat dissipation prevents the internal temperature from exceeding safe levels, which prolongs the life of critical transformer components, including windings, insulation, and bushings.
-
Increased Efficiency: Cooling systems not only maintain transformer health but also ensure that the transformer operates more efficiently. When transformers run at optimal temperatures, they experience less energy loss through heat, which improves their operational performance and reduces the need for energy-hungry cooling measures.
-
Prevention of Thermal Stress: By maintaining a stable temperature, cooling systems reduce the risk of thermal stress. Transformers are subject to cyclical heating and cooling as they handle fluctuating loads. Effective cooling systems ensure that the transformer is not subject to extreme temperature swings that could cause material fatigue and mechanical failure.
3. Extending Transformer Lifespan
Efficient cooling systems contribute directly to extending transformer lifespan by mitigating the risks of thermal damage and mechanical stress. Proper temperature control allows transformers to operate at their designed capacity for a longer period without the risk of early failure due to excessive heat.
-
Optimized Oil Cooling: Oil cooling is a widely used method in larger transformers. The oil not only acts as an insulating medium but also absorbs heat from the core and windings. It circulates through the transformer and carries the heat away to external cooling equipment, ensuring the temperature stays within safe operating limits.
-
Air and Gas Cooling: Smaller transformers often rely on air or gas cooling. While not as efficient as oil, these systems still help to regulate temperature by drawing in cooler air or gas and expelling the warm air from the transformer. Though these systems are less robust, they can still be effective for transformers with lower power ratings.
The Different Types of Transformer Cooling Systems
There are several types of cooling systems employed in transformers, each with its specific application and benefits. The type of cooling used directly affects the transformer’s efficiency, durability, and longevity.
1. Oil Immersion Cooling (ONAN, ONAF, OFAF)
Oil immersion cooling is one of the most commonly used cooling methods for large power transformers. The transformer is filled with insulating oil that absorbs heat from the transformer core and windings. The oil is then circulated, either by natural convection or by forced circulation, through external heat exchangers or radiators.
- ONAN (Oil Natural, Air Natural): This is the simplest cooling type, where the oil naturally circulates through the transformer due to the heat generated inside. The air around the transformer cools the oil.

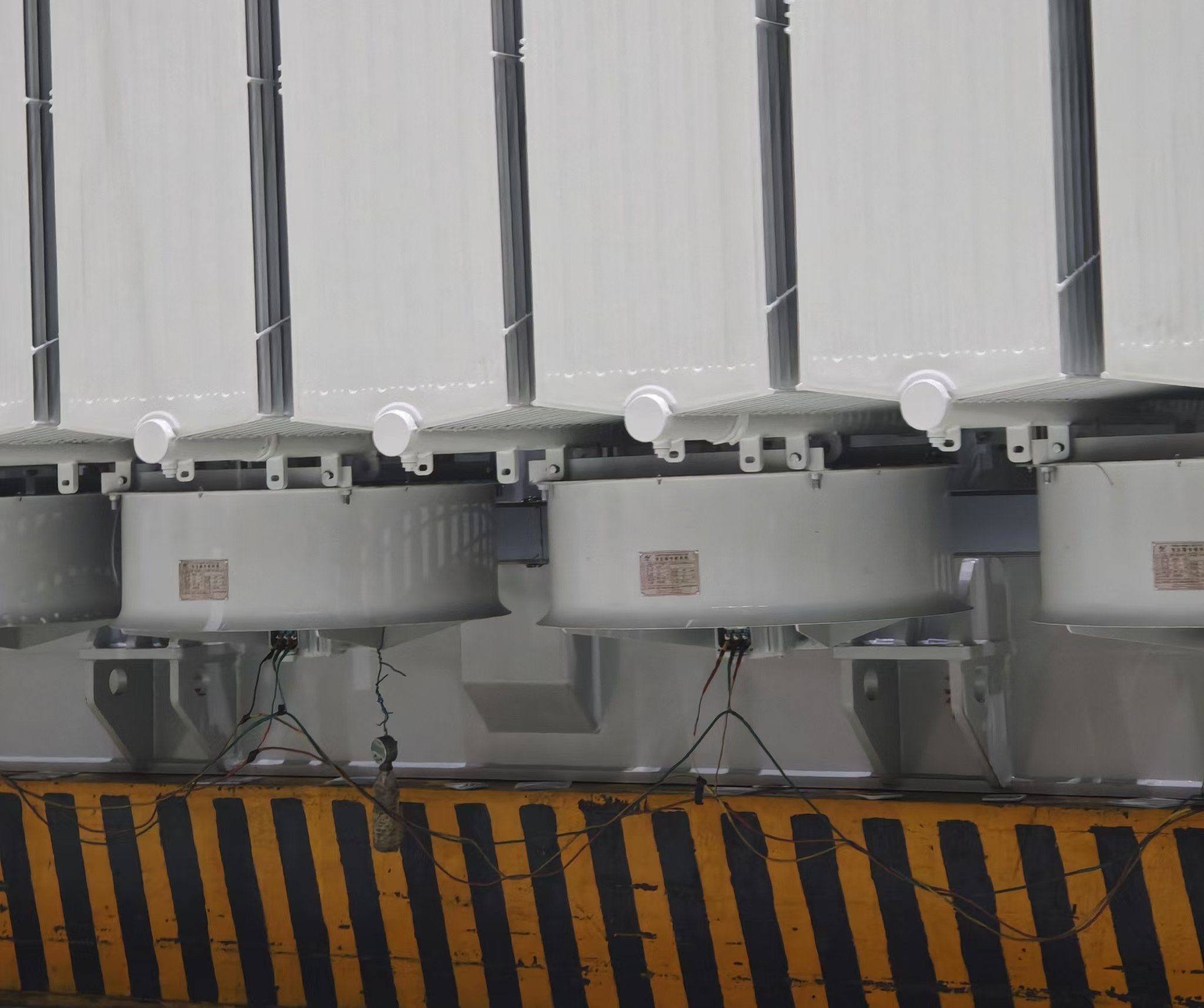

- ONAF (Oil Natural, Air Forced): In this type, the oil is naturally circulated, but fans force air across the external radiators to enhance cooling.
- OFAF (Oil Forced, Air Forced): This is the most advanced type of oil cooling. In this system, both the oil and air are actively circulated with pumps and fans to increase heat dissipation.
Benefits:
- High efficiency in cooling large transformers.
- Oil serves as both an insulating and cooling medium, enhancing overall performance.
2. Air Cooling (AN, AF)
Air cooling systems rely on the natural or forced movement of air to cool transformers. These systems are typically used for smaller transformers or in environments where oil-filled systems are impractical.
- AN (Air Natural): This is the most basic type of cooling, where natural air convection removes heat from the transformer.
- AF (Air Forced): Fans are used to force air through the transformer, providing enhanced cooling compared to natural convection.
Benefits:
- Simple and low-cost cooling solution for smaller transformers.
- No need for oil or other fluids, making it less complex in maintenance.
3. Gas Insulated Transformers (GIT)
Gas-insulated transformers use an insulating gas, typically SF6 (sulfur hexafluoride), instead of air or oil. SF6 is a potent insulator and has excellent thermal properties, making it suitable for transformers in compact spaces or areas where fire risk is a concern.
Benefits:
- Smaller and more compact compared to traditional oil-filled transformers.
- Enhanced safety and reliability due to the use of insulating gas.
4. Hybrid Cooling Systems
Some modern transformers incorporate hybrid cooling systems, which combine various methods (e.g., oil and air cooling) to provide superior heat dissipation and energy efficiency.
Table: Cooling Methods and Their Impact on Transformer Durability
| Cooling Method | Transformer Size | Cooling Efficiency | Impact on Durability | Recommended Usage |
|---|---|---|---|---|
| ONAN | Large | Moderate | Prevents overheating, but limited for heavy-duty use. | Standard for smaller and mid-sized power transformers. |
| ONAF | Large | High | Prolongs transformer life by maintaining optimal temperature. | Common for medium to large power transformers. |
| OFAF | Very Large | Very High | Maximizes cooling and transformer longevity. | Used in high-power applications requiring extensive cooling. |
| AN | Small | Low to Moderate | Suitable for low-power transformers in stable environments. | Ideal for small transformers in non-demanding environments. |
| AF | Small to Medium | Moderate | Provides adequate cooling for smaller transformers. | Used when fan-assisted cooling is required. |
| Gas Insulated | Compact, Medium | Very High | Enhances durability due to excellent thermal properties of SF6. | Used in space-constrained areas or where fire risk is high. |
How Can Regular Maintenance Extend Transformer Life?
Transformers are essential components in the electrical grid, responsible for stepping up or stepping down voltages to ensure electricity flows efficiently over long distances. Given their vital role, ensuring transformers remain operational for as long as possible is a top priority for utilities and industries. One of the most effective ways to maximize transformer longevity and prevent costly breakdowns is through regular maintenance.
In this article, we’ll explore how regular maintenance plays a crucial role in extending the life of transformers, preventing unexpected failures, and ensuring reliable power distribution. By understanding the core aspects of transformer maintenance, operators can keep transformers running at peak efficiency, avoid premature wear, and safeguard against major repairs.
Why Is Regular Maintenance Important for Transformers?
Transformers, like all machinery, experience wear and tear over time. Factors such as electrical stress, thermal fluctuations, mechanical vibrations, and environmental conditions can gradually degrade a transformer’s components, even if it seems to be functioning normally. Regular maintenance helps address these issues before they cause significant damage, reducing the risk of catastrophic failure and extending the service life of the transformer.
By following a maintenance schedule that includes inspections, testing, and cleaning, transformers can continue to operate effectively, minimizing downtime and the need for emergency repairs.
How Regular Maintenance Extends Transformer Life
Regular maintenance ensures that transformers operate within their optimal parameters, preventing issues that could lead to overheating, mechanical failure, or insulation breakdown. Below are key ways maintenance helps to extend transformer life:
1. Preventing Overheating and Insulation Damage
One of the main causes of transformer failure is overheating, which can degrade insulation materials and cause electrical shorts. Regular maintenance ensures that the transformer’s cooling system—whether oil, air, or gas—is functioning properly, helping to dissipate heat efficiently.
-
Oil Levels and Quality Checks: For oil-cooled transformers, regular maintenance involves checking oil levels and ensuring the oil is free from contaminants like water, dust, or acid. Over time, transformer oil can degrade, losing its insulating and cooling properties. Replacing the oil when necessary and maintaining its purity prevents overheating and prolongs the life of the transformer.
-
Cooling System Inspections: Cooling systems such as fans, radiators, and heat exchangers must be inspected periodically. Blocked air vents or malfunctioning cooling fans can cause the transformer to overheat, increasing the risk of insulation damage. Regular cleaning and maintenance of cooling components help maintain an optimal temperature for the transformer.
2. Detecting and Fixing Minor Issues Early
Many transformer failures are preceded by warning signs, such as unusual noise, vibrations, or temperature spikes. Regular maintenance provides an opportunity to detect and address these early indicators before they evolve into major problems.
-
Thermographic Inspections: Using infrared thermography, maintenance personnel can inspect the transformer for hotspots that indicate electrical issues. This non-invasive method helps identify potential problems with the windings or core, allowing for proactive repairs.
-
Partial Discharge Testing: Partial discharge is a type of electrical breakdown that can damage insulation materials. Routine partial discharge testing can detect these discharges early, allowing maintenance teams to take corrective action before the transformer is compromised.
3. Cleaning and Preventing Contamination
Dust, dirt, and moisture can accumulate on transformer components over time, leading to corrosion or electrical shorts. Regular cleaning of external parts, such as bushings, tap changers, and radiator fins, is essential for maintaining transformer health.
-
Bushing and Tap Changer Cleaning: Regular cleaning of these components prevents build-up that could interfere with their functioning, ensuring that the transformer operates smoothly and safely.
-
Environmental Controls: In environments with high humidity or pollution, regular maintenance should include sealing entry points and checking for moisture in oil-filled transformers. The presence of moisture can lead to corrosion or electrical arcing, significantly reducing the transformer’s lifespan.
4. Testing Electrical Connections and Tap Changers
Loose or corroded electrical connections can create resistance, leading to localized heating, inefficiency, or even catastrophic failure. By testing electrical connections and ensuring tightness, maintenance professionals can prevent these problems.
-
Tap Changer Inspections: Tap changers adjust the voltage within the transformer. Regular maintenance ensures that the tap changers operate smoothly and are free from wear or mechanical failure, which could disrupt transformer performance.
-
Winding and Core Inspections: Over time, the transformer’s windings can experience degradation or physical damage. Regular maintenance inspections identify these issues early and allow for rewinding or repairs before failure occurs.
Best Practices for Regular Transformer Maintenance
To maximize the lifespan of transformers, operators should follow a set of best practices that include preventive, predictive, and corrective maintenance. These practices, when combined, ensure that the transformer continues to operate at its highest efficiency and reliability.
1. Preventive Maintenance (PM)
Preventive maintenance focuses on routine inspections, cleaning, and system checks to prevent issues from developing. Key preventive maintenance tasks include:
- Checking oil levels and quality for oil-filled transformers.
- Testing the performance of cooling systems (fans, radiators, pumps).
- Inspecting bushings, tap changers, and other external components.
- Monitoring load and temperature data for signs of excessive stress.
2. Predictive Maintenance (PdM)
Predictive maintenance involves using advanced diagnostic tools and sensors to predict potential failures before they happen. Key predictive tasks include:
- Using thermographic cameras to detect overheating or hotspots.
- Employing vibration analysis to monitor the mechanical health of the transformer.
- Performing partial discharge testing to check for insulation degradation.
3. Corrective Maintenance (CM)
Corrective maintenance addresses issues that have been identified during inspections or through predictive maintenance. While corrective tasks are reactive in nature, they should be performed promptly to prevent further damage. These tasks include:
- Replacing or repairing damaged parts such as bushings or tap changers.
- Replacing transformer oil if it has become contaminated or degraded.
- Performing repairs to cooling systems or fans that are malfunctioning.
The Benefits of Regular Transformer Maintenance
Regular maintenance brings several benefits, including:
- Increased Transformer Lifespan: With regular upkeep, transformers are less likely to experience premature failure, allowing them to last longer and perform efficiently.
- Reduced Risk of Failures: Routine inspections and testing can catch problems early, reducing the likelihood of sudden failures that could disrupt power delivery.
- Improved Performance and Efficiency: Well-maintained transformers operate more efficiently, reducing energy losses and improving overall system reliability.
- Cost Savings: By addressing issues before they escalate, regular maintenance helps reduce the need for expensive emergency repairs or replacements.
Table: Key Maintenance Tasks for Transformer Longevity
| Maintenance Task | Frequency | Purpose/Benefit |
|---|---|---|
| Oil Quality Check | Annually or biannually | Ensures oil remains pure and effective for insulation and cooling. |
| Cooling System Inspection | Quarterly or semi-annually | Prevents overheating by ensuring fans, pumps, and radiators work properly. |
| Partial Discharge Testing | Annually | Detects insulation breakdown early to prevent failures. |
| Bushing and Tap Changer Inspection | Annually | Prevents electrical faults and mechanical failures. |
| Cleaning of External Components | Annually or as needed | Keeps dust, dirt, and moisture from affecting performance. |
| Thermographic Inspections | Annually | Identifies hot spots to prevent overheating. |
What Role Do Insulation Materials Play in Improving Transformer Durability?
Transformers are the backbone of modern electrical systems, enabling the efficient transmission and distribution of electrical energy. To ensure these vital devices operate optimally for extended periods, it is crucial to have reliable insulation materials. Insulation materials not only protect transformers from electrical faults but also play a critical role in enhancing their durability by preventing overheating, ensuring safe operation, and minimizing wear and tear.
In this article, we’ll explore the vital role insulation materials play in improving transformer durability. By examining the different types of insulation used in transformers, we’ll better understand how they help extend transformer life, reduce the risk of failures, and maintain system reliability.
Why Are Insulation Materials Crucial for Transformer Durability?
The primary function of insulation materials in transformers is to prevent electrical contact between conductive parts, ensuring that the current flows only through designated paths. Without proper insulation, electrical faults such as short circuits or arcing can occur, leading to catastrophic failures. Insulation also protects the transformer’s components from external physical forces, moisture, contaminants, and thermal stresses.
Over time, the quality of insulation can degrade due to factors such as electrical stress, heat, moisture, and mechanical vibrations. As a result, the transformer’s ability to perform optimally diminishes, and its lifespan may be shortened. High-quality insulation materials are therefore essential for ensuring that transformers function reliably and efficiently for as long as possible.
How Do Insulation Materials Improve Transformer Durability?
Insulation materials serve multiple purposes in transformers, all of which contribute to improving their durability and preventing premature failure. Below are the key ways in which insulation materials contribute to transformer longevity:
1. Protection Against Electrical Failures
Insulation is designed to withstand high electrical stresses, which are present in transformers as a result of the voltage differences between windings. If insulation degrades or fails, there’s a high risk of electrical faults such as arcing, short circuits, or dielectric breakdown. These failures can result in catastrophic damage to the transformer and pose a safety risk.
- Dielectric Strength: Insulating materials such as paper, oil, and synthetic materials possess high dielectric strength, which allows them to resist electrical breakdown even at high voltages. By maintaining this strength, insulation prevents electrical faults and extends the transformer's operational life.
2. Thermal Resistance and Heat Dissipation
Transformers generate heat during operation, particularly in their core and windings. Excessive heat can degrade insulation materials, leading to premature failure. However, high-quality insulation materials are designed to handle thermal stresses, ensuring that heat generated in the transformer is dissipated efficiently.
-
Thermal Insulation: Materials such as oil and solid insulation papers help manage the heat generated within the transformer by absorbing and transferring heat away from the core and windings. By improving heat dissipation, insulation materials prevent overheating, which could otherwise lead to insulation breakdown and transformer failure.
-
High-Temperature Resistance: Insulation materials like thermally stable papers and high-temperature oils are specifically designed to operate in high-temperature environments, ensuring the transformer’s insulation system does not degrade under normal operating conditions.
3. Moisture Prevention and Contamination Protection
Moisture and contaminants can cause severe damage to transformer insulation, leading to electrical shorts, corrosion, and reduced performance. Moisture ingress is particularly problematic in oil-filled transformers, as water contaminates the insulating oil, reducing its effectiveness.
-
Moisture Resistance: High-quality insulation materials are designed to be resistant to moisture, preventing the ingress of water into the transformer’s core and windings. By maintaining dry and clean insulation, transformers can operate more efficiently and avoid damage caused by moisture-related issues.
-
Contamination Resistance: Insulating materials like synthetic oils, solid papers, and varnishes act as barriers to prevent contaminants like dust, dirt, and acidic particles from coming into contact with sensitive transformer components.
4. Mechanical Stability and Vibration Resistance
Transformers are subject to mechanical stresses, including vibrations from the transformer’s operation and external environmental forces. Over time, these mechanical stresses can cause wear on insulation materials, leading to insulation breakdown and transformer failure.
-
Mechanical Stability: Insulation materials such as solid papers, foils, and resin-based coatings are designed to be durable and provide mechanical stability under operational conditions. This helps ensure the transformer remains intact and resilient to vibrations, shocks, and other mechanical stresses.
-
Vibration Damping: Some advanced insulation materials have inherent damping properties, which help reduce the impact of vibrations and physical stresses on transformer components. This prolongs the life of the transformer by preventing wear and tear on critical parts.
Types of Insulation Materials and Their Impact on Durability
Several types of insulation materials are used in transformers, each contributing to the overall durability and reliability of the unit. Let’s take a look at some common insulation materials and their specific roles in transformer longevity.
1. Solid Insulation
Solid insulation materials, such as paper, resin, and plastics, are widely used in transformers due to their mechanical strength, electrical insulation properties, and resistance to thermal degradation.
-
Paper Insulation: Traditionally, paper has been a common material for transformer windings and insulating layers. It provides excellent dielectric strength and thermal stability, but it must be kept dry to maintain its performance. Paper-based insulation is often impregnated with oil or synthetic resins to enhance its performance.
-
Resin Insulation: Modern transformers increasingly use resin-based insulation, which provides superior thermal and electrical insulation properties. Resin insulation is resistant to moisture and provides better mechanical strength compared to traditional paper-based insulation.
2. Liquid Insulation
Liquid insulation materials, particularly transformer oil, play a dual role in cooling and insulating transformer components.
-
Mineral Oil: Mineral oil has been the traditional choice for transformer insulation. It provides excellent electrical insulation and heat dissipation properties. However, its environmental impact and the risk of flammability have led to the exploration of alternative oils.
-
Synthetic Oils: In recent years, synthetic oils have gained popularity due to their better fire resistance, higher dielectric strength, and improved environmental friendliness. These oils help maintain stable insulation performance, even under high temperatures.
3. Gas Insulation
Gas-insulated transformers (GIT) use sulfur hexafluoride (SF6) gas or other gas mixtures to provide insulation, offering advantages in terms of compact design and enhanced safety.
-
SF6 Gas: SF6 gas is an excellent electrical insulator and offers better insulating properties than air or oil. Gas-insulated transformers are often used in areas where space is limited, as they can operate in smaller enclosures while still providing reliable insulation.
-
Other Gas Mixtures: Alternative gas mixtures are also being developed as more environmentally friendly alternatives to SF6, with the aim of reducing the carbon footprint of transformers.
4. Hybrid Insulation Systems
Some modern transformers use hybrid insulation systems that combine different materials to enhance performance and durability.
-
Paper-Oil Hybrid: The combination of paper and oil is commonly used in large power transformers. The oil helps dissipate heat, while the paper provides mechanical strength and electrical insulation. Together, they offer a robust solution for long-term transformer durability.
-
Solid-Liquid-Gas Hybrid: Some innovative transformers incorporate solid, liquid, and gas insulation systems to combine the benefits of all three materials. These systems offer enhanced safety, better heat management, and more efficient operation.
Table: Comparison of Insulation Materials for Transformers
| Insulation Material | Key Benefits | Challenges |
|---|---|---|
| Paper | Excellent dielectric strength, high temperature resistance | Vulnerable to moisture, prone to aging |
| Resin | High thermal and electrical insulation, moisture-resistant | Can be brittle under mechanical stress |
| Mineral Oil | Provides cooling and insulation, well-established | Flammable, environmental concerns |
| Synthetic Oils | Better fire resistance, higher dielectric strength | More expensive, can degrade over time |
| SF6 Gas | Excellent electrical insulation, compact design | Expensive, environmental impact of SF6 |
| Hybrid Systems | Combines strengths of multiple materials for durability | More complex systems, higher cost |
How Can Advanced Monitoring and Diagnostic Tools Improve Transformer Longevity?
Transformers are critical assets in electrical grids, ensuring the efficient transmission and distribution of power. However, like all equipment, they are susceptible to wear and tear, environmental factors, and operational stresses that can reduce their lifespan. Without proper monitoring, identifying potential issues before they lead to major failures can be challenging. This is where advanced monitoring and diagnostic tools come into play.
In this article, we’ll explore how advanced monitoring and diagnostic tools can enhance transformer longevity by providing real-time data, predictive analysis, and actionable insights. These tools help in early detection of issues, minimizing downtime, reducing maintenance costs, and ensuring transformers operate at their optimal performance levels for a longer duration.
Why Monitoring and Diagnostics Are Critical for Transformer Longevity?
Transformers are subject to various stresses, including thermal, electrical, and mechanical loads. Over time, these factors can degrade transformer components like windings, insulation, and core material, potentially leading to catastrophic failures. However, many of these issues develop gradually and may not be immediately noticeable, making it difficult to address them until it's too late.
Advanced monitoring tools allow operators to track the health of key transformer components continuously. By collecting data on factors such as temperature, vibration, oil quality, and insulation health, operators can identify early warning signs of potential failures and intervene before they escalate. This proactive approach to maintenance can significantly extend the transformer’s service life while preventing unexpected downtime and expensive repairs.
How Do Advanced Monitoring and Diagnostic Tools Work?
The role of monitoring and diagnostic tools is to provide comprehensive, real-time data on transformer performance. These tools rely on a combination of sensors, data acquisition systems, and analysis software to track critical parameters. Some of the key features and technologies involved include:
1. Temperature Monitoring
Transformers generate heat during operation, and excessive heat is one of the leading causes of transformer failure. Temperature sensors are critical in monitoring the temperature of various transformer components, including the windings, core, and insulating oil.
- Oil Temperature Sensors: These sensors measure the temperature of the insulating oil, which helps indicate the overall health of the transformer. If the temperature exceeds safe levels, it can signal overloading, inadequate cooling, or insulation degradation.
- Winding Temperature Monitoring: Winding temperature sensors are often embedded in the windings or placed in the transformer’s tap changer. Monitoring the temperature of the windings helps prevent overheating and ensures safe operation.
2. Vibration Monitoring
Mechanical stresses, such as vibrations from the transformer’s operation or external forces, can damage the transformer's core, windings, or tank. Vibration monitoring helps detect unusual vibrations that could indicate mechanical issues, such as loose parts, poor alignment, or faults in the core.
- Accelerometers: These devices measure vibrations and provide data on the amplitude, frequency, and patterns of vibration. Continuous vibration monitoring can help identify developing issues that might not be visible during routine inspections.
3. Oil Quality and Gas Monitoring
The quality of the insulating oil in the transformer is crucial to its performance. Insulating oil serves both as a dielectric material and a coolant. Over time, the oil can become contaminated with moisture, gas, or debris, which can significantly degrade its insulating properties.
- Dissolved Gas Analysis (DGA): This diagnostic tool measures the presence and concentration of gases dissolved in the transformer oil. The presence of certain gases (such as hydrogen, methane, or ethane) can indicate internal faults like overheating, arcing, or insulation degradation.
- Moisture Sensors: These sensors track moisture content in the oil, which can lead to insulation failure if not properly managed. High moisture levels are typically a sign of aging insulation or sealing issues.
- Furfural Analysis: This test measures the degradation of paper insulation in transformers by detecting furfural, a chemical compound released as paper ages due to heat and moisture exposure.
4. Partial Discharge (PD) Monitoring
Partial discharge refers to small electrical discharges that occur within the transformer insulation. These discharges are often precursors to more serious insulation breakdowns. PD monitoring tools detect these discharges and assess their severity to predict insulation failure.
- Ultrasound or Electromagnetic Sensors: These tools can detect partial discharges, often before visible symptoms appear. By tracking the intensity and frequency of PD events, operators can predict when insulation degradation may occur.
5. Load and Current Monitoring
Monitoring the electrical load and current levels is essential for ensuring that the transformer is not overloaded. Overloading can lead to excessive heat generation and stress on the transformer components, shortening its lifespan.
- Current Transformers (CTs): These devices are used to measure the current flowing through the transformer. If the current exceeds safe operating limits, it can trigger alarms to alert operators and prevent damage to the transformer.
6. Vibration, Temperature, and Gas Data Analytics
Advanced diagnostic systems use sophisticated algorithms to analyze the data collected from sensors. Machine learning techniques and predictive analytics are applied to recognize patterns that indicate potential transformer faults.
- Predictive Maintenance Software: This software uses historical data, real-time data, and machine learning models to predict transformer failures. For example, if an abnormal increase in temperature, vibration, or gas concentration is detected, the software can flag the issue for further inspection or suggest maintenance actions before failure occurs.
Benefits of Advanced Monitoring and Diagnostics in Transformer Longevity
The implementation of advanced monitoring and diagnostic tools offers a wide range of benefits that directly impact the longevity and efficiency of transformers:
1. Early Fault Detection
By continuously monitoring key parameters such as temperature, oil quality, and vibration, advanced tools can detect early signs of wear and tear before they lead to failure. This enables proactive maintenance, which can prevent costly repairs or catastrophic transformer breakdowns.
2. Predictive Maintenance
Predictive maintenance models allow operators to assess the health of transformers and anticipate when maintenance will be required, reducing the likelihood of unexpected breakdowns. Instead of relying on routine inspections or reacting to failures, predictive maintenance ensures that transformers are maintained only when necessary, saving time and resources.
3. Reduced Downtime
Monitoring systems provide real-time data, allowing operators to address issues before they escalate into more significant problems. By catching small issues early, downtime can be minimized, leading to more reliable power delivery and less disruption to operations.
4. Extended Transformer Life
By ensuring transformers are operating within optimal parameters, monitoring tools help extend their lifespan. By preventing overheating, oil contamination, and mechanical damage, these tools reduce the wear and tear on transformer components, allowing them to perform efficiently for many years.
5. Cost Savings
Proactive maintenance enabled by advanced monitoring tools helps avoid the high costs associated with emergency repairs and transformer replacement. Regular, data-driven maintenance also improves the efficiency of the transformer, reducing energy consumption and operating costs.
Table: Key Monitoring Parameters and Their Impact on Transformer Longevity
| Parameter | Monitoring Tool | Impact on Longevity |
|---|---|---|
| Temperature | Oil and winding sensors | Prevents overheating and thermal degradation of components |
| Vibration | Accelerometers | Detects mechanical issues and prevents component damage |
| Oil Quality | DGA, moisture sensors | Protects against insulation degradation and moisture damage |
| Partial Discharge (PD) | PD detectors | Prevents insulation breakdown and electrical faults |
| Load & Current | Current transformers | Prevents overloads that lead to excessive heat generation |
| Gas Analysis | DGA, furfural analysis | Monitors internal faults like arcing or overheating |
Conclusion
Improving the durability of transformers is essential for ensuring the reliability and efficiency of electrical systems. By implementing effective strategies such as proper load management, efficient cooling systems, regular maintenance, and using high-quality insulation materials, transformers can operate for longer periods without failure. Furthermore, adopting advanced monitoring technologies allows for early detection of issues, leading to proactive interventions and minimizing downtime. In conclusion, a combination of thoughtful design, operational best practices, and advanced diagnostic tools can significantly extend the life of transformers, providing a reliable and cost-effective solution for power distribution systems.
FAQ
Q1: What are the key factors affecting the durability of transformers?
A1: The durability of transformers is influenced by factors such as proper maintenance, cooling systems, load management, environmental conditions, and the quality of materials used in construction. Regular inspections, effective cooling, and ensuring the transformer operates within its design limits are crucial for enhancing durability.
Q2: How can regular maintenance improve transformer durability?
A2: Regular maintenance practices such as checking oil levels, cleaning cooling systems, monitoring temperature, and inspecting insulation materials help in detecting potential issues early. Timely repairs and preventive measures ensure that the transformer operates efficiently and prolongs its lifespan, avoiding costly failures or downtime.
Q3: What role does cooling play in extending transformer durability?
A3: Cooling is critical in maintaining transformer durability, as overheating can lead to insulation breakdown and premature aging of components. Implementing effective cooling systems such as oil cooling, air cooling, or hybrid cooling ensures the transformer stays within optimal temperature limits, preventing overheating and improving its overall lifespan.
Q4: How does load management affect transformer durability?
A4: Load management plays a significant role in preventing overloading, which can cause excessive heat and stress on transformer components. Ensuring that the transformer is not consistently operating above its rated capacity and monitoring fluctuations in load can prevent premature wear, enhance efficiency, and extend its useful life.
Q5: What advanced technologies can be used to improve transformer durability?
A5: Technologies such as smart monitoring systems, real-time diagnostics, and condition-based monitoring can significantly improve transformer durability. These systems provide early warnings of potential issues such as insulation degradation or cooling failures, enabling timely intervention and reducing the risk of sudden breakdowns, ultimately extending the transformer's life.
References
"How to Extend the Lifespan of Your Transformer" - https://www.transformertech.com/extend-transformer-lifespan - Transformer Tech
"Improving Transformer Durability Through Maintenance" - https://www.powermag.com/improve-transformer-durability - Power Magazine
"The Role of Cooling Systems in Transformer Durability" - https://www.electrical4u.com/transformer-cooling - Electrical4U
"Enhancing Transformer Performance for Long-Term Durability" - https://www.researchgate.net/transformer-durability - ResearchGate
"Monitoring and Maintenance for Transformer Longevity" - https://www.sciencedirect.com/transformer-longevity - ScienceDirect
"Advanced Monitoring Solutions for Transformer Durability" - https://www.smartgridnews.com/transformer-monitoring - Smart Grid News
"Strategies for Preventing Transformer Failures" - https://www.energycentral.com/c/ee/transformer-failures - Energy Central
"How to Improve Transformer Efficiency and Durability" - https://www.powergrid.com/transformer-durability - PowerGrid
