How to Perform Fault Analysis of Transformers?

Transformers are the backbone of electrical power systems, and their reliable operation is essential for uninterrupted power delivery. However, like any complex electrical equipment, transformers are susceptible to faults caused by overloads, insulation failure, environmental stress, or internal degradation. Fault analysis is a critical process that helps in diagnosing these issues early, preventing major breakdowns, and ensuring system stability. This article explores how to perform an effective fault analysis of transformers using diagnostic tools, testing techniques, and analytical methods.

---

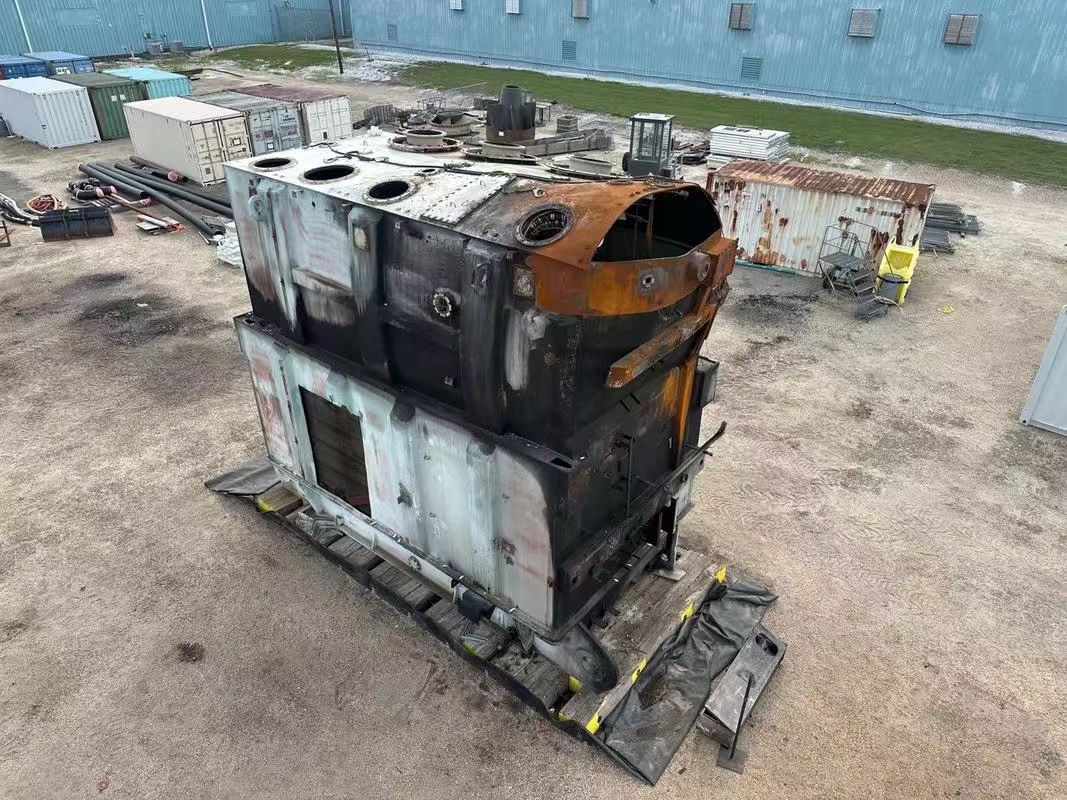

What Are the Common Types of Transformer Faults?

Transformers are crucial components in power systems, responsible for stepping up or stepping down voltage levels to facilitate efficient power transmission. However, despite their critical role, transformers are not immune to faults. Transformer faults can lead to operational inefficiencies, costly repairs, and even catastrophic failures if not detected and addressed in time. Understanding the common types of transformer faults can help power system operators prevent, diagnose, and mitigate these issues effectively.

1. Short Circuit Faults

Short circuits are one of the most common types of transformer faults. They occur when a low-resistance path is created between the windings or between a winding and the ground, leading to an abnormal current flow. This excessive current can cause severe damage to the transformer and the surrounding electrical infrastructure.

• Cause: Short circuits are typically caused by insulation failure, external disturbances, or mechanical damage. A breakdown of the insulation material between the windings can allow the live parts to come into contact with each other, creating a short circuit.

• Impact: Short circuits can result in overheating, damage to windings, and in extreme cases, a fire or explosion. The excessive current can trip circuit breakers, leading to system-wide shutdowns and outages.

Solution: The use of fuses, circuit breakers, and relays designed for overcurrent protection can help prevent the spread of damage due to short circuits. In addition, regular insulation testing and maintenance can reduce the risk of insulation breakdown.

2. Overload Faults

Overload faults occur when a transformer is subjected to excessive load, beyond its rated capacity. Prolonged overload conditions can stress the transformer’s core, windings, and insulation, leading to overheating and potential failure.

• Cause: Overloads typically occur due to high demand for power, poor load management, or faulty protection systems that fail to disconnect the load. Transformers are designed to handle a specific range of current, and exceeding this range can cause significant damage.

• Impact: Overloading causes the transformer to overheat, leading to insulation degradation, core damage, and reduced lifespan. In extreme cases, it can lead to total failure.

Solution: To prevent overload faults, operators should employ load monitoring systems and protective relays to disconnect the load in case of overload. Regular load assessments and capacity planning are essential for ensuring that transformers are not subjected to undue stress.

3. Insulation Failure

Insulation failure is one of the most critical faults in transformers, as it directly impacts the transformer’s ability to handle electrical stress. When insulation materials degrade or fail, it can lead to electrical short circuits or flashover.

• Cause: Insulation failure can occur due to thermal aging, moisture contamination, electrical stress, and mechanical damage. Over time, exposure to high temperatures and high voltage stresses can break down insulation materials like paper, oil, or synthetic insulations.

• Impact: Insulation breakdown can cause short circuits, arcing, and fire hazards. It also leads to loss of dielectric strength, which is essential for proper transformer operation.

Solution: Preventive maintenance, including regular insulation testing (e.g., dielectric strength tests), can detect early signs of degradation. Maintaining the transformer in an optimal environment with proper ventilation and moisture control is key to preventing insulation failure.

4. Bushing Failures

Bushings are critical components in transformers that provide electrical insulation and act as a conduit for current to flow in and out of the transformer. When bushings fail, they can cause significant faults, including grounding issues or short circuits.

• Cause: Bushing failures can be caused by electrical stress, moisture ingress, age-related degradation, or mechanical failure. A damaged bushing can cause flashovers, which may lead to transformer faults or fire.

• Impact: A failure in the bushing can cause arcing, short circuits, and even a complete breakdown of the transformer if the current is not properly controlled. This can lead to an increased risk of fires or explosions.

Solution: Regular bushing inspections, including visual checks for signs of physical damage and electrical tests for dielectric integrity, are crucial. If necessary, bushings should be replaced at the first sign of wear or damage to ensure reliable operation.

5. Tap Changer Failures

Tap changers are mechanical or electronic devices used to adjust the voltage ratio in transformers. On-load tap changers (OLTCs) allow voltage adjustments without disconnecting the transformer from the load, while off-load tap changers require the transformer to be de-energized for adjustments. Failure in the tap changer mechanism can result in improper voltage regulation.

• Cause: Tap changer failures are typically caused by wear and tear, arcing, mechanical malfunction, or corrosion. In on-load tap changers, frequent switching can lead to contact erosion.

• Impact: If the tap changer fails, it can result in improper voltage regulation, voltage fluctuations, and overloading of the transformer. In severe cases, tap changer failure can damage the transformer’s core and windings.

Solution: Regular mechanical inspections and electrical testing of tap changers, along with contact cleaning and maintenance, can help ensure proper tap changer functionality. Advanced monitoring systems can also be installed to detect early signs of failure in tap changers.

6. Core and Winding Damage

Core and winding damage is another potential fault in transformers. The core is responsible for generating the magnetic flux needed for energy conversion, while the windings carry the current. Damage to either of these components can result in a significant malfunction.

• Cause: Core and winding damage can be caused by excessive mechanical stress, electrical surges, overload conditions, or manufacturing defects. Thermal expansion and contraction over time can also cause mechanical deformation.

• Impact: Damaged windings or cores can cause increased losses, reduced efficiency, and transformer failure. In some cases, such damage can cause a fire hazard or lead to total breakdown.

Solution: Vibration analysis and thermal imaging can be used to detect early signs of mechanical or electrical stress on the core and windings. Regular inspections and load management can help minimize the risks associated with core and winding damage.

7. External Faults and Surge Events

External faults, such as lightning strikes, switching surges, and earth faults, can have a profound effect on transformer operation. These events can cause sudden electrical surges that exceed the transformer’s voltage rating.

• Cause: These surges are often caused by lightning, faulty circuit breakers, or improper switching operations in the electrical grid.

• Impact: A sudden voltage surge can cause insulation failure, damage to components, and even transformer explosions in severe cases.

Solution: Surge protection devices (SPDs) and lightning arresters can be installed to protect the transformer from sudden voltage spikes. Additionally, proper system grounding and overvoltage protection mechanisms should be in place to minimize the impact of external fault events.

Why Is Fault Analysis Important for Transformer Maintenance?

The importance of fault analysis in transformer maintenance cannot be overstated. Transformers are integral components of any power system, and their failure can result in costly downtime, system-wide outages, and severe equipment damage. Fault analysis plays a crucial role in predicting potential transformer failures, reducing maintenance costs, and extending the life of the equipment. In fact, regular fault analysis is one of the best practices for ensuring transformers operate reliably and efficiently over the long term.

1. Early Detection of Potential Failures

Fault analysis enables the early detection of potential failures before they escalate into major issues. By continuously monitoring the operational parameters of a transformer—such as temperature, voltage levels, current flow, and insulation integrity—maintenance teams can detect anomalies that signal the onset of faults. This proactive approach allows operators to take corrective actions before a minor problem develops into a catastrophic failure.

For example, abnormal oil temperature or unusual gas levels in the transformer’s tank could indicate overheating, which, if not addressed in time, could lead to insulation breakdown or even fire. Through fault analysis, these issues can be detected early and mitigated.

2. Improved Decision Making for Maintenance and Repair

Regular fault analysis provides valuable data that helps engineers make data-driven decisions about transformer maintenance and repair schedules. Instead of relying on time-based maintenance, which may not align with the actual condition of the equipment, fault analysis enables a condition-based maintenance approach.

This means that rather than performing maintenance on a set schedule, maintenance activities are carried out based on the actual condition of the transformer. This reduces unnecessary downtime, cuts maintenance costs, and ensures that resources are used effectively.

For example, a dissolved gas analysis (DGA) can reveal the presence of gases like acetylene or hydrogen in the transformer's oil. These gases indicate arcing or partial discharge, which can help operators decide whether the transformer needs immediate attention.

3. Minimization of Unscheduled Downtime

Unscheduled downtime is one of the most costly consequences of transformer failure. Fault analysis allows for continuous monitoring of a transformer's performance, enabling operators to anticipate issues and take preventive actions before a failure occurs. This minimizes unplanned outages that can disrupt power distribution and lead to service interruptions.

A key tool for fault analysis is infrared thermography, which identifies hot spots in the transformer, indicating areas where faults might be developing. Identifying these hot spots early helps operators make adjustments or carry out repairs before more serious damage occurs, thereby avoiding unplanned downtime.

4. Enhancing Transformer Lifespan

A major benefit of fault analysis is that it helps to extend the useful life of the transformer. Transformers are expensive, and replacing them prematurely due to unforeseen failures can be a significant financial burden. Regular fault analysis helps ensure that the transformer operates within its optimal conditions, reducing wear and tear and slowing the aging process of key components like insulation and windings.

For instance, oil analysis can track the condition of the insulating oil, which can degrade over time due to factors like oxidation or moisture contamination. By regularly monitoring these changes, operators can extend the transformer’s lifespan by replacing oil or drying out moisture in the system as needed.

5. Accurate Fault Diagnosis and Targeted Repairs

Fault analysis allows for an accurate diagnosis of the type of fault that has occurred, whether it’s insulation failure, mechanical damage, or electrical faults. This knowledge enables maintenance teams to perform targeted repairs rather than addressing symptoms in a generic manner. For example, if fault analysis indicates partial discharge, which often signals the deterioration of insulation materials, the solution may involve replacing the insulating material rather than simply patching up the system.

Additionally, failure mode analysis (FMA) can be used to understand the root causes of transformer issues, which can then be corrected to prevent recurrence. This kind of targeted repair helps reduce overall maintenance costs and increases the reliability of the transformer.

6. Preventing Catastrophic Failures

One of the primary goals of fault analysis is to prevent catastrophic transformer failures that can result in extensive damage, environmental hazards, and significant financial losses. If faults like core damage, winding failure, or oil leaks are detected early, preventive measures can be taken to avoid sudden breakdowns.

For example, bushing failures can be diagnosed through monitoring systems that track electrical stress and potential arcing within the bushing insulation. If such a fault is identified, the bushing can be replaced before it causes a short circuit or ground fault, which could potentially lead to fire or explosions.

7. Compliance with Industry Standards and Regulations

In many jurisdictions, regular fault analysis is required for compliance with safety standards and regulatory requirements. These standards ensure that transformers are maintained in a manner that minimizes safety risks and environmental impacts. Fault analysis is an essential tool in meeting these standards, as it provides the data needed to prove that the transformer is functioning within acceptable safety limits.

By performing routine diagnostic tests such as dissolved gas analysis, vibration monitoring, and thermal imaging, transformer operators can ensure they meet regulatory requirements for equipment safety, thereby avoiding fines or penalties.

8. Continuous Improvement of Transformer Design

Fault analysis also plays a significant role in improving transformer design. By identifying recurring faults or weaknesses in the transformer, manufacturers can enhance future designs and materials to reduce failure rates. For example, if fault analysis reveals that insulation degradation is a frequent issue, manufacturers may choose to develop more robust insulation materials or revise the manufacturing process to improve the transformer’s durability.

Additionally, operational data gathered through fault analysis can be used to optimize transformer performance, improve load management, and increase energy efficiency.

Tools and Techniques for Transformer Fault Analysis

To perform effective fault analysis, operators rely on several tools and techniques that provide real-time insights into transformer health:

• Dissolved Gas Analysis (DGA): Used to detect gases produced by electrical discharges, overheating, and chemical degradation inside the transformer oil.

• Vibration Analysis: Helps monitor mechanical stress on transformer components, particularly the core and windings.

• Thermography: Uses infrared cameras to identify overheating or "hot spots" in the transformer, which can indicate developing faults.

• Partial Discharge Monitoring: Identifies electrical discharges within the insulation, which can be a precursor to more serious failures.

• Oil Quality Monitoring: Assesses the condition of the insulating oil, including moisture content, acidity, and the presence of particulates.

What Tools and Techniques Are Used in Transformer Fault Detection?

Transformers are vital components of electrical power systems, and ensuring their optimal performance is crucial to preventing costly failures. Fault detection is key to maintaining transformer reliability, preventing outages, and extending the life of the equipment. Modern diagnostic tools and techniques have significantly improved our ability to detect transformer faults early, allowing for preventive maintenance before issues escalate. In this article, we’ll explore the most effective tools and techniques used in transformer fault detection, highlighting their significance and applications.

1. Dissolved Gas Analysis (DGA)

Dissolved Gas Analysis (DGA) is one of the most widely used techniques for detecting faults in transformers, particularly those related to overheating, electrical discharges, and insulation breakdown. The principle behind DGA is that when a transformer operates, electrical discharges, overheating, and chemical reactions within the transformer’s oil release specific gases into the oil. By analyzing the types and concentrations of these gases, faults such as partial discharge, arcing, and thermal degradation can be identified.

• Types of gases detected: Hydrogen (H2), Methane (CH4), Ethylene (C2H4), Acetylene (C2H2), Carbon Monoxide (CO), and Carbon Dioxide (CO2).
• Faults indicated:
  • High levels of acetylene are a strong indication of high-energy arcing.
  • Ethylene and acetylene gases may signal overheating.
  • Hydrogen and methane often indicate partial discharge.

DGA is crucial for detecting faults in the early stages, long before they become serious. It provides valuable information about the condition of the transformer and allows for predictive maintenance.

2. Infrared Thermography (Thermal Imaging)

Infrared Thermography, or thermal imaging, uses infrared cameras to detect temperature variations in transformer components. Overheating is a primary indicator of impending transformer faults, and infrared thermography provides a non-invasive and effective method for identifying hot spots in the transformer.

• Applications: It helps to identify issues such as:
  • Overloaded transformer components.
  • Faulty connections or deteriorating insulation.
  • Bushing failures or loose connections that generate heat.
  • Uneven distribution of load leading to local heating.

By regularly inspecting transformers with infrared thermography, operators can pinpoint areas that require attention before they lead to more serious failures.

3. Vibration Monitoring

Vibration monitoring is a diagnostic tool used to assess the mechanical health of transformers. Mechanical faults such as winding displacement, loose core, or structural issues can generate abnormal vibrations within the transformer. Monitoring these vibrations can help detect issues that may not be immediately visible but can cause significant damage if left unresolved.

• Vibration sensors are placed on the transformer housing or critical components to detect abnormal oscillations.
• Key faults identified include:
  • Mechanical damage or loose parts.
  • Winding movement or displacement.
  • Core movement or instability due to structural issues.

By monitoring vibration patterns over time, engineers can spot unusual vibrations that signal developing mechanical problems, enabling preventive maintenance before catastrophic failure occurs.

4. Partial Discharge (PD) Monitoring

Partial discharge (PD) is an early indicator of insulation deterioration within a transformer. PD monitoring is essential for detecting insulation degradation in areas of the transformer, such as the windings and bushings. Partial discharge occurs when there is a localized electrical discharge that does not completely bridge the insulation gap but can lead to severe insulation failure over time.

• PD monitoring techniques:
  • Ultrasonic detection to identify PD sources.
  • Electrical detection using sensors to capture PD signals.

PD is typically caused by:

• Deterioration of insulation materials due to age or excessive electrical stress.
• Moisture ingress into insulation, leading to breakdown.

By monitoring and analyzing PD activity, operators can identify areas at risk of insulation failure, enabling targeted repairs and increasing the transformer’s operational life.

5. Oil Quality Monitoring

The quality of insulating oil is crucial for transformer performance. Regular oil sampling and analysis can reveal the presence of contaminants, such as water, acidity, and particles, that degrade the oil's insulating properties. Monitoring oil quality is an essential part of fault detection.

• Oil analysis tests include:
  • Moisture content analysis to detect water contamination.
  • Acidity levels to assess the degree of oil degradation.
  • Particle content to detect impurities in the oil that can cause mechanical wear or insulation damage.

Through oil quality monitoring, it’s possible to determine the health of the transformer’s insulation and address issues before they lead to more significant problems. Regular oil testing also helps to ensure that the transformer oil is functioning optimally as an insulator and cooling agent.

6. Gas-Insulated Transformer Monitoring

In gas-insulated transformers (GITs), fault detection techniques include monitoring the gas pressure and gas composition within the transformer’s gas compartment. SF6 (sulfur hexafluoride) gas is commonly used in these transformers, and changes in gas pressure or composition can indicate electrical faults, such as partial discharge or arc flash.

• Gas monitoring tools detect:
  • Pressure drop, indicating a leak or loss of insulation.
  • Gaseous breakdown products that indicate the presence of electrical faults or overheating.

By detecting gas anomalies, gas-insulated transformers can be maintained effectively, avoiding failure and ensuring consistent operation.

7. Bushing Monitoring

Bushings are critical components that allow electrical conductors to pass through the transformer’s tank. Bushing failures can lead to short circuits, arcing, or other serious faults. Monitoring the condition of bushings is a key part of transformer fault detection.

• Bushing monitoring systems track parameters such as:
  • Leakage current to detect insulation breakdown.
  • Partial discharge activity to assess insulation integrity.

Regularly monitoring the bushings can help prevent dangerous faults and extend transformer lifespan.

8. Acoustic Emission (AE) Monitoring

Acoustic emission (AE) monitoring is used to detect high-frequency sound waves generated by electrical discharges, gas bubbles, or mechanical stresses within the transformer. This technique is particularly useful for detecting partial discharge or arcing before they cause significant damage.

• AE sensors are placed on the transformer’s surface or components, detecting sounds generated by faults.
• Benefits: It provides early warnings of insulation breakdown or mechanical failures, allowing for quick action to prevent transformer failure.

9. Online Monitoring Systems

In modern transformers, online monitoring systems provide continuous, real-time data on transformer health. These systems integrate a range of diagnostic tools, including temperature, pressure, vibration, oil quality, and partial discharge sensors, to provide a comprehensive picture of the transformer’s condition.

• Key features:
  • Real-time data transmission for immediate fault detection.
  • Remote monitoring capabilities, allowing operators to assess transformer health without being physically present.
  • Data analysis and reporting tools to track trends and detect abnormal patterns over time.

Online monitoring systems are becoming increasingly popular in large power networks due to their ability to reduce maintenance costs, prevent failures, and increase operational reliability.

How Is Dissolved Gas Analysis (DGA) Performed and Interpreted?

Dissolved Gas Analysis (DGA) is one of the most effective diagnostic techniques used for monitoring the health of transformers. By analyzing the gases dissolved in transformer oil, DGA provides invaluable insights into the internal conditions of transformers, including potential faults such as overheating, partial discharge, and arcing. These faults can be detected long before they escalate into major failures, allowing for proactive maintenance and ensuring the reliability of the transformer.

In this article, we will explore how DGA is performed and how the results are interpreted, providing an in-depth understanding of its importance in transformer diagnostics.

How is Dissolved Gas Analysis (DGA) Performed?

Performing DGA involves the extraction of a sample of the transformer oil for laboratory analysis, followed by the use of advanced instruments to identify and quantify the gases dissolved within the oil. The process is meticulous and must be done with precision to ensure reliable results.

1. Sample Collection

The first step in performing DGA is to collect a sample of the transformer oil. Since gases dissolve in oil over time, it’s important to obtain a representative sample to accurately assess the internal conditions of the transformer. Several factors affect the quality of the sample, including the temperature, location of extraction, and the age of the transformer oil.

• Oil Sampling Locations: Ideally, samples should be taken from various parts of the transformer, such as the upper and lower sections of the tank, as gas concentrations can vary across the transformer.
• Sample Quantity: Typically, around 100 mL to 200 mL of oil is required for DGA testing.

2. Gaseous Extraction

After the sample is collected, it is sealed in a clean, gas-tight container to prevent contamination. The sample is then transported to a laboratory or analyzer where the gases can be extracted. This is done through techniques like purging or degassing, which involve the removal of dissolved gases from the oil for analysis.

3. Gas Analysis

The most common method for analyzing dissolved gases is using a gas chromatograph (GC), which separates and quantifies the different gases present in the oil. A gas chromatograph uses a column and detector system to separate the gases based on their chemical properties and then measures the concentration of each gas.

In addition to the chromatograph, infrared spectroscopy (IR) and mass spectrometry (MS) are other techniques sometimes used to measure and identify gases.

4. Gas Concentration Measurement

Once the gases are extracted and separated, the concentration of each gas is measured in parts per million (ppm). This data provides a detailed picture of the types of gases present in the transformer oil, as well as their concentrations.

5. Reporting

The laboratory provides a report containing the concentrations of the various gases detected in the sample. This report will also typically include recommended actions, which may include monitoring or further diagnostic tests based on the results.

Common Gases Found in Transformer Oil and Their Significance

During DGA, the following gases are typically measured and analyzed for their significance in identifying transformer faults:

1. Hydrogen (H2)

Hydrogen is one of the most common gases found in transformer oil. Small amounts of hydrogen are typically present during normal transformer operation. However, higher concentrations can indicate partial discharge or corona discharge within the transformer, which suggests the early stages of insulation degradation.

• Normal levels: Low (less than 100 ppm).
• High levels: A concentration greater than 200 ppm can signal partial discharge.

2. Methane (CH4)

Methane is produced when the transformer oil undergoes thermal degradation. It can indicate overheating at lower temperatures or severe faults such as arc discharge at higher temperatures.

• Normal levels: Low (below 100 ppm).
• High levels: A significant increase suggests overheating or arcing.

3. Ethylene (C2H4)

Ethylene is commonly produced during overheating in the transformer, particularly at moderate temperatures (between 120°C to 180°C). It is often used to diagnose low-temperature thermal faults or partial discharge.

• Normal levels: Low to moderate.
• High levels: Indicates higher levels of overheating or thermal fault.

4. Acetylene (C2H2)

Acetylene is one of the most important gases when analyzing transformer oil. Acetylene production usually occurs under severe electrical faults such as arc discharges or high-energy arcing. A high level of acetylene is often a signal of severe fault conditions, which could lead to catastrophic failure if not addressed.

• Normal levels: Extremely low or non-detectable.
• High levels: High acetylene concentrations are a clear indicator of a severe fault.

5. Carbon Monoxide (CO)

Carbon monoxide is typically produced as a result of the decomposition of organic materials in the transformer, such as paper insulation. Elevated levels of carbon monoxide can indicate insulation failure, particularly if the paper insulation is exposed to high temperatures.

• Normal levels: Low.
• High levels: Indicates thermal degradation of insulation materials.

6. Carbon Dioxide (CO2)

Carbon dioxide, like carbon monoxide, is generated during thermal degradation. While higher levels of carbon dioxide can indicate the aging of the transformer, it can also signal overheating of the insulation or core.

• Normal levels: Typically low but rises over time as the transformer ages.
• High levels: Indicates more severe overheating.

How Are DGA Results Interpreted?

Once the concentrations of gases are identified, the next critical step is interpreting the results. A DGA interpretation chart can help determine the possible fault conditions based on the gas ratios and the concentration of individual gases.

Key Interpretation Guidelines

The interpretation of DGA results typically follows a set of established gas ratios and threshold values that have been correlated with different types of transformer faults. One of the most widely used methods is the Roger’s Ratio and Duval’s Triangle method.

• Roger’s Ratio: This involves calculating the ratio of gases such as acetylene to methane (C2H2/C2H4) and acetylene to ethylene (C2H2/C2H6). Higher ratios suggest severe faults, while lower ratios suggest moderate overheating or partial discharge.

• Duval’s Triangle: Duval’s Triangle is a graphical tool that plots the ratios of gases such as CH4, C2H4, and C2H2 on a triangle. The area within the triangle helps determine whether the fault is due to overheating, partial discharge, or arcing.

Fault Categories Based on Gas Levels

1. Normal Conditions: Low levels of gases such as hydrogen, methane, and carbon dioxide.
2. Overheating: Elevated concentrations of ethylene, methane, and carbon dioxide.
3. Partial Discharge: High hydrogen concentrations, with low levels of other gases.
4. Arcing: Elevated acetylene concentrations (above 50 ppm) indicate arcing or severe fault conditions.

What Role Does Thermal and Electrical Testing Play in Fault Diagnosis?

Transformer faults, especially in high-stress electrical systems, can be subtle and undetectable until they cause significant operational disruptions. This is where thermal and electrical testing play a pivotal role in transformer fault diagnosis. By conducting these tests, operators can pinpoint issues such as overheating, electrical imbalances, insulation failures, and mechanical stress, long before they become critical and lead to equipment failure.

This article will explore how thermal and electrical testing contribute to transformer fault diagnosis and why they are integral to maintaining a healthy and efficient power system.

What is Thermal and Electrical Testing?

Thermal and electrical testing are diagnostic tools used to assess the performance, health, and operational efficiency of transformers and identify potential fault conditions. These tests focus on temperature variations, electrical behavior, and insulation integrity, which can reveal hidden problems that might not be visible through routine inspections or basic operational monitoring.

Thermal Testing

Thermal testing focuses on measuring the temperature distribution across various components of a transformer, such as the core, windings, and oil tank. Since overheating is one of the most common causes of transformer damage, identifying temperature anomalies is crucial for fault diagnosis.

• Infrared Thermography: This is one of the most commonly used methods for thermal testing. Infrared cameras detect heat patterns across the surface of the transformer and provide visual imagery of temperature variations. Any unusual heat spots can indicate overloaded components, poor connections, internal faults, or insulation degradation.

• Thermocouple Sensors: These are installed in specific locations within the transformer to continuously monitor temperature. By comparing the measured temperature with the manufacturer’s specifications, operators can determine whether any part of the transformer is operating outside its safe thermal range.

Electrical Testing

Electrical testing focuses on the transformer’s electrical performance, particularly its resistance, insulation strength, and current flow. These tests can uncover issues such as short circuits, insulation breakdown, and current imbalances, which can all indicate potential faults.

• Insulation Resistance Testing: One of the key electrical tests performed on transformers is insulation resistance testing. By applying a high DC voltage and measuring the current leakage, this test checks the condition of the transformer’s insulation. A significant drop in insulation resistance can indicate degradation due to moisture, aging, or other factors.

• Power Factor Testing: This test is used to measure the transformer’s power factor, which helps evaluate the condition of the insulation. A high power factor (greater than 1%) typically indicates that the insulation is deteriorating, which could lead to faults or failure.

• Winding Resistance Test: This test measures the resistance of the transformer’s windings. A significant increase in winding resistance can indicate overheating or physical damage to the windings, such as partial short circuits.

• Dielectric Breakdown Testing: A transformer’s insulation system is tested for its dielectric strength by applying a high voltage. A low dielectric breakdown value suggests that the insulation may be compromised, increasing the risk of electrical arcing or short circuits.

Why Are Thermal and Electrical Testing Crucial for Fault Diagnosis?

Thermal and electrical testing provide essential insights into the health of transformers. They help identify problems at an early stage, ensuring that preventative maintenance can be performed before faults escalate into major failures. Here’s why these tests are indispensable:

1. Detection of Overheating and Temperature Hotspots

One of the main causes of transformer failure is overheating, often due to electrical overloads or poor cooling systems. Thermal testing provides a non-invasive way to detect hotspots inside the transformer. Areas that are subject to excessive heat are more likely to suffer from insulation breakdown or winding deterioration, which can lead to transformer failure. Early detection allows for remedial actions, such as cooling system optimization or load reduction.

2. Identifying Insulation Issues

Electrical testing plays a pivotal role in diagnosing problems related to insulation failure. The insulation system of a transformer is critical in preventing electrical short circuits and arcing, which could cause catastrophic failures. By performing insulation resistance and dielectric breakdown testing, it’s possible to evaluate the condition of the transformer’s insulation and predict potential breakdowns before they occur.

3. Evaluating Winding Integrity

The windings are at the heart of transformer functionality, and their condition directly affects the transformer’s efficiency and longevity. Electrical tests like winding resistance testing are essential in identifying early signs of damage, such as thermal stress or partial short circuits. These tests can help identify the root cause of performance degradation, such as overheating due to poor contact or faulty winding design.

4. Preventing Fault Propagation

Often, a transformer fault starts in a localized area, such as a winding or insulation point. If undiagnosed, these small issues can expand into more severe problems, including catastrophic failures. By performing regular thermal and electrical testing, faults can be identified in their early stages, before they propagate and result in major transformer damage or power outages.

5. Ensuring Safe Operation

Transformers are often located in high-voltage, high-risk environments. Ensuring the safe operation of transformers is paramount for both safety and reliability. Thermal testing allows operators to ensure that the transformer’s cooling system is working effectively, while electrical testing confirms that the electrical components are performing within safe parameters. Early detection of any issues minimizes the risk of dangerous arc flashes, electrical fires, and other hazardous events.

How Are Results from Thermal and Electrical Tests Interpreted?

After thermal and electrical testing is conducted, the next step is to interpret the results. The key to diagnosis lies in comparing the measured values to industry standards, manufacturer specifications, and historical data from previous tests. Below are some general guidelines for interpreting the results:

Thermal Test Interpretation

• Normal temperature distribution: Uniform temperature readings across the transformer suggest that the cooling system is functioning effectively and that the transformer is not overloaded.
• Hot spots: If certain areas of the transformer show excessive temperature variations (usually 10°C or more above average), this indicates potential problems such as poor connections, faulty bushings, or overloading.
• Excessive temperature rise: A temperature rise above the manufacturer’s rated operating conditions can indicate imminent failure and may necessitate immediate shutdown or repair.

Electrical Test Interpretation

• Insulation resistance testing: A resistance value that drops significantly below the manufacturer’s minimum acceptable value (typically measured in megaohms) indicates that the insulation has degraded and may be susceptible to failure.
• Power factor testing: If the power factor is found to be unusually high (over 1%), it suggests that the insulation is breaking down. This is an early warning signal for an impending fault.
• Winding resistance testing: An increase in winding resistance suggests possible overheating or damage. Any increase over time may indicate thermal degradation or mechanical stress.
• Dielectric strength: A low dielectric strength reading points to weakened insulation, which can lead to electrical breakdown and a short circuit.

How to Document and Respond to Detected Faults Effectively?

Efficient documentation and timely responses to detected faults in electrical equipment, especially in high-voltage systems like transformers, are essential for maintaining safety, performance, and operational continuity. Properly addressing these issues not only ensures equipment reliability but also mitigates the risks associated with catastrophic failures and power outages. This process helps in tracking fault patterns, identifying the root causes, and preventing future incidents.

This article will explore the best practices for documenting and responding to faults effectively, ensuring that your maintenance team can handle transformer faults with precision and professionalism.

Why is Fault Documentation and Response Critical?

When a fault is detected in a transformer, whether it’s related to electrical, thermal, or mechanical issues, immediate and organized actions are required. Without accurate documentation, it becomes difficult to:

• Track Fault History: Documenting faults over time allows for pattern recognition and can reveal recurring problems, helping you identify underlying issues.
• Improve Response Time: Clear documentation helps technicians diagnose and resolve issues quickly by providing them with accurate and detailed information about the fault.
• Ensure Safety and Compliance: Properly responding to faults ensures the safety of personnel, equipment, and the surrounding environment. Regulatory bodies often require detailed fault logs as part of compliance and safety protocols.
• Reduce Downtime: Timely responses to faults minimize equipment downtime, keeping the system running smoothly and reducing the risk of larger failures.

Best Practices for Documenting Transformer Faults

1. Detailed Fault Logs

A comprehensive fault log should be maintained for each transformer. This log should include all relevant details such as:

• Fault Description: A clear and precise description of the fault, including symptoms observed during normal operation (e.g., overheating, unusual sounds, electrical imbalances).
• Fault Location: Identify the location of the fault within the transformer (e.g., winding, bushings, tap changer, insulation).
• Time and Date of Detection: Record the exact time and date when the fault was detected. This is essential for establishing a timeline and for future reference in identifying recurring patterns.
• Cause (if known): If the cause of the fault can be identified immediately, document it. For example, an overload condition or insulation breakdown.
• Impact Assessment: Document the immediate consequences of the fault, such as performance degradation, overheating, or loss of service.
• Action Taken: Record any immediate steps taken, such as shutting down the transformer or activating cooling systems. If repairs are initiated, list the procedures followed.

A good practice is to use a digital logbook or a computerized maintenance management system (CMMS), where all details can be tracked in real-time and accessed remotely by team members.

2. Photographic and Video Evidence

When possible, include photographs or videos of the fault site. This can be especially useful for mechanical issues or visible damage. For example, if a bushing is cracked or if the transformer tank shows signs of stress, capturing these with visual evidence can aid in diagnosing the root cause and streamlining repairs.

• Use thermal imaging cameras to capture temperature hotspots.
• Record videos of the malfunctioning system to document any irregular sounds or movements.

This visual evidence can be stored alongside the written log and will be helpful in future troubleshooting.

3. Use of Fault Codes and Standards

Many modern transformers are equipped with intelligent monitoring systems that generate fault codes when a malfunction occurs. These codes are often linked to specific problems, such as short circuits, overheating, or overloading. Documenting these fault codes is crucial for pinpointing the problem efficiently.

Additionally, ensure that all fault documentation follows recognized industry standards and operational guidelines, including:

• IEEE standards for electrical equipment
• ISO standards for documentation and reporting
• National Electrical Code (NEC) for compliance with safety regulations

4. Test Results and Diagnostic Data

Include any test results or diagnostic data related to the fault. For instance:

• Dissolved Gas Analysis (DGA) results, which could provide insights into insulation degradation.
• Thermal imaging data or winding resistance readings that help identify overheating or mechanical stress.
• Electrical resistance measurements, such as those taken during insulation resistance or power factor testing.

This diagnostic information gives a detailed insight into the severity of the fault and can help technicians prioritize their response.

How to Respond to Transformer Faults Effectively

Once the fault has been documented, it’s time to respond. The speed and quality of the response can determine the severity of the issue and the impact on the system.

1. Immediate Fault Mitigation

When a fault is detected, the first step is often to mitigate any immediate risks:

• Isolate the Fault: Shut down the transformer or relevant circuit to prevent further damage. For instance, in the case of an electrical fault like a short circuit, immediate isolation helps prevent electrical fires and further equipment damage.
• Activate Cooling Systems: If the fault is related to overheating or a cooling system failure, activate any backup cooling systems or adjust the load to reduce stress on the transformer.
• Safety Protocols: Ensure that safety measures are in place, such as grounding, PPE (personal protective equipment) for staff, and evacuation procedures if necessary.

2. Fault Diagnosis and Root Cause Analysis

After immediate risks are mitigated, conduct a thorough root cause analysis to determine why the fault occurred. Use the documented data from thermal, electrical, and mechanical tests to identify the fault's origin.

• Analyze Test Results: Review DGA, insulation resistance, and thermal testing results to gain insight into the transformer’s health.
• Check the Fault Code: If available, examine the fault codes generated by intelligent monitoring systems to narrow down the problem.
• Inspect Transformer Components: Conduct physical inspections of the transformer’s key components, such as bushings, tap changers, windings, and oil levels.

3. Repair and Corrective Actions

Once the fault’s cause is identified, develop a plan for repair or replacement of faulty components. Common actions include:

• Replacing damaged insulation: If the insulation has broken down, replace it with new, high-quality material to restore function.
• Repairing windings: Overheating or electrical faults may require winding repairs or rewinding.
• Cooling system maintenance: For faults related to cooling, clean or replace the cooling components, such as fans or pumps.

Where applicable, ensure that all repairs are in line with manufacturer specifications and industry standards.

4. Testing After Repairs

After completing the repair, conduct post-repair testing to ensure the transformer is operating within safe parameters:

• Thermal Testing: Ensure that temperature readings are stable and within safe operating limits.
• Electrical Testing: Verify that electrical resistance and power factor values are normal.

This testing validates the effectiveness of the repair and confirms that the transformer is back to optimal performance.

5. Preventive Measures

Finally, implement preventive measures to reduce the likelihood of recurrence. These may include:

• Upgrading Components: If repeated issues are detected, consider upgrading the transformer’s components or design to improve reliability.
• Regular Maintenance: Set up a regular inspection and testing schedule to catch potential faults before they escalate.
• Load Management: Ensure that the transformer is not subjected to overloading, which can significantly reduce its lifespan.

---

Conclusion

Fault analysis is a vital part of transformer maintenance and reliability assurance. By identifying and addressing issues such as insulation failure, overheating, or electrical imbalances, operators can prevent severe damage and maintain continuous power delivery. Leveraging tools like DGA, thermal imaging, and electrical testing ensures accurate diagnostics and informed decision-making. As power systems grow more complex, adopting a systematic and proactive approach to transformer
fault analysis becomes increasingly important for the safe and efficient operation of the electrical grid.

FAQ

Q1: What is fault analysis in transformers?
A1: Fault analysis in transformers refers to the process of identifying, diagnosing, and understanding faults or failures in a transformer’s operation. This process involves examining symptoms like abnormal temperatures, noises, or vibrations, and using diagnostic tools to pinpoint the underlying causes of failures such as short circuits, winding damage, or insulation breakdown.

Q2: How is fault analysis of transformers performed?
A2: Fault analysis typically involves a combination of visual inspections, temperature monitoring, oil analysis, and electrical testing. Tools like partial discharge measurement, insulation resistance tests, and frequency response analysis are used to detect issues in the transformer’s components. Comparing operating conditions to design specifications helps identify any irregularities or faults.

Q3: What are common faults in transformers?
A3: Common faults in transformers include winding failures, insulation breakdown, core saturation, short circuits, oil contamination, and cooling system failures. Overloading, poor maintenance, and environmental factors like humidity or dust can also contribute to faults in transformers.

Q4: What diagnostic tools are used in transformer fault analysis?
A4: Key diagnostic tools for transformer fault analysis include insulation resistance testers, dissolved gas analysis (DGA), frequency response analysis (FRA), thermographic cameras, and partial discharge sensors. These tools help assess insulation health, detect gas accumulation, monitor temperature fluctuations, and analyze mechanical or electrical abnormalities.

Q5: How can faults be prevented in transformers?
A5: Regular maintenance, such as oil testing, cleaning of cooling systems, and periodic electrical testing, helps prevent faults. Additionally, using advanced monitoring systems that track the transformer's performance in real-time allows for early detection of abnormalities, preventing failures and extending the transformer’s lifespan.

References

"Fault Diagnosis and Monitoring in Transformers" - https://www.transformertech.com/fault-analysis - Transformer Tech

"Methods for Transformer Fault Detection and Analysis" - https://www.powermag.com/transformer-fault-diagnosis - Power Magazine

"How to Perform Fault Analysis on Transformers" - https://www.electrical4u.com/transformer-fault-analysis - Electrical4U

"Transformer Fault Detection and Prevention Techniques" - https://www.researchgate.net/transformer-fault-analysis - ResearchGate

"Transformer Diagnostics: Understanding Faults and Failures" - https://www.sciencedirect.com/transformer-diagnostics - ScienceDirect

"Transformer Fault Analysis Tools and Techniques" - https://www.smartgridnews.com/transformer-fault-analysis - Smart Grid News

"The Role of Monitoring Systems in Transformer Fault Prevention" - https://www.energycentral.com/c/ee/transformer-monitoring - Energy Central

"Advanced Fault Detection in Power Transformers" - https://www.powergrid.com/transformer-fault-analysis - PowerGrid
