How to Reduce Noise in Transformers?

Transformer noise is an inevitable byproduct of their operation, but excessive noise can be a concern in certain environments, especially in residential or urban areas. Transformer noise is typically caused by magnetic flux vibrations, core magnetization, and current-induced vibrations in various transformer components. While some noise is normal, excessive sound levels can indicate issues such as mechanical damage or poor design, or they may simply be a nuisance in noise-sensitive areas.

In this article, we will discuss the sources of noise in transformers, how to reduce it, and the various methods that can be employed to minimize the impact of transformer noise in residential, industrial, and commercial settings.

---

What Are the Main Sources of Noise in Transformers?

Introduction: Understanding Transformer Noise

Noise in transformers is a common issue that can be both a nuisance and a sign of potential issues within the system. Transformers are essential components in electrical distribution systems, converting voltage levels for efficient transmission of electrical power. However, during their operation, transformers can produce various levels of noise, which can sometimes be disruptive in urban environments or sensitive areas such as hospitals and data centers.

The noise generated by transformers can stem from a variety of factors, each affecting the efficiency, safety, and operational comfort of the installation. Transformer noise can result from mechanical, electrical, or aerodynamic causes, with each type of noise serving as a potential indicator of the transformer’s condition.

In this article, we will explore the main sources of noise in transformers, how they occur, and what can be done to manage or reduce transformer noise in sensitive environments.

1. Magnetostriction and Core Noise

Magnetostriction is one of the primary sources of noise in transformers. This phenomenon occurs when the transformer’s core material undergoes dimensional changes as it magnetizes and demagnetizes during operation.

How it works:
The transformer core is made of laminated steel sheets, typically constructed from silicon steel, which is used for its magnetic properties. As the alternating current (AC) flows through the transformer’s primary winding, it creates a changing magnetic field. This changing field causes the core to expand and contract slightly due to the phenomenon of magnetostriction. This mechanical expansion and contraction leads to vibration, which produces sound.

Factors influencing magnetostriction noise:

• Core Material Quality: High-quality silicon steel or amorphous steel typically reduces noise levels because these materials have better magnetic properties and lower magnetostriction.
• Magnetic Flux Density: Higher flux density increases the extent of magnetostriction, thereby leading to more pronounced noise.
• Core Design: The design and construction of the core, such as the number of laminations and how they are bonded, can influence the level of noise produced.

Impact:
Magnetostriction-induced noise is usually low-frequency, humming or buzzing sounds. This type of noise is most noticeable in larger transformers, particularly those in high-voltage applications, and it can be a nuisance in residential or urban areas.

2. Coil and Winding Vibration

Transformers operate under electromagnetic forces that affect the coils and windings. These forces can induce mechanical vibrations in the transformer’s windings, leading to noise.

How it works:
When an alternating current flows through the windings, it generates a magnetic field. The interaction of this field with the core creates mechanical forces that affect the windings. These forces cause the coils to vibrate, which produces a buzzing or humming sound. The sound generated by coil vibrations is often amplified by the transformer’s casing or structural elements.

Factors influencing coil vibration noise:

• Current Magnitude: Higher current levels generate stronger electromagnetic forces, which can lead to greater vibrations and consequently louder noise.
• Winding Construction: The design and tightness of the windings can also play a role in minimizing or exacerbating vibrations. Looser windings are more prone to movement, while tighter windings can help reduce noise.
• Insulation Quality: Poor insulation between the coils can contribute to additional noise, as it may allow windings to rub against each other, amplifying vibrations.

Impact:
Coil and winding vibration noise tends to produce a mechanical hum. It is especially prominent in transformers used for large power distribution and high-current applications.

3. Transformer Oil Noise

In oil-immersed transformers, noise can also be generated due to the behavior of the insulating oil. The oil inside the transformer acts both as an insulator and a coolant, but it can also contribute to noise under certain conditions.

How it works:
As the transformer operates, the oil circulates and helps dissipate the heat generated by the transformer’s electrical components. The movement of the oil, as well as the interaction between the oil and the tank walls, can create audible noise. In particular, when the transformer is under load, oil circulation can cause a gurgling, bubbling, or splashing sound. The presence of air bubbles in the oil can also create high-pitched noise as they move through the system.

Factors influencing oil noise:

• Oil Temperature: Higher operating temperatures lead to increased oil circulation and may cause greater noise due to more active cooling processes.
• Oil Contamination: Contaminants in the oil, such as moisture or particulate matter, can affect oil flow and result in additional noise.
• Oil Quality: The viscosity of the oil affects its ability to circulate smoothly. Thicker oils can cause more friction, which increases the noise levels.

Impact:
Oil noise is usually a low-pitched sound associated with the movement of the oil inside the transformer’s tank. This is typically heard in oil-immersed transformers and can be particularly noticeable when the transformer is under load.

4. Tap Changer Noise

Tap changers are used in transformers to adjust the voltage level by selecting different taps on the primary winding. The operation of these devices can also contribute to noise in the system.

How it works:
The tap changer is a mechanical device that shifts the connection point on the transformer’s winding to change the voltage ratio. The mechanical switching process, particularly in older or poorly maintained tap changers, can produce a clicking, clunking, or buzzing sound.

Factors influencing tap changer noise:

• Tap Changer Type: Load tap changers (LTC) that operate under load generate more noise due to the mechanical action of switching while the transformer is energized.
• Maintenance Condition: Worn-out or damaged tap changers can produce more noise, as the internal components may fail to align smoothly during operation.
• Load Conditions: Tap changers typically operate when there is a change in the load, and this can be accompanied by noticeable noise during switching operations.

Impact:
Tap changer noise can be disruptive, particularly in systems where tap changes are frequent, such as in power stations or large industrial plants. These sounds are usually intermittent but can be loud enough to be bothersome.

5. Cooling Fan and Pump Noise

Transformers, especially larger ones, require cooling systems to manage the heat generated by electrical losses. These cooling systems often consist of fans, pumps, and radiators, all of which can contribute to noise.

How it works:
Cooling fans or pumps circulate air or oil to dissipate heat from the transformer’s core and windings. The movement of air through the radiator or the operation of mechanical pumps can generate noise. In oil-immersed transformers, cooling fans typically make a humming or whirring sound, while pumps can produce a gurgling or mechanical noise.

Factors influencing cooling system noise:

• Fan Speed: Faster fan speeds result in higher airflow and greater noise.
• Pump Efficiency: Poorly maintained pumps may produce grinding or squealing sounds due to mechanical wear.
• Airflow Obstructions: Blocked air vents or clogged radiators can lead to more forceful airflow, creating louder noise.

Impact:
Cooling system noise is a continuous source of sound during transformer operation. While not always the most noticeable, it can add to the overall noise profile of a transformer, particularly in systems that require heavy cooling due to high power loads.

How Does the Magnetic Field Cause Noise in Transformers?

Introduction: The Intricacies of Noise in Transformers

Transformers are fundamental components of electrical distribution systems, designed to step up or step down voltage levels as power moves from generation plants to consumers. While they perform this critical function, transformers often generate noise during operation, and one of the primary causes of this noise is the magnetic field created by the alternating current (AC) passing through the transformer's windings.

The interaction between the magnetic field and the transformer core leads to physical deformations of the core material, resulting in vibrations that produce audible sound. This phenomenon is known as magnetostriction, and it is one of the most significant sources of noise in transformers. In this article, we will explore how the magnetic field causes noise in transformers, the mechanics behind it, and ways to minimize the impact of this noise.

1. How Magnetostriction Works in Transformers

Magnetostriction is the key mechanism by which the magnetic field in a transformer causes noise. This is a material property that causes a magnetic material to change its shape or dimensions when exposed to a magnetic field.

The Process of Magnetostriction:

• Magnetic Field Creation: When an alternating current (AC) flows through the transformer's primary windings, it generates a changing magnetic field. This magnetic field induces a similar field in the transformer’s core, which is typically made from laminated silicon steel sheets.
• Core Vibration: As the magnetic field fluctuates with the AC supply, the magnetic domains within the core material realign. This realignment causes small but significant changes in the shape and size of the core. These dimensional changes result in vibrations, and these vibrations are what produce the characteristic humming or buzzing sound associated with transformers.
• Repetition of the Cycle: Since the alternating current continuously changes direction, the magnetic field oscillates at the same frequency. These constant cycles of magnetostriction create a repeating noise pattern that is directly tied to the frequency of the AC power (typically 50 or 60 Hz depending on the region).

Magnetostriction-Induced Vibration:

• Low-Frequency Humming: The vibrations caused by magnetostriction typically produce a low-frequency hum, which is a continuous sound at the power supply frequency. For example, in regions where the AC frequency is 50 Hz, the transformer core will vibrate at 50 Hz, generating a low-frequency buzz.
• Amplification: These vibrations are amplified by the surrounding transformer structure, such as the metal tank or casing. The vibrations cause the structure to resonate, intensifying the noise produced.

2. The Role of Core Material in Noise Generation

The type of material used for the core plays a significant role in the level of noise generated by the transformer. Materials with higher magnetostrictive properties will cause more pronounced vibrations.

Core Material Choices:

• Silicon Steel: Silicon steel is the most common material used for transformer cores due to its excellent magnetic properties. However, silicon steel is not immune to magnetostriction, and the quality of the steel can influence how much noise the transformer produces. Higher-quality materials can reduce the intensity of magnetostriction, leading to less noise.
• Amorphous Steel: More advanced materials like amorphous steel are used in some transformers to reduce core loss and noise. Amorphous steel has lower magnetostriction, and transformers built with this material are generally quieter.
• Laminated Construction: To minimize energy loss and vibration, transformer cores are typically made from laminated sheets of steel. The layers of these sheets help reduce the eddy currents that can contribute to noise, but they do not entirely eliminate magnetostriction.

Factors Impacting Core Material Noise:

• Magnetic Flux Density: The amount of magnetism induced in the core, known as magnetic flux density, has a direct impact on noise. Higher flux densities typically cause more vibration and, consequently, more noise. This is why the core’s design and the operational conditions (e.g., load) directly influence transformer noise.
• Coil Design and Winding Configuration: The arrangement and design of the windings affect how the magnetic field interacts with the core material. Tight windings or poorly designed coils can exacerbate vibration and noise levels.

3. The Impact of Frequency on Transformer Noise

The frequency of the alternating current (AC) also plays an important role in determining the characteristics of the noise generated by magnetostriction.

AC Frequency:

• Standard Frequency (50 or 60 Hz): Most transformers operate at the standard grid frequencies of either 50 Hz or 60 Hz. The frequency of these oscillations directly correlates to the frequency of the sound emitted from the transformer.
• Higher Load Frequencies: In high-load conditions or when transformers operate outside of typical parameters, the frequency of the noise might change slightly, but it generally remains within the audible range (20 Hz to 20 kHz). In practice, transformers typically emit a noise at low frequencies, between 50 Hz and 60 Hz.

4. Other Mechanical Contributions to Noise

While magnetostriction is the primary cause of noise, other mechanical components can contribute to transformer noise.

Factors That Exacerbate Magnetic Field Noise:

• Core Clamping and Bonding: Poorly designed or improperly installed core clamping can cause additional noise. The clamping is necessary to maintain the integrity of the magnetic flux within the core, but if it is not applied uniformly, it can create mechanical stress and vibration.
• Mechanical Resonance: If the transformer housing or other parts of the structure resonate at frequencies that correspond to the magnetostriction-induced vibrations, the sound can be amplified. This is particularly common when the transformer is situated in an enclosure or near walls that act as resonators.
• Magnetic Saturation: When the transformer operates near its maximum capacity or is overloaded, the magnetic core may become saturated, amplifying magnetostriction and leading to an increase in noise levels.

5. Noise Control and Mitigation Techniques

Several strategies can be used to reduce the noise produced by transformers:

Design Improvements:

• Low-Noise Transformer Designs: Modern transformer designs focus on minimizing noise generation by using high-quality core materials, optimized winding configurations, and specialized clamping techniques.
• Amorphous Steel Cores: Transformers with amorphous steel cores are significantly quieter than those with traditional silicon steel cores.
• Vibration Damping: Using vibration-damping materials or shock-absorbing mounts can help reduce the transmission of vibrations through the transformer’s housing.

Operational Adjustments:

• Load Balancing: Ensuring that transformers operate within their rated load capacity and avoiding overloading can reduce excessive magnetic flux, which in turn reduces noise.
• Isolation Techniques: Placing transformers on vibration isolation pads or using acoustic enclosures can minimize noise transmission to the surrounding environment.

Maintenance:

• Regular Inspection: Regular inspection of core and winding integrity can help identify loose components that may exacerbate noise.
• Routine Servicing: Proper servicing, including the cleaning of oil-immersed transformers and maintaining optimal fluid levels, can reduce oil circulation-related noise.

What Is the Impact of Load on Transformer Noise Levels?

Introduction: Load and Transformer Noise - A Critical Connection

In transformer operations, noise levels are often a source of concern for both operational efficiency and environmental impact. While transformer noise is primarily caused by magnetostriction (the physical deformation of the core material under magnetic influence), the load placed on the transformer plays a significant role in the extent of this noise. In simple terms, as the load on a transformer increases, so too does the noise produced by the unit.

This article explores the relationship between load and transformer noise, examining why noise increases with load, how it affects transformer operation, and what can be done to manage or mitigate the noise generated under different load conditions.

1. How Load Affects Transformer Noise

Transformers generate noise primarily due to the magnetostrictive effect within the core, and this effect is closely tied to the magnetic flux density. When an alternating current (AC) flows through the windings of the transformer, it creates a fluctuating magnetic field that induces changes in the transformer core material, causing it to vibrate. The degree of these vibrations, and thus the noise, is directly linked to the amount of magnetic flux in the core, which increases with load.

Magnetic Flux and Load Relationship:

• Light Load (Low Current): Under light load conditions, the magnetic field in the transformer’s core is relatively weak, and the resulting vibrations (hence noise) are minimal. The magnetostrictive effect is less pronounced because the core is not subjected to significant changes in flux density.
• Full Load (High Current): When the transformer operates at full load, the current flowing through the windings is at its maximum, generating a stronger magnetic field. This stronger magnetic field induces higher levels of magnetostriction in the core, causing the core material to deform more substantially. These increased deformations lead to higher levels of vibration and, consequently, louder transformer noise.

Explanation of Increased Noise at High Load:

• Higher Magnetostriction: At full load, the transformer’s core experiences greater magnetostrictive forces, as the magnetization of the core is stronger. This results in more intense physical movements of the core material, amplifying vibrations and the resulting noise.
• Amplified Vibration: The higher the load, the greater the movement of the core’s magnetic domains. These physical changes cause more vibration in the core, which is transmitted to the housing and other structural parts of the transformer, creating additional noise.
• Core Saturation: At very high loads, the transformer core may approach magnetic saturation, where further increases in current do not result in a proportional increase in flux. However, near saturation, the distortion of the magnetic field can cause irregular vibrations, adding to the noise.

2. The Effect of Load Type on Transformer Noise

Not all loads are the same, and the type of load connected to the transformer can also influence the noise levels. For example, transformers operating under non-linear loads, such as those involving variable speed drives, computers, or other electronic equipment, tend to generate higher noise levels than those operating under purely resistive or inductive loads.

Different Load Types and Their Impact:

• Resistive Loads: Loads like incandescent lighting or heating elements are purely resistive, and the current waveform closely follows the voltage waveform. These loads generally cause a steady, predictable load on the transformer, with noise levels increasing as the load increases.
• Inductive Loads: Inductive loads, such as motors and transformers themselves, introduce phase shifts between current and voltage. While the noise impact is still linked to load, these types of loads may cause less fluctuation in transformer noise compared to non-linear loads.
• Non-Linear Loads: Loads like computers, LED lights, or equipment with switched-mode power supplies can distort the current waveform, leading to harmonic currents. These harmonics cause additional fluctuations in the magnetic field, increasing transformer noise even at lower load levels. The non-sinusoidal waveforms of these loads exacerbate the magnetostrictive effect, producing higher noise levels.

3. Load and Transformer Core Losses

Another factor that contributes to noise is core loss, which increases with higher load conditions. Core loss consists of two primary components: hysteresis loss and eddy current loss. Both are influenced by the magnetic flux density in the core material, which is directly affected by the load on the transformer.

• Hysteresis Loss: This is the energy lost due to the continual realignment of the magnetic domains in the core. At higher loads, the core experiences higher flux density, leading to greater hysteresis losses and subsequently more noise.
• Eddy Current Loss: This loss occurs when the changing magnetic field induces circulating currents (eddy currents) within the core. Higher loads lead to stronger magnetic fields, which increase the eddy current losses, generating more heat and vibration, and thus more noise.

4. Transformer Noise and Load Variations Over Time

In real-world applications, transformer load is rarely constant. Load fluctuations throughout the day or seasonally can cause varying noise levels from the transformer. These fluctuations might include:

• Peak Load Conditions: During peak demand periods, transformers experience higher loads, which can significantly increase the noise levels. This is often noticed in urban or industrial areas during the evening or summer months when demand for electricity rises.
• Off-Peak Load Conditions: During off-peak times, transformers operate at reduced loads, and the noise level typically decreases accordingly. However, this reduction in noise is proportional to the reduction in load, and under light load conditions, the noise may still be audible due to inherent core vibrations.

5. Noise Control Measures for Load-Induced Noise

While it is not possible to eliminate the relationship between load and noise entirely, various noise mitigation strategies can reduce the impact of load-induced noise.

Design and Construction Considerations:

• Vibration Dampening Materials: Installing vibration-damping materials or mounts can help reduce the transmission of vibrations to the transformer housing, which can reduce the perceived noise levels.
• Soundproofing: Enclosing transformers in soundproof enclosures or installing barriers between the transformer and sensitive areas can help to contain and reduce noise emissions.
• Optimized Core Materials: Using advanced core materials such as amorphous steel reduces magnetostriction and improves overall noise performance. These materials reduce the magnitude of vibrations even under full load conditions.

Operational Adjustments:

• Load Balancing: Ensuring that the transformer operates at a balanced load can help to reduce fluctuations in magnetic flux, leading to more stable noise levels.
• Monitoring Load Profiles: Installing load monitoring systems can help predict periods of high load, allowing for proactive noise management strategies to be implemented, such as scheduling quieter operational periods or adjusting transformer configurations.

What Are the Design Considerations to Minimize Transformer Noise?

Introduction: Transformer Noise – A Key Design Challenge

Transformer noise is an often-overlooked aspect of transformer operation, but it plays a critical role in both the performance and environmental impact of electrical equipment. Whether it's a minor inconvenience or a significant disturbance, transformer noise can affect areas ranging from residential neighborhoods to sensitive environments like hospitals, schools, and data centers. The key to minimizing this noise lies in understanding the factors that contribute to it and addressing them during the transformer design phase.

In this article, we will explore the key design considerations that engineers and manufacturers should focus on when aiming to minimize transformer noise. These factors include material selection, core design, structural components, and operational strategies, all of which contribute to the final noise output of a transformer.

1. Transformer Core Design

The core of a transformer plays a central role in generating noise. As the magnetic flux alternates in the core due to AC current, it induces mechanical vibrations known as magnetostriction. The degree of these vibrations directly influences the noise level.

Magnetic Properties of Core Materials:

• Amorphous Steel: One of the most effective ways to reduce transformer noise is to use advanced core materials such as amorphous steel. This material has lower magnetostriction properties, meaning it experiences less physical deformation under the influence of the alternating magnetic field. This leads to quieter operation.
• Silicon Steel: While more common and less expensive than amorphous steel, silicon steel cores can still be optimized for reduced noise by ensuring that the grain structure is oriented in a way that minimizes magnetostriction.
• Insulation and Coating: Core insulation coatings and materials can further reduce noise by minimizing the friction between the core laminations, which could otherwise create additional vibration.

Lamination Design:

• Thickness of Laminations: The thickness of the laminated sheets that make up the transformer core can influence both efficiency and noise. Thinner laminations generally reduce eddy current losses but can contribute to greater noise if not properly designed. Balancing lamination thickness is essential for both low-noise operation and efficient performance.

Core Clamping:

• Proper Core Clamping: The core should be clamped securely to prevent movement or vibration during operation. Poor clamping can amplify noise. The clamping forces need to be uniformly distributed across the core to prevent uneven vibrations.

2. Winding Design and Configuration

The transformer windings, which are the copper or aluminum coils that conduct electricity, can also contribute to noise generation. The design and configuration of these windings have a significant impact on the noise output.

Winding Placement and Design:

• Even Distribution: Ensuring that windings are evenly distributed around the core can help balance out forces within the transformer. Asymmetrical windings can lead to localized noise or even mechanical stress in certain parts of the transformer.
• Winding Support: Adequate support for windings prevents them from vibrating excessively, which can create additional noise. The use of soft materials, like rubber or resilient pads, can reduce this vibration.
• Interleaving of Windings: In some transformer designs, winding interleaving (alternating the primary and secondary windings) can be employed to reduce the interaction of magnetic fields and reduce both losses and noise.

3. Structural Design and Material Selection

The overall structure of a transformer, including the casing, tank, and mounting, contributes to its ability to contain and dampen noise. If the structure is poorly designed or constructed from materials that resonate easily, noise can escape the transformer and be amplified.

Transformer Housing:

• Use of Soundproof Materials: The transformer casing or housing should be designed with sound-damping materials to reduce the transmission of noise. Acoustic panels, foam, and rubber gaskets are common choices for this purpose. Additionally, using thicker steel for the housing can help reduce the reverberation of sound.
• Vibration Isolation: Mounting transformers on vibration-damping platforms or using anti-vibration mounts can prevent vibrations from traveling through the structure, effectively reducing the noise transmitted to the surroundings.

Enclosure Design:

• Sealed Enclosures: Sealing the transformer in an enclosure or a soundproof chamber can significantly reduce noise pollution in environments sensitive to sound. These enclosures can be lined with materials that absorb sound waves, ensuring that most of the noise is contained within the transformer’s immediate area.
• Cooling System Considerations: Many transformers are air-cooled or liquid-cooled. The cooling fans or pumps, if improperly designed or positioned, can introduce additional noise. Ensuring these components are well-integrated and operate efficiently without creating excessive noise is key.

4. Load Considerations and Operational Factors

The noise produced by a transformer is not only determined by its design but also by how it is operated. Load conditions play a significant role in noise levels, with higher loads resulting in greater noise due to stronger magnetic flux in the core.

Noise Reduction at Different Load Levels:

• Full Load Noise: Noise levels typically increase under full load because the transformer operates with a stronger magnetic field, leading to more significant vibrations. However, noise reduction technologies like active noise cancellation or variable speed cooling fans can help mitigate these effects.
• Partial Load Noise: Under partial load conditions, transformer noise may decrease since the magnetic flux in the core is weaker. Design strategies such as soft magnetic materials or noise-damping features can further reduce noise during these periods.

Non-Linear Load Considerations:

• Impact of Harmonics: Non-linear loads, such as those created by computers or variable speed drives, generate harmonics that distort the current waveform. These harmonics cause additional vibrations in the transformer, which leads to higher noise levels. The design of the transformer should take into account these harmonic currents, possibly incorporating harmonic filters to minimize their effect.

5. Noise Measurement and Testing

Regular noise measurement and testing should be incorporated into the transformer design process to ensure that noise levels are within acceptable limits.

Acoustic Testing:

• Pre-Installation Testing: Noise testing should be performed at various load levels before the transformer is installed to ensure that it meets the required noise standards. This can help identify any potential issues before the transformer is put into service.
• Long-Term Monitoring: Once operational, continuous monitoring of transformer noise can help track any changes over time, enabling the detection of issues such as core degradation, loose windings, or cooling system failure, which might lead to increased noise.

How Can Noise Be Controlled with Proper Installation?

Introduction: The Challenge of Transformer Noise and Its Impact

Transformers are essential components of power distribution systems, but their operation often results in unwanted noise. This noise can range from mild hums to loud vibrations, depending on several factors such as the design, load, and installation of the transformer. Noise from transformers is primarily generated by the vibrations of the core and windings, which are induced by the alternating magnetic fields inside the transformer. While this noise is generally unavoidable to some extent, proper installation plays a significant role in controlling and minimizing its impact.

In this article, we will discuss the importance of proper installation techniques to control transformer noise. We'll explore strategies and solutions that can help mitigate noise during transformer installation, ensuring quieter operation and a reduced environmental impact.

1. Vibration Isolation and Mounting

One of the primary causes of transformer noise is the vibration that occurs due to magnetic forces within the core and windings. These vibrations can travel through the transformer housing and the ground, spreading as noise in the surrounding environment. Proper installation techniques focus on isolating the transformer from its surroundings to minimize the transmission of vibrations.

Vibration Dampening Materials:

• Rubber or Spring Mounts: Installing the transformer on vibration-damping rubber or spring mounts can significantly reduce the transmission of mechanical vibrations to the ground and nearby structures. These mounts help isolate the transformer from the surface it is placed on, absorbing much of the vibration energy before it can spread further.
• Resilient Pads: In addition to mounts, resilient pads made from rubber or other shock-absorbing materials can be placed under the transformer. These pads provide an additional layer of vibration isolation, helping to reduce the overall noise level during operation.

Floor and Structural Considerations:

• Reinforced Flooring: The floor on which the transformer is installed should be stable, rigid, and able to support the weight and vibrations of the transformer. Any structural flexibility in the installation surface could amplify the noise.
• Isolated Foundation: In sensitive environments, using an isolated foundation or vibration-absorbing base for the transformer is highly effective. This prevents any noise or vibration from being transferred into the building structure or surrounding environment.

2. Proper Transformer Placement

The location where a transformer is installed plays a critical role in controlling its noise emissions. The noise generated by transformers can propagate through air, structural elements, or ducts, causing disturbances in the surrounding area. Proper placement and positioning can help reduce the spread of noise.

Location Within the Building:

• Away from Sensitive Areas: Transformers should ideally be installed away from sensitive areas like offices, bedrooms, and hospitals. Even in industrial settings, placing transformers in areas that are further from human activity can reduce the perceived noise levels.
• Using Acoustic Barriers: If the transformer must be placed near noise-sensitive areas, the use of acoustic barriers or walls can help attenuate the noise. These barriers can be made of soundproofing materials like thick concrete, acoustic panels, or insulating foam, which absorb and block the transmission of noise.

Ensuring Sufficient Clearance:

• Adequate Ventilation: Transformers require sufficient space around them to dissipate heat effectively. However, the clearance space can also help with noise control. A well-ventilated environment ensures that sound waves have space to dissipate before they hit nearby walls or ceilings, reducing their intensity.
• Avoiding Direct Contact with Walls: To minimize the transfer of vibrations through the building structure, transformers should not be placed directly against walls. Gaps of a few inches, along with vibration dampers, will reduce noise transfer.

3. Use of Noise-Reducing Enclosures

For transformers that generate significant noise or are placed in environments where noise is a major concern, installing soundproof enclosures is a practical solution. These enclosures can help contain the noise within the transformer’s immediate vicinity, preventing it from spreading to the surroundings.

Soundproofing Materials:

• Acoustic Panels: Enclosures lined with high-density acoustic panels or foam materials can absorb sound and reduce the noise levels significantly. These materials help absorb sound waves and prevent them from escaping the transformer.
• Soundproof Doors and Windows: If the transformer is installed in a larger facility or room, the door and any windows should be constructed from soundproof materials to prevent noise from leaking out.

Sealing Gaps and Cracks:

• Proper Sealing: Ensure that the enclosure is properly sealed, especially around doors, vents, and any other openings. Even small gaps can allow noise to escape, compromising the effectiveness of the enclosure. Sealing these gaps with acoustic-grade weather stripping or foam can improve noise containment.

4. Cooling System Considerations

Cooling systems are essential for maintaining the optimal temperature of transformers during operation. However, improperly designed or poorly installed cooling components can add to the noise produced by the transformer.

Noise from Cooling Fans:

• Low-Noise Fans: When selecting cooling fans for transformers, opt for those designed for quiet operation. Fans with high efficiency and low noise ratings are essential for minimizing the additional noise produced by the cooling system.
• Fan Placement and Isolation: Positioning the fan away from noise-sensitive areas and isolating it with noise-dampening materials can reduce its impact. It’s also important to ensure that the fans are not causing vibration through their mounting points.

Liquid Cooling Systems:

• Silent Pump Design: For transformers with liquid cooling systems, using silent pumps with low operational noise is critical. These pumps should be isolated from the structure to avoid transmitting vibrations into the surrounding environment.

5. Electrical and Magnetic Shielding

While electrical and magnetic noise are not the primary causes of transformer noise, they can still contribute to the overall noise profile of a transformer installation. Electromagnetic interference (EMI) and electric fields can radiate from the transformer and cause noise in nearby equipment.

Electromagnetic Shielding:

• Shielding Materials: Installing electromagnetic shielding around the transformer, such as steel or copper shielding plates, can help reduce the impact of EMI and prevent noise generation from external sources.
• Grounding: Proper grounding of the transformer and associated electrical components can also reduce electrical noise and improve the transformer’s overall stability, further minimizing unwanted noise emissions.

6. Ongoing Monitoring and Adjustment

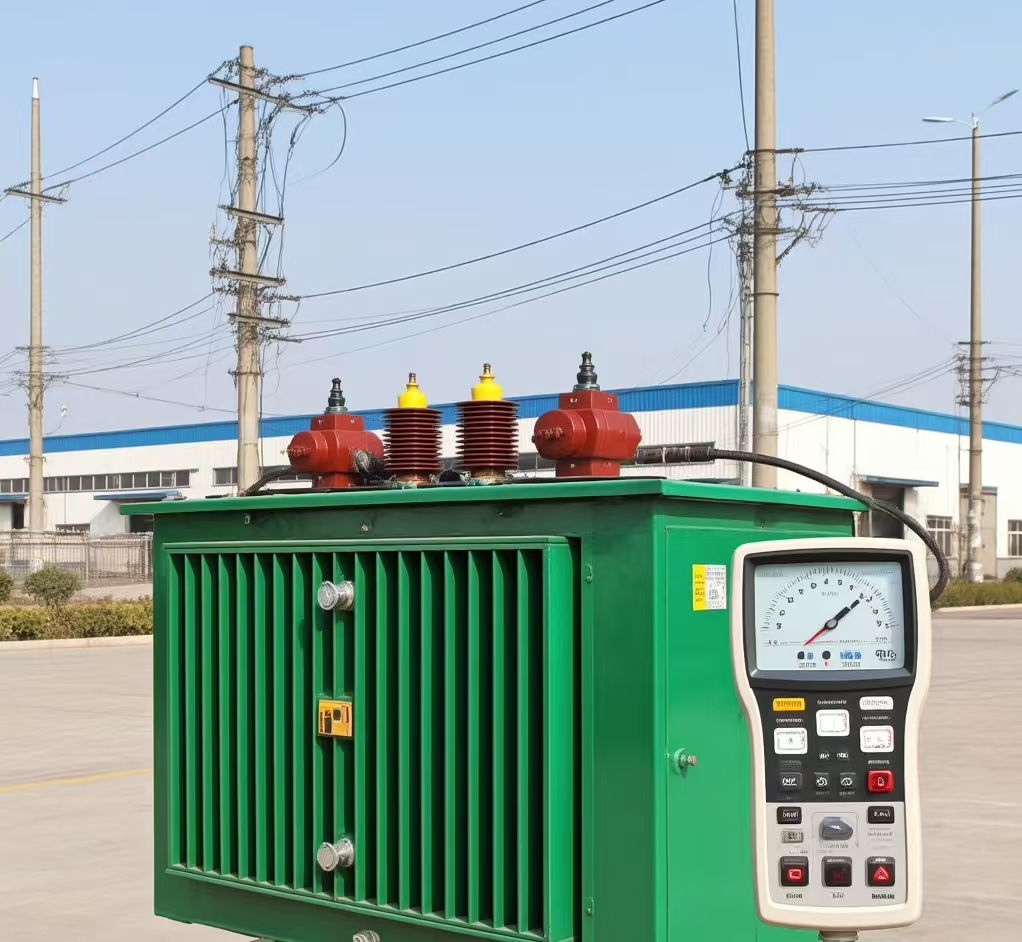

Noise levels may vary depending on load conditions and transformer age. Continuous monitoring can help ensure that the noise levels remain within acceptable limits.

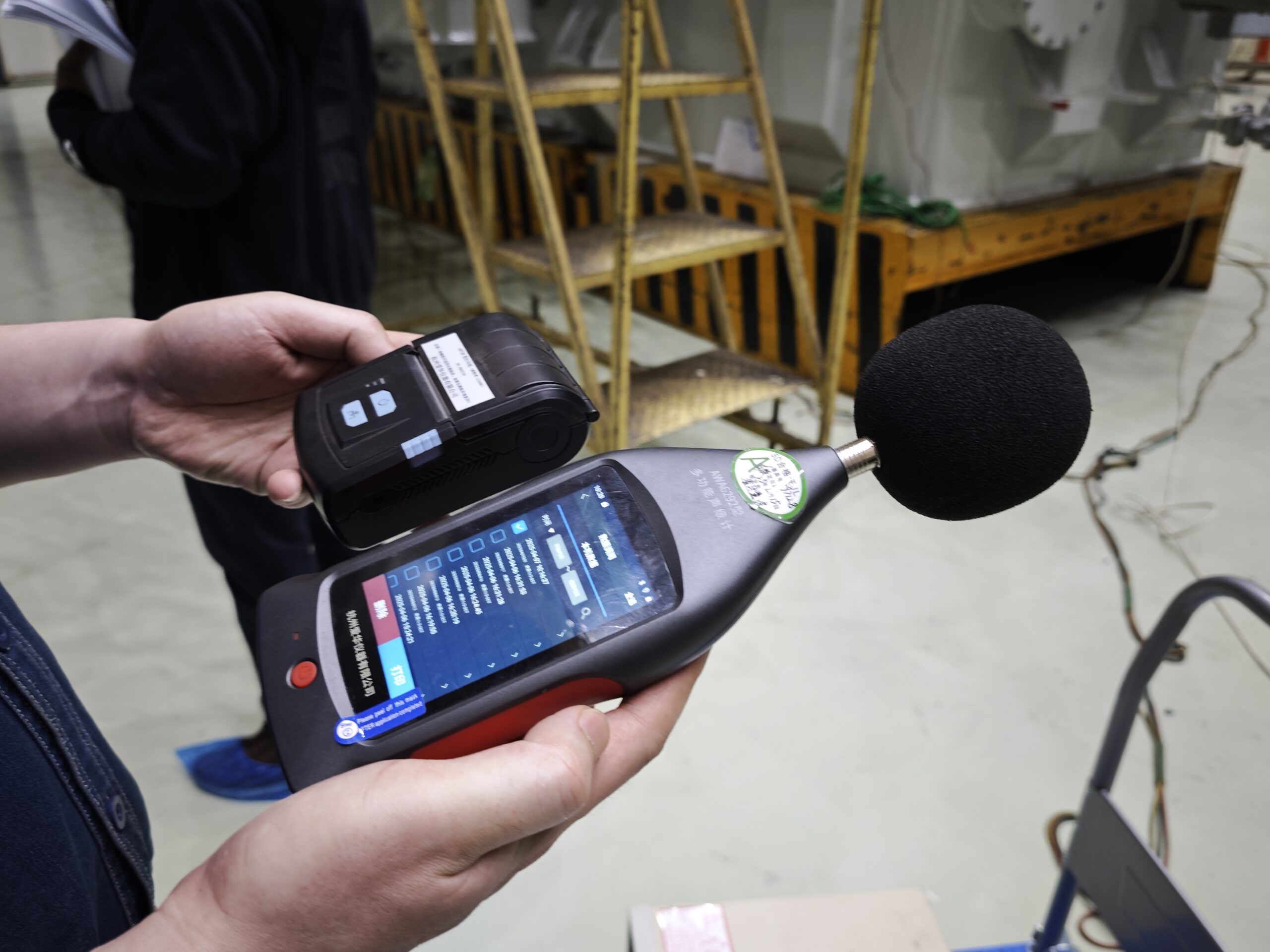

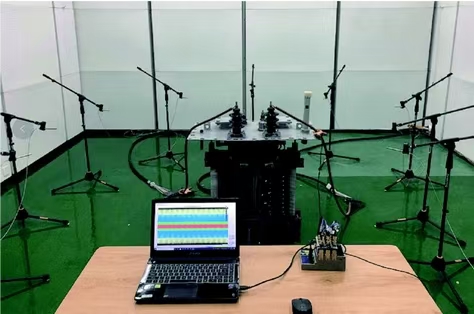

Sound Level Testing:

• Pre-Installation and Post-Installation Sound Testing: Before and after installation, sound level tests should be conducted to ensure that the transformer’s noise emissions are within the acceptable range. These tests should measure noise levels at different load conditions and under varying environmental factors.

Regular Maintenance:

• Vibration Monitoring: Over time, vibrations may increase due to loose components or wear and tear. Regular inspections of the transformer’s mounting and internal components can help identify any changes that might increase noise.
• Cooling System Audits: The cooling system should be periodically audited to ensure that fans and pumps are operating quietly and efficiently.

What Are the Benefits of Using Advanced Transformer Designs for Noise Reduction?

Introduction: The Growing Need for Noise Control in Transformer Design

Transformers are an essential part of modern power distribution systems, responsible for stepping up or stepping down voltage to appropriate levels for safe and efficient electrical transmission. However, despite their vital role, transformers can also be a significant source of noise pollution, particularly in densely populated or noise-sensitive environments.

Noise from transformers generally stems from vibrations caused by the electromagnetic forces within the core and windings. While some noise is inevitable, advancements in transformer design are helping to reduce the levels of noise generated during operation. These innovations not only improve the quality of life for people in the surrounding area but also enhance the efficiency and performance of the transformers themselves. In this article, we will explore the various benefits of using advanced transformer designs for noise reduction and how these technologies are shaping the future of power distribution.

1. Quieter Operation: Reducing Noise Pollution

One of the primary benefits of using advanced transformer designs for noise reduction is a significant decrease in the noise levels produced during operation. These designs incorporate specialized materials, structures, and technologies that target the root causes of noise, primarily vibrations and magnetic forces, to ensure quieter operation.

Design Improvements:

• Low-Noise Core Materials: The core is where most transformer noise originates, as it vibrates due to the alternating magnetic field. Advanced transformer designs often utilize specialized low-noise core materials like amorphous steel or high-performance silicon steel. These materials are designed to reduce core vibrations by minimizing the magnetostriction effect, a primary source of noise.

• Core-Forming Techniques: Advances in how the core is assembled can also significantly reduce noise. The use of optimized core shapes and configurations that minimize magnetization stress helps reduce the vibrations caused by the core. This, in turn, helps lower the overall sound level produced by the transformer.

• Vibration Damping and Isolation: Integrating vibration damping technologies into transformer design, such as special insulation materials, vibration-resistant casings, and damping pads, helps isolate the noise source and prevents vibrations from spreading to the surrounding environment. These features ensure that noise does not transmit through the transformer’s housing or mounting structure.

2. Improved Energy Efficiency

Advanced designs that reduce noise can also improve the overall energy efficiency of transformers. Noise in transformers is primarily caused by the core's vibration, which results from the energy loss due to eddy currents and hysteresis. By optimizing core materials and using designs that reduce energy losses, these advanced transformers not only become quieter but also more energy-efficient.

Core Loss Reduction:

• Lower Core Losses: The use of advanced materials, such as amorphous steel, helps reduce energy losses in the core. As these losses contribute to both noise and heat generation, reducing them directly benefits both the transformer’s efficiency and its noise output. Less energy lost as heat and vibration means that the transformer can operate more effectively.

• Enhanced Magnetic Flux Control: Some modern transformers use advanced magnetic flux control techniques to further reduce core losses and, by extension, minimize the noise associated with these losses. Magnetic flux management helps optimize the efficiency of the transformer, while also controlling noise emissions.

3. Extended Transformer Lifespan

Advanced transformer designs that incorporate noise-reduction technologies are often more robust and have a longer service life. This is because noise reduction typically involves improvements in the materials and design of the transformer that also address other factors that contribute to wear and tear, such as vibration and heat buildup.

Less Wear on Internal Components:

• Reduced Mechanical Stress: By minimizing vibrations and magnetic forces, advanced transformer designs reduce mechanical stress on the internal components. This leads to less wear on the windings, core, and other components, contributing to an extended lifespan for the transformer.

• Thermal Management: Many noise-reduction designs also improve thermal management by using materials that dissipate heat more efficiently. Proper heat dissipation helps prevent overheating, which is a common cause of transformer failure. This means that transformers with advanced noise-reduction features are not only quieter but also more durable.

4. Improved Environmental Compatibility

As urbanization continues and power infrastructure is placed closer to residential, commercial, and industrial buildings, the environmental impact of transformer noise has become an important consideration. Quiet transformers help improve the compatibility of power distribution systems with their surroundings, particularly in noise-sensitive areas.

Compliance with Regulations:

• Meeting Noise Pollution Standards: Many regions have strict regulations regarding noise pollution, especially in residential or densely populated areas. Advanced transformer designs are capable of meeting or exceeding these regulations, ensuring that transformers can be installed without disrupting local communities.

• Sustainable Urban Development: In the context of smart cities and sustainable urban development, quieter transformers help reduce noise pollution, which is crucial for creating more liveable and sustainable environments. By using noise-reducing transformer designs, utilities and developers can contribute to the creation of quieter, more comfortable urban spaces.

5. Enhanced Performance in Noise-Sensitive Applications

In certain industries or settings, such as hospitals, data centers, and residential buildings, transformers need to operate with minimal noise interference. Advanced noise-reducing transformer designs are ideal for these sensitive applications, as they help ensure that transformer operation does not interfere with other critical processes or environments.

Applications in Sensitive Environments:

• Healthcare Facilities: Hospitals rely on stable and uninterrupted power for critical medical equipment. Noise from transformers can be disruptive to sensitive diagnostic and treatment devices. Quieter transformers help ensure that these devices perform optimally without being affected by electromagnetic interference (EMI) or mechanical vibrations.

• Data Centers: Data centers, which house critical IT infrastructure, require a stable power supply without the added noise that could interfere with equipment cooling or operational performance. Advanced transformer designs that focus on noise reduction ensure that data centers remain efficient and operate in a noise-controlled environment.

6. Reduced Maintenance and Operating Costs

Noise-reducing transformer designs that focus on vibration reduction, advanced materials, and improved cooling not only extend the transformer’s lifespan but also reduce the need for frequent maintenance. Transformers with less wear and tear due to reduced vibrations and noise-related issues require fewer repairs and replacements, leading to cost savings over time.

Lower Operating Costs:

• Reduced Mechanical Failures: Advanced noise-reducing designs that minimize vibrations also help reduce mechanical failures, which are a common cause of transformer downtime. This reduces the need for costly repairs and ensures that the transformer remains operational for longer periods.

• Less Energy Consumption: By optimizing the core material and design for energy efficiency, transformers can operate at lower energy costs. The reduction in core losses means less energy is wasted as heat or noise, contributing to overall cost savings.

---

Conclusion

Reducing noise in transformers is important not only for improving the comfort and quality of life in residential or sensitive environments but also for ensuring that transformers operate at their best without unnecessary vibration or wear. The main sources of transformer noise are typically related to the magnetic field and vibration of components such as the core, windings, and tank.

1. Magnetic Field and Core Vibration: The alternating current in transformers creates a magnetic flux that causes the transformer core to vibrate. This is the primary source of hum and buzz. Using grain-oriented steel with better magnetic properties and thicker laminations can reduce vibrations and, consequently, noise.

2. Load Variation: Transformer noise levels can increase under higher load conditions due to increased magnetostriction in the core and the mechanical forces in the windings. Ensuring that the transformer is correctly sized and operates within its designed load range can help minimize noise.

3. Design Considerations: Transformer manufacturers design noise-reduced models by selecting high-quality core materials and optimizing the construction to minimize noise. Utilizing vacuum-impregnated cores, silence-enhanced windings, and noise-damping coatings can significantly lower operational noise.

4. Installation and Environmental Control: Installing transformers in soundproof enclosures, using vibration isolation pads, or placing them on resilient mounts can help contain the noise. Acoustic barriers or soundproof walls around transformers in urban or residential areas can further reduce noise pollution.

5. Advanced Low-Noise Transformer Designs: Many modern transformers are designed specifically with noise reduction in mind. Low-noise transformers use advanced materials, improved winding designs, and special core configurations to reduce both audible hum and mechanical vibrations. These transformers are ideal for use in areas where noise pollution is a concern.

By addressing the sources of noise during both the design and installation phases, and by employing noise-reducing technologies, transformer noise can be effectively minimized. Additionally, proper maintenance (such as ensuring no loose parts or damaged components) can prevent noise levels from increasing over time.

In summary, reducing noise in transformers involves a combination of design improvements, proper installation techniques, and the use of advanced materials and construction methods. With careful attention to these factors, transformer noise can be minimized, leading to better performance, less disruption, and a more pleasant environment in both residential and industrial settings.

FAQ

Q1: Why do transformers make noise?
A1: Transformers generate noise due to the magnetostriction effect, where the magnetic field causes the core material to vibrate. Additionally, the flow of current through the windings can induce mechanical vibrations. These noises are typically hums or buzzes. Vibration from the core and oil flow also contributes to transformer noise, particularly under heavy load conditions.

Q2: What design modifications can reduce noise in transformers?
A2: To reduce noise, transformer designs can incorporate materials that absorb vibrations, such as soundproofing layers in the casing. Additionally, using laminated cores with precise alignment helps minimize magnetostriction, and selecting quieter core materials can significantly reduce noise levels. Improved winding techniques and better fastening of parts also contribute to noise reduction.

Q3: How does vibration damping help reduce transformer noise?
A3: Vibration damping involves using materials like rubber, foam, or other viscoelastic substances to absorb and reduce vibrations caused by the magnetic field or the transformer’s internal mechanical movement. This helps prevent the transmission of sound waves, reducing the noise heard from the transformer. Damping materials can be placed around the transformer’s core, tank, or other vibrating components.

Q4: What role does soundproofing play in transformer noise reduction?
A4: Soundproofing techniques, such as enclosing the transformer in noise-absorbing enclosures or using soundproof materials like acoustic panels or barriers, can reduce the transmission of noise to the surrounding environment. These enclosures help trap the noise within the transformer’s structure and prevent it from spreading, making the area around the transformer quieter.

Q5: How can operational factors help reduce transformer noise?
A5: Operating the transformer under optimal load conditions can minimize noise, as transformers tend to make more noise when overloaded. Ensuring proper voltage levels, regular maintenance, and checking for unbalanced loads can help maintain smooth operation, reducing the strain on components that cause noise. Additionally, proper placement of the transformer away from sensitive areas can also mitigate noise concerns.

References

"How to Reduce Noise in Transformers: Design and Operational Solutions" - https://www.transformertech.com/noise-reduction - Transformer Tech

"Transformer Noise Control and Vibration Damping Techniques" - https://www.powermag.com/transformer-noise-reduction - Power Magazine

"Reducing Sound Emission in Power Transformers" - https://www.electrical4u.com/reduce-transformer-noise - Electrical4U

"Designing Quieter Transformers: Noise Reduction Methods" - https://www.sciencedirect.com/topics/engineering/transformer-noise - ScienceDirect

"Noise Reduction Solutions for Electrical Transformers" - https://www.researchgate.net/noise-reduction-transformers - ResearchGate

"Advanced Noise Control Technologies for Transformers" - https://www.smartgridnews.com/transformer-noise-control - Smart Grid News

"Methods for Minimizing Transformer Sound Emissions" - https://www.energycentral.com/c/ee/transformer-sound-emissions - Energy Central

"The Role of Vibration Damping in Transformer Noise Reduction" - https://www.powergrid.com/transformer-vibration-damping - PowerGrid
