How to Identify Power Transformer Common Faults and Malfunctions?

Power transformers are critical components in energy transmission systems. While built to be robust and reliable, they are still vulnerable to various faults caused by electrical, mechanical, thermal, or environmental stress. Early identification of these faults is essential to avoid catastrophic failures, reduce downtime, and extend the transformer's operational life. This guide outlines how to recognize and interpret signs of transformer malfunctions using visual inspections, monitoring tools, and diagnostic testing.


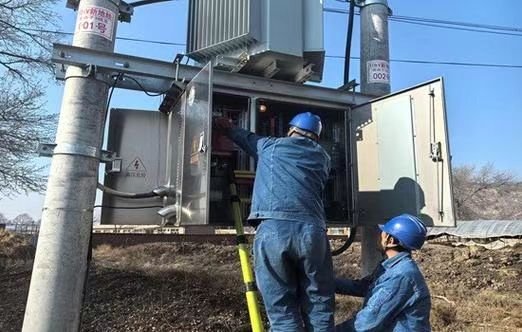

What Are the Most Common Faults in Power Transformers?

Power transformers are engineered for decades of reliable service, but they are not immune to electrical, mechanical, thermal, and chemical stresses. Over time, these stresses can lead to a range of faults, some developing gradually and others striking suddenly with catastrophic consequences. Understanding the most common faults in power transformers allows operators to implement predictive maintenance, targeted monitoring, and design improvements—dramatically reducing downtime and extending asset life.

The most common faults in power transformers include winding short circuits, insulation degradation, overheating of windings or core, bushing failure, oil contamination or leakage, tap changer malfunctions, and core or clamp issues. These faults result from overloading, aging, moisture ingress, poor connections, or transient surges and can lead to severe failure if not detected early.

Proper diagnostics, condition monitoring, and regular testing can help identify and mitigate these faults before they escalate.

Power transformers rarely fail and do not have common fault patterns.False

Power transformers fail due to identifiable fault types such as insulation breakdown, overheating, and winding shorts. Understanding these patterns is key to prevention.


Top 8 Most Common Transformer Faults

Fault TypeDescription & Consequences
1. Winding Short CircuitTurn-to-turn or phase-to-phase fault due to insulation breakdown
2. Insulation DegradationCaused by heat, moisture, or chemical aging; leads to dielectric failure
3. Overheating (Hotspots)Localized thermal stress causes accelerated aging and partial discharge
4. Bushing FailureCracks, contamination, or flashover leads to high-voltage arcing
5. Tap Changer FaultsArcing, wear, or oil contamination in OLTC units
6. Oil Contamination/LeakageReduces dielectric strength, increases fire risk
7. Core/Clamp IssuesLoosening or insulation failure causes vibration, heating, or circulating currents
8. Partial Discharge (PD)Early-stage insulation breakdown detected as local ionization

Fault Detection by Symptom and Test

SymptomLikely FaultDiagnostic Tool
Burning smell + hot radiatorsOverheating, insulation agingIR camera, DGA, temperature sensor
Irregular sound or buzzingCore vibration, winding loosenessAcoustic sensor, vibration probe
Sudden trip, no external signsInternal winding shortWinding resistance, TTR, relay logs
Visible oil leakSeal degradation, tank corrosionVisual inspection, oil sample
Corona noise or flashingBushing PD or contaminationUV camera, partial discharge test
Load voltage instabilityTap changer contact wearOLTC analyzer, voltage log

Real-World Case – Multiple Faults in One Unit

  • Transformer: 40 MVA, 132/33 kV unit
  • Event: Relay trip, overheating alarm, unusual noise
  • Findings:

    • DGA: Elevated CO, C₂H₄, acetylene → overheating + arc
    • IR test: Degraded paper insulation in LV winding
    • Visual: Bushing crack and oil leakage near tap
    • Root Cause: Combined overload, moisture ingress, bushing deterioration

Solution: Partial coil rewrapping, bushing replacement, oil purification, and tap changer overhaul


Frequency of Fault Types by Failure Statistics

Fault Type% of Total Transformer Failures (Typical Utility Data)
Winding Short Circuits35–45%
Bushing Flashover/Failure15–25%
Tap Changer Malfunction10–15%
Overheating/Hotspots10–12%
Oil-Related Issues8–10%
Core and Structural2–5%

Causes Behind Common Transformer Faults

Fault CategoryUnderlying Causes
Electrical FaultsLightning, overvoltage, switching surge, poor connections
Thermal FaultsOverloading, blocked cooling, radiator failure
Chemical FaultsOxidized oil, sludge, moisture ingress
Mechanical FaultsLoosened winding clamps, shipping damage
Operational FaultsIncorrect tap settings, neglected maintenance

Prevention and Early Detection Measures

Monitoring/Test ToolFault Prevented/Detected
Dissolved Gas Analysis (DGA)Internal arcs, overheating, insulation breakdown
Furan & Moisture TestingPaper aging, water ingress
IR ThermographyHotspots, load imbalance
Online PD SensorsPartial discharge detection
Tap Changer AnalyzerOLTC timing/contact wear
Routine Oil SamplingAcidity, sludge, moisture, metal particles
Relay and SCADA ReviewEarly tripping and transient patterns

What Visual and Audible Symptoms Indicate a Potential Transformer Fault?

Before transformers fail completely, they often exhibit warning signs detectable by sight and sound. Trained operators and maintenance personnel can identify early-stage faults by recognizing abnormal visual or acoustic patterns. These symptoms are not just superficial—they typically point to underlying electrical, thermal, or mechanical problems, including insulation failure, partial discharge, bushing degradation, or winding stress. Prompt action when these cues appear can prevent catastrophic failure.

Visual and audible symptoms of potential transformer faults include smoke or steam, oil leaks, abnormal sounds such as buzzing, popping, or humming, arcing flashes, bushing discoloration, excessive heating, and strong burnt or chemical odors. These indicators suggest internal or external electrical stress, insulation breakdown, or mechanical instability and warrant immediate inspection.

Identifying these symptoms early is essential for prevention, protection, and equipment longevity.

Transformer faults develop silently and without noticeable signs.False

Transformer faults are often preceded by audible and visual symptoms such as humming, arcing, smoke, or oil leaks, which provide early opportunities for detection and response.


Common Visual Symptoms of Transformer Faults

Visual IndicatorPotential Cause
Smoke or Steam EmissionOverheating, internal arcing, oil breakdown
Oil LeakageDamaged seals, corroded tank, overpressure rupture
Discoloration (Bushing or Paint)Thermal hotspots, arcing, flashover
Burn Marks or SootPast fault, surface tracking, PD damage
Bubbling Oil in ConservatorInternal gassing, moisture ingress
Flashing or Sparks at TerminalsLive arcing, poor contact, insulation failure
Drooping Cables or Bulging CoverMechanical stress, pressure from gas buildup
Loose or Disconnected Ground WiresPotential shock hazard and lightning vulnerability

Audible Symptoms and What They May Indicate

Sound TypeInterpretation
Loud Buzzing or HummingCore saturation, unbalanced load, or magnetic vibration
Crackling or PoppingPartial discharge, moisture in insulation
High-Pitched WhiningResonance in windings or tap changer instability
Sudden “Bang” or ExplosionShort circuit, arc flash, tank rupture
Clicking During Load ChangesTap changer switching problems
Persistent RattlingLoosened clamps, loose core, vibration from unbalanced magnetic forces

Symptom-to-Fault Mapping Guide

Symptom ObservedLikely Fault Candidate
Smoke from bushingBushing crack, insulation flashover
Oil puddle beneath tankGasket failure, impact damage, pressure burst
Loud hum growing over timeCore clamp loosening, harmonic distortion, overvoltage
Crackling inside unitPD due to wet insulation or air pockets
Blackened enclosure paintExternal arcing, excessive internal temperature
Rising top oil thermometerCooling failure, winding overload

Example Field Scenario

  • Equipment: 1 MVA oil-filled transformer
  • Symptoms:

    • Buzzing grew louder over a week
    • Operator noticed burnt smell near bushing
    • IR camera showed one side of the tank was 18 °C hotter
    • Oil test revealed 46 ppm moisture and CO₂ rise in DGA
  • Action: Transformer taken offline and breather/gasket replaced

Outcome: Averted potential failure—early symptoms enabled safe intervention


Diagnostic Tools to Confirm Visual and Audible Faults

ToolWhat It Confirms
Thermal Imaging (IR)Detects uneven heat zones, hotspots, bushing failure
Ultrasonic/Acoustic DetectorsCaptures PD, arcing, internal corona
Oil Sampling KitAssesses moisture, acidity, gas evolution
Sound Level MeterLogs audible transformer vibration profiles
Vibration AnalyzerDetects mechanical instability in core or clamps
DGA Test SetReveals fault gas buildup linked to observed symptoms

What to Do if Visual or Audible Symptoms Are Detected

Action StepWhy It’s Critical
Isolate Power or Reduce LoadPrevent fault escalation
Inform Maintenance ImmediatelyBegin tests and inspections before failure
Log ObservationsPhotos, sound recordings, thermal scans assist in diagnostics
Inspect Oil and RelaysConfirm if stress is internal or external
Do Not Ignore Repeating SymptomsRecurring noise or leaks may precede insulation collapse

How Can Oil Testing Help Detect Internal Problems in Power Transformers?

Oil testing is the most effective non-invasive method for detecting internal problems in oil-immersed transformers. The transformer oil serves not only as a coolant and dielectric medium, but also as a diagnostic medium—retaining chemical fingerprints of internal faults. By periodically analyzing oil samples, operators can identify emerging issues such as insulation degradation, overheating, arcing, and contamination, often before any visible or audible symptoms occur.

Transformer oil testing helps detect internal problems by measuring dissolved gases from electrical and thermal faults, identifying moisture and furanic compounds from insulation aging, assessing dielectric strength, and detecting contamination. Key methods include DGA (Dissolved Gas Analysis), Karl Fischer moisture testing, acidity testing, BDV (Breakdown Voltage) measurement, and furan analysis.

Regular oil testing is central to condition-based maintenance and failure prevention strategies.

Transformer oil testing only provides information about oil quality, not equipment health.False

Transformer oil testing reveals critical information about internal electrical, thermal, and insulation conditions through gas analysis, moisture content, and chemical degradation markers.


Core Oil Tests and the Internal Problems They Reveal

Test NameDetects or Indicates
Dissolved Gas Analysis (DGA)Arcing, overheating, insulation breakdown, partial discharge
Moisture (Karl Fischer)Seal failure, water ingress, paper insulation deterioration
Furan AnalysisThermal aging and hydrolysis of cellulose insulation
BDV (Breakdown Voltage)Dielectric strength and oil cleanliness
Acidity (Neutralization Number)Oxidation, sludge formation, aging oil
Interfacial Tension (IFT)Oil contamination or polar compound buildup
Color/Appearance CheckEmulsion, suspended solids, oil oxidation

Fault Signature Gases in DGA and Their Meaning

Gas TypeFault IndicatedTypical Cause
Hydrogen (H₂)Partial dischargeAir pockets, insulation voids
Methane (CH₄)Low-energy thermal faultMinor hotspots
Ethane/Ethylene (C₂H₆/C₂H₄)Thermal overheatingHot metal, overloading
Acetylene (C₂H₂)Arcing or high-energy dischargesInternal arcing
Carbon Monoxide/Dioxide (CO/CO₂)Cellulose insulation degradationThermal aging or wet paper

Interpreting Moisture and Furan Levels

ParameterWhat It Tells You
Moisture in Oil (>35 ppm)Indicates seal leakage, water ingress, or wet paper
Paper Moisture >2%Severe degradation risk for insulation
Furan Content >1 mg/LAdvanced thermal aging of cellulose paper insulation
Rapid Furan RiseMay indicate recent overheating event or loss of drying

Example Case – Early Detection via Oil Testing

  • Transformer: 10 MVA, 66/11 kV distribution unit
  • Annual oil test results:

    • H₂ = 180 ppm, C₂H₂ = 45 ppm → arcing suspected
    • Furan = 0.9 mg/L (up from 0.4)
    • Moisture = 58 ppm
  • Action Taken:

    • Internal inspection revealed failing OLTC contacts
    • Replaced OLTC unit before full winding flashover

Result: Prevented \$70,000 transformer failure through timely oil diagnostics


Oil Test Intervals and Guidelines (Per Standards)

Transformer ClassSuggested Oil Testing Frequency
≤1 MVA (Small)Every 2–3 years
1–10 MVA (Medium)Annually
>10 MVA or Critical UnitsTwice per year, DGA quarterly recommended
After Any Event or OverloadImmediate oil sampling

Integration with Condition-Based Monitoring (CBM)

Oil Test InputMaintenance Action Triggered
High Moisture TrendDehydration or seal replacement
Elevated DGA GasesInternal inspection or load reduction
Low BDV (<40 kV)Oil filtration or full replacement
Furan SpikeReassess insulation age, possibly derate transformer

Key Advantages of Regular Oil Testing

  • Non-invasive: No need to open the transformer
  • Predictive: Faults detected long before visible failure
  • Cost-saving: Helps avoid major damage and unscheduled outages
  • Trending: Identifies gradual deterioration via time-series data
  • Warranty Support: Documents operating condition for OEM consultation

What Electrical Tests Are Used for Fault Diagnosis in Power Transformers?

While oil analysis reveals chemical and thermal signs of transformer distress, electrical tests are essential for identifying mechanical damage, insulation breakdown, winding faults, and terminal degradation. These tests are performed both periodically for preventive maintenance and after incidents for fault diagnosis. Electrical test results provide direct insight into the integrity of windings, cores, insulation systems, and magnetic balance, guiding decisions on repair, refurbishment, or replacement.

The key electrical tests used for transformer fault diagnosis include insulation resistance (IR), polarization index (PI), winding resistance, transformer turns ratio (TTR), short-circuit impedance, capacitance and dissipation factor (Tan Delta), and applied or induced voltage withstand tests. These tests reveal internal faults such as insulation aging, winding deformation, contact wear, and magnetic imbalances.

Together, they form the foundation of electrical condition assessment for transformers of all sizes.

Transformer faults cannot be detected using electrical tests.False

Electrical tests like insulation resistance, winding resistance, and TTR are essential tools for identifying internal faults, aging, and failures in transformer components.


Core Electrical Diagnostic Tests and What They Detect

Test NamePurpose & Faults Identified
Insulation Resistance (IR)Detects insulation aging, contamination, or moisture ingress
Polarization Index (PI)Assesses insulation health over time using IR time ratio
Winding Resistance TestIdentifies open circuits, shorted turns, or poor connections
Transformer Turns Ratio (TTR)Detects winding deformation, tap changer faults
Capacitance & Tan DeltaMeasures insulation loss and paper degradation in bushings or windings
Short-Circuit ImpedanceReveals winding shifts or core displacement from short circuits
AC/DC Hipot TestConfirms high-voltage dielectric strength
Sweep Frequency Response (SFRA)Detects mechanical displacement in core/windings

Common Faults Diagnosed by Each Test

Fault TypeBest Detection Test(s)
Moist or Aged InsulationIR, PI, Tan Delta
Loose/Burnt WindingsWinding Resistance, SFRA
Tap Changer DefectsTTR, Contact Resistance
Partial Discharge RiskIR, DGA, Tan Delta
Core/Winding DisplacementSFRA, Impedance Test
Poor Grounding or Arcing PathIR (core-to-ground), Capacitance Tests

Real-World Example – Electrical Tests Uncover Hidden Fault

  • Transformer: 20 MVA, 132/33 kV power unit
  • Trigger: Tripped during switching, no oil or visual issues
  • Test Results:

    • IR: 120 MΩ (acceptable)
    • TTR: 1.98 vs 2.00 expected → minor imbalance
    • Winding Resistance: HV-A phase 15% higher
    • SFRA: Shift in 1 kHz–10 kHz band → winding distortion
  • Conclusion: Windings shifted during short circuit, causing imbalance

Outcome: Rewind performed; insulation verified and returned to service


Electrical Testing Frequency Guidelines

Transformer Type / ClassRecommended Test Intervals
<1 MVA Distribution UnitsIR & TTR every 2–3 years
1–20 MVA Industrial UnitsIR, TTR, Resistance annually; Tan Delta every 3 years
>20 MVA or Critical InfrastructureFull suite of tests annually or post-fault
After Transport, Shock, or FailureIR, SFRA, TTR, Resistance, Hipot, and Oil tests

Testing Equipment Used and Their Function

EquipmentMeasurement Function
Megger IR Tester (1–5 kV)Insulation resistance phase-to-phase/ground
Digital TTR MeterTurn ratio across winding pairs/taps
Micro-ohmmeterWinding resistance and contact resistance
Tan Delta & Capacitance SetMeasures dielectric losses and insulation aging
SFRA AnalyzerFrequency response showing mechanical integrity
Hipot Tester (AC/DC)Withstand voltage test for insulation breakdown strength

Interpretation of Typical Test Results

Test ParameterGood Condition ValueAction Threshold/Concern
IR (Phase-Phase)>500 MΩ<100 MΩ: Investigate moisture/age
PI (10-min/1-min ratio)>2.0<1.3: Possible contamination/degradation
Winding Resistance Balance<2% deviation across phases>5% deviation: Check for joint/burn
TTR Ratio Error<0.5% vs. nameplate>1%: Suspect tap or winding issue
Tan Delta (HV winding)<0.5%>1.0%: Sign of insulation aging

How Does Online Monitoring Detect Emerging Faults in Power Transformers?

In modern power systems, transformer failure is too costly to wait for symptoms. That’s where online monitoring systems come in. These advanced technologies use real-time sensor data to detect the earliest signs of failure—before physical symptoms or test intervals arrive. Online monitoring allows operators to act proactively, rather than reactively, by identifying trends in temperature, oil quality, gas generation, vibration, or partial discharge that indicate developing faults.

Online monitoring detects emerging faults in transformers by continuously measuring key parameters like temperature, dissolved gases, moisture, bushing health, partial discharge, and loading conditions. By using intelligent analytics and alert thresholds, these systems identify insulation degradation, overheating, incipient arcing, and mechanical stress before visible failure occurs.

This continuous insight helps utilities optimize maintenance, extend asset life, and avoid outages.

Transformer faults always require manual testing to detect.False

Online monitoring systems continuously track critical parameters and can detect emerging transformer faults earlier than periodic manual tests.


Key Parameters Monitored and Faults Detected

ParameterWhat It Detects
Top Oil TemperatureOverheating, cooling system failure
Winding Hot SpotThermal aging, load imbalance
Dissolved Gas Analysis (Online DGA)Arcing, overheating, insulation decomposition
Moisture in OilSeal failure, internal humidity rise, insulation risk
Partial Discharge (PD)Insulation voids, surface tracking, early dielectric failure
Bushing Capacitance/Tan DeltaBushing insulation aging or moisture ingress
Load Current and VoltageLoad stress patterns, harmonics, phase imbalance
Core Ground CurrentCore insulation breakdown, circulating current risk

How Online Systems Work

ComponentFunction
Sensors Installed on TransformerMeasure physical, thermal, electrical, and chemical data
Data Logger or RTUCollects and timestamps data locally
Communication Module (IoT/SCADA)Sends data to central dashboard or cloud platform
Analytics EngineApplies thresholds, AI models, and trending analysis
Alarm & Notification SystemAlerts operators if abnormal conditions develop
Dashboard InterfaceEnables real-time review, trend visualization, and fault history

Real-World Fault Detection Example

  • Transformer: 63 MVA, 132/33 kV substation unit
  • Online DGA system triggered C₂H₂ rise from 6 ppm to 43 ppm in 7 days
  • Alarm sent to SCADA, triggering inspection
  • IR scan confirmed hot spot near OLTC compartment
  • Diagnosis: Arcing in diverter switch
  • Action: Repaired OLTC before full breakdown

Saved: $250,000+ in potential transformer damage and weeks of grid downtime


Benefits of Online Monitoring Over Offline Testing

FeatureOnline MonitoringOffline Testing
FrequencyContinuous (24/7)Scheduled (e.g., yearly, quarterly)
Early Fault DetectionDays to weeks before failureMay miss between-test faults
Data TrendsReal-time trending and predictionPoint-in-time results only
Response SpeedImmediate alertsDependent on test scheduling
Operator DependenceAutomatedRequires manual crew deployment

Most Common Faults Detected Early by Online Systems

Fault CategoryIndicator Picked Up by System
Thermal OverloadHigh winding hot spot, accelerated oil aging
Internal ArcingSharp acetylene rise in DGA
Moisture IngressRising ppm in oil moisture sensor
Bushing DegradationIncrease in capacitance, tan delta drift
Partial DischargeSpike in PD pulse count or localization shift
Cooling FailureTop oil rise without load increase

Online Monitoring System Options

System TypeMonitored FeaturesBest For
Single Gas MonitorHydrogen (H₂) onlyCompact transformers, critical alerting
Multi-Gas Online DGA5 or 9 fault gasesPower transformers, mission-critical sites
Smart Bushing MonitorCapacitance, Tan Delta, leakage currentOlder or high-voltage bushings
Thermal Monitoring SystemHot spot and radiator tempHigh-load industrial units
Integrated Monitoring PackageAll key sensors + SCADA/IoTCentralized utilities and grid operators

Integration with Predictive Maintenance

FunctionImpact on Asset Management
Condition IndexingAssigns health score to prioritize interventions
Failure Trend MappingTracks abnormal changes across fleet units
Risk-Based MaintenancePlans service based on actual condition, not calendar
Lifecycle OptimizationDelays unnecessary replacements while avoiding blind risks

When Should You Conduct a Detailed Inspection or Shutdown of a Power Transformer?

In transformer maintenance, timing is everything. Waiting too long to inspect or shut down a compromised transformer can lead to catastrophic failure, while shutting down too early or too often disrupts operations unnecessarily. Therefore, utilities and operators must follow evidence-based criteria—triggered by sensor alerts, test results, or behavioral anomalies—to determine when to perform a detailed inspection or a complete shutdown. The decision should balance operational continuity with risk mitigation.

You should conduct a detailed inspection or shutdown of a power transformer when critical indicators are breached—such as abnormal DGA results, insulation resistance drop, visible oil leaks or smoke, rising partial discharge levels, overheating, protection relay trips, or repeated SCADA alarms. Post-event inspections are also mandatory after faults, overloads, or severe environmental conditions.

These events suggest internal deterioration or immediate safety risk and warrant thorough intervention.

Transformer shutdowns should only occur after visible damage is confirmed.False

Shutdowns may be necessary before visible damage occurs, based on predictive data like gas trends, moisture levels, or abnormal temperatures that indicate high failure risk.


Primary Conditions That Warrant Immediate Shutdown

Trigger ConditionWhy It Requires Shutdown
DGA Shows Acetylene >35 ppmIndicates arcing—shutdown avoids escalation
Top Oil Temp >90 °C Under Nominal LoadSuggests cooling failure or core overheating
IR Drop Below 100 MΩInsulation failure risk—immediate isolation required
Moisture in Oil >60 ppmBreakdown voltage dangerously low—fault imminent
Multiple Relay Trips Within 24 HoursIndicates internal instability or flashover
Visible Smoke, Oil Leak, or FlashingSignals failure is already underway
High Bushing Capacitance Change (>2%)Potential flashover risk at HV bushings

Conditions That Require Scheduled Detailed Inspection (Not Immediate Shutdown)

ConditionAction Timeline
Rising DGA gases (slow rate)Schedule inspection within 1–2 weeks
Unexplained Voltage FluctuationInvestigate grounding and tap changers within 1 week
Tap Changer Contact WearOLTC inspection/replacement every 25,000 operations or 3–5 years
Periodic IR or PI Test Trend DropConduct internal visual inspection at next maintenance cycle
Tan Delta Increase >50% from BaselinePlan for insulation integrity check within maintenance window
Core Ground Current DriftMay indicate insulation breach; inspect within 1–2 weeks

Real-World Shutdown Decision Example

  • Transformer: 10 MVA, 33/11 kV
  • Online Monitoring:

    • C₂H₂ = 42 ppm, H₂ = 125 ppm
    • Hot spot temperature rising
  • Action: Scheduled shutdown and inspection
  • Findings: Arc pitting inside diverter switch and degraded paper insulation

Result: Shut down avoided explosion; unit refurbished and returned safely


Consequences of Delayed Shutdown or Inspection

Delayed Action Leads To…Consequence
Ignoring gas alarmsInsulation breakdown, tank rupture, arc flash
Operating with low IRUnexpected tripping or flashover during switching
Ignoring moisture or BDV alertsPaper aging, partial discharge, and eventual winding failure
Skipping tap changer inspectionContact burning, voltage instability, internal arc risk
Overheating allowed to continueAccelerated oil oxidation, varnish formation, loss of cooling

Shutdown Risk Criteria – Use With Predictive Maintenance

Diagnostic AlertSeverity Threshold (Action Point)
C₂H₂ (Acetylene)>35 ppm: Immediate shutdown
H₂ (Hydrogen)>250 ppm: Inspect within days
PI Ratio<1.3: Schedule detailed internal check
Bushing Tan Delta (Δ)>0.5%Schedule inspection and replace if trending up
IR Drop >60% in One YearSchedule de-energized full test within 30 days
Noise/Smell Observed by StaffTrigger visual and thermal check

Tools and Processes for Scheduled Inspection

Inspection TaskTools Used
Thermal ImagingDetect hot spots and cooling imbalance
Visual & Bushing CheckIdentify cracks, oil marks, discoloration
DGA & Moisture TestingConfirm gas rates and water risk
Tap Changer Timing & Contact TestPrevent switch failures
IR & Winding ResistanceAssess insulation and winding health
Oil Leak Test (Static Pressure)Identify tank, seal, or conservator breaches

Conclusion

Timely identification of transformer faults is a cornerstone of safe and reliable power system operation. By recognizing physical symptoms, conducting routine oil and electrical tests, and leveraging modern monitoring technologies, engineers can detect issues long before they escalate. A proactive approach to fault detection not only prevents failure but also enhances performance, safety, and cost efficiency over the transformer's lifecycle.


FAQ

Q1: What are the most common faults in power transformers?
A1: Typical transformer faults include:

Overheating of windings or oil

Insulation breakdown due to aging or moisture

Winding short circuits or open circuits

Core grounding faults

Tap changer failures

Oil leaks or contamination
These issues can lead to reduced efficiency, shutdowns, or catastrophic failure if not addressed early.

Q2: What are the visual signs of a transformer fault?
A2: Visual inspection may reveal:

Oil leakage or discolored/burnt oil

Swollen or deformed tank (pressure buildup)

Scorch marks, cracks, or broken bushings

Noise or vibration indicating loose components
Such indicators should trigger immediate diagnostics.

Q3: What tests are used to detect internal transformer faults?
A3: Key diagnostic methods include:

Dissolved Gas Analysis (DGA): Detects gases from insulation/oil degradation

Insulation Resistance (IR) Test: Identifies weakened insulation

Sweep Frequency Response Analysis (SFRA): Detects mechanical deformation

Winding Resistance and TTR Tests: Identify winding issues or tap changer faults

Thermal Imaging: Spots overheating zones

Q4: What causes insulation failure in power transformers?
A4: Main causes include:

Moisture ingress from poor sealing or breather failure

Excessive thermal stress from overloading

Chemical aging of oil and paper

Partial discharges or corona activity in high-voltage zones
Insulation failure leads to internal arcing and flashovers if left unchecked.

Q5: How can transformer faults be prevented or minimized?
A5: Prevention strategies:

Regular maintenance and oil testing

Online monitoring systems for temperature, gas, and partial discharges

Timely repair or replacement of worn parts (gaskets, bushings)

Surge protection and fault relays
Early detection and response are key to avoiding major failures and extending transformer life.

References

"Common Transformer Faults and Diagnosis" – https://www.electrical4u.com/common-transformer-faults

"IEEE C57.104: Guide for DGA Interpretation" – https://ieeexplore.ieee.org/document/8919446

"Doble: Transformer Condition Assessment Tools" – https://www.doble.com/transformer-diagnostics

"NREL: Transformer Fault Prevention and Detection Guide" – https://www.nrel.gov/docs/fy22ost/transformer-fault-guide.pdf

"ScienceDirect: Analysis of Transformer Fault Signatures" – https://www.sciencedirect.com/transformer-fault-pattern-analysis

Tags:

Picture of Norma Wang
Norma Wang

Focus on the global market of Power Equipment. Specializing in international marketing.

Get Support Now

Get a Quote / Support for Your Project

  • Don’t worry, we hate spam too!
