Oil-immersed transformers are essential components in electrical power systems, providing voltage conversion, current regulation, and power distribution across various industries. However, installing and operating these transformers requires careful consideration of several factors to ensure their reliable performance and longevity. Improper installation or operational mistakes can lead to efficiency loss, maintenance issues, or even catastrophic failures.
This article outlines the key installation and operational considerations that need to be taken into account when setting up and operating oil-immersed transformers, helping ensure their optimal performance, safety, and efficiency throughout their service life.
What are the Key Installation Considerations for Oil-Immersed Transformers?
Introduction: The Critical Role of Installation in Transformer Efficiency
Oil-immersed transformers are crucial components in power systems, providing efficient voltage conversion and electrical isolation. However, proper installation is vital to ensure their longevity, reliability, and optimal performance. Given the complex nature of oil-immersed transformers and their high-voltage operations, installation must be carried out with precision and care to avoid operational failures, safety hazards, and environmental risks.
This article explores the key installation considerations for oil-immersed transformers to guarantee safe and efficient operation. Whether it is for a new installation or the relocation of an existing transformer, careful attention to these factors will significantly impact both the performance and the lifespan of the equipment.
1. Location Selection: Ensuring Accessibility and Safety
The location where the oil-immersed transformer is installed plays a critical role in its operation and safety. Several factors must be considered when selecting the optimal site.
a. Proximity to Load Centers
The transformer should be installed close to the load center to minimize losses in power transmission. This reduces energy waste and ensures a more efficient distribution of electricity. However, the distance must also be manageable for maintenance and inspection purposes.
b. Adequate Space for Maintenance
Oil-immersed transformers require regular maintenance, such as oil replacement, insulation testing, and cooling system checks. Therefore, it is essential to install the transformer in a location that allows sufficient space for access to all parts of the equipment. Adequate clearance around the transformer should be maintained for personnel to work safely and efficiently during routine checks.
c. Fire Safety Considerations
Given the flammable nature of the oil used in oil-immersed transformers, it is crucial to install the transformer at a safe distance from buildings, combustible materials, or other critical equipment. In addition, the transformer should be placed in an area where it is easily accessible for emergency services in the event of a fire or other hazard.
d. Avoiding Flood-Prone Areas
The installation site should be elevated to avoid flooding, as water ingress can severely damage the transformer and compromise its insulation. The transformer’s base should be raised above the ground level, and drainage systems should be installed to channel water away from the installation area.
2. Foundation and Grounding Requirements
Proper foundation and grounding are essential for ensuring the safe operation of the transformer.
a. Foundation Specifications
The transformer must be mounted on a solid, level foundation that can bear the weight of the equipment and resist vibrations during operation. The foundation should be constructed from durable materials such as concrete, with reinforcements to prevent shifting over time. Ensure that the foundation can withstand the static and dynamic loads imposed by the transformer.
b. Grounding and Earthing
A proper grounding system is essential to prevent electrical shocks, fires, and equipment damage. The transformer must be connected to a low-resistance earth ground, which will safely dissipate any fault currents. A dedicated grounding rod or network should be installed to ensure that the transformer is properly grounded. The grounding system should also be inspected periodically for resistance and functionality.
3. Cooling and Ventilation Systems
Oil-immersed transformers rely on the cooling properties of the oil to maintain an optimal operating temperature. Inadequate cooling can lead to overheating, which may cause transformer damage or failure.
a. Ensure Proper Ventilation
The transformer must be installed in a well-ventilated area to facilitate heat dissipation. Ensure that air circulation around the transformer is not obstructed, allowing the oil to efficiently transfer heat away from the core. In some cases, external ventilation fans or cooling units may be required to enhance airflow and cooling, especially in high-temperature environments.
b. Monitoring Oil Temperature
Installing oil temperature monitoring equipment can help prevent overheating by providing real-time data on the transformer’s thermal condition. Overheated transformers can result in degraded insulation, reduced lifespan, and failure.
4. Oil Containment and Spill Management
Given that oil-immersed transformers are filled with large volumes of insulating oil, it is critical to implement measures that can handle potential oil leaks or spills. In the event of a fire or transformer failure, oil leaks could lead to significant environmental hazards.
a. Oil Containment Systems
The installation site should include secondary containment systems, such as oil containment trays or bunds, designed to capture any accidental leaks or spills of transformer oil. The containment system should be large enough to hold the full volume of the transformer’s oil capacity.
b. Spill Response Plans
A comprehensive spill response plan should be in place, including the availability of absorbent materials and spill kits. Personnel should be trained to handle oil spills, ensuring that the impact on the environment is minimized. Additionally, the site should have proper drainage systems to prevent oil from reaching nearby water sources or other critical infrastructure.
5. Electrical Connection and Cabling
Proper electrical connections are crucial for the safe operation of the transformer. The installation of cables and conductors must be carried out with great attention to detail to avoid short circuits, overheating, and electrical faults.
a. Cable Sizing and Routing
The electrical cables connecting the transformer to the grid must be appropriately sized to handle the expected load. Overloaded cables can lead to power losses and heat generation. Additionally, cables should be routed to avoid mechanical stress, extreme temperatures, and potential damage from external factors.
b. Bushing and Tap Connections
Ensure that the bushings and tap changer connections are correctly installed and insulated to prevent leakage currents or electrical faults. Proper torque specifications must be followed during the installation of these components to ensure secure connections.
6. Compliance with Standards and Regulations
It is essential to ensure that the installation of oil-immersed transformers complies with all local and international standards and regulations, including electrical safety codes, fire safety regulations, and environmental protection laws.
a. Electrical Safety Standards
The installation must comply with the National Electrical Code (NEC) and any other relevant electrical safety standards. These regulations govern aspects such as grounding, short-circuit protection, and overload protection.
b. Environmental Regulations
Oil-immersed transformers must adhere to environmental regulations, especially regarding oil management and containment. Ensure that the installation complies with local regulations concerning the handling, disposal, and recycling of transformer oils and other materials.
7. Integration with Protection Systems
Proper integration with protection systems is essential to safeguard the transformer from electrical faults, overloads, and other anomalies.
a. Overcurrent Protection
Install overcurrent protection devices, such as circuit breakers or fuses, to prevent the transformer from being damaged during short circuits or overload conditions. These protection devices should be appropriately rated for the transformer’s load capacity and fault current characteristics.
b. Surge Protection
Implement surge protection to guard the transformer against voltage spikes and transient surges caused by lightning, switching operations, or fault conditions in the power grid.
How Does Transformer Oil Impact Installation and Operation?
Introduction: The Crucial Role of Transformer Oil in Performance and Safety
Transformer oil is not merely an insulating medium—it's a vital component that directly impacts the installation, operation, and longevity of oil-immersed transformers. This insulating oil provides electrical insulation, heat dissipation, and a barrier against moisture and contamination. However, improper oil handling, quality, or maintenance can result in costly damages, reduced operational efficiency, and even safety risks.
In this article, we will explore how transformer oil affects both the installation and ongoing operation of transformers. Understanding its role is essential for those involved in transformer setup, operation, and maintenance.
How Transformer Oil Affects Installation
1. Oil-Filled Equipment Requires Specialized Installation Procedures
The use of oil in transformers adds a layer of complexity to their installation. It’s crucial that the oil is handled with care during the installation phase to ensure that it remains free of contaminants and that the transformer is properly filled.
a. Oil Handling and Storage
One of the first steps in transformer installation is ensuring that the oil used is of high quality and stored properly. This includes using clean, sealed containers and handling the oil in a controlled environment to prevent moisture absorption and contamination by airborne particles.
b. Oil Filling Process
During the installation process, the transformer must be properly filled with oil. Vacuum filling or pressure filling methods are typically used to ensure that the oil reaches all areas of the transformer, including the core and windings. This process must be done under controlled conditions to avoid air bubbles and ensure a uniform distribution of oil. Air trapped in the system can cause poor insulation performance, leading to overheating and transformer failure.
c. Oil Level Monitoring
After filling the transformer, it's essential to install a reliable oil level monitoring system to ensure that the oil level remains within the recommended range. Overfilling or underfilling can affect the cooling efficiency and insulation quality, leading to potential operational issues. A conservator tank is often used in large transformers to accommodate the expansion and contraction of oil due to temperature changes.
2. Environmental Considerations During Installation
When installing an oil-immersed transformer, special attention must be given to the environment surrounding the equipment.
a. Oil Containment Systems
As oil is flammable and can pose environmental hazards in the event of leaks, secondary containment systems such as bunding or containment trays are typically installed around the transformer. These containment systems catch any potential oil spills, minimizing environmental damage and improving safety.
b. Fire Safety Measures
In addition to containment, fire protection systems should be considered during installation. Transformers containing oil must be located in areas with adequate fire suppression measures, including fire extinguishers, fire barriers, and emergency access routes. Furthermore, the installation site should be sufficiently distant from combustible materials and buildings.
3. Transformer Oil and Cooling Efficiency
During installation, the transformer’s cooling system, which is largely reliant on oil, must be set up correctly. The oil cools the transformer by absorbing heat from the windings and the core and transferring it to the external environment.
a. Adequate Ventilation and Airflow
The installation environment should have adequate airflow to facilitate the cooling process. Poor ventilation can cause the oil to overheat, reducing its effectiveness and potentially leading to transformer damage.
b. Oil Temperature Monitoring
Temperature monitoring systems should be in place during the installation phase to track the oil’s temperature. The transformer should be equipped with oil temperature sensors that alert operators if the oil temperature rises beyond the specified limits, indicating that the cooling process is not functioning correctly.
How Transformer Oil Affects Operation
1. Insulation and Electrical Performance
Transformer oil’s primary function is to provide electrical insulation. The oil helps insulate the transformer windings from each other and from the core. This prevents electrical arcing and breakdowns, ensuring stable operation.
a. Dielectric Strength
The oil must maintain a high dielectric strength to effectively insulate the transformer’s components. Over time, the dielectric strength of the oil can degrade due to moisture, air exposure, or contamination, which could lead to short circuits and transformer failure. Regular oil testing is necessary to measure this key property.
b. Breakdown Voltage of Oil
As the oil ages, it may also experience a reduction in breakdown voltage, which refers to the voltage at which the oil can no longer maintain its insulating properties. This degradation can compromise the transformer’s ability to handle high voltages and, eventually, lead to failures.
2. Heat Dissipation and Temperature Control
Transformer oil plays a significant role in cooling the transformer by carrying heat away from the windings and the core. The heat generated by the electrical currents in the transformer is absorbed by the oil and dissipated to the external environment.
a. Thermal Efficiency
Oil with high thermal conductivity ensures that the transformer operates at a lower temperature, which directly impacts the efficiency and lifespan of the transformer. Poor heat dissipation, due to low-quality oil or insufficient oil levels, can lead to overheating, potentially damaging the insulation and reducing the transformer’s operational life.
b. Oil Aging and Thermal Breakdown
As the transformer operates over time, the oil undergoes thermal breakdown, where its properties degrade due to prolonged exposure to heat. This breakdown results in the formation of sludge and acid compounds, which can further accelerate the aging of the transformer’s insulation system. Oil filtration and oil replacement are key to maintaining the oil’s ability to dissipate heat effectively.
3. Moisture and Contamination Control
Moisture in transformer oil is a significant concern as it reduces the dielectric strength of the oil and increases the likelihood of insulation failure.
a. Moisture Control
The oil must be free from moisture to perform its insulating role. Moisture in oil can result from leaks, inadequate sealing, or environmental exposure during operation. Desiccant breathers are often installed on transformers to prevent moisture from entering the oil. In case moisture is detected, the oil may need to be replaced or filtered.
b. Oil Contaminants
Contaminants like dust, dirt, and debris can enter the transformer oil through seals, vents, or during maintenance. These contaminants can degrade the oil’s insulating properties and cause wear on internal components. Regular oil testing can detect contaminants, ensuring that the oil remains clean and effective.
4. Oil Aging and Maintenance Needs
Transformer oil ages over time due to the effects of heat, moisture, and electrical stress. As the oil ages, it becomes less effective at providing insulation and cooling, which necessitates maintenance actions.
a. Oil Testing and Monitoring
Regular oil testing for properties like dielectric strength, acidity, and moisture content is critical to determine the oil’s condition. If the oil fails to meet the required standards, it may need to be replaced or treated using oil filtration systems.
b. Oil Purification
If the transformer oil shows signs of contamination or deterioration, oil purification systems can be used to remove impurities and restore the oil’s insulating properties. This extends the lifespan of the transformer and ensures reliable operation.
What Electrical Considerations Must Be Accounted For in Transformer Operation and Design?
Introduction: The Importance of Electrical Considerations in Transformer Operation
Transformers are integral components in electrical power distribution systems, converting electrical energy from one voltage level to another. While they appear straightforward, the design and operation of transformers require thorough electrical considerations to ensure efficiency, safety, and reliability. From voltage levels and power ratings to grounding and protection mechanisms, every aspect of transformer operation involves critical electrical factors that must be managed carefully.
In this article, we will explore the electrical considerations that engineers and operators must account for when designing, installing, and operating transformers. Understanding these key factors is essential for achieving optimal transformer performance and preventing potential issues.
Key Electrical Considerations in Transformer Operation and Design
1. Voltage Rating and Voltage Conversion
The voltage rating of a transformer dictates its ability to handle electrical energy at specific voltage levels.
a. Primary and Secondary Voltage Ratings
When selecting a transformer, the primary and secondary voltage ratings must align with the voltage levels of the electrical grid or the system to which the transformer is connected. The primary voltage refers to the input voltage, while the secondary voltage refers to the output voltage.
- Voltage Step-Up Transformers: These transformers increase the voltage from the primary to the secondary side (e.g., from 11 kV to 220 kV).
- Voltage Step-Down Transformers: These transformers reduce the voltage, making it suitable for residential, industrial, or commercial use (e.g., from 11 kV to 400 V).
It’s essential to ensure that the voltage levels are correctly matched to avoid overvoltage or undervoltage conditions, which could damage equipment or reduce efficiency.
b. Voltage Regulation
Voltage regulation is a key factor in transformer performance, particularly in systems where the voltage needs to be kept within specific tolerances. Voltage regulation refers to the ability of the transformer to maintain a constant secondary voltage under varying load conditions. Poor regulation can lead to voltage dips or voltage spikes, affecting sensitive equipment downstream.
2. Transformer Power Rating and Load Calculation
The power rating of a transformer, typically expressed in kilovolt-amperes (kVA) or megavolt-amperes (MVA), indicates its maximum capacity to handle electrical loads.
a. Determining Power Rating
When designing or selecting a transformer, the power rating must be based on the anticipated electrical load. Load calculations should consider both the maximum and average load requirements, factoring in possible future expansions or changes in demand.
b. Overloading and Load Impacts
It is crucial not to exceed the transformer’s power rating, as doing so can lead to overheating, efficiency losses, or even transformer failure. Overloading can cause insulation degradation, reduced lifespan, and increased operational costs. Continuous operation at 100% of rated capacity should be avoided, and transformers should ideally operate at 80-90% of their rated capacity to ensure longevity.
3. Impedance and Short-Circuit Considerations
Impedance is a key electrical consideration when dealing with the behavior of the transformer under short-circuit conditions.
a. Short-Circuit Impedance
Transformers are designed with a short-circuit impedance, which represents the impedance encountered when the transformer is subjected to a short circuit. This impedance plays a critical role in determining the magnitude of the fault current during a short circuit and affects the ability of the transformer to recover from such faults. The lower the impedance, the higher the fault current, which might require additional protection mechanisms.
b. Fault Current Protection
When designing electrical systems with transformers, engineers must account for the potential fault currents and select the proper circuit breakers, fuses, and relays to protect both the transformer and downstream equipment from excessive fault currents. Selective coordination is also essential to ensure that only the relevant portion of the system is disconnected during a fault.
4. Transformer Grounding and Protection
Proper grounding and protection mechanisms are essential to ensure the safety and operational efficiency of transformers.
a. Grounding System Design
A reliable grounding system helps ensure the safe dissipation of fault currents, reducing the risk of electric shocks, equipment damage, or fire hazards. The neutral grounding of transformers should be considered to control the voltage rise during faults and ensure safety.
- Solid Grounding: This type of grounding is used when the transformer’s neutral point is directly connected to the ground, ensuring that the transformer is grounded and protective devices can operate effectively.
- Resistance Grounding: In some systems, resistive grounding can limit fault currents, reducing the risk of damage to the transformer and the overall system.
b. Transformer Protection Relays
To ensure the transformer is protected from damage due to faults, temperature issues, or overloading, protection relays should be implemented. These relays continuously monitor key parameters, such as:
- Overcurrent protection: Ensures that excessive current does not flow through the transformer.
- Differential protection: Detects the differences between the input and output currents, helping to identify faults within the transformer.
- Overvoltage and undervoltage protection: Prevents damage to the transformer from excessive or insufficient voltage.
5. Transformer Efficiency and Losses
The efficiency of a transformer is a vital electrical consideration that impacts both operational cost and long-term performance.
a. Core and Copper Losses
The efficiency of a transformer depends on minimizing the losses that occur during its operation. There are two primary types of losses in transformers:
- Core loss (Iron loss): Caused by the alternating magnetic field in the core of the transformer, it is largely independent of the load.
- Copper loss: Occurs due to the resistance of the windings when current flows through them, increasing with the load.
Both types of losses generate heat and reduce the transformer’s efficiency, but they can be minimized through careful design, proper material selection, and regular maintenance.
b. No-Load and Load Losses
Transformers also experience losses when operating at no-load or partial load conditions. These no-load losses are present even when the transformer is not supplying power to the load and are primarily caused by the core losses. On the other hand, load losses occur as the transformer operates under full load and are mainly caused by the current flowing through the windings.
6. Harmonics and Power Quality
The operation of a transformer is significantly affected by harmonics generated by non-linear loads (such as inverters, variable-speed drives, or electronic devices).
a. Harmonics Impact on Transformer
Harmonics increase the total current flowing through the transformer, which may lead to overheating, additional losses, and potentially damage the transformer over time. Harmonics can also result in voltage distortion, leading to poor power quality.
b. Mitigation of Harmonics
To prevent issues related to harmonics, transformer designs can incorporate special filtering equipment like harmonic filters, or engineers can choose transformers designed to handle harmonic loads, known as harmonic-rated transformers.
How Should Oil-Immersed Transformers Be Ventilated and Cooled?
Introduction: The Importance of Proper Ventilation and Cooling in Oil-Immersed Transformers
Oil-immersed transformers are essential components in power distribution networks, facilitating voltage conversion for electricity transmission. While these transformers are built to be durable and handle high electrical loads, their performance and lifespan depend heavily on the quality of their ventilation and cooling systems.
Inadequate ventilation or cooling can result in overheating, reduced efficiency, and even catastrophic failure, which could disrupt the power supply and lead to expensive repairs. Hence, understanding how to properly ventilate and cool oil-immersed transformers is crucial for maintaining their operational efficiency and ensuring the safety of the surrounding equipment.
This article discusses how oil-immersed transformers should be ventilated and cooled, focusing on best practices and technologies to ensure optimal performance.
Cooling and Ventilation Systems for Oil-Immersed Transformers
1. The Role of Oil in Cooling
Oil-immersed transformers use transformer oil as both an insulator and a cooling medium. The oil serves to transfer heat from the transformer windings and core to the surrounding environment. As the transformer operates, electrical losses within the core and windings generate heat. Without a proper cooling system, this heat can cause the transformer’s components to degrade over time, affecting performance and lifespan.
a. Heat Dissipation through Oil Circulation
The oil inside the transformer circulates through the windings and the core, absorbing heat from the transformer. The heated oil then moves to the top of the tank, where it transfers the heat to the surface of the transformer tank. This is where external cooling mechanisms come into play.
b. Continuous Oil Filtration and Cooling
Transformers also need to filter the oil to prevent contaminants from accumulating. The oil should circulate continuously to maintain proper cooling, reducing the risk of overheating and improving operational reliability. Modern oil-immersed transformers often come with oil circulation systems that help maintain optimal temperature conditions.
2. Natural vs. Forced Cooling
Oil-immersed transformers can be cooled through two main methods: natural cooling (ONAN – Oil Natural Air Natural) and forced cooling (ONAF – Oil Natural Air Forced).
a. Natural Cooling (ONAN)
In natural cooling, heat is transferred from the transformer oil to the transformer tank, which then dissipates the heat into the surrounding air. This method is passive, relying on the natural convection of oil and air.
- Advantages: Simplicity, cost-effectiveness, and lower maintenance requirements.
- Disadvantages: Limited cooling capacity, especially for large transformers or those in environments with high ambient temperatures.
b. Forced Cooling (ONAF)

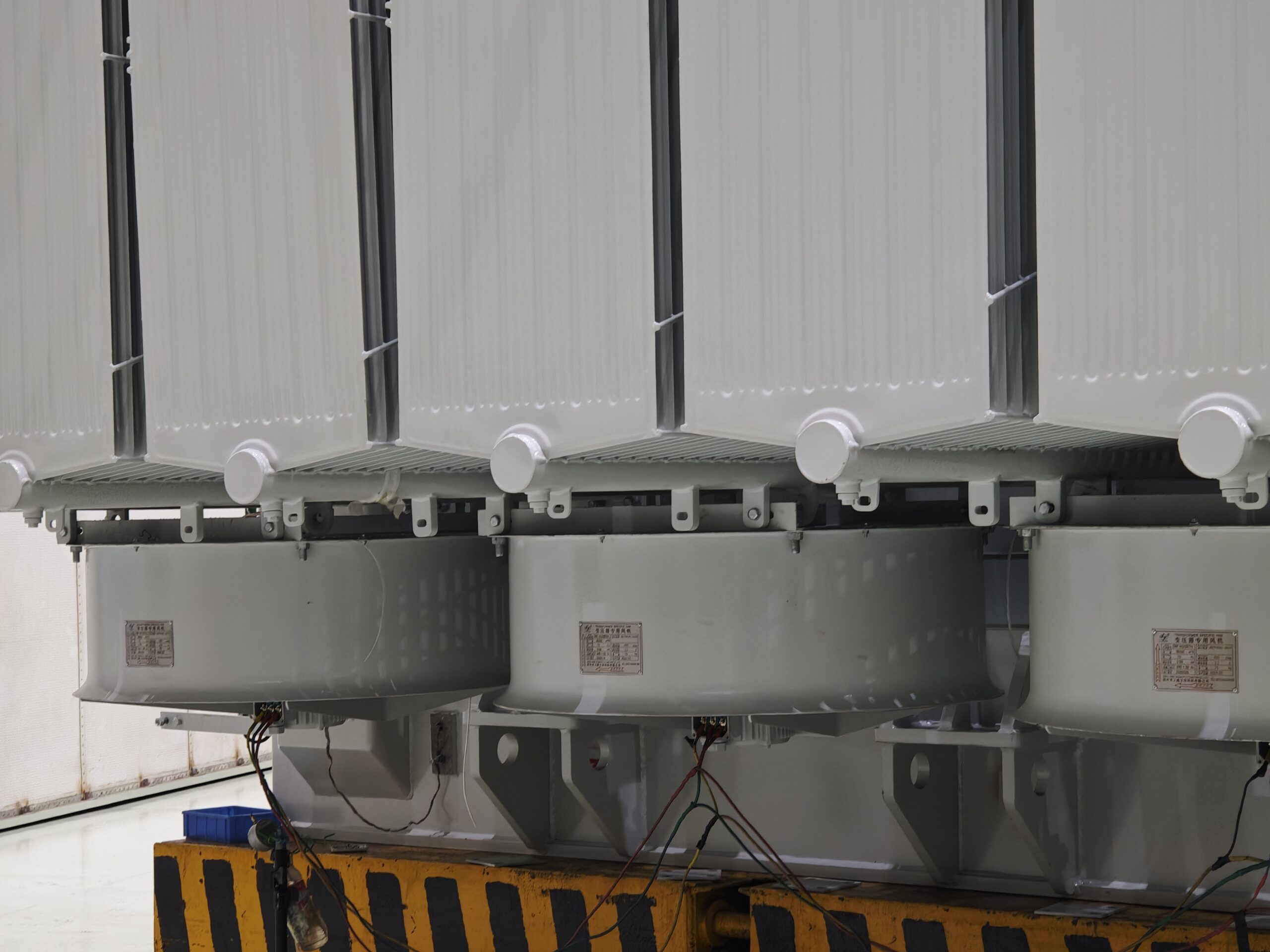

In forced cooling, air is forced over the surface of the transformer tank using external fans. The fans increase the heat dissipation efficiency by actively moving air across the transformer’s surface.
- Advantages: Higher cooling capacity, suitable for larger transformers or those with high load factors.
- Disadvantages: Increased energy consumption due to the need for fans, higher installation and maintenance costs.
For transformers with higher loads or operating in areas with warmer climates, forced cooling may be used alongside natural cooling to ensure the transformer operates within its optimal temperature range.
3. Radiators and Cooling Fins
To enhance cooling, oil-immersed transformers are often equipped with radiators or cooling fins. These components help to increase the surface area through which heat can be transferred from the transformer oil to the surrounding air.
a. Radiators
Radiators are external components that extend from the transformer’s tank, increasing the surface area for heat exchange. The oil circulates through the radiator, where it is cooled by the surrounding air. Radiators are particularly useful for transformers that experience high heat generation.
- Natural Convection Radiators: In these systems, the heated oil naturally rises through the radiators, transferring heat to the surrounding environment.
- Forced Air Radiators: These radiators use fans to blow air over the radiator surface, increasing the cooling efficiency.
b. Cooling Fins
In addition to radiators, some transformers use cooling fins on the sides of the transformer tank to further enhance heat dissipation. These fins act like small radiators, increasing the surface area and helping cool the transformer more efficiently.
4. Oil Expansion Tanks and Buchholz Relays
Transformers have an expansion tank to account for the expansion and contraction of the transformer oil as the temperature changes. The oil heats up, expands, and moves into the expansion tank, while it contracts when cooled and returns to the main transformer tank. This system helps maintain a steady oil level and prevents excessive pressure build-up.
Additionally, Buchholz relays are installed in oil-immersed transformers to detect faults like gas accumulation, which can occur during overheating. These relays alert operators to any potential issues, providing a safety mechanism to prevent transformer failure.
5. Transformer Tank Design for Enhanced Cooling
The design of the transformer tank plays a crucial role in the transformer’s cooling efficiency. For optimal cooling, the tank should:
- Be constructed from thermally conductive materials: Materials like steel help facilitate heat transfer.
- Include a cylindrical or rectangular shape** with sufficient surface area to promote natural convection.
- Provide access for cooling fans, radiators, and fins: Proper design allows easy installation and effective cooling solutions.
In some high-capacity transformers, oil may be circulated through a radiator system attached to the tank, with fans or pumps helping to increase the flow of air or oil.
6. Environmental Considerations and Ambient Temperature
The surrounding ambient temperature and environmental conditions are critical factors in transformer cooling. Transformers operating in hot climates require additional cooling measures, such as forced air cooling or external cooling systems.
a. High Ambient Temperature
In regions with high ambient temperatures, the transformer oil will absorb heat faster, making it difficult for natural convection to cool the transformer. In such conditions, forced cooling systems (fans or pumps) should be used to enhance cooling efficiency.
b. Pollution and Dust Control
Transformers should be installed in clean environments where the risk of pollutants or dust affecting the cooling system is minimized. Dust buildup on radiators or cooling fins can obstruct airflow, significantly reducing the efficiency of heat dissipation. Protective covers and air filters are sometimes used in dusty environments to maintain optimal cooling.
Best Practices for Oil-Immersed Transformer Cooling and Ventilation
To ensure efficient operation and prevent overheating, the following best practices should be adhered to:
-
Ensure Proper Ventilation: Ensure that the transformer has adequate air circulation around it, especially if natural convection is the primary cooling method.
-
Regular Maintenance of Cooling Systems: Regularly inspect the radiators, cooling fins, and fans for any signs of wear or damage. Dust and debris should be cleaned to prevent obstruction of airflow.
-
Monitor Oil Levels and Quality: Keep an eye on oil levels and perform routine oil testing to ensure it is free from contaminants. Over time, oil quality can degrade, reducing its cooling effectiveness.
-
Consider Forced Cooling for Larger Transformers: Larger transformers or those exposed to high load factors and ambient temperatures should be equipped with forced air cooling or forced oil circulation systems to enhance heat dissipation.
-
Install Temperature Monitoring: Use temperature sensors to monitor the oil temperature and transformer components. This data can help predict maintenance needs and prevent overheating.
What Are the Key Operational Considerations for Oil-Immersed Transformers?
Introduction: The Significance of Proper Operation in Oil-Immersed Transformers
Oil-immersed transformers play a crucial role in electrical power distribution, handling high voltages and large electrical loads. Their reliable operation ensures smooth transmission of electricity across networks, especially in industrial, commercial, and residential areas. However, for these transformers to perform optimally over their lifespan, several operational considerations must be carefully managed.
These transformers are filled with oil to provide insulation and cooling, and as such, their operational conditions impact both the efficiency and the safety of the system. Proper maintenance, monitoring, and careful attention to various operational factors can help prevent failures and extend transformer life.
In this article, we explore the key operational considerations for oil-immersed transformers, focusing on factors such as temperature management, oil maintenance, load conditions, and safety protocols.
Key Operational Considerations for Oil-Immersed Transformers
1. Oil Temperature Control and Monitoring
Oil temperature management is one of the most critical factors in transformer operation. Transformer oil not only serves as an insulator but also acts as a cooling agent to dissipate the heat generated by electrical losses in the core and windings. If the oil temperature rises beyond safe levels, the efficiency of the transformer can decrease, and in extreme cases, it can lead to overheating or transformer failure.
a. Safe Operating Temperature Range
The oil inside the transformer should be maintained within a specific temperature range, usually between 65°C and 85°C (149°F to 185°F), depending on the transformer’s rating. Prolonged operation at higher temperatures can cause the oil to degrade, reducing its dielectric strength and insulating properties.
b. Temperature Sensors and Monitoring Systems
Modern oil-immersed transformers are equipped with temperature sensors that monitor the oil temperature in real-time. These sensors provide critical data for operators to adjust the cooling system or perform maintenance when necessary. Regular monitoring is essential to avoid conditions that could lead to overheating, such as blocked ventilation or insufficient cooling oil circulation.
c. Cooling System Maintenance
In addition to oil temperature monitoring, the cooling system (radiators, fans, pumps) must be regularly maintained. Any malfunction in the cooling system can lead to poor heat dissipation, raising the oil temperature and potentially damaging the transformer. Preventative maintenance on cooling equipment is crucial for ensuring transformer performance.
2. Oil Quality and Maintenance
The condition of the transformer oil is vital to the overall performance and safety of the transformer. Over time, the oil can become contaminated with moisture, dirt, or oxidation byproducts, which can compromise its insulating properties and lead to transformer failure.
a. Regular Oil Testing
Routine oil testing should be conducted to assess the oil’s condition. Key parameters that should be measured include:
- Dielectric strength: Ensures the oil can still effectively insulate.
- Moisture content: Excessive moisture can reduce the oil’s insulating properties and cause electrical discharges.
- Acidity and oxidation products: These byproducts can cause the oil to degrade and potentially lead to the formation of sludge inside the transformer.
b. Oil Filtration and Replacement
If the oil quality degrades, oil filtration systems can be used to remove impurities and moisture. In some cases, the oil may need to be completely replaced to ensure the transformer’s optimal performance. Maintaining oil quality through periodic checks is a fundamental part of transformer upkeep.
3. Load Management
The load placed on a transformer directly affects its operational efficiency and lifespan. Transformers are designed to handle specific power loads, and excessive or prolonged overload can lead to overheating, damage to windings, and premature aging of transformer components.
a. Rated Load Capacity
Each transformer is designed with a rated load capacity, which defines the maximum power it can safely handle. Operating the transformer beyond its rated capacity causes it to overheat, potentially resulting in insulation breakdown and transformer failure. Proper load calculations and regular load monitoring are necessary to avoid overloading.
b. Load Fluctuations
Transformers often experience load fluctuations due to varying electricity demand throughout the day. It is essential to ensure that the transformer operates within a consistent load range to avoid stressing the system. Load management, through the use of load tap changers or automatic load regulation, can help mitigate fluctuations and prevent excessive strain on the transformer.
4. Protection and Safety Features
Operational safety is paramount in transformer management. Oil-immersed transformers must be equipped with protection and safety systems to detect and prevent hazardous conditions.
a. Buchholz Relay
A Buchholz relay is a key safety device in oil-immersed transformers. It detects faults like gas accumulation or oil movement, which could indicate an impending transformer failure, such as a short circuit. The relay triggers alarms or shutdowns when abnormal conditions are detected, helping to prevent catastrophic failure.
b. Pressure Relief Valve
In case of excessive internal pressure, the transformer is equipped with a pressure relief valve to release the pressure and prevent the tank from rupturing. This is particularly important in oil-immersed transformers, where a sudden pressure buildup due to oil expansion or internal faults can cause a dangerous situation.
c. Overcurrent and Overvoltage Protection
To safeguard against electrical faults, oil-immersed transformers must be equipped with overcurrent protection devices (e.g., fuses or circuit breakers) and overvoltage protection devices (e.g., surge arresters). These systems help to disconnect the transformer from the grid in the event of a fault, preventing damage to the transformer and other connected equipment.
5. Vibration and Noise Control
Excessive vibration or noise is not only a sign of operational issues but can also lead to mechanical fatigue, affecting the long-term performance of the transformer.
a. Vibration Monitoring
Vibration is often caused by imbalances in the transformer’s core, winding, or fan systems. Regular vibration monitoring helps detect irregularities and prevent mechanical damage. Ensuring the transformer is mounted on a stable foundation and the components are balanced can minimize vibration.
b. Noise Control Measures
Transformer noise is mainly caused by the magnetic field interacting with the core and windings. Proper installation of noise reduction components, such as soundproofing or vibration dampers, and selecting low-noise transformers during procurement, can reduce operational noise and improve environmental comfort.
6. Environmental Considerations
The environment in which the oil-immersed transformer operates can significantly impact its operational performance. Various environmental factors, including ambient temperature, humidity, and air quality, must be considered to ensure the transformer operates efficiently.
a. Ambient Temperature and Cooling
As discussed earlier, the ambient temperature affects the transformer’s cooling efficiency. In areas with extreme temperatures, transformers may need additional cooling measures, such as forced-air cooling or enhanced oil circulation systems, to ensure they remain within safe operating temperatures.
b. Protection Against Pollution
Pollution and moisture can degrade transformer oil and affect the transformer’s insulation properties. Transformers installed in highly polluted or humid environments require additional protection, such as sealed enclosures and dehumidifiers, to protect the oil from contamination.
How to Ensure the Safety and Reliability of Oil-Immersed Transformers?
Introduction: The Importance of Transformer Safety and Reliability
Oil-immersed transformers are essential components in electrical power distribution systems, serving to step up or step down voltage to ensure the safe delivery of electricity across vast networks. These transformers are filled with oil, which acts both as an insulator and a coolant. While this design is highly effective, it also brings with it specific safety concerns that must be managed to ensure both reliability and long-term performance.
The safety of oil-immersed transformers is vital because failures can result in catastrophic consequences, including fire hazards, electrical faults, and system outages. These transformers operate under high voltages and can be exposed to extreme environmental conditions, making it imperative to implement effective safety measures and maintenance practices.
In this article, we will explore the key practices and strategies to ensure the safety and reliability of oil-immersed transformers, focusing on design considerations, operational procedures, monitoring systems, and regular maintenance.
Key Strategies to Ensure the Safety and Reliability of Oil-Immersed Transformers
1. Regular Inspection and Monitoring
Regular inspections and real-time monitoring of transformer conditions are essential to detect early signs of wear, overheating, or faults. Timely identification of potential issues can prevent major failures and ensure the continued reliability of the transformer.
a. Visual Inspections
Performing regular visual inspections is the first step in ensuring transformer safety. Operators should check for signs of oil leakage, discoloration, or unusual sounds that could indicate internal faults. Additionally, the transformer tank should be inspected for any structural issues, such as dents or cracks, which could affect the safety of the transformer.
b. Temperature and Pressure Monitoring
One of the most important parameters to monitor is oil temperature. Overheating is one of the leading causes of transformer failure, so maintaining the oil within the specified temperature range is crucial. Temperature sensors can be installed at various points to track oil temperature in real-time. Likewise, pressure gauges should be used to monitor internal pressure, which can be indicative of abnormal conditions, such as a gas buildup or excessive heat.
2. Proper Cooling and Ventilation
The transformer’s cooling system is vital for heat dissipation. If the oil temperature rises beyond a safe threshold, the transformer can overheat, leading to insulation degradation, oil breakdown, and potentially dangerous conditions like fires or explosions.
a. Radiators and Oil Pumps
The transformer must be equipped with efficient radiators and oil pumps to maintain appropriate temperature levels. Radiators help dissipate heat generated within the transformer, while oil pumps ensure the oil circulates effectively through the system. Both of these components must be regularly maintained to ensure efficient cooling.
b. Airflow and Ventilation Systems
In addition to the oil cooling system, transformers require ventilation to allow heat to dissipate into the surrounding environment. Proper installation of transformers, ensuring they are positioned in well-ventilated areas and free from obstructions, enhances their cooling performance and reduces the risk of overheating.
3. Oil Quality Maintenance
The quality of the transformer oil directly impacts both its insulating properties and the overall reliability of the transformer. Over time, oil may degrade due to factors like oxidation, moisture contamination, or accumulation of particulate matter. Maintaining the oil's purity is vital for safe transformer operation.
a. Regular Oil Testing
Oil testing should be performed routinely to check for key parameters such as dielectric strength, moisture content, and acidity levels. These tests help ensure the oil remains capable of providing proper insulation and cooling. If the oil becomes contaminated, it should be filtered or replaced.
b. Preventing Oil Contamination
Preventing contamination is another key aspect of maintaining transformer oil. The oil should be sealed within the tank and should not be exposed to moisture or dust. Additionally, care should be taken when filling the transformer with oil to prevent air or moisture from entering the system.
4. Fire Prevention and Protection Systems
Due to the flammable nature of transformer oil, fire prevention and protection measures are crucial for the safety of the transformer and surrounding equipment.
a. Fire-Resistant Oil
The use of fire-resistant transformer oil is becoming increasingly common, especially in high-risk installations. These oils have a higher flashpoint and are less likely to catch fire compared to conventional mineral oils. They can significantly reduce the risk of fire in case of internal faults or high temperatures.
b. Buchholz Relay and Pressure Relief Valve
Oil-immersed transformers should be equipped with a Buchholz relay to detect gas accumulation or oil movement, which often indicates an impending fault. When abnormal gas or oil movements are detected, the relay triggers alarms to warn operators and prevent further damage.
A pressure relief valve should also be installed to handle pressure surges inside the transformer tank. If the pressure exceeds safe limits, the valve opens to release gas or oil, preventing rupture or explosion.
5. Load Management and Protection
Proper management of transformer load is vital to prevent overloading and to maintain transformer efficiency. Overloading the transformer can lead to overheating, accelerated wear, and even catastrophic failure.
a. Load Tap Changers
Load tap changers (LTC) are used to adjust the voltage ratio of the transformer depending on the load demand. This ensures the transformer operates efficiently, even during load fluctuations. The proper operation of LTCs ensures that the transformer is not subjected to excessive electrical loads that could compromise its safety and reliability.
b. Overcurrent and Overvoltage Protection
The transformer should be equipped with overcurrent protection devices (e.g., fuses or circuit breakers) to protect against short circuits or other faults. Similarly, overvoltage protection devices, such as surge arresters, can prevent voltage spikes from damaging the transformer during events like lightning strikes or grid surges.
6. Enhanced Transformer Design for Safety
The design of the transformer itself plays a key role in ensuring both safety and reliability.
a. Robust Tank Design
The transformer tank should be designed to withstand high pressures and external shocks. The use of high-strength steel or composite materials for tank construction ensures that the tank can endure stresses without rupturing. Additionally, modern designs often feature corrosion-resistant coatings to extend the lifespan of the tank.
b. Sealing and Insulation
Effective sealing systems ensure that the transformer oil is contained within the tank, preventing leaks that could cause environmental hazards. Furthermore, the insulation system—including the oil, paper, and other insulating materials—must be designed to withstand high voltage stresses and environmental conditions, ensuring reliable operation for many years.
7. Training and Emergency Preparedness
Regular operator training on transformer safety protocols is essential to ensure proper handling during normal operation and in emergencies. Operators must be familiar with the warning signs of transformer failure, how to perform emergency shutdowns, and how to safely manage any incidents that arise.
In the event of a fault or fire, emergency response plans must be in place. These plans should include steps for isolating the transformer, using fire suppression systems, and evacuating personnel if necessary.
Conclusion
Proper installation and operational practices are essential to ensuring that oil-immersed transformers function reliably and efficiently throughout their service life. The following points highlight the most important considerations:
-
Installation Considerations: When installing an oil-immersed transformer, careful attention must be given to site selection. The transformer should be placed in a location that allows for easy access, provides adequate ventilation, and is free from environmental factors that could compromise performance, such as excessive moisture or extreme temperatures. Additionally, a solid foundation and sufficient safety clearance around the transformer are essential to prevent accidental damage and ensure ease of maintenance.
-
Oil Considerations: The quality of transformer oil is vital to the transformer’s performance. Dry-out procedures must be carried out before oil filling, and oil quality should be monitored regularly to prevent issues such as oxidation or contamination. Additionally, proper oil filling and ensuring oil temperature control are essential for maintaining safe and optimal transformer operation. Overheating or moisture-laden oil can significantly reduce the transformer's lifespan.
-
Electrical Considerations: Proper voltage ratings and electrical connections are critical for transformer efficiency and safety. Ensure that the transformer is properly grounded to prevent electrical faults. The tap changer settings should also be adjusted to match the supply requirements. Incorrect connections can lead to overload conditions and even transformer failure.
-
Ventilation and Cooling: Effective ventilation and cooling systems are essential to keep the oil within the proper temperature range. Forced air cooling or oil pumps are commonly used for cooling in larger transformers. Adequate airflow helps maintain optimal operating conditions and prevents overheating or the risk of fire. In addition, cooling systems must be maintained and monitored to ensure they are functioning correctly.
-
Operational Considerations: Proper load management is crucial to avoid overloading the transformer, which can cause insulation degradation and overheating. Regular monitoring of key parameters such as oil temperature, oil quality, load current, and vibration is vital for assessing the transformer’s health. Scheduled preventive maintenance should be carried out to check for signs of wear, leaks, or other issues.
-
Safety and Reliability: To ensure the safety and reliability of oil-immersed transformers, it is essential to integrate fire protection systems, such as fire-resistant oil, explosion venting, and automatic fire suppression systems. Proper safety protocols must be followed during installation, operation, and emergency response situations. Regular inspection and monitoring of safety devices and emergency systems are also important.
In summary, the installation and operation of oil-immersed transformers require attention to detail across several domains, including proper site preparation, oil management, electrical safety, and cooling mechanisms. By addressing these factors, transformers can operate efficiently, with minimized risk of failures, while maintaining safety for both personnel and equipment.
FAQ
Q1: What are the key installation considerations for oil-immersed transformers?
A1: Key installation considerations for oil-immersed transformers include selecting a suitable location with proper ventilation, adequate space for cooling, and a level surface to prevent oil leakage. The installation site must be free of flammable materials, and proper grounding and electrical connections should be ensured. Additionally, oil containment systems, such as bunded tanks, should be installed to prevent oil spills in case of leaks or transformer failure.
Q2: How important is site preparation for oil-immersed transformers?
A2: Site preparation is critical to ensure the transformer operates efficiently and safely. The site should be stable, dry, and well-ventilated to allow for optimal cooling of the transformer. Access to the site should be convenient for maintenance and repairs. The transformer must also be placed away from direct sunlight and high humidity, as these can adversely affect its performance and lifespan.
Q3: What safety measures should be in place when installing oil-immersed transformers?
A3: Safety measures include ensuring proper oil containment around the transformer, grounding the unit effectively to avoid electrical hazards, and following all fire safety protocols, such as installing fire suppression systems. Additionally, the installation should comply with local environmental regulations, especially regarding oil storage and disposal. Proper labeling and signage should also be installed to warn of potential hazards.
Q4: How should oil-immersed transformers be operated to ensure longevity?
A4: To ensure longevity, oil-immersed transformers should be operated within their rated capacity to avoid overheating and excessive strain. Regular monitoring of oil temperature, pressure, and dielectric strength is essential. Maintenance practices such as oil filtration and testing for dissolved gases in the oil (DGA) help prevent issues like insulation degradation. Regularly checking the cooling system and ensuring the transformer is running under balanced loads are also key for maintaining optimal performance.
Q5: What operational factors affect the efficiency of oil-immersed transformers?
A5: Several factors affect the efficiency of oil-immersed transformers, including load conditions, ambient temperature, and oil condition. Running transformers at or near their full load capacity can reduce efficiency due to increased losses and overheating. Maintaining optimal oil quality and ensuring the cooling system is working effectively are crucial for reducing operational losses and maintaining transformer efficiency. Additionally, performing regular diagnostics and maintenance checks helps identify and resolve performance issues early.
References
"Installation Guidelines for Oil-Immersed Transformers" - https://www.transformertech.com/oil-immersed-transformer-installation - Transformer Tech
"Key Operational Considerations for Efficient Transformer Performance" - https://www.powermag.com/oil-immersed-transformer-operations - Power Magazine
"Oil-Immersed Transformer Site Selection and Preparation" - https://www.electrical4u.com/transformer-site-preparation - Electrical4U
"Essential Safety Measures in Transformer Installation" - https://www.sciencedirect.com/topics/engineering/transformer-installation-safety - ScienceDirect
"Maintaining Oil-Immersed Transformers for Longevity" - https://www.researchgate.net/oil-immersed-transformer-maintenance - ResearchGate
"How to Ensure Safe and Efficient Transformer Operations" - https://www.smartgridnews.com/oil-immersed-transformer-operations - Smart Grid News
"Installation and Operational Considerations for Power Transformers" - https://www.energycentral.com/c/ee/transformer-installation-operations - Energy Central
"Understanding Oil-Immersed Transformer Operations and Best Practices" - https://www.powergrid.com/oil-immersed-transformer-operation - PowerGrid
