Choosing the right transformer for a specific application is a crucial decision in the design of electrical systems. Whether you're selecting a transformer for a residential, commercial, or industrial setting, understanding the various technical specifications and operational requirements is essential for ensuring reliable performance, safety, and energy efficiency. Transformers come in many shapes and sizes, each with its own set of features tailored to different needs. By considering a variety of factors such as capacity, voltage requirements, environmental conditions, and maintenance needs, you can select the best transformer to meet both current and future needs.
In this article, we will explore the key considerations to keep in mind when choosing the right transformer, helping you make an informed decision that aligns with your specific application requirements.
What is the Importance of Transformer Rating and Capacity?
When it comes to electrical power distribution, transformers play an essential role in converting high-voltage electricity to usable lower voltages for consumers or boosting lower voltages for transmission over long distances. The rating and capacity of transformers are two of the most important specifications that ensure their efficiency, safety, and reliability. Understanding transformer rating and capacity is crucial for determining how a transformer will function in a particular setting, whether for industrial, commercial, or residential applications.
Transformer rating and capacity are often used interchangeably, but they represent different aspects of a transformer’s operational limits. Rating typically refers to the electrical specifications or values assigned to a transformer, including voltage, current, and power, while capacity refers to the maximum load that a transformer can handle. Together, these values directly influence how well the transformer performs in its application, how efficiently it operates, and whether it can handle the required electrical load without risking failure or damage.
Why is Transformer Rating Important?
Transformer ratings are essential because they provide the specifications needed to understand the transformer’s limits. These include:
1. Voltage Rating
The voltage rating of a transformer indicates the maximum voltage it can safely handle on both its primary (input) and secondary (output) sides. This ensures that the transformer can perform its job of stepping up or stepping down the voltage without causing damage to itself or the electrical system. The voltage rating typically comes with two key figures:
- Primary Voltage: The input voltage the transformer is designed to handle from the source side.
- Secondary Voltage: The output voltage that is delivered to the load or end-users.
Operating a transformer outside of these voltage ratings can result in overheating, insulation breakdown, or catastrophic failure, which is why knowing the voltage rating is paramount for ensuring the transformer’s safety and functionality.
2. Current Rating
The current rating of a transformer indicates the maximum current that the transformer is designed to handle on its primary and secondary windings. This value ensures that the transformer can supply enough current to the load without overloading or causing overheating.
If the current exceeds the transformer’s rated capacity, the transformer’s windings and insulation may overheat, leading to potential damage or reduced lifespan. Current rating is crucial for determining how much power can be supplied to a given load or consumer device.
3. Frequency Rating
Transformers are typically designed for specific frequencies—most commonly 50 Hz or 60 Hz, which corresponds to the standard frequency of the electrical grid in different regions. The frequency rating is important because the transformer’s core material and design are optimized for specific frequencies. Operating outside of the recommended frequency range can affect the efficiency of the transformer and potentially lead to core saturation or overheating.
4. Impedance Rating
The impedance rating of a transformer indicates how much opposition the transformer presents to alternating current (AC). This value is crucial for understanding the voltage drop in the transformer when it is under load. The lower the impedance, the more efficiently the transformer can deliver power. Higher impedance can cause excess heat generation and voltage drops, especially under heavy load conditions.
The impedance rating also influences short-circuit protection and fault handling. Transformers with higher impedance may reduce the likelihood of fault currents, offering better protection in certain applications.
Why is Transformer Capacity Important?
The capacity of a transformer refers to the maximum power output it can safely handle without failure. Capacity is typically expressed in kilovolt-amperes (kVA) or megavolt-amperes (MVA). The capacity is a critical factor in determining whether a transformer can meet the demands of the load it is supporting, and it is closely linked to the transformer’s size, weight, and operational performance. There are several key reasons why transformer capacity is important:
1. Preventing Overloading
Each transformer is designed to handle a certain maximum load, represented by its capacity. If the load on the transformer exceeds its rated capacity, the transformer may become overloaded, leading to overheating and potential failure. Transformer capacity ensures that the transformer can consistently supply the required power without overloading the system.
For example, if a transformer has a capacity of 500 kVA and the connected load requires 600 kVA, the transformer will be under heavy strain, leading to overheating and reduced performance. Over time, operating a transformer beyond its capacity can result in premature failure and costly repairs or replacements.
2. Optimizing Power Distribution
Understanding transformer capacity is essential for optimizing the power distribution system. In industrial, commercial, and residential settings, transformers are used to step down high-voltage electricity from transmission lines to usable voltages. The correct capacity ensures that there is a steady, uninterrupted power supply to the load without excessive energy losses or failures.
When selecting a transformer, it’s important to match the capacity to the expected load. Using a transformer with higher capacity than required can be inefficient, while using one with too low a capacity can result in overloading and reliability issues.
3. Improving Efficiency
Transformers with the right capacity for a given load operate more efficiently. If a transformer is underutilized (i.e., it has a much higher capacity than required), it may still work fine but may incur additional costs due to idle power losses. Similarly, transformers operating too close to their maximum capacity tend to have lower operational efficiency, higher heat generation, and may even experience a drop in lifespan.
A correctly sized transformer ensures that the system operates at optimal efficiency, reducing operational costs and extending the transformer’s service life.
4. Planning for Future Load Growth
Capacity also plays an important role in planning for future demand. In dynamic environments such as industrial plants or urban areas, the electrical demand tends to grow over time due to increased usage, added equipment, or population growth. A transformer with adequate capacity can accommodate this future growth without the need for frequent upgrades or replacements.
This foresight ensures that the electrical infrastructure remains robust and scalable in the long term. However, it’s essential to balance the transformer’s capacity to avoid both overloading and unnecessary oversizing.
How Do Voltage and Current Requirements Influence Transformer Selection?
In the world of electrical power systems, transformers are essential components that ensure safe and efficient energy transmission and distribution. When selecting a transformer for a specific application—whether for industrial, commercial, or residential use—voltage and current requirements are two of the most critical factors to consider. The correct choice of transformer ensures that power is delivered safely, efficiently, and reliably, without overloading or damaging the equipment or system.
Voltage and current are the fundamental electrical parameters that influence transformer selection, and a failure to properly match them can lead to operational issues, energy losses, and even equipment failure. Understanding how these parameters play a role in transformer sizing and selection is crucial for ensuring optimal performance in any electrical system.
1. Understanding Voltage Requirements in Transformer Selection
Voltage is one of the most important factors when selecting a transformer. Voltage essentially refers to the electrical potential difference that drives current through the transformer’s windings and to the load. The voltage requirements dictate how the transformer should step up (increase) or step down (decrease) the voltage from the supply side to the end-user or load side. The key aspects to consider regarding voltage requirements include:
a. Primary and Secondary Voltage
Every transformer has two primary voltage specifications:
- Primary Voltage (Input Voltage): This is the voltage supplied to the transformer from the source (typically a power station or grid).
- Secondary Voltage (Output Voltage): This is the voltage that the transformer delivers to the load.
A transformer is designed to operate with a specific ratio between the primary and secondary voltage to either step up or step down the voltage according to the needs of the connected load. If the primary voltage is much higher than the secondary voltage, the transformer is designed to step down the voltage, and if the secondary voltage is higher than the primary, the transformer is designed to step up the voltage.
For example, in a typical electrical power distribution system, transformers step down the voltage from high-voltage transmission lines (e.g., 110 kV) to lower-voltage levels (e.g., 11 kV) for use in local substations and industries.
b. Voltage Rating and Tolerances
Every transformer has a voltage rating indicating the maximum and minimum voltages it can handle on the primary and secondary sides. This rating is crucial in transformer selection because exceeding the voltage rating can lead to excessive heat generation, insulation breakdown, or even transformer failure. Voltage tolerances are typically defined by manufacturers and ensure that the transformer operates within safe voltage limits. Overvoltage or undervoltage conditions can affect the transformer’s efficiency and safety.
When selecting a transformer, it is important to match the voltage requirements of the system with the transformer’s rated primary and secondary voltages. This ensures that the transformer can handle the required load voltage without compromising performance or safety.
c. System Voltage Compatibility
Transformers must be compatible with the system voltage standards in the region of operation. Inconsistent voltage levels or mismatched voltage ratings can cause problems in power delivery. For instance, a transformer rated for 240 V might not perform correctly when placed in a system that operates at 220 V, leading to power instability or inefficient power transmission.
2. Understanding Current Requirements in Transformer Selection
The current that a transformer must handle is another important consideration. Current represents the flow of electric charge and is proportional to the power being delivered to a load. The current requirements are influenced by the transformer’s capacity and the load it is supporting. The key aspects to consider regarding current requirements include:
a. Full Load Current
When selecting a transformer, it is essential to know the expected full-load current on both the primary and secondary sides. The current rating of a transformer is the maximum amount of current it can safely carry without overheating. The current depends on the load demand and the voltage applied across the transformer windings.
The full-load current is determined using the formula:
[
I = \frac{P}{V \times \sqrt{3} \times \text{Power Factor}}
]
Where:
- ( I ) is the current (in amperes),
- ( P ) is the power in watts (VA or kVA),
- ( V ) is the voltage (in volts),
- ( \sqrt{3} ) is used for three-phase systems,
- Power Factor is the ratio of real power to apparent power (a typical value is 0.8 for industrial loads).
This formula helps ensure that the transformer is selected with a current rating sufficient to handle the full load without overheating or causing damage to its internal components.
b. Short-Circuit Current
Another important consideration is the short-circuit current rating of the transformer. During short circuits, the transformer may experience a sudden surge in current. The transformer’s design must ensure that it can handle these high currents without damage. For fault protection, transformers must be equipped with proper protective relays and fuses to disconnect the system in case of a short circuit.
Selecting a transformer with the appropriate short-circuit impedance is essential for protecting both the transformer and the downstream equipment from the effects of overcurrent during fault conditions.
c. Current and Load Balancing
In multi-phase transformer systems, such as in industrial or commercial power systems, current balancing is essential. Transformers are typically designed to operate with balanced load currents across their phases. Uneven load distribution can cause overheating in some phases, leading to inefficient operation or transformer failure. It is crucial to select a transformer that can manage load balancing and ensure that all phases are appropriately aligned with their current requirements.
d. Current Overload and Safety
Overloading a transformer beyond its current rating can result in overheating, insulation damage, and a significant reduction in the transformer's lifespan. Transformers are typically equipped with safety mechanisms such as overcurrent protection and temperature sensors to detect excessive current or overheating and automatically shut down or trip the system if needed.
3. Transformer Selection Criteria Based on Voltage and Current Requirements
When selecting a transformer, engineers typically follow these steps to ensure proper voltage and current compatibility:
- Determine Load Type and Power Needs: Understand the expected load demand, including the voltage and current required for the specific application.
- Select Voltage Rating: Choose a transformer with appropriate primary and secondary voltage ratings that match the supply voltage and load voltage.
- Select Current Rating: Ensure that the transformer can handle the current required by the load, considering both the full-load current and any possible transient or fault conditions.
- Check Efficiency and Losses: Consider the transformer’s efficiency and the associated losses, particularly for large systems where high power is being transmitted. Selecting an energy-efficient transformer can reduce operational costs and improve system reliability.
- Ensure Future Expansion: When possible, select a transformer with a higher rating than the current demand to account for future load growth and avoid early system upgrades.
What Are the Different Types of Transformers and Which One is Right for You?
Transformers play a crucial role in the transmission and distribution of electrical power. By stepping up or stepping down voltage levels, transformers ensure that electrical energy is delivered safely and efficiently to where it is needed. However, not all transformers are created equal, and the right type must be selected based on the specific application and operational requirements.
In this article, we will discuss the various types of transformers and help you determine which one is right for your needs, whether you're dealing with a residential, commercial, or industrial setup.

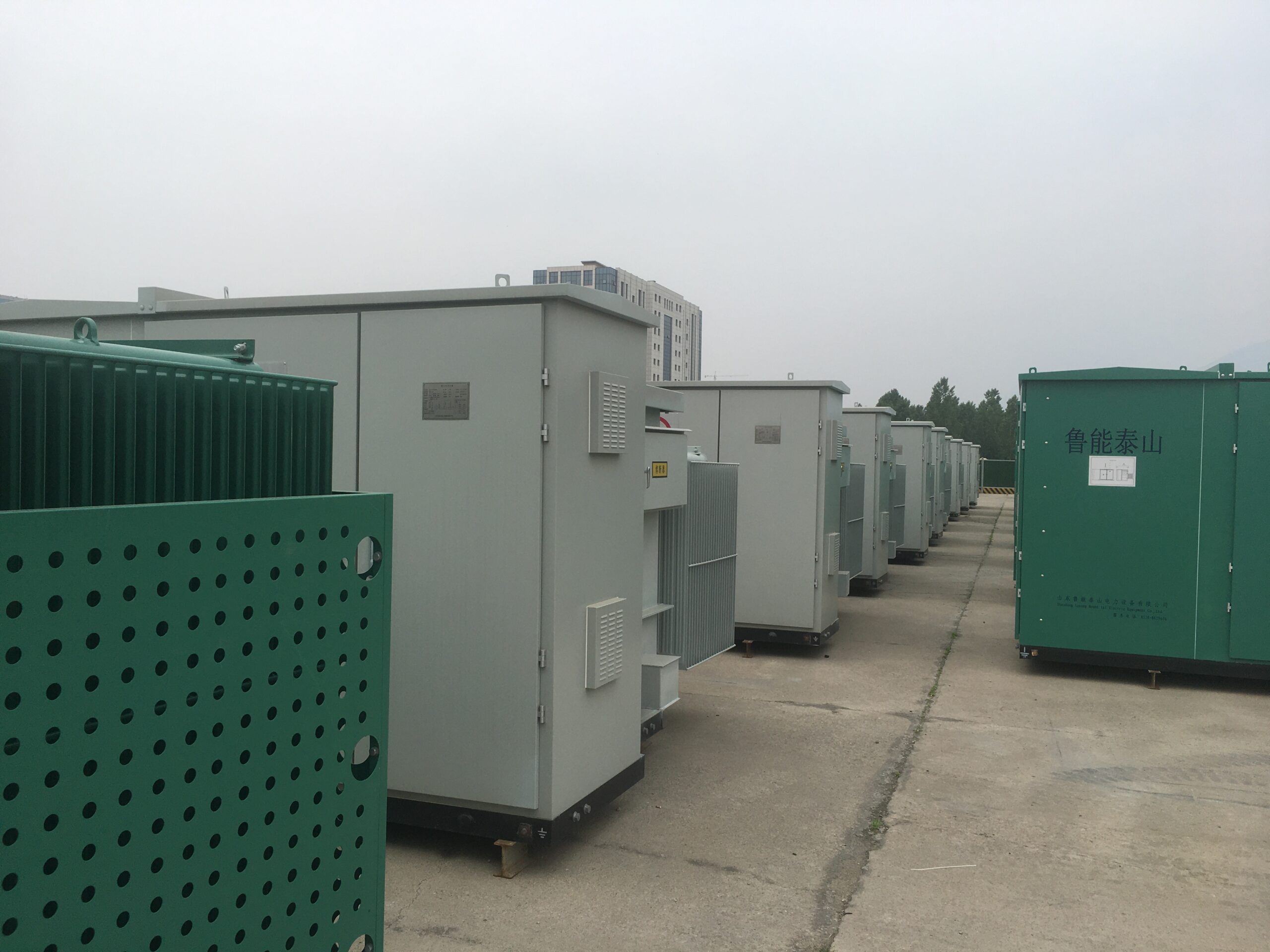

1. Types of Transformers
Understanding the different types of transformers is essential for choosing the right one for your application. Transformers can be categorized based on various factors such as design, cooling method, voltage, and specific application needs.

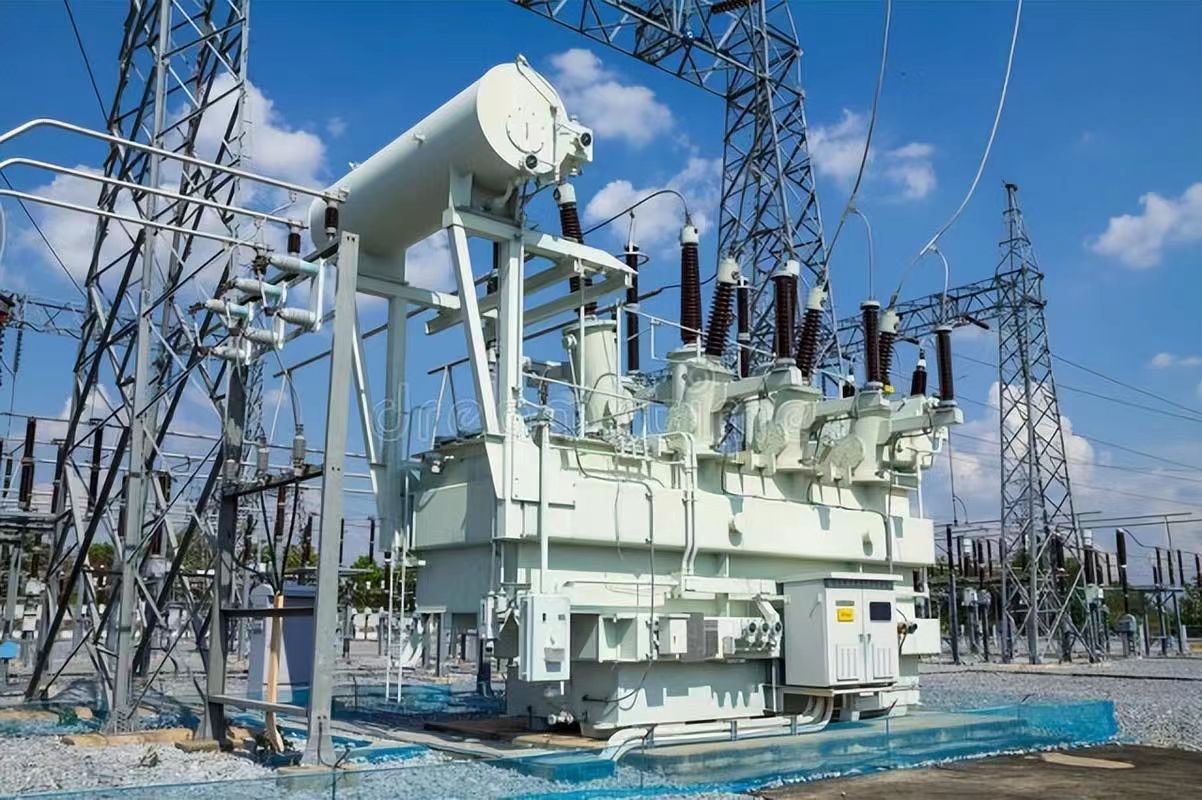

a. Power Transformers
Power transformers are used in the transmission of electrical power across long distances and typically operate at high voltages. These transformers are designed for use in electrical power stations and substations to step up or step down voltage.
- Applications: Utility grids, power plants, and substations.
- Voltage Range: Typically from 10 kV to 400 kV.
- Key Features: Power transformers are designed for continuous operation and have large power ratings, usually ranging from 10 MVA to several hundred MVA.
- Ideal For: Long-distance power transmission where high voltage is required.
b. Distribution Transformers
Distribution transformers are used in low-voltage applications to distribute electricity to homes, businesses, and smaller facilities. These transformers step down high voltage from power lines to usable levels for local distribution.
- Applications: Residential, commercial, and light industrial applications.
- Voltage Range: Typically from 400 V to 33 kV.
- Key Features: These transformers are usually smaller in size compared to power transformers and are designed for low-load applications.
- Ideal For: Reducing voltage to safer, lower levels for residential or commercial use.
c. Autotransformers
An autotransformer is a transformer where the primary and secondary windings share some of the same coils. This design allows autotransformers to be smaller and more cost-effective than traditional transformers.
- Applications: Voltage regulation, motor starting, and in some transmission systems.
- Voltage Range: Typically up to 35 kV.
- Key Features: Autotransformers are more energy-efficient and can be less expensive than traditional transformers due to the shared winding. However, they do not provide complete isolation between primary and secondary circuits.
- Ideal For: Applications where voltage regulation or motor starting is needed, and where isolation is not a critical requirement.

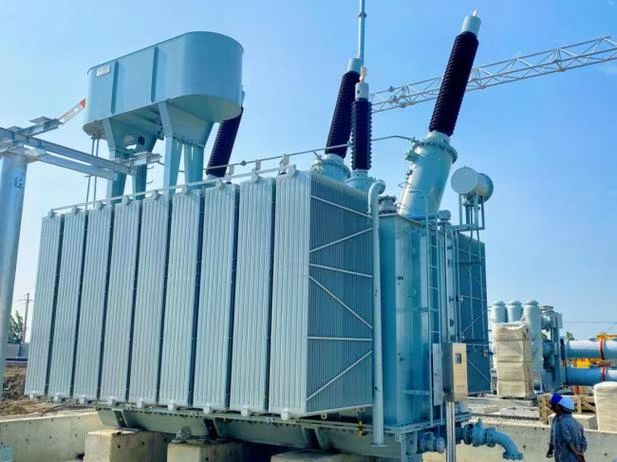

d. Oil-Immersed Transformers
Oil-immersed transformers use mineral oil as the insulating and cooling medium. These are the most common type of transformers used in power generation, transmission, and distribution due to their excellent cooling capabilities.
- Applications: Industrial power systems, substations, and utility grids.
- Voltage Range: Typically from 10 kV to 400 kV.
- Key Features: The oil serves as both an insulator and a coolant, which helps keep the transformer temperature under control. They are ideal for larger capacities and higher voltage levels.
- Ideal For: Large-scale power distribution and high-capacity transformers, particularly in areas where cooling is essential.
e. Dry-Type Transformers
Dry-type transformers do not use oil for cooling but instead rely on air or a special type of resin to dissipate heat. These transformers are generally used in areas where fire safety and environmental concerns are a priority.
- Applications: Commercial buildings, industrial settings, and locations requiring stringent fire codes.
- Voltage Range: Typically up to 36 kV.
- Key Features: Dry-type transformers are smaller and safer for indoor use since they eliminate the risk of oil leaks. They are also more environmentally friendly and have a lower risk of fire hazards.
- Ideal For: Applications in urban areas, indoor spaces, and locations where environmental factors and fire safety are important.
f. Distribution Transformer with Tap Changer
A distribution transformer with tap changer allows for voltage adjustments to be made under load. Tap changers are useful for fine-tuning the output voltage in areas where voltage variations occur frequently.
- Applications: Distribution networks where stable voltage is required despite fluctuating load conditions.
- Key Features: Tap changers allow for voltage adjustment without interrupting service, making them ideal for areas with variable power demands.
- Ideal For: Areas with unstable or fluctuating voltage, such as rural areas or certain industrial environments.
g. Isolation Transformers
Isolation transformers are used to isolate the primary side of a circuit from the secondary side. This is typically done for safety reasons or to prevent electrical noise from interfering with sensitive equipment.
- Applications: Medical equipment, sensitive electronics, and laboratory settings.
- Voltage Range: Typically up to 100 kV.
- Key Features: They provide galvanic isolation, ensuring that no direct electrical connection exists between the primary and secondary windings.
- Ideal For: Applications where electrical isolation is crucial, such as medical equipment, and in sensitive electronic circuits that require noise filtering.
h. Step-Up and Step-Down Transformers
These are transformers designed to either increase (step up) or decrease (step down) the voltage. They are used across a variety of applications, from power generation to home appliances.
- Applications: Power generation and home appliances.
- Key Features: Step-up transformers increase voltage from a lower voltage to a higher one, while step-down transformers reduce voltage from a higher to a lower level.
- Ideal For: Both power transmission and household or industrial electrical systems.
2. Choosing the Right Transformer for Your Needs
Choosing the right transformer depends on several key factors, including the application, voltage, capacity, and environmental conditions. Here are the most important considerations when selecting a transformer:
a. Voltage Requirements
The voltage required by your application will determine whether you need a step-up or step-down transformer. If you're working with a power grid, you may require a step-up transformer to increase the voltage for transmission or a step-down transformer to decrease it for local distribution.
b. Load Capacity
The capacity of the transformer, often measured in kilovolt-amperes (kVA) or megavolt-amperes (MVA), should be suitable for your electrical load. Under-sizing a transformer can cause overheating, while oversized transformers can lead to inefficiency.
c. Location and Environment
For urban and residential areas, dry-type transformers may be preferred for their compact design and fire safety. Oil-immersed transformers, on the other hand, are used in industrial settings where cooling and capacity are a priority. Choose based on the location and the surrounding conditions.
d. Maintenance and Lifespan
Oil-immersed transformers require regular maintenance to monitor oil levels and ensure proper insulation. Dry-type transformers, while easier to maintain, may have a shorter lifespan depending on environmental conditions. Consider the expected lifespan and ease of maintenance for your project.
e. Safety and Compliance
In applications where safety is a priority, such as hospitals or data centers, you may require isolation transformers for electrical isolation or distribution transformers with tap changers for stable voltage regulation.
How Do Environmental Factors Affect Transformer Selection?
The selection of a transformer for any given application is a critical decision that impacts the efficiency, safety, and long-term reliability of an electrical system. While electrical parameters such as voltage, current, and power capacity are essential, environmental factors also play a significant role in determining the best transformer for the job. Understanding how environmental conditions affect transformer performance and lifespan is crucial for making an informed decision.
In this article, we will explore how various environmental factors—such as temperature, humidity, location, and the risk of natural disasters—can influence the selection of a transformer. We’ll also look at how these factors impact the type of transformer, its maintenance, and its operation.
1. Temperature and Climate Conditions
One of the most significant environmental factors influencing transformer performance is temperature. Both ambient temperature (the temperature surrounding the transformer) and operating temperature (the temperature inside the transformer during operation) have a direct impact on the transformer’s efficiency, insulation life, and cooling requirements.
Impact of High Temperatures:
- Increased Overheating Risk: Higher temperatures cause transformers to work harder to maintain optimal performance. If the transformer is not adequately cooled, excessive heat can lead to overheating, which could degrade the insulation and shorten the transformer’s lifespan.
- Selection of Cooling Systems: In regions with high ambient temperatures, oil-immersed transformers may be preferred as the oil helps to dissipate heat more effectively. Additionally, dry-type transformers may require forced air cooling or ventilation systems to avoid overheating in hot climates.
- Impact on Oil: High temperatures can cause the oil used in oil-immersed transformers to degrade more quickly. The oil’s ability to act as both an insulator and coolant is compromised at higher temperatures, requiring more frequent maintenance and oil replacements.
Impact of Low Temperatures:
- Viscosity of Oil: Low temperatures can cause the oil in oil-immersed transformers to become more viscous, making it harder to circulate and cool the transformer efficiently. This could lead to an increased risk of overheating.
- Insulation Stress: Extremely low temperatures can put additional stress on the transformer’s insulation. Materials that are designed to withstand heat might become brittle and prone to cracking when exposed to extreme cold.
How to Mitigate Temperature Effects:
For high-temperature areas, transformers with superior cooling systems, such as forced oil cooling (FOA) or fans on dry-type transformers, should be selected. In colder climates, transformers with adequate insulation ratings and protection for oil flow should be considered.
2. Humidity and Moisture Exposure
Humidity and moisture levels in the air significantly affect the performance of electrical equipment. Transformers exposed to high humidity levels or water-laden environments can experience several problems related to moisture ingress and insulation degradation.
Impact of High Humidity:
- Corrosion of External Components: High humidity can lead to the corrosion of metallic parts, such as bushings, tanks, and terminals. This can weaken the mechanical structure of the transformer and impair its long-term operation.
- Insulation Breakdown: Humidity can compromise the dielectric strength of the transformer’s insulation. Moisture in the air or in the transformer’s oil can lead to reduced insulation performance, increasing the risk of electrical breakdowns and short circuits.
Impact of Moisture on Dry-Type Transformers:
- Dry-type transformers, while more resistant to fire hazards, are more susceptible to moisture absorption in humid environments. This can cause the insulating materials (such as epoxy resins or cellulose) to deteriorate, which leads to reduced performance and a shorter lifespan.
How to Mitigate Humidity Effects:
Transformers installed in areas with high humidity or where condensation is frequent should have sealed enclosures or be placed in climate-controlled rooms. Breathing valves in oil-filled transformers can help alleviate the effects of humidity by controlling the pressure inside the transformer tank and reducing moisture ingress.
3. Environmental Contaminants and Pollution
Industrial environments, coastal areas, or regions near highways and factories may have significant levels of pollutants, dust, or chemicals in the air that can impact transformer performance. Contaminants such as salt, dust, and industrial smoke can contribute to the corrosion of transformer parts or clog cooling fins.
Impact of Salt and Dust:
- Salt in Coastal Areas: Salt from ocean breezes can corrode metal parts, especially those exposed to the external environment. The salt buildup can also affect the dielectric strength of insulation materials, leading to early transformer failure.
- Dust: In arid or industrial regions, dust can accumulate on transformers, obstructing cooling systems such as radiators or cooling fins, leading to higher operating temperatures and reduced efficiency.
How to Mitigate Contaminant Effects:
In areas with high levels of pollution or salt exposure, selecting enclosed or sealed transformer models that are equipped with protective coatings or corrosion-resistant materials is critical. For dry-type transformers, these protective designs can help keep contaminants out and maintain safe, reliable operation.
4. Location: Outdoor vs. Indoor Installation
The location where the transformer is installed—whether it’s indoors or outdoors—affects its design and protection needs. Outdoor transformers are exposed to environmental elements, whereas indoor transformers are generally protected from harsh weather conditions but still need adequate ventilation.
Outdoor Installation:
- Weatherproofing: Outdoor transformers must be weatherproof and resistant to natural elements like rain, snow, and UV radiation from the sun. Outdoor transformers often come with IP-rated enclosures to prevent water and dirt ingress.
- Wind and Temperature: In areas subject to high winds or extreme weather conditions (e.g., hurricanes), outdoor transformers need additional reinforcement to ensure that their external casing and structural components remain intact under pressure.
Indoor Installation:
- Ventilation: Indoor transformers, such as dry-type transformers, benefit from controlled environments but still require adequate ventilation to dissipate heat effectively.
- Fire Safety: In indoor settings, the risk of fire may increase if the transformer overheats or malfunctions. For this reason, dry-type transformers are often preferred in fire-sensitive indoor locations.
How to Mitigate Location Effects:
For outdoor installations, ensure that transformers are equipped with weather-resistant enclosures and adequate cooling systems. Indoor transformers should be installed in well-ventilated areas with sufficient space around them for heat dissipation.
5. Seismic and Environmental Disaster Risks
In certain regions prone to natural disasters such as earthquakes, floods, or storms, additional measures need to be considered to safeguard transformers.
Impact of Earthquakes and Flooding:
- Structural Integrity: Earthquakes can cause significant shaking, which may lead to physical damage to the transformer or its foundation. Transformers in such regions need special seismic-rated supports and enclosures to absorb or resist seismic forces.
- Flooding: Flood-prone areas require transformers that are resistant to water immersion, particularly in coastal or low-lying regions.
How to Mitigate Disaster Risks:
In areas prone to flooding, elevating the transformer on a platform can help avoid damage. Similarly, for earthquake-prone zones, shock-absorbing materials and secure foundations are necessary to ensure that the transformer remains operational despite seismic events.
What Are the Maintenance and Lifespan Considerations for Transformers?
Transformers are integral to the safe and reliable operation of electrical systems, whether they are used in industrial, commercial, or residential applications. Their performance, efficiency, and longevity depend not only on their initial design and installation but also on consistent maintenance and regular inspection. Proper care can extend the transformer’s lifespan, improve its operational efficiency, and reduce the likelihood of costly breakdowns.
In this article, we’ll explore the key maintenance practices that ensure the longevity and reliability of transformers and discuss factors that affect their lifespan. By understanding these considerations, engineers and maintenance teams can keep transformers operating at peak performance, minimize unplanned downtime, and avoid expensive replacements.
Why is Transformer Maintenance Important?
Transformers are critical to electrical distribution and power systems, and their failure can result in significant disruptions and costs. Transformer maintenance is crucial for several reasons:
- Preventing Unexpected Breakdowns: Regular maintenance helps to identify potential issues before they lead to serious faults, such as insulation degradation, overheating, or oil contamination.
- Improving Efficiency: Well-maintained transformers operate more efficiently, reducing energy losses and lowering operational costs.
- Ensuring Safety: Faulty transformers can pose safety risks, including electrical fires, shocks, and equipment failures, making maintenance essential for worker safety.
- Extending Lifespan: Proper care can significantly extend the lifespan of transformers, which is crucial for managing capital costs and maximizing the return on investment (ROI).
How Does Transformer Maintenance Impact Lifespan?
A transformer's lifespan can vary based on several factors, including the quality of its design, the environment in which it operates, and the frequency of maintenance. On average, transformers are designed to last anywhere between 20 to 40 years, but proper maintenance can ensure they reach or even exceed this lifespan.
Key Factors Influencing Lifespan:
-
Load Factors: Operating transformers close to their maximum rated capacity can lead to faster wear and tear. Transformers running consistently at full load tend to degrade more quickly than those operating at optimal loads. A transformer that is overloaded frequently can experience excessive heating, which accelerates insulation deterioration.
-
Cooling and Temperature Management: The ability to maintain an appropriate operating temperature is essential for a transformer's longevity. Poor cooling systems or inadequate ventilation can cause the transformer to overheat, which leads to damage to internal components and a reduced lifespan.
-
Environmental Conditions: As discussed in previous articles, factors such as temperature, humidity, and air quality significantly impact transformer health. Moisture ingress, pollution, and corrosive environments can speed up degradation, requiring more frequent maintenance and a shorter lifespan.
-
Transformer Type: The type of transformer also impacts how long it lasts. For instance, oil-immersed transformers typically have a longer lifespan because oil helps with cooling and insulation. However, they require careful monitoring of the oil quality and levels. Dry-type transformers, while safer from fire risks, may need more frequent maintenance, especially if they operate in dusty or polluted environments.
Key Maintenance Tasks for Transformers
Regular inspection and maintenance are crucial for optimizing transformer performance and extending its lifespan. Below are the key maintenance tasks that should be performed routinely:
1. Inspection and Monitoring
- Visual Inspections: Regular visual checks should be conducted to identify any external damage, leaks, or signs of wear. Look for signs of overheating, such as discoloration, or damaged insulation.
- Oil Level and Condition: For oil-immersed transformers, checking the oil level and quality is essential. Oil degradation can affect both insulation and cooling performance. The oil should be tested for acidity, water content, and dissolved gases to identify potential issues.
- Bushing Condition: The transformer bushings are critical components for both electrical connections and insulating. Cracks, moisture buildup, or corrosion should be checked regularly to prevent breakdowns.
- Sound and Vibration Monitoring: Unusual noises, such as buzzing, humming, or rattling, may indicate problems with the core or windings. Vibration analysis is also a valuable tool to detect imbalances or loose connections.
2. Electrical Testing
- Insulation Resistance Tests: Periodically testing the insulation resistance ensures that the transformer's insulation system is intact. Low resistance levels could indicate potential electrical faults or moisture ingress.
- Turns Ratio Testing: This test helps to ensure that the transformer is properly energized and that the voltage ratio between the primary and secondary windings is correct.
- Winding Resistance Testing: This checks the integrity of the winding connections and helps detect issues like loose or corroded connections.
3. Oil Testing and Replacement (for Oil-Immersed Transformers)
As mentioned earlier, oil plays a vital role in cooling and insulation. Over time, transformer oil degrades due to exposure to heat and moisture. Routine oil tests should be carried out to determine if the oil needs to be replaced.
- Dissolved Gas Analysis (DGA): This test detects gases that form as a result of electrical faults, such as overheating, arcing, or insulation breakdown. Acetylene and hydrogen can indicate serious issues.
- Oil Purification: If the oil is contaminated, it may need to be filtered or replaced to maintain optimal transformer performance.
4. Cooling System Maintenance
Cooling is essential for transformer operation. Ensuring that the cooling system, whether it's air-cooled or oil-cooled, is functioning correctly is vital to prevent overheating and extend the transformer’s lifespan.
- Radiators: For oil-immersed transformers, radiators help dissipate heat. Check the radiator fins for any blockages caused by dust or dirt. Clean or replace the fins if necessary.
- Fans: In forced air cooling systems, the fans should be checked for smooth operation, and any worn-out fan blades should be replaced.
5. Grounding and Protection Systems
- Grounding Systems: Regular checks should be done to ensure that the transformer’s grounding system is intact and free from corrosion.
- Protection Relays: Ensure that protective devices such as overload relays and fault detection systems are functioning correctly. These systems are essential for preventing catastrophic failures by disconnecting the transformer in case of electrical faults.
How to Extend Transformer Lifespan with Preventative Maintenance
Preventative maintenance is crucial in prolonging transformer lifespan and ensuring continuous, efficient operation. Here are a few strategies to help extend the life of a transformer:
- Regular Monitoring: Implement online monitoring systems that continuously assess key parameters such as temperature, load, and oil condition. This allows for early detection of issues before they lead to failure.
- Routine Testing: Perform regular tests on electrical components, oil, and insulation to detect any degradation before it impacts performance.
- Oil Maintenance: For oil-immersed transformers, monitor oil quality and replace or filter the oil regularly to maintain its dielectric properties.
- Load Management: Avoid overloading the transformer beyond its rated capacity, and distribute loads evenly to ensure efficient operation.
- Cooling System Checks: Ensure that the transformer’s cooling system is always functioning at optimal levels to prevent overheating.
How Do Cost and Energy Efficiency Play into Transformer Selection?
Selecting the right transformer for a specific application requires careful consideration of several factors, with cost and energy efficiency being two of the most important. These elements not only affect the initial purchase price but also influence long-term operational expenses, sustainability goals, and the overall financial viability of a project. Whether you are in the industrial, commercial, or utility sectors, understanding how these factors influence transformer selection can lead to smarter purchasing decisions, reduced operating costs, and a more efficient power distribution system.
In this article, we’ll explore the roles that cost and energy efficiency play in transformer selection, offering insight into how these factors can impact both the upfront investment and long-term operational costs.
Cost Considerations in Transformer Selection
Cost is often the first and most obvious factor when selecting a transformer. However, it’s important to recognize that the initial cost of a transformer is only one part of the equation. The long-term operational costs can outweigh the upfront expenditure, making it essential to consider the total cost of ownership (TCO). Several aspects contribute to the total cost:
1. Initial Purchase Cost
The upfront cost of a transformer depends on several variables, including its capacity, type (e.g., oil-immersed, dry-type), and features (e.g., smart capabilities, insulation material). Standard transformers are generally more affordable than advanced or custom models, but choosing a low-cost option without considering efficiency or lifespan can lead to higher operational expenses over time.
2. Installation Costs
The installation cost includes labor, materials, and any required modifications to the electrical infrastructure. Larger transformers or those with specialized cooling requirements (such as oil-immersed transformers) can have higher installation costs compared to smaller, more compact units like dry-type transformers or box transformers. Additionally, transformers requiring specialized equipment, such as cooling systems or specific protective features, may incur additional expenses.
3. Maintenance and Operating Costs
Maintaining a transformer is an ongoing expense that can vary based on the type of transformer, its age, and its operating conditions. Oil-immersed transformers, for example, require regular oil testing, filtering, and potential oil replacement, all of which add to the maintenance costs. In contrast, dry-type transformers are generally lower-maintenance since they do not use oil as an insulating or cooling medium, making them a more economical choice in environments with lower maintenance budgets or more stringent fire safety requirements.
4. Replacement Costs
Over time, transformers may need to be replaced due to wear and tear or aging. The frequency of replacement is impacted by the transformer’s quality, its operating conditions, and whether it is subject to frequent overloads. Investing in higher-quality transformers with longer lifespans may initially cost more, but this investment can help reduce the frequency of replacement, leading to cost savings in the long run.
Energy Efficiency Considerations in Transformer Selection
Energy efficiency is another critical factor to consider when selecting a transformer. While the initial cost is often a priority, choosing an energy-efficient transformer can significantly reduce operational costs over time by lowering energy losses and operating expenses.
1. Core Losses and Load Losses
Transformers experience two primary types of energy losses: core losses (also known as no-load losses) and load losses (also known as copper losses). Core losses are the losses that occur when the transformer is energized but not carrying any load. Load losses occur when the transformer is carrying a load and are caused by the resistance in the windings.
Energy-efficient transformers are designed to minimize these losses through high-quality core materials (such as silicon steel or amorphous steel), optimized winding designs, and advanced insulation materials. Selecting a transformer that offers lower core and load losses can lead to significant long-term energy savings, particularly in systems that run continuously or for long periods.
2. Efficiency Standards and Regulations
Governments and regulatory bodies set efficiency standards for transformers to ensure that they meet certain energy-saving criteria. For example, in many countries, transformers are subject to IEEE standards, IEC standards, or DOE (Department of Energy) guidelines, which require manufacturers to produce transformers with specified levels of energy efficiency. Choosing a transformer that meets or exceeds these standards helps ensure that you are selecting a product with the lowest possible energy consumption for its rated load.
Efficient transformers also have lower heat generation, which reduces the need for extensive cooling, further improving operational cost savings and contributing to a more environmentally friendly operation.
3. Full-Load Efficiency vs. Partial-Load Efficiency
Efficiency ratings can vary depending on the load at which the transformer operates. Some transformers are highly efficient at full load, but their efficiency may drop at partial loads. If the transformer will frequently operate under partial loads, it’s crucial to select a transformer that performs well across a range of loading conditions. On-load tap changers (OLTC) can help optimize the transformer’s performance by adjusting the voltage to maintain efficiency across varying loads.
4. Impact on Power Losses and System Efficiency
Energy-efficient transformers not only help lower electricity bills but also reduce system losses in the broader electrical grid. Transformers that operate with high efficiency reduce the amount of power lost as heat and thereby enhance the overall system efficiency. In industrial or commercial settings, this translates into reduced operating costs, improved system reliability, and greater sustainability.
Balancing Cost and Energy Efficiency: A Holistic Approach
When selecting a transformer, balancing cost and energy efficiency is essential for achieving long-term operational success. Here are a few strategies to consider:
1. Evaluate Total Cost of Ownership (TCO)
Rather than focusing only on the initial purchase price, consider the total cost of ownership. This includes not only the purchase price but also the operating costs, maintenance, and expected lifespan. A slightly higher initial investment in an energy-efficient transformer can pay off over time through reduced energy consumption and lower maintenance costs.
2. Consider the Transformer’s Operating Environment
The transformer’s environment plays a significant role in determining how energy-efficient it will be. For example, a transformer used in a high-demand, continuous operation environment will benefit more from energy-efficient design features than one used intermittently. High-efficiency transformers are particularly beneficial in environments with high power demands where they operate continuously, helping to reduce energy costs significantly.
3. Account for Future Technological Advancements
As smart grids, renewable energy integration, and internet of things (IoT) technologies evolve, it may be wise to choose transformers that are ready for future upgrades. Investing in smart transformers that can monitor energy use in real-time and provide predictive maintenance alerts can improve operational efficiency and extend transformer lifespan.
Conclusion
Selecting the right transformer requires careful consideration of a variety of technical, operational, and economic factors. The transformer rating and capacity must match the power demand of the electrical system, ensuring that it can handle peak loads without risk of failure. The voltage and current requirements are essential in determining the appropriate transformer specifications, ensuring compatibility with the power supply and load.
Choosing between different types of transformers (e.g., dry-type, oil-immersed, box transformers) is crucial based on factors like safety, environmental conditions, and installation location. Environmental factors, such as temperature extremes or space limitations, may influence your choice between indoor and outdoor transformers or affect the choice of cooling systems.
Additionally, understanding the maintenance requirements and expected lifespan of the transformer will help you plan for future service needs and ensure long-term reliability. Cost considerations, including initial purchase price, energy efficiency, and long-term operating costs, are essential in balancing both budget and performance goals.
In summary, selecting the right transformer involves understanding your specific power requirements and environmental conditions, evaluating different transformer types, and factoring in long-term operational and maintenance considerations. By taking all of these elements into account, you can ensure that your transformer choice meets both current and future needs efficiently and safely.
FAQ
Q1: What are the main factors to consider when choosing a transformer?
A1: When choosing a transformer, the key factors to consider include the required voltage, current, and power ratings. Additionally, you should assess the transformer's efficiency, size, and type (oil-immersed, dry-type, etc.) based on the specific application. Environmental conditions, safety features, and budget also play an important role in the selection process.
Q2: How do voltage and current ratings affect transformer selection?
A2: Voltage and current ratings are crucial in selecting a transformer because they determine the transformer's ability to handle the electrical load. The transformer must match the voltage levels of both the power source and the load to ensure efficient energy transfer. Similarly, the current rating should align with the expected load current to prevent overheating or transformer damage.
Q3: Why is transformer efficiency important in the selection process?
A3: Transformer efficiency is critical because it determines how much energy is lost during the voltage conversion process. A higher efficiency transformer will consume less energy and generate less heat, which translates into lower operational costs and improved overall system performance. Selecting an energy-efficient transformer helps minimize power losses and contributes to a more sustainable operation.
Q4: How do environmental conditions affect transformer selection?
A4: Environmental conditions, such as temperature, humidity, and exposure to corrosive elements, can impact the performance and lifespan of a transformer. In harsh environments, you may need a transformer with enhanced insulation or one designed for outdoor use. For example, dry-type transformers are often preferred in locations with limited space or in sensitive areas like hospitals due to their lower maintenance needs and better safety profile.
Q5: What safety features should be considered when choosing a transformer?
A5: Safety features to consider when selecting a transformer include overload protection, thermal protection, and fault detection mechanisms. Additionally, safety certifications such as IEC or UL ratings are important to ensure compliance with industry standards. Transformers designed for specific applications, like those used in industrial or critical systems, may also include additional safeguards to protect against electrical faults and reduce the risk of fires.
References
"How to Choose the Right Transformer" - https://www.transformertech.com/choosing-the-right-transformer - Transformer Tech
"Key Factors to Consider When Selecting a Transformer" - https://www.powermag.com/transformer-selection - Power Magazine
"The Ultimate Guide to Transformer Selection" - https://www.electrical4u.com/transformer-selection-guide - Electrical4U
"Understanding Transformer Efficiency and Why It Matters" - https://www.sciencedirect.com/topics/engineering/transformer-efficiency - ScienceDirect
"Choosing the Right Transformer for Your Application" - https://www.researchgate.net/transformer-selection - ResearchGate
"Environmental Factors in Transformer Selection" - https://www.smartgridnews.com/transformer-environmental-considerations - Smart Grid News
"Voltage and Current Ratings in Transformer Selection" - https://www.energycentral.com/c/ee/transformer-voltage-current - Energy Central
"The Importance of Choosing the Right Transformer for Your Project" - https://www.powergrid.com/choosing-right-transformer - PowerGrid
