What Are the Key Specifications and Standards for Oil-immersed Transformers?

Oil-immersed transformers are widely used in power generation, transmission, and distribution systems due to their excellent insulation performance, efficient cooling capability, and ability to handle high voltages and large capacities. To ensure reliable operation and compliance with project requirements, these transformers must meet specific technical specifications and industry standards. Understanding the key specifications and applicable standards is essential for proper selection, procurement, and operation.

What Are the Fundamental Electrical Specifications of Oil-Immersed Transformers?

Selecting an oil-immersed transformer involves much more than choosing a power rating. Electrical specifications determine how the transformer will perform under normal operating conditions, withstand system disturbances, maintain efficiency, and integrate with the power network. Whether the transformer is used in a utility substation, industrial facility, renewable energy project, or commercial distribution system, understanding its fundamental electrical specifications is essential for ensuring reliability, safety, and long-term performance.

Many transformer failures, inefficiencies, and operational issues can be traced back to improperly defined specifications during the design or procurement stage. Therefore, engineers must carefully evaluate voltage ratings, power capacity, impedance, frequency, insulation levels, and other key parameters before selecting a transformer.

The fundamental electrical specifications of an oil-immersed transformer include rated power, rated voltage, frequency, phase configuration, vector group, impedance voltage, insulation level, temperature rise, efficiency, losses, short-circuit withstand capability, and tap-changing range. Together, these parameters define the transformer's electrical performance, operating limits, and compatibility with the power system.

The rated power of a transformer is the only specification needed to determine whether it is suitable for an electrical system.False

A transformer's suitability depends on multiple electrical specifications including voltage ratings, impedance, insulation levels, frequency, cooling capability, and system compatibility, not just rated power.

Rated Power (Transformer Capacity)

Rated power is one of the most important specifications and represents the maximum continuous load the transformer can deliver under specified operating conditions.

Common rating units

UnitDescription
kVAKilovolt-amperes
MVAMegavolt-amperes

Typical applications

Transformer SizeCommon Application
50–500 kVACommercial buildings
500–5000 kVAIndustrial facilities
5–100 MVAUtility substations
Above 100 MVATransmission networks

The selected rating must accommodate both current demand and future load growth.

Rated Primary and Secondary Voltage

Voltage ratings define the transformer's input and output operating voltages.

Voltage specification example

ParameterExample
Primary voltage33 kV
Secondary voltage11 kV

The transformer must be matched to the electrical network to ensure proper operation.

Typical voltage classes

System TypeVoltage Range
Low voltageBelow 1 kV
Medium voltage1 kV–35 kV
High voltageAbove 35 kV

Voltage ratings also determine insulation and testing requirements.

System Frequency

Transformers are designed to operate at a specific system frequency.

Common frequencies worldwide

FrequencyTypical Regions
50 HzEurope, Asia, Africa
60 HzNorth America, parts of South America

Operating a transformer at an incorrect frequency can increase losses and overheating.

Phase Configuration

Transformers may be designed for single-phase or three-phase systems.

Comparison

ConfigurationTypical Use
Single-phaseResidential and rural systems
Three-phaseIndustrial and utility applications

Three-phase transformers dominate modern power distribution systems due to superior efficiency and capacity.

Vector Group

The vector group defines the phase relationship between primary and secondary windings.

Functions of vector groups

PurposeBenefit
Defines phase displacementSystem compatibility
Determines grounding arrangementProtection coordination
Enables parallel operationLoad sharing

Common examples include Dyn11, Dyn5, Yyn0, and Yd1.

Percentage Impedance

Impedance is a critical specification that influences fault current levels and voltage regulation.

Impedance effects

Higher ImpedanceLower Impedance
Lower fault currentHigher fault current
Greater voltage dropBetter voltage regulation

Typical oil-immersed power transformers have impedance values between 5% and 15%.

Short-Circuit Withstand Capability

Power systems experience fault conditions that can subject transformers to extreme electrical and mechanical stresses.

Key requirements

RequirementPurpose
Thermal withstandResist fault heating
Mechanical withstandResist winding deformation

The transformer must withstand specified short-circuit currents without damage.

Insulation Level (BIL and Power Frequency Withstand)

Insulation systems protect transformers against overvoltages caused by lightning and switching operations.

Important insulation ratings

RatingPurpose
BIL (Basic Insulation Level)Lightning surge protection
Power-frequency withstand voltageInsulation verification

Higher system voltages require higher insulation levels.

Tap-Changing Range

Voltage levels in electrical systems fluctuate due to load changes and network conditions.

Tap changers allow voltage adjustment.

Types of tap changers

TypeApplication
Off-circuit tap changer (OCTC)Manual adjustment
On-load tap changer (OLTC)Automatic voltage regulation

Typical adjustment ranges are ±5% to ±15%.

Transformer Losses

Losses directly affect efficiency and operating costs.

Main loss categories

Loss TypeDescription
No-load lossCore loss when energized
Load lossCopper and stray losses

Reducing losses improves energy efficiency and lowers lifecycle costs.

Efficiency Requirements

Transformer efficiency measures how effectively electrical energy is transferred from primary to secondary.

Typical efficiency levels

Transformer TypeEfficiency
Distribution transformer97–99%
Power transformer98–99.7%

Higher efficiency reduces energy waste and carbon emissions.

Temperature Rise Limits

Electrical losses generate heat.

Temperature rise limits ensure safe operation and acceptable insulation life.

Typical limits

ComponentCommon Limit
Oil temperature rise50–65°C
Winding temperature rise55–80°C

Proper cooling design is essential for maintaining these limits.

Cooling Classification

Oil-immersed transformers use standardized cooling methods.

Common cooling classes

Cooling MethodDescription
ONANOil Natural Air Natural
ONAFOil Natural Air Forced
OFAFOil Forced Air Forced
OFWFOil Forced Water Forced

Cooling method directly affects transformer loading capability.

Loadability and Overload Capability

Transformers may occasionally operate above rated load under controlled conditions.

Factors influencing overload capability

FactorInfluence
Ambient temperatureThermal stress
Oil temperatureInsulation aging
Duration of overloadEquipment life

Manufacturers specify permissible overload limits.

Harmonic Performance

Modern electrical systems often contain nonlinear loads that generate harmonics.

Harmonic effects

ImpactConsequence
Increased lossesReduced efficiency
Additional heatingReduced insulation life
Voltage distortionPower quality issues

Transformers may require special designs for harmonic-rich environments.

Grounding Requirements

Grounding configuration influences safety and protection system performance.

Common grounding arrangements

ConfigurationApplication
Solid groundingDistribution systems
Resistance groundingIndustrial systems
Ungrounded systemsSpecialized applications

Grounding requirements must align with overall system design.

Testing Parameters

Electrical specifications are verified through factory and site testing.

Common tests

TestPurpose
Turns ratio testVerify voltage ratio
Winding resistance testVerify conductor integrity
Insulation resistance testAssess insulation condition
Impedance measurementConfirm fault characteristics
Temperature rise testValidate cooling performance

These tests ensure compliance with design specifications.

How Are Insulation Levels, Temperature Rise, and Cooling Methods Specified?

Insulation levels, temperature rise limits, and cooling methods are among the most critical technical specifications of an oil-immersed transformer. These parameters directly affect transformer reliability, service life, safety, overload capability, and overall performance. Even if a transformer has the correct power rating and voltage class, inadequate insulation design, excessive operating temperature, or an improperly selected cooling system can significantly reduce its operational lifespan and increase the risk of failure.

When preparing transformer specifications for procurement or engineering design, these parameters must be clearly defined according to applicable standards and operating conditions. Utilities, industrial facilities, renewable energy projects, and commercial installations all rely on these specifications to ensure long-term system reliability.

Insulation levels are specified by power-frequency withstand voltage and lightning impulse withstand voltage (BIL), temperature rise is specified as the allowable increase above ambient temperature for oil and windings, and cooling methods are specified using standardized cooling classifications such as ONAN, ONAF, OFAF, and OFWF. Together, these parameters define a transformer's dielectric strength, thermal capability, and heat dissipation performance.

A transformer with a higher power rating automatically has sufficient insulation strength and cooling capability for any application.False

Insulation levels, temperature rise limits, and cooling systems must be separately specified according to system voltage, environmental conditions, and operating requirements regardless of transformer power rating.

Why These Specifications Are Critical

Transformers are exposed to electrical, thermal, and environmental stresses throughout their service life.

Proper specification ensures:

RequirementPurpose
Electrical insulationPrevent dielectric failure
Temperature controlExtend insulation life
Effective coolingMaintain performance
Overvoltage protectionImprove reliability

A deficiency in any of these areas can lead to premature transformer failure.

Understanding Transformer Insulation Levels

Insulation systems must withstand normal operating voltages as well as temporary overvoltages caused by switching operations and lightning strikes.

Main insulation ratings

RatingPurpose
Power-frequency withstand voltageVerifies insulation under sustained voltage
Lightning impulse withstand voltage (BIL)Verifies surge resistance
Switching impulse withstand voltageUsed in higher-voltage systems

These ratings are selected according to the transformer's voltage class and applicable standards.

Power-Frequency Withstand Voltage

Power-frequency withstand voltage testing verifies insulation performance under conditions similar to normal operating frequency.

Typical test characteristics

ParameterDescription
Test frequency50 Hz or 60 Hz
DurationTypically 60 seconds
ObjectiveDemonstrate insulation integrity

The transformer must withstand the specified voltage without flashover or insulation breakdown.

Basic Insulation Level (BIL)

The Basic Insulation Level (BIL) defines a transformer's ability to withstand lightning-induced surges.

Importance of BIL

BenefitImpact
Lightning protectionReduced outage risk
Equipment protectionImproved reliability
Insulation coordinationSystem compatibility

Higher voltage systems require correspondingly higher BIL ratings.

Example insulation levels

System VoltageTypical BIL
11 kV75 kV
33 kV170 kV
66 kV325 kV
132 kV550 kV

Actual requirements depend on applicable standards and utility specifications.

Insulation Coordination

Insulation coordination ensures that transformer insulation strength aligns with the protection characteristics of the power system.

Coordination objectives

ObjectiveResult
Proper surge protectionReduced equipment damage
Optimized insulation costEconomic design
Reliable operationImproved system availability

Surge arresters are often selected in conjunction with transformer insulation levels.

Understanding Temperature Rise

Temperature rise refers to the increase in transformer temperature above ambient conditions during operation.

Electrical losses generate heat continuously within:

  • Core
  • Windings
  • Structural components

If temperatures become excessive, insulation aging accelerates significantly.

Why Temperature Rise Matters

Transformer insulation life is highly dependent on operating temperature.

Thermal impact on insulation

Temperature ConditionEffect
Within design limitsNormal aging
Moderately elevatedAccelerated aging
Excessively highRapid insulation degradation

Controlling temperature is therefore essential for long-term reliability.

Oil Temperature Rise Specification

Oil acts as both an insulating medium and a cooling medium in oil-immersed transformers.

Typical oil temperature rise limits

Cooling ClassTypical Oil Rise
ONAN55°C–60°C
ONAF55°C–65°C

The exact values depend on manufacturer design and project requirements.

Winding Temperature Rise Specification

Windings normally operate at temperatures higher than the surrounding oil.

Typical winding rise limits

Insulation SystemTypical Rise
Conventional design65°C
Enhanced design80°C

Winding temperature is one of the most important factors affecting insulation lifespan.

Hot-Spot Temperature Considerations

The hottest location inside a transformer is known as the hot spot.

Importance of hot-spot temperature

FactorImpact
Insulation agingDirect relationship
Overload capabilityThermal limitation
Expected service lifeTemperature dependent

Transformer loading studies often focus on hot-spot temperature rather than average winding temperature.

Ambient Temperature Assumptions

Temperature rise specifications are based on assumed ambient conditions.

Common design assumptions

ParameterTypical Value
Average daily ambient30°C
Maximum ambient40°C

Projects in deserts, tropical climates, or enclosed installations may require special design considerations.

Transformer Cooling Methods

Cooling systems remove heat generated by transformer losses.

Cooling method selection influences:

  • Loading capability
  • Efficiency
  • Size
  • Cost

ONAN (Oil Natural Air Natural)

ONAN is the most common cooling method for medium-sized oil-immersed transformers.

Operating principle

Cooling MediumCirculation Method
OilNatural convection
AirNatural circulation

Advantages include simplicity, reliability, and low maintenance.

ONAF (Oil Natural Air Forced)

ONAF cooling enhances heat dissipation through forced-air cooling.

Additional equipment

ComponentFunction
Cooling fansIncrease airflow
Control systemAutomatic fan operation

This allows higher loading capacity without increasing transformer size significantly.

OFAF (Oil Forced Air Forced)

OFAF systems use both forced oil circulation and forced air cooling.

Performance benefits

AdvantageResult
Improved heat transferHigher capacity
Enhanced cooling efficiencyBetter overload capability

These systems are often used in large power transformers.

OFWF (Oil Forced Water Forced)

OFWF cooling provides the highest cooling performance among conventional methods.

Characteristics

FeatureBenefit
Water heat exchangersSuperior cooling
Compact designSpace savings
High power capabilityUtility applications

This method is commonly used in large generating stations and transmission substations.

Cooling Method Comparison

Cooling MethodComplexityCapacityMaintenance
ONANLowModerateLow
ONAFModerateHigherModerate
OFAFHighHighHigher
OFWFVery highVery highHighest

Selection depends on project requirements and operating conditions.

Relationship Between Cooling and Transformer Rating

The cooling system directly influences transformer loading capability.

Example

Cooling StageAvailable Capacity
ONAN100%
ONAF Stage 1120–130%
ONAF Stage 2140–170%

Manufacturers often specify multiple ratings corresponding to different cooling stages.

Standards Governing These Specifications

Several international standards define insulation, temperature rise, and cooling requirements.

Common standards

StandardScope
International Electrotechnical Commission IEC 60076Power transformers
Institute of Electrical and Electronics Engineers transformer standardsNorth American requirements

These standards provide testing methods and performance criteria.

Key Specification Checklist

When preparing transformer specifications, engineers should clearly define:

ParameterRequired Information
Voltage classSystem operating voltage
BILLightning withstand level
Power-frequency withstandDielectric test level
Oil temperature riseMaximum allowable value
Winding temperature riseMaximum allowable value
Cooling classONAN, ONAF, OFAF, or OFWF
Ambient conditionsSite environment

Clear specification reduces procurement and operational risks.

What Impedance, Loss, and Efficiency Requirements Must Be Considered?

When specifying or purchasing an oil-immersed transformer, engineers often focus first on power rating and voltage levels. However, impedance, losses, and efficiency are equally important because they directly influence system reliability, fault performance, voltage regulation, operating costs, and lifecycle economics. A transformer that meets voltage and capacity requirements but has poorly selected impedance or excessive losses can increase energy costs, create protection coordination problems, and reduce overall system performance.

Modern utility, industrial, commercial, and renewable energy projects increasingly emphasize lifecycle cost rather than initial purchase price alone. As a result, transformer specifications now place significant attention on optimizing impedance values, minimizing losses, and achieving high efficiency throughout the equipment's service life.

Transformer impedance determines fault current levels and voltage regulation, losses determine energy consumption and operating costs, and efficiency measures how effectively electrical energy is transferred from the primary to the secondary winding. Proper specification of these parameters is essential for system reliability, economic operation, and compliance with energy efficiency regulations.

The transformer with the lowest purchase price always provides the lowest total ownership cost.False

Transformers operate continuously for decades, and energy losses often exceed the initial purchase cost over the equipment's lifetime. Losses and efficiency significantly affect lifecycle cost.

Understanding Transformer Impedance

Transformer impedance is the apparent opposition to current flow under load conditions and is usually expressed as a percentage of rated voltage.

Impedance plays a crucial role in determining:

  • Fault current levels
  • Voltage regulation
  • Parallel operation capability
  • System stability

Percentage impedance definition

During testing, a reduced voltage is applied to the transformer to produce rated current under short-circuit conditions.

The required voltage is expressed as a percentage of rated voltage.

Example ParameterValue
Rated voltage33 kV
Voltage required during short-circuit test2.64 kV
Percentage impedance8%

This percentage becomes a key design and procurement specification.

Why Impedance Is Important

Transformer impedance affects both normal operation and fault conditions.

Primary impacts

ParameterInfluence of Impedance
Short-circuit currentInversely proportional
Voltage regulationDirectly related
Protection coordinationStrong influence
Parallel operationMust be compatible

Improper impedance selection can lead to operational and protection challenges.

Effect of Impedance on Short-Circuit Current

One of the most important functions of transformer impedance is limiting fault current.

Relationship between impedance and fault current

Impedance (%)Relative Fault Current
5%Higher
8%Moderate
12%Lower
15%Much lower

Higher impedance transformers reduce the mechanical and thermal stresses associated with system faults.

Effect of Impedance on Voltage Regulation

While higher impedance reduces fault current, it also increases voltage drop under load.

Voltage regulation considerations

Lower ImpedanceHigher Impedance
Better voltage regulationGreater voltage drop
Higher fault currentLower fault current

Engineers must balance these competing requirements.

Typical Impedance Ranges

Different transformer applications require different impedance values.

Typical industry ranges

Transformer TypeTypical Impedance
Distribution transformer4%–8%
Medium power transformer6%–12%
Large power transformer8%–18%
Generator step-up transformer10%–20%

The optimum value depends on network characteristics and fault level limitations.

Understanding Transformer Losses

Transformer losses represent electrical energy converted into heat rather than delivered to the load.

Losses occur continuously throughout operation and significantly affect operating costs.

Main categories of losses

Loss TypeOccurs When
No-load lossTransformer energized
Load lossTransformer carrying load

Both categories must be specified and evaluated during procurement.

No-Load (Core) Losses

No-load losses are present whenever the transformer is energized, regardless of loading level.

These losses originate primarily in the magnetic core.

Components of no-load losses

ComponentCause
Hysteresis lossMagnetization cycles
Eddy current lossCirculating currents in core steel

Reducing core losses is especially important for transformers that remain energized continuously.

Factors Affecting Core Losses

Core losses depend largely on magnetic design and materials.

Design factors

FactorInfluence
Core material qualityMajor
Magnetic flux densityMajor
Core geometryModerate
Operating frequencySignificant

Modern high-efficiency transformers often use advanced grain-oriented silicon steel or amorphous metal cores.

Load Losses

Load losses occur when current flows through the transformer windings.

These losses increase approximately with the square of load current.

Major load loss components

ComponentSource
Copper lossWinding resistance
Stray lossLeakage flux effects
Eddy current lossConductive structural parts

Load losses dominate at higher loading levels.

Factors Affecting Load Losses

Key design influences

Design ElementEffect
Conductor sizeLower resistance
Winding arrangementReduced stray losses
Cooling effectivenessImproved thermal performance
Material qualityLower losses

Optimized winding design can significantly improve efficiency.

Total Loss Evaluation

Transformer specifications usually define both no-load and load losses.

Total loss calculation

Operating ConditionDominant Loss
Light loadCore loss
Medium loadMixed
Full loadLoad loss

Lifecycle evaluations consider expected loading patterns rather than only full-load operation.

Understanding Transformer Efficiency

Efficiency measures how effectively the transformer converts input power into useful output power.

The basic relationship is:

Higher efficiency means lower energy waste and lower operating costs.

Typical Efficiency Levels

Oil-immersed transformers are among the most efficient electrical devices in power systems.

Typical efficiencies

Transformer CategoryEfficiency
Small distribution transformer97%–98.5%
Medium power transformer98%–99.3%
Large power transformer99%–99.7%

Even small efficiency improvements can generate significant savings over decades of operation.

Why Efficiency Matters

Transformer efficiency affects:

  • Energy consumption
  • Operating costs
  • Carbon emissions
  • Regulatory compliance

Long-term impact

Efficiency IncreaseBenefit
Reduced lossesLower electricity cost
Lower heat generationImproved reliability
Reduced emissionsBetter sustainability performance

Efficiency is therefore a major procurement consideration.

Capital Cost Versus Loss Cost

Highly efficient transformers often have higher purchase prices.

However, they typically produce lower lifecycle costs.

Economic comparison

FactorStandard DesignHigh-Efficiency Design
Initial costLowerHigher
Energy lossesHigherLower
Operating costHigherLower
Lifecycle costOften higherOften lower

Many utilities evaluate transformers based on total ownership cost rather than acquisition price.

Loss Capitalization in Procurement

Utilities frequently assign financial values to losses during bid evaluation.

Typical approach

Loss TypeEvaluation Method
No-load lossCapitalized value
Load lossCapitalized value based on load factor

This method rewards manufacturers that provide more efficient designs.

Regulatory Efficiency Requirements

Many countries now impose minimum efficiency requirements for transformers.

Common objectives

ObjectiveBenefit
Reduced energy wasteLower operating cost
Lower carbon emissionsEnvironmental compliance
Improved grid efficiencyNational energy savings

Efficiency standards increasingly influence transformer design and procurement specifications.

Relationship Between Impedance and Efficiency

Impedance and efficiency are related but distinct specifications.

Design trade-offs

Lower ImpedanceHigher Impedance
Lower voltage dropBetter fault limitation
Often lower load lossesOften higher regulation impact

Design optimization requires balancing both requirements.

Key Specification Requirements

When preparing transformer procurement documents, engineers should define:

ParameterTypical Requirement
Percentage impedanceSpecified value and tolerance
No-load lossMaximum allowable value
Load lossMaximum allowable value
Total lossesLifecycle evaluation basis
EfficiencyMinimum required value
Test standardsApplicable compliance criteria

Clear requirements help avoid performance disputes during manufacturing and acceptance testing.

Evaluating Lifecycle Performance

The best transformer is not necessarily the one with the lowest initial cost.

Lifecycle evaluation should include:

ConsiderationImportance
Energy lossesVery high
Expected loading profileHigh
Electricity costsHigh
Maintenance requirementsModerate
Reliability impactVery high

This approach provides a more accurate assessment of total ownership cost.

Which International Standards Govern Oil-Immersed Transformer Design and Testing?

Oil-immersed transformers are among the most critical assets in electrical power systems, and their reliability directly affects grid stability, industrial operations, and energy infrastructure performance. Because transformers operate under high electrical, thermal, and mechanical stresses for decades, internationally recognized standards have been developed to ensure consistent design, manufacturing quality, testing procedures, safety, and performance verification.

Without standardized requirements, transformer specifications, testing methods, and acceptance criteria would vary significantly among manufacturers, making it difficult for utilities, industrial users, and project developers to compare products and ensure long-term reliability. Consequently, most transformer procurement contracts require compliance with one or more international standards.

The primary international standards governing oil-immersed transformer design and testing include IEC 60076, IEEE C57 series, ANSI standards, ISO management standards, and various regional grid and utility specifications. These standards define requirements for electrical performance, insulation coordination, temperature rise, losses, short-circuit withstand capability, testing procedures, efficiency, safety, and quality assurance.

IEC and IEEE transformer standards only apply to factory testing and do not influence transformer design.False

IEC and IEEE standards affect every stage of transformer development, including design calculations, insulation selection, thermal performance, testing requirements, manufacturing quality, and acceptance criteria.

Why Transformer Standards Are Important

International standards provide a common technical framework for manufacturers and purchasers.

Their objectives include:

ObjectiveBenefit
Standardized design requirementsConsistent performance
Uniform testing proceduresComparable results
Safety assuranceReduced operational risk
Quality controlImproved reliability
International compatibilityEasier procurement

Compliance helps ensure transformers perform as expected throughout their service life.

IEC 60076: The Primary Global Transformer Standard

The most widely used transformer standard worldwide is published by the International Electrotechnical Commission.

IEC 60076 serves as the foundation for oil-immersed power and distribution transformer design.

Main areas covered by IEC 60076

SubjectCoverage
Ratings and general requirementsElectrical characteristics
Temperature rise limitsThermal performance
Insulation levelsDielectric strength
Testing proceduresFactory verification
Short-circuit withstand capabilityMechanical strength
Loading guidelinesOperational performance

Many national standards are derived directly from IEC 60076.

IEC 60076 Part Structure

IEC 60076 consists of multiple sections covering specific technical topics.

Major components

StandardSubject
IEC 60076-1General requirements
IEC 60076-2Temperature rise
IEC 60076-3Insulation levels and dielectric tests
IEC 60076-5Short-circuit withstand capability
IEC 60076-7Loading guide
IEC 60076-10Sound level determination
IEC 60076-11Dry-type transformers
IEC 60076-18Frequency response analysis

Together, these documents provide comprehensive transformer guidance.

IEEE C57 Series Standards

In North America, transformer design is heavily influenced by standards developed by the Institute of Electrical and Electronics Engineers.

The IEEE C57 series provides detailed requirements for transformer performance and testing.

Major IEEE transformer standards

StandardPurpose
IEEE C57.12.00General requirements
IEEE C57.12.90Test code
IEEE C57.91Loading guide
IEEE C57.104Oil analysis guide
IEEE C57.152Diagnostic testing guide

These standards are commonly referenced in utility procurement specifications throughout North America.

ANSI Standards and Their Relationship to IEEE

Many transformer specifications in the United States reference standards issued by the American National Standards Institute.

In practice, many ANSI transformer requirements are coordinated with IEEE standards.

Areas covered

AreaPurpose
Equipment ratingsUniform classification
Dimensional requirementsInterchangeability
Performance criteriaConsistent expectations

ANSI and IEEE standards are frequently specified together.

Insulation Coordination Standards

Transformer insulation design must be coordinated with system overvoltage conditions.

Several standards address this area.

Important requirements

SubjectPurpose
Lightning impulse withstandSurge protection
Switching impulse withstandHigh-voltage systems
Power-frequency withstandDielectric verification

These standards ensure adequate insulation margins throughout the transformer's life.

Standards Governing Transformer Testing

Testing is one of the most heavily standardized aspects of transformer engineering.

Main testing categories

Test CategoryPurpose
Routine testsManufacturing verification
Type testsDesign validation
Special testsProject-specific requirements

Testing confirms compliance with contractual specifications.

Routine Tests Required by International Standards

Routine tests are performed on every transformer before shipment.

Common routine tests

TestObjective
Winding resistanceVerify conductor integrity
Turns ratioConfirm voltage ratio
Impedance measurementVerify fault characteristics
Insulation resistanceAssess insulation condition
Dielectric testsConfirm insulation strength
No-load loss measurementVerify efficiency performance
Load loss measurementVerify efficiency performance

These tests are mandatory under most standards.

Type Tests for Design Verification

Type tests demonstrate that a transformer design satisfies specified performance requirements.

Typical type tests

TestPurpose
Temperature rise testThermal verification
Lightning impulse testInsulation validation
Short-circuit testMechanical strength verification
Sound level measurementNoise compliance

Type tests are usually conducted on representative units.

Special Tests for Critical Projects

Large utility and industrial projects often require additional testing.

Examples

Special TestPurpose
Frequency response analysisMechanical condition assessment
Zero-sequence impedanceSystem studies
Harmonic analysisPower quality evaluation
Vacuum testingOil system integrity

Requirements vary depending on project specifications.

Efficiency and Loss Standards

Modern transformers are increasingly subject to energy efficiency regulations.

Typical areas of regulation

RequirementObjective
No-load loss limitsReduce wasted energy
Load loss limitsImprove efficiency
Minimum efficiency requirementsLower operating cost

These requirements influence core design and conductor sizing.

Environmental and Sustainability Standards

Environmental performance has become increasingly important in transformer procurement.

Relevant standards and frameworks

Standard or FrameworkFocus Area
International Organization for Standardization ISO 14001Environmental management
ISO 50001Energy management
Sustainability regulationsCarbon reduction

Manufacturers often maintain these certifications to demonstrate environmental responsibility.

Quality Management Standards

Quality management systems are essential for transformer manufacturing.

Common quality standards

StandardPurpose
International Organization for Standardization ISO 9001Quality management system
Manufacturing quality proceduresProcess control
Inspection requirementsProduct consistency

These standards help ensure repeatable manufacturing quality.

Utility and Grid Operator Specifications

In addition to international standards, many utilities impose supplemental requirements.

Typical utility requirements

AreaAdditional Requirement
ReliabilityEnhanced testing
Loss evaluationStricter efficiency targets
Short-circuit strengthHigher margins
Monitoring systemsDigital diagnostics

These requirements often exceed minimum international standards.

Comparison of Major Standards

Standard FamilyPrimary RegionMain Focus
IEC 60076GlobalDesign and testing
IEEE C57North AmericaDesign, testing, operation
ANSINorth AmericaRatings and interoperability
ISOGlobalQuality and environmental management

Many large projects require compliance with multiple standards simultaneously.

Standards Referenced in Procurement Contracts

Transformer procurement documents commonly specify:

RequirementTypical Reference
Design standardIEC 60076 or IEEE C57
Testing standardIEC or IEEE test codes
Quality managementISO 9001
Environmental managementISO 14001
Efficiency complianceApplicable regional regulations

Clear references help prevent contractual disputes.

Future Trends in Transformer Standards

Transformer standards continue to evolve in response to changing industry needs.

Emerging focus areas

TrendImpact
Higher efficiency requirementsReduced losses
Digital monitoring integrationImproved diagnostics
Carbon footprint reportingSustainability focus
Grid modernization requirementsEnhanced performance criteria

Future standards will increasingly emphasize lifecycle performance and environmental responsibility.

What Routine, Type, and Special Tests Are Required for Compliance?

Oil-immersed transformers are expected to operate reliably for 25 to 40 years or more under demanding electrical, thermal, and environmental conditions. To ensure that every transformer delivered to a customer meets its design specifications and applicable international standards, a comprehensive testing program is required before shipment. These tests verify electrical performance, insulation integrity, thermal capability, mechanical strength, and overall manufacturing quality.

International standards such as the International Electrotechnical Commission IEC 60076 series and the Institute of Electrical and Electronics Engineers C57 standards classify transformer tests into three main categories: routine tests, type tests, and special tests. Each category serves a different purpose and provides a different level of performance verification.

Routine tests are performed on every transformer manufactured, type tests validate a transformer design's performance characteristics, and special tests verify project-specific requirements or advanced performance parameters. Together, these tests ensure compliance with international standards, contractual specifications, and long-term reliability requirements.

If a transformer passes routine factory tests, type tests and special tests are unnecessary.False

Routine tests verify manufacturing quality on each unit, while type tests validate design performance and special tests confirm additional project-specific requirements that routine tests do not address.

Why Transformer Testing Is Necessary

Transformer testing serves several critical objectives:

ObjectivePurpose
Design verificationConfirm engineering calculations
Manufacturing quality assuranceDetect production defects
Contract complianceVerify specification requirements
Operational reliabilityReduce failure risk
Safety assuranceValidate insulation and protection margins

Testing provides documented evidence that the transformer satisfies both technical and contractual obligations.

Classification of Transformer Tests

International standards generally divide transformer tests into three categories.

Test categories

CategoryPurpose
Routine testsPerformed on every transformer
Type testsValidate design performance
Special testsVerify additional customer requirements

Each category contributes to a comprehensive quality assurance program.

Routine Tests

Routine tests are mandatory and are performed on every transformer before shipment.

Their primary purpose is to verify manufacturing quality and confirm that the unit conforms to the approved design.

Characteristics of routine tests

FeatureDescription
Performed on every unitYes
Required by standardsYes
Detect manufacturing defectsYes
Verify design capabilityLimited

Routine tests are usually witnessed by factory quality personnel and may also be observed by customer inspectors.

Winding Resistance Measurement

Winding resistance testing confirms the integrity of conductors and electrical connections.

Objectives

Verification AreaPurpose
Conductor continuityDetect open circuits
Connection qualityIdentify poor joints
Resistance balanceVerify winding uniformity

Abnormal resistance values may indicate manufacturing issues requiring correction before shipment.

Voltage Ratio (Turns Ratio) Test

The turns ratio test verifies that the transformer produces the correct output voltage.

Purpose

RequirementBenefit
Correct voltage transformationSystem compatibility
Tap changer verificationProper voltage regulation
Winding accuracy confirmationManufacturing quality

Results must fall within the tolerances specified by applicable standards.

Vector Group Verification

Vector group testing confirms phase displacement and winding connection configuration.

Common checks

ParameterImportance
Phase sequenceSystem compatibility
Phase displacementParallel operation
Connection designationProtection coordination

Incorrect vector groups can create serious operational problems.

Measurement of No-Load Loss and Current

This test evaluates core performance when the transformer is energized without load.

Measured parameters

ParameterPurpose
No-load lossEfficiency verification
Excitation currentCore quality assessment

Results are compared with guaranteed values specified in the contract.

Measurement of Load Loss and Impedance Voltage

Load loss and impedance testing are essential for verifying operational performance.

Measured values

ParameterSignificance
Load lossOperating efficiency
Percentage impedanceFault current limitation
Voltage regulation characteristicsSystem performance

These values must comply with design guarantees.

Dielectric Routine Tests

Dielectric testing verifies insulation integrity.

Typical dielectric tests

TestPurpose
Applied voltage testInsulation verification
Induced voltage testTurn-to-turn insulation assessment

Successful completion demonstrates that the transformer can withstand specified electrical stresses.

Routine Test Summary

The most common routine tests required by international standards include:

Routine TestPerformed on Every Unit
Winding resistanceYes
Voltage ratioYes
Vector group verificationYes
No-load loss measurementYes
Load loss measurementYes
Impedance measurementYes
Applied voltage testYes
Induced voltage testYes

These tests form the foundation of transformer quality assurance.

Type Tests

Type tests validate the overall design of a transformer rather than a specific manufactured unit.

A successful type test usually applies to transformers of the same design family.

Purpose of type testing

ObjectiveBenefit
Design validationEngineering confidence
Performance verificationSpecification compliance
Standard compliance demonstrationProcurement acceptance

Type tests are normally performed on representative units.

Temperature Rise Test

Temperature rise testing verifies thermal performance under rated load conditions.

Parameters evaluated

MeasurementImportance
Oil temperature riseCooling performance
Winding temperature riseInsulation life
Hot-spot temperatureThermal reliability

This test is one of the most important type tests because temperature strongly influences transformer lifespan.

Lightning Impulse Test

Lightning impulse testing evaluates insulation strength under surge conditions.

Purpose

RequirementBenefit
Surge withstand capabilityImproved reliability
Insulation coordination validationSystem protection

The test simulates the effects of lightning strikes and switching surges.

Short-Circuit Withstand Test

This test verifies the transformer's ability to withstand severe fault currents.

Evaluation areas

ParameterImportance
Mechanical strengthWinding integrity
Thermal strengthFault tolerance
Structural stabilityLong-term reliability

Short-circuit testing is complex and often conducted at specialized laboratories.

Sound Level Measurement

Noise performance is increasingly important, especially in urban and commercial installations.

Purpose

RequirementBenefit
Noise complianceRegulatory acceptance
Environmental performanceImproved community impact

Sound level measurements are conducted according to standardized procedures.

Type Test Summary

Typical type tests include:

Type TestMain Objective
Temperature rise testThermal verification
Lightning impulse testDielectric validation
Short-circuit testMechanical verification
Sound level testAcoustic performance

These tests confirm that the transformer design satisfies performance requirements.

Special Tests

Special tests are not mandatory for all transformers but may be specified by customers or project requirements.

Reasons for special testing

ReasonExample
Utility specificationsAdditional reliability requirements
Critical infrastructureEnhanced validation
Large power transformersAdvanced diagnostics

Special tests provide additional assurance beyond standard compliance.

Frequency Response Analysis (FRA)

FRA is used to evaluate winding mechanical condition.

Benefits

FunctionPurpose
Detect winding displacementMechanical assessment
Establish baseline signatureFuture diagnostics

FRA is especially valuable for large power transformers.

Capacitance and Dissipation Factor Measurement

This test evaluates insulation quality.

Parameters measured

ParameterSignificance
CapacitanceInsulation condition
Dissipation factor (tan δ)Dielectric losses

Abnormal values may indicate insulation contamination or deterioration.

Zero-Sequence Impedance Measurement

Certain power system studies require zero-sequence impedance data.

Applications

ApplicationPurpose
Ground fault analysisProtection studies
Network modelingSystem simulations

This information is particularly important for utility systems.

Harmonic and Stray Loss Evaluation

Projects involving renewable energy systems or power electronics may require harmonic assessment.

Evaluation objectives

ParameterBenefit
Harmonic loss capabilityImproved reliability
Additional heating assessmentThermal design validation

These tests help verify performance under non-linear loading conditions.

Vacuum and Pressure Tests

Oil system integrity is critical for oil-immersed transformers.

Verification areas

TestPurpose
Vacuum testTank integrity
Pressure testLeak prevention

Successful completion confirms oil containment reliability.

Oil Quality Tests

Transformer oil must meet strict quality requirements before energization.

Common oil tests

TestPurpose
Breakdown voltageDielectric strength
Moisture contentInsulation protection
Dissolved gas analysis baselineFuture condition monitoring

Oil quality significantly affects long-term transformer reliability.

Factory Acceptance Testing (FAT)

Many projects require a formal Factory Acceptance Test program.

FAT objectives

ObjectiveBenefit
Witness testingCustomer confidence
Contract compliance verificationRisk reduction
Documentation reviewQuality assurance

FAT often includes routine tests plus selected type and special tests.

Site Acceptance Testing (SAT)

After delivery and installation, site testing verifies transformer condition before energization.

Typical SAT activities

TestPurpose
Insulation resistanceTransportation damage check
Turns ratio verificationInstallation confirmation
Oil testingCondition assessment
Functional checksOperational readiness

SAT complements factory testing and provides final acceptance verification.

Typical Testing Matrix

TestRoutineTypeSpecial
Winding resistance
Voltage ratio
Impedance measurement
Applied voltage test
Temperature rise test
Lightning impulse test
Short-circuit test
FRA
Dissipation factor
Zero-sequence impedance

This matrix illustrates how different tests contribute to overall compliance verification.

How Do Regional and Project-Specific Standards Influence Transformer Specifications?

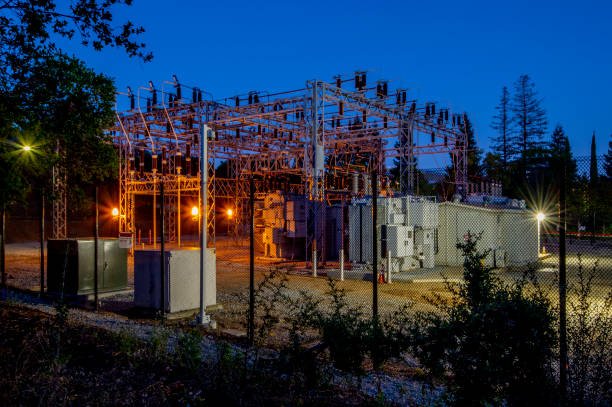

High-voltage power transformer installed outdoors at an electrical substation, showcasing industrial electrical infrastructure for power transmission and distribution.

Oil-immersed transformers are designed according to internationally recognized standards, but compliance with global standards alone is rarely sufficient for major utility, industrial, infrastructure, or renewable energy projects. In practice, transformer specifications are heavily influenced by regional regulations, utility requirements, environmental policies, grid codes, climatic conditions, and project-specific performance criteria. As a result, two transformers with identical ratings may require significantly different designs depending on where and how they will be installed.

Failure to consider regional and project-specific requirements during the specification stage can lead to procurement delays, compliance issues, increased costs, operational limitations, or even rejection during factory acceptance testing. Therefore, understanding how these additional standards affect transformer design is essential for engineers, consultants, EPC contractors, and asset owners.

Regional and project-specific standards influence transformer specifications by imposing additional requirements related to voltage classes, insulation levels, efficiency targets, environmental conditions, cooling systems, seismic performance, noise limits, testing procedures, monitoring systems, and utility-specific operational requirements. These requirements often exceed the minimum provisions of international standards and must be incorporated during transformer design and procurement.

Compliance with IEC or IEEE transformer standards automatically guarantees compliance with all regional utility and project requirements.False

Regional regulations, utility specifications, environmental rules, and project-specific requirements often impose additional criteria beyond the minimum requirements of IEC or IEEE standards.

Why Regional Requirements Matter

International standards establish minimum technical requirements, but actual operating environments vary considerably around the world.

Factors influencing transformer design include:

  • Climate conditions
  • Grid configuration
  • Utility operating practices
  • Environmental regulations
  • Local safety requirements

These factors often necessitate modifications beyond standard transformer designs.

Influence of National Electrical Standards

Many countries adopt international standards while introducing additional national requirements.

Common regulatory influences

AreaPotential Impact
Voltage classificationsDifferent standard ratings
Testing requirementsAdditional acceptance criteria
Safety regulationsEnhanced design features
Environmental complianceMaterial restrictions

Manufacturers must often customize designs to meet local regulations.

Utility-Specific Technical Specifications

Electric utilities frequently publish transformer specifications that supplement international standards.

Typical utility requirements

Requirement AreaAdditional Criteria
Loss guaranteesStricter limits
Reliability targetsEnhanced design margins
Monitoring systemsMandatory sensors
Short-circuit capabilityHigher withstand levels

Utility specifications often become contractual requirements during procurement.

Impact on Voltage Ratings and Tapping Arrangements

Regional power systems operate at different nominal voltages.

Examples of common transmission voltages

RegionTypical Voltages
North America69 kV, 138 kV, 230 kV
Europe110 kV, 220 kV, 400 kV
Asia66 kV, 132 kV, 220 kV, 500 kV

These differences directly influence transformer design and tap changer selection.

Influence on Insulation Levels

Environmental conditions and network characteristics affect insulation requirements.

Factors influencing insulation design

FactorImpact
Lightning densityHigher BIL requirements
AltitudeIncreased insulation distances
Switching surge levelsEnhanced dielectric design
Pollution severityImproved external insulation

Utilities in high-lightning regions often require insulation levels above standard minimum values.

Climate and Ambient Temperature Requirements

Transformers installed in different climates experience vastly different operating conditions.

Environmental design considerations

ConditionDesign Adjustment
Desert climateEnhanced cooling
Tropical climateMoisture protection
Arctic climateLow-temperature materials
Coastal environmentCorrosion protection

Environmental conditions significantly affect cooling system selection and material specifications.

High-Altitude Installation Requirements

Transformers installed at elevated locations require special design considerations.

Effects of altitude

ParameterImpact
Air densityReduced cooling efficiency
Dielectric strengthLower insulation capability
Temperature riseIncreased operating temperature

Manufacturers often apply derating factors or enhanced insulation designs for high-altitude installations.

Seismic Design Requirements

Certain regions require transformers to withstand earthquake forces.

Common seismic requirements

Region TypeDesign Emphasis
High seismic zonesStructural reinforcement
Critical infrastructureEnhanced qualification testing

Projects in earthquake-prone areas often specify seismic performance standards in addition to electrical requirements.

Environmental Regulations and Sustainability Standards

Environmental regulations increasingly influence transformer specifications.

Key areas of influence

RequirementDesign Impact
Energy efficiencyReduced losses
Carbon reduction targetsHigh-efficiency designs
Material restrictionsAlternative materials
Noise controlAcoustic optimization

Environmental requirements have become major procurement drivers worldwide.

Influence on Efficiency and Loss Requirements

Many regions impose minimum efficiency requirements that exceed international baseline standards.

Typical requirements

ParameterRegulatory Focus
No-load lossesStrict limitation
Load lossesEfficiency improvement
Total ownership costLifecycle evaluation

Utilities often evaluate bids using loss capitalization methods.

Noise Performance Requirements

Urban installations frequently face strict noise restrictions.

Common project requirements

Installation TypeNoise Priority
Residential areasVery high
HospitalsVery high
Commercial districtsHigh
Industrial sitesModerate

Meeting noise requirements may require larger cores, special clamping systems, or acoustic enclosures.

Influence on Cooling System Selection

Regional climate conditions significantly affect cooling specifications.

Cooling considerations

ClimatePreferred Cooling Approach
TemperateONAN often sufficient
Hot climatesONAF frequently required
Large utility installationsOFAF or OFWF

Cooling systems must be matched to actual site conditions.

Renewable Energy Project Requirements

Renewable energy projects often impose unique transformer specifications.

Common renewable project requirements

ApplicationSpecial Requirement
Solar farmsVariable loading capability
Wind farmsHarmonic tolerance
Battery energy storageFrequent cycling capability

These applications often require customized transformer designs.

Industrial Project Requirements

Industrial facilities frequently have operating conditions that differ from utility networks.

Industrial considerations

IndustryCommon Requirement
MiningHigh mechanical robustness
Steel plantsHarmonic tolerance
Petrochemical facilitiesEnhanced reliability
Data centersHigh efficiency and redundancy

Transformer specifications must reflect actual operating conditions.

Monitoring and Digitalization Requirements

Modern projects increasingly require advanced monitoring systems.

Common monitoring features

SystemFunction
Online dissolved gas monitoringCondition assessment
Winding temperature monitoringThermal management
Moisture sensorsInsulation protection
SCADA integrationRemote monitoring

Digital monitoring requirements often originate from utility or project standards.

Factory Acceptance Testing Requirements

Project-specific standards frequently expand the factory testing scope.

Additional testing requirements

Test AreaPotential Requirement
Loss verificationGuaranteed-value validation
FRA testingBaseline diagnostics
Sound measurementsNoise compliance
Special dielectric testsEnhanced insulation verification

These requirements are typically documented in procurement specifications.

Documentation and Compliance Requirements

Large projects often require extensive documentation beyond standard test reports.

Common documentation requirements

DocumentPurpose
Design calculationsEngineering review
Certified drawingsInstallation planning
Quality recordsCompliance verification
Material certificationsTraceability

Documentation requirements can vary substantially among projects.

Comparison of Standard and Customized Specifications

Specification AreaInternational StandardProject-Specific Requirement
Voltage ratingsStandard valuesUtility-specific values
Loss limitsStandard thresholdsEnhanced guarantees
Testing scopeRoutine and type testsAdditional special tests
Monitoring systemsOptionalMandatory
Noise levelsStandard complianceReduced limits

This comparison highlights the importance of project-specific engineering.

Managing Specification Complexity

Successful transformer procurement requires balancing:

  • International standards
  • National regulations
  • Utility requirements
  • Project objectives
  • Economic considerations

A comprehensive specification review process helps prevent costly design revisions later in the project.

Conclusion

The key specifications of oil-immersed transformers include rated power, voltage ratings, frequency, impedance, insulation level, cooling method, temperature rise limits, efficiency, and loss characteristics. These parameters are defined and verified according to internationally recognized standards such as IEC 60076, IEEE C57, ANSI, and other regional regulations. Compliance with these specifications and standards ensures safe operation, reliable performance, long service life, and compatibility with power system requirements.

FAQ

Q1: What are the key specifications of an oil-immersed transformer?

Oil-immersed transformers are defined by a range of technical specifications that determine their performance, safety, and suitability for specific applications.

Key specifications include:

Rated power (kVA or MVA)
Primary and secondary voltage ratings
Frequency (50 Hz or 60 Hz)
Vector group
Percentage impedance
Cooling method
Insulation level
Temperature rise limits
Tap changer configuration
Efficiency and loss values

These specifications are typically listed on the transformer's nameplate and technical datasheet.

Q2: What are the most important electrical ratings?

Electrical ratings establish the transformer's operating capabilities.

Rated Power

Expressed in:

kVA for distribution transformers
MVA for power transformers
Voltage Rating

Examples:

11 kV / 0.4 kV
33 kV / 11 kV
132 kV / 33 kV
Frequency

Common values:

50 Hz
60 Hz

These ratings must match the requirements of the electrical network.

Q3: What cooling methods are used in oil-immersed transformers?

Oil-immersed transformers use insulating oil for both cooling and insulation.

Common IEC cooling classifications include:

ONAN

Oil Natural Air Natural

ONAF

Oil Natural Air Forced

OFAF

Oil Forced Air Forced

OFWF

Oil Forced Water Forced

The selected cooling method affects transformer capacity, efficiency, and thermal performance.

Q4: What insulation standards apply to oil-immersed transformers?

Insulation systems must withstand normal operating voltages as well as transient overvoltages.

Important insulation parameters include:

Basic Insulation Level (BIL)
Power-frequency withstand voltage
Lightning impulse withstand voltage
Switching impulse withstand voltage

Insulation design is critical for ensuring long-term reliability and protection against electrical stress.

Q5: Which international standards govern oil-immersed transformers?

Several international standards regulate transformer design, manufacturing, and testing.

IEC Standards
IEC 60076 Series – Power Transformers
IEC 60296 – Mineral Insulating Oils
IEC 60422 – Maintenance of Insulating Oils
IEEE Standards
IEEE C57 Series
IEEE C57.12.00
IEEE C57.91
ANSI Standards
ANSI C57 transformer requirements

Compliance ensures interoperability, safety, and quality.

Q6: What routine, type, and special tests are required?

Transformers must undergo testing before shipment.

Routine Tests
Winding resistance
Voltage ratio verification
Insulation resistance
Impedance measurement
Type Tests
Temperature rise test
Lightning impulse test
Special Tests
Partial discharge testing
Sound level measurement
Frequency response analysis

These tests verify design integrity and manufacturing quality.

Q7: What environmental and safety requirements must be considered?

Modern oil-immersed transformers must comply with environmental and safety regulations covering:

Oil containment systems
Fire protection requirements
Spill prevention measures
Noise limits
Energy efficiency regulations
PCB-free insulating fluids

Utilities and industrial operators often specify additional environmental protections based on local regulations.

Q8: What information is typically included on an oil-immersed transformer nameplate?

A transformer nameplate usually contains:

Manufacturer name
Serial number
Rated power
Voltage ratings
Frequency
Vector group
Impedance percentage
Cooling method
Oil volume
Total weight
Insulation level
Applicable standards

The nameplate provides essential operating and maintenance information throughout the transformer's service life.

References

IEC 60076 – Power Transformers
https://webstore.iec.ch/publication/602
IEC 60296 – Fluids for Electrotechnical Applications: Mineral Insulating Oils
https://webstore.iec.ch
IEC 60422 – Supervision and Maintenance Guide for Insulating Oils
https://webstore.iec.ch
IEEE C57 Series – Transformer Standards
https://standards.ieee.org
ANSI C57 Transformer Standards
https://www.ansi.org

Tags:

Picture of Norma Wang
Norma Wang

Focus on the global market of Power Equipment. Specializing in international marketing.

Get Support Now

High-voltage power transformer installed outdoors on a substation site, featuring cooling radiators and electrical connections, essential for efficient electricity transmission and distribution.

Get a Quote / Support for Your Project

  • Don’t worry, we hate spam too!
