What are the main types of power transformers (distribution transformer, autotransformer, etc.)?

Power transformers are designed to meet different voltage, capacity, and application requirements across electrical power systems. From transmitting electricity over long distances to supplying power to homes and industries, various transformer types serve specific functions within the grid. Understanding the main types of power transformers helps engineers, utilities, and end users select the most suitable solution for their operational needs.

What Is a Distribution Transformer and Where Is It Used?

Electricity generated at power plants must travel through transmission and distribution networks before reaching homes, businesses, factories, hospitals, and other end users. While high-voltage transmission efficiently transports power over long distances, most electrical equipment cannot operate at these extremely high voltage levels. This is where distribution transformers play a critical role. They are the final voltage-conversion devices in the power delivery chain, reducing medium-voltage electricity from distribution networks to the lower voltages required by consumers.

Distribution transformers are among the most widely deployed electrical assets in the world. They operate continuously, often 24 hours a day, ensuring reliable power delivery to residential, commercial, industrial, and public infrastructure facilities. Their efficiency, reliability, and durability directly influence the quality and cost of electrical service.

A distribution transformer is a transformer designed to step down medium-voltage electricity from distribution networks to lower utilization voltages suitable for homes, commercial buildings, and industrial facilities. Distribution transformers are commonly used in residential neighborhoods, commercial complexes, factories, schools, hospitals, renewable energy systems, and public infrastructure projects.

Because they operate close to end users and remain energized for long periods, distribution transformers are optimized for high efficiency, excellent voltage regulation, and long service life.

Understanding the Role of Distribution Transformers

The electrical power system consists of several stages.

Power Delivery Chain

Distribution transformers perform the final voltage conversion step.

Why Voltage Must Be Reduced

High-voltage transmission is efficient but unsuitable for direct use.

Reasons for Voltage Reduction

Distribution transformers make electricity usable for customers.

What Is a Distribution Transformer?

A distribution transformer is a transformer specifically designed for local power distribution.

Main Characteristics

These characteristics distinguish them from transmission-level transformers.

How a Distribution Transformer Works

Distribution transformers operate according to electromagnetic induction.

Operating Principle

The operating principle is identical to other transformer types.

Voltage Transformation Relationship

The output voltage depends on the winding turns ratio.

Transformer Voltage Ratio

\frac{V_p}{V_s}=\frac{N_p}{N_s}

Where:

• (V_p) = primary voltage
• (V_s) = secondary voltage
• (N_p) = primary turns
• (N_s) = secondary turns

This relationship determines the required voltage conversion.

Main Components of a Distribution Transformer

Several components work together to ensure reliable operation.

Core Components

Each component influences transformer performance.

Common Voltage Ratings

Distribution transformers are available in numerous voltage combinations.

Typical Primary Voltages

Primary voltage depends on local utility standards.

Typical Secondary Voltages

Secondary voltages are selected according to customer requirements.

Types of Distribution Transformers

Distribution transformers can be classified by installation method.

Pole-Mounted Transformers

Pole-mounted units are common in overhead distribution systems.

Characteristics

These transformers are common in suburban and rural areas.

Pad-Mounted Transformers

Pad-mounted transformers are widely used in underground distribution systems.

Features

They are common in residential developments and commercial complexes.

Dry-Type Distribution Transformers

Dry-type designs eliminate insulating oil.

Advantages

These transformers are often installed inside buildings.

Oil-Filled Distribution Transformers

Oil-filled transformers remain widely used outdoors.

Advantages

Utilities commonly deploy oil-filled designs.

Residential Applications

Residential power distribution represents one of the largest markets.

Typical Uses

Distribution transformers provide electricity for daily living.

Commercial Applications

Commercial facilities require reliable voltage conversion.

Examples

Commercial demand often varies throughout the day.

Industrial Applications

Industrial facilities frequently utilize dedicated distribution transformers.

Industrial Uses

Industrial transformers often handle larger loads.

Healthcare Facilities

Hospitals require dependable electrical infrastructure.

Transformer Applications

Reliability is particularly important in healthcare environments.

Educational Institutions

Schools and universities depend on local power distribution.

Common Applications

Distribution transformers support daily operations.

Renewable Energy Systems

Renewable energy facilities increasingly use distribution transformers.

Solar Power Applications

Distribution transformers help integrate renewable generation.

Wind Energy Applications

Wind farms rely on multiple transformer stages.

Public Infrastructure

Many public services depend on distribution transformers.

Infrastructure Examples

Reliable operation is essential.

Data Centers

Modern digital infrastructure requires stable power.

Transformer Roles

Distribution transformers support critical IT systems.

Efficiency Requirements

Distribution transformers operate continuously and therefore prioritize efficiency.

Efficiency Formula

\eta=\frac{P{out}}{P{in}}\times100%

Typical Efficiency Levels

Even small efficiency improvements can produce significant energy savings.

Voltage Regulation Performance

Good voltage regulation is essential for customer satisfaction.

Voltage Regulation Formula

%VR=\frac{V{NL}-V{FL}}{V_{FL}}\times100

Lower voltage regulation values generally indicate better performance.

Distribution Transformer Capacity Range

Distribution transformers are available in a wide range of ratings.

Typical Capacities

Sizing depends on load demand and future growth.

Advantages of Distribution Transformers

These benefits support modern electrical infrastructure.

Summary of Common Applications

Distribution transformers serve virtually every sector of society.

What Is a Power Transformer and How Does It Differ from Other Types?

Electric power systems depend on transformers to efficiently transfer energy between different voltage levels. From generation plants to transmission networks and local distribution systems, transformers ensure that electricity can be transmitted economically and delivered safely to end users. Among the many transformer categories, the power transformer is one of the most critical components of the electrical grid, enabling large-scale energy transfer across high-voltage transmission networks.

Although power transformers share the same fundamental operating principle as distribution transformers, dry-type transformers, and isolation transformers, they are designed for different operating conditions and applications. Understanding these differences is essential when selecting transformers for utility, industrial, renewable energy, or infrastructure projects.

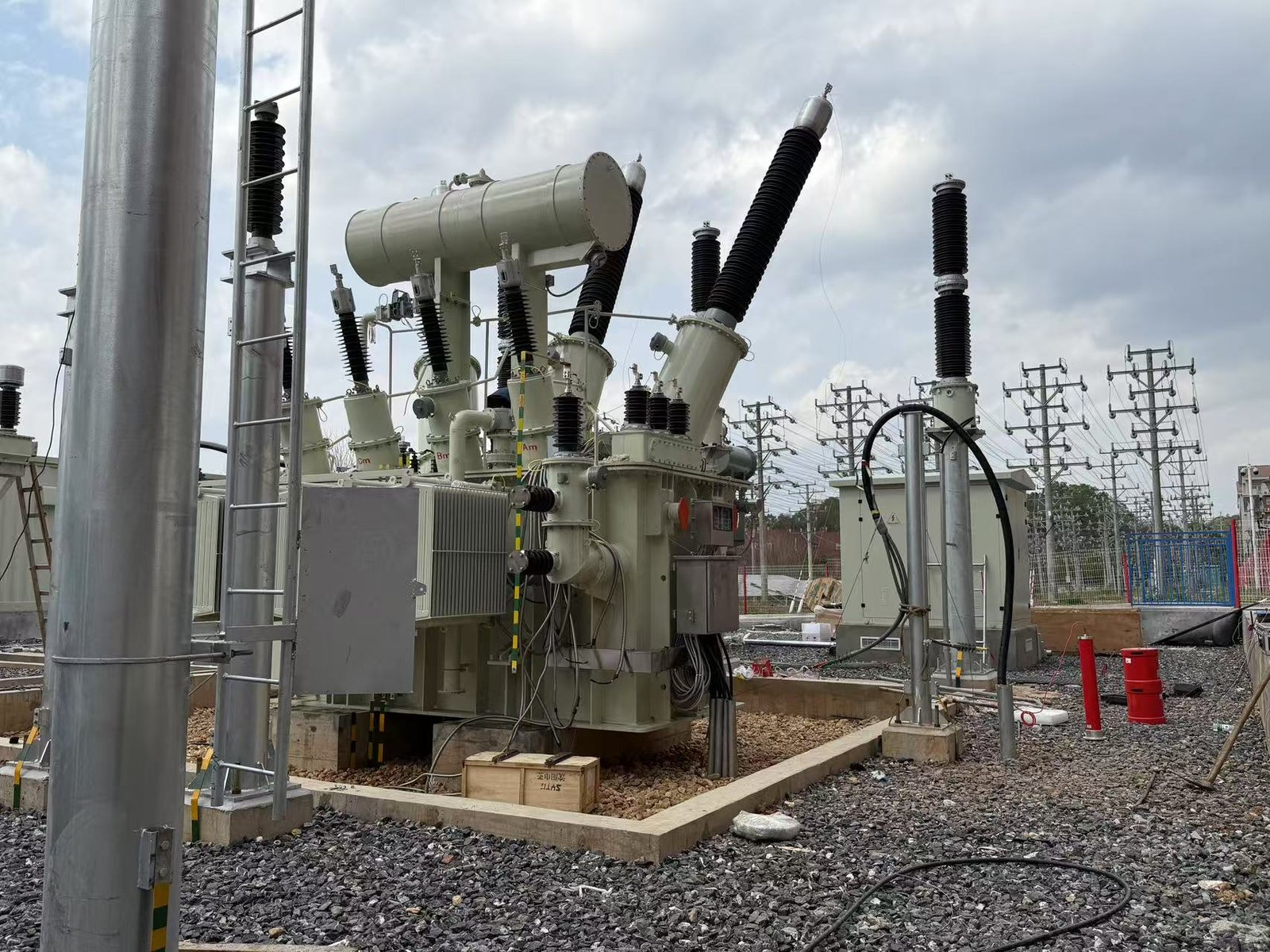

A power transformer is a high-capacity transformer primarily used in electrical generation plants, transmission substations, and high-voltage power networks to step up or step down voltage levels for bulk power transfer. Unlike distribution transformers, which serve end users, power transformers are designed for high-voltage operation, large power ratings, maximum efficiency near full load, and transmission-level applications.

As the backbone of modern power transmission systems, power transformers play a crucial role in ensuring reliable and efficient electricity delivery over long distances.

What Is a Power Transformer?

A power transformer is a transformer designed to transfer large amounts of electrical power between high-voltage networks.

Primary Purpose

The main objective is to enable efficient bulk power transmission.

Core Functions

Power transformers operate at the highest levels of the electrical grid.

Where Power Transformers Fit in the Electrical System

Electricity passes through multiple voltage conversion stages.

Typical Power Flow

Power transformers primarily operate in the transmission stages.

How a Power Transformer Works

Like all transformers, power transformers operate through electromagnetic induction.

Operating Process

The operating principle remains identical regardless of transformer size.

Fundamental Voltage Relationship

Voltage transformation depends on winding turns ratio.

Transformer Equation

\frac{V_p}{V_s}=\frac{N_p}{N_s}

Where:

• (V_p) = primary voltage
• (V_s) = secondary voltage
• (N_p) = primary turns
• (N_s) = secondary turns

This relationship governs both step-up and step-down operation.

Key Characteristics of Power Transformers

Power transformers are designed differently from other transformer categories.

Main Characteristics

These features distinguish power transformers from lower-voltage designs.

Typical Power Transformer Ratings

Power transformers are available in a broad range of capacities.

Common Capacity Range

Large utility transformers may exceed several hundred MVA.

Typical Voltage Levels

High-Voltage Applications

Voltage levels vary by country and utility requirements.

Power Transformer vs Distribution Transformer

The most common comparison is between power and distribution transformers.

Major Differences

Both are essential but serve different purposes.

Efficiency Design Philosophy

Efficiency requirements differ significantly.

Operating Conditions

This difference reflects their operating environments.

Why Full-Load Efficiency Matters

Power transformers typically operate close to rated capacity.

Benefits

Utilities prioritize efficiency due to large power transfers.

Power Transformer vs Dry-Type Transformer

Dry-type transformers and power transformers serve different markets.

Comparison

Large transmission applications typically require oil-filled designs.

Power Transformer vs Isolation Transformer

Isolation transformers have a different primary purpose.

Key Difference

Isolation transformers often have a 1:1 turns ratio.

Step-Up Power Transformers

Generator step-up transformers are a major category.

Function

Power plants generate electricity at moderate voltages.

Typical Example

This enables efficient long-distance transmission.

Step-Down Power Transformers

Transmission substations use step-down power transformers.

Purpose

Multiple voltage reduction stages often occur before electricity reaches consumers.

Main Components of a Power Transformer

Large power transformers contain several critical systems.

Major Components

Each component is designed for high-voltage operation.

Cooling Systems

Power transformers generate substantial heat.

Common Cooling Methods

Cooling capability directly affects transformer capacity.

Voltage Regulation Capabilities

Power transformers often include tap changers.

Purpose of Tap Changers

This helps maintain grid performance.

Reliability Requirements

Power transformers are among the most critical grid assets.

Importance

Reliability is therefore a primary design objective.

Applications of Power Transformers

Power transformers serve many utility-scale applications.

Common Uses

They form the backbone of large-scale electrical networks.

Renewable Energy Applications

Large renewable projects often require power transformers.

Examples

Power transformers facilitate renewable energy delivery.

Efficiency of Power Transformers

Power transformers achieve extremely high efficiency.

Efficiency Formula

\eta=\frac{P{out}}{P{in}}\times100%

Typical Efficiency

Even small improvements can save substantial energy.

Comparison of Major Transformer Types

This comparison highlights their different roles.

Advantages of Power Transformers

These advantages make power transformers indispensable.

What Is an Autotransformer and What Are Its Advantages?

Voltage transformation is a fundamental requirement in electrical power systems, industrial facilities, renewable energy projects, and motor control applications. While most people are familiar with conventional two-winding transformers that provide complete electrical isolation between primary and secondary circuits, another important transformer design—the autotransformer—offers a more compact, efficient, and economical solution for certain voltage conversion requirements.

Autotransformers are widely used where the voltage difference between input and output is relatively small. Because they utilize a single winding instead of separate primary and secondary windings, they can achieve higher efficiency, lower cost, reduced size, and improved voltage regulation compared to conventional transformers of the same rating. However, these advantages come with specific design considerations, particularly regarding electrical isolation and fault protection.

An autotransformer is a transformer that uses a single continuous winding with one or more taps to provide both primary and secondary voltages. Unlike conventional transformers that have separate primary and secondary windings, an autotransformer shares part of the same winding between the input and output circuits. Its main advantages include higher efficiency, lower cost, smaller size, reduced weight, improved voltage regulation, and lower material usage.

Because of these benefits, autotransformers are commonly used in power transmission systems, motor starting applications, voltage regulation equipment, and industrial electrical networks.

What Is an Autotransformer?

An autotransformer is a transformer with a single winding that serves both the primary and secondary circuits.

Basic Structure

Unlike conventional transformers, which have separate windings, an autotransformer uses one continuous winding with taps.

Main Components

This simplified construction contributes to its economic advantages.

How an Autotransformer Works

Autotransformers operate using electromagnetic induction and direct electrical connection.

Energy Transfer Mechanisms

Both methods contribute to power transfer simultaneously.

Basic Operating Principle

When AC voltage is applied to the winding, magnetic flux develops in the core.

Operating Sequence

The operation follows the same electromagnetic principles as other transformers.

Typical Autotransformer Configuration

The winding contains taps that provide different voltage levels.

Example

Voltage depends on the number of turns between connection points.

Voltage Ratio Relationship

The output voltage depends on the winding turns ratio.

Transformer Equation

\frac{V_1}{V_2}=\frac{N_1}{N_2}

Where:

• (V_1) = primary voltage
• (V_2) = secondary voltage
• (N_1) = primary turns
• (N_2) = secondary turns

This relationship governs autotransformer voltage conversion.

Difference Between an Autotransformer and a Conventional Transformer

The primary distinction lies in winding construction.

Comparison

These differences influence application selection.

Why an Autotransformer Is More Efficient

A portion of power is transferred directly through the winding.

Energy Transfer Comparison

This reduces losses and improves efficiency.

Higher Efficiency

One of the most significant advantages is improved efficiency.

Efficiency Formula

\eta=\frac{P{out}}{P{in}}\times100%

Typical Efficiency Levels

Autotransformers often achieve exceptionally high efficiencies.

Reduced Copper Usage

A single winding requires less conductor material.

Material Savings

Material savings can be substantial.

Smaller Physical Size

Autotransformers are generally more compact.

Comparison

This is especially valuable where space is limited.

Lower Manufacturing Cost

Reduced material requirements lower production costs.

Cost Benefits

Autotransformers are often the most economical option for suitable applications.

Better Voltage Regulation

Voltage regulation refers to voltage stability under changing loads.

Voltage Regulation Formula

%VR=\frac{V{NL}-V{FL}}{V_{FL}}\times100

Why Regulation Improves

Improved regulation enhances power quality.

Lower Losses

Autotransformers typically exhibit lower losses.

Types of Losses

Reduced losses improve operating efficiency.

Higher Capacity for Similar Size

Autotransformers can provide greater capacity than equivalent two-winding designs.

Benefits

This makes them attractive for utility applications.

Main Limitation: Lack of Electrical Isolation

The most important disadvantage is the absence of galvanic isolation.

Why It Matters

Isolation requirements must be carefully evaluated.

Short-Circuit Considerations

Autotransformers may experience higher fault currents.

Comparison

Protection systems must be appropriately designed.

Common Applications of Autotransformers

Autotransformers are widely used where voltage ratios are relatively small.

Typical Uses

These applications benefit from efficiency and economy.

Power Transmission Systems

Utilities frequently employ autotransformers.

Why Utilities Use Them

They are commonly used between transmission voltage levels.

Example Utility Applications

These are common utility configurations.

Motor Starting Applications

Large motors often utilize autotransformer starters.

Benefits

This is common in industrial facilities.

Renewable Energy Systems

Some renewable projects employ autotransformers.

Applications

Their efficiency supports renewable energy objectives.

Industrial Power Systems

Industrial facilities often require voltage conversion.

Common Uses

Autotransformers can offer cost-effective solutions.

Comparison of Transformer Types

Each type has its own ideal applications.

Advantages Summary

These factors explain the widespread use of autotransformers.

When Should an Autotransformer Be Used?

Autotransformers are generally preferred when:

Careful application analysis is essential.

What Is a Generator Step-Up (GSU) Transformer?

Electricity generated by power plants is typically produced at medium voltage levels, often ranging from 11 kV to 25 kV depending on the generator design. While these voltages are suitable for power generation equipment, they are not efficient for transmitting large amounts of electrical energy over long distances. To minimize transmission losses and improve grid efficiency, the generated voltage must be increased substantially before entering the transmission network. This critical task is performed by a Generator Step-Up (GSU) Transformer.

GSU transformers are among the most important assets in modern power generation facilities. Whether used in conventional thermal power stations, hydroelectric plants, nuclear facilities, solar farms, or wind power projects, they serve as the vital link between power generation equipment and the high-voltage transmission grid. Their reliability and efficiency directly influence the performance of the entire power generation system.

A Generator Step-Up (GSU) transformer is a power transformer installed between an electrical generator and the transmission network. Its primary function is to increase the generator's medium-voltage output to a much higher transmission voltage, enabling efficient long-distance power transfer with reduced current, lower losses, and improved grid performance.

Without GSU transformers, modern large-scale power generation and transmission systems would be significantly less efficient and far more costly to operate.

What Is a Generator Step-Up Transformer?

A Generator Step-Up transformer is a specialized high-capacity power transformer.

Primary Purpose

Its role is to connect generating units to transmission systems.

Main Functions

GSU transformers are essential components of utility-scale generation facilities.

Why Voltage Must Be Increased

Generators typically produce electricity at medium voltages.

Typical Generator Voltages

These voltages are not ideal for long-distance transmission.

The Relationship Between Voltage and Current

For a given amount of power, increasing voltage reduces current.

Power Relationship

P=VI

Where:

• (P) = power
• (V) = voltage
• (I) = current

When voltage increases, current decreases for the same power transfer.

Why Lower Current Matters

Transmission losses are heavily influenced by current.

Copper Loss Equation

P_{loss}=I^2R

Where:

• (P_{loss}) = conductor losses
• (I) = current
• (R) = conductor resistance

Reducing current dramatically lowers transmission losses.

How a GSU Transformer Works

A GSU transformer operates according to electromagnetic induction.

Operating Process

The operating principle is identical to other power transformers.

Voltage Transformation Principle

The voltage ratio depends on the winding turns ratio.

Transformer Voltage Equation

\frac{V_p}{V_s}=\frac{N_p}{N_s}

Where:

• (V_p) = generator voltage
• (V_s) = transmission voltage
• (N_p) = primary turns
• (N_s) = secondary turns

GSU transformers are designed with more turns on the high-voltage winding to increase voltage.

Typical GSU Voltage Conversions

The exact voltage levels vary by project and utility requirements.

Common Examples

These voltage increases significantly improve transmission efficiency.

Where GSU Transformers Are Installed

GSU transformers are typically located close to generating units.

Installation Location

This arrangement minimizes generator-side losses.

Main Components of a GSU Transformer

GSU transformers contain many of the same components found in other large power transformers.

Major Components

These components are engineered for high reliability and long service life.

Power Ratings of GSU Transformers

GSU transformers handle very large amounts of power.

Typical Capacity Range

Some of the world's largest GSU transformers exceed 1000 MVA.

Cooling Systems Used in GSU Transformers

Because of their large capacities, effective cooling is essential.

Common Cooling Classes

Cooling capability directly affects transformer loading.

Why GSU Transformers Are Critical

The economic operation of power plants depends heavily on efficient voltage conversion.

Benefits

These benefits justify the significant investment in GSU equipment.

GSU Transformers in Conventional Power Plants

Traditional power stations rely heavily on GSU transformers.

Applications

Every large generating facility requires voltage transformation.

GSU Transformers in Renewable Energy Projects

Renewable energy facilities also depend on GSU transformers.

Solar Power Plants

Utility-scale solar farms commonly use GSU transformers.

Wind Power Projects

GSU transformers support efficient renewable energy transmission.

Hydroelectric Facilities

Hydropower stations often utilize large GSU transformers.

Typical Configuration

The voltage increase enables regional power delivery.

Electrical Isolation Benefits

In addition to voltage conversion, GSU transformers provide electrical isolation.

Advantages

Isolation contributes to overall grid security.

Efficiency of GSU Transformers

GSU transformers are among the most efficient electrical devices.

Efficiency Formula

\eta=\frac{P{out}}{P{in}}\times100%

Typical Efficiency

Even small efficiency improvements can save substantial energy.

Reliability Requirements

GSU transformers are critical power system assets.

Design Priorities

Unexpected outages can affect large portions of the grid.

Monitoring and Protection Systems

Modern GSU transformers include advanced monitoring technologies.

Common Monitoring Parameters

These systems improve reliability and maintenance planning.

GSU Transformer vs Distribution Transformer

The two transformer types serve entirely different roles.

Advantages of GSU Transformers

These characteristics make GSU transformers indispensable in modern power systems.

Summary of GSU Transformer Functions

GSU transformers are fundamental to large-scale electricity generation.

What Are Instrument Transformers and Why Are They Important?

Modern electrical power systems often operate at voltages and currents far beyond the safe operating limits of meters, protection relays, monitoring devices, and control equipment. Directly connecting measurement instruments to high-voltage transmission lines or high-current circuits would be dangerous, impractical, and costly. To solve this challenge, power systems rely on specialized devices known as instrument transformers.

Instrument transformers provide accurate, scaled-down representations of system voltage and current while electrically isolating measuring and protection equipment from high-energy power circuits. They play a critical role in power system monitoring, revenue metering, fault detection, relay protection, automation, and grid management. Without instrument transformers, modern electrical networks could not safely perform accurate measurement and protection functions.

Instrument transformers are specialized transformers designed to reduce high voltages or high currents to standardized, measurable values for meters, relays, monitoring devices, and control systems. Their importance lies in providing electrical isolation, improving personnel safety, enabling accurate measurements, supporting protective relays, and ensuring reliable operation of electrical power systems.

Because they serve as the eyes and ears of the power system, instrument transformers are essential for both operational efficiency and system protection.

What Is an Instrument Transformer?

An instrument transformer is a transformer designed specifically for measurement and protection applications.

Primary Functions

Unlike power transformers, instrument transformers handle very small power levels.

Why Instrument Transformers Are Needed

Power systems often operate at extremely high voltages and currents.

Typical System Values

Most measuring devices cannot directly withstand these levels.

Problems Without Instrument Transformers

Instrument transformers solve these issues efficiently.

Main Types of Instrument Transformers

Instrument transformers are generally divided into two categories.

Primary Types

Each type performs a specific measurement role.

What Is a Current Transformer (CT)?

A Current Transformer reduces large primary currents to standardized secondary currents.

Typical CT Output Ratings

The output remains proportional to the primary current.

How a Current Transformer Works

The primary conductor acts as the primary winding.

Operating Process

The CT reproduces current proportionally.

Current Transformation Ratio

The current ratio depends on the turns ratio.

CT Relationship

\frac{I_p}{I_s}=\frac{N_s}{N_p}

Where:

• (I_p) = primary current
• (I_s) = secondary current
• (N_p) = primary turns
• (N_s) = secondary turns

This relationship allows accurate current scaling.

Example CT Ratios

These ratios are common in power systems.

What Is a Voltage Transformer (VT/PT)?

A Voltage Transformer, also called a Potential Transformer (PT), reduces high voltages to standardized levels.

Typical Secondary Voltages

The reduced voltage remains proportional to the primary voltage.

How a Voltage Transformer Works

Voltage transformers operate similarly to conventional transformers.

Operating Principle

This provides a safe measurement signal.

Voltage Transformation Relationship

Voltage Ratio Formula

\frac{V_p}{V_s}=\frac{N_p}{N_s}

Where:

• (V_p) = primary voltage
• (V_s) = secondary voltage
• (N_p) = primary turns
• (N_s) = secondary turns

The winding ratio determines the output voltage.

Current Transformers vs Voltage Transformers

Both types often operate together.

Importance of Electrical Isolation

One of the most important functions is electrical isolation.

Benefits

Isolation protects sensitive devices from dangerous system voltages.

Importance in Metering

Accurate energy measurement depends on instrument transformers.

Metering Applications

Measurement accuracy directly affects operational decisions.

Revenue Metering Applications

Utilities rely on instrument transformers for billing accuracy.

Typical Uses

Accurate measurement has significant financial implications.

Importance in Protective Relaying

Protective relays require accurate current and voltage information.

Protection Functions

Instrument transformers provide the necessary inputs.

Fault Detection

Instrument transformers help detect abnormal conditions.

Examples

Protection systems respond rapidly to these events.

Importance in Grid Stability

Modern power systems depend on continuous monitoring.

Monitoring Functions

Instrument transformers provide essential operating data.

Automation and Smart Grids

Modern substations increasingly rely on digital systems.

Applications

Instrument transformers provide critical measurement inputs.

Types of Current Transformers

Several CT designs exist.

Common CT Types

Selection depends on the application.

Types of Voltage Transformers

Voltage transformers also have several configurations.

Common VT Types

Each design offers specific advantages.

Accuracy Requirements

Measurement accuracy is a critical parameter.

Accuracy Classes

Transformer selection depends on accuracy needs.

Instrument Transformer Burden

The burden refers to the load connected to the secondary circuit.

Why Burden Matters

Manufacturers specify allowable burden ratings.

Safety Considerations

Instrument transformers improve overall electrical safety.

Safety Benefits

Safety is one of their primary purposes.

Common Installation Locations

Instrument transformers are used throughout power systems.

Typical Locations

Virtually every medium- and high-voltage installation uses them.

Applications in Renewable Energy Systems

Renewable facilities require extensive monitoring.

Common Uses

Instrument transformers support reliable renewable integration.

Comparison Between Power and Instrument Transformers

Their functions are fundamentally different.

Advantages of Instrument Transformers

These benefits make them indispensable in power systems.

What Specialized Transformer Types Are Used in Modern Power Systems?

As electrical grids become more complex and interconnected, the demand for specialized transformer technologies continues to grow. While conventional power and distribution transformers remain the foundation of electricity transmission and distribution, many modern applications require transformers designed for highly specific operating conditions. Renewable energy integration, smart grids, industrial processing, HVDC transmission, power quality management, and advanced protection systems all rely on specialized transformer designs that perform functions beyond simple voltage conversion.

These transformers are engineered to address unique challenges such as harmonic distortion, power flow control, high fault currents, variable renewable generation, precision measurement, and extreme industrial loads. By performing specialized tasks, they enhance grid stability, efficiency, reliability, and operational flexibility across modern power systems.

Modern power systems use a variety of specialized transformer types, including Generator Step-Up (GSU) transformers, autotransformers, phase-shifting transformers, instrument transformers, converter transformers, rectifier transformers, furnace transformers, grounding transformers, renewable energy transformers, and smart transformers. Each type is designed to perform specific functions that improve power transmission, distribution, control, protection, and system reliability.

As power networks evolve toward greater digitalization and renewable energy integration, the importance of specialized transformers continues to increase.

Why Specialized Transformers Are Needed

Modern electrical systems face increasingly complex operational requirements.

Key Challenges

Specialized transformers help address these challenges.

Classification of Specialized Transformers

Transformer designs vary according to application.

Major Categories

Each category serves a distinct role within the power system.

Generator Step-Up (GSU) Transformers

GSU transformers connect generators to transmission networks.

Main Function

Electricity generated at medium voltage is stepped up to transmission voltage.

Typical Voltage Conversion

GSU transformers are essential in power plants and renewable energy facilities.

Key Advantages

Autotransformers

Autotransformers use a single winding with multiple taps.

Main Characteristics

Autotransformers are commonly used when voltage ratios are relatively small.

Typical Applications

Phase-Shifting Transformers (PSTs)

Phase-shifting transformers control real power flow in transmission networks.

Operating Principle

By introducing a controlled phase-angle shift, power flow can be redirected.

Power Flow Relationship

P=\frac{V_1V_2}{X}\sin\delta

Where:

• (P) = transmitted power
• (V_1, V_2) = system voltages
• (X) = line reactance
• (\delta) = phase angle difference

Adjusting the phase angle changes power flow.

Benefits of PSTs

Instrument Transformers

Instrument transformers provide scaled measurement signals.

Main Types

They are critical for metering and protection.

Importance

Converter Transformers

Converter transformers are used in HVDC systems.

Main Purpose

They connect AC networks to power electronic converters.

Applications

Converter transformers are among the most technically demanding transformer designs.

Advantages

Rectifier Transformers

Rectifier transformers supply power conversion equipment.

Typical Applications

They are specifically designed to handle harmonic-rich loads.

Design Features

Furnace Transformers

Furnace transformers serve electric arc furnaces and similar equipment.

Key Characteristics

These transformers operate under severe electrical conditions.

Common Applications

Grounding Transformers

Grounding transformers provide neutral points in power systems.

Main Functions

They are commonly used in delta-connected networks.

Zig-Zag Grounding Transformers

A popular grounding transformer design is the zig-zag transformer.

Advantages

Renewable Energy Transformers

Renewable energy systems often require specialized transformers.

Solar Power Transformers

Solar projects use dedicated transformer solutions.

Wind Power Transformers

Wind farms may use hundreds of transformers.

Offshore Wind Transformers

Offshore installations present additional challenges.

Design Requirements

Offshore transformers operate in harsh marine environments.

Traction Transformers

Traction transformers are used in railway and transit systems.

Applications

Transportation electrification depends on these transformers.

Smart Transformers

Smart transformers represent an emerging technology.

Core Capabilities

These transformers support future grid development.

Benefits of Smart Transformers

Smart transformers are becoming increasingly important.

Harmonic Mitigation Transformers

Certain transformers are designed specifically to address harmonics.

Common Types

These designs improve power quality.

Isolation Transformers

Isolation transformers provide galvanic separation.

Benefits

Isolation is important in many critical systems.

Mobile Substation Transformers

Temporary and emergency installations often use mobile transformers.

Applications

Mobility enhances operational flexibility.

Comparison of Specialized Transformer Types

Each design addresses a unique operational requirement.

How Specialized Transformers Support Modern Power Systems

These capabilities are essential for modern energy infrastructure.

Future Trends

Transformer technology continues to evolve.

Emerging Developments

Specialized transformers will play an increasingly important role in future power systems.

Conclusion

Power transformers are available in several types, each designed for a specific role within electrical networks. Distribution transformers supply power to end users, power transformers support high-voltage transmission systems, autotransformers provide efficient voltage adjustment, and GSU transformers connect generators to transmission grids. In addition, instrument transformers and other specialized designs serve critical measurement, protection, and industrial functions. Selecting the appropriate transformer type depends on voltage requirements, capacity needs, system configuration, and application objectives.

FAQ

Q1: What are the main types of power transformers?

Power transformers can be classified according to their function, application, voltage level, insulation method, and construction design. The most common types include:

Distribution transformers
Power transformers
Autotransformers
Instrument transformers
Isolation transformers
Dry-type transformers
Oil-immersed transformers
Phase-shifting transformers

Each type is designed to meet specific electrical system requirements.

Q2: What is a distribution transformer?

A distribution transformer is used to reduce medium-voltage electricity from distribution networks to lower voltages suitable for homes, offices, and commercial facilities.

Key Characteristics:
Typically operates below 33 kV
Designed for continuous operation
Optimized for high efficiency at varying loads
Installed on poles, pads, or in substations
Common Applications:
Residential neighborhoods
Commercial buildings
Small industrial facilities

Distribution transformers are the final voltage-conversion stage before electricity reaches end users.

Q3: What is a power transformer?

A power transformer is used in high-voltage transmission systems to transfer large amounts of electrical energy between generation stations and substations.

Key Characteristics:
High voltage ratings
Large power capacities (MVA range)
Maximum efficiency near full load
Used in transmission networks
Common Applications:
Power plants
Transmission substations
Utility grids
Large industrial complexes

Power transformers are critical components of national electrical infrastructure.

Q4: What is an autotransformer?

An autotransformer uses a single continuous winding that serves as both the primary and secondary winding.

Advantages:
Smaller size
Lower cost
Higher efficiency
Reduced copper usage
Disadvantages:
No galvanic isolation between circuits
Lower fault isolation capability
Common Applications:
Voltage regulation
Motor starting systems
Interconnection of similar voltage networks
Industrial power systems

Autotransformers are often used when voltage differences are relatively small.

Q5: What are instrument transformers?

Instrument transformers are designed for measurement and protection purposes rather than power transfer.

They include:

Current Transformers (CTs)
Reduce high currents to measurable levels
Supply meters and protective relays
Voltage Transformers (VTs) or Potential Transformers (PTs)
Reduce high voltages for monitoring and protection systems
Common Applications:
Electrical substations
Metering systems
Protective relay circuits

Instrument transformers improve safety and measurement accuracy.

Q6: What is an isolation transformer?

An isolation transformer transfers power between circuits while providing complete electrical separation.

Benefits:
Enhanced personnel safety
Reduced electrical noise
Protection against ground faults
Improved equipment protection
Common Applications:
Medical facilities
Laboratories
Data centers
Sensitive electronic equipment

The primary and secondary windings are electrically isolated while remaining magnetically coupled.

Q7: How are transformers classified by insulation and cooling method?
Oil-Immersed Transformers
Use insulating oil for cooling and insulation
Suitable for large capacities
Excellent heat dissipation
Dry-Type Transformers
Use air and solid insulation materials
No oil leakage risk
Preferred for indoor installations

The choice depends on safety requirements, environmental conditions, and power rating.

Q8: What are some specialized transformer types?

Modern power systems also use specialized transformers such as:

Phase-Shifting Transformers
Control power flow in transmission networks
Rectifier Transformers
Supply DC conversion systems
Furnace Transformers
Power electric arc furnaces
Renewable Energy Transformers
Connect solar and wind farms to the grid
HVDC Converter Transformers
Support high-voltage direct current transmission systems

These transformers are engineered for specific operational demands and industries.

References

IEC 60076 – Power Transformers
https://webstore.iec.ch/publication/602
IEC 60076-11 – Dry-Type Transformers
https://webstore.iec.ch/publication/627
IEEE C57 Series – Transformer Standards
https://standards.ieee.org
Electrical Engineering Portal – Types of Transformers Explained
https://electrical-engineering-portal.com
National Electrical Manufacturers Association (NEMA) – Transformer Standards
https://www.nema.org
IEEE Power & Energy Society – Transformer Engineering Resources
https://ieeexplore.ieee.org
