What is No-Load Loss in Transformers?

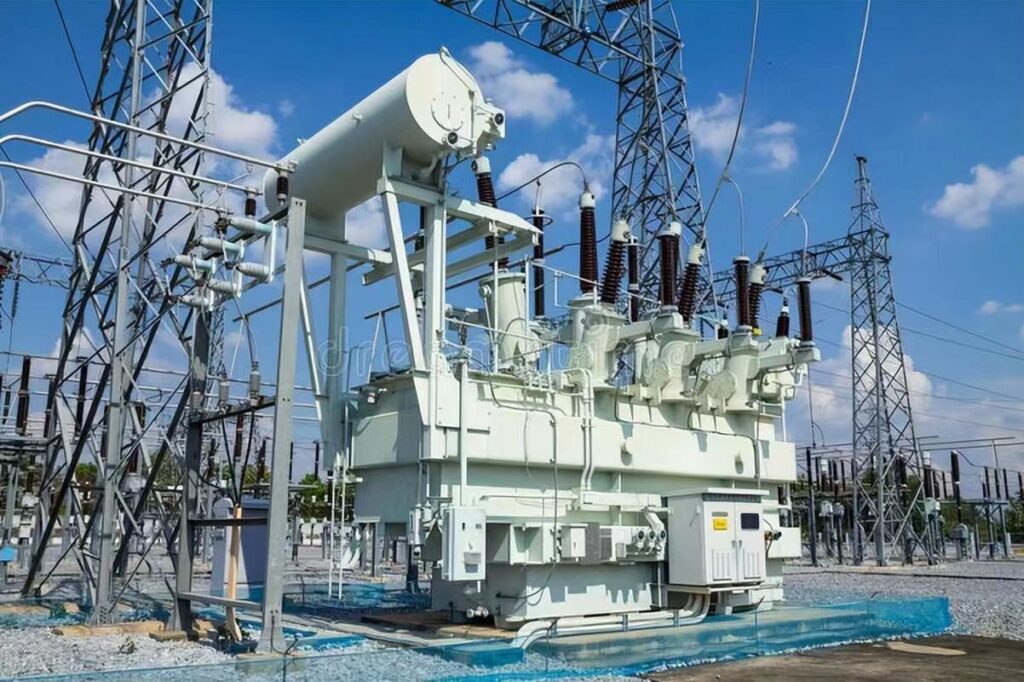

No-load loss, also known as core loss or iron loss, refers to the energy lost in a transformer when it is energized but not supplying any load. It is an important consideration in transformer design and efficiency because it directly impacts the transformer’s operating cost and energy consumption, even when it is not supplying any power to the connected load.

This type of loss is caused by the magnetic flux in the core of the transformer, which induces energy losses primarily due to the hysteresis and eddy currents in the core material. Understanding and minimizing no-load loss is key to optimizing transformer performance, especially in large-scale power distribution and industrial applications.

In this article, we will explain what no-load loss is, how it occurs, its impact on transformer performance, and how it can be minimized to enhance energy efficiency.

---

What is No-Load Loss in Transformers?

Introduction: Understanding No-Load Loss in Transformers

When transformers are operating, they inevitably experience some level of energy loss. One critical component of these losses is known as no-load loss, also called core loss. These losses occur when a transformer is energized but not supplying power to any load. While the transformer is not delivering electricity to external devices, it still consumes energy to maintain its magnetic field, and part of this energy is lost as heat.

Understanding no-load losses is essential for evaluating a transformer’s efficiency and operational costs. While no-load losses are a natural byproduct of transformer operation, their impact can vary depending on several factors, including the design of the transformer, the core material, and the operating voltage. In this article, we’ll explore what no-load loss is, how it occurs, and why it’s an important factor to consider when selecting transformers.

What Exactly Is No-Load Loss?

No-load loss is the energy lost in a transformer when it is energized but not supplying any external load. These losses occur primarily due to the magnetization of the transformer’s core, which is essential for its operation. Even without a load, the transformer’s core must maintain a magnetic field to facilitate the process of electromagnetic induction, which is how the transformer steps up or steps down voltage.

No-load loss is mainly composed of two types of losses:

1. Hysteresis Loss: This occurs due to the constant reversal of the magnetic field in the core material. Each time the magnetic field changes direction, energy is lost in the form of heat. The amount of energy lost depends on the magnetic properties of the core material, with higher-quality materials experiencing lower hysteresis losses.

2. Eddy Current Loss: This is caused by circulating currents induced in the transformer’s core when the magnetic field changes. These currents flow in loops inside the core, leading to energy dissipation as heat. The use of laminated core structures helps reduce eddy current losses by restricting the path of these currents.

How Does No-Load Loss Occur in a Transformer?

When a transformer is energized, the alternating current (AC) supplied to the primary winding creates a magnetic field in the core. This magnetic field is necessary for the transformer to function, but generating and maintaining this field requires a small amount of electrical power. In the absence of a load (i.e., when no external device is drawing power), the power consumed by the transformer is used solely to sustain the magnetic field, not to power any equipment.

The loss during this state is primarily due to:

• Magnetic losses in the core (hysteresis and eddy current losses), as described above.
• Losses in the core steel, which are influenced by the type of core material used. Core materials like silicon steel or amorphous steel can help minimize these losses.

Despite the transformer not supplying any useful work, these losses still represent a portion of the total energy consumption of the transformer. While no-load losses are relatively low in comparison to full-load losses (which occur when a transformer is supplying a load), they still contribute to operational inefficiency and energy costs.

Why is No-Load Loss Important?

No-load loss is a critical factor when evaluating the energy efficiency of transformers, especially for those operating in a standby mode or in installations where the load is minimal for extended periods. These losses can accumulate over time, leading to:

• Increased operational costs: Even when a transformer is not actively supplying power, it still consumes energy to maintain its core magnetic field. Over time, this constant energy consumption can result in higher electricity bills for facilities with multiple transformers or those with idle transformers.

• Long-term environmental impact: Energy losses contribute to a facility’s overall carbon footprint. Transformers that exhibit high no-load losses are less environmentally friendly, as more electricity is consumed without performing useful work.

• Total transformer efficiency: No-load loss is one part of the overall transformer efficiency rating. Transformers with lower no-load losses are generally considered more efficient, especially in applications where the transformer may be on standby for long periods, such as in distribution networks or backup power systems.

How Are No-Load Losses Measured?

No-load loss is measured under open-circuit conditions, meaning the transformer is energized but not supplying any load. To measure no-load loss, the transformer is energized at rated voltage, and the current flowing through the primary winding is recorded. The power consumed by the transformer during this condition is the no-load loss, which can then be used to calculate the transformer’s efficiency.

No-load loss is usually represented as a percentage of the rated power and is specified in the transformer’s technical documentation. This loss is critical for energy audits, as it helps facilities assess the total energy consumption of their transformer system.

How to Minimize No-Load Losses

Minimizing no-load losses is crucial for improving transformer efficiency and reducing operational costs. Here are a few strategies:

1. Use High-Quality Core Materials: Transformers built with grain-oriented silicon steel or amorphous steel cores exhibit lower hysteresis and eddy current losses compared to traditional core materials. Amorphous steel, in particular, is known for its low no-load loss characteristics, making it an ideal choice for energy-efficient transformers.

2. Optimize Transformer Design: The design of the core, the number of laminations, and the thickness of the core material all affect no-load losses. Innovations in transformer design can reduce the amount of energy required to maintain the magnetic field, lowering no-load loss.

3. Choose the Right Transformer Size: Selecting the correct transformer size for a given application is essential. Over-sized transformers will have higher no-load losses due to the larger core mass, while under-sized transformers may operate at higher losses when constantly running near full load.

4. Advanced Materials: Some modern transformers use high-performance dielectric materials that help reduce losses not only during no-load conditions but also during normal operation.

What Are the Typical Values of No-Load Loss in Transformers?

The magnitude of no-load loss depends on the transformer’s size, design, and core material. For smaller transformers, no-load losses might be in the range of 0.1% to 1% of the transformer’s rated power, while larger transformers may have higher losses, though still relatively low compared to the full-load losses.

To illustrate:	Transformer Size (kVA)	No-Load Loss Range (W)
10 - 50	10 - 100
100 - 500	100 - 500
1000 - 5000	500 - 2500

Claim:

How Does No-Load Loss Occur in a Transformer?

Introduction: No-Load Loss in Transformers

Transformers are essential components in electrical power systems, responsible for stepping voltage levels up or down. During normal operation, a transformer will experience two primary types of losses: load loss and no-load loss. While load loss occurs when the transformer is supplying power to a load, no-load loss happens when the transformer is energized, but there is no external load being supplied.

No-load loss, often referred to as core loss or iron loss, is a crucial factor to consider when evaluating transformer efficiency. It contributes to the overall energy consumed by the transformer, even when it's not performing its intended function of supplying power to a load. Let’s break down how this loss occurs in a transformer and the underlying mechanisms that drive it.

What Is No-Load Loss in Transformers?

No-load loss occurs when a transformer is energized but not supplying any load. This energy loss is mainly due to the transformer’s core, which is constantly magnetized in order to create the electromagnetic field needed for power conversion. Even when there is no load drawing current from the transformer, the core still requires energy to sustain its magnetic field. This results in energy dissipation in the form of heat, contributing to no-load loss.

The primary components that lead to no-load loss in a transformer are:

1. Hysteresis Loss: Caused by the continuous reversal of the magnetic field within the transformer’s core. As the AC current flows through the primary winding, it creates a constantly changing magnetic field. The core material (usually steel) resists these changes, and energy is lost as heat in the process of reversing the magnetic field.

2. Eddy Current Loss: These losses are caused by circulating currents that are induced within the transformer’s core when the magnetic field changes. These currents flow in closed loops inside the core material, and the resistance of the core material causes them to dissipate as heat.

How Does No-Load Loss Occur in a Transformer?

When a transformer is energized but not supplying any load (open circuit), the following sequence of events occurs:

1. Magnetic Field Creation: The alternating current (AC) applied to the primary winding generates a magnetic field in the core. The primary winding induces a time-varying magnetic flux through the transformer’s core.

2. Magnetization of the Core: The core material (typically made of laminated steel) undergoes continuous magnetization and demagnetization as the AC current alternates direction. This process creates the magnetic field required for the transformer’s operation. However, this cycle of magnetization requires energy.

3. Energy Loss Due to Hysteresis: As the magnetic field constantly reverses direction with the alternating current, the core material resists these changes due to its inherent properties. This resistance is known as hysteresis. Energy is lost each time the direction of the magnetic field changes, contributing to hysteresis loss.

4. Energy Loss Due to Eddy Currents: Eddy currents are induced within the transformer’s core due to the changing magnetic field. These circulating currents cause heat losses, known as eddy current losses. The magnitude of these losses depends on the core material and the frequency of the alternating magnetic field.

5. Energy Dissipation as Heat: Both hysteresis and eddy current losses dissipate energy as heat within the core. This is why no-load loss is often referred to as core loss—because the core is the primary source of these losses, and they occur regardless of whether or not a load is connected.

What Factors Influence No-Load Loss in a Transformer?

The extent of no-load loss depends on several key factors, including:

1. Core Material: The type of material used for the transformer core has a significant impact on no-load losses. Grain-oriented silicon steel is commonly used as it offers a balance of magnetic properties and low hysteresis loss. More advanced materials, such as amorphous steel, have even lower hysteresis and eddy current losses.

2. Core Design: The design of the transformer core, including the thickness of the laminations, plays a role in minimizing eddy current losses. Thinner laminations are used to reduce the area available for eddy currents to flow, thus minimizing energy losses.

3. Voltage Rating: The higher the applied voltage, the greater the magnetic flux that must be generated within the core. This can increase the core losses, as more energy is needed to sustain a higher magnetic field. Transformers with higher voltage ratings typically experience higher no-load losses.

4. Frequency of Operation: The operating frequency of the AC supply also influences no-load losses. At higher frequencies, eddy current losses tend to increase because the frequency of the magnetic flux changes is greater, inducing more circulating currents in the core.

5. Size of the Transformer: Larger transformers with greater core volumes generally have higher no-load losses simply due to the larger amount of magnetic flux that needs to be generated and maintained in the core.

Why Is No-Load Loss Significant?

No-load loss, while small compared to load losses (which occur when the transformer is under load), is still a significant factor in transformer design and operational costs. Here’s why:

• Energy Efficiency: No-load loss represents a constant energy consumption, even when the transformer is not supplying power. This can lead to increased electricity costs over time, especially in facilities with multiple transformers that are energized but not always supplying power.

• Sustainability and Environmental Impact: No-load losses contribute to the carbon footprint of transformer operation. More energy used to maintain the magnetic field means greater energy consumption, which has an environmental impact, especially in systems that rely on fossil fuels for power generation.

• Operational Costs: For large electrical networks or facilities with standby transformers, no-load losses add up. For instance, if a transformer is left energized for long periods without supplying power, the ongoing no-load loss can accumulate, affecting the overall operating costs of the facility.

How Can No-Load Losses Be Minimized?

There are several ways to reduce no-load loss in transformers:

1. Use of High-Quality Core Materials: Using amorphous steel or grain-oriented silicon steel as the core material can significantly reduce hysteresis and eddy current losses. Amorphous steel is especially efficient in reducing no-load losses due to its molecular structure, which makes it less susceptible to energy loss during magnetization cycles.

2. Optimized Core Design: Using thinner laminations in the core reduces the area available for eddy currents, which in turn reduces eddy current losses. Additionally, insulating layers between laminations help to further reduce these losses.

3. Transformer Sizing: Properly sizing the transformer to the required load is essential. Oversized transformers will have larger cores, which means more energy will be required to sustain the magnetic field, thus increasing no-load losses.

4. Advanced Cooling Technologies: Improved cooling systems help maintain efficient operation at lower temperatures, reducing the amount of heat generated by no-load losses. This also prevents the transformer from overheating.

What Are the Two Main Types of No-Load Loss in Transformers?

Introduction: Understanding No-Load Loss in Transformers

Transformers, which are critical components in electrical power distribution, experience various types of energy losses during their operation. No-load loss is one such loss, occurring when a transformer is energized but not supplying any load. Unlike load loss, which happens when the transformer is under load and providing power, no-load loss is present regardless of whether the transformer is supplying electricity.

No-load loss primarily results from two types of losses that occur in the transformer's core: hysteresis loss and eddy current loss. These losses are both a consequence of the transformer’s core magnetization and the changing magnetic flux created by the alternating current (AC). Understanding these two main types of no-load loss is crucial for optimizing transformer design, improving efficiency, and reducing operational costs.

The Two Main Types of No-Load Loss

The two primary contributors to no-load loss are:

1. Hysteresis Loss
2. Eddy Current Loss

Each type of loss is explained below.

1. Hysteresis Loss

Hysteresis loss is a type of magnetic loss that occurs due to the properties of the transformer core material as it magnetizes and demagnetizes in response to the alternating current. Here’s how it works:

• Magnetic Field Reversal: When alternating current (AC) passes through the primary winding of the transformer, it creates a constantly reversing magnetic field in the transformer’s core. This reversing magnetic field magnetizes and demagnetizes the core material as the current alternates direction.

• Core Material Resistance: The core material, typically made from grain-oriented silicon steel or amorphous steel, resists these changes in magnetic direction. Each time the magnetic field reverses, the core material "remembers" its previous magnetization state, and this resistance to change results in energy dissipation.

• Energy Dissipation: The energy required to reverse the magnetization of the core material is lost as heat. This energy loss is known as hysteresis loss.

• Impact of Material Properties: The amount of hysteresis loss depends on the magnetic properties of the core material, particularly its coercivity (the resistance to changes in magnetization). Materials with low coercivity (such as silicon steel) are chosen for transformer cores to minimize hysteresis loss.

2. Eddy Current Loss

Eddy current loss occurs due to circulating currents induced within the transformer’s core as a result of the changing magnetic field. Here’s a more detailed breakdown:

• Magnetic Flux Changes: As the magnetic flux alternates in the core due to the AC current in the transformer windings, these changes in magnetic flux induce electric currents within the conductive core material. These induced currents are called eddy currents.

• Formation of Eddy Currents: Eddy currents flow in closed loops within the core, circulating through the material in a way that is perpendicular to the direction of the magnetic flux. The energy associated with these circulating currents is dissipated as heat.

• Core Resistance: The resistance of the core material to these eddy currents causes them to lose energy in the form of heat. The amount of eddy current loss depends on the thickness of the core material and the electrical conductivity of the material. More conductive materials lead to larger eddy currents and higher losses.

• Reducing Eddy Currents: To minimize eddy current losses, transformer cores are typically made with laminated sheets of steel. The laminations are insulated from each other, which limits the path available for the eddy currents to flow and thereby reduces the energy lost to heat. Thinner laminations result in lower eddy current losses.

Comparison Between Hysteresis Loss and Eddy Current Loss

Characteristic	Hysteresis Loss	Eddy Current Loss
Cause	Resistance to changes in magnetic flux direction in core material.	Induced circulating currents in the core material.
Energy Loss Mechanism	Energy is lost due to the magnetization process.	Energy is lost due to circulating currents.
Core Material Impact	Depends on the coercivity of the core material.	Depends on the electrical conductivity and thickness of the core material.
Methods to Reduce Loss	Use materials with low coercivity (e.g., silicon steel).	Use laminated core material with insulation between layers.
Primary Effect	Loss of energy due to magnetization resistance.	Loss of energy due to circulating electric currents.
Main Outcome	Heat dissipation in the form of heat.	Heat dissipation in the form of heat.

Why Do Hysteresis and Eddy Current Losses Matter?

Both hysteresis and eddy current losses contribute to the no-load loss in transformers. While these losses are relatively small compared to the losses that occur under load (when the transformer is supplying power), they still have a significant impact on overall efficiency and operating costs. Here’s why:

• Continuous Energy Consumption: Even when a transformer is not supplying power, these losses continue to occur as long as the transformer is energized. This means that no-load losses result in continuous energy consumption, contributing to operating costs over time.

• Impact on Efficiency: Minimizing these losses is crucial for improving the overall energy efficiency of the transformer. Transformers with lower no-load losses are more efficient, as they waste less energy as heat when energized without load.

• Environmental Considerations: No-load losses, though relatively small, do contribute to the carbon footprint of electrical systems. Reducing these losses through better materials and design practices can help reduce the environmental impact of transformer operation.

How Can These Losses Be Minimized?

There are a few design strategies that can be used to minimize both hysteresis and eddy current losses:

1. Use of High-Quality Core Materials: Choosing materials with low coercivity (for reducing hysteresis loss) and low electrical conductivity (for reducing eddy current loss) can significantly improve the performance of a transformer. Amorphous steel is particularly effective in minimizing hysteresis losses.

2. Optimized Core Design: Transformers often use laminated cores to minimize eddy current losses. The thin sheets of laminated material reduce the area available for eddy currents to flow, which limits energy dissipation.

3. Improved Core Material Thickness: The thickness of the core material also plays a role in reducing both types of losses. Thinner laminations are typically used to reduce eddy current losses, and a well-designed core can help to further minimize hysteresis loss by choosing optimal materials.

How Does No-Load Loss Affect Transformer Efficiency?

Introduction: No-Load Loss and Transformer Efficiency

In the context of electrical power distribution, transformers are essential components that step voltage up or down based on the needs of the system. However, like all electrical equipment, transformers are subject to various types of energy losses, one of which is no-load loss. This type of loss occurs even when the transformer is not supplying any power to a load, and it continues to consume energy as long as the transformer is energized.

While no-load losses may seem minimal in comparison to load losses (which occur under operational conditions), they still have a significant effect on the overall efficiency and long-term cost of operating a transformer. Understanding how no-load loss impacts transformer efficiency is crucial for optimizing performance and reducing energy waste.

What Is No-Load Loss?

No-load loss, also known as core loss, refers to the energy dissipated in the transformer's core when the transformer is energized but not supplying any load. These losses are a result of the magnetization and demagnetization of the transformer’s core as the alternating current (AC) flows through the primary winding. Since no-load loss occurs regardless of whether the transformer is under load, it contributes to continuous energy consumption.

The two main types of no-load losses are:

1. Hysteresis Loss: Energy lost due to the resistance of the core material to changes in magnetization as the magnetic field direction changes.

2. Eddy Current Loss: Losses caused by circulating currents induced within the transformer core due to the changing magnetic flux.

Both of these losses result in heat dissipation, which consumes energy and decreases the transformer’s overall efficiency.

How No-Load Loss Affects Efficiency

No-load loss affects transformer efficiency in several ways:

1. Continuous Energy Consumption
   Even when the transformer is not supplying any load, it still consumes energy due to no-load losses. While this is a constant energy drain, it may be less noticeable because it occurs regardless of transformer load. Over time, this results in increased operational costs, as the transformer consumes power just to maintain its magnetic field, even when it's idle.

2. Increased Operating Costs
   Transformers with high no-load losses will result in higher energy costs. While this might seem insignificant for transformers that are only lightly loaded, it becomes more pronounced in scenarios where the transformer is constantly energized, such as in substations or other essential infrastructure. The cumulative energy consumed by no-load losses can lead to higher electricity bills and operational costs.

3. Impact on Overall Efficiency
   Transformer efficiency is defined as the ratio of useful output power to input power. No-load loss directly impacts this calculation by reducing the amount of input power available for load purposes. For example, a transformer that consumes a significant amount of energy in the form of no-load loss will have less energy available for actual power conversion, lowering its overall efficiency.

4. Energy Wastage in Low-Load Conditions
   In applications where transformers are often operating under low or fluctuating loads, no-load losses become a larger portion of the total energy consumption. For example, a transformer might be designed to supply large power demands but is only lightly loaded most of the time. In this case, the transformer’s no-load losses become disproportionately high compared to the actual energy it delivers to the load, resulting in inefficiencies.

The Relationship Between No-Load Loss and Full Load Efficiency

Transformers are typically designed for peak load conditions, but in reality, they may spend a significant portion of their time at partial or no load. Here’s how no-load losses impact efficiency under various operational conditions:

• At Full Load: The efficiency of the transformer is dominated by load losses, which occur due to the resistance of the transformer windings and other electrical components when supplying current. While no-load loss still contributes to total power consumption, it is much less significant compared to the losses experienced under full load.

• At No Load: The transformer’s efficiency drops considerably, as the no-load losses become the primary contributor to energy consumption. Despite not supplying any power to a load, the transformer still consumes energy due to the magnetization of the core, making the overall efficiency very low.

• Under Light Load Conditions: When the transformer operates under partial load, no-load losses remain constant, but load losses increase due to the resistance in the windings. This scenario leads to inefficient operation, as both types of losses contribute to the total energy consumption. The percentage of energy wasted in the form of no-load loss increases when the load on the transformer is low.

Strategies to Minimize No-Load Loss and Improve Efficiency

While no-load loss is an inherent characteristic of transformer operation, there are strategies to minimize its impact on transformer efficiency:

1. Use of High-Quality Core Materials
   The selection of materials for the transformer core plays a key role in reducing hysteresis and eddy current losses. Silicon steel and amorphous steel are commonly used for transformer cores, as they have low coercivity (for reducing hysteresis loss) and low electrical conductivity (for reducing eddy current loss). These materials are optimized for energy efficiency, helping to reduce no-load losses.

2. Core Design Optimization
   The core design can be optimized to reduce no-load losses. Laminated cores are used to minimize eddy current losses by limiting the area through which eddy currents can flow. Additionally, choosing the right thickness for core laminations and improving core insulation can further reduce energy dissipation.

3. Choosing Low No-Load Loss Transformers
   When selecting transformers, it’s important to consider the no-load loss rating. Modern transformers are designed with energy efficiency in mind, and low-no-load-loss models are available. These models reduce energy consumption, especially when the transformer is not operating at full load.

4. Regular Maintenance
   Ensuring that transformers are maintained and that the core is free from defects, such as cracks or deterioration, can help prevent unnecessary energy loss. Regular inspections of the core material and windings can identify and mitigate any issues that contribute to excessive no-load loss.

How No-Load Loss Impacts Environmental Considerations

In addition to economic impacts, no-load loss also has an environmental consequence. Excessive energy consumption due to no-load loss contributes to:

• Increased Carbon Footprint: The more energy consumed by a transformer due to no-load loss, the more fuel is needed for power generation. This leads to higher emissions and a greater carbon footprint, which negatively impacts the environment.

• Resource Depletion: Inefficient transformers waste more energy, which in turn requires more fuel to generate electricity. This leads to higher resource consumption, such as coal, natural gas, or other fuels used in power plants.

By selecting transformers with lower no-load losses, operators can contribute to sustainability goals, improving energy efficiency and minimizing the environmental impact of their electrical systems.

What Factors Influence No-Load Loss in Transformers?

Introduction: Understanding No-Load Loss in Transformers

When discussing transformer efficiency, no-load loss is a crucial factor that affects the overall performance of a transformer, even when it's not supplying any load. Also known as core loss, no-load loss occurs when a transformer is energized but not under load. This type of loss is primarily due to the behavior of the magnetic field in the transformer core and occurs continuously, regardless of the load connected to the transformer.

No-load loss may appear minimal, but when considering long-term operations, particularly in large-scale electrical infrastructure, it contributes to higher energy consumption, increased operational costs, and reduced overall efficiency. Understanding the factors that influence no-load loss is key to optimizing transformer performance, reducing energy waste, and selecting the best transformer for specific applications.

What Influences No-Load Loss in Transformers?

The magnitude of no-load loss in a transformer is affected by several factors, from the type of material used in the core to design and operational considerations. Here are the primary factors that influence no-load loss:

1. Core Material Type

The material chosen for the transformer core has a significant impact on no-load loss. The core material must be highly magnetic to efficiently transfer energy, but the type of material used also determines the amount of energy that is lost due to hysteresis and eddy currents. The main types of core materials include:

• Silicon Steel: The most common material used for transformer cores, silicon steel has a high magnetic permeability, which helps reduce losses. However, it still experiences some hysteresis and eddy current losses due to its physical properties.

• Amorphous Steel: Known for its low coercivity (resistance to magnetization changes), amorphous steel is a better option for reducing no-load loss. This material reduces both hysteresis and eddy current losses, making it more efficient, especially in transformers that run continuously or are lightly loaded.

• Laminated Steel: The lamination technique is used to reduce eddy current losses in silicon steel cores. Thin layers of steel are insulated from each other to limit the paths available for the flow of eddy currents.

The choice of core material and the use of laminated designs directly reduce the amount of energy lost due to no-load conditions.

2. Core Design and Geometry

The design and physical geometry of the transformer core also play an essential role in no-load losses. Key aspects of core design include:

• Lamination Thickness: Thinner laminations are preferred because they reduce eddy current losses. However, extremely thin laminations can become mechanically weak and difficult to manufacture, so a balance between thickness and material strength must be achieved.

• Core Shape and Size: The size and shape of the core influence how much magnetization the transformer can handle before losses become significant. The core must be optimized for the voltage rating and power capacity of the transformer. A core that is too small or too large can result in higher losses.

• Magnetic Flux Density: Core material and design determine the magnetic flux density, which impacts the core's efficiency. Higher magnetic flux density generally results in higher core losses, especially if the material is not optimized to handle it.

3. Frequency of Operation

The operating frequency of the transformer has a direct relationship with no-load loss. The higher the frequency, the greater the no-load loss, particularly due to eddy currents. This is because eddy current losses increase with the square of the frequency.

• High-Frequency Operation: In applications that require higher frequencies, such as transformers used in switch-mode power supplies (SMPS), no-load losses can be more significant due to the higher magnetic field variations over time.

• Lower Frequency Operation: For traditional power grid applications, transformers usually operate at 50-60 Hz, where the impact of frequency on no-load loss is lower.

4. Voltage Rating

The voltage rating of a transformer also influences no-load loss. High-voltage transformers tend to have higher no-load losses compared to low-voltage transformers. This is due to the increased potential for energy dissipation as voltage increases.

• High-Voltage Transformers: These transformers tend to experience greater no-load losses because they require larger core sizes and more robust materials to handle the higher voltage, which increases hysteresis and eddy current losses.

• Low-Voltage Transformers: In contrast, low-voltage transformers, while smaller in size, still experience no-load losses, but the total losses are comparatively lower due to their simpler design and lower core material requirements.

5. Magnetizing Current

The amount of current required to magnetize the transformer’s core—called the magnetizing current—affects no-load losses. The magnetizing current is directly related to the transformer’s voltage rating, core material, and design. High magnetizing current results in increased core losses, which directly contribute to no-load loss.

• Magnetizing Current Characteristics: If the magnetizing current is high due to poor core design or material, it will lead to greater core losses. Optimizing magnetizing current, therefore, becomes a crucial step in reducing no-load loss.

6. Temperature Effects

Temperature has a profound effect on no-load losses in transformers. As temperature increases, the resistance of the transformer’s core material may increase, which can lead to higher energy losses. Additionally, the magnetic properties of core materials, such as silicon steel, can degrade at higher temperatures, exacerbating no-load losses.

• Elevated Temperatures: High ambient temperatures can increase the no-load loss in the transformer as it causes more energy dissipation in the form of heat. Effective cooling mechanisms and careful design choices are necessary to mitigate this factor.

7. Quality of Core Lamination Insulation

The insulating material between the core laminations plays a critical role in reducing eddy current losses. High-quality insulation material prevents the laminations from short-circuiting each other, which minimizes the flow of eddy currents.

• Poor Insulation: If the insulation between laminations is insufficient or damaged, eddy currents can flow through the transformer’s core, increasing no-load losses.

• High-Quality Insulation: Using advanced insulation techniques, such as epoxy resin coatings or varnishing, can help further reduce no-load losses by improving the isolation of the core laminations.

8. Quality of Manufacturing

The precision with which the transformer core and windings are manufactured can have a significant impact on the no-load loss. Manufacturing defects such as poor lamination alignment, inadequate insulation, or irregularities in the winding process can increase the loss.

• High Precision Manufacturing: Transformer manufacturers that employ advanced techniques, such as laser cutting for laminations and high-quality core assembly processes, will produce transformers with lower no-load losses.

• Lower Quality Manufacturing: Transformers made with poor manufacturing processes tend to have higher losses, which increase the total energy consumption and decrease overall efficiency.

How Can No-Load Loss Be Minimized in Transformers?

Introduction: The Need for Minimizing No-Load Loss

No-load loss, also known as core loss, is an inevitable energy dissipation that occurs when a transformer is energized but not supplying power to any load. While seemingly small in magnitude during regular operation, no-load losses accumulate over time and contribute to inefficiency, higher energy consumption, and increased operational costs. These losses arise from the magnetic properties of the transformer's core and its design, as well as external operational factors such as temperature and frequency.

Efforts to minimize no-load loss not only increase transformer efficiency but also contribute to more sustainable energy use, particularly in systems where transformers operate for long periods. In this article, we will explore the methods to effectively minimize no-load loss in transformers, from material selection to innovative design changes and operational practices.

1. Use of Advanced Core Materials

The most significant factor influencing no-load loss is the material used for the transformer's core. Optimizing core materials can drastically reduce losses, particularly hysteresis and eddy current losses, both of which contribute to no-load losses.

• Amorphous Steel: Amorphous steel is a non-crystalline material known for its low coercivity and high magnetic permeability, which allows it to minimize hysteresis losses. This material significantly reduces both core loss and eddy current loss compared to conventional silicon steel, making it an ideal choice for energy-efficient transformers.

• Grain-Oriented Silicon Steel: Grain-oriented silicon steel offers a higher degree of magnetic orientation and lower losses. It is typically used for high-efficiency transformers and is a more common material than amorphous steel in medium and high-voltage applications.

• High-Performance Alloys: Advanced alloys, such as nickel-iron (NiFe) alloys, can also help reduce no-load losses. These materials have better magnetic properties and lower core losses, but they tend to be more expensive.

By selecting low-loss core materials, transformer manufacturers can significantly reduce no-load losses, increasing overall transformer efficiency.

2. Optimizing Core Design and Geometry

Transformer core design plays a crucial role in reducing no-load loss. Core design optimization involves fine-tuning parameters such as the thickness of the core laminations, shape, and size to minimize eddy current and hysteresis losses.

• Lamination Thickness: Thinner core laminations reduce eddy current losses by restricting the flow of circulating currents within the core. However, extremely thin laminations can weaken the core mechanically, so a balance between thinness and strength must be achieved.

• Improved Core Shape: Transformer core shapes, such as toroidal or shell-type designs, can reduce losses by offering better flux distribution and minimizing the distance the magnetic flux needs to travel. A well-designed core shape can decrease the area where eddy currents are induced, resulting in fewer losses.

• Using Higher Flux Density: A higher flux density reduces the amount of core material required, which reduces both the mass and cost of the transformer. However, if flux density is too high, it can lead to higher hysteresis losses. Careful selection of the flux density ensures that the transformer operates efficiently without excessive loss.

3. Reducing Magnetizing Current

Magnetizing current is the current needed to establish the magnetic field within the transformer's core. This current plays a significant role in no-load loss, as it creates additional energy dissipation in the form of heat and magnetic resistance. Reducing magnetizing current can effectively minimize no-load losses.

• Optimized Winding Design: The number of turns in the transformer’s primary winding affects the magnetizing current. By optimizing the winding turns ratio, it is possible to reduce the magnetizing current and, in turn, minimize the associated losses.

• Core Saturation Control: Avoiding core saturation is critical to reducing no-load losses. If the transformer core reaches saturation, the magnetizing current increases significantly, leading to higher losses. Properly designed transformers ensure that the core operates within its linear magnetic region to prevent saturation.

• High-Quality Insulation: High-quality insulation between the core laminations and windings can also reduce magnetizing current by minimizing leakage flux.

4. Proper Frequency Selection

No-load loss in transformers increases with operating frequency because the eddy current losses are proportional to the square of the frequency. Therefore, selecting the right operating frequency is crucial for minimizing no-load losses.

• Low-Frequency Operation: In many power distribution systems, transformers operate at frequencies of 50 or 60 Hz, which keeps no-load losses manageable. However, for systems with higher frequencies (such as in high-frequency transformers used in power electronics or switching power supplies), no-load losses can rise significantly.

• Switching Frequency Adjustment: In modern electronic transformers, reducing the switching frequency of pulse-width modulation (PWM) techniques can also lower the no-load losses.

5. Enhanced Lamination Insulation

Eddy current losses in a transformer’s core can be minimized by improving the insulation between the core’s laminations. The insulation prevents the flow of circulating currents between adjacent laminations, which in turn reduces the energy dissipated as heat.

• Varnish or Resin Coating: Using high-quality resin or varnish coatings on the core laminations helps increase the insulation resistance and prevents the eddy current from flowing through adjacent laminations.

• Vacuum Pressure Impregnation (VPI): The VPI process involves saturating the core laminations with an insulating resin under pressure. This technique improves insulation and reduces eddy current losses by creating a more uniform and consistent insulating layer around the laminations.

6. Proper Load Management and Transformer Operation

Even under no-load conditions, proper management of the transformer’s operational parameters can reduce unnecessary losses. This involves:

• Minimizing Idle Time: Transformers should be de-energized when not in use. While transformers are designed to operate continuously, keeping them energized when they are not under load results in wasted no-load loss. Using automated systems to manage load and switching off unused transformers helps reduce losses.

• Efficient Load Sharing: In cases where multiple transformers are in operation, efficient load-sharing techniques should be used to balance the load across transformers, ensuring that no transformer is idling for long periods and unnecessarily dissipating no-load losses.

7. Use of High-Quality Manufacturing and Assembly Techniques

No-load loss is also influenced by the quality of the manufacturing process. Poor manufacturing can result in poor core material assembly, improper lamination alignment, and insulation defects, all of which increase no-load loss.

• Precision Manufacturing: Advanced manufacturing techniques that ensure proper lamination thickness, alignment, and high-quality insulation lead to better core design and reduced no-load losses.

• Quality Control Standards: Implementing strict quality control during transformer production ensures that all parts meet performance standards and that transformers operate with minimal no-load loss.

8. Monitoring and Maintenance

Even after a transformer is installed, regular monitoring and maintenance can help keep no-load losses to a minimum. Over time, transformers can suffer from insulation degradation, material wear, and other issues that may increase core losses.

• Routine Inspections: Regular inspections to check for signs of core damage, insulation breakdown, or faulty connections help detect problems early, preventing no-load losses from escalating.

• Oil or Air Cooling Systems: Transformers with proper cooling systems (whether air or oil) run more efficiently by maintaining an optimal operating temperature, thus reducing the impact of thermal losses on the core.

---

Conclusion

No-load loss is an inherent characteristic of transformers, caused by the core's magnetic properties. It is the power consumed by the transformer even when it is not supplying load current, and it typically manifests as core loss. There are two main components of no-load loss: hysteresis loss and eddy current loss.

• Hysteresis loss arises from the continuous magnetization and demagnetization of the core material as the transformer operates at alternating current (AC).
• Eddy current loss results from circulating currents induced in the core material due to the fluctuating magnetic field, which dissipate energy as heat.

Although no-load loss is present in all transformers, its magnitude depends on various factors such as the core material, operating voltage, and the design of the transformer. High-quality grain-oriented steel and other advanced core materials can significantly reduce no-load loss.

No-load loss contributes to the overall energy consumption and affects efficiency. It is particularly important in transformers that are energized for long periods but do not supply significant load, such as those used in distribution networks or in areas where demand fluctuations are high. Minimizing no-load loss is crucial for improving overall transformer efficiency, reducing operational costs, and minimizing environmental impact.

To minimize no-load losses, transformers can be designed with low-loss core materials, optimized core geometries, and efficient core lamination techniques. In addition, selecting a transformer with the appropriate capacity for the expected load is important to avoid oversized transformers that waste energy at no-load.

In summary, no-load loss is an unavoidable but manageable factor in transformer operation. By understanding its sources and impacts, and implementing design strategies to reduce it, transformers can achieve greater energy efficiency and cost-effectiveness over their operational life.

FAQ

Q1: What is no-load loss in transformers?
A1: No-load loss in transformers refers to the energy loss that occurs when the transformer is energized but not supplying any load. It is primarily caused by the core loss, which consists of hysteresis and eddy current losses in the transformer’s core material. These losses occur regardless of the load connected to the transformer and can affect its overall efficiency.

Q2: What causes no-load loss in a transformer?
A2: No-load loss in a transformer is caused by the magnetizing current required to energize the transformer’s core. This current induces magnetic fields that create losses through hysteresis and eddy currents in the core material. These losses are inherent to the transformer design and material properties, and they persist even when the transformer is idle or under no load.

Q3: How does no-load loss affect transformer efficiency?
A3: No-load loss contributes to the overall energy consumption of a transformer, reducing its efficiency. While no-load loss is present regardless of the load, it represents wasted energy when the transformer is running but not supplying power. Over time, no-load loss can add up, especially for transformers in continuous operation, leading to higher operating costs and increased environmental impact.

Q4: How can no-load loss in transformers be minimized?
A4: No-load loss can be minimized by using high-quality core materials with low hysteresis and eddy current losses, such as silicon steel or amorphous steel. Additionally, improving transformer design, optimizing the core construction, and using more efficient core laminations can reduce no-load loss. Operating transformers under the optimal voltage and ensuring they are not oversized for the application can also help minimize unnecessary losses.

Q5: How do no-load losses compare to full-load losses in a transformer?
A5: No-load losses are typically much lower than full-load losses, as full-load losses are directly related to the current flowing through the transformer under load conditions. No-load losses are constant, regardless of load, while full-load losses increase with the load. However, even though no-load losses are smaller, they are still important to consider for transformers in continuous service, as they contribute to energy inefficiency over time.

References

"Understanding No-Load Loss in Transformers" - https://www.transformertech.com/no-load-loss - Transformer Tech

"Core Loss and No-Load Loss in Transformers" - https://www.powermag.com/transformer-no-load-loss - Power Magazine

"No-Load Losses in Electrical Transformers Explained" - https://www.electrical4u.com/no-load-loss - Electrical4U

"Minimizing No-Load Loss in Power Transformers" - https://www.sciencedirect.com/topics/engineering/no-load-loss - ScienceDirect

"How No-Load Loss Affects Transformer Performance and Efficiency" - https://www.researchgate.net/no-load-loss-transformers - ResearchGate

"Reducing Transformer No-Load Loss for Better Efficiency" - https://www.smartgridnews.com/reducing-no-load-loss - Smart Grid News

"Understanding the Impact of No-Load Loss on Transformer Cost" - https://www.energycentral.com/c/ee/no-load-loss-transformers - Energy Central

"Practical Guide to Reducing Transformer Core Loss and No-Load Loss" - https://www.powergrid.com/no-load-loss-reduction - PowerGrid
