Oil-Immersed Transformer Price Trends and Expert Buying Tips

Oil-immersed transformers remain the backbone of modern power transmission and distribution networks. As global demand for electricity, renewable energy integration, and infrastructure modernization continue to rise, the market for these transformers is steadily expanding. However, fluctuating raw material prices, evolving efficiency standards, and changing supply chain dynamics all influence overall cost. This article explores current price trends and provides expert insights on how to make cost-effective purchasing decisions without compromising quality.

What Are the Recent Price Trends for Oil-Immersed Power Transformers?

In the current global energy landscape, procurement professionals and project developers are increasingly concerned about one critical issue — the rising price trend of oil-immersed power transformers. Since 2020, prices have fluctuated sharply, driven by raw material costs, logistics constraints, and technological shifts. Many utilities and EPC contractors now face budget pressure, delayed deliveries, and higher capital investment needs. The challenge is not only to understand why prices are changing, but also how to anticipate future trends for informed purchasing decisions.

The price of oil-immersed power transformers has shown a steady upward trend from 2020 to 2025, with overall increases ranging between 40%–80% depending on size, voltage class, and technical specification. This rise is mainly due to higher copper and silicon steel prices, global logistics costs, stricter energy efficiency standards, and growing demand for digital monitoring and eco-friendly insulating oils. While the market has stabilized slightly in 2024–2025, price levels remain significantly above pre-pandemic averages.

For buyers, this means strategic procurement planning, supplier diversification, and long-term framework agreements have become essential to manage both cost volatility and delivery reliability.

Global Market Overview (2020–2025)

As seen above, transformer prices have not returned to pre-2020 levels. Even as raw material prices cool slightly, secondary costs such as energy, labor, testing, and compliance continue to rise.

Key Factors Driving Price Trends

1. Material Cost Volatility

The two most expensive materials — copper and CRGO steel — account for 50–60% of total cost.

• Copper prices increased from around US$6,000/ton in 2020 to US$10,000/ton in 2024, adding roughly 12–15% to transformer cost.
• CRGO silicon steel saw a 160–180% spike during the same period, influencing both loss performance and pricing.
• Transformer oil prices also rose with global petroleum markets, adding 3–5% to total cost.

2. Energy Efficiency Regulations

New energy efficiency mandates such as EU EcoDesign Tier 2, DOE 2023 (U.S.), and IEC 60076-20 efficiency classes require higher-grade steel and optimized winding designs.
While these features reduce lifecycle losses, they increase manufacturing cost by 5–10% per unit.

3. Smart Monitoring and Digitalization

Many utilities now specify smart sensors for oil temperature, dissolved gas analysis (DGA), and IoT communication interfaces. These add roughly 3–7% to total cost but improve condition-based maintenance.

4. Freight and Logistics

The rise in global freight rates after 2021 pushed logistics costs up by 200–300%, particularly affecting exports of large power transformers (≥132 kV). Though prices have eased, transportation remains 25–30% above 2019 levels.

5. Labor, Testing, and Certification

Manufacturing labor costs have increased globally, and stricter testing protocols under IEC and IEEE standards have added 2–5% to factory costs.

Regional Price Comparison (2025 Estimates)

These figures apply to oil-immersed distribution and medium-voltage power transformers (≤132 kV). Large utility or substation transformers (≥220 kV) can reach $1.2–2.5 million per unit depending on specification.

Case Example: 40 MVA 132/33 kV Transformer Price Evolution

Despite copper softening slightly in 2025, the transformer price remains elevated due to advanced design standards and digitalization features now embedded in most models.

Forecast: What to Expect (2025–2028)

1. Mild Price Growth (3–5% per year): The industry is stabilizing, but inflationary pressures persist.
2. Persistent Material Sensitivity: 10% change in copper price can shift transformer cost by 2–4%.
3. Regional Diversification: Asia may retain lower production cost advantage, while Europe and North America maintain higher prices due to energy efficiency requirements.
4. Increased Customization Demand: Renewable integration (solar, wind) and grid modernization projects will favor tailored designs, sustaining moderate premium levels.
5. Potential Relief from Supply Chain Optimization: As more suppliers localize material sourcing, price stability may improve.

Strategic Insights for Buyers

• Plan Procurement Early: Lead times for oil-immersed transformers remain 6–12 months; early ordering locks in lower prices.
• Specify Clearly: Over-specification drives unnecessary cost; tailor insulation, cooling, and efficiency only to project needs.
• Use TCO Analysis: Evaluate energy loss cost over the transformer’s lifetime to justify higher efficiency designs.
• Negotiate Service, Not Just Price: Request extended warranties or spare parts support instead of pushing for unsustainable discounts.
• Diversify Suppliers: Work with regional partners or multiple sources to hedge against raw material and logistics risks.

Example: Total Cost of Ownership (TCO) Comparison

Even though the premium model costs 20% more initially, it saves about $105,000 over 20 years, emphasizing why higher upfront prices may still represent greater value.

Which Technical Parameters Have the Biggest Impact on Power Transformer Pricing?

When project engineers and procurement specialists receive quotations for power transformers, the price gaps between suppliers often appear confusing — even when the rated voltage and capacity seem identical. The reality is that transformer pricing depends heavily on technical parameters, each influencing material usage, design complexity, energy performance, and testing cost. Misunderstanding these factors can lead to overpaying for unnecessary features or, conversely, selecting an underperforming product that risks premature failure.

The key technical parameters that most strongly affect power transformer pricing are rated capacity (MVA/kVA), voltage class, vector group, core material grade, cooling method, efficiency/loss level, insulation system, and tap changer type. Each of these parameters directly determines how much copper, silicon steel, insulation, and mechanical structure are required, influencing the total manufacturing cost by 40–120% depending on the configuration.

Therefore, evaluating technical specifications side by side — not just headline prices — is the only way to perform an accurate, fair comparison between transformer offers and ensure optimal long-term value.

Major Technical Parameters Influencing Transformer Price

1. Rated Capacity (kVA / MVA)

Transformer capacity is the single biggest driver of price. Larger transformers need proportionally more copper for windings and CRGO steel for cores. Because materials make up more than 60% of total cost, the price increases nonlinearly with capacity.

2. Voltage Class and Insulation System

Voltage class directly affects the insulation design and dielectric strength requirements. A 33 kV transformer uses thinner insulation and simpler bushings compared to a 220 kV model, which demands multilayer insulation systems, higher dielectric clearances, and extended factory testing.

Ester-based insulation systems also add 10–25% to price due to higher oil cost and material compatibility requirements but provide superior fire safety and biodegradability.

3. Cooling Method

The transformer’s cooling system affects both its efficiency and cost.

• ONAN (Oil Natural Air Natural): Standard design, most economical.
• ONAF (Oil Natural Air Forced): Adds fans and radiators; increases cost 10–20%.
• OFWF (Oil Forced Water Forced): High-performance cooling for large units; up to 25% more expensive.

4. Core Material and Efficiency Level

The core material has one of the most significant effects on transformer losses — and therefore cost.

High-efficiency (low-loss) designs require more copper and better steel laminations, which can raise total transformer cost by 10–20% but reduce lifetime energy loss dramatically.

5. Tap Changer and Vector Group Configuration

• Off-Circuit Tap Changer (OCTC): Manually adjustable; lowest cost.
• On-Load Tap Changer (OLTC): Allows automatic voltage regulation under load; adds 5–15% cost.

Vector group selection (e.g., Dyn11 vs. YNd1) doesn’t drastically alter cost but may require different winding configurations and tap changer arrangements, especially for three-winding transformers.

6. Accessories and Digital Monitoring

Modern transformers often include intelligent monitoring systems for reliability and predictive maintenance. Accessories such as Buchholz relays, oil temperature indicators, pressure relief valves, and dissolved gas analysis (DGA) sensors can increase total price by 5–12%.
However, they significantly improve long-term operational safety and reduce failure risks.

7. Efficiency Standards and Loss Evaluation

Energy efficiency regulations such as IEC 60076-20, EU EcoDesign Tier 2, or DOE 2023 impose strict limits on transformer losses.

• Meeting Tier 2 standards may increase initial cost by 8–20%, but these models consume 10–30% less energy over 25 years.
• High-efficiency designs are typically required in utilities, renewable integration, and industrial base-load applications.

Example: Life-Cycle Cost (LCC) Comparison

Although the premium transformer costs more upfront, it saves over $100,000 in lifetime operation due to reduced losses.

Example: Overall Cost Impact Summary for a 20 MVA 132/33 kV Transformer

Strategic Takeaways for Buyers

1. Understand Specification-Driven Costs: Every parameter — from core grade to cooling — impacts total price.
2. Avoid Over-Specification: Choose features that match actual operating conditions to avoid unnecessary cost.
3. Balance Efficiency and Investment: Higher-efficiency designs often yield long-term savings despite higher initial cost.
4. Evaluate Total Cost of Ownership (TCO): Consider energy losses, maintenance, and reliability over 20–30 years.
5. Collaborate with Manufacturers: Early technical discussions can optimize design for both performance and cost.

How Do Regional Supply Chain and Logistics Affect Power Transformer Costs?

In recent years, project developers and procurement professionals have faced a new reality: the cost of power transformers is no longer defined only by technical specifications or raw materials — but heavily by regional supply chain and logistics conditions. After 2020, disruptions in global shipping, steel and copper shortages, and regional manufacturing constraints have made logistics a dominant factor in transformer pricing. For high-voltage projects or cross-border infrastructure, transportation and handling can represent 10–25% of the total landed cost. Failing to consider these elements early in procurement planning can lead to delayed projects, budget overruns, and performance risks.

Regional supply chain and logistics factors such as raw material sourcing, manufacturing proximity, shipping routes, customs duties, energy prices, and infrastructure conditions directly affect transformer costs. Regions with mature manufacturing clusters and nearby material suppliers (like China and India) can produce transformers 20–35% cheaper than regions relying on imports (like Africa or South America). Conversely, projects requiring long-distance transport of heavy transformers face 10–30% cost premiums due to freight, insurance, and local handling expenses.

Understanding these logistics and supply dynamics allows buyers to forecast total landed cost accurately and to design procurement strategies that optimize both budget and delivery reliability.

Global Supply Chain Overview for Power Transformers

1. Material Sourcing and Regional Availability

Copper, CRGO silicon steel, and transformer oil account for 60–70% of total manufacturing cost. Their local availability or import dependency directly impacts final prices.
For instance, China and India have established domestic CRGO steel rolling and copper processing facilities, enabling stable pricing.
In contrast, countries in Africa and South America rely on imported materials, often subject to shipping delays, import duties, and currency fluctuations.

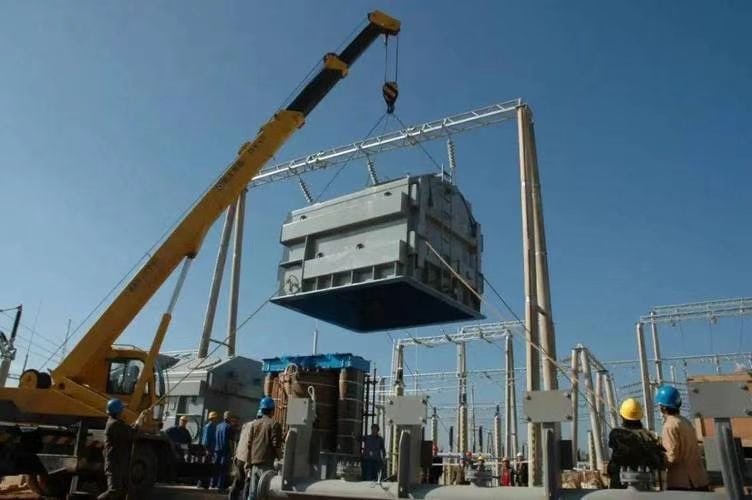

2. Transportation and Handling Costs

Power transformers are among the heaviest electrical products to transport. A 100 MVA 132/33 kV unit can weigh over 90 tons including oil and accessories.
Transportation requires special trailers, cranes, route surveys, and sometimes even temporary road modifications. These logistics costs rise steeply with distance and poor infrastructure.

In remote or landlocked regions, logistics can represent up to 25% of total project cost. Additionally, insurance, customs clearance, and temporary storage can add another 5–8%.

3. Infrastructure and Port Accessibility

Transformers exceeding 60 tons cannot be shipped through all ports or roads. Regions with inadequate port cranes, narrow roads, or weak bridges face major logistical challenges.
For example:

• In parts of East Africa, heavy-haul delivery from port to site can take 3–4 weeks longer than in Europe.
• In Latin America, poor road conditions add 15–25% to inland transportation costs.
• In the Middle East, specialized transport corridors (like in Saudi Arabia or UAE) enable more efficient handling of heavy electrical equipment.

4. Import Tariffs, Taxes, and Certification Costs

Customs duties, VAT, and certification requirements can significantly influence total cost.
For instance:

• Africa & South America: Import duties for electrical equipment range from 10–25%.
• EU: No import duty within EU states, but CE and EcoDesign certification adds compliance costs.
• USA: Tariffs on imported CRGO steel increase domestic transformer production cost by 8–12%.

5. Energy and Labor Costs in Production Regions

Energy and labor constitute 10–15% of total manufacturing costs.
Countries with lower electricity rates and skilled labor pools (like India, China, and Vietnam) maintain a distinct price advantage.
Conversely, manufacturers in Europe and North America face higher production overheads due to energy and labor standards.

6. Lead Times and Supply Chain Reliability

Longer supply chains mean higher risk of delays, storage fees, and cost escalation.
Typical lead times for oil-immersed transformers range from 4–12 months, depending on component availability and shipping route stability.
Manufacturers closer to end-users can respond faster to design changes or urgent deliveries, reducing total project risk and cost exposure.

7. Case Study: 40 MVA 132/33 kV Transformer Delivered to Africa

The result: although Africa’s local procurement price seems lower at first glance, the total landed cost is 40% higher once logistics and import factors are considered.

Strategic Insights for Buyers

1. Evaluate Total Landed Cost (TLC): Always include freight, duty, insurance, and logistics in cost comparison.
2. Partner with Regional Assembly Plants: Local final assembly can reduce freight and duty burdens.
3. Plan Early for Heavy-Lift Logistics: Route surveys and permits can take months to secure.
4. Consider Supplier Proximity: Closer manufacturers often provide faster delivery and lower overall cost.
5. Use Incoterms Strategically: Compare FOB, CIF, and DDP terms to manage risk and optimize price transparency.

Example: Total Landed Cost Breakdown (Typical 25 MVA Transformer)

What Procurement Strategies Help Achieve Better Pricing for Power Transformers?

In the competitive power equipment market, procurement decisions can make or break a project’s profitability. For utilities, EPC contractors, and industrial end-users, even a 3–5% difference in transformer price can represent hundreds of thousands of dollars in capital cost. Yet, focusing solely on the lowest quote often leads to poor quality, delayed delivery, or higher lifetime costs. Many buyers struggle to balance short-term savings with long-term reliability — especially when market prices for copper, steel, and logistics fluctuate unpredictably. The solution lies in adopting strategic procurement practices that improve pricing without compromising on performance, compliance, or delivery.

Effective procurement strategies for power transformers include competitive multi-stage bidding, long-term supplier partnerships, specification optimization, total cost of ownership (TCO) analysis, and regional sourcing. By combining technical clarity with market intelligence, buyers can achieve cost reductions of 10–20% while maintaining quality and reliability.

Strategic procurement is not about forcing the lowest price; it is about aligning commercial and technical decisions to achieve the best lifecycle value for every dollar spent.

1. Conduct Thorough Market Research and Supplier Prequalification

Before issuing a tender, procurement teams should perform market benchmarking to understand regional price ranges, supplier capabilities, and lead times.
Prequalifying suppliers ensures that only technically capable and financially stable manufacturers participate. This prevents unrealistically low offers from unverified vendors that often result in non-conformity or delays.

2. Optimize Technical Specifications

Over-specification is a silent cost driver. Many tenders include excessive design margins or unnecessary optional features that inflate costs by 10–30%.
Optimizing technical parameters without compromising performance helps achieve engineering-economic balance.

3. Use Competitive Multi-Stage Bidding

A two-stage or three-stage bidding process encourages transparency and leverages market competition effectively.

• Stage 1: Technical offer evaluation (to ensure compliance).
• Stage 2: Commercial offer comparison among compliant bidders.
• Stage 3: Negotiation or best-and-final-offer (BAFO) phase for shortlisted suppliers.

This approach eliminates non-compliant bidders early and encourages qualified vendors to offer their best price in the final round.

4. Apply Total Cost of Ownership (TCO) Analysis

Instead of comparing only the ex-works price, consider TCO, which includes transportation, installation, energy losses, maintenance, and lifespan.
A transformer with slightly higher purchase price but lower no-load and load losses can save thousands of dollars per year in energy costs.

Example:
If a 40 MVA transformer with 0.5% higher efficiency costs $8,000 more upfront, it can still save $25,000–$30,000 in energy losses over its 20-year life.

5. Leverage Long-Term Framework Agreements

Signing long-term or framework contracts with reliable transformer manufacturers allows buyers to lock in favorable pricing and delivery terms.
Utilities and EPCs that maintain multi-year procurement partnerships often enjoy volume discounts, priority production slots, and stable prices despite market fluctuations.

6. Regional and Local Sourcing Strategy

Local assembly or regional suppliers often provide better freight cost savings and shorter lead times.
When combined with internationally sourced cores or windings, hybrid procurement reduces both cost and risk.

7. Timing Purchases to Market Conditions

Copper and CRGO steel prices fluctuate significantly throughout the year.
Procurement teams monitoring commodity indexes (LME) and booking orders during low-price periods can achieve notable savings.
For instance, in 2024, a 7% drop in copper prices led to a 3–4% reduction in transformer quotations in Asia-Pacific markets.

8. Collaborative Negotiation and Open-Book Pricing

Rather than traditional adversarial bargaining, open-book pricing builds trust between buyer and manufacturer.
By reviewing material, labor, and overhead breakdowns transparently, both sides can identify cost-reduction opportunities without sacrificing quality.
This approach is especially effective in large infrastructure projects or public tenders.

9. Standardization and Modular Design Strategy

By standardizing specifications across projects or adopting modular transformer designs, utilities can benefit from economies of scale.
This reduces engineering redesign time, testing repetition, and manufacturing complexity — achieving 5–10% savings.

10. Case Study: Optimized Procurement for a 132/33 kV Substation

A Southeast Asian utility used a two-stage bidding and TCO evaluation for five 40 MVA oil-immersed transformers.

• Optimized specification reduced overdesign cost by 8%.
• Competitive bidding achieved 12% price reduction.
• Energy-efficient design saved $180,000 in lifetime losses.
  Total savings: 20% compared to traditional single-stage tendering.

What Technical Details Should Be Reviewed to Avoid Hidden Costs in Power Transformer Procurement?

In power transformer projects, many procurement teams focus on the headline price — only to discover hidden technical costs later: design modifications, additional testing, shipping rework, or unexpected energy losses. These hidden costs can increase total project expenditure by 10–25%, wiping out initial price advantages. The problem usually arises from inadequate technical review before contract signing. Each overlooked specification — from cooling design and material grade to loss tolerances — can trigger financial, operational, or compliance risks. The solution lies in a comprehensive technical audit during tender evaluation to ensure full clarity on what’s included in the offer.

To avoid hidden costs, buyers must review key technical details such as loss evaluation, core and winding materials, cooling system design, insulation level, testing scope, and delivery configuration. These factors directly influence transformer performance, reliability, and total cost of ownership (TCO). A detailed technical comparison prevents post-award variations, change orders, or warranty disputes.

Understanding these parameters ensures that what appears to be the “cheapest” offer is actually the most cost-effective one in the long run.

1. Core Material and CRGO Grade

The transformer core is the heart of energy efficiency. Its material grade significantly affects no-load losses, magnetizing current, and overall cost.

A cheaper offer might use lower-grade steel (e.g., M5 or non-HI-B CRGO) that increases no-load loss by 15–20%. Over the transformer’s lifetime, this can translate into $20,000–$50,000 in additional energy loss.

2. Conductor Material and Cross-Section

Winding conductors — copper or aluminum — account for 20–30% of total cost. A bid with thinner cross-sections or inferior conductor purity might initially seem cheaper but causes higher load losses and temperature rise.

While aluminum transformers cost 10–15% less upfront, they typically suffer 5–8% higher load losses and shorter winding lifespan. Always verify conductor purity and cross-sectional area in the datasheet.

3. Loss Evaluation and Efficiency Guarantees

Transformers are long-term assets — and energy losses often exceed their initial purchase price over 20–30 years.
Every tender should include a loss capitalization formula, assigning a monetary value to both no-load and load losses.

For example, if a transformer has 5 kW higher no-load loss and the capitalization rate is $4,000/kW, that’s an extra $20,000 hidden cost over its lifecycle.
Ensure all offers specify guaranteed losses at rated voltage, frequency, and temperature rise.

4. Cooling and Thermal Design (ONAN/ONAF/ODAF)

Inadequate cooling design leads to hotspot overheating, reduced insulation life, and increased maintenance.
Check that the cooling system type matches your site’s load profile and ambient temperature.

A supplier offering only ONAN for a 40 MVA transformer may reduce price but risks thermal instability under high load, leading to early aging and loss of warranty.

5. Insulation System and Temperature Rise

Transformer insulation determines service life and dielectric reliability.
Always review:

• Insulation class (A, B, F, or H)
• Temperature rise limits (e.g., 55°C or 65°C)
• Hotspot temperature margin

A cheaper transformer with higher temperature rise may meet test requirements but lose 20–30% lifespan, increasing long-term maintenance and replacement costs.

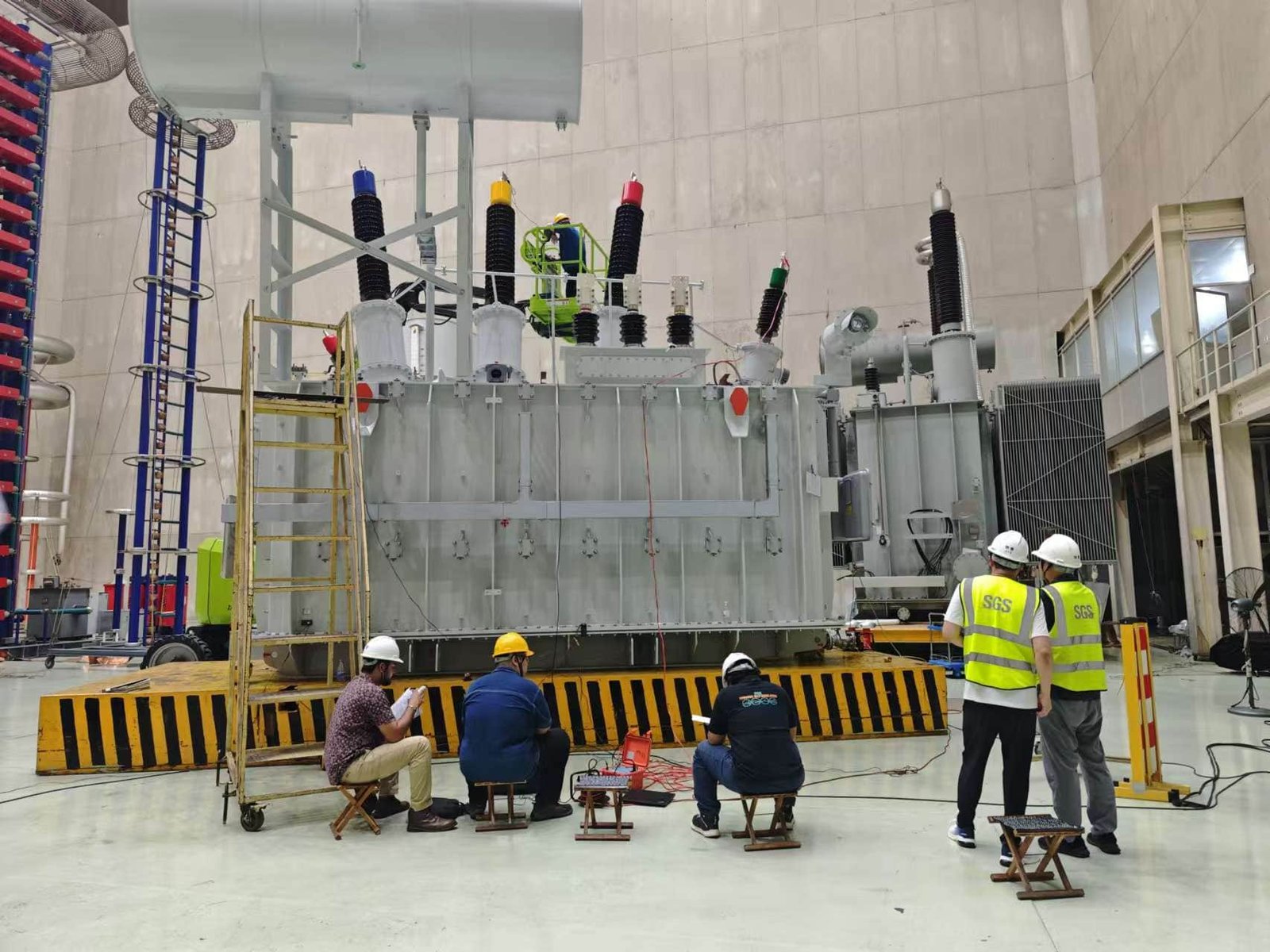

6. Testing Scope and Factory Inspection

Not all offers include the same testing level.
While routine tests are mandatory, type tests and special tests (like lightning impulse or sound level tests) often come at extra cost if not explicitly included.

Always ensure the testing scope matches the project specification, and confirm inspection witness charges (travel, accommodation, test fees) are included.

7. Accessories and Optional Features

Suppliers sometimes exclude accessories — conservators, bushings, OLTC drives, or monitoring systems — to appear cheaper.
These exclusions become “variation orders” later, inflating cost.

Always verify the bill of materials (BOM) and ensure completeness of accessories required for installation and operation.

8. Transport Configuration and Packaging

Transport costs can rise significantly if transformers are not shipped in optimized configurations.
Verify:

• Oil-filled or oil-drained shipment
• Tank strength and bracing
• Containerized or flatbed transport

An incorrectly specified shipping mode may add $10,000–$30,000 in logistics adjustments at the last minute.

9. Warranty, Service, and Spare Parts

A low-priced transformer often hides limited warranty terms or missing spares.
Ensure that the warranty covers at least 24–36 months after commissioning and includes on-site service.
Also check the availability of spare bushings, tap changers, and gaskets for maintenance.

10. Case Study: Avoiding Hidden Costs through Detailed Review

A 132/33 kV, 50 MVA transformer project in Southeast Asia received bids ranging from $210,000 to $250,000.
After a detailed technical review, the lowest offer was found to exclude:

• Type testing (+$10,000)
• OLTC drive unit (+$5,000)
• Higher-grade CRGO (+$8,000)
• Additional copper cross-section (+$7,000)

Total hidden cost if accepted: $30,000 (14%) — turning the “cheapest” bid into the most expensive.

Strategic Checklist for Buyers

✅ Verify material grades (CRGO, copper purity)
✅ Confirm guaranteed loss values and penalties
✅ Match cooling system to site load profile
✅ Ensure testing scope and witness charges included
✅ Check all accessories in BOM
✅ Review packaging, shipping, and installation conditions
✅ Examine warranty and spare part inclusions

What Expert Tips Ensure the Best Balance Between Cost and Quality in Power Transformer Procurement?

In today’s transformer market, many buyers face a challenging trade-off: reducing procurement costs without compromising long-term performance or reliability. Power transformers are capital-intensive assets — a single wrong choice can result in expensive maintenance, efficiency losses, or premature failure. In competitive bidding environments, the pressure to select the lowest-cost supplier often leads to ignoring crucial technical and service factors that determine real value. The solution lies in applying expert-driven procurement principles that balance cost, quality, and lifetime performance through systematic evaluation, standardization, and supplier collaboration.

To achieve the best balance between cost and quality, buyers should apply strategies such as total cost of ownership (TCO) analysis, supplier qualification, specification optimization, and lifecycle performance evaluation. Combining engineering expertise with commercial insight allows organizations to achieve up to 20% cost savings while ensuring operational reliability and compliance.

When executed properly, smart procurement doesn’t just save money — it guarantees that every dollar spent supports reliability, safety, and long-term energy efficiency.

1. Start with a Total Cost of Ownership (TCO) Mindset

A transformer’s purchase price represents only 30–40% of its total lifetime cost. The majority comes from energy losses, maintenance, and downtime over 25–30 years.
Smart buyers evaluate bids not only by unit price but also by loss capitalization, efficiency, and service life.

Example: A transformer with 5 kW lower total losses can save $25,000–$40,000 in lifetime energy costs, even if it costs slightly more upfront.

2. Prequalify and Audit Suppliers Rigorously

Before inviting price bids, conduct supplier prequalification and factory audits. Certified manufacturers with ISO 9001, ISO 14001, and ISO 45001 typically maintain consistent quality control and traceability.

A prequalified supplier network reduces procurement time and eliminates unreliable vendors, ensuring stable pricing and consistent quality.

3. Optimize Technical Specifications

Excessive technical margins drive unnecessary costs. Work with experienced electrical engineers to define fit-for-purpose specifications.

A balanced design meets performance and safety requirements without excessive material or production overhead.

4. Compare Offers on a Common Basis

Always normalize offers to a common technical baseline. Suppliers may use different assumptions for losses, materials, or accessories, creating misleading price differences.

After normalization, apparent price gaps often shrink from 20% to under 5%, revealing true value differences.

5. Leverage Multi-Stage Competitive Bidding

Using two- or three-stage bidding enables technical evaluation before price negotiations.

• Stage 1: Technical compliance review.
• Stage 2: Commercial offer comparison.
• Stage 3: Best and Final Offer (BAFO).

This ensures that only compliant suppliers compete on price, preventing future variation costs.

6. Apply Standardization Across Projects

Developing standardized transformer specifications and rating templates helps achieve economies of scale and reduces engineering lead time.
Utilities that unify their 33/11 kV or 132/33 kV transformer designs report cost reductions of 10–12% and faster delivery cycles.

7. Integrate Quality Assurance in Procurement

Include quality milestones in the procurement contract:

• Material inspection before lamination and winding
• Witness of type/routine tests
• Factory Acceptance Test (FAT) reports
• Pre-dispatch inspection

Embedding QA checkpoints prevents quality shortcuts and post-delivery corrections that often cost 5–8% of project value.

8. Balance Local and International Sourcing

Regional manufacturers can offer competitive prices and shorter delivery, but imported transformers may deliver higher efficiency or longer service life.
A mixed strategy — local assembly with imported core and coil — often provides the best cost-performance ratio.

Such hybrid sourcing also reduces freight and customs costs by 5–10%.

9. Negotiate Value, Not Just Price

Expert buyers negotiate value-based contracts, focusing on performance guarantees, warranty, and service support — not just initial cost.
Request transparent open-book pricing to review cost components like materials, labor, and testing.
This builds trust and ensures mutually beneficial relationships.

10. Monitor Performance and Feedback Loops

Procurement optimization doesn’t end with delivery. Establish feedback from commissioning and operation teams to track:

• Efficiency deviations
• Noise/vibration performance
• Oil and insulation condition
• Maintenance frequency

This data helps refine future specifications and supplier evaluations for continuous cost-quality improvement.

Case Study: Achieving Balance Through Strategic Procurement

A utility in Eastern Europe procured ten 132/33 kV, 40 MVA oil-immersed transformers.
By applying a three-stage tender, prequalification, and TCO analysis:

• Price reduced by 11%
• Efficiency improved by 4%
• Delivery shortened by 6 weeks
• Warranty extended to 36 months

Result: $250,000 lifecycle savings without compromising performance or compliance.

Summary Table: Key Levers for Balancing Cost and Quality

Conclusion

The price of oil-immersed transformers is influenced by multiple factors, including raw material costs, efficiency requirements, and logistics expenses. To secure the best deal, buyers should focus on core specifications such as capacity, voltage level, and oil type while evaluating total ownership cost rather than just upfront price. By comparing detailed quotations, clarifying test and warranty terms, and collaborating with reputable manufacturers, you can ensure long-term performance, reliability, and value.

FAQ

Q1: What are the current price trends for oil-immersed transformers?

Oil-immersed transformer prices have risen 10–20% in recent years due to higher raw material costs (copper, steel, and insulation oil) and stricter energy-efficiency regulations. However, competition among manufacturers has stabilized prices, especially for standard ratings between 100 kVA to 5 MVA. Large custom units may see greater price fluctuations.

Q2: What factors most affect oil-immersed transformer pricing?

Power Rating (kVA/MVA): Larger capacity = higher cost.

Voltage Class: Higher voltage levels require more insulation and design complexity.

Material Costs: Copper, core steel, and oil prices have major influence.

Efficiency Level: High-efficiency designs (meeting DOE or IEC standards) cost more upfront but save on losses.

Cooling Type: ONAN, ONAF, or OFWF systems affect total price.

Customization: Tap changers, bushings, and protection systems add cost.

Q3: How can buyers reduce costs without sacrificing quality?

Compare multiple bids from certified manufacturers (IEC, IEEE, ISO compliant).

Choose standard designs rather than over-customized units.

Optimize efficiency class based on load profile—don’t overpay for unnecessary features.

Negotiate bulk orders or long-term supply contracts.

Verify factory testing, warranty, and after-sales support before purchase.

Q4: Are oil-immersed transformers more cost-effective than dry-type units?

Yes, typically. Oil-immersed transformers offer lower initial costs and higher efficiency, making them ideal for outdoor and high-capacity applications. However, they require regular maintenance (oil testing, leak checks), while dry-type units are preferred for indoor or fire-sensitive environments.

Q5: What expert tips ensure a smart transformer purchase?

Review test reports (type, routine, and special tests).

Confirm compliance with IEC 60076 or IEEE C57 standards.

Evaluate supplier experience in your industry sector.

Check for oil quality certifications (mineral or ester-based).

Plan for transport, installation, and maintenance costs in total budget.

References

IEC 60076 – Power Transformer Standards: https://webstore.iec.ch

IEEE C57 – Guide for Transformer Design and Testing: https://ieeexplore.ieee.org

DOE – Transformer Efficiency and Cost Trends: https://www.energy.gov

Electrical4U – Oil-Immersed Transformer Price Guide: https://www.electrical4u.com

EEP – Transformer Cost and Efficiency Comparison: https://electrical-engineering-portal.com

NEMA – Transformer Manufacturing Standards: https://www.nema.org
