How Are Power Transformers Manufactured?

Power transformers are complex electrical machines manufactured through a highly controlled process that combines precision engineering, advanced materials, and strict quality standards. From core fabrication to final testing, every stage of production directly affects transformer efficiency, reliability, and service life. Understanding how power transformers are manufactured provides insight into the technology and craftsmanship behind modern power systems.

What Raw Materials Are Used in Power Transformer Manufacturing?

Power transformers are among the most important and complex pieces of equipment used in modern electrical infrastructure. They are designed to transfer electrical energy efficiently between voltage levels while operating continuously under high electrical, thermal, and mechanical stress for decades. To achieve this reliability and performance, manufacturers carefully select specialized raw materials with precise electrical, magnetic, thermal, chemical, and mechanical properties.

The manufacturing of a power transformer involves far more than simply assembling metal and wires. Every raw material inside the transformer directly influences efficiency, dielectric strength, thermal stability, fault tolerance, operational lifespan, and environmental performance. Core materials determine magnetic losses and efficiency, winding conductors affect current carrying capability and temperature rise, insulation materials maintain dielectric integrity, and transformer oil ensures both cooling and insulation reliability.

Because modern power transformers are expected to operate safely for 25–40 years or longer, the quality and compatibility of raw materials are critical. Even small variations in material purity, insulation strength, moisture content, or thermal characteristics can significantly affect transformer reliability and operational performance.

Power transformer manufacturing uses specialized raw materials including silicon steel core laminations, copper or aluminum conductors, transformer insulation paper, pressboard, transformer oil, steel tanks, porcelain or composite bushings, insulating varnishes, cooling radiators, and structural metals designed to provide electrical insulation, magnetic efficiency, thermal stability, and mechanical strength.

These materials work together as a highly integrated electrical and thermal system to ensure long-term transformer performance and reliability.

Why Raw Material Selection Is Critical

Power transformers operate under severe operating conditions.

Main Operating Stresses

Raw materials must withstand all of these conditions simultaneously.

Magnetic Core Materials

The transformer core is one of the most important components.

Main Function of the Core

The magnetic core provides a low-reluctance path for magnetic flux.

Electromagnetic Induction Principle

E=4.44fN\Phi

The core helps transfer magnetic energy efficiently between windings.

Silicon Steel Core Laminations

Most power transformer cores use grain-oriented silicon steel.

Why Silicon Steel Is Used

Core Loss Mechanisms

Main Core Losses

High-quality silicon steel minimizes these losses.

Amorphous Metal Core Materials

Some high-efficiency transformers use amorphous metal cores.

Advantages of Amorphous Metal

These materials are commonly used in energy-efficient distribution transformers.

Winding Conductor Materials

Transformer windings carry electrical current.

Main Conductor Materials

Why Copper Is Widely Used

Copper provides excellent electrical conductivity and mechanical strength.

Copper Advantages

Transformer Copper Loss

P_{cu}=I^2R

Lower conductor resistance reduces copper losses and heating.

Aluminum Conductors

Aluminum is sometimes used to reduce cost and weight.

Aluminum Characteristics

Insulation Materials

Transformer insulation systems are extremely important.

Main Insulation Functions

Cellulose Insulation Paper

Most transformer winding insulation uses cellulose paper.

Why Cellulose Is Used

Pressboard Insulation

Pressboard is used for structural insulation support.

Pressboard Applications

Transformer Oil

Transformer oil performs both cooling and insulation functions.

Main Oil Functions

Types of Transformer Oil

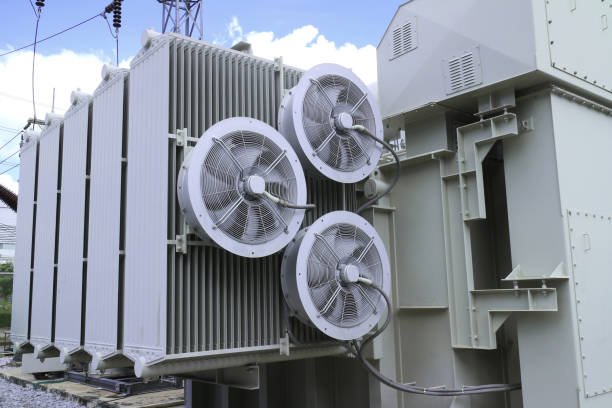

Thermal Management Materials

Power transformers require effective cooling systems.

Cooling Components

Transformer Tank Materials

Transformer tanks provide structural protection.

Tank Material Requirements

Most tanks are fabricated from carbon steel plates.

Bushings and External Insulation

Bushings allow conductors to pass safely through grounded transformer tanks.

Bushing Materials

Why Bushings Are Important

Bushings must withstand:

• High voltage stress
• Environmental contamination
• Thermal expansion
• Mechanical vibration

Structural Steel Components

Transformers also contain many structural metal components.

Structural Components

These components help withstand short-circuit forces.

Electromagnetic Fault Forces

F ∝ I²

Fault currents can generate enormous mechanical stress inside transformers.

Insulating Varnishes and Coatings

Various protective coatings are used throughout transformer manufacturing.

Coating Applications

Sealing Materials and Gaskets

Transformers require leak-proof sealing systems.

Common Sealing Materials

Cooling System Metals

Radiators and cooling structures require thermally conductive materials.

Common Cooling Materials

Environmental and Fire-Safety Materials

Modern transformer design increasingly emphasizes environmental protection.

Eco-Friendly Materials

Material Purity and Quality Control

Transformer materials must meet extremely strict quality standards.

Why Purity Matters

Real-World Manufacturing Example

A 220 kV utility transformer may contain:

Material quality directly determines transformer reliability.

Key Raw Materials Used in Power Transformer Manufacturing

How Are Transformer Cores and Windings Produced?

Transformer cores and windings are the two most important active components inside a power transformer. Together, they form the electromagnetic system responsible for transferring electrical energy efficiently between voltage levels. The transformer core provides a controlled magnetic flux path, while the windings carry electrical current and create electromagnetic induction. Because transformers operate continuously under high electrical, thermal, and mechanical stress, the production of cores and windings requires extremely precise engineering, specialized materials, advanced manufacturing technology, and strict quality control.

Modern transformer manufacturing is a highly sophisticated industrial process involving magnetic material processing, conductor forming, insulation application, mechanical assembly, vacuum drying, and electrical testing. Even small deviations in core alignment, winding geometry, insulation spacing, or conductor tension can significantly affect transformer efficiency, temperature rise, noise levels, dielectric strength, and fault tolerance.

Core and winding production is therefore not simply a mechanical assembly process—it is a carefully controlled electromagnetic engineering operation designed to maximize efficiency, minimize losses, ensure dielectric reliability, and guarantee long-term operational stability.

Transformer cores are produced by cutting, stacking, and clamping thin silicon steel laminations to form a low-loss magnetic circuit, while transformer windings are manufactured by precisely winding insulated copper or aluminum conductors around the core using specialized winding machines, insulation systems, and mechanical reinforcement techniques.

The interaction between the core and windings ultimately determines transformer efficiency, voltage transformation capability, thermal behavior, and short-circuit performance.

Why Core and Winding Manufacturing Is Critical

Transformer performance depends heavily on the precision of its active parts.

Main Performance Factors

Poor manufacturing quality can cause overheating, vibration, partial discharge, or catastrophic failure.

Transformer Core Production

Function of the Transformer Core

The transformer core provides a low-reluctance magnetic path for flux transfer.

Electromagnetic Induction Principle

E=4.44fN\Phi

The magnetic core allows efficient energy transfer between windings by concentrating magnetic flux.

Raw Materials for Transformer Cores

Most transformer cores use grain-oriented silicon steel.

Why Silicon Steel Is Used

Silicon Steel Lamination Production

Transformer cores are not made from solid steel blocks.

Why Laminations Are Necessary

Thin laminations reduce eddy current losses.

Eddy Current Loss Relationship

P_e ∝ B²f²t²

Where:

• (B) = magnetic flux density
• (f) = frequency
• (t) = lamination thickness

Reducing lamination thickness lowers eddy current heating.

Core Cutting Process

Silicon steel sheets are precision cut into specific shapes.

Core Cutting Technologies

Precision cutting is critical for magnetic alignment.

Step-Lap Core Design

Modern transformers often use step-lap core joints.

Advantages of Step-Lap Joints

Core Stacking Process

After cutting, laminations are stacked carefully.

Core Stacking Objectives

Improper stacking can increase losses and noise.

Core Clamping and Assembly

The completed core must be mechanically stabilized.

Why Clamping Is Necessary

Core Annealing Process

Some cores undergo heat treatment after cutting.

Purpose of Annealing

Transformer Winding Production

Function of Transformer Windings

Windings carry electrical current and create electromagnetic induction.

Main Winding Types

Conductor Materials

Windings are typically made from copper or aluminum.

Copper vs Aluminum

Copper is preferred for high-performance transformers.

Winding Conductor Shapes

Different conductor shapes are used depending on transformer design.

Common Conductor Types

Insulation Application

Conductors are insulated before winding.

Insulation Materials

Winding Production Process

Specialized winding machines produce transformer coils.

Main Winding Steps

Precision is extremely important during winding.

Winding Configurations

Different transformer applications use different winding structures.

Common Winding Designs

Mechanical Reinforcement of Windings

Windings must withstand enormous electromagnetic forces during faults.

Electromagnetic Force Relationship

F ∝ I²

Short-circuit currents can generate very high mechanical stress.

Reinforcement Methods

Insulation Between Windings

High-voltage transformers require complex insulation systems.

Insulation Components

Drying and Vacuum Processing

Moisture is extremely dangerous inside transformers.

Why Drying Is Critical

Vacuum Drying Process

Transformers undergo vacuum drying before oil filling.

Vacuum Drying Objectives

Core and Coil Assembly

After core and winding production, components are assembled together.

Assembly Objectives

Oil Impregnation Process

Oil-filled transformers undergo vacuum oil impregnation.

Why Oil Impregnation Is Important

Quality Control and Testing

Core and winding production requires extensive testing.

Common Manufacturing Tests

Real-World Manufacturing Example

A large 400 kV power transformer may contain:

Precision manufacturing directly affects transformer lifespan and efficiency.

Key Manufacturing Stages for Transformer Cores and Windings

How Is the Insulation System Assembled and Processed?

The insulation system is one of the most critical parts of a power transformer because it determines the transformer’s dielectric strength, thermal endurance, operational reliability, and service lifespan. While transformer cores and windings handle magnetic flux and electrical current, the insulation system ensures that different energized components remain electrically isolated under extremely high voltages and harsh thermal conditions. In high-voltage and extra-high-voltage transformers, insulation failure is one of the most dangerous and costly failure mechanisms, which is why insulation assembly and processing require extraordinary precision, cleanliness, moisture control, and engineering expertise.

Transformer insulation systems are not composed of a single material. Instead, they are highly integrated dielectric structures made from cellulose paper, pressboard, insulating oil, spacers, barriers, varnishes, epoxy systems, and air or oil ducts. These materials work together to withstand electrical stress, thermal aging, moisture exposure, mechanical vibration, and electromagnetic forces during normal operation and fault conditions.

The insulation assembly process involves multiple stages including material preparation, conductor insulation wrapping, spacer installation, winding insulation coordination, core-coil assembly, vacuum drying, oil impregnation, and dielectric testing. Every stage must be tightly controlled because even microscopic contamination, trapped moisture, improper spacing, or air voids can lead to partial discharge, insulation degradation, electrical breakdown, or catastrophic transformer failure.

Transformer insulation systems are assembled and processed by carefully applying cellulose insulation materials, pressboard barriers, spacers, and dielectric structures around transformer windings and cores, followed by vacuum drying, moisture removal, oil impregnation, and dielectric testing to ensure long-term electrical insulation reliability and thermal stability.

The insulation system therefore acts as the transformer’s primary electrical protection structure and is essential for safe long-term operation.

Why Transformer Insulation Systems Are Critical

Transformer insulation systems must withstand multiple operating stresses simultaneously.

Main Insulation Challenges

The insulation system must remain stable under all these conditions for decades.

Main Components of Transformer Insulation Systems

Cellulose Insulation Paper

Cellulose paper is one of the most widely used transformer insulation materials.

Why Cellulose Paper Is Used

Cellulose paper is typically wrapped directly around conductors.

Pressboard Insulation

Pressboard is a thicker cellulose-based insulating material.

Functions of Pressboard

Pressboard structures are essential in high-voltage transformers.

Transformer Oil as Part of the Insulation System

Transformer oil is a major dielectric component.

Oil Functions

The oil-paper insulation system is the foundation of oil-filled transformer design.

Conductor Insulation Assembly

Insulating the Conductors

Before winding production, conductors are insulated carefully.

Conductor Insulation Materials

Insulation Wrapping Process

Specialized machines wrap insulation around conductors.

Why Precision Wrapping Matters

Winding Insulation Assembly

Layer-to-Layer Insulation

Each winding layer must be electrically isolated.

Layer Insulation Components

Inter-Winding Insulation

High-voltage transformers require insulation between windings.

Inter-Winding Insulation Requirements

Barrier Insulation Structures

Barrier insulation controls electric field distribution.

Why Barriers Are Necessary

Electric Field Control in Transformer Insulation

Electric field management is a major insulation design objective.

Electric Stress Relationship

E=\frac{V}{d}

Where:

• (E) = electric field intensity
• (V) = voltage
• (d) = insulation distance

Improper spacing can create dangerous stress concentrations.

Spacer and Oil Duct Assembly

Purpose of Spacers

Spacers maintain insulation distance and cooling flow.

Spacer Functions

Oil Duct Design

Transformer oil must circulate freely through windings.

Why Oil Ducts Matter

Core-to-Winding Insulation

The transformer core must be insulated from the windings.

Core Insulation Functions

Mechanical Reinforcement of Insulation Systems

Transformer insulation systems must withstand fault forces.

Electromagnetic Force Relationship

F ∝ I²

Short-circuit currents can generate enormous mechanical stress.

Mechanical Support Structures

Cleanroom and Contamination Control

Insulation assembly requires extremely clean conditions.

Why Cleanliness Is Critical

Even microscopic contamination can reduce insulation reliability.

Moisture Control During Assembly

Moisture is one of the greatest threats to transformer insulation.

Why Moisture Is Dangerous

Insulation Drying Before Assembly

Insulation materials are dried before installation.

Drying Objectives

Vacuum Drying Process

After assembly, transformers undergo vacuum drying.

Why Vacuum Drying Is Necessary

Vacuum Drying Procedure

Main Vacuum Drying Stages

Vacuum drying may last several days for large transformers.

Oil Impregnation Process

Oil impregnation is a critical final stage.

Purpose of Oil Impregnation

Vacuum Oil Filling

Transformers are often filled with oil under vacuum conditions.

Why Vacuum Filling Is Important

Thermal Stability of Insulation Systems

Transformer insulation must withstand long-term heating.

Transformer Thermal Aging Relationship

Higher operating temperatures dramatically reduce insulation lifespan.

Dielectric Testing After Assembly

Insulation systems undergo extensive testing before shipment.

Common Dielectric Tests

Real-World Manufacturing Example

A large 400 kV transformer insulation system may include:

Even small insulation defects can affect long-term reliability.

Key Stages of Transformer Insulation Assembly and Processing

What Role Do Tank Fabrication and Cooling Components Play?

Tank fabrication and cooling component design are fundamental aspects of power transformer manufacturing because they directly influence transformer reliability, thermal performance, mechanical strength, environmental protection, operational safety, and service lifespan. While transformer cores and windings perform electromagnetic energy transfer, the transformer tank and cooling system create the physical and thermal environment necessary for stable long-term operation under high electrical and thermal stress.

A power transformer continuously generates heat due to copper losses, core losses, stray losses, and magnetic leakage flux. If this heat is not removed effectively, internal temperatures rise rapidly, accelerating insulation aging, reducing dielectric strength, increasing mechanical stress, and potentially causing catastrophic failure. The transformer tank and cooling components therefore serve as the primary thermal management structure of the transformer.

In addition to cooling, the transformer tank provides mechanical protection, oil containment, environmental sealing, structural stability, short-circuit force resistance, and transportation durability. Modern transformer tanks are highly engineered pressure-resistant steel structures designed to withstand thermal expansion, vacuum conditions, seismic stress, oil pressure fluctuations, and fault-generated mechanical forces over decades of operation.

Transformer tank fabrication and cooling components play critical roles in providing structural protection, oil containment, heat dissipation, mechanical stability, environmental sealing, and thermal management to ensure safe, efficient, and reliable long-term transformer operation.

The quality of tank fabrication and cooling system engineering directly affects transformer efficiency, insulation lifespan, maintenance requirements, and operational reliability.

Why Transformer Tanks and Cooling Systems Are Essential

Power transformers generate continuous heat during operation.

Main Sources of Transformer Heat

Without effective cooling, transformer temperatures would rise to destructive levels.

Transformer Heating Mechanisms

Copper Loss Heating

Electrical current flowing through windings generates resistive heat.

Copper Loss Equation

P_{cu}=I^2R

As transformer load current increases, heat generation rises significantly.

Core Loss Heating

The transformer core also generates continuous heat.

Main Core Losses

These losses exist whenever the transformer is energized.

Role of Transformer Tank Fabrication

Structural Protection Function

The transformer tank protects internal active components.

Components Protected by the Tank

Mechanical Strength Requirements

Transformer tanks must withstand severe operating conditions.

Main Mechanical Stresses

Electromagnetic Fault Forces

F ∝ I²

Fault currents can generate enormous mechanical stress inside transformers.

Tank Material Selection

Transformer tanks are usually fabricated from carbon steel.

Why Carbon Steel Is Commonly Used

Corrosion Resistance Requirements

Transformer tanks operate in harsh environments.

Environmental Exposure Risks

Protective coatings are therefore essential.

Tank Fabrication Process

Steel Plate Preparation

Tank fabrication begins with heavy steel plate processing.

Main Fabrication Steps

Precision Welding Operations

Transformer tanks require high-quality welding.

Why Welding Quality Is Critical

Tank Sealing and Leak Prevention

Oil containment reliability is essential.

Common Sealing Components

Role of Transformer Cooling Components

Cooling systems maintain safe operating temperature.

Why Cooling Is Necessary

Transformer insulation lifespan depends heavily on temperature.

Main Cooling Components in Power Transformers

Cooling Radiators

Radiators are the primary heat dissipation components.

How Radiators Work

Radiator Design Considerations

Cooling Fans

Large transformers often use forced-air cooling.

Function of Cooling Fans

Forced Cooling Systems

Common Cooling Modes

Oil Pumps

Some large transformers use forced oil circulation.

Purpose of Oil Pumps

Conservator Tanks

Many transformers use conservator systems.

Function of Conservators

Breather Systems

Breathers control moisture ingress.

Why Breathers Are Important

Silica gel breathers are commonly used.

Thermal Expansion Management

Transformer oil expands during heating.

Why Expansion Compensation Is Necessary

Tank design must accommodate thermal movement.

Pressure Relief and Safety Components

Transformers require fault protection systems.

Main Safety Devices

Cooling Performance and Transformer Efficiency

Efficient cooling improves transformer reliability.

Temperature Rise Effects

Hot Spot Prevention

Cooling systems help eliminate dangerous hot spots.

Why Hot Spots Are Dangerous

Noise and Vibration Reduction

Transformer tanks also influence acoustic performance.

Sources of Transformer Noise

Tank rigidity helps reduce vibration.

Transportation and Installation Requirements

Large power transformers experience significant transportation stress.

Transportation Challenges

Environmental Protection Role

Transformer tanks also provide environmental protection.

Environmental Safety Functions

Real-World Manufacturing Example

A large 400 kV power transformer may include:

Tank and cooling system quality strongly influence transformer lifespan.

Key Functions of Tank Fabrication and Cooling Components

How Are Vacuum Drying, Oil Filling, and Final Assembly Performed?

Vacuum drying, oil filling, and final assembly are among the most critical stages in power transformer manufacturing because they directly determine insulation reliability, dielectric strength, thermal performance, moisture control, operational lifespan, and long-term transformer stability. Even if transformer cores, windings, insulation materials, and cooling systems are manufactured perfectly, improper drying or oil filling can severely compromise transformer reliability and lead to premature insulation failure, partial discharge activity, overheating, or catastrophic breakdown during operation.

Modern power transformers rely heavily on oil-paper insulation systems, where cellulose insulation and transformer oil work together as a combined dielectric structure. This insulation system is extremely sensitive to moisture, air contamination, and trapped gases. Even very small amounts of residual moisture inside cellulose insulation can dramatically reduce dielectric strength, accelerate thermal aging, increase partial discharge activity, and shorten transformer lifespan. As a result, vacuum drying and oil impregnation are essential manufacturing processes that remove moisture, eliminate gases, stabilize insulation materials, and ensure complete oil penetration into the insulation structure.

Final assembly then integrates all transformer components—including bushings, cooling systems, conservators, protection devices, piping systems, and monitoring equipment—into a fully operational high-voltage power transformer ready for dielectric testing, transportation, and field installation.

Vacuum drying, oil filling, and final assembly are performed through carefully controlled processes that remove moisture and gases from transformer insulation systems, impregnate insulation structures with dielectric oil under vacuum conditions, and integrate all mechanical, electrical, cooling, and protection components into a fully operational transformer system.

These processes are fundamental for achieving long-term transformer reliability, insulation integrity, and operational safety.

Why Vacuum Drying and Oil Filling Are Critical

Transformer insulation systems are highly sensitive to moisture and contamination.

Main Insulation Threats

Vacuum drying and oil filling are designed to eliminate these risks.

Importance of Moisture Removal

Why Moisture Is Dangerous

Transformer insulation systems use cellulose-based materials that naturally absorb moisture.

Moisture Effects on Insulation

Even a small moisture increase can dramatically reduce insulation reliability.

Dielectric Strength and Moisture

The dielectric capability of insulation decreases rapidly with moisture contamination.

Electric Field Relationship

E=\frac{V}{d}

Higher electric stress becomes more dangerous when insulation moisture increases.

Vacuum Drying Process

Purpose of Vacuum Drying

Vacuum drying removes:

• Moisture from cellulose insulation
• Trapped gases inside insulation structures
• Residual humidity from assembly operations

Main Vacuum Drying Objectives

Transformer Preparation Before Drying

Before vacuum drying, the transformer active part is assembled.

Components Included in Active Part Assembly

The active part is then transferred into the drying chamber.

Vacuum Drying Chambers

Large transformers are dried inside specialized vacuum vessels.

Features of Vacuum Chambers

Heating During Vacuum Drying

Heating is essential for moisture removal.

Why Heating Is Necessary

Moisture trapped inside insulation materials evaporates more effectively at elevated temperatures.

Vacuum Drying Heating Methods

Vapor Phase Drying Technology

Modern high-voltage transformers often use vapor phase drying.

How Vapor Phase Drying Works

Hot solvent vapor transfers heat deep into insulation structures.

Advantages of Vapor Phase Drying

Moisture Extraction Under Vacuum

Vacuum lowers the boiling point of water.

Why Vacuum Improves Drying

Duration of Vacuum Drying

Large transformers require extended drying cycles.

Typical Drying Times

Drying duration depends on insulation mass and voltage class.

Monitoring During Drying

Manufacturers continuously monitor the drying process.

Parameters Monitored

Risks of Incomplete Drying

Improper drying can severely damage transformer reliability.

Consequences of Residual Moisture

Oil Filling Process

After drying, transformers undergo vacuum oil filling.

Why Oil Filling Is Important

Transformer oil serves multiple critical functions.

Main Oil Functions

Vacuum Oil Filling Procedure

Oil filling is usually performed under vacuum conditions.

Why Vacuum Oil Filling Is Necessary

Oil Degassing Before Filling

Transformer oil must be processed before use.

Oil Treatment Processes

High-quality oil purity is essential.

Oil Impregnation of Insulation

The oil must fully penetrate insulation structures.

Why Oil Impregnation Matters

Final Assembly Process

After oil filling, final transformer assembly begins.

Components Installed During Final Assembly

Installation of Bushings

Bushings provide insulated conductor passages through the tank.

Bushing Requirements

Cooling System Assembly

Cooling components are attached after oil filling.

Cooling Components

Conservator and Breather Installation

Many transformers use conservator systems.

Conservator Functions

Breather Functions

Sealing and Leak Testing

Transformer sealing integrity is extremely important.

Leak Test Objectives

Final Electrical Testing

Transformers undergo extensive testing before shipment.

Common Final Tests

Thermal Performance Verification

Cooling systems are tested carefully.

Why Thermal Testing Matters

Transformer lifespan strongly depends on operating temperature.

Thermal Aging Relationship

Higher temperatures dramatically accelerate insulation aging.

Transportation Preparation

Large transformers require special shipment preparation.

Transportation Measures

Real-World Manufacturing Example

A large 400 kV power transformer may require:

These processes directly influence long-term transformer reliability.

Key Functions of Vacuum Drying, Oil Filling, and Final Assembly

What Testing and Quality Control Procedures Are Conducted Before Delivery?

Testing and quality control are among the most important stages in power transformer manufacturing because they verify whether the transformer can operate safely, reliably, and efficiently under real-world electrical, thermal, mechanical, and environmental conditions. A power transformer is expected to function continuously for decades while handling high voltages, large currents, thermal cycling, short-circuit stresses, lightning surges, switching transients, and environmental contamination. Even small manufacturing defects, insulation weaknesses, assembly errors, contamination, or mechanical instabilities can eventually lead to catastrophic transformer failure, costly outages, fire hazards, or severe power system disruptions.

For this reason, power transformers undergo extensive factory testing and quality control procedures before delivery. These procedures are designed to confirm electrical performance, dielectric strength, thermal behavior, insulation integrity, mechanical stability, cooling efficiency, oil quality, and compliance with international standards such as IEC, IEEE, ANSI, and ISO requirements. Testing is not simply a final inspection process—it is a comprehensive engineering validation system integrated throughout manufacturing.

Modern transformer quality assurance includes material inspections, dimensional verification, insulation analysis, electrical performance testing, high-voltage dielectric testing, partial discharge detection, thermal evaluation, oil analysis, and final factory acceptance testing. Every stage is documented carefully to ensure traceability, operational reliability, and customer compliance requirements.

Before delivery, power transformers undergo comprehensive testing and quality control procedures including material inspection, winding resistance measurement, turns ratio testing, insulation resistance testing, dielectric withstand testing, partial discharge analysis, temperature rise testing, oil analysis, mechanical inspection, and factory acceptance testing to ensure safe, reliable, and standards-compliant operation.

These procedures are essential for guaranteeing transformer reliability, operational safety, and long-term service performance.

Why Transformer Testing and Quality Control Are Critical

Power transformers operate under extremely demanding conditions.

Main Transformer Operating Stresses

Testing verifies the transformer’s ability to withstand these conditions.

Quality Control Throughout Manufacturing

Quality control begins long before final testing.

Main Quality Control Stages

Raw Material Inspection

Manufacturers inspect all incoming materials carefully.

Materials Commonly Inspected

Why Material Inspection Matters

Defective raw materials can compromise transformer reliability permanently.

Dimensional and Mechanical Inspection

Mechanical accuracy is critical during transformer assembly.

Mechanical Parameters Verified

Electrical Testing Before Oil Filling

Certain tests are performed during active part assembly.

Intermediate Electrical Tests

Insulation Resistance Testing

Insulation resistance testing evaluates dielectric quality.

Purpose of Insulation Resistance Testing

Winding Resistance Testing

Winding resistance testing verifies conductor quality.

Copper Loss Relationship

P_{cu}=I^2R

Abnormal winding resistance can increase heating and reduce efficiency.

Why Winding Resistance Is Measured

Turns Ratio Testing

Transformer voltage ratio accuracy is verified carefully.

Transformer Ratio Principle

\frac{V_1}{V_2}=\frac{N_1}{N_2}

Where:

• (V_1), (V_2) = primary and secondary voltage
• (N_1), (N_2) = primary and secondary turns

Purpose of Ratio Testing

Core Loss and No-Load Current Testing

Core performance is tested after assembly.

Why Core Testing Is Important

High core losses indicate manufacturing or material problems.

Load Loss Testing

Transformer load losses are measured under current loading conditions.

Main Sources of Load Losses

Impedance and Short-Circuit Testing

Short-circuit characteristics are carefully verified.

Purpose of Impedance Testing

Dielectric Testing

Dielectric tests are among the most critical procedures.

Why Dielectric Testing Is Essential

Transformers must withstand extremely high electrical stress during operation.

Applied Voltage Testing

Applied voltage tests verify insulation strength.

Purpose of Applied Voltage Tests

Induced Voltage Testing

Induced voltage testing stresses inter-turn insulation.

Why Induced Voltage Testing Is Important

Partial Discharge Testing

Partial discharge testing detects microscopic insulation defects.

What Is Partial Discharge?

Partial discharge is localized dielectric breakdown within insulation systems.

Why Partial Discharge Is Dangerous

Partial Discharge Detection Systems

Sensitive instruments detect discharge activity.

Common Partial Discharge Sources

Lightning Impulse Testing

Transformers must survive lightning surges.

Lightning Impulse Simulation

Impulse testing simulates real-world overvoltage events.

Impulse Voltage Waveform

v(t)=V_0(e^{-\alpha t}-e^{-\beta t})

Purpose of Impulse Testing

Temperature Rise Testing

Thermal performance testing is extremely important.

Why Temperature Testing Matters

Transformer lifespan depends strongly on operating temperature.

Temperature Rise Test Objectives

Oil Quality Testing

Transformer oil condition is tested carefully.

Common Oil Tests

Leak Testing and Pressure Testing

Transformer tanks and seals are inspected carefully.

Why Leak Testing Is Important

Mechanical Vibration and Noise Inspection

Transformer vibration characteristics are evaluated.

Main Noise Sources

Functional Testing of Accessories

All auxiliary systems must operate correctly.

Components Tested

Factory Acceptance Testing (FAT)

The final testing stage is often witnessed by customers.

Purpose of FAT

Standards and Compliance Verification

Transformers must comply with international standards.

Common Transformer Standards

Documentation and Traceability

Manufacturers provide detailed test documentation.

Typical Documentation

Real-World Factory Testing Example

A large 400 kV power transformer may undergo:

These procedures ensure long-term operational reliability.

Key Transformer Testing and Quality Control Procedures

Conclusion

Power transformer manufacturing involves a series of carefully controlled processes, including core construction, winding production, insulation assembly, tank fabrication, vacuum treatment, oil filling, and comprehensive testing. Each stage is designed to ensure high electrical performance, mechanical strength, and long-term reliability. Through advanced manufacturing techniques and strict quality control, modern power transformers are built to operate safely and efficiently in demanding power system applications.

FAQ

Q1: How are power transformers manufactured?

Power transformers are manufactured through a highly controlled process involving:

Core fabrication
Winding production
Insulation assembly
Core and coil assembly
Vacuum drying
Oil filling
Factory testing

Each stage is designed to ensure electrical efficiency, insulation reliability, and long-term operational safety.

Q2: How is the transformer core manufactured?

The transformer core is made from laminated silicon steel sheets to minimize eddy current and hysteresis losses.

Manufacturing steps include:

Precision cutting of laminations
Stacking and assembling the core structure
Clamping to reduce vibration and noise

The core provides the magnetic path required for electromagnetic induction.

Q3: How are transformer windings produced?

Windings are manufactured using copper or aluminum conductors insulated with paper or enamel coatings.

The process includes:

Conductor preparation
Precision coil winding
Insulation placement between layers
Mechanical reinforcement for short-circuit strength

Accurate winding geometry is critical for voltage regulation and efficiency.

Q4: Why is insulation important during manufacturing?

The insulation system prevents electrical breakdown between windings and grounded components.

Manufacturers use:

Insulating paper and pressboard
Epoxy or resin systems (for dry-type units)
Transformer oil in oil-immersed designs

Proper insulation design ensures dielectric strength and operational safety.

Q5: What is vacuum drying in transformer manufacturing?

Vacuum drying removes moisture from the transformer insulation system.

The process involves:

Heating the active part under vacuum
Evaporating trapped moisture
Preparing insulation for oil impregnation

Moisture removal is essential because water significantly reduces insulation performance and transformer lifespan.

Q6: How is transformer oil added during production?

In oil-immersed transformers:

The transformer tank is sealed
Insulating oil is processed and degassed
Oil is filled under vacuum conditions

Vacuum oil filling ensures complete impregnation of insulation and prevents trapped air bubbles.

Q7: What tests are performed before transformers leave the factory?

Manufacturers conduct extensive factory tests, including:

Ratio and polarity tests
Insulation resistance and dielectric tests
Temperature rise tests
Short-circuit impedance tests
Partial discharge testing

These tests verify compliance with IEC, IEEE, or ANSI standards.

Q8: Why is quality control critical in transformer manufacturing?

Quality control ensures:

Reliable long-term operation
Compliance with international standards
Reduced failure risk
Improved efficiency and safety

Since transformers are expected to operate for decades, precision manufacturing and strict testing are essential.

References

IEC 60076 – Power Transformers
https://webstore.iec.ch/publication/602
IEEE C57 Series – Transformer Manufacturing Standards
https://standards.ieee.org
Electrical Engineering Portal – Transformer Manufacturing Explained
https://electrical-engineering-portal.com
CIGRE – Transformer Production and Testing Studies
https://www.cigre.org
NEMA – Transformer Manufacturing Guidelines
https://www.nema.org
IEEE Power & Energy Society – Transformer Engineering Research
https://ieeexplore.ieee.org
