Before a power transformer leaves the manufacturer’s facility, inspection is a critical step to ensure compliance with specifications, quality standards, and customer requirements. Many buyers choose to conduct their own inspection or assign a third-party agency to verify that the transformer is manufactured, assembled, and tested properly. This process reduces risks, builds trust, and guarantees the reliability of the equipment before installation.
Why Pre-Shipment Inspection Is Important?
When customers receive electrical equipment, especially critical assets like transformers, switchgear, or industrial machinery, discovering defects or non-compliance after delivery can lead to severe delays, unexpected costs, and even safety hazards. Without a systematic pre-shipment inspection, buyers risk getting products that do not meet contractual specifications, quality standards, or regulatory requirements. The consequence is not only financial loss but also operational disruptions and reputational damage. The solution is a pre-shipment inspection (PSI), a structured process of verifying product quality, performance, and documentation before goods leave the supplier’s factory.
Pre-shipment inspection is important because it ensures that equipment meets agreed specifications, reduces the risk of defects, verifies compliance with safety and regulatory standards, protects against financial loss, and builds trust between supplier and customer.
This makes PSI a critical step for both manufacturers and buyers in ensuring product quality, reliability, and customer satisfaction.
Pre-shipment inspection is optional for high-value industrial equipment.False
For high-value equipment like transformers, PSI is essential to ensure compliance, safety, and performance before shipping.
Pre-shipment inspection can reduce the risk of equipment failure after installation.True
By detecting issues early, PSI prevents defective equipment from reaching the site, reducing downtime and costly repairs.
1. What Is Pre-Shipment Inspection?
A pre-shipment inspection is a comprehensive quality control process carried out before products are shipped. For power and electrical equipment, this involves:
- Visual inspection of workmanship, finish, and packaging.
- Dimensional checks to verify conformance with drawings.
- Electrical and mechanical testing (insulation resistance, winding resistance, ratio test, pressure/leakage test, etc.).
- Safety compliance verification against IEC, IEEE, or local standards.
- Documentation review (test reports, certifications, nameplate accuracy, manuals).
2. Why It Matters in Transformer and Equipment Supply
- Efficiency Assurance: Confirms that no-load and load losses are within guaranteed limits.
- Safety Compliance: Ensures dielectric strength and thermal performance meet standards.
- Preventing Downtime: Avoids shipping faulty equipment that could cause site delays.
- Customer Confidence: Provides buyers with proof of quality before releasing final payment.
3. Common Checklist in Pre-Shipment Inspection
| Inspection Category | Key Checks | Benefit |
|---|---|---|
| Visual & Dimensional | External finish, core/winding alignment, terminal layout | Prevents physical defects |
| Electrical Testing | Ratio test, winding resistance, insulation resistance, induced voltage test | Confirms performance & safety |
| Mechanical Integrity | Tank welds, bushings, cooling radiators, paint | Ensures durability |
| Documentation | Test certificates, manuals, compliance reports | Guarantees regulatory approval |
| Packaging | Shock-proof, moisture protection, proper labeling | Prevents transit damage |
4. Benefits of Pre-Shipment Inspection
- Reduces Risk of Non-Conformance: Problems are solved before shipping.
- Protects Financial Investment: Avoids costs of replacement, re-shipping, and penalties.
- Speeds Up Commissioning: Site engineers receive ready-to-install equipment.
- Enhances Supplier Accountability: Manufacturers are compelled to maintain quality.
- Ensures Global Compliance: Meets IEC, ANSI, or local grid authority requirements.
5. Case Example
A utility company in Africa ordered 20MVA oil-immersed transformers. During PSI, inspectors discovered that three units had leakage from radiator welds and two had nameplate errors. Because the issues were detected before shipment, they were corrected at the factory, saving the buyer months of delays and thousands in rework costs.
Can Customers Conduct On-Site Inspections Themselves?
When customers purchase critical electrical assets such as power transformers, switchgear, or large industrial machinery, the risk of receiving substandard or non-compliant products can have serious consequences: costly delays, warranty disputes, safety risks, and operational failures. Many buyers wonder whether they can conduct on-site inspections themselves to reduce risks and guarantee product quality. While the answer is yes, it requires technical knowledge, planning, and close cooperation with the supplier. A self-conducted on-site inspection can be a strong safeguard, but it must be done properly to deliver real value.
Customers can conduct on-site inspections themselves, provided they have qualified technical staff, access to proper inspection checklists, and cooperation from the manufacturer. Self-inspections allow direct verification of quality, compliance, and test results, but they are most effective when supported by factory acceptance testing (FAT) and professional quality assurance standards.
This means customers do not have to rely solely on supplier reports—they can verify performance and compliance independently, reducing risk and strengthening trust in the procurement process.
Only third-party agencies are allowed to perform transformer inspections.False
Customers themselves, along with their technical representatives, are allowed to perform inspections, often accompanied by factory engineers.
On-site inspections by customers help reduce disputes after delivery.True
When customers verify results at the supplier’s factory, disagreements about quality or performance after delivery are minimized.
1. What On-Site Inspection Involves
When customers decide to conduct inspections themselves, the process usually covers:
- Visual and Dimensional Checks: Confirm tank integrity, paint quality, terminal arrangement, and nameplate details.
- Electrical Testing Witnessing: Customers observe or verify insulation resistance, winding resistance, ratio test, dielectric tests, and load/no-load losses.
- Mechanical Integrity Checks: Inspect bushings, gaskets, welds, cooling radiators, and protection systems.
- Documentation Review: Ensure all type test reports, routine test reports, manuals, and compliance certificates are provided.
- Packaging and Handling Readiness: Verify proper crating, shock resistance, moisture protection, and labeling.
2. Advantages of Customer On-Site Inspections
| Advantage | Description |
|---|---|
| Direct Assurance | Customers confirm compliance with contract specs and standards. |
| Early Problem Detection | Defects are discovered before shipping, saving time and money. |
| Stronger Buyer-Supplier Relationship | Transparent collaboration builds long-term trust. |
| Reduced Disputes | Inspection records serve as evidence in case of disagreements. |
| Faster Commissioning | Site engineers receive equipment verified and ready for installation. |
3. Challenges Customers Must Overcome
- Technical Expertise: Requires knowledgeable engineers or consultants.
- Time & Cost: Travel to supplier’s factory and spending days in testing facilities.
- Specialized Equipment: Some advanced tests require supplier-owned test benches.
- Coordination: Inspections must align with the supplier’s production and test schedule.
4. Best Practices for Customer-Led Inspections
- Prepare a detailed inspection and test plan (ITP) before visiting the factory.
- Assign experienced electrical/mechanical engineers or hire a consultant.
- Request the supplier’s test schedule in advance to avoid delays.
- Use checklists covering visual, dimensional, electrical, and documentation requirements.
- Ensure that all findings are documented and signed jointly by both parties.
5. Case Example
A Middle Eastern utility company purchased 33/11kV distribution transformers from a manufacturer. The customer sent two engineers to witness routine and type testing. During the inspection, they discovered that the measured no-load losses were higher than the guaranteed values. The issue was corrected on-site, saving the buyer from higher long-term energy costs and eliminating a potential contract dispute.
What Role Do Third-Party Inspectors Play?
When buyers procure high-value electrical assets like power transformers, switchgear, or heavy machinery, relying solely on supplier reports carries risk. Without independent verification, there may be hidden defects, deviations from specifications, or compliance issues that only surface after delivery—leading to costly delays, disputes, or even operational failures. This is where third-party inspectors play a crucial role, providing impartial oversight to protect the buyer’s investment and ensure quality assurance before shipment.
Third-party inspectors act as independent quality assurance specialists who verify that equipment complies with contract specifications, international standards, and buyer requirements. They perform inspections, witness tests, review documentation, and provide unbiased reports that minimize risks, ensure compliance, and build trust between buyers and suppliers.
This independent layer of control strengthens procurement processes by combining supplier expertise with external accountability.
Third-party inspectors replace customer inspections completely.False
Third-party inspections complement customer inspections but do not eliminate the need for buyers to verify critical aspects directly.
Third-party inspection helps ensure compliance with international standards like IEC, IEEE, and ANSI.True
Independent inspectors confirm that equipment performance meets relevant global standards before shipment.
1. Core Functions of Third-Party Inspectors
Third-party inspectors usually carry out four main roles:
- Pre-Shipment Inspection (PSI): Checking visual quality, dimensions, finish, and packaging.
- Witness Testing: Observing type tests, routine tests, and special tests on-site at the manufacturer’s factory.
- Document Verification: Reviewing test reports, certifications, and compliance documents for accuracy.
- Final Clearance: Issuing inspection certificates that authorize shipment once all requirements are met.
2. Advantages of Using Third-Party Inspectors
| Advantage | How It Helps Buyers |
|---|---|
| Impartial Oversight | Neutral evaluation reduces bias and conflicts of interest. |
| Global Standard Compliance | Verifies adherence to IEC, ANSI, or IEEE standards. |
| Risk Reduction | Detects defects early, avoiding costly site delays. |
| Supplier Accountability | Encourages manufacturers to maintain strict quality control. |
| Documentation Integrity | Ensures accurate test reports and certifications are delivered. |
3. When Third-Party Inspectors Are Essential
- International Procurement: When buyers cannot easily travel to factories abroad.
- High-Value Equipment: For transformers, generators, or switchgear where the financial and operational risks are high.
- Regulatory Requirements: In projects requiring certified compliance for financing or government approval.
- Large Orders: Where sampling inspections ensure consistency across multiple units.
4. Case Example
A European energy company ordered 220kV power transformers from an overseas supplier. Independent third-party inspectors were engaged to witness routine and type testing, including insulation resistance, induced overvoltage, and load/no-load loss measurements. The inspectors discovered that one unit showed partial discharge activity above acceptable limits. Thanks to early detection, the manufacturer corrected the issue before shipment, preventing a potential grid failure and saving the buyer significant financial losses.
5. Best Practices When Engaging Third-Party Inspectors
- Select agencies with expertise in electrical equipment and international standards.
- Share a detailed inspection and test plan (ITP) with inspectors in advance.
- Combine third-party inspections with customer witness inspections for critical tests.
- Ensure inspection reports are signed, detailed, and supported with photographs/data.
- Use inspection certificates as a condition for final payment release to suppliers.
How Does the Inspection Process Ensure Quality and Compliance?
When purchasing power transformers, switchgear, or other high-value electrical equipment, the greatest risk lies in receiving a product that fails to meet contract specifications or international standards. Such non-compliance can lead to operational failures, costly delays, safety hazards, and warranty disputes once the equipment is installed. This is why a structured inspection process is essential—it ensures that every product delivered is built, tested, and packaged in strict alignment with the buyer’s requirements.
The inspection process ensures quality and compliance by systematically verifying equipment against technical specifications, international standards, and contractual requirements through visual checks, dimensional measurements, electrical/mechanical testing, documentation review, and certification. By involving both customer representatives and independent inspectors, it eliminates defects early, ensures performance reliability, and guarantees delivery of fully compliant equipment.
This approach builds a strong safety net for buyers, preventing hidden issues from reaching the installation site.
Inspection is only about visual checking of transformers.False
Inspection involves both visual and functional testing, including electrical, mechanical, and documentation checks.
Factory acceptance testing (FAT) during inspection ensures transformers meet contractual efficiency and loss requirements.True
FAT confirms compliance with guaranteed performance figures before shipment.
1. Key Stages of the Inspection Process
A comprehensive inspection process usually consists of:
- Pre-Production Review – Assessing raw materials, design documents, and supplier quality systems.
- In-Process Inspection – Monitoring winding, core assembly, insulation, and tank fabrication.
- Routine Testing Witnessing – Observing insulation resistance, ratio tests, winding resistance, dielectric tests, and no-load/load loss measurements.
- Type/Special Testing – Verifying critical performance such as temperature rise, short-circuit withstand, and partial discharge levels.
- Final Inspection – Checking nameplates, accessories, paint, bushings, oil filling (for oil-immersed units), and packaging.
- Certification & Documentation – Reviewing IEC/IEEE/ANSI compliance, test reports, and issuing a final acceptance certificate.
2. How Inspections Safeguard Quality
| Inspection Stage | Purpose | Buyer’s Benefit |
|---|---|---|
| Pre-Production | Confirms raw materials and design comply | Avoids defects before manufacturing begins |
| In-Process | Detects workmanship issues early | Reduces costly rework and delays |
| Testing Witness | Ensures performance meets specs | Guarantees efficiency, safety, and reliability |
| Final Check | Confirms shipment readiness | Prevents damaged/non-compliant delivery |
| Documentation Review | Verifies certifications and test records | Provides traceability and warranty protection |

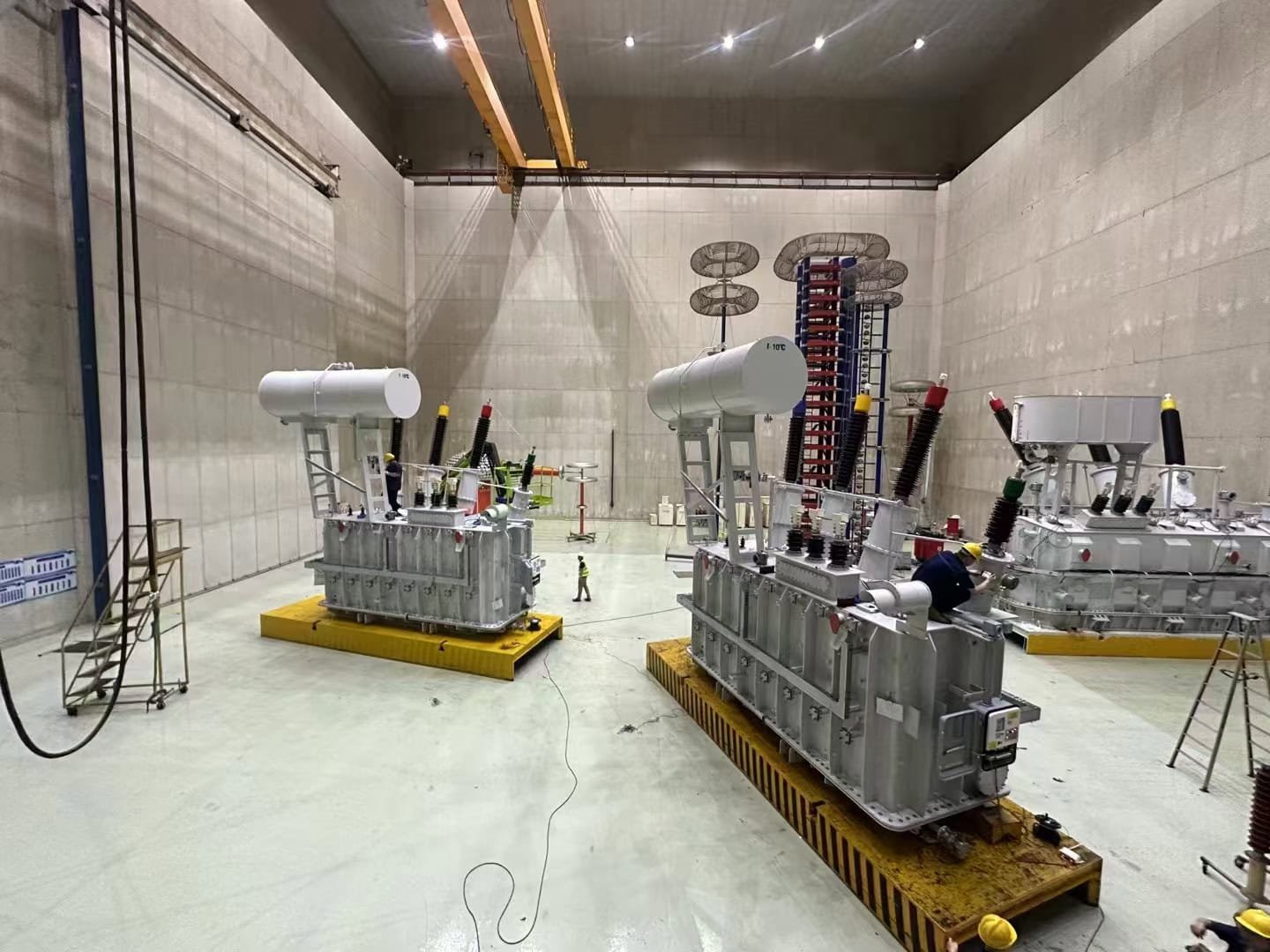

3. Role of Factory Acceptance Testing (FAT)
FAT is a cornerstone of inspection, as it verifies that equipment performance matches guaranteed efficiency, losses, and safety levels before shipping. For example:
- No-load losses confirm core quality and efficiency.
- Load losses validate copper winding performance.
- Dielectric tests ensure insulation strength.
- Temperature rise tests confirm cooling adequacy.
By witnessing FAT, customers and inspectors gain irrefutable assurance that equipment will perform reliably in service.
4. Case Example
A utility in Asia purchased 132/33kV power transformers from a global manufacturer. During FAT, inspectors discovered that load losses exceeded the guaranteed figures. Instead of shipping non-compliant equipment, the manufacturer was required to rework the windings and retest. This saved the customer from years of higher operating costs and a potential contractual dispute.
5. Best Practices for Effective Inspection
- Develop a clear Inspection and Test Plan (ITP) aligned with contract specs.
- Involve both customer representatives and third-party inspectors for neutrality.
- Document all findings with signed inspection reports, photos, and test data.
- Make final payment conditional upon satisfactory inspection and certification.
- Ensure packaging inspection to protect against transport-related damages.
Conclusion
Yes, power transformers can be inspected by the buyer or an authorized third-party agency before shipment. This process usually includes reviewing test reports, verifying design compliance, and witnessing routine and special tests. Pre-shipment inspection ensures transparency, enhances confidence, and helps avoid potential operational or warranty issues after delivery.
FAQ
Q1: Can I inspect a power transformer before shipment?
Yes. Most manufacturers allow factory acceptance tests (FAT) before shipment. During FAT, buyers or their representatives can witness routine tests such as insulation resistance, winding resistance, turns ratio, no-load loss, load loss, and dielectric tests to ensure compliance with specifications.
Q2: What is the role of a third-party inspector in transformer inspection?
A third-party inspector verifies that the transformer meets international standards (IEEE, IEC, ANSI) and buyer requirements. They ensure unbiased quality checks, review test reports, monitor manufacturing processes, and confirm that the transformer is safe and ready for dispatch.
Q3: What are the benefits of pre-shipment inspection?
Detects any manufacturing or quality issues early
Confirms compliance with contractual specifications
Reduces the risk of costly delays and failures in the field
Provides documented assurance of performance and reliability
Q4: What tests are performed during a pre-shipment inspection?
Typical FAT/pre-shipment inspection tests include:
Routine electrical tests (ratio, resistance, losses, impedance)
High-voltage dielectric tests
Oil tests (for oil-filled transformers)
Visual inspection for workmanship and accessories
Verification of nameplate and compliance certificates
Q5: Can buyers appoint their own inspectors?
Yes. Buyers can either personally attend inspections or appoint third-party agencies (like SGS, Bureau Veritas, TÜV, or Lloyd’s Register) to oversee the process. This provides independent assurance of transformer quality and compliance before shipping.
