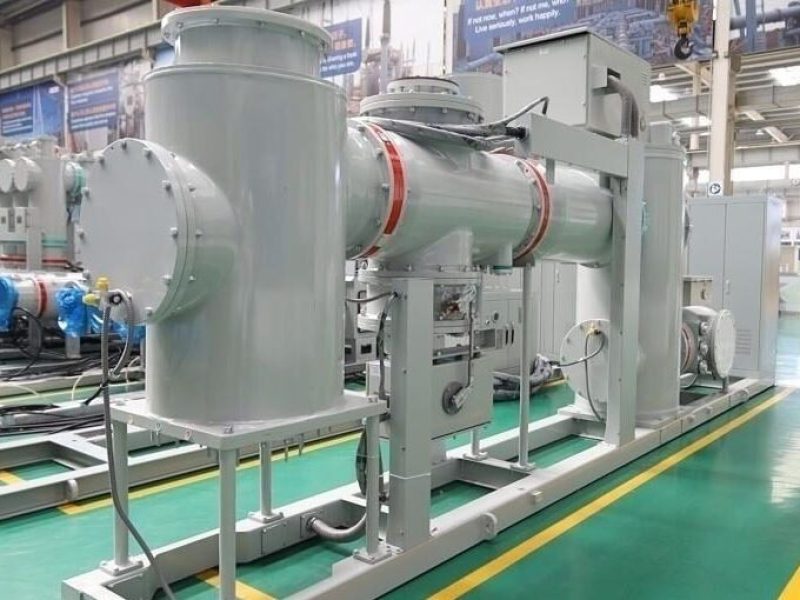

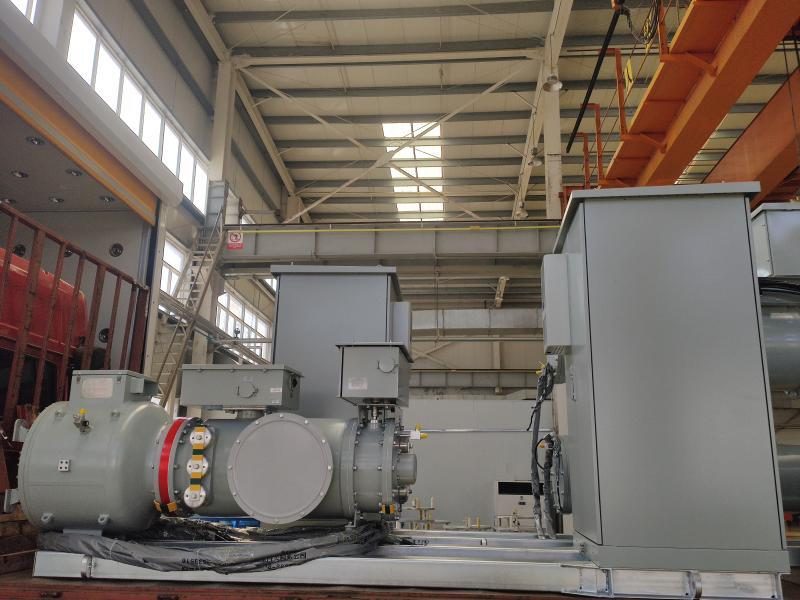

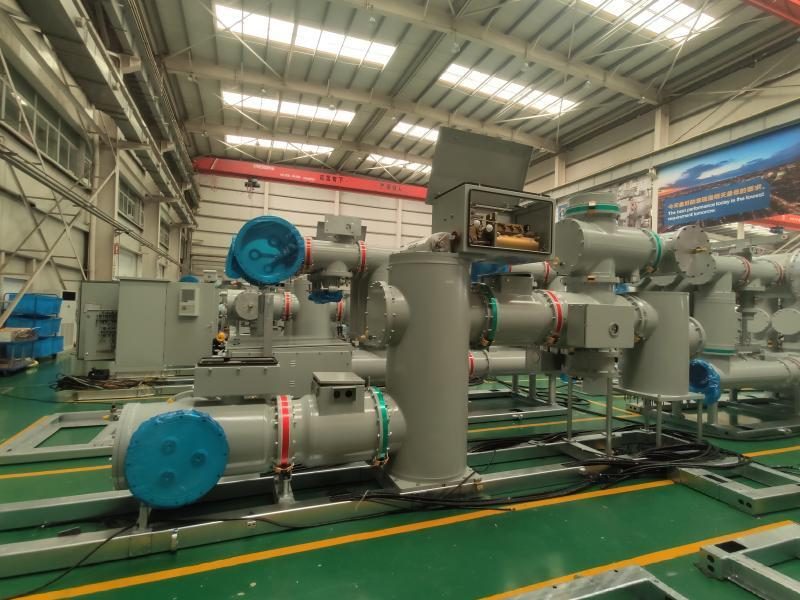

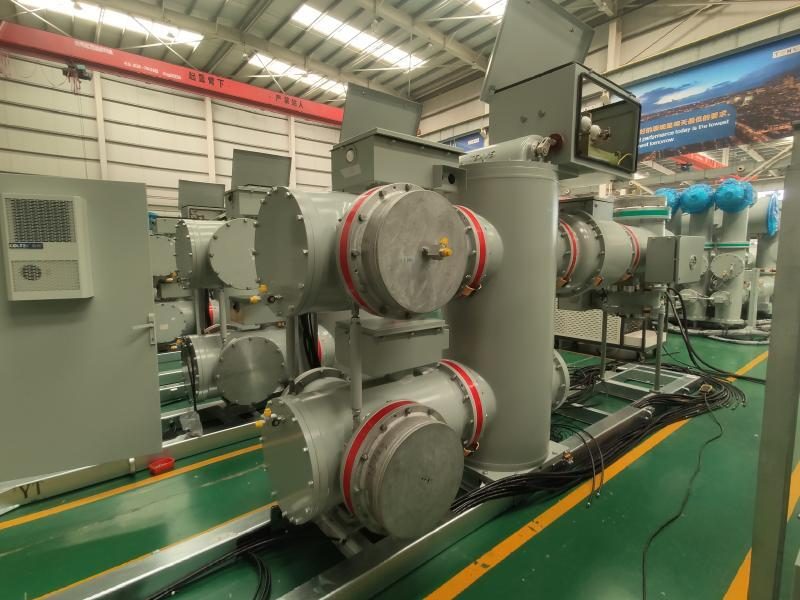

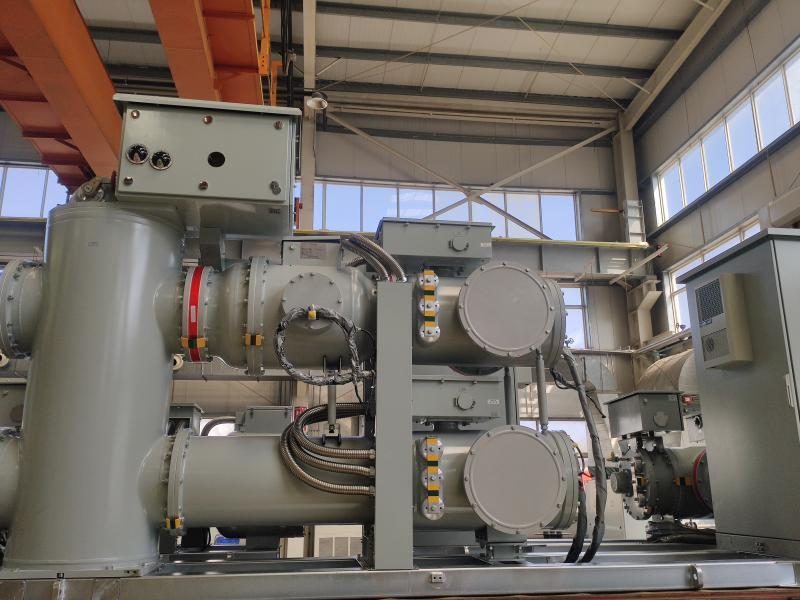

Overview
The main technical parameters of the 252 (L) kV GIS/HGIS have reached a domestically leading and internationally advanced level. The product complies with national standards and IEC standards’ highest requirements for this voltage class, with some parameters surpassing these standards.
Trusted by world-class brands & organizations of all sizes
Product Feature
Product Advantages:
- Newly designed compact GIS: The minimum interval width is 1.7 meters. The maximum equipment height is only 2.75 meters, and the standard interval occupies an area of 7.5m², leading the domestic market.
- Self-blast arc extinguishing principle breaker: Features strong breaking capacity, short arcing time, and long electrical lifespan, capable of full-capacity breaking up to 20 times. It has a simple and reliable structure.
- Hydraulic or spring operating mechanism: The circuit breaker is equipped with a hydraulic or spring operating mechanism, featuring a simple and compact structure, low maintenance workload, and a mechanical lifespan of up to 10,000 operations, ensuring high reliability.
- Modular design: Simplifies the product structure and enables flexible wiring configurations.
- Full aluminum alloy housing: Corrosion-resistant, lightweight, with low eddy current losses, compact layout, and an aesthetically pleasing appearance.
- Low radio interference: ≤500µV, suitable for installation in urban areas and residential neighborhoods.
- Strong environmental adaptability: Suitable for harsh environments, high altitudes, seismic zones, bustling urban areas, or mountain hydropower stations.
- Pre-assembled transportation: Reduces on-site installation workload and shortens installation periods.
- Online detection and intelligent control: GIS can be customized to achieve online monitoring and intelligent control according to user requirements.
Technical Parameters
| Model | LW□-252/T4000-50 | ZF39-126/T3150-40 | HGIS-40.5/T2000-31.5 |
|---|---|---|---|
| Rated Voltage | 252kV | 126kV | 40.5kV |
| Installation Location | Outdoor | Outdoor | Outdoor |
| Ambient Temperature | -38°C to +40°C | -38°C to +40°C | -38°C to +40°C |
| Altitude | Lowland model: ≤1000m, Highland model: ≤3000m | Lowland model: ≤1000m, Highland model: ≤3000m | Lowland model: ≤1000m, Highland model: ≤3000m |
| Air Pollution Level | Level IV | Level IV | Level IV |
| Ice Coating Thickness | ≤10mm | ≤10mm | ≤10mm |
| Seismic Intensity | Horizontal acceleration: 0.4g, Vertical acceleration: 0.2g | Horizontal acceleration: 0.4g, Vertical acceleration: 0.2g | Horizontal acceleration: 0.4g, Vertical acceleration: 0.2g |
| Rated Frequency | 50Hz | 50Hz | 50Hz |
| Rated Current | 4000A | 2000A / 2500A / 3150A | 2000A |
| Rated Short-Time Withstand Current | 50kA / 4s | 40kA / 4s | 31.5kA / 4s |
| Rated Power Frequency Withstand Voltage | 460kV | 230kV | 80kV |
| Rated Switching Impulse Withstand Voltage | 1050kV | 650kV | 215kV |
| Rated Lightning Impulse Withstand Voltage | 1050kV | 650kV | 215kV |
| SF6 Gas Annual Leakage Rate | ≤0.1% | ≤0.1% | ≤0.1% |
