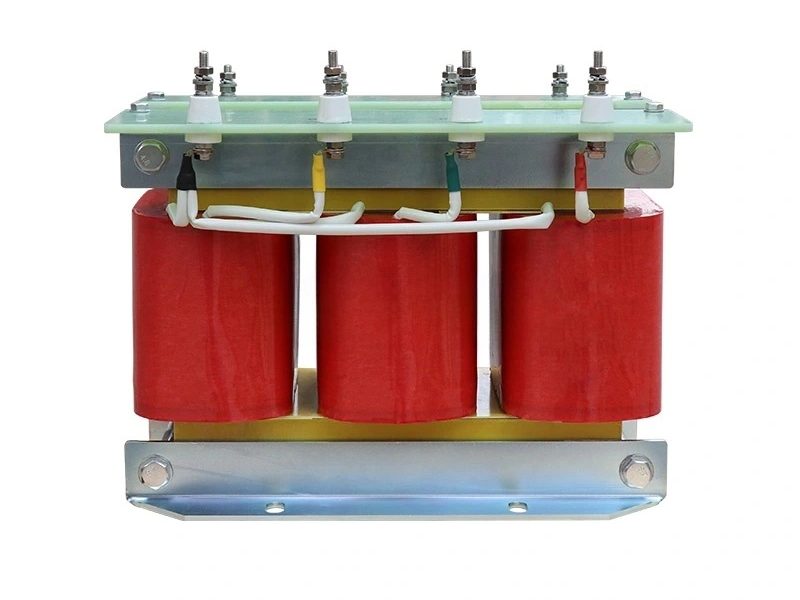

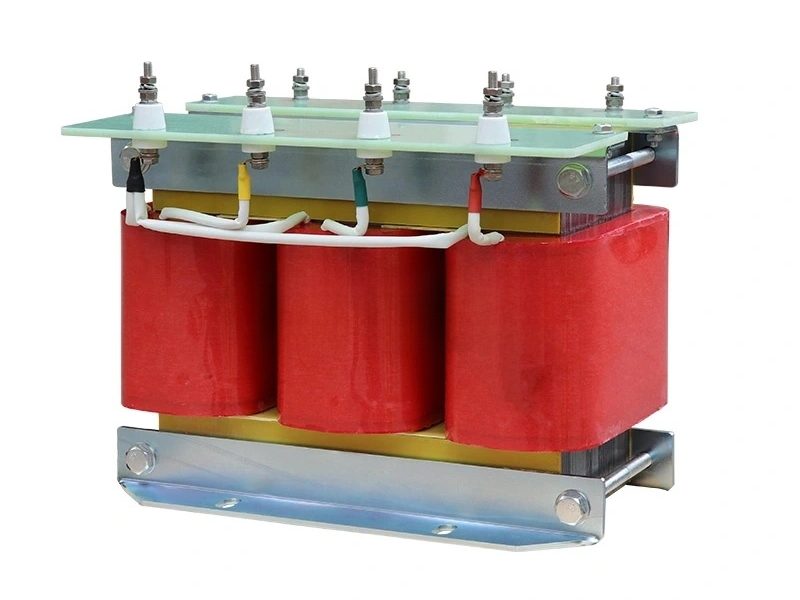

Isolation Transformer – Safeguarding Equipment and Ensuring Electrical Safety
An isolation transformer provides electrical isolation between its input and output, enhancing safety and preventing electrical shocks, surges, or interference. Protect sensitive equipment and improve safety with a high-quality isolation transformer.
Trusted by world-class brands & organizations of all sizes
Product Feature
An isolation transformer is a critical electrical component designed to separate the primary and secondary windings, ensuring electrical isolation between the input and output circuits. This unique feature provides significant protection against electrical surges, noise, and faults, making it ideal for sensitive equipment and applications requiring a stable and clean power supply.
By preventing direct electrical contact between input and output circuits, the isolation transformer enhances safety by reducing the risk of electric shock. It also helps to isolate harmful electrical noise or interference, which is crucial for precision electronics, medical equipment, laboratory instruments, and telecommunications systems. The transformer also contributes to preventing ground loops, offering improved signal integrity and stability.
Isolation transformers are used in applications where the isolation of electrical power is necessary for safety, system reliability, or performance. Industries such as healthcare, telecommunications, and industrial machinery often rely on these transformers to ensure the safety and longevity of critical equipment.
Key Advantages:
- Provides electrical isolation for safety
- Reduces electrical noise and interference
- Protects sensitive equipment from surges and faults
- Enhances signal integrity and prevents ground loops
- Ideal for medical, laboratory, and telecommunications applications
Technical Parameters
Isolation Transformer Technical Parameters
| Item \ Capacity KVA | Voltage Combination | Connection Group Symbol | No-load Current % | No-load Loss W | Load Loss W (120°) | Impedance Voltage % | Sound Level dB | ||
| High Voltage KV | Low Voltage KV | Voltage Regulation Range | |||||||
| TSIT-30 | 6 6.3 6.6 10 10.5 11 | 0.4 | ±5% or ±2*2.5% | Yyno or Dyn11 | 2.4 | 190 | 710 | 4 | 54 |
| TSIT-50 | 2.4 | 270 | 1000 | 54 | |||||
| TSIT-80 | 1.8 | 370 | 1380 | 55 | |||||
| TSIT-100 | 1.8 | 400 | 1570 | 55 | |||||
| TSIT-125 | 1.6 | 470 | 1850 | 58 | |||||
| TSIT-160 | 1.5 | 540 | 2130 | 58 | |||||
| TSIT-200 | 1.4 | 620 | 2530 | 58 | |||||
| TSIT-250 | 1.4 | 720 | 2760 | 58 | |||||
| TSIT-315 | 1.2 | 880 | 3470 | 60 | |||||
| TSIT-400 | 1.2 | 980 | 3990 | 60 | |||||
| TSIT-500 | 1.2 | 1160 | 4880 | 62 | |||||
| TSIT-630 | 1 | 1300 | 5980 | 6 | 62 | ||||
| TSIT-800 | 1 | 1520 | 6960 | 64 | |||||
| TSIT-1000 | 1 | 1770 | 8130 | 64 | |||||
| TSIT-1250 | 1 | 2090 | 9690 | 65 | |||||
| TSIT-1600 | 1 | 2450 | 11730 | 66 | |||||
| TSIT-2000 | 0.8 | 3050 | 14450 | 66 | |||||
| TSIT-2500 | 0.8 | 3600 | 17170 | 71 | |||||
QC & Guarantee
Market Orientation and Service Commitment
In response to fierce market competition and to meet customer demands, our company adheres to a market-oriented approach and a customer-centric philosophy. We have earned widespread recognition from our clients through efficient, comprehensive services and superior product quality.
Our Commitments
- Product Lifespan Guarantee: The operational lifespan of our transformers is no less than 30 years.
- Strict Quality Control:
- Upon receiving bid documents, we promptly initiate the evaluation process to ensure all customer requirements are fully addressed.
- We carefully select certified suppliers and strictly follow quality management standards to control and inspect raw materials and components.
- We produce high-quality, customer-satisfactory parts in full compliance with contract and technical agreement requirements.
- After-Sales Service Commitment:
- All performance indicators and technical specifications of our transformers meet or exceed national standards.
- Within 3 years of installation and commissioning, if any oil leakage occurs due to manufacturing defects in oil-immersed transformers, we will repair it at no cost.
- For any critical component defects identified during production or issues discovered during installation, we prioritize resolution to meet project timelines, followed by thorough responsibility analysis and necessary repairs or replacements.
- We welcome customers to supervise the manufacturing process at our facility and will provide full support.
After-Sales Support
We offer comprehensive after-sales services, including free guidance for installation and commissioning. After the product is operational, if the customer requires support, our service team will respond promptly:
- Arrival on-site within 24 hours for locations within 300 km.
- Arrival on-site within 48 hours for locations beyond 300 km.
Additionally, we have established a robust regular follow-up system. We conduct periodic written or on-site visits to monitor the performance of in-service products, ensuring our customers have continuous peace of mind.
International Service Methods
Remote Technical Assistance
Our service team provides 24/7 online technical support, including video calls, troubleshooting guides, and documentation, ensuring immediate assistance regardless of time zones.
Detailed remote diagnostics can be conducted using customer-provided data or live visual inspections.
On-Site Support
For complex issues, we dispatch experienced technicians to the customer site promptly, adhering to the agreed international response timelines.
On-site services include installation guidance, commissioning, maintenance, and repairs.
Dedicated Service Representatives
Each international client is assigned a dedicated service representative to coordinate all aspects of after-sales support, including issue resolution and regular follow-ups.
Local Service Partnerships
We collaborate with certified local service partners in key markets to ensure faster response times and efficient support. These partners are fully trained in our products and processes to uphold our quality standards.
Regular Follow-Up Visits
Post-installation, we perform scheduled follow-up visits, either in person or virtually, to monitor product performance and address customer feedback. This proactive approach ensures optimal operation and customer satisfaction.
Why This Matters
Our comprehensive international service system combines swift response, advanced technical support, and localized expertise to provide our global clients with reliable and professional after-sales services. We are committed to building lasting partnerships through consistent support and excellence.
FAQs
When purchasing an Isolation Transformer, you may want to know the following questions & answers.
1. What are the voltage ratings, input and output capacities, and power ratings of the Isolation Transformer?
An Isolation Transformer is designed to provide electrical isolation between two circuits while maintaining the same voltage level, often to protect sensitive equipment, reduce noise, and eliminate the risk of electrical shock. Unlike step-up or step-down transformers, isolation transformers typically do not change the voltage level (though some may), but rather provide galvanic isolation, i.e., separation between the primary and secondary windings.
Below are the technical specifications for the typical Isolation Transformer in terms of voltage ratings, input and output capacities, and power ratings.
Voltage Ratings of Isolation Transformers
Primary Voltage (Input Voltage):
- The primary voltage rating of an isolation transformer is typically based on the electrical supply voltage or the system it is designed to protect or isolate.
- Common primary voltage ratings include:
- 110 V AC, 120 V AC, 230 V AC (residential and light commercial systems)
- 380 V AC, 415 V AC, 480 V AC (industrial systems)
- 600 V AC (high-power industrial systems)
- 5 kV AC, 10 kV AC, and higher voltages (for high-voltage systems or specialized applications).
- In DC isolation transformers, a typical primary voltage range could be from 24 V DC to 240 V DC, depending on the application.
Secondary Voltage (Output Voltage):
- The secondary voltage is usually the same as the primary voltage because an isolation transformer is primarily used for electrical isolation, not voltage conversion.
- Common output voltages:
- For low-voltage applications: 110 V AC, 120 V AC, 230 V AC, 240 V AC.
- For high-voltage industrial applications: 380 V AC, 415 V AC, 480 V AC.
- For special-purpose transformers (e.g., laboratory equipment or medical isolation): 6 V AC, 12 V AC, 24 V AC, 48 V AC, 110 V AC.
Input and Output Capacities
The capacity of an isolation transformer is generally defined by its power rating, but here’s a breakdown of typical input and output capacities:
Input Capacity:
- The input capacity is essentially the power drawn from the electrical supply. For a given transformer, this corresponds to the voltage and current it can handle on the primary side.
- Typical input capacities can range from 500 VA (0.5 kVA) for small, low-power isolation transformers to 50 MVA (50,000 kVA) for high-power industrial or utility isolation transformers.
Output Capacity:
- The output capacity of an isolation transformer is equal to the input capacity, minus losses (typically minimal for isolation transformers).
- For instance, a 1 kVA isolation transformer with a primary rating of 120 V AC and a secondary rating of 120 V AC will have an output capacity of 1 kVA (or 1000 VA) at the secondary side.
Output Voltage Rating:
In most isolation transformers, the output voltage will be the same as the input, unless the transformer includes additional tap settings or secondary windings that allow for voltage variation. Common output voltages are 110 V, 220 V, and 480 V AC, with adjustments available depending on customer needs or specific applications.
Power Ratings of Isolation Transformers
The power rating of an isolation transformer is generally expressed in Volt-Amperes (VA) or Kilovolt-Amperes (kVA). The VA rating is the product of the voltage and current on either side of the transformer.
Typical Power Ratings:
- Small Isolation Transformers (for low-power applications like electronics, medical equipment, and sensitive machinery):
- 0.5 kVA to 10 kVA
- Example: A small isolation transformer used for protecting home electronics might have a rating of 1 kVA.
- Medium Power Isolation Transformers (for industrial equipment, machinery, and HVAC systems):
- 10 kVA to 500 kVA
- Example: Isolation transformers used for industrial machines or data centers can range from 10 kVA to 200 kVA.
- Large Power Isolation Transformers (for high-power industrial applications, electrical substations, and utility grids):
- 500 kVA to 50 MVA (or more)
- Example: Transformers used in large-scale industrial systems or electrical grids could be rated up to 50 MVA or more.
Specific Examples:
A 1 kVA isolation transformer might provide:
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Power Rating: 1 kVA (1000 VA)
A 30 kVA isolation transformer might provide:
- Input Voltage: 415 V AC
- Output Voltage: 415 V AC
- Power Rating: 30 kVA (30,000 VA)
A 500 kVA isolation transformer might provide:
- Input Voltage: 480 V AC
- Output Voltage: 480 V AC
- Power Rating: 500 kVA (500,000 VA)
A 10 MVA isolation transformer used in high-voltage systems might provide:
- Input Voltage: 6 kV AC
- Output Voltage: 6 kV AC
- Power Rating: 10 MVA (10,000,000 VA)
Efficiency and Losses
Efficiency:
The efficiency of an isolation transformer is typically very high, generally in the range of 98% to 99.5% for most medium-to-large power isolation transformers. The losses, primarily from core losses and copper losses, tend to be minimal due to the use of high-quality materials and efficient design.Energy Losses:
- Core losses (no-load losses): Occur due to the alternating magnetic field in the core and are typically constant regardless of load. These losses are typically small and are a result of hysteresis and eddy currents.
- Copper losses (load losses): These occur due to the resistance in the windings and increase with the load on the transformer.
Applications of Isolation Transformers
Isolation transformers are often used in the following applications:
- Protecting sensitive equipment (e.g., medical devices, data centers, laboratory instruments) from power surges or faults.
- Noise filtering in audio, video, and communications systems.
- Ground loop elimination to prevent electrical interference.
- Electrical isolation for equipment in hazardous or high-voltage areas.
- Personal safety: They can isolate sensitive equipment from hazardous electrical faults.
Summary of Key Specifications:
| Specification | Typical Range/Values |
|---|---|
| Primary Voltage (Input) | 110 V AC, 120 V AC, 230 V AC, 415 V AC, 600 V AC, 5 kV AC, etc. |
| Secondary Voltage (Output) | Same as primary voltage (e.g., 120 V AC, 415 V AC, etc.) |
| Power Rating | 0.5 kVA to 50 MVA (or more for high-power applications) |
| Efficiency | 98% to 99.5% |
| Common Applications | Industrial machinery, medical devices, sensitive equipment, electrical isolation, noise reduction |
In conclusion, the Isolation Transformer is available in a broad range of voltage ratings and power capacities to suit various applications, from small electronics to large industrial systems. They are designed primarily for electrical isolation, with an emphasis on safety and protecting sensitive equipment from electrical faults, noise, and ground loops.
2. Is the Isolation Transformer compliant with international standards (IEC, UL, ANSI, etc.)?
Yes, Isolation Transformers are generally designed and manufactured to comply with a variety of international standards, including those set by organizations like IEC, UL, ANSI, and others, depending on the region and specific application requirements. These standards ensure that isolation transformers meet safety, performance, and quality criteria for electrical systems.
Key Standards for Isolation Transformers
Here are the most common international standards that isolation transformers comply with:
1. IEC (International Electrotechnical Commission) Standards
The IEC is one of the most widely recognized global bodies for standardizing electrical equipment. Isolation transformers typically comply with several IEC standards for safety, performance, and construction.
IEC 60076-1: Power Transformers – Part 1: General
This standard specifies general requirements for the design, testing, and safety of power transformers, which also applies to isolation transformers, especially those used in medium-to-high power applications.IEC 61558: Safety of Power Transformers, Power Supply Units, and Similar Devices
Specifically tailored for smaller and low-power transformers, IEC 61558 is directly relevant to isolation transformers and outlines the safety requirements for construction, operation, and testing. It includes guidelines for:- Protection against electric shock
- Fire safety
- Insulation coordination
- Temperature rise and short-circuit withstand strength
- Compliance with dielectric and insulation standards
IEC 60076-16: Power Transformers – Part 16: Transformers for Traction Substations
This is applicable for isolation transformers used in high-power traction or railway systems.IEC 60950: Information Technology Equipment – Safety
For isolation transformers used with IT or telecommunication equipment, compliance with IEC 60950 ensures that the transformer meets the safety standards specific to this domain.IEC 60742: Isolation Transformers for the Protection of Personnel
This standard provides the safety requirements for transformers specifically used for personnel protection in electrical installations.
2. UL (Underwriters Laboratories) Standards
In the United States, UL certification is critical for the safety of electrical products. Isolation transformers designed for use in North America typically need to meet UL standards, particularly those associated with low-voltage equipment.
UL 506: Standard for Specialty Transformers
This standard applies to small isolation transformers and covers aspects such as construction, materials, testing, and safety features. UL 506 ensures that the transformer is designed and built to prevent electrical hazards, overheating, and other failures.UL 1446: System of Insulation Coordination for Electrical Equipment
This standard provides guidelines on insulation materials and their coordination in electrical systems. Compliance with UL 1446 ensures that the isolation transformer meets stringent safety standards for insulation quality.UL 1585: Class 2 and Class 3 Transformers
This standard is relevant if the isolation transformer is used in low-voltage, low-power applications (e.g., electronics and communications systems). UL 1585 defines requirements for Class 2 and Class 3 transformers used to power limited energy circuits.UL 60950-1: Information Technology Equipment Safety
For transformers used in telecommunication, medical, and IT systems, this standard ensures safety, preventing hazards like electrical shock and fire.
3. ANSI (American National Standards Institute) Standards
ANSI standards, particularly those related to power distribution and electrical safety, are widely adopted in the United States. Isolation transformers in industrial settings may need to meet ANSI standards.
ANSI C57.12.00: General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
This standard covers general requirements for transformers and may apply to isolation transformers used in industrial power systems.ANSI C57.12.90: Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
This standard provides procedures for the testing of transformers, including isolation transformers, ensuring that they comply with necessary electrical and mechanical performance characteristics.ANSI C57.91: Guide for Loading Mineral-Oil-Immersed Transformers
This guide, while primarily focused on distribution transformers, is often used for determining safe operational limits of isolation transformers, especially in industrial applications.
4. IEC 61800 Series for Industrial Applications
For isolation transformers used in variable-speed drives or other industrial systems that are part of a digital or smart grid, the IEC 61800 series of standards may apply. This series addresses adjustable-speed electrical power drive systems and their components, ensuring that isolation transformers used in such systems can handle high levels of electromagnetic interference (EMI), maintain power quality, and operate efficiently.
5. Other Regional Standards
In addition to IEC, UL, and ANSI, isolation transformers may be subject to specific regional standards:
EN 61558 (Europe): This European standard is similar to IEC 61558 and applies to isolation transformers for safety in residential, commercial, and industrial use.
BS EN 61558: The British equivalent of the IEC standard, often required for transformers used in the UK.
AS 60076 (Australia): The Australian version of IEC 60076 for transformers, relevant for larger isolation transformers.
CSA C22.2 (Canada): Canada’s counterpart to UL standards, especially for small and medium-sized isolation transformers.
Additional Compliance Requirements
In addition to safety standards, isolation transformers may also need to meet various environmental regulations and quality certifications:
RoHS (Restriction of Hazardous Substances): Ensures that no hazardous materials like lead, mercury, and cadmium are used in manufacturing the transformer.
REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals): Compliance with this European regulation ensures that the transformer does not contain harmful chemicals that could be hazardous to human health or the environment.
ISO 9001: Some manufacturers ensure their transformers meet the ISO 9001 quality management standards for consistency and reliability.
ISO 14001: Environmental management standards, ensuring that the manufacturing process of the transformer adheres to sustainable practices.
IEC 61508 / IEC 62061: For isolation transformers used in safety-related control systems, these functional safety standards ensure compliance with safety requirements for critical applications.
Conclusion
Yes, Isolation Transformers are designed to be compliant with a range of international standards to ensure safety, quality, and performance. These include standards from:
- IEC (e.g., IEC 60076-1, IEC 61558 for safety)
- UL (e.g., UL 506, UL 1446 for North American safety)
- ANSI (e.g., ANSI C57 series for industrial and power transformers)
- EN and BS (European and British standards for transformer safety)
Compliance with these standards guarantees that isolation transformers meet stringent safety, electrical, and operational criteria, protecting both users and equipment from electrical faults, surges, and other risks.
3. What types of isolation are provided (e.g., galvanic, electromagnetic) and what is their effectiveness in reducing noise and transients?
Isolation transformers are primarily designed to provide electrical isolation between circuits, with the two most common types of isolation being galvanic isolation and electromagnetic isolation. These forms of isolation are critical for protecting equipment, improving safety, and reducing noise and transients in various electrical systems.
Here’s an overview of the types of isolation provided by isolation transformers and their effectiveness in reducing noise and transients:
1. Galvanic Isolation
Galvanic isolation refers to the complete separation between the primary (input) and secondary (output) windings of the transformer. The two circuits are not directly connected by any conductive material, ensuring that no electrical current or voltage can flow directly from one to the other. Instead, energy is transferred through the magnetic field of the transformer.
How it Works:
- The primary winding generates a magnetic field, which induces a voltage in the secondary winding.
- The primary and secondary circuits are physically and electrically separated by the transformer core and insulation.
- This isolation prevents direct current flow (DC) between the circuits, thus eliminating the risk of electrical shock or short circuits.
Effectiveness in Reducing Noise and Transients:
Noise Suppression:
Galvanic isolation is highly effective at reducing common-mode noise, which is the noise that can affect both conductors of a circuit in the same way. This is especially useful in audio, data transmission, and sensitive equipment like medical devices, where electrical noise can degrade performance or even cause malfunction.Example: In medical equipment, galvanic isolation ensures that noise from external sources, such as electrical appliances or grid fluctuations, does not interfere with the operation of the medical devices.
Transient Protection:
While galvanic isolation is not inherently designed for transient suppression (like surges or spikes), it can indirectly reduce the impact of transients by isolating the circuits and preventing direct current flow from a transient event in the primary circuit from reaching the secondary. This can help to protect sensitive electronics from high-voltage spikes or surges.Example: In a power grid, an isolation transformer can prevent voltage transients caused by lightning or switching events in the primary grid from reaching sensitive equipment connected to the secondary side.
Isolation from Ground Loops:
Galvanic isolation also helps eliminate ground loops—a common source of noise in audio and data systems. Ground loops occur when two devices in an electrical system are grounded at different potentials, creating a path for unwanted current to flow. Isolation breaks this path, mitigating ground loop interference.
2. Electromagnetic Isolation
Electromagnetic isolation involves the ability of the transformer to block or attenuate electromagnetic interference (EMI), which includes both radiated and conducted noise. Transformers that are designed to reduce EMI often use shielding or specialized core materials to block unwanted electromagnetic fields from passing between the primary and secondary circuits.
How it Works:
- The magnetic field created by the current in the primary winding can induce unwanted currents or fields in nearby circuits, contributing to EMI.
- Electromagnetic isolation is achieved by using shielded transformer designs, such as Faraday shields (metallic barriers between primary and secondary windings) or low-noise cores (such as those made from materials that attenuate high-frequency electromagnetic noise).
Effectiveness in Reducing Noise and Transients:
Electromagnetic Interference (EMI) Filtering:
Shielded isolation transformers with Faraday shields are effective at reducing high-frequency noise from sources like switch-mode power supplies (SMPS), radio-frequency interference (RFI), and electromagnetic radiation. These shields absorb and reroute unwanted electromagnetic energy before it can pass through to the secondary side.Example: In audio equipment or data centers, where high-frequency noise can significantly affect the performance of sensitive electronics, electromagnetic isolation can reduce distortion and signal degradation caused by EMI.
Transient Reduction:
While electromagnetic isolation primarily addresses EMI, it can also play a role in attenuating voltage spikes or surges caused by external electromagnetic fields, such as lightning strikes or power line crossovers. By shielding the secondary winding from external electromagnetic forces, the transformer can reduce the likelihood of transients entering the secondary circuit.Example: In telecommunications systems, isolation transformers with electromagnetic shielding protect against EMI from external sources like radio signals or nearby electrical equipment.
3. Combined Galvanic and Electromagnetic Isolation
Many modern isolation transformers combine both galvanic isolation and electromagnetic isolation techniques to provide comprehensive protection and noise reduction. These transformers are often used in applications where both safety and signal integrity are critical.
Combined Effectiveness:
When both types of isolation are present, the transformer can isolate the circuits electrically (for safety and ground loop elimination) and electromagnetically (for EMI and transient suppression). This provides optimal protection in environments with significant electrical noise or where the integrity of sensitive signals is paramount.Applications:
These combined isolation transformers are widely used in medical equipment, audio systems, industrial controls, data transmission systems, and high-frequency equipment, where both electrical isolation and noise reduction are essential.
Effectiveness in Specific Applications
1. Medical Equipment
- Galvanic isolation is critical to prevent electrical shocks and ensure patient safety. Isolation transformers are often designed to meet IEC 60601 standards for electrical safety in medical devices.
- Electromagnetic isolation helps prevent interference from nearby medical equipment and power lines that could compromise device performance.
2. Audio and Communication Systems
- In these systems, both galvanic and electromagnetic isolation are used to:
- Prevent ground loops (galvanic isolation).
- Reduce hum, buzz, and electromagnetic interference (electromagnetic isolation).
3. Industrial Systems and Automation
- Galvanic isolation protects sensitive control equipment from electrical faults in the power system.
- Electromagnetic isolation prevents noise from variable-frequency drives (VFDs) and other industrial equipment from disturbing control signals.
4. Data Centers and IT Equipment
- Galvanic isolation ensures equipment connected to IT networks remains protected from faults in the power supply.
- Electromagnetic isolation protects data cables and IT equipment from electromagnetic radiation and RFI that could disrupt data transmission.
Summary of Isolation Types and Their Effectiveness
| Type of Isolation | Description | Effectiveness | Common Applications |
|---|---|---|---|
| Galvanic Isolation | Physical and electrical separation of circuits. | Highly effective in preventing electrical shock, noise, ground loops, and transient events. | Medical equipment, audio systems, IT equipment, power systems. |
| Electromagnetic Isolation | Reduction of EMI through shielding and specialized cores. | Highly effective in reducing electromagnetic interference (EMI), RFI, and high-frequency noise. | Audio equipment, telecommunications, industrial control, medical devices. |
| Combined Isolation | A combination of galvanic and electromagnetic isolation. | Optimal in providing both electrical and noise isolation, suitable for sensitive and high-performance systems. | Medical equipment, audio systems, data centers, high-precision industrial systems. |
In conclusion, isolation transformers provide critical protection by offering galvanic isolation (for safety and noise reduction) and electromagnetic isolation (for filtering EMI and transients). Depending on the application, transformers may provide one or both of these types of isolation to achieve enhanced protection, noise suppression, and improved system performance.
4. What is the efficiency rating of the Isolation Transformer, and what are the typical energy losses during operation?
The efficiency of an Isolation Transformer and the associated energy losses are key factors in determining the performance and operational cost of the device. The efficiency rating and energy losses depend on several factors, including the design, size, load conditions, and the type of materials used in the transformer. Here’s a detailed breakdown:
1. Efficiency Rating of Isolation Transformers
The efficiency of an isolation transformer refers to how effectively it converts electrical energy from the primary (input) side to the secondary (output) side without excessive loss. Typically, the efficiency of isolation transformers can range from 95% to 99%, with higher efficiency seen in larger, industrial-grade transformers.
Typical Efficiency Values:
- Standard Isolation Transformers: 95% to 98% efficient.
- High-Efficiency Transformers: 98% to 99% efficient (common in high-quality or large-scale units).
Efficiency is influenced by factors like transformer design, load conditions, material quality, and operational voltage.
2. Energy Losses During Operation
Energy losses in isolation transformers are primarily divided into two categories:
A. Core Losses (Iron Losses)
Core losses, also known as iron losses, occur due to the magnetization of the transformer core material as it alternates between positive and negative polarity. These losses happen continuously, whether the transformer is under load or idle.
- Cause: These losses are caused by hysteresis (resistance of the core material to magnetization) and eddy currents (currents induced in the core due to the changing magnetic field).
- Characteristics: Core losses are constant, meaning they do not change significantly with the load on the transformer, but are rather a function of the voltage applied and the frequency of operation.
- Typical Loss: Core losses are typically between 0.5% to 2% of the rated power, depending on the transformer design and the type of core material (e.g., silicon steel, amorphous steel, etc.).
B. Copper Losses (Winding Losses)
Copper losses are due to the resistance of the windings and are proportional to the square of the current flowing through them. These losses increase with the load on the transformer.
- Cause: As current flows through the windings, it encounters resistance, causing heat generation and energy loss. These losses are proportional to the load; the higher the load, the higher the copper losses.
- Characteristics: Copper losses vary with the load current, so at full load, copper losses are at their maximum. At no load or partial load, copper losses are lower.
- Typical Loss: Copper losses generally account for 1% to 5% of the rated power, depending on the transformer design, winding material, and load conditions.
C. Other Losses
Other minor losses can also contribute to the total energy loss in an isolation transformer:
Stray Losses: These losses occur due to leakage flux or stray currents in the transformer. They are usually small and are typically considered part of core or copper losses.
Dielectric Losses: These are losses that occur in the insulation materials of the transformer, especially at higher voltages or frequencies. These are typically small but become more significant in high-voltage transformers.
Magnetic Losses: In some transformer designs, particularly in those with poor magnetic shielding or improper core design, magnetic losses may contribute to inefficiency.
3. Losses as a Function of Load
The total losses of an isolation transformer are a combination of both core losses and copper losses. As a transformer operates, the relative contributions of these losses will change based on the load:
At No Load: Core losses are the dominant loss. Copper losses are minimal because the current is very low.
At Full Load: Copper losses increase significantly, as they are directly related to the current flowing through the windings. Core losses remain relatively constant.
At Partial Load: Copper losses are reduced, but core losses stay the same.
Example: In a 100 kVA isolation transformer, the core losses might be around 1.5 kW (1.5% of 100 kVA), while the copper losses could vary depending on the load, but might be around 2 kW at full load. This gives a combined loss of around 3.5 kW at full load.
4. Energy Losses in Relation to Efficiency
At Full Load:
- For a 98% efficient isolation transformer, the energy loss is about 2% of the rated power, or 2 kW in a 100 kVA transformer.
- The losses are split between core losses (constant) and copper losses (which increase with load).
At No Load:
- At no load, most of the loss comes from core losses (which might be around 1.5% to 2% of the rated power).
- Copper losses are negligible because current is minimal.
5. Improving Efficiency and Reducing Losses
Manufacturers often implement various design strategies to improve transformer efficiency and reduce energy losses, such as:
- Using High-Quality Core Materials: Materials like amorphous steel or high-grade silicon steel can reduce core losses significantly.
- Optimizing Winding Design: Using low-resistance copper or aluminum windings and optimizing their geometry helps reduce copper losses.
- Improved Insulation Materials: Using high-performance insulation materials can reduce dielectric losses, especially in high-voltage applications.
- Designing for Optimal Load Conditions: Ensuring that transformers are operated near their optimal load range can help minimize energy losses.
Conclusion
The efficiency of Isolation Transformers typically ranges from 95% to 99%, with core losses contributing about 0.5% to 2% of the rated power and copper losses contributing about 1% to 5% of the rated power. At full load, total energy losses can be in the range of 2% to 5% of the rated power, depending on transformer size, design, and materials used. The energy losses vary with load conditions, with core losses being constant and copper losses increasing as the load increases. Manufacturers can optimize the efficiency of isolation transformers by using high-quality materials, advanced designs, and load optimization strategies.
5. What is the size, weight, and form factor of the Isolation Transformer, and does it fit the installation space requirements?
The size, weight, and form factor of an Isolation Transformer vary significantly depending on several factors such as its power rating, voltage specifications, and application. These transformers come in a wide range of designs, from compact units used in low-power applications to large, heavy-duty models used in industrial or utility systems. Below is a breakdown of key considerations for the size, weight, and form factor, as well as their impact on installation space requirements.
1. Size (Physical Dimensions)
The size of an isolation transformer is typically defined by the following:
- Power Rating: Higher power ratings generally require larger physical dimensions.
- Voltage Rating: Transformers designed to handle higher voltages may need more robust insulation and larger core sizes.
- Core Type and Design: The choice of core material (e.g., laminated silicon steel, amorphous steel) and winding type (e.g., shell-type or core-type design) affects the size.
- Load Application: Transformers for industrial use (high kVA) are larger than those for residential or commercial purposes.
Typical Size Range:
- Low-power Isolation Transformers (up to 1 kVA): These typically have compact designs. For example, a 1 kVA transformer could be around 8–12 inches (20–30 cm) in height and 6–10 inches (15–25 cm) in width.
- Medium-power Isolation Transformers (1–50 kVA): A 10 kVA transformer may have dimensions of about 12–16 inches (30–40 cm) in height, 10–14 inches (25–35 cm) in width, and 8–12 inches (20–30 cm) in depth.
- High-power Isolation Transformers (50 kVA and above): Larger transformers for industrial or high-power applications can be significantly bigger. A 100 kVA transformer, for example, could have dimensions of 2–3 feet (60–90 cm) in height, 2–4 feet (60–120 cm) in width, and 2–3 feet (60–90 cm) in depth.
Note: These dimensions may vary based on whether the transformer is designed for wall-mounting, floor-mounting, or if it is housed in a sealed enclosure for outdoor use.
2. Weight
The weight of an isolation transformer depends on the power rating, core material, winding material, and overall construction.
- Low-power Isolation Transformers (up to 1 kVA): These are usually lightweight, often weighing between 5 to 20 kg (11 to 44 lbs).
- Medium-power Isolation Transformers (1–50 kVA): A 10 kVA transformer may weigh around 20–50 kg (44–110 lbs).
- High-power Isolation Transformers (50 kVA and above): Larger transformers can weigh anywhere from 50 kg (110 lbs) for smaller 50 kVA units to several hundred kilograms for very large 500 kVA+ transformers.
The weight is largely driven by the core size, the copper windings, and the insulation materials. More robust designs and higher efficiency transformers tend to be heavier.
3. Form Factor (Shape and Design)
The form factor of an isolation transformer is typically determined by its intended use, and it can come in several configurations:
Common Form Factors:
Floor-mounted (Industrial): These are typically larger transformers (10 kVA and above) designed to be installed on the floor of an electrical room, substation, or industrial plant. These units tend to have a rectangular or box-shaped form.
Wall-mounted (Compact): Smaller, low-power isolation transformers (typically up to 10 kVA) are often designed for wall-mounting to save space in commercial or residential applications. These are usually more compact and lightweight, designed for easy installation in tight spaces.
Enclosed/Sealed Units: Many industrial isolation transformers are housed in weatherproof, sealed enclosures to protect them from dust, moisture, and other environmental factors. These enclosures may include features like ventilation or fans for cooling, depending on the transformer’s size and application.
Rack-mounted (For IT/Telecommunications): For low-power systems, isolation transformers used in telecommunications or IT applications may have a 19-inch rack-mountable form factor, typically designed for installations in server racks or control panels.
4. Installation Space Requirements
When determining if an isolation transformer will fit within the designated installation space, there are several important factors to consider:
A. Physical Space Requirements
- Clearance for Cooling: Transformers generate heat during operation, so adequate ventilation or clearance is required around the unit. Typically, a minimum clearance of 2–4 inches (5–10 cm) on each side is needed for ventilation, although this can vary based on transformer size.
- Mounting Configuration: Wall-mounted units will need wall space and secure brackets for installation. Floor-mounted transformers require sufficient floor area, and rack-mounted transformers need space in the rack, typically designed for a standard 19-inch width.
B. Electrical Connections
- Ensure sufficient space for input and output connections, including cables, busbars, and grounding connections. Adequate space around terminals and connectors is needed to prevent overheating and to allow for easy maintenance or upgrades.
C. Environmental Considerations
- Outdoor vs. Indoor: For outdoor installations, transformers might need to meet specific weatherproofing standards, such as IP-rated enclosures (e.g., IP55 or IP65).
- Cooling Needs: Larger transformers (especially those over 50 kVA) may require additional cooling systems (e.g., fans, air conditioning, or even liquid cooling in extreme cases) if they generate significant heat during operation. Consideration must be given to the thermal environment.
D. Weight Handling
- Transformers, especially high-power models, can be quite heavy. Ensure that the floor or mounting structure can handle the weight, especially if the transformer is floor-mounted.
5. Example: 10 kVA Isolation Transformer Installation
Size and Weight:
- Dimensions: Approximately 16 inches (40 cm) in height, 14 inches (35 cm) in width, and 12 inches (30 cm) in depth.
- Weight: Around 25–35 kg (55–77 lbs).
Installation Considerations:
- Space: Requires at least 2 feet (60 cm) of floor space for proper placement and ventilation.
- Clearance: A minimum of 4 inches (10 cm) around the sides for cooling.
- Connections: Space for input/output wiring and grounding connections.
- Mounting: Typically floor-mounted or wall-mounted, depending on the design.
Conclusion
The size, weight, and form factor of an Isolation Transformer are heavily influenced by its power rating, voltage specifications, and application. Here’s a general overview:
- Small transformers (up to 1 kVA) are compact and lightweight, typically wall-mounted or used in small applications like telecommunication or IT equipment.
- Medium transformers (1–50 kVA) are suitable for commercial or light industrial settings and are typically floor-mounted or placed in enclosures.
- Large transformers (50 kVA and above) are used in heavy industrial applications, often requiring significant floor space, floor-mounting, and possibly cooling.
Before installation, always verify the physical space, ventilation requirements, and electrical connection space to ensure that the isolation transformer fits within the available installation area and complies with all safety and operational requirements.
Download
Ultimate Guide
Faster global delivery
lifespan ＞ 30 years
Why Choose us ？
engineered to perform.
Taishan Transformer is a key national-level manufacturer specializing in transformers, recognized as a “Contract-Honoring and Promise-Keeping” enterprise, a high-tech enterprise, and a national-level enterprise technology center. It is recommended in the national directory for rural and urban power grid construction and renovation, as well as a recommended supplier of major electromechanical equipment for hydropower projects. Its products have been awarded the title of “National Quality Inspection Qualified Product – Quality Trustworthy Product” and “Nationally Recognized Product for Mechanical Industry Users.
Our Project
Our products not only dominate the domestic market but are also exported to more than 30 countries and regions, including Russia, Southeast Asia, Africa, and the Americas, serving industries such as power, municipal engineering, metallurgy, and petrochemicals.
