What Are Routine and Special Tests?

Power transformers are critical assets in any electrical system, and ensuring their quality and performance is essential for safety, reliability, and longevity. To verify this, manufacturers and utilities conduct a series of routine and special tests in accordance with international standards such as IEC 60076, IEEE, or ANSI. Understanding the purpose and scope of these tests helps stakeholders evaluate transformer readiness before commissioning or delivery.

What Are Routine Tests and Why Are They Mandatory?

When acquiring or commissioning a transformer—whether dry-type or oil-immersed—it is essential to verify that the unit complies with the design, meets safety standards, and functions reliably from day one. That's where routine tests come in. Often misunderstood as optional or minor, routine tests are in fact mandatory quality control procedures defined by international standards like IEC 60076-11 (for dry-type transformers) and ensure that each manufactured unit is safe, electrically sound, and ready for operation. Skipping these tests can lead to installation failures, warranty voids, and even safety hazards.

Routine tests are a set of mandatory electrical and mechanical verifications performed on every transformer unit before shipment to confirm that it meets design specifications, safety standards, and operational reliability. Defined by IEC 60076-11 and equivalent national standards, these tests include insulation resistance, winding resistance, voltage ratio, polarity, impedance voltage, no-load and load losses, and dielectric strength tests. Routine tests are required by law or certification for quality assurance and are essential for detecting manufacturing defects, ensuring safety, and validating transformer performance.

1. What Are Routine Tests?

Routine tests are standardized inspections and measurements carried out on every manufactured transformer, regardless of rating or end-use. Their goal is to:

• Verify the electrical and mechanical integrity of the transformer
• Ensure compliance with design specs and contractual performance
• Identify defects such as improper connections, insulation flaws, or winding errors
• Certify quality control before delivery or installation

📜 These are distinct from type tests (done on representative units) and special tests (performed on customer request).

2. List of Mandatory Routine Tests (per IEC 60076-11 for Dry-Type Transformers)

🧪 These tests are performed on every transformer unit, typically before packaging and shipment.

3. Why Are Routine Tests Mandatory?

⚠️ Failure to conduct or document routine tests can result in legal non-compliance, system failures, or insurance rejections.

4. Routine Testing vs. Other Transformer Test Categories

🔧 Type tests may include temperature rise, impulse voltage, partial discharge, which are beyond routine test scope.

5. Interpretation of Key Routine Test Results

📈 All test results are compiled into a routine test report—a critical document for regulators, clients, and warranty providers.

6. Factory Testing Equipment and Procedure Flow

🏭 Routine tests are usually done in sequence on the production floor or a certified test lab, with calibration traceability.

7. International Standards Requiring Routine Tests

🌐 Test compliance under these standards ensures cross-border acceptance and installation approvals.

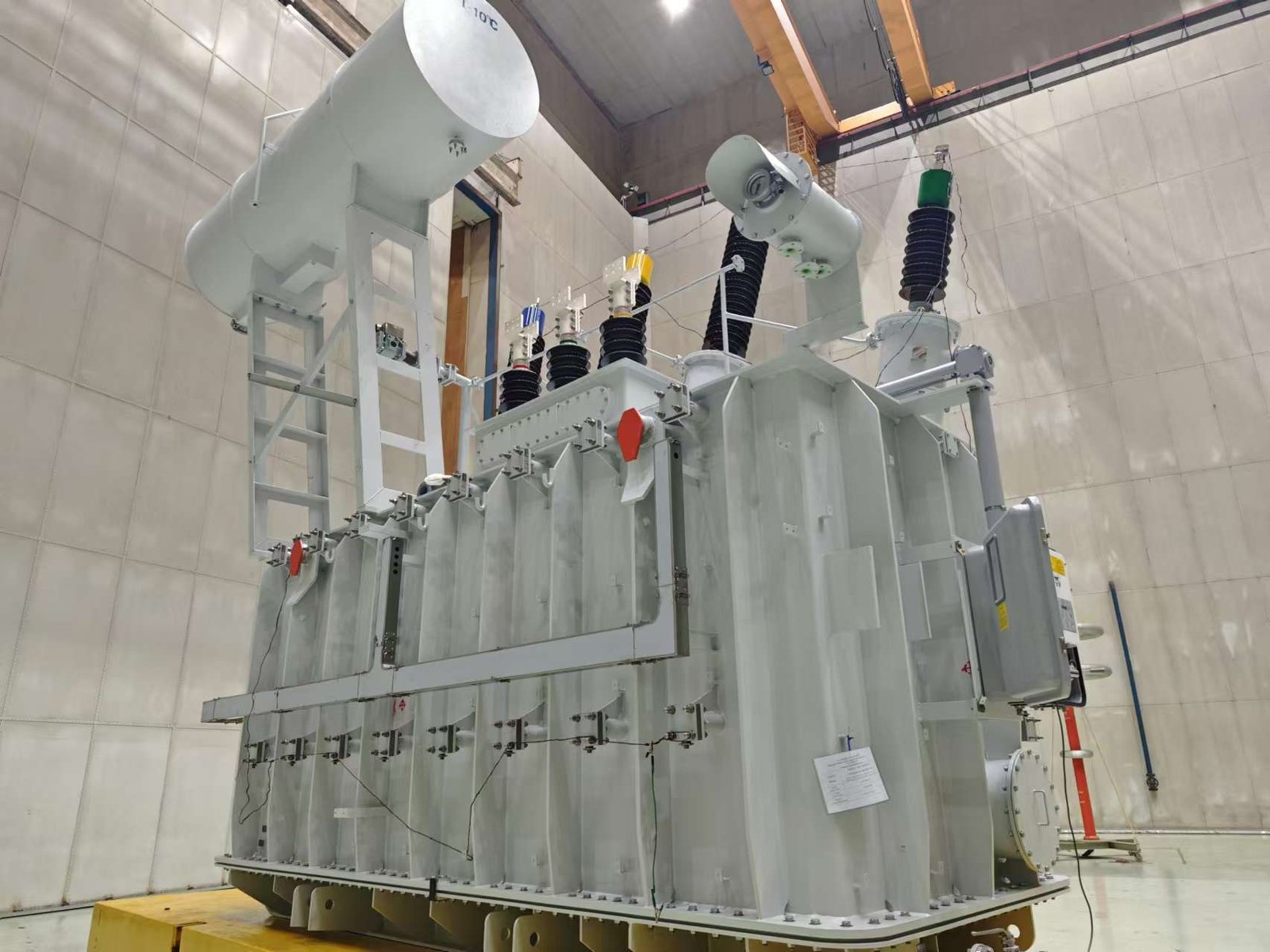

What Do Special Tests Evaluate in Power Transformers?

Routine testing ensures that each transformer is built to specification and free from basic defects—but routine tests alone cannot predict how a transformer will behave under extreme conditions, long-term load cycles, or rare events like lightning strikes. That’s where special tests come in. Unlike routine tests (conducted on every unit), special tests are typically performed on selected units to assess behavior beyond standard operation, providing deeper insights into design robustness, dielectric strength, temperature performance, sound emissions, and electromagnetic compatibility. These tests are particularly critical in power transformers, where failure can disrupt entire grid systems and cause massive losses.

Special tests are advanced, non-mandatory evaluations performed on power transformers to assess their performance under abnormal or extreme conditions not covered by routine tests. According to standards such as IEC 60076-1 and IEEE C57.12.90, special tests include lightning impulse withstand, temperature rise, sound level, partial discharge, dielectric dissipation factor (tan δ), and electromagnetic interference. These tests provide critical data for high-reliability applications, customer-specific requirements, or when transformers are installed in harsh or sensitive environments.

1. Definition and Purpose of Special Tests

Special tests are targeted evaluations designed to simulate stressors that exceed typical operating conditions, giving stakeholders confidence in the transformer's:

• Long-term reliability
• Dielectric endurance
• Thermal stability
• Acoustic impact
• Compliance with customer-specific or environmental requirements

📘 While not mandatory for every unit, they are often required in procurement contracts, FAT procedures, or critical system deployments.

2. Common Special Tests in Power Transformers (IEC 60076-1)

🧪 Some of these tests are critical for high-voltage transformers (≥72.5 kV) or where environmental permits (noise, EMI) require compliance.

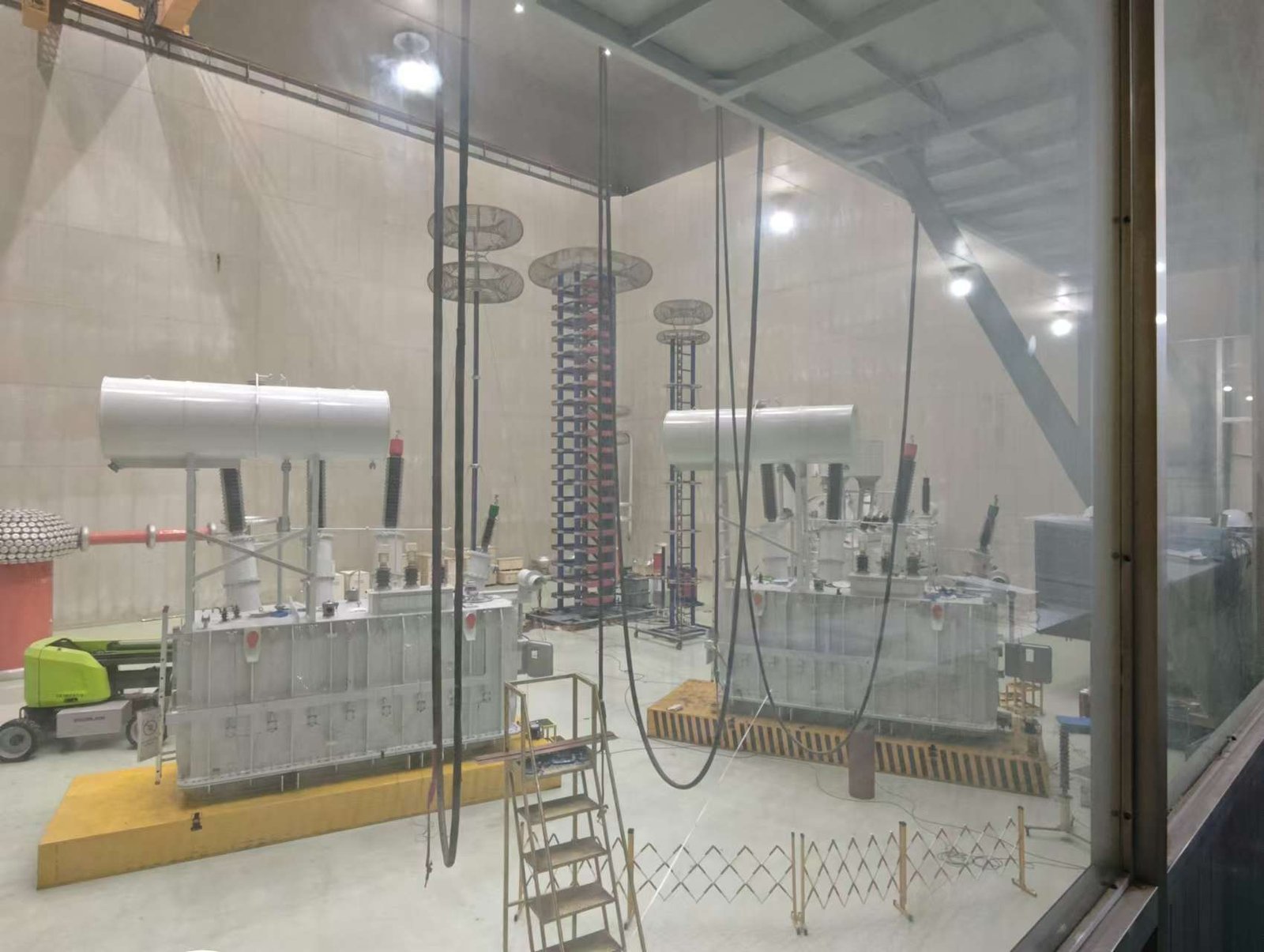

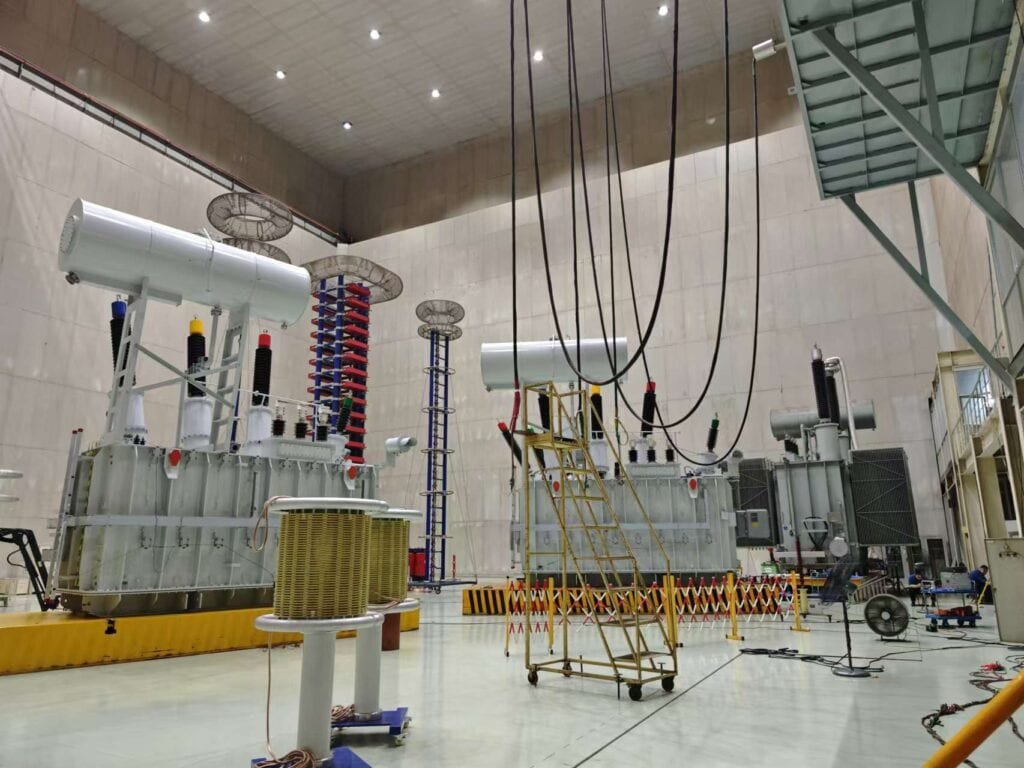

3. Lightning Impulse Withstand Test: Simulating Surge Conditions

⚡ This test ensures the transformer can withstand overvoltage surges from lightning or switching transients—a must for transmission-class transformers.

4. Temperature Rise Test: Validating Thermal Performance

🌡️ The test verifies that transformer components stay within thermal limits, ensuring long insulation life and reliable loading.

5. Partial Discharge (PD) Measurement: Insulation Health Check

🔍 PD testing can identify minor voids or resin defects that may later evolve into dielectric breakdowns—making it a crucial quality assurance step for dry-type transformers.

6. Sound Level Testing: Ensuring Acoustic Compliance

🔇 Sound testing is often required for urban, hospital, or campus installations, especially in noise-sensitive zones.

7. Special Test Flowchart During Factory Acceptance Test (FAT)

flowchart TD
  A[Transformer Assembled] --> B[Routine Testing Passed]
  B --> C{Customer Specification?}
  C -->|Yes| D[Lightning Impulse Test]
  C -->|Yes| E[Temperature Rise Test]
  C -->|Yes| F[Partial Discharge Test]
  C -->|Yes| G[Sound Level Test]
  C -->|No| H[Standard Labeling and Packing]
  D --> I[Detailed Report Generated]
  E --> I
  F --> I
  G --> I
  I --> H

📄 All special test results are logged and certified—becoming part of the Factory Acceptance Test (FAT) dossier.

8. Standards Governing Special Tests

📘 Referencing these ensures international compliance and interoperability.

Who Conducts These Tests and Under What Standards?

Power and distribution transformer testing is not a casual or optional task—it is a critical, regulated engineering function that must be executed with precise methodology, accredited equipment, and under internationally recognized standards. These tests confirm transformer reliability, compliance, and safety. But who exactly is responsible for conducting them, and under what frameworks? The answer lies in a combination of manufacturer-led quality control, third-party validation, and strict adherence to IEC, IEEE, ANSI, and national testing codes. Improper or unaccredited testing can invalidate warranties, delay commissioning, or expose operators to unacceptable risks.

Transformer tests are conducted by certified test engineers at accredited transformer manufacturing facilities, independent laboratories, or third-party inspection agencies. The testing process follows established international standards such as IEC 60076 series, IEEE C57.12 series, and regional equivalents like IS 2026 or AS/NZS 60076. Routine tests are mandatory and typically conducted by the transformer manufacturer before shipment, while type and special tests may be witnessed by customers or third-party bodies to confirm compliance, performance, and safety. All testing personnel must follow procedures defined in standard-specific test codes, using calibrated equipment traceable to national or international metrology institutes.

1. Who Conducts Transformer Testing?

✅ Test engineers must be formally trained in handling high-voltage equipment, dielectric testing, and thermal diagnostics.

2. What Are the Key Testing Standards Used?

🧾 Compliance with these standards ensures interoperability, grid safety, and regulatory acceptance across regions.

3. Testing Process Responsibility Matrix

🛠 All test records must be digitally stored, signed, and certified before transformer delivery or site energization.

4. Accreditation and Certification Requirements

📋 Testing bodies must also maintain personnel competency records, equipment calibration logs, and deviation handling procedures.

5. Standardized Testing Equipment and Calibration

⚙️ All readings must be traceable to national metrology institutes (e.g., NIST, PTB, NPL) for test data to be certifiable.

6. How Is Compliance Verified?

📎 These records are essential for commissioning approvals, warranty validation, and grid interconnection documentation.

7. Special Consideration for International Projects

🌐 Global projects must ensure testing conforms to import/export regulations, utility technical specifications, and local safety codes.

How Do These Tests Impact Transformer Warranty and Acceptance?

In high-stakes projects involving power or distribution transformers, performance issues or failures post-installation can have catastrophic financial and operational consequences. This is why manufacturers, EPCs, and utility operators rely on formal test protocols to validate the transformer’s performance and integrity before acceptance. These routine, type, and special tests are not merely technical formalities—they are legal and contractual prerequisites that directly determine warranty coverage, contractual acceptance, and liability exposure. A transformer that fails required testing may be rejected outright, while one that passes all specified tests qualifies for commissioning approval and full warranty activation.

Transformer tests—especially routine and special tests—are critical to warranty enforcement and final acceptance. Manufacturers require successful completion of routine tests (as per IEC 60076, IEEE C57.12, etc.) to activate the warranty. Additionally, the Factory Acceptance Test (FAT) process—which may include type and special tests—serves as the contractual benchmark for client approval. Any failure to conduct, witness, or document these tests can lead to warranty voidance, delays in commissioning, or legal disputes. Passing these tests assures stakeholders that the transformer complies with specifications, qualifies for operational deployment, and is covered under the agreed warranty terms.

1. How Transformer Testing Affects Warranty Activation

🛡️ No transformer can be legally covered by a full warranty unless it passes routine tests, with certified reports issued and shared with the buyer.

2. Factory Acceptance Tests (FAT): Legal and Contractual Importance

📋 If FAT is not witnessed or documented, it may delay site acceptance, project payment milestones, and grid interconnection approvals.

3. Warranty Clauses Related to Testing (Common Contract Language)

🧾 These clauses are often embedded in EPC contracts, OEM supply terms, and utility procurement documents.

4. Acceptance Criteria for Routine and Special Tests

🔍 Any test failure must be corrected or contractually accepted by deviation waiver, or it can trigger rework or return of goods.

5. Role of Test Reports in Final Acceptance Documentation

📎 These documents are archived with transformer serial number and contract ID, forming the warranty support dossier.

6. Consequences of Incomplete or Failed Testing

🚨 Proper test documentation and certified execution safeguard all parties—OEMs, clients, and insurers—against liability.

Conclusion

Routine and special tests are vital components of transformer quality assurance. While routine tests ensure that the unit functions as expected under standard conditions, special tests provide deeper insights into its behavior under extreme or specific scenarios. Together, they help reduce operational risks, ensure regulatory compliance, and support long-term system reliability.

FAQ

Q1: What are routine tests in transformers?
A1: Routine tests are standardized quality control tests performed on every transformer before delivery to verify its performance, reliability, and compliance. These include:

Insulation resistance test

Turns ratio test (TTR)

Winding resistance test

No-load and load loss measurement

Impedance voltage test

Applied and induced voltage tests
Routine tests ensure that the transformer meets design specifications and operates safely under rated conditions.

Q2: What are special tests in transformers?
A2: Special tests are customized or advanced diagnostics conducted based on:

Customer specifications

Application requirements

Design complexity
They assess additional performance or behavior, such as:

Temperature rise test

Impulse voltage withstand test (lightning surge simulation)

Sound level measurement

Partial discharge measurement

Dielectric response analysis

Sweep Frequency Response Analysis (SFRA)
These tests help verify extended performance and operational safety under unique conditions.

Q3: Who defines the standard for routine and special transformer tests?
A3: Globally recognized standards organizations include:

IEC 60076 (International)

IEEE C57 (North America)

ANSI/IEEE, NEMA, and IS (for regional compliance)
Manufacturers must follow these standards to ensure reliability, interchangeability, and regulatory approval.

Q4: Are routine tests mandatory for all transformers?
A4: Yes. Routine tests are compulsory for every transformer before shipment:

Confirm core and coil quality

Detect manufacturing defects

Validate electrical ratings
Without successful routine test results, a transformer cannot be certified or delivered to customers or utilities.

Q5: When are special tests typically requested?
A5: Special tests are usually:

Required by clients for high-value, mission-critical, or custom transformers

Conducted for research, grid integration, or extreme environment readiness

Performed when the transformer will be used in renewable energy systems, underground applications, or smart grids
They provide deeper insights into reliability and long-term performance.
