What are single-phase vs three-phase power transformers used for?

Power transformers are available in single-phase and three-phase configurations, each serving distinct roles in electrical power systems. While they share the same fundamental function—voltage transformation—their design, application, and usage environments differ significantly. Understanding the differences between single-phase and three-phase transformers is essential for selecting the right equipment for residential, commercial, and industrial operations.

What Is a Single-Phase Transformer and How Does It Work?

Single-phase transformers are among the most widely used types of transformers in power distribution and equipment applications. From residential power supply to control panels, industrial machines, and rural grid connections, they play a critical role in voltage transformation where three-phase power is not necessary or available.

A single-phase transformer is an electrical device that converts alternating voltage from one level to another using electromagnetic induction. It consists of a magnetic core and two windings—primary and secondary—wound on the same limb. When an alternating voltage is applied to the primary winding, it creates a magnetic flux in the core, inducing a proportional voltage in the secondary winding according to the turns ratio.

This simple yet powerful principle allows safe, efficient voltage transformation for single-phase AC circuits.

Key Components and Structure

Operating Principle – Faraday's Law of Electromagnetic Induction

Voltage Relationship:

$$\frac{V_s}{V_p} = \frac{N_s}{N_p}$$

Where:

• $V_s$ = Secondary voltage
• $V_p$ = Primary voltage
• $N_s$, $N_p$ = Number of turns in secondary and primary windings

Types of Single-Phase Transformers

Advantages of Single-Phase Transformers

Application Areas

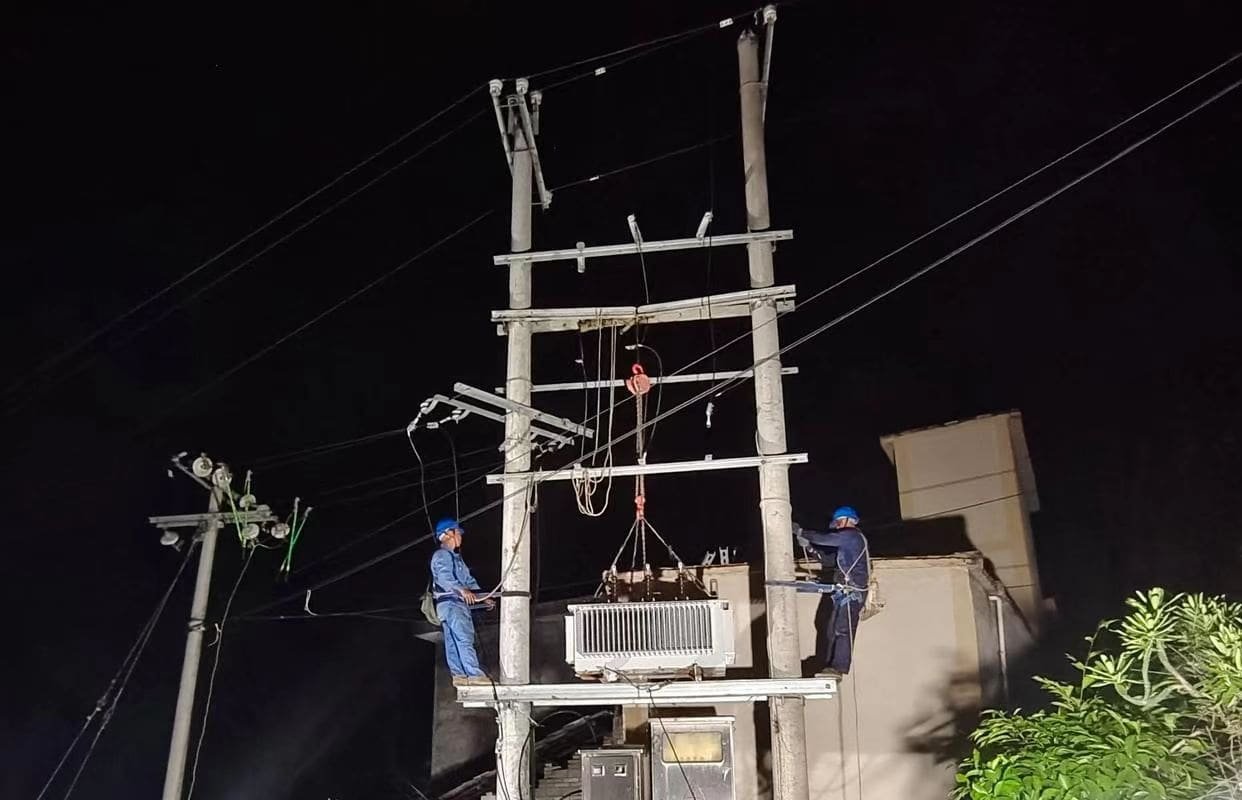

Real-World Example – 25 kVA Pole-Mounted Transformer

• Type: Single-phase step-down
• Voltage: 11 kV to 230 V
• Cooling: Oil-immersed, natural air-cooled (ONAN)
• Installed: Rural feeder line in agricultural zone

Result: Delivered stable power to 8 households and 3 irrigation pumps with no maintenance for 7 years, thanks to simple design and low load stress.

What Is a Three-Phase Transformer and How Is It Constructed?

Three-phase transformers are the backbone of modern electrical power systems, enabling efficient high-power transmission and distribution in industrial, utility, and renewable networks. They are more compact, economical, and efficient than equivalent banks of single-phase units, and are constructed to handle balanced three-phase loads in a single integrated unit.

A three-phase transformer is an electrical device that converts three-phase AC voltage from one level to another using magnetic induction. It consists of three sets of windings—primary and secondary—either wound on a common core (three limbs) or in three single-phase units interconnected. The windings can be connected in delta or wye configurations to suit grid or load requirements.

Three-phase transformers are indispensable in high-voltage substations, industrial plants, and power generation systems.

Key Construction Elements of a Three-Phase Transformer

Typical Winding Configurations (Vector Groups)

Vector group affects phase shift, neutral grounding, and fault behavior—always critical in power system design.

Core Construction Types

Advantages of Integrated Three-Phase Transformers

Application Scenarios

Real-World Example – 132/33 kV 50 MVA Three-Phase Transformer

• Core: Three-limb, stacked CRGO core
• Windings: Copper foil, LV in delta, HV in wye
• Cooling: ONAF (forced air radiators)
• Features: Dyn11 vector group, on-load tap changer ±10%

Supplied to regional grid substation; performed with >99% uptime over 8 years, handling critical industrial and residential loads with stability and low losses

Where Are Single-Phase Transformers Typically Used?

Single-phase transformers play a crucial role in localized power transformation, especially in areas and applications where three-phase power is unavailable or unnecessary. Their simple construction, compact size, and cost-effectiveness make them the go-to choice for low-to-medium voltage conversion in numerous settings.

Single-phase transformers are typically used in residential power distribution, rural electrification, low-voltage commercial and lighting circuits, electronic and control systems, medical and laboratory equipment, and standalone renewable energy systems. They step down or step up voltage in AC circuits where only single-phase supply is available or required.

They are vital in delivering stable, usable voltage to millions of end-users worldwide.

Primary Use Categories for Single-Phase Transformers

Installation Settings

Advantages of Single-Phase Transformers in These Applications

Real-World Use Case – Rural Electrification

• Location: Mountain village, remote area, no grid access
• Installed: 25 kVA, 11/0.23 kV single-phase pole-mount transformer
• Load: 15 homes, school, irrigation pump
• Cooling: Oil-immersed, sealed tank, ONAN cooled
• Outcome: Consistent power delivery with >10 years operation, minimal maintenance, and significant local development impact

Summary Table: Where You’ll Find Single-Phase Transformers

What Are the Primary Applications of Three-Phase Transformers?

Three-phase transformers are foundational to electrical power infrastructure worldwide, enabling the generation, transmission, and utilization of large-scale electricity efficiently and reliably. They are the preferred solution for systems requiring high power delivery, voltage step-up/down, and stable load sharing across three conductors.

The primary applications of three-phase transformers include high-voltage power transmission and distribution, industrial power supply, commercial building systems, data centers, renewable energy grid integration, and large motor or drive loads. These transformers provide balanced three-phase voltage, reduce energy losses, and support efficient bulk power management.

Their usage spans virtually all segments of modern power networks.

Core Application Areas

Key Functional Roles in Power Systems

Typical Installation Examples

Real-World Case Study – Data Center Power Backbone

• Installation: Tier IV data center, 11/0.415 kV transformers in N+1 redundancy
• Load: Server rooms, cooling, security, power conditioning systems
• Features: High efficiency (low-loss), Dyn11 vector group, integrated smart monitoring
• Outcome: Delivered 99.999% uptime power, with real-time load balancing and efficient cooling

Summary Table: Application by Industry

How Do Performance and Efficiency Compare Between Single-Phase and Three-Phase Transformers?

When selecting a transformer type for your application, understanding the differences in performance and efficiency between single-phase and three-phase transformers is crucial. Each type is designed for specific use cases, with inherent characteristics that influence how much power it can handle, how efficiently it operates, and what kind of loads it best supports.

Three-phase transformers generally offer better efficiency, superior load handling, and reduced copper losses compared to single-phase transformers, especially at higher power levels. Single-phase transformers, while simpler and cost-effective for small loads, become inefficient and impractical for large-scale or balanced three-phase power distribution.

Choosing the right type ensures operational cost savings, optimal energy transfer, and appropriate power quality.

Key Differences in Performance & Efficiency

Technical Efficiency Comparison (at 100 kVA Load)

Three-phase transformers show lower total loss and higher conversion efficiency, especially above 50 kVA.

Power Handling Capability

Application-Based Performance Advantage

Real-World Use Example – Commercial Warehouse

• Load: Mixed lighting, HVAC, and conveyor motors
• Total demand: 120 kVA
• Compared: 3×40 kVA single-phase vs. 1×120 kVA three-phase

• Outcome:

  • Three-phase unit had 4.2% higher full-load efficiency
  • Lower footprint by 30%
  • Easier protection and load balancing

Conclusion: Chose three-phase transformer—lower operating cost and better thermal margin

How to Choose Between a Single-Phase and Three-Phase Transformer?

Choosing between a single-phase and a three-phase transformer is not just a matter of equipment type—it's a decision that affects cost, performance, energy efficiency, and long-term suitability. The ideal transformer must match not only the voltage and power requirements but also the nature of the load, the system configuration, and the future scalability of the application.

To choose between a single-phase and a three-phase transformer, assess the total power demand, type of electrical loads (balanced or unbalanced), availability of supply voltage, application environment, space constraints, and budget. Single-phase transformers are ideal for low-power, localized loads, while three-phase transformers are more efficient and economical for higher power, balanced loads in industrial or utility-scale settings.

Making the right choice ensures safe operation, minimizes energy loss, and aligns with future expansion plans.

Step-by-Step Selection Criteria

Transformer Type Selection Flowchart

1. Is your available power source single-phase?
    ✔ Yes → Use Single-Phase Transformer
    ✖ No → Continue

2. Is the total load < 15 kVA and mostly single-phase?
    ✔ Yes → Single-Phase Preferred
    ✖ No → Continue

3. Are you powering three-phase motors or balanced loads?
    ✔ Yes → Use Three-Phase Transformer
    ✖ No → Continue

4. Do you need high efficiency and scalability?
    ✔ Yes → Use Three-Phase Transformer
    ✖ Yes (low cost, simple load) → Single-Phase May Suffice

Real-World Selection Examples

Efficiency and Operational Comparison Summary

Common Mistakes to Avoid

• ❌ Using a single-phase transformer for a three-phase motor load
• ❌ Selecting three single-phase transformers without load balancing
• ❌ Ignoring supply voltage configuration (e.g., grid offers only three-phase)
• ❌ Underestimating future load growth that favors three-phase

Conclusion

Single-phase and three-phase transformers serve different but equally important roles in the power distribution landscape. Single-phase transformers are ideal for low-load and household applications, while three-phase transformers are suited for high-power, continuous-load environments like factories and infrastructure grids. Selecting the appropriate type depends on power requirements, system design, and intended application, ensuring optimal performance, safety, and efficiency.

FAQ

Q1: What is the difference between single-phase and three-phase power transformers?
A1: Single-phase transformers have one primary and one secondary winding, handling a single AC waveform.

Three-phase transformers have three sets of windings, supporting three AC waveforms, typically spaced 120° apart.
They differ in load capacity, system compatibility, and application scope.

Q2: Where are single-phase transformers used?
A2: Single-phase transformers are commonly used in:

Residential power distribution (e.g., 120V/240V supply to homes)

Rural and remote areas with low power demand

Lighting and small industrial loads

Electronic and control circuits
They are simpler, cost-effective, and suited for low-capacity systems.

Q3: Where are three-phase transformers used?
A3: Three-phase transformers are typically used in:

Industrial and commercial facilities

Power transmission and substations

Large motors, HVAC systems, and machinery

Urban distribution networks
They offer better efficiency, balanced load sharing, and greater power density, ideal for high-demand applications.

Q4: Can single-phase transformers be used in three-phase systems?
A4: Yes. In a banked configuration, three single-phase transformers can be connected to form a three-phase system (open-delta or wye-delta setup). However, using a three-phase transformer unit is more:

Compact

Efficient

Easier to install and maintain
for most industrial and utility settings.

Q5: How do you choose between single-phase and three-phase transformers?
A5: Choose based on:

Load type and size: Heavy industrial vs light residential

Power system design: Three-phase grid or single-phase service

Cost and infrastructure: Initial cost, space, and installation needs

Future scalability: Expandability and system compatibility
Three-phase transformers are ideal for modern grids and industries, while single-phase is best for localized, lower-demand areas.
