Box transformers, also known as compact transformers, are designed to provide efficient and reliable voltage transformation in a compact, weatherproof, and space-saving enclosure. These transformers are ideal for urban environments, industrial areas, and residential communities where space is limited and reliability is paramount. The design of box transformers incorporates advanced technologies and innovative structural elements to ensure optimal performance, energy efficiency, and ease of installation. This article will explore the structure of a box transformer and the key design features that contribute to its compactness and efficiency.
What is a Box Transformer and How Does it Differ from Traditional Transformers?
In today’s evolving power distribution landscape, box transformers have emerged as a modern alternative to traditional transformers, especially in urban, commercial, and space-constrained environments. While both serve the essential function of voltage transformation, box transformers offer distinct structural, functional, and application-specific differences that set them apart from their conventional counterparts.
This article will explore what a box transformer is, how it differs from traditional types, its components, advantages, and why it is gaining popularity in modern electrical infrastructure.

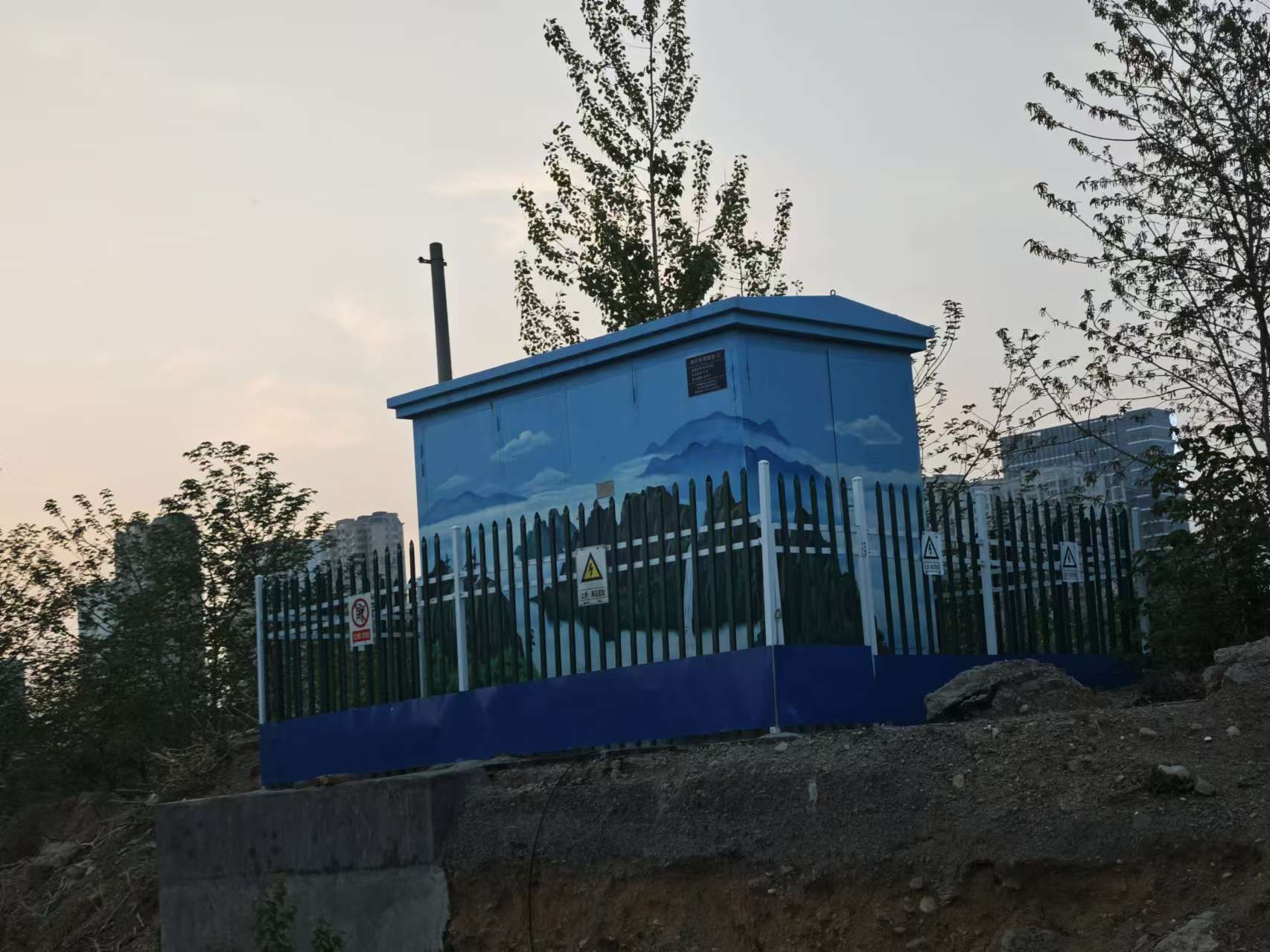

What Is a Box Transformer?
A box transformer, also known as a pad-mounted transformer or compact substation transformer, is a fully enclosed, self-contained electrical unit designed to step down high-voltage electricity for local distribution. It is named for its box-like, sealed structure and is typically mounted on a concrete pad or within a secure housing.
Box transformers integrate the following components into one compact enclosure:
- High-voltage (HV) compartment
- Low-voltage (LV) compartment
- Transformer core and windings
- Protection and switching gear
This all-in-one design is ideal for installations where space, safety, and aesthetics are critical, such as:
- Residential neighborhoods
- Commercial complexes
- Industrial parks
- Hospitals and schools
How Does a Box Transformer Differ from a Traditional Transformer?
| Feature | Box Transformer | Traditional Transformer |
|---|---|---|
| Design Structure | Fully enclosed, compact, pad-mounted | Open-frame or partially enclosed, pole or foundation-mounted |
| Installation Environment | Surface-level (urban, commercial, restricted access zones) | Open field, rural areas, substations |
| Safety & Accessibility | Sealed for public safety, tamper-proof, minimal live exposure | Requires fenced areas, often with exposed terminals |
| Integration | Combines HV, LV, protection, metering in one unit | Separate switchgear and metering installations |
| Cooling System | Self-cooled or forced air/oil cooled within sealed housing | Oil-cooled with radiators, more exposure to ambient conditions |
| Maintenance | Lower maintenance due to sealed design | Requires more frequent inspections, especially in exposed systems |
| Aesthetics & Footprint | Compact and visually discrete | Bulkier and visually intrusive in populated areas |
Construction and Design of Box Transformers
Box transformers consist of a galvanized or stainless steel housing with separate compartments for high-voltage and low-voltage terminals. The internal structure includes:
- Transformer core and windings: Typically oil-immersed or dry-type
- Load break switch: For isolating power supply under load
- Fuse links: Protect against overcurrent or faults
- Cooling system: Often natural convection (ONAN) or air-forced (ANAF)
- Pressure relief valve: For oil-immersed types to prevent pressure build-up
- Lockable compartments: Ensures safety from tampering
Main Features of Box Transformers
| Feature | Description |
|---|---|
| Compact footprint | Ideal for space-constrained environments |
| Tamper-resistant housing | Provides safety in publicly accessible locations |
| Integrated design | Simplifies installation by bundling transformer and switchgear components |
| Low noise level | Enclosed design dampens operating noise, suitable for residential areas |
| Minimal maintenance | Fewer exposed components reduce inspection and repair needs |
| Environmental protection | Typically rated IP43 or higher, suitable for outdoor use |
Where Are Box Transformers Commonly Used?
Box transformers are ideal for medium-voltage distribution in environments requiring a safe, quiet, and low-profile solution.
Urban Distribution Systems
Their sealed, compact design makes them perfect for residential blocks, office buildings, and commercial developments.
Commercial Complexes and Hospitals
They integrate seamlessly with aesthetic and safety needs, offering reliable voltage transformation without large substations.
Industrial Campuses
Box transformers reduce installation time, and offer plug-and-play functionality for factories and logistics centers.
Renewable Energy Projects
Used at the output stage of solar farms or wind turbines to step down voltage before feeding into the grid.
Advantages of Box Transformers Over Traditional Transformers
| Advantage | Explanation |
|---|---|
| Safety for Public Environments | Fully enclosed unit with no exposed terminals ensures human and equipment safety |
| Space Efficiency | Requires significantly less installation space |
| Simplified Installation | Pre-wired units reduce the need for separate housing or switchgear |
| Faster Commissioning | Shorter setup time compared to custom-built transformer bays |
| Improved Security | Lockable compartments reduce the risk of tampering or vandalism |
| Lower Maintenance | Sealed enclosure and integrated parts reduce the need for routine checks |
Limitations of Box Transformers
While box transformers offer numerous benefits, they also have some limitations:
- Limited Capacity: Typically used up to 2500 kVA. For higher power, traditional units are preferred.
- Less Customizable: Fewer options for changing configurations compared to open-frame designs.
- Initial Cost: May be higher due to integrated features, but this is often offset by lower installation and maintenance costs.
- Restricted Cooling Options: Enclosed design limits large-scale cooling systems like radiators used in power transformers.
Use Case Comparison: Box Transformer vs Traditional Transformer
| Use Case | Best Fit Transformer Type |
|---|---|
| Urban power distribution | Box Transformer |
| Large industrial substation | Traditional Transformer |
| Rooftop or underground applications | Box Transformer (compact design) |
| High voltage (above 66kV) transmission | Traditional Transformer |
| Remote rural areas | Pole-mounted Traditional Transformer |
| Solar farm feeder step-down | Box Transformer |
What Are the Key Components of a Box Transformer?
Box transformers are compact, self-contained units designed for efficient power distribution, particularly in urban, commercial, and space-constrained environments. These transformers are built to be highly functional, with essential components packed into a secure, enclosed unit. Understanding the key components of a box transformer is essential for assessing its efficiency, safety, and reliability in operation.
In this article, we will examine the core components of a box transformer, explain their roles, and explore how they contribute to the transformer’s overall performance.
Key Components of a Box Transformer
Box transformers, unlike traditional pole-mounted or open-frame transformers, integrate various elements into one compact, sealed design. Below are the critical components that make up a typical box transformer:
1. Transformer Core
The transformer core is at the heart of any transformer, including box transformers. It is typically made from laminated silicon steel to minimize energy losses caused by eddy currents. The core is responsible for providing a path for the magnetic flux generated when electrical current flows through the windings.
- Function: The core's primary role is to enable the electromagnetic induction process, which converts the input high-voltage current into lower-voltage output current.
- Construction: The core is laminated to reduce energy loss, and it is often oil-immersed in larger transformers to prevent overheating.
2. High-Voltage (HV) Compartment
The high-voltage compartment houses the high-voltage windings and is where the incoming high-voltage electrical current is initially fed. The primary winding in this compartment is responsible for step-down or step-up of voltage, depending on the transformer’s design.
- Function: It steps down the high-voltage electricity to a more usable level for local distribution.
- Design: This compartment is isolated and sealed to prevent any risk of accidental contact with high-voltage parts.
3. Low-Voltage (LV) Compartment
The low-voltage compartment contains the secondary windings of the transformer. After the high-voltage current has passed through the primary winding, it is transferred to the secondary winding in the low-voltage compartment where it is transformed into the appropriate voltage for distribution.
- Function: The secondary winding reduces the voltage to the desired lower level (e.g., 400V, 230V) for residential or commercial use.
- Design: Like the HV compartment, the LV compartment is sealed and protected to ensure safety during operation.
4. Bushings and Tap Changer
-
Bushings: These are the insulating devices that allow the electrical connections to be made between the transformer’s internal windings and the external power lines or grid.
- Function: They provide a safe pathway for the electric current to pass from the internal transformer windings to the external system.
- Construction: Bushings are typically made of porcelain or polymer materials to provide excellent electrical insulation.
-
Tap Changer: A tap changer allows operators to adjust the transformer’s output voltage by selecting different tapping points on the transformer’s windings.
- Function: It helps regulate the output voltage to maintain stability in the distribution system, especially during varying load conditions.
5. Protection and Switching Gear
The protection and switching gear is a crucial component for ensuring the safety and reliability of the transformer. This gear protects the transformer from electrical faults such as short circuits, overloads, and external faults.
- Circuit Breakers: These are designed to disconnect the transformer from the grid in the event of an electrical fault, preventing damage to the transformer and the system.
- Fuses: They provide overcurrent protection by blowing when the current exceeds a preset limit.
- Load Break Switch: A switch that can safely interrupt current while it is flowing, typically used for maintenance purposes.
- Relays: Used to detect fault conditions and trigger appropriate protection devices.
6. Cooling System
Due to the electrical losses that occur in the transformer, heat is generated during operation. Cooling is essential for ensuring the transformer operates at optimal temperatures, preventing overheating that could lead to insulation breakdown and system failures.
- Cooling Method: Box transformers can be air-cooled (natural or forced), or in some cases, oil-immersed to help dissipate heat more efficiently.
- Function: The cooling system reduces the thermal stress on the transformer components, particularly the windings and core.
7. Oil or Gas Insulation
In some box transformers, particularly larger ones, the oil or gas serves both as an insulating medium and as a cooling agent.
- Function: The insulating oil or gas helps to prevent electrical breakdown by providing a high dielectric strength. It also carries away heat generated during transformer operation.
- Types of Insulation: Oil-immersed transformers typically use mineral oil or ester-based oils. Some modern designs use SF6 gas (Sulfur Hexafluoride) for insulation, which offers better dielectric properties.
8. Monitoring and Diagnostic Devices
Box transformers are often equipped with digital monitoring systems to ensure operational efficiency and reliability. These devices continuously monitor key parameters, such as temperature, load current, oil level, and fault conditions.
- Function: Monitoring systems allow for early detection of problems (such as overheating or leakage) and can alert operators to potential faults.
- Devices: Include temperature sensors, pressure sensors, oil level indicators, and gas analysis sensors.
9. Sealed Enclosure and Locking Mechanisms
A defining feature of box transformers is their sealed, weatherproof enclosure. The transformer housing is built to withstand environmental conditions such as dust, rain, and extreme temperatures, while also preventing unauthorized access.
- Function: The sealed design ensures public safety by preventing contact with high-voltage components. The enclosure is also tamper-resistant and designed to protect against environmental degradation.
- Material: The enclosure is typically constructed from corrosion-resistant materials like galvanized steel or stainless steel.
How Does the Compact Design of Box Transformers Benefit Space-Constrained Applications?
Box transformers are increasingly becoming the preferred choice for modern power distribution, especially in urban and industrial areas where space is at a premium. Their compact design offers several significant benefits, especially when compared to traditional transformer designs, which are often bulkier and require more space for installation and operation.
In this article, we will explore how the compact design of box transformers makes them particularly suitable for space-constrained applications like urban environments, residential areas, and industrial facilities. We will look at the unique advantages of these transformers and their ability to perform effectively in limited spaces.
The Advantages of Compact Box Transformers in Space-Constrained Applications
Box transformers are typically self-contained units that integrate several components (e.g., core, windings, cooling system, protection gear) into a single sealed, compact housing. This design is ideal for locations where space limitations or aesthetic considerations make traditional, larger transformer designs impractical.
1. Space Efficiency and Integration
The primary benefit of box transformers is their compact size. Traditional transformers, especially those intended for large-scale power distribution, often require a lot of ground space and separate enclosures for the core, winding, cooling equipment, and protection systems. Box transformers, on the other hand, integrate all of these components into a single, streamlined unit.
- Space-Saving Design: By consolidating multiple functions in one unit, box transformers occupy less floor area, which is crucial when space is limited in urban areas or industrial sites.
- Compact Footprint: These transformers can be placed in constrained spaces like parking lots, rooftops, or small industrial yards without requiring significant alterations to the surrounding infrastructure.
2. Urban and Residential Use
In densely populated urban areas or residential neighborhoods, there is often little room to install large equipment like traditional transformers. Box transformers provide a solution that allows for effective power distribution without disrupting urban infrastructure.
- Ideal for Underground Installations: In addition to being compact, many box transformers can be placed underground (as subsurface box transformers) to further conserve valuable land space while providing reliable electrical service.
- Aesthetic Integration: These compact units are less intrusive than traditional transformers, which are often bulky and unattractive. As a result, they are more aesthetically pleasing and better suited for residential or commercial areas where space and appearance matter.
3. Reduced Environmental Impact
Because box transformers can be placed in smaller, more confined areas, they help reduce the environmental impact of power distribution infrastructure. Traditional transformers, especially those used in large substations, often require significant construction efforts and land use. Box transformers help minimize these disruptions in densely populated areas.
- Less Land Use: With their compact size, box transformers reduce the need for large substations and the associated land disturbance, making them environmentally friendly and less resource-intensive.
- Reduced Noise Pollution: Traditional transformers may generate noise, especially when installed in residential or commercial spaces. Box transformers are designed to be quieter due to their enclosed nature, which also helps with noise reduction.
4. Flexibility in Installation
Box transformers offer flexibility in installation due to their small size and integrated design. Unlike large transformers that require specialized foundations, electrical connections, and installation sites, box transformers can be easily positioned in a variety of locations.
- Ease of Installation: These transformers are typically pre-assembled and ready for installation upon arrival, reducing the need for complex and lengthy installation processes.
- Modular Design: Some box transformers are modular, allowing for customized sizing to meet the needs of specific applications. This makes it easier to adapt to various locations with different spatial requirements.
5. Increased Safety and Security
The compact and sealed design of box transformers also enhances their safety and security. Traditional transformers often have exposed high-voltage components, making them vulnerable to accidents, vandalism, or weather-related damage. Box transformers provide a more secure environment for both the electrical components and the public.
- Sealed Enclosure: The sealed housing protects the internal components from weather conditions such as rain, dust, and snow, and prevents accidental contact with live electrical parts.
- Reduced Vandalism Risk: The compact, locked enclosure of the box transformer reduces the risk of tampering or vandalism, ensuring the continued safety and reliability of the power distribution system.
6. Minimal Maintenance Space Requirements
Box transformers require less maintenance space compared to larger, more traditional transformers. The integrated design makes it easier to inspect and maintain the unit because there is no need to access separate compartments. The compact design is easier to service, reducing maintenance time and costs.
- Accessibility: Most box transformers come equipped with monitoring devices, making it easier to track their performance remotely. This allows for proactive maintenance without needing to access the unit physically.
- Fewer Components: With fewer components and less complexity, the maintenance requirements of a box transformer are generally lower than those of traditional transformers, resulting in reduced downtime and operational costs.
7. Reliability in Harsh Environments
Despite their compact size, box transformers are designed to withstand harsh environmental conditions. They are built with high-quality materials that make them resilient to extreme temperatures, moisture, and mechanical stress, which is important for both urban and industrial applications.
- Weatherproof: The durable enclosures are designed to withstand rain, dust, and other harsh environmental factors, ensuring consistent performance in any location.
- Longevity: The robust design and superior insulation of box transformers contribute to longer lifespans, ensuring that they continue to perform reliably without frequent need for replacement or repair.
8. Cost-Effectiveness
In addition to the space and operational advantages, box transformers offer significant cost savings over traditional transformer installations.
- Lower Installation Costs: Their compact size and modular nature reduce the need for large foundations or extensive electrical infrastructure, which helps keep installation costs lower.
- Operational Efficiency: Box transformers are designed for efficient operation, meaning that they often consume less power and require fewer resources to operate effectively over time.
What Role Does the Enclosure Play in Ensuring Efficiency and Safety?
The enclosure in transformers plays a pivotal role in both ensuring operational efficiency and providing safety. Transformers are vital components in power transmission systems, and their enclosures are designed not only to protect the internal workings of the transformer but also to prevent accidents, environmental damage, and operational failures. In this article, we will explore the specific roles that enclosures play in safeguarding transformers, ensuring their efficiency, and providing crucial safety measures.
Key Functions of the Transformer Enclosure: Efficiency and Safety
Enclosures are designed to provide multiple layers of protection, from physical barriers against external factors like weather and dust, to electrical insulation that ensures safe operation. These enclosures are often made of durable materials like steel, aluminum, or composite materials that meet industry standards for safety and efficiency.
1. Protection from Environmental Elements
Transformers are exposed to a range of environmental factors, such as weather conditions (rain, snow, extreme temperatures), dust, moisture, and pollutants. The enclosure serves as the first line of defense, shielding the transformer from these external elements.
- Weather Resistance: Enclosures are designed to be weatherproof, keeping the transformer safe from direct exposure to moisture, rain, or extreme heat and cold. This is particularly important in outdoor installations where the transformer is exposed to unpredictable weather conditions.
- Dust and Contaminant Protection: Many transformers, especially those in industrial settings, face high levels of dust and airborne contaminants. Enclosures prevent dust from entering the transformer and contaminating the oil, windings, or other components, which could lead to malfunction or reduced efficiency.
- Corrosion Resistance: Enclosures are often treated with coatings or made from corrosion-resistant materials to prevent rust and deterioration. This ensures a longer lifespan for the transformer, reducing the need for frequent repairs or replacements.
2. Ensuring Electrical Safety
One of the most critical functions of the transformer enclosure is to ensure electrical safety. Given that transformers handle high voltages, the risk of electrical shocks, arcs, or fire is a real concern. A well-designed enclosure mitigates these risks by providing:
- Insulation: The transformer enclosure helps insulate the high-voltage components, preventing accidental contact with live parts. This is essential to ensure safety for both personnel working near the transformer and the public.
- Arc Containment: In the event of a fault, an enclosure can contain electrical arcs and prevent them from spreading. High-quality enclosures are designed to be arc-proof, meaning they can withstand short circuits or other electrical faults and contain the hazard within the unit.
- Fire Prevention: The materials used in the enclosure, such as fire-resistant metals or coatings, play a key role in preventing or containing fires. Many transformer enclosures are designed with fire-resistant features, ensuring that any heat generated during faults is managed safely.
3. Enhancing Cooling Efficiency
Cooling is a critical aspect of transformer operation. Transformers generate significant amounts of heat, and if this heat is not effectively dissipated, it can lead to overheating, reduced efficiency, and even failure. The enclosure plays a role in cooling by supporting various cooling mechanisms, such as:
- Ventilation: Many transformer enclosures are designed with ventilation openings that allow for natural airflow, aiding in heat dissipation. These openings are often equipped with filters to prevent dirt and moisture from entering while maintaining cooling efficiency.
- Oil Circulation: In oil-filled transformers, the oil helps to cool the transformer by absorbing heat and carrying it away from the windings. The enclosure houses the oil and allows it to circulate efficiently, keeping the transformer at an optimal operating temperature.
- Heat Management: Some enclosures are equipped with external cooling systems, such as fans or radiators, to assist with heat dissipation. These features enhance the overall thermal performance of the transformer and ensure it remains efficient during operation.
4. Sound and Vibration Control
Transformers often produce noise and vibrations during operation, which can be a concern, especially in residential areas or near sensitive equipment. The enclosure plays an important role in containing these vibrations and noise.
- Noise Reduction: The materials and design of the enclosure can help absorb or dampen the noise generated by the transformer's mechanical components, such as the core and windings. This is particularly important for transformers located in urban areas, where noise pollution is regulated.
- Vibration Isolation: The enclosure also helps isolate vibrations, preventing them from traveling to the surrounding structure and causing damage. By mitigating vibrations, the enclosure ensures the transformer operates smoothly without putting stress on its components.
5. Security and Protection Against Tampering
In many cases, transformers are located in public or industrial areas where vandalism or unauthorized access can be a concern. The enclosure provides an important security feature by preventing unauthorized access and reducing the likelihood of tampering or sabotage.
- Locking Mechanisms: Many enclosures come with locking mechanisms to prevent unauthorized access. This adds an extra layer of security, ensuring that only authorized personnel can service or inspect the transformer.
- Physical Barriers: In addition to locking mechanisms, enclosures provide a physical barrier against unauthorized personnel coming into contact with high-voltage components. This helps ensure that only trained professionals are exposed to the electrical components during maintenance or troubleshooting.
6. Supporting Accessibility for Maintenance
While enclosures are primarily designed for protection, they also need to allow for easy maintenance. Transformer enclosures are engineered to be accessible while maintaining safety standards, which includes features like:
- Removable Panels or Doors: Most enclosures come with removable panels or doors, providing access to internal components for inspections, repairs, or maintenance tasks. This ensures that maintenance can be carried out safely and efficiently without compromising the transformer's protection.
- Inspection Windows: Some enclosures include inspection windows or viewing ports that allow for non-intrusive monitoring of the transformer's internal components. These windows allow technicians to check for issues without needing to open the entire enclosure, minimizing the risk of exposure to live electrical components.
7. Regulatory Compliance
Transformer enclosures must adhere to various industry standards and regulations, such as those set by the IEEE (Institute of Electrical and Electronics Engineers), ANSI (American National Standards Institute), and IEC (International Electrotechnical Commission). These standards ensure that the enclosures meet minimum safety and performance requirements, which include:
- Protection Ratings: Enclosures must have a certain Ingress Protection (IP) rating, which indicates their resistance to dust and water. This ensures that the transformer operates reliably in various environmental conditions.
- Fire Safety Standards: Enclosures must meet fire safety regulations to prevent the spread of flames in the event of a fault. Materials used must be non-combustible or fire-resistant, meeting specific standards for fire resistance.
How is Cooling Managed in Box Transformers?
In the design of box transformers, managing heat is critical to maintaining their performance and longevity. Since transformers operate under high electrical loads, they naturally generate heat, and efficient cooling is essential to ensure that they function properly and avoid overheating, which could lead to catastrophic failures. Box transformers are designed with cooling systems tailored to their compact, enclosed structure while still delivering optimal heat dissipation.
In this article, we will explore how cooling is managed in box transformers, the different cooling techniques used, and the factors that influence their cooling efficiency.
Why Cooling is Critical for Box Transformers
Transformers are highly sensitive to temperature changes. If the temperature rises beyond a certain threshold, it can significantly impact the transformer’s internal components, such as the winding insulation, the core, and the dielectric fluids. Overheating can lead to insulation breakdown, reduced transformer efficiency, and even complete failure if not properly managed. Box transformers, being compact, face unique challenges in terms of cooling, as their space constraints demand efficient yet effective thermal management solutions.
1. Oil Cooling Systems
Oil cooling is one of the most common and effective methods of cooling in box transformers. Oil serves both as a cooling medium and an insulator, making it especially suitable for managing heat in transformers. Box transformers often use mineral oil or synthetic oils to dissipate heat generated by the transformer windings.
- How It Works: The oil absorbs the heat produced by the electrical components of the transformer. It then circulates through the transformer’s internal channels or through external cooling radiators, where it releases the absorbed heat into the surrounding air. In larger box transformers, oil circulation can be assisted by pumps or natural convection.
- Cooling Radiators: Oil-cooled box transformers are often equipped with radiators—either external or internal—designed to enhance the heat dissipation process. These radiators increase the surface area of the oil and allow it to expel heat more efficiently into the surrounding air.
2. Air Cooling Systems (Natural and Forced Air Cooling)
Air cooling is often used in smaller or less heavily loaded box transformers. It is generally simpler and more cost-effective than oil cooling, but it may not be as efficient in high-load or large transformers. Box transformers with air cooling are designed to use either natural air convection or forced air cooling.
- Natural Air Cooling: In this method, air is allowed to flow naturally over the transformer's surface, absorbing heat from the transformer. This method is typically used in dry-type box transformers, where there is no need for oil or liquid to act as a coolant.
- Forced Air Cooling: Forced air cooling involves fans or blowers that actively push air over the transformer’s surface, aiding in the heat dissipation process. This method increases cooling efficiency, especially in compact box transformers where natural convection is insufficient.
3. Combined Oil and Air Cooling (Hybrid Systems)
In some box transformers, a hybrid approach is used to achieve superior cooling. This involves combining oil and air cooling techniques to create a more efficient system that can handle higher thermal loads.
- Oil-Air Hybrid Systems: In these transformers, oil is used as the primary cooling medium inside the transformer, while external air cooling systems (such as fans or radiators) are used to cool the oil. The heat transferred by the oil is then released through air-cooled radiators, providing additional cooling capacity.
- Efficiency: The hybrid cooling system is particularly beneficial for compact transformers that need high cooling efficiency but have limited space for large radiators or oil tanks. The oil provides internal heat dissipation, while the air helps remove heat from the oil more effectively.
4. Dielectric Fluids as Coolants
In box transformers, dielectric fluids such as vegetable oil or synthetic esters are sometimes used as cooling mediums. These fluids serve both as coolants and as insulating materials, which helps reduce the risk of electrical faults due to overheating.
- Vegetable Oil: Some newer box transformers use vegetable oil as an eco-friendly alternative to traditional mineral oil. This type of dielectric fluid offers good heat transfer properties and is biodegradable, which can be particularly appealing in environmentally sensitive areas.
- Synthetic Esters: Synthetic ester oils offer enhanced thermal properties and are more fire-resistant than traditional mineral oils, making them a preferred choice for some high-risk or critical applications.
5. Heat Dissipation through the Enclosure
The transformer enclosure plays a significant role in cooling by providing an external surface area for heat dissipation. The materials used in the box transformer enclosure are designed to absorb and release heat efficiently.
- Ventilation and Airflow: The enclosure may be designed with ventilation grilles or louvers, which allow for improved airflow and natural cooling of the transformer. In forced-air systems, these grilles are even more important for allowing the fans or blowers to circulate air effectively around the transformer.
- Materials Used in Enclosures: Enclosures made from highly conductive materials, such as aluminum or steel, can help distribute heat away from the transformer. These materials ensure that the transformer remains cool even when operating at high loads.
6. Monitoring and Control Systems for Cooling Efficiency
Advanced box transformers often come with digital monitoring systems that allow real-time monitoring of temperature levels and cooling system efficiency. These systems are designed to track parameters such as:
- Oil Temperature: Monitoring the temperature of the oil is critical to ensure it is within safe operating limits. Sensors inside the transformer send real-time data to control panels, allowing operators to monitor and adjust cooling systems when necessary.
- Ambient Temperature: Box transformers can also be equipped with ambient temperature sensors to ensure that the environment surrounding the transformer does not become too hot, which could reduce the cooling effectiveness.
- Fan Operation: In forced air systems, fans or blowers are critical for improving air circulation. Monitoring the performance of these components ensures that they are working effectively and efficiently.
7. Thermal Management in Compact Applications
Box transformers are designed to be compact, making them ideal for locations where space is limited. However, this compactness creates challenges for cooling. Efficient thermal management in these applications relies on:
- Compact Radiators: Compact, high-efficiency radiators allow for better heat dissipation while fitting within the space constraints of the box transformer.
- Optimized Airflow Design: Careful design of airflow paths ensures that the cooling air circulates efficiently within the transformer while minimizing the risk of hot spots.
What Are the Benefits of Box Transformers in Modern Power Distribution Systems?
Box transformers are becoming increasingly important in modern power distribution systems due to their compact design, operational efficiency, and versatility. With the continuous evolution of urbanization, renewable energy integration, and the growing need for reliable power, box transformers are offering several benefits that make them an ideal choice for today’s power distribution needs. In this article, we will explore the key advantages of box transformers and how they play a critical role in improving power distribution infrastructure.
Why Box Transformers Are Gaining Popularity
Power distribution systems are undergoing significant transformation as they adapt to the demands of modern society. The increase in energy consumption, the shift to renewable energy sources, and the requirement for more efficient and sustainable infrastructure have prompted the development of new technologies in power distribution. Box transformers are a response to these challenges, offering a solution that is both space-efficient and reliable. Their compact nature and customizable designs make them ideal for urban and industrial applications where space is at a premium.
1. Space Efficiency and Compact Design
One of the most notable benefits of box transformers is their compact design. Unlike traditional transformers, which can occupy significant amounts of space, box transformers are much smaller and are designed to fit into tight or urban spaces. This makes them perfect for applications where space is limited, such as in dense urban areas or commercial complexes.
- Urban Applications: In cities and urban areas, finding enough land for large transformers can be difficult. Box transformers, with their space-efficient design, help meet the power needs of these areas without requiring large plots of land.
- Modular Design: Many box transformers are modular, which means they can be customized or expanded depending on power requirements. This flexibility makes them ideal for dynamic environments that need scalable solutions.
2. Improved Safety and Reliability
Box transformers offer improved safety features compared to traditional open transformers. These transformers are often enclosed in weatherproof enclosures, which protect the internal components from environmental elements such as rain, dust, and physical damage. This added protection helps ensure the transformer operates reliably under varying weather conditions.
- Enclosure Protection: The enclosure not only shields the transformer from external elements but also provides an added layer of fire resistance, reducing the risk of accidents or damage to the transformer in high-risk areas.
- Reduced Downtime: By protecting the transformer from physical damage, the enclosure helps reduce the risk of downtime caused by external factors, ensuring continuous and reliable power delivery.
3. Enhanced Energy Efficiency
Energy efficiency is a critical concern for modern power distribution systems, particularly as industries, homes, and businesses are seeking to reduce their carbon footprint and energy costs. Box transformers contribute to enhanced energy efficiency through several features:
- Low Losses: Box transformers are designed to minimize energy losses, which results in better overall efficiency in power distribution. The efficient design of the transformer core and windings helps to reduce both core losses and copper losses.
- Improved Load Handling: Many box transformers come equipped with advanced load tap changers (LTCs), which allow them to adapt to varying loads, ensuring that energy is distributed efficiently based on real-time demand.
4. Cost-Effectiveness
Box transformers offer a more cost-effective solution in terms of both initial investment and long-term operational costs. Their compact size, along with efficient cooling and insulation systems, reduces the cost of installation and maintenance.
- Lower Installation Costs: Since box transformers require less space, they are easier to install, which can significantly reduce installation costs compared to traditional transformers.
- Reduced Maintenance Costs: The rugged and weatherproof design of box transformers minimizes the need for frequent repairs and maintenance. Additionally, their longer operational life reduces the overall lifecycle costs, offering better value for money.
5. Versatility in Application
Box transformers are highly versatile and can be used in a variety of settings, including:
- Residential Power Distribution: Box transformers are commonly used in residential areas to provide localized power distribution. Their small size allows for installation close to residential buildings, reducing transmission losses.
- Commercial and Industrial Applications: These transformers are widely used in commercial and industrial settings where high power loads need to be handled efficiently. Their flexibility and ease of installation make them a practical choice for powering industrial machinery, data centers, and commercial buildings.
- Renewable Energy Integration: As renewable energy sources like wind and solar become more prevalent, box transformers are used to facilitate the integration of these energy sources into the grid. They can handle the power conversion and distribution needs of renewable energy systems, providing a vital link between power generation and consumption.
6. Environmentally Friendly and Sustainable
In today’s energy landscape, sustainability is a key consideration. Box transformers contribute to environmentally friendly practices in power distribution through several means:
- Use of Eco-Friendly Insulation Materials: Many modern box transformers use vegetable oils or synthetic esters for insulation, which are biodegradable and less harmful to the environment than traditional mineral oils.
- Energy Efficiency: By reducing energy losses and enhancing the overall efficiency of power distribution, box transformers help reduce the carbon footprint of electricity transmission, contributing to more sustainable energy practices.
7. Ease of Integration into Smart Grid Systems
With the rise of smart grids, which use digital technology to monitor and control power distribution, box transformers are increasingly being designed with smart features. This includes the ability to integrate with sensor networks and digital monitoring systems to optimize power flow and performance.
- Smart Monitoring: Box transformers equipped with sensors can monitor parameters such as temperature, load, and fault conditions in real-time. This data can be used to optimize the transformer’s performance and predict maintenance needs, preventing failures before they occur.
- Remote Control and Automation: Some box transformers can be integrated with remote control systems, allowing utilities to manage their operation more effectively, reducing human intervention and improving overall grid efficiency.
8. Better Aesthetics and Urban Compatibility
Box transformers are designed with aesthetics in mind, making them more compatible with urban settings. Their sleek, compact enclosures can blend into the landscape, making them less visually intrusive compared to traditional, large transformers. This feature is particularly important in urban areas where the visual impact of infrastructure is a growing concern.
Conclusion
Box transformers are a vital part of modern electrical distribution systems, offering an ideal solution for environments where space and efficiency are critical. Their compact design, robust structural features, and advanced cooling systems allow them to deliver reliable and efficient performance even in the most challenging environments. With a weatherproof enclosure, high insulation standards, and tailored cooling solutions, box transformers are well-suited for urban, industrial, and residential applications. As demand for smarter, more efficient power distribution systems continues to rise, the role of box transformers in ensuring safe, space-saving, and reliable power transformation will remain indispensable.
FAQ
Q1: What is the structure of a box transformer?
A1: A box transformer typically consists of a sealed, robust metal enclosure that houses the transformer’s core, windings, and insulation. The structure is designed to protect the internal components from environmental factors while also ensuring safe and efficient operation. It also includes cooling mechanisms such as air vents or fans to maintain temperature control.
Q2: How does the box transformer ensure compactness?
A2: The box transformer is designed to be compact by integrating all essential components in a space-saving manner. It uses a well-organized internal layout to minimize space without sacrificing functionality. Components like the core, windings, and cooling elements are arranged to maximize space efficiency while maintaining safety and performance.
Q3: How does the design of a box transformer improve efficiency?
A3: The efficient design of a box transformer includes optimized core materials, low-loss windings, and effective cooling systems. These elements reduce energy losses, ensuring the transformer operates at higher efficiency levels. The compact design also reduces unnecessary space and material, contributing to a lower overall energy footprint.
Q4: What are the key components in the structure of a box transformer?
A4: The key components of a box transformer include the core (usually made of laminated steel for low losses), copper or aluminum windings, insulation materials (such as oil or resin), and cooling systems (like natural air cooling or forced air systems). These components are carefully arranged to ensure minimal energy loss and reliable performance.
Q5: What advantages does the compact structure of a box transformer provide?
A5: The compact structure of a box transformer offers several advantages, including easier installation in tight spaces, reduced material costs, and improved heat dissipation. It also allows for a more streamlined design, making it ideal for use in residential areas, urban environments, and other space-constrained applications.
References
"Understanding the Structure and Efficiency of Box Transformers" - https://www.transformertech.com/box-transformer-structure - Transformer Tech
"The Compact Design of Box Transformers for Urban Applications" - https://www.powermag.com/box-transformer-efficiency - Power Magazine
"Box Transformer Structure: How It Enhances Efficiency" - https://www.electrical4u.com/box-transformer-efficiency - Electrical4U
"Design Principles of Box Transformers" - https://www.researchgate.net/box-transformer-structure - ResearchGate
"The Efficiency and Functionality of Box Transformers" - https://www.sciencedirect.com/box-transformer-design - ScienceDirect
"Innovative Box Transformer Design for Compactness and Efficiency" - https://www.smartgridnews.com/transformer-compact-design - Smart Grid News
"Optimizing Energy Efficiency in Box Transformers" - https://www.energycentral.com/c/ee/box-transformer-efficiency - Energy Central
"Understanding Transformer Design and Compactness for Better Efficiency" - https://www.powergrid.com/box-transformer-design - PowerGrid
