Power transformers are indispensable components in electrical infrastructure, but they are not used in every electrical application. They are specifically designed for high-power, high-voltage environments where voltage needs to be changed for efficient energy transmission or distribution. Understanding when to use a power transformer helps optimize system design, improve efficiency, and ensure safety across the power network.
When Is a Power Transformer Needed in Power Generation?
At the heart of every electrical generation station—whether it’s coal, gas, hydro, solar, wind, or nuclear—stands a critical component that ensures electricity can travel efficiently across long distances: the power transformer. Without it, power generated on-site would remain stranded, unusable by the grid due to incompatibility with high-voltage transmission systems. A power transformer is not optional in most generation contexts—it is an essential link between generation and the electrical grid.
A power transformer is needed in power generation when the voltage generated by the alternator is significantly lower than the voltage required for transmission or grid connection. Transformers are used to step up this generated voltage (typically 11–33 kV) to transmission-level voltages (e.g., 132 kV, 220 kV, or 400+ kV), enabling efficient power export with minimal losses. They also provide grid synchronization, isolation, and voltage regulation.
This article explains exactly when and why a power transformer becomes essential in various power generation scenarios—and what role it plays in connecting generation to the grid.
Power transformers are required at generation stations to raise voltage levels for efficient grid transmission.True
Generators produce power at lower voltages, which must be stepped up using transformers to minimize losses during long-distance transmission.
Generators produce electricity at grid transmission voltages and do not need transformers.False
Most generators produce electricity at 11–33 kV, far lower than transmission grid standards, making transformers necessary for voltage conversion.
1. Generator Output vs. Grid Voltage Requirements
| Generation Type | Typical Output Voltage | Transmission Grid Voltage |
|---|---|---|
| Thermal (coal, gas) | 11–22 kV | 220–400+ kV |
| Hydroelectric | 11–33 kV | 132–400 kV |
| Solar (utility-scale) | DC → 0.4–33 kV AC (post-inverter) | 33–220 kV |
| Wind turbines | 690 V – 33 kV | 66–220 kV |
| Nuclear | 11–24 kV | 400–765 kV |
Why the mismatch?
- Generators are optimized for performance and mechanical limits, not for direct transmission voltage.
- Higher generator voltage would require bulkier insulation, larger winding dimensions, and greater complexity.
Thus, power transformers are mandatory at the generator-switchyard interface to elevate voltage levels.
2. When Is a Transformer Absolutely Required?
| Scenario | Is Transformer Needed? | Why? |
|---|---|---|
| Grid-connected power plant (thermal, hydro) | ✅ Yes | Transmission needs ≥132 kV, generator gives 11–22 kV |
| Solar or wind farm over 1 MW capacity | ✅ Yes | To export to distribution or sub-transmission network |
| Islanded microgrid (e.g., 400 V system) | ❌ Maybe | If local voltage matches end-user loads |
| Diesel genset for backup (<500 kVA) | ❌ No | Supplies directly at 400 V or 230 V |
| Industrial co-generation with grid tie | ✅ Yes | Needed to match industrial and utility voltage |
Any system intending to export power to the utility grid requires voltage step-up via transformer.
3. Key Roles of Power Transformers in Generation
| Function | Grid Integration Role |
|---|---|
| Voltage step-up | Matches generator output to transmission grid |
| Impedance matching | Maintains power quality and fault tolerance |
| Phase synchronization | Aligns generator and grid phase and frequency |
| Isolation and protection | Prevents faults from propagating to the grid |
Transformers also support testing, commissioning, and regulatory compliance during interconnection.
4. Types of Transformers Used in Generation Facilities
| Transformer Type | Application |
|---|---|
| Generator step-up (GSU) transformer | Primary unit to elevate generator voltage |
| Station auxiliary transformer | Feeds station loads at lower voltages |
| Unit auxiliary transformer (UAT) | Supplies internal equipment from generator bus |
| Earthing or grounding transformers | Maintain neutral and fault current paths |
The GSU transformer is the main component linking generator output to the transmission line.
5. Typical GSU Transformer Rating and Configuration
| Parameter | Typical Values for Medium to Large Plants |
|---|---|
| MVA rating | 50–1000 MVA |
| Voltage ratio | 22 kV / 220 kV, or 24 kV / 400 kV |
| Phases | Three-phase (star-delta or delta-star) |
| Cooling | ONAN/ONAF or OFWF depending on capacity |
| Tap changer | OLTC on HV side (±10% range typical) |
GSUs are designed to withstand transient loads, faults, and harmonic effects from generator output.
6. Grid Code Requirements and Interconnection Standards
| Region/Standard | Transformer Requirement |
|---|---|
| IEEE 1547 (USA) | Requires proper isolation, voltage matching |
| IEC 60076 (Global) | Specifies transformer performance and safety ratings |
| National Grid Codes | Mandate use of GSU transformers for synchronization |
| Renewable PPAs/Grid codes | Require step-up to feeder voltages for export |
Utility operators will not permit direct connection without compliant voltage transformation and protection via transformer.
7. Additional Functions of Transformers in Generation Stations
| Function | Description |
|---|---|
| Voltage regulation during export | Ensures stable voltage via tap changer |
| Transformer monitoring | DGA, temperature sensors for predictive failure |
| Fault isolation | Protects grid during internal generator faults |
| Reactive power support | Helps balance power factor, depending on design |
Summary Table: When and Why a Power Transformer Is Needed in Generation
| Condition | Need for Transformer? | Reason |
|---|---|---|
| Generator voltage < grid voltage | ✅ Yes | Step-up needed for efficient transmission |
| Grid interconnection required | ✅ Yes | Ensures voltage and phase match |
| On-site load only, same voltage | ❌ Not always | May operate without transformer if load compatible |
| Large-scale solar or wind export | ✅ Yes | Must meet feeder voltage and code compliance |
| Microgrid or backup-only genset | ❌ No | Local voltage suffices, no export involved |

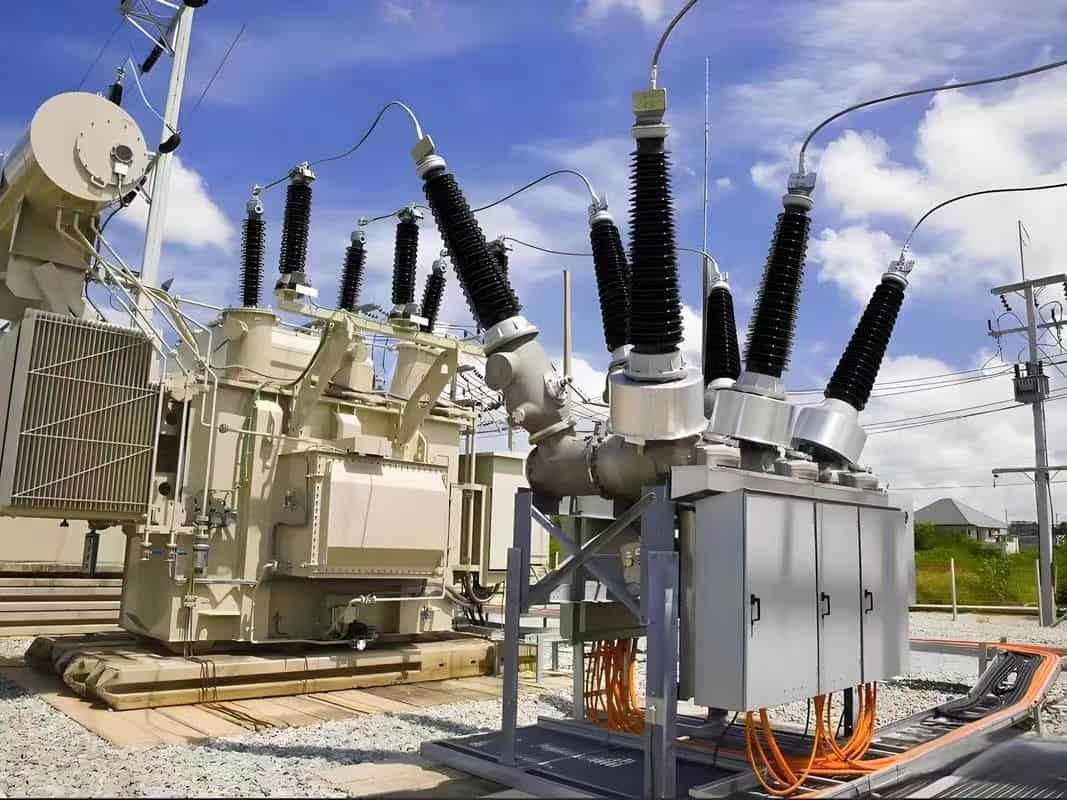

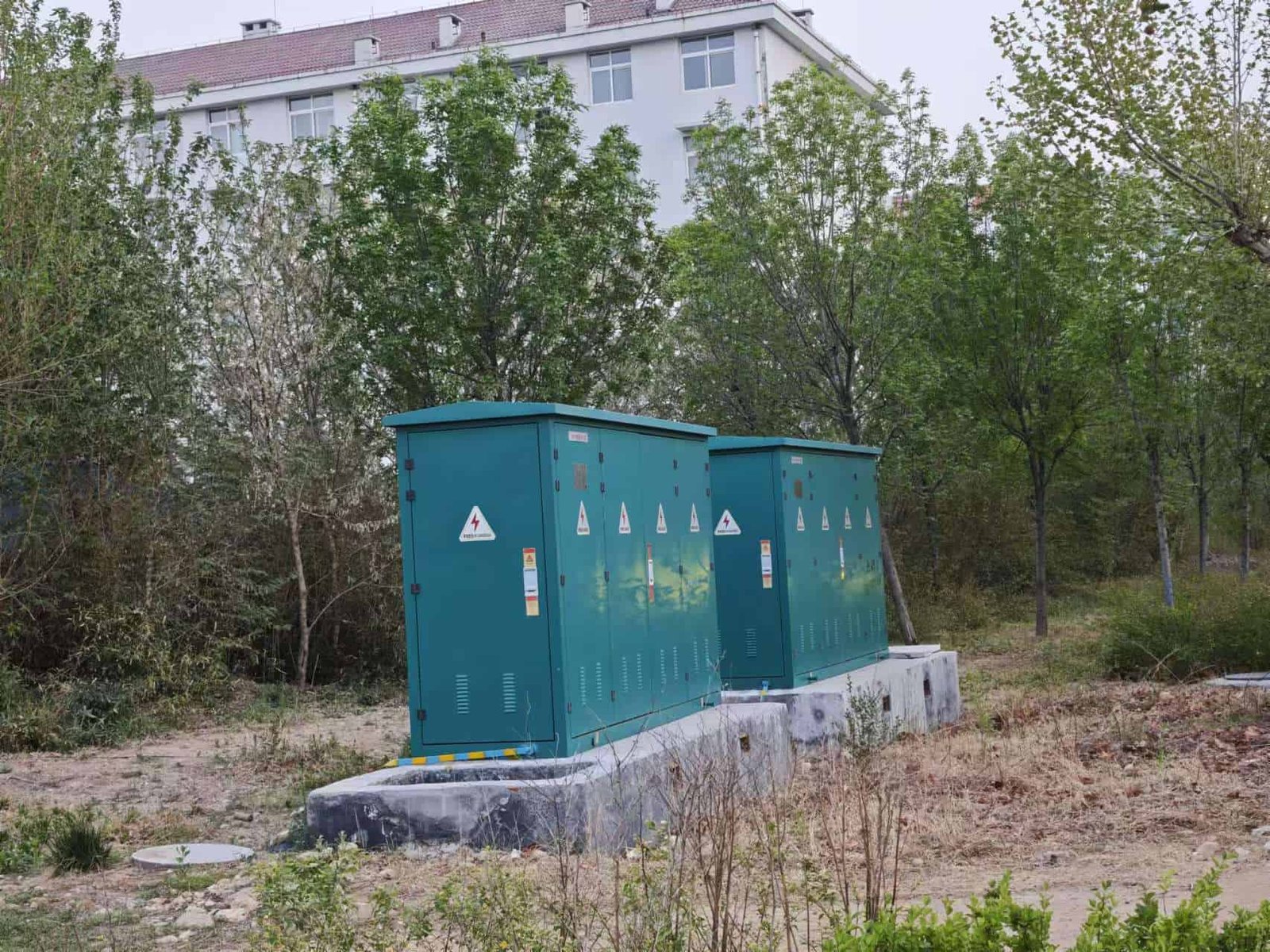

When Should a Power Transformer Be Used in Substations?
Substations are the nerve centers of power transmission and distribution networks. They interconnect various parts of the grid, manage voltage levels, control power flow, and ensure reliability. At the heart of many substations lies a power transformer—a crucial component that allows for voltage adjustment between transmission, sub-transmission, and distribution levels. Knowing when and why to use a power transformer in a substation is essential for system planners, utility engineers, and industrial facility managers aiming to build or expand their power systems.
A power transformer should be used in a substation when voltage conversion between two high-voltage levels is required to link transmission and distribution systems, interconnect regional grids, or supply power to industrial loads at specific voltages. Transformers in substations enable efficient energy transfer, voltage regulation, load balancing, grid protection, and system isolation.
This article details the scenarios, functions, and decision criteria for deploying power transformers in substations—from utility-scale interconnections to industrial feeders.
Power transformers in substations are used when high-voltage voltage conversion is needed for grid interconnection or load distribution.True
They allow substations to serve as voltage transition points, ensuring compatibility across different parts of the grid.
Power transformers in substations are optional and mainly used for backup purposes.False
Transformers are fundamental to the operation of many substations, especially where voltage level changes are necessary.
1. Understanding the Role of Substations in Power Systems
| Substation Type | Main Function |
|---|---|
| Transmission substation | Connects high-voltage lines (e.g., 400/220 kV) |
| Distribution substation | Steps voltage down to 33/11 kV for delivery |
| Collector substation | Aggregates power from renewable plants |
| Industrial substation | Feeds large industrial loads (e.g., 33/6.6 kV) |
Transformer Placement:
- Power transformers are used where voltage must change between HV levels.
- Not used in switching-only substations (no voltage transformation).
2. When Is a Power Transformer Required in a Substation?
| Situation | Use of Transformer | Reason |
|---|---|---|
| Interconnecting two voltage levels (e.g., 400/220 kV) | ✅ Required | To match transmission levels between regions |
| Supplying 33 kV distribution from 132 kV grid | ✅ Required | To step down voltage for local feeders |
| Switching power between same-voltage lines | ❌ Not needed | No voltage conversion involved |
| Isolating industrial loads with unique voltage needs | ✅ Required | To customize delivery voltage (e.g., 33 → 6.6 kV) |
| Back-to-back HVDC or synchronous tie-in | ✅ Required | Special transformers support conversion/interface |
If voltage levels change, a transformer is essential in the substation design.
3. Core Functions of Power Transformers in Substations
| Function | Grid Benefit |
|---|---|
| Voltage transformation | Enables voltage compatibility across systems |
| Load balancing | Transfers power from surplus to demand regions |
| Grid segmentation | Provides electrical isolation for protection |
| Protection coordination | Allows proper relay and breaker operation |
| Efficiency improvement | Minimizes loss during voltage transitions |
Power transformers help maintain system stability, energy efficiency, and safety in high-voltage networks.
4. Typical Voltage Levels and Applications
| Transformer Rating | Substation Type | Application |
|---|---|---|
| 400/220 kV, 500 MVA | EHV Transmission Substation | National grid interconnection |
| 220/132 kV, 250 MVA | Regional Substation | Transmission down to sub-transmission |
| 132/33 kV, 100 MVA | Primary Distribution Substation | Supplies feeders to urban or rural zones |
| 33/11 kV, 20 MVA | Secondary Substation | Last mile voltage drop for local grids |
| 33/6.6 kV, 10 MVA | Industrial Substation | Powers process motors, furnaces, and drives |
Ratings depend on network voltage standards, load capacity, and redundancy requirements.
5. Special Cases: When Transformers Are Not Used
| Case | Explanation |
|---|---|
| Switching-only substations | No voltage conversion, only routing function |
| GIS without transformer | Used for compact switching in confined areas |
| Direct generation at distribution voltage | Generators directly feed into 11/33 kV systems |
In such rare cases, the system design must ensure voltage compatibility and protection coordination through alternate means.
6. Protection and Control with Substation Transformers
| Feature | Purpose |
|---|---|
| Buchholz relay | Detects internal faults and triggers trip |
| Differential protection | Senses imbalance between input/output currents |
| Cooling system monitoring | Prevents thermal overload |
| Tap changers (OLTC) | Maintains voltage output under varying load |
Integration:
- Tied into SCADA systems, relay panels, and remote diagnostic platforms
Ensures that the transformer operates safely and reliably under all load and fault conditions.
7. Example: 220/66 kV Transmission Substation Configuration
| Component | Description |
|---|---|
| Incoming 220 kV lines | High-voltage power from national grid |
| GSU transformer (220/66 kV) | Steps voltage down for sub-transmission region |
| Circuit breakers | Protect both HV and LV sides of transformer |
| Control room + SCADA | Monitors transformer status and grid power flow |
Such a setup allows regional load centers to be connected efficiently to the main grid.
Summary Table: When to Use a Power Transformer in Substations
| Condition | Use Transformer? | Why? |
|---|---|---|
| Voltage change needed | ✅ Yes | For matching HV and MV systems |
| Power routing without voltage change | ❌ No | Switching-only; no transformation required |
| Feeding medium-voltage distribution | ✅ Yes | Supplies usable voltage to feeders |
| Interconnecting regional transmission systems | ✅ Yes | Allows different regions to share energy |
| Substation serves as grid-tie point | ✅ Yes | Voltage adjustment and fault isolation |
| Small facility using one fixed voltage level | ❌ No | May use only switchgear or metering setup |
When Is a Power Transformer Suitable for Industrial Applications?
Industries consume vast amounts of electricity to operate heavy-duty motors, process systems, automation lines, and support infrastructure. However, the power delivered from utilities is often at high or medium voltage levels that are unsuitable for direct use. To bridge this gap, power transformers are deployed to ensure that industrial systems receive electricity at safe, stable, and optimized voltages. Knowing when to use a power transformer is essential for facility designers, energy engineers, and plant operators aiming to ensure performance, safety, and cost efficiency.
A power transformer is suitable for industrial applications when the facility receives power at high voltage (typically 33 kV or above), requires voltage transformation to operate medium- or low-voltage equipment, needs electrical isolation for safety, or handles large, fluctuating loads that demand high-capacity, reliable energy delivery. Power transformers are essential for heavy industries, manufacturing plants, refineries, and data centers to convert and distribute power efficiently.
This article explains the conditions and requirements under which a power transformer is necessary and suitable for industrial installations.
Power transformers are suitable for industrial applications when voltage conversion, load management, and fault isolation are required.True
Most industrial facilities receive high-voltage power that must be converted to usable levels safely and efficiently.
Power transformers are not required in industrial applications if the utility provides power directly.False
Even if the utility delivers medium voltage, transformers are often still needed to step it down further or isolate internal systems.
1. When the Utility Supplies High or Medium Voltage
| Incoming Voltage from Utility | Common Requirement | Need for Power Transformer |
|---|---|---|
| 66/33 kV | Must be stepped down to 11/6.6/0.4 kV | ✅ Yes |
| 11 kV | May supply directly to VFDs or motors, but often still needs isolation or voltage regulation | ✅ Usually |
| 400 V | For small industrial units only | ❌ No, transformer may not be required |
If your utility feed is above the rated operating voltage of your equipment, a power transformer is necessary to bring it within the safe and functional range.
2. When the Industrial Load Is High or Fluctuating
| Industrial Load Condition | Transformer Role |
|---|---|
| Large motors or furnaces (e.g., 500 kW+) | Supplies high current at stable voltage |
| Peak shifting or demand cycles | OLTC-equipped transformers regulate voltage dynamically |
| Harmonic-rich equipment (VFDs, welders) | Special core designs minimize distortion and heating |
Power transformers ensure stable energy supply during large current inrush or variable load operation.
3. When Voltage Isolation Is Required for Safety
| Isolation Scenario | Transformer Function |
|---|---|
| Internal electrical separation | Prevents propagation of faults from utility grid |
| Grounding and neutral system control | Enables flexible earthing arrangements |
| Safety zoning between equipment | Provides potential barrier and personal protection |
Isolation transformers protect sensitive devices and workers from electrical hazards.
4. When Multiple Voltage Levels Are Needed
| Example Requirement | Transformer Configuration |
|---|---|
| 33 kV input → 11 kV and 6.6 kV output | Dual secondary winding transformer |
| Internal 6.6 kV motor and 400 V control panel | Requires two-stage voltage reduction |
| 11 kV substation with 400 V plant loads | Power transformer feeds MCCs or LT panels |
One power transformer can be configured to serve diverse operational zones, reducing overall system complexity.
5. When Long-Term Efficiency and Cost Saving Is Desired
| Transformer Efficiency Feature | Impact on Industrial Operations |
|---|---|
| CRGO or amorphous metal core | Reduces no-load losses |
| Proper kVA sizing | Avoids overloading and underutilization |
| ONAN or ONAF cooling | Supports higher duty cycles without overheating |
Using energy-efficient transformers directly translates to lower energy bills and less downtime.
6. When Monitoring and Control Are Needed
| Monitoring Feature | Industrial Use Case |
|---|---|
| SCADA/IoT connectivity | Real-time alerts for overload or overheating |
| Tap changer feedback | Enables voltage adjustments during variable demand |
| DGA and oil analysis | Predictive maintenance to prevent unplanned outages |
Transformers with built-in monitoring improve reliability and responsiveness in critical production lines.
7. Industries That Commonly Use Power Transformers
| Industry Sector | Transformer Requirement Example |
|---|---|
| Steel and metallurgy | 33 kV → 6.6 kV for arc furnaces and rolling mills |
| Cement plants | 132 kV → 11 kV for crushers, kilns, conveyors |
| Petrochemicals | 66 kV → 11/6.6 kV for pumps, compressors, cooling |
| Food and beverage | 33 kV → 400 V for packaging lines and refrigeration |
| Textile industry | 11 kV → 400 V for spinning, looms, HVAC |
| Data centers | 33 kV → 11 kV → 400 V for UPS and HVAC zones |
Any process involving continuous operation, heavy equipment, or mission-critical loads requires a power transformer.
8. Case Example: Steel Plant Power Distribution
| System Element | Voltage Level | Equipment Powered |
|---|---|---|
| Main incoming supply | 132 kV | Grid or dedicated feeder |
| Step-down power transformer | 132/33 kV, 100 MVA | Supplies all plant systems |
| Substation transformers | 33/6.6 kV, 25 MVA | Arc furnace, rolling mill, drive systems |
| Control power transformer | 6.6/0.4 kV | PLC, SCADA, lighting, communication panels |
This layout shows layered voltage reduction, supported by power transformers at each level for efficiency and protection.
Summary Table: When to Use Power Transformers in Industry
| Industrial Condition | Transformer Needed? | Why? |
|---|---|---|
| Incoming voltage > equipment rating | ✅ Yes | Step-down required to match system voltage |
| High load, motor-intensive operations | ✅ Yes | Stable voltage and current during operation |
| Harmonics or variable-speed drives (VFDs) | ✅ Yes | Requires specialized transformer design |
| Need for fault isolation | ✅ Yes | Ensures electrical protection and safety |
| Multiple operating voltages required | ✅ Yes | Single unit can feed multiple voltage levels |
| Light load, 400 V supply from utility | ❌ No | May operate directly without transformer |
When Do Renewable Energy Systems Require Power Transformers?
Renewable energy systems—like solar farms and wind parks—are transforming the global energy landscape. But to make green electricity usable by the grid and end-users, these systems must match grid voltage standards, ensure safety, and manage dynamic output levels. This is where power transformers become essential. Whether in a remote wind farm or a massive solar installation, transformers enable renewable systems to function reliably and efficiently within larger power networks.
Renewable energy systems require power transformers when they need to increase generator output voltage to match grid transmission levels, distribute power across varying voltage zones, or isolate systems for safety and protection. This includes utility-scale solar and wind projects, hybrid microgrids, and battery-integrated systems where voltage conversion and grid compliance are mandatory.
This article explains when and why transformers are required in renewable energy setups, highlighting their critical role in enabling efficient energy flow, protection, and grid compatibility.
Power transformers are essential in renewable systems when voltage needs to be increased to connect to the transmission or distribution grid.True
Most renewable generators output power at low or medium voltage, and transformers step it up to grid-compatible levels for export.
Small rooftop solar systems can connect directly to the grid without a power transformer.True
For residential or small commercial installations, inverter-connected systems match the utility voltage directly, so power transformers are not always required.
1. When Voltage Must Be Increased for Grid Connection
| Renewable Source | Output Voltage | Grid Connection Requirement |
|---|---|---|
| Solar PV array | 300 V – 1,500 V DC (inverter output: 0.4 kV AC) | Needs step-up to 11–33 kV or higher |
| Wind turbine | 690 V – 33 kV AC | Must be stepped up to 33–220 kV depending on grid location |
Transformer Role:
- Step-up transformers raise output voltage to grid-compatible levels.
Typical configurations:
- 0.4 kV → 11 kV
- 11 kV → 33 kV or 132 kV
Without voltage matching, grid operators will not allow interconnection due to safety and stability concerns.
2. When Power Is Aggregated Across Multiple Sources
| Use Case | Transformer Requirement |
|---|---|
| Solar PV farm with multiple inverter blocks | Collector transformer aggregates output to higher voltage |
| Wind farm with dozens of turbines | Unit transformers consolidate turbine output to substation level |
Example:
- 20 solar inverter outputs at 0.4 kV feed into a 33/132 kV step-up power transformer for export to a regional grid.
Power transformers act as central voltage nodes in distributed renewable architectures.
3. When Safety Isolation Is Needed
| Safety Concern | Transformer Function |
|---|---|
| Grid faults affecting generation | Electrical isolation protects inverters and turbines |
| Fault current suppression | Helps contain faults within system boundaries |
| Earthing control | Allows specific grounding schemes in solar and wind systems |
Isolation transformers are often required by grid codes and safety standards such as IEEE 1547 and IEC 62109.
4. When Renewable Generation Is Utility-Scale
| Plant Size | Typical Requirement |
|---|---|
| >1 MW (utility-scale solar or wind) | Power transformer required for grid compliance |
| 10 kW – 1 MW (C\&I systems) | Transformer may be required depending on connection voltage |
| <10 kW (residential rooftop) | Often no transformer; inverter connects at 230 V |
Grid Standards:
- Utility-scale plants must export at 33, 66, 132, or 220 kV.
- Only possible using step-up transformers.
5. When Integrating Energy Storage or Microgrids
| Configuration | Transformer Role |
|---|---|
| Solar + battery hybrid | Matches inverter output to distribution voltage |
| Off-grid wind-diesel hybrid | Allows voltage balancing and protection |
| Grid-tied microgrid | Enables bidirectional flow and safe islanding |
Transformers ensure power quality, system isolation, and voltage coordination in hybrid and microgrid setups.
6. When Reactive Power Control and Voltage Stability Are Needed
| Voltage Regulation Issue | Transformer Solution |
|---|---|
| Fluctuations from solar output | OLTC (on-load tap changer) adjusts voltage dynamically |
| Wind variability causes voltage swings | Transformer impedance stabilizes power delivery |
Some transformers are equipped with voltage control features to help renewables maintain grid stability.
7. Comparison Table: When Renewable Systems Need Transformers
| Renewable Setup | Power Transformer Needed? | Reason |
|---|---|---|
| Residential rooftop solar (5 kW) | ❌ Not typically | Grid-tied inverter matches voltage directly |
| 100 kW solar for commercial site | ✅ Often | Steps up from 0.4 kV to 11 or 33 kV |
| 10 MW solar farm | ✅ Yes | Required for 33 kV+ export to distribution/transmission grid |
| Wind farm with 20 turbines | ✅ Yes | Collector and step-up transformers are essential |
| Islanded wind-solar microgrid | ✅ Yes | Isolation and voltage regulation required |
8. Example: Solar Farm Interconnection
| Component | Voltage Level | Transformer Used |
|---|---|---|
| Solar array → inverter | 1,000 V DC → 0.4 kV AC | Inverter duty transformer (if isolated) |
| Field collector | 0.4 kV → 11 kV | Distribution transformer |
| Main substation transformer | 11 kV → 132 kV | Power transformer for grid export |
This configuration ensures minimal energy loss and full regulatory compliance.
Summary Table: When Do Renewable Energy Systems Require Power Transformers?
| Condition | Transformer Required? | Why? |
|---|---|---|
| Grid voltage differs from generator voltage | ✅ Yes | Step-up transformation needed |
| Utility-scale generation (>1 MW) | ✅ Yes | Voltage matching and safety compliance |
| Aggregated outputs from multiple units | ✅ Yes | Collector and feeder transformers required |
| Grid export through high-voltage feeders | ✅ Yes | Ensures efficient and compliant transmission |
| Direct low-voltage grid tie (e.g., 230 V) | ❌ No | Only inverter-based conversion is needed |
When Is a Power Transformer Preferred Over a Distribution Transformer?
In electrical systems, choosing the right transformer type is essential for efficiency, safety, and performance. Power transformers and distribution transformers serve different functions within the grid, and selecting the wrong one can result in inefficiency, energy loss, or operational hazards. While both types transform voltage levels, they differ in application, capacity, duty cycle, and design intent. So, when is a power transformer the preferred choice?
A power transformer is preferred over a distribution transformer when large-scale voltage transformation is needed at high voltages (above 33 kV), typically for transmission or sub-transmission applications. It is also chosen for high-load, full-capacity, or continuous-duty operations such as in generation stations, transmission substations, and industrial complexes, where efficiency under peak load and thermal stability are critical.
This article explains the conditions, environments, and technical reasons why power transformers are selected over distribution transformers in grid and industrial systems.
Power transformers are used in transmission networks where high-voltage and high-capacity voltage transformation is required.True
They are designed for full-load efficiency, higher voltages, and continuous operation in transmission substations and power plants.
Distribution transformers are preferred for high-voltage generation and long-distance transmission.False
Distribution transformers are designed for lower voltage levels and localized load distribution, not bulk energy transfer.
1. Voltage Level and Grid Position
| Parameter | Power Transformer | Distribution Transformer |
|---|---|---|
| Voltage rating | Typically > 33 kV (e.g., 132/66/33 kV) | < 33 kV (e.g., 11/0.4 kV) |
| Grid location | Transmission and sub-transmission | Distribution and end-user access |
| Voltage transition type | HV–HV | HV–LV or MV–LV |
Power transformers are selected where bulk voltage transformation is required at higher levels, such as from 220 kV to 66 kV.
2. Load Profile and Duty Cycle
| Load Characteristic | Power Transformer | Distribution Transformer |
|---|---|---|
| Load type | Near-constant full load | Variable, intermittent, or partial |
| Duty cycle | Continuous | Intermittent or fluctuating |
| Peak efficiency | At or near full load | At 50–75% of rated load |
If the system operates 24/7 under near-constant load, a power transformer provides better thermal management and energy efficiency.
3. Size and Capacity
| Characteristic | Power Transformer | Distribution Transformer |
|---|---|---|
| Capacity range | 100 MVA to 1,000+ MVA | 10 kVA to 5 MVA |
| Application scale | Grid-level, utility-scale, industrial | Neighborhood or small plant level |
Power transformers are suited for large power handling, such as connecting power plants to the grid.
4. Operational Environment
| Condition | Preferred Transformer Type |
|---|---|
| High-load transmission substation | Power Transformer |
| Generation switchyard | Power Transformer |
| Residential street corner | Distribution Transformer |
| Small commercial center | Distribution Transformer |
| Industrial plant requiring 132 kV input | Power Transformer |
Transformers are selected based on both voltage and load demand at the point of use.
5. Efficiency and Thermal Considerations
| Feature | Power Transformer | Distribution Transformer |
|---|---|---|
| Cooling method | ONAN/ONAF/OFWF | ONAN |
| Loss design | Low no-load and load losses at full load | Optimized for lower average load |
| Insulation | Designed for HV thermal stress | Designed for LV/medium voltage |
Power transformers are built with materials and designs that withstand high voltage and continuous thermal loads.
6. Control and Protection Requirements
| Feature | Power Transformer | Distribution Transformer |
|---|---|---|
| On-load tap changer (OLTC) | Common | Rare |
| Smart monitoring (SCADA-ready) | Often included | Optional or external |
| Differential/Buchholz relay | Required | Typically not included |
Where remote control, protection, and voltage regulation are needed, power transformers are preferred.
7. Use Case Examples
| Scenario | Preferred Transformer | Why? |
|---|---|---|
| Power generation station output (22 kV → 220 kV) | ✅ Power Transformer | High voltage step-up needed for transmission |
| Substation serving 33 feeders at 11 kV | ✅ Power Transformer | Regional distribution requires HV handling |
| Street-level residential block | ❌ Distribution Transformer | Lower voltage and variable load |
| Industrial plant drawing 20 MVA at 132 kV | ✅ Power Transformer | High continuous load at transmission level |
| School building with 500 kVA load | ❌ Distribution Transformer | Limited load and localized demand |
8. Comparison Table: Power vs. Distribution Transformer
| Feature | Power Transformer | Distribution Transformer |
|---|---|---|
| Voltage level | HV–HV | HV–LV |
| Rated capacity | 100–1000+ MVA | 10–5000 kVA |
| Application | Generation, transmission | Local delivery, small networks |
| Efficiency peak | At full load | At 50–70% load |
| Duty cycle | Continuous | Variable |
| Tap changer | OLTC (automatic) | Manual or absent |
| Protection relays | Advanced (differential, REF) | Basic fusing |
| Physical size | Large | Compact |
When Do Grid Expansion or Upgrades Call for Power Transformers?
As electricity demand rises due to urbanization, industrialization, and electrification of transport, power grids must expand or be upgraded to deliver more energy reliably and efficiently. These expansion efforts—whether integrating new regions, increasing load capacity, or connecting renewable sources—almost always require the strategic deployment or replacement of power transformers. Their role in handling voltage conversion, grid stability, and system protection makes them critical components in scalable and secure grid infrastructure.
Grid expansion or upgrades call for power transformers when new transmission lines are introduced, substations are built or upgraded, generation capacity is added, load growth exceeds current transformer ratings, voltage levels need adjustment, or renewable energy systems require grid interconnection. Transformers are essential to ensure that the expanded or upgraded grid operates efficiently, safely, and in compliance with system voltage and load standards.
This article explains the specific scenarios in which power transformers become necessary during grid development projects and infrastructure modernization efforts.
Power transformers are required in grid expansion when new substations, voltage upgrades, or increased capacity is involved.True
They facilitate voltage transitions, load balancing, and protection functions needed in an expanded or modernized grid.
Grid expansions can rely solely on existing transformers without adding new ones.False
New transformers are often essential to match upgraded voltage levels, handle increased load, and interconnect new regions or generation sources.
1. When New Transmission or Sub-Transmission Lines Are Introduced
| Expansion Element | Power Transformer Role |
|---|---|
| 220 kV line added to new area | Step-down transformer required at termination point |
| 400 kV interregional link | Step-up/down transformer needed at both ends |
Use Case:
A new city is connected to the grid via a 220 kV line. A 220/66 kV transformer is installed at the receiving substation to feed local 66 kV feeders.
Every time a new voltage corridor is created, transformers are required to bridge and regulate voltage levels.
2. When New Load Zones Are Connected
| Scenario | Transformer Need |
|---|---|
| Urban sprawl or new township | 220/33 kV or 132/11 kV transformer for local supply |
| Industrial estate development | 220/66/33 kV step-down transformer for heavy loads |
Why:
- Load zones require stable voltage and capacity matching.
- Transformers are scaled to meet anticipated demand growth.
Planning ahead ensures transformers are not under- or over-utilized.
3. When Existing Transformers Reach Load Limits
| Trigger | Transformer Action |
|---|---|
| Overloaded transformer | Install parallel transformer or upgrade MVA rating |
| Voltage drop under peak load | Install larger transformer or upgrade OLTC |
Solution Example:
- A 100 MVA 132/33 kV transformer is replaced with a 160 MVA unit.
- Alternatively, a second unit is added for load sharing and redundancy.
This upgrade improves system resilience, capacity, and loss performance.
4. When Grid Voltage Levels Are Upgraded
| Voltage Migration Scenario | Transformer Response |
|---|---|
| From 132 kV to 220 kV | Replace or add 220/132 kV transformers |
| From 33 kV to 66 kV | Add 66/33 kV transformers to support intermediate step |
Transformers ensure voltage compatibility between legacy systems and new standards.
5. When Integrating New Generation or Renewable Sources
| Generation Type | Transformer Needed |
|---|---|
| Utility-scale solar (e.g., 20 MW) | Step-up transformer (e.g., 33/132 kV) |
| New thermal/hydro plant | Generator step-up transformer (e.g., 11/220 kV) |
Collector Station:
- Power transformer connects generation buses to transmission feeders.
Without step-up transformers, clean or conventional generation cannot feed the grid.
6. When Building New Substations
| Substation Purpose | Transformer Required |
|---|---|
| Distribution hub | 132/33 kV or 66/11 kV power transformer |
| Interconnection point | 220/132/66 kV transformer banks |
| Renewable collector | 33/132 kV or 66/220 kV transformer |
Substations cannot operate without transformers if voltage levels vary across inlets and outlets.
7. When Grid Redundancy and Reliability Must Improve
| Reliability Need | Transformer Solution |
|---|---|
| N-1 redundancy requirement | Add second transformer unit |
| Alternate feed arrangements | Create transformer-based tie between regions |
Example:
Adding a second 132/33 kV transformer to maintain supply even if one unit fails.
Enhances grid resilience and customer supply security.
8. Summary Table: When Grid Expansion Requires Power Transformers
| Grid Development Condition | Power Transformer Required? | Why? |
|---|---|---|
| New transmission line | ✅ Yes | Voltage transition required |
| Expansion into new city or rural area | ✅ Yes | Substation delivery voltage must be established |
| Renewable energy connection | ✅ Yes | Step-up voltage to grid level |
| Substation construction | ✅ Yes | Voltage change and load delivery |
| Voltage upgrade (e.g., 132 kV → 220 kV) | ✅ Yes | Transformers match old and new voltage tiers |
| Load exceeds existing transformer capacity | ✅ Yes | Need for higher MVA or parallel unit |
| Small consumer-level distribution expansion only | ❌ No | Handled by distribution transformers or switchgear |
Conclusion
You should use a power transformer whenever large-scale voltage conversion is required, especially in high-voltage transmission, heavy industry, or renewable energy systems. These transformers play a critical role in ensuring that electricity flows smoothly and efficiently from generation to consumption. Knowing when and where to use them is key to building a resilient and effective power infrastructure.
FAQ
Q1: When is a power transformer typically used?
A1: Power transformers are used when high-voltage energy transfer is required, especially in transmission and substation networks. They are essential for stepping up voltage at generation points and stepping down voltage at substations before local distribution.
Q2: What are the ideal conditions for using a power transformer?
A2: Use a power transformer when:
Voltage exceeds 33 kV
Load is constant or nearly constant (as in grid systems)
Long-distance transmission is needed
Efficiency and low-loss transmission are critical
Connecting renewable or industrial energy sources to the grid
Q3: How does a power transformer differ from a distribution transformer in usage?
A3: Power transformers are designed for bulk energy transfer over long distances at high voltages, typically operating at full load, while distribution transformers are used for final voltage reduction to supply homes and businesses, often running under variable loads.
Q4: What applications require power transformers?
A4: Power transformers are commonly used in:
Electric power generation stations
Transmission substations
Renewable energy plants (solar, wind)
Heavy industries with large-scale power needs
HVDC converter stations and interregional power networks
Q5: Why is using a power transformer important for grid reliability?
A5: Power transformers ensure:
Efficient voltage regulation
Reduced transmission losses
Stable and safe energy flow
Integration of various energy sources into the grid
They are a backbone component in ensuring continuous and scalable power delivery.
References
"Power Transformer Applications and When to Use Them" – https://www.transformertech.com/when-to-use-power-transformers – Transformer Tech
"How and When Power Transformers Are Used" – https://www.powermag.com/use-of-power-transformers – Power Magazine
"Difference Between Power and Distribution Transformers" – https://www.electrical4u.com/power-vs-distribution-transformer – Electrical4U
"High Voltage Applications of Power Transformers" – https://www.researchgate.net/high-voltage-transformer-usage – ResearchGate
"Conditions for Using Power Transformers Effectively" – https://www.sciencedirect.com/power-transformer-applications – ScienceDirect
"Smart Grid Support with Power Transformers" – https://www.smartgridnews.com/power-transformers-smart-grid – Smart Grid News
"Energy Central: When to Choose a Power Transformer" – https://www.energycentral.com/c/ee/when-to-use-power-transformers – Energy Central
"PowerGrid: Optimal Use of Power Transformers" – https://www.powergrid.com/using-power-transformers-right-way – PowerGrid
